Maytronics Dolphin Edge Parts

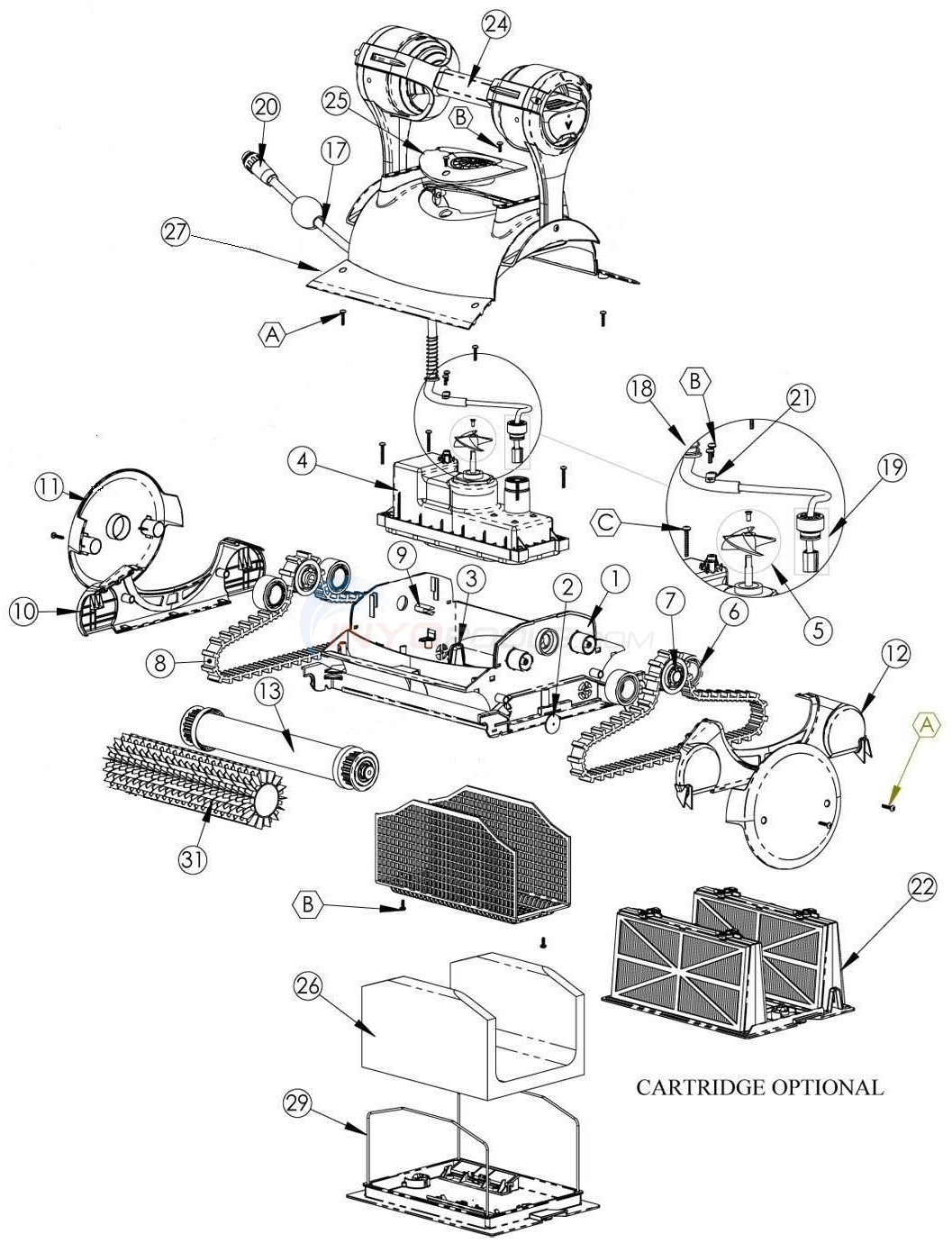

Maytronics Dolphin Edge Diagram

Click to zoom in

Diagram #	Part Title
1	FRAME 2008
2	Diag.basic - Non Return Diafragm
3	CARTRIDGE CORK
4	MOTOR DIAG. 3HR. RECONDITIONED
5	USE 9995266-R1IMPELLER+SCREW BLACK FOR DLX-4/5
6	Single Guide Wheel (3884997) Single Wheel Only!
7	SINGLE DRIVE PULLEY
8	Timing Track, Gray (9985006)
9	Hexagon Adaptor
10	SIDE PANEL MCC5 RED
11	Side Cover Dx6 Grey
12	SIDE PANEL OVER MOLD MCC5 RED
13	Diag Basic Wheel Tube Assy
17	CABLE DYN 18M ASSY
18	Spring For Cable 3 Wires
19	Retrofit For Cable Conn.-3 Pin
20	Amphenol Plug
21	Cable Holder For Diag. Basic
22	DX6 BOTTOM LID CARTRIDGE ASSEMBLY & 4 FILTERS, 5-7/8" TALL
24	HANDLE ASSY EDGE
25	IMPELLER COVER MMC5 RED
26	70 MICRON FILTER BAG
27	OUTER CASING - EDGE
29	Bottom Lid Assy Dlx4/dlx5
31	Pvc Brush, Gray
*	Diag Basic Power Supply
*	Caddy For Diagnostic Basic
*	Dolphin Caddy
*	Residential Dolphin Caddy

View Parts List

Diagram #	Part Title
1	FRAME 2008
2	Diag.basic - Non Return Diafragm
3	CARTRIDGE CORK
4	MOTOR DIAG. 3HR. RECONDITIONED
5	USE 9995266-R1IMPELLER+SCREW BLACK FOR DLX-4/5
6	Single Guide Wheel (3884997) Single Wheel Only!
7	SINGLE DRIVE PULLEY
8	Timing Track, Gray (9985006)
9	Hexagon Adaptor
10	SIDE PANEL MCC5 RED
11	Side Cover Dx6 Grey
12	SIDE PANEL OVER MOLD MCC5 RED
13	Diag Basic Wheel Tube Assy
17	CABLE DYN 18M ASSY
18	Spring For Cable 3 Wires
19	Retrofit For Cable Conn.-3 Pin
20	Amphenol Plug
21	Cable Holder For Diag. Basic
22	DX6 BOTTOM LID CARTRIDGE ASSEMBLY & 4 FILTERS, 5-7/8" TALL
24	HANDLE ASSY EDGE
25	IMPELLER COVER MMC5 RED
26	70 MICRON FILTER BAG
27	OUTER CASING - EDGE
29	Bottom Lid Assy Dlx4/dlx5
31	Pvc Brush, Gray
*	Diag Basic Power Supply
*	Caddy For Diagnostic Basic
*	Dolphin Caddy
*	Residential Dolphin Caddy

Available Parts:

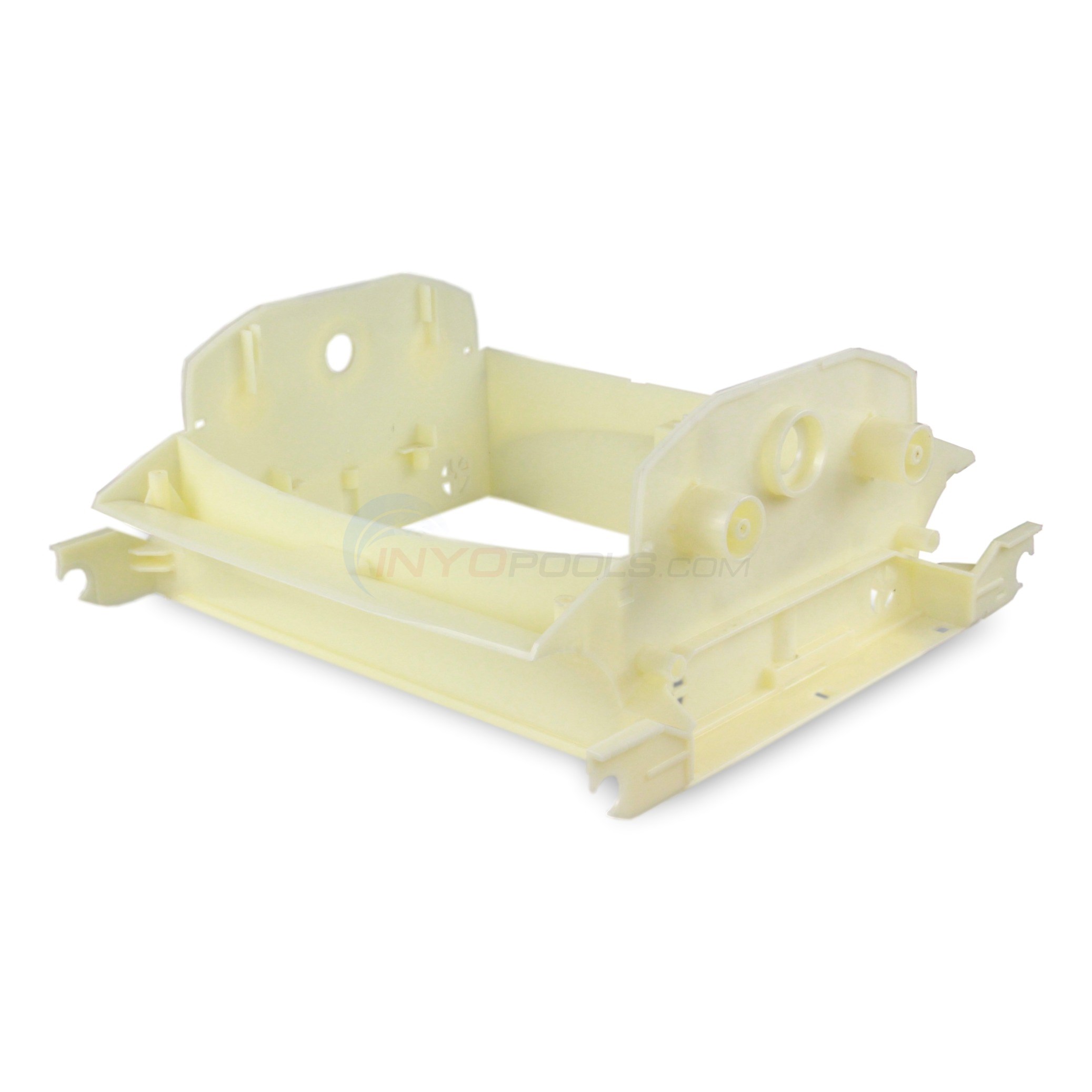

FRAME 2008

Part # 9980630

$37.84 IN STOCK

Qty:

Diag.basic - Non Return Diafragm

Part # 3295-257 Mfg # 9980220

Diag.basic - Non Return Diafragm

$20.99 IN STOCK

Qty:

CARTRIDGE CORK

Part # 9985448

$14.69 IN STOCK

Qty:

MOTOR DIAG. 3HR. RECONDITIONED

Part # 9995372RD-EX Mfg # 9995372RD-EX

MOTOR DIAG. 3HR. RECONDITIONED

$288.39 OUT OF STOCK

*USE 9995266-R1*IMPELLER+SCREW BLACK FOR DLX-4/5

Part # 9995266

*USE 9995266-R1*IMPELLER+SCREW BLACK FOR DLX-4/5

$20.25 IN STOCK

Qty:

Single Guide Wheel (3884997) Single Wheel Only!

Part # 3295-454 Mfg # 3884997

Single Guide Wheel (3884997) Single Wheel Only!

$40.94 IN STOCK

Qty:

SINGLE DRIVE PULLEY

Part # 3295-456 Mfg # 3883645

SINGLE DRIVE PULLEY

$28.91 IN STOCK

Qty:

Timing Track, Gray (9985006)

Part # 3295-133 Mfg # 9985006-R2

Timing Track, Gray (9985006)

$58.39 IN STOCK

Qty:

Hexagon Adaptor

Part # 3295-194 Mfg # 3865005

Hexagon Adaptor

$20.99 IN STOCK

Qty:

SIDE PANEL MCC5 RED

Part # 99806413

SIDE PANEL MCC5 RED

$88.99 OUT OF STOCK

Side Cover Dx6 Grey

Part # 3295-269 Mfg # 99806211

Side Cover Dx6 Grey

$55.99 OUT OF STOCK

SIDE PANEL OVER MOLD MCC5 RED

Part # 99806263

SIDE PANEL OVER MOLD MCC5 RED

$103.99 OUT OF STOCK

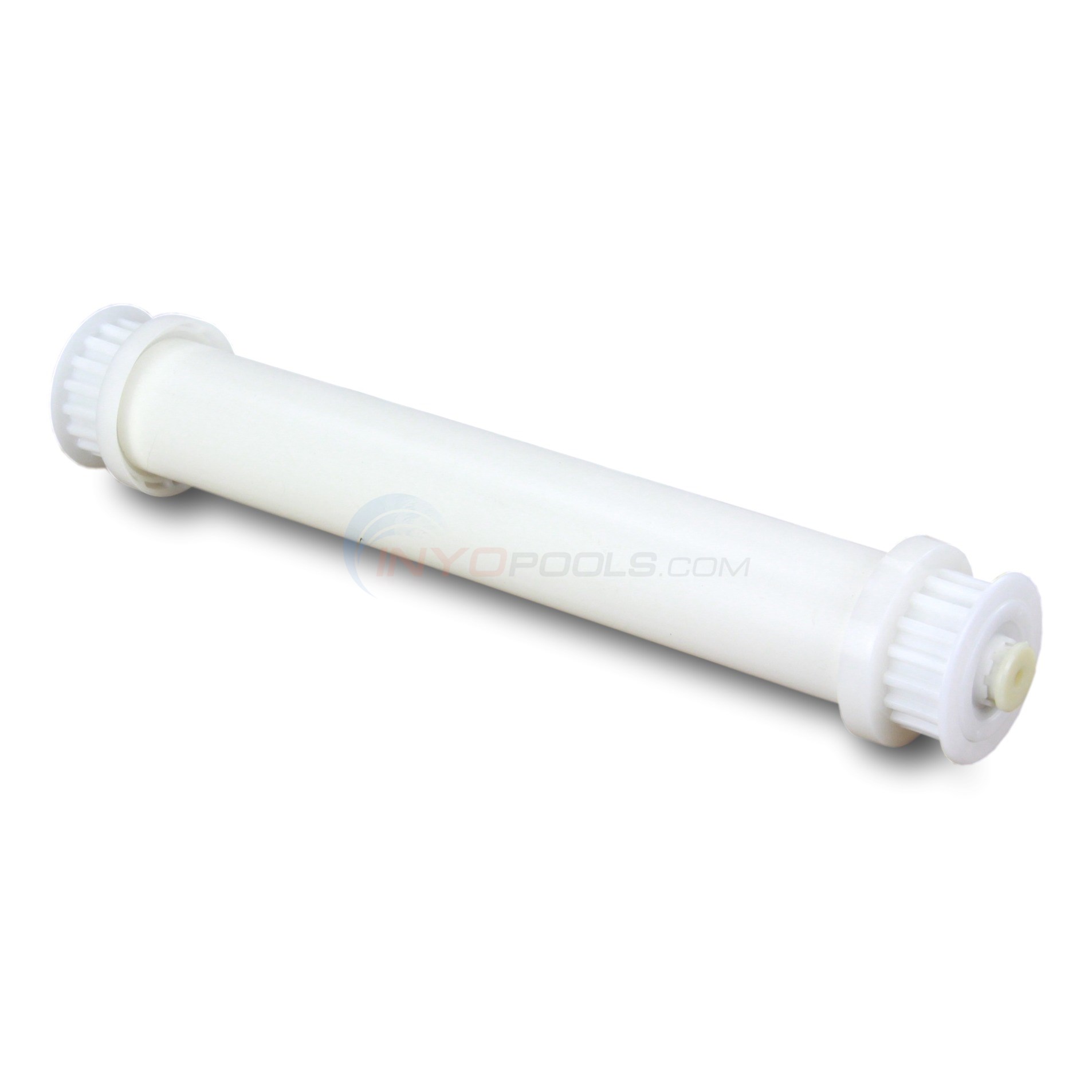

Diag Basic Wheel Tube Assy

Part # 3295-131 Mfg # 99955951-ASSY

Diag Basic Wheel Tube Assy

$52.47 IN STOCK

Qty:

Diag. Basic - Inner Wheel Tube

Part # 3295-233 Mfg # 6101914

Diag. Basic - Inner Wheel Tube

$16.17 OUT OF STOCK

Wheel Tube For D.basic

Part # 3295-231 Mfg # 6101911

Wheel Tube For D.basic

$12.59 OUT OF STOCK

WHEEL BEARING STOPPER RING

Part # 3885000

WHEEL BEARING STOPPER RING

$15.80 IN STOCK

Qty:

SINGLE WHEEL BEARING

Part # 3295-459 Mfg # 3884073-ASSY

SINGLE WHEEL BEARING

$16.21 IN STOCK

Qty:

CABLE DYN 18M ASSY

Part # 9995853-ASSY

CABLE DYN 18M ASSY

$301.99 OUT OF STOCK

CABLE+SWV (RAW) ASSY 18M DYN

Part # 9995872-ASSY

CABLE+SWV (RAW) ASSY 18M DYN

$363.58 IN STOCK

Qty:

CABLE SWV DYN 1.2M'

Part # 9995791-ASSY Mfg # 9995791-ASSY

CABLE SWV DYN 1.2M'

$117.99 OUT OF STOCK

Swivel Dyn 1.2 M Kit Of 5

Part # 3295-422 Mfg # 9995821

Swivel Dyn 1.2 M Kit Of 5

$310.99 OUT OF STOCK

CABLE AND SWV ASSY 18M DYN DC

Part # 9995872-DIY

CABLE AND SWV ASSY 18M DYN DC

$333.14 IN STOCK

Qty:

CABLE AND SWV ASSY 18M M4

Part # 9995873-DIY

CABLE AND SWV ASSY 18M M4

$330.62 IN STOCK

Qty:

Spring For Cable 3 Wires

Part # 3295-207 Mfg # 3917033

Spring For Cable 3 Wires

$11.99 IN STOCK

Qty:

Retrofit For Cable Conn.-3 Pin

Part # 3295-325 Mfg # 9991279

Retrofit For Cable Conn.-3 Pin

$23.09 IN STOCK

Qty:

Cable Conn.three Pin

Part # 3295-298 Mfg # 9985048

Cable Conn.three Pin

$14.99 OUT OF STOCK

Cable Connector

Part # 3295-001 Mfg # 1811404

Cable Connector

$10.99 OUT OF STOCK

PLASTIC WASHER 7MM X 2MM

Part # 9985027

PLASTIC WASHER 7MM X 2MM

$63.99 OUT OF STOCK

Rk Ring For Cable Conn.

Part # 3295-193 Mfg # 3861002

Rk Ring For Cable Conn.

$21.99 OUT OF STOCK

Washer-inside Dia. 13mm

Part # 3295-254 Mfg # 9980025

Washer-inside Dia. 13mm

$10.99 IN STOCK

Qty:

Amphenol Plug

Part # 3295-218 Mfg # 5000009

$35.33 IN STOCK

Qty:

Cable Holder For Diag. Basic

Part # 3295-289 Mfg # 9982332

Cable Holder For Diag. Basic

$41.99 IN STOCK

Qty:

DX6 BOTTOM LID CARTRIDGE ASSEMBLY & 4 FILTERS, 5-7/8" TALL

Part # 3295-474 Mfg # 9991414-ASSY

DX6 BOTTOM LID CARTRIDGE ASSEMBLY & 4 FILTERS, 5-7/8" TALL

$124.59 IN STOCK

Qty:

HANDLE ASSY EDGE

Part # 99957039-ASSY

HANDLE ASSY EDGE

$88.99 OUT OF STOCK

IMPELLER COVER MMC5 RED

Part # 99806253

IMPELLER COVER MMC5 RED

$70.99 OUT OF STOCK

26

70 MICRON FILTER BAG

Part # 3295-496 Mfg # 99954305-ASSY

70 MICRON FILTER BAG

NOT AVAILABLE

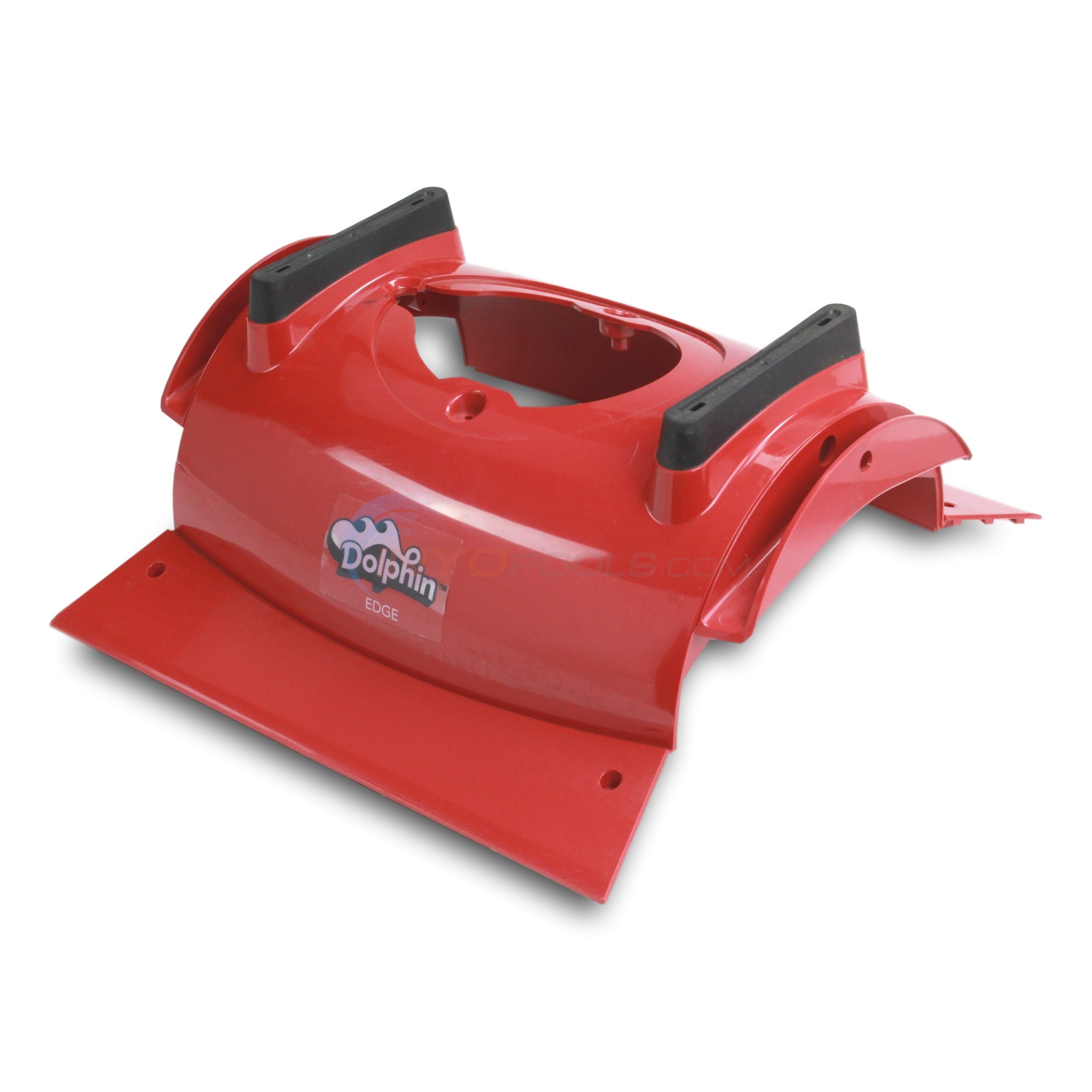

OUTER CASING - EDGE

Part # 99951913

OUTER CASING - EDGE

$165.99 IN STOCK

Qty:

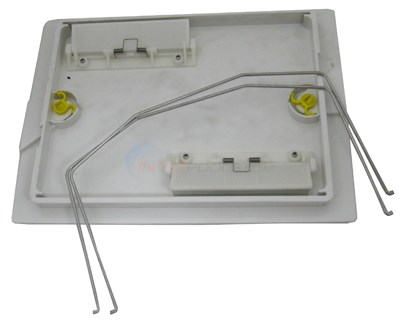

Bottom Lid Assy Dlx4/dlx5

Part # 3295-328 Mfg # 99919117

Bottom Lid Assy Dlx4/dlx5

$43.90 IN STOCK

Qty:

Diag Basic Bottom Lid Latch

Part # 3295-101 Mfg # 9982330

Diag Basic Bottom Lid Latch

$10.73 IN STOCK

Qty:

Bottom Lid Spring

Part # 3295-024 Mfg # 3917014

Bottom Lid Spring

$23.09 IN STOCK

Qty:

Non Return Flap

Part # 3295-126 Mfg # 9985441

Non Return Flap

$17.99 OUT OF STOCK

Base For Non Return Flap - New Bl

Part # 3295-041 Mfg # 9985442

Base For Non Return Flap - New Bl

$31.99 IN STOCK

Qty:

FILTER BAG SUPPORT DJ

Part # 5583077

FILTER BAG SUPPORT DJ

$17.99 OUT OF STOCK

Pvc Brush, Gray

Part # 3295-046 Mfg # 6101602

Pvc Brush, Gray

$26.24 IN STOCK

Qty:

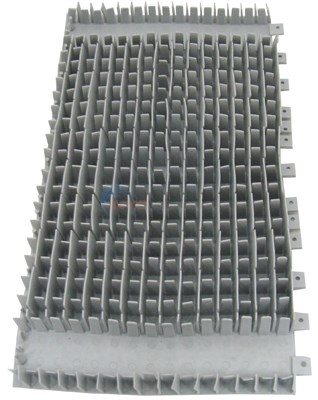

PVC BRUSH, GRAY, COMB DIAG, DX3/DX4 (6101641)

Part # 3295-477 Mfg # 6101641-R2

PVC BRUSH, GRAY, COMB DIAG, DX3/DX4 (6101641)

$62.11 IN STOCK

Qty:

SINGLE CLIMBING RING (6101611)

Part # 3295-457 Mfg # 6101611-R4

SINGLE CLIMBING RING (6101611)

$62.99 IN STOCK

Qty:

BRUSH WB, DIAGNOSTIC

Part # 3295-490 Mfg # 6101610

BRUSH WB, DIAGNOSTIC

$165.82 IN STOCK

Qty:

Diag Basic Power Supply

Part # 9995678-US-ASSY Mfg # 9995678-US-ASSY

Diag Basic Power Supply

$313.99 IN STOCK

Qty:

Caddy For Diagnostic Basic

Part # 3295-125 Mfg # 9996096

Caddy For Diagnostic Basic

$265.99 OUT OF STOCK

Dolphin Caddy

Part # 9996098-ASSY

$251.99 OUT OF STOCK

Residential Dolphin Caddy

Part # 9996089-ASSY

Residential Dolphin Caddy

$119.00 IN STOCK

Qty:

* NOT SHOWN
