Product Description

Note: NOT California Title 20 Compliant. Replace the Whole Pump with Compliant Variable Speed.

The PureLine Prime Plus pool pump is one of our favorite pumps. This work-horse is designed to be energy efficient, quiet, dependable and all of this at a great price. The PureLine Prime Plus Pump is a drop-in replacement for the popular Hayward™ Super II™ Pump. This means there is no realigning of the plumbing, significantly reducing the time and energy it takes to swap out to a new pump.

Frequently Bought with the Pureline Prime Plus

2" Pump Union - PL1647 (We recommend purchasing a quantity of two)

Click here for the Above Ground Pool Version of this Pump

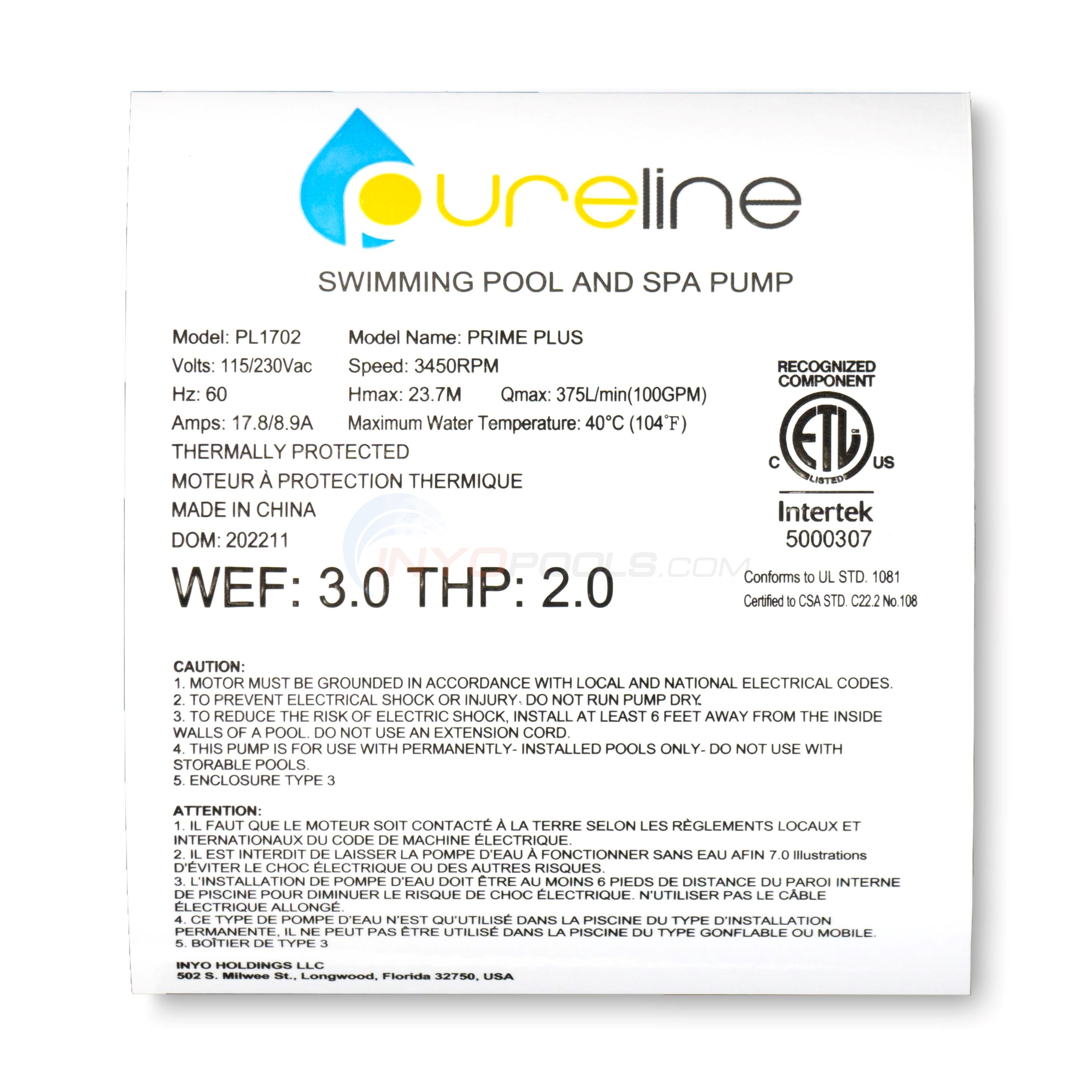

Specifications

• Ports: 2" Female
• Nominal Motor H.P: 2.0 HP
• Total HP: 2.0 HP
• Rated Hydraulic HP (HHP): .877
• W.E.F: 3.0
• True Power Factor: .97
• Voltage: 115/230
• Amps: 17.8/8.9
• R.P.M: 3,450
• Suction lift: Up to 4.26’ above water level

Applications:

• Inground Pools
• Inground Pool & Spa Combinations

Features

• Suction lift up to 4.26’ above water level
• Large 2" Plumbing Ports
• Voltage Switch for easy 115v or 230v wiring
• Strainer basket cover removes easily for cleaning
• Transparent strainer basket cover lets know when basket needs cleaning
• All components molded of corrosion-proof reinforced thermoplastic for extra durability and long life
• Drain plug for easy pump winterization
• Mechanical seals are made from carborundum & graphite for long life and low noise
• Motor shaft is stainless steel grade 304

The Pureline Prime Plus is a great fit for the following pools.

• The pump location is less than 4.26' above the water level.
• The longest single run of pipe on the suction side of the pump does not exceed 60’
• Pools up to 20’ x 40’ in size

The Pureline Pure Flow is NOT a good fit for the following pools.

• The pump location is greater than 4.26' above the water level.
• The longest single run of pipe on the suction side of the pump exceeds 60’
• Pools larger than 20’ x 40’ in size.

Pump Curve

Click Here to View All Available Pool Pumps

Installation Suggestions:

When possible, we suggest installing a check valve on the suction side of the pump. The installation of a check valve will help re-priming your pump as it will keep water in your pump basket and make for easier start-up.

Pump Plumbing

There are many different ways a pool pump can be plumbed due to space requirements, existing plumbing, water features, etc... Due to these scenarios, we have listed some general best practices to adhere to when plumbing a pool pump.

Pool Plumbing Best Practices

• It is best to use larger plumbing on the suction side of the pump, as this will allow the pump to prime easier and put less stress on the pump resulting in longer pump life.
  • For example, use 2” plumbing on the suction side of the pump and then use a 2” x 1.5” reducer bushing to reduce down to the 1.5” pump suction port. If you can only install larger plumbing on the 12” of pipe going into the pump, then this is fine, as you will still see benefits.
• Use a minimum of 12” of straight pipe going into the suction port of the pump.
• Avoid the use of 90-degree elbows within 12” of the suction port or discharge port of the pump.
• The fewer 90-degree elbows, the better.
• The use of two 45-degree fittings is better than one 90-degree elbow.
• If you are having problems with your pump keeping prime after the pump shuts off, then the use of a check valve on the suction side of the pump will help with keeping the pump primed. Make sure the check valve is not too close to the suction port of the pump. See check valve placement recommendations listed below.

Check Valve Placement

1.5” Plumbing - Check valve not to be placed within 7.5” of pump suction port

2” Plumbing - Check valve not to be placed within 10” of pump suction port

2.5” Plumbing - Check valve not to be placed within 12.5” pump of the suction port

Piping

1. Larger piping sizes improve pool plumbing.
2. Piping on the suction side of the pump should be the same or larger than the return port.
3. Plumbing on the suction side of the pump should be as short as possible.
4. For most installations, it is recommended you install a valve on both the pump suction and return lines. This allows you to isolate the pump during routine maintenance. However, the valve,  elbow, or tee installed in the suction line should be no closer to the front of the pump than 5 times the suction line diameter.

Example: A 2.5” pipe requires a 12.5” straight run in front of the suction inlet of the pump. This will help the pump prime faster and last longer.

Note: Do NOT install 90-degree elbows directly into the pump inlet or outlet.

See the Hayward Super II SP3000 Series Parts page for parts for this pump.
