Hayward Super II SP3000 Series

Hayward Super II SP3000 Series Diagram
HAYWARD MODELS SP-3000/AZ (Full Rated), SP-3000X/AZ (Uprated), LESLIES RS PUMP And Heldor E-Z FLO

CLICK HERE FOR A COMPLETE LISTING OF HAYWARD SUPER II EZ FIND CHART
Key Model # Item Total HP Price
* MKIT2VS16 Hayward Super II VS Motor Upgrade Kit - 1.65HP 1.65 $588.65 Description
* MKIT2VS22 Hayward Super II VS Motor Upgrade Kit - 2.2 HP 2.25 $701.66 Description

Key Part # Item Price
* 21063-200-000 CMP 2" MPT, 2" Socket Union (Single) $13.25 Description

Key Part # Mfg Code Item Price
3 5066-C1 O-12 Pump Lid O-Ring
Normally $16.99!
$6.99 Description

Key Part # Mfg Code Item Price
4A 5110-03C SPX3100D Pump Cover, Standard
Normally $59.99!
$39.99 Description

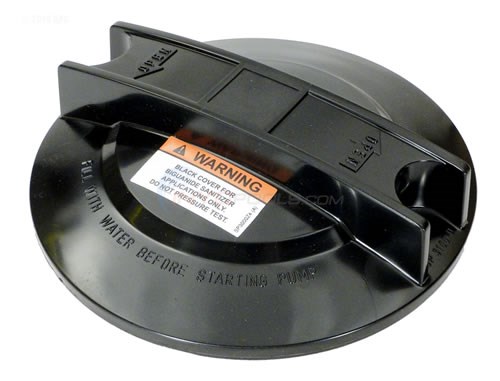

4B 5110-031 SPX3100DB Biguanide - Strainer Cover $69.99 Description

Key Part # Mfg Code Item Price
5 5110-12A G-345 HOUSING GASKET $11.99 Description

Key Part # Mfg Code Item Price
* 5110-08 SPX1600R DIFFUSER GASKET $5.57 Description

Key Part # Mfg Code Item Full Rate H.P. Up Rate H.P. Price
6 PL2673 PL2673 Diffuser - SPX2600B
Normally $59.99!
1/2 Through 1.0 (1987 and prior) 3/4 Through 2.0HP (1987 and prior) $30.53 Description
6 5110-09F SPX3000BN Diffuser - SPX3000BN
Normally $59.99!
1/2 Through 1HP (after 1988) 1/2 Through 1-1/2HP (after 1988) $38.99 Description
6 5110-09H SPX3021B Diffuser - SPX3021B 1-1/2 Through 3HP (After 1990) 2 Through 3HP (after 1990) $62.21 Description

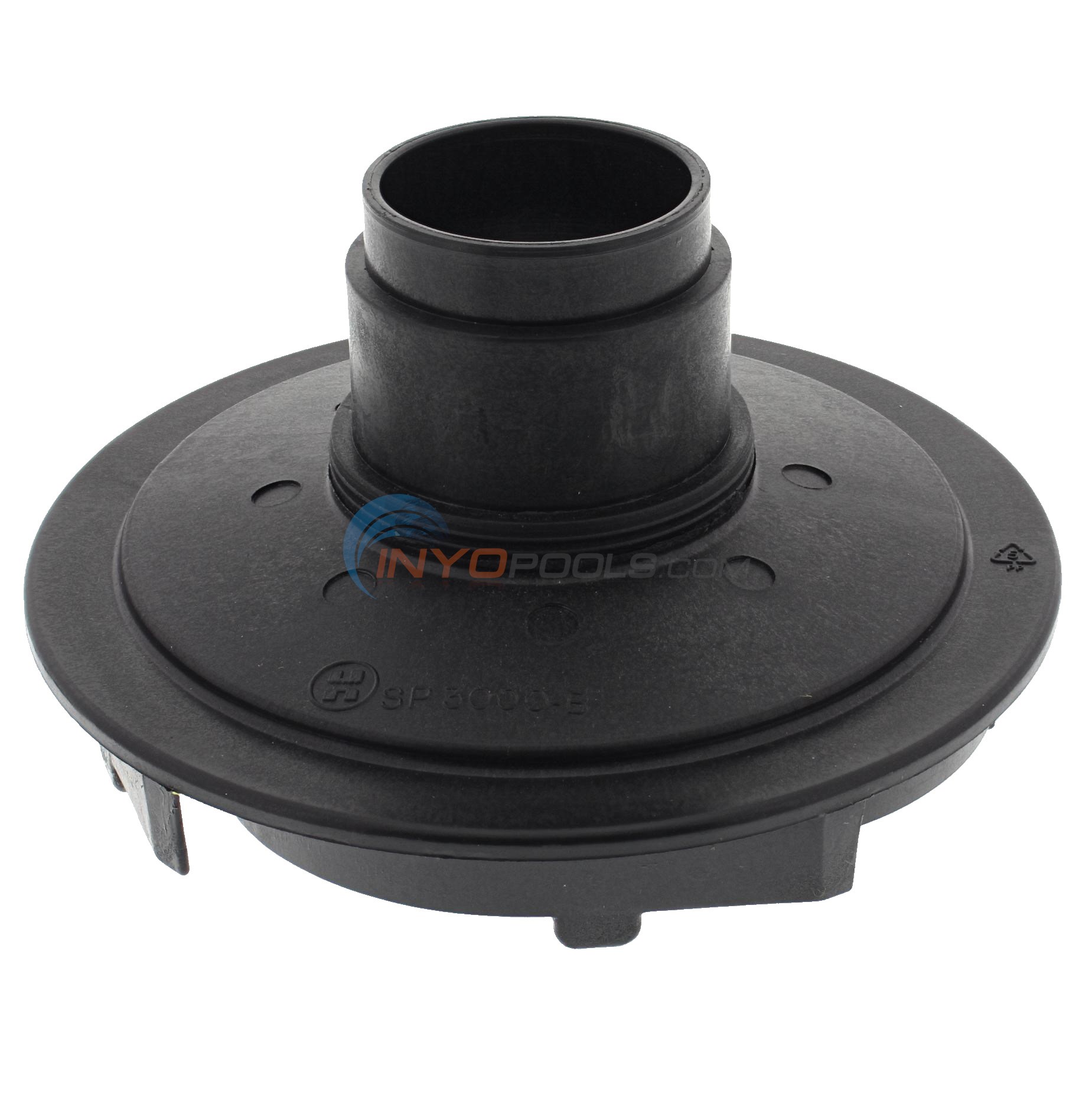

6 5110-09G SPX3000B Diffuser, Sp3000-b 2 & 3HP (1989 and prior) 2-1/2 & 3HP (1989 and prior) $55.07 Description

Key Part # Mfg Code Item Full Rated H.P. Up Rated H.P. Pump Model(s) Price
8 5110-10G SPX3005C IMPELLER
Normally $59.99!
1/2 (Year 1988) 3/4 (Year 1988) SP3005X7 $23.99 Description
8 5110-10H SPX3007C IMPELLER
Normally $59.99!
3/4 (Year 1988+) 1 (Year 1988+) SP3007X10/SP3007X102 $23.99 Description
8 SPX3010C Hayward Super II & RS 1.0 HP and 1.5HP Full Rated Impeller 1 (Year 1988+) 1-1/2 (Year 1988+) SP3010X15/SP3010X152 $49.99 Description
8 5110-10K SPX3015C IMPELLER 1-1/2 (Year 1988+) 2 (Year 1988+) SP3015X20/SP3015X202 $37.99 Description
8 5110-10L SPX3016C IMPELLER 1-1/2 (Years 1990 & Later) 2 (Years 1990 & Later) SP3016X20 $58.70 Description
8 5110-100 SPX3020CKIT IMPELLER / DIFFUSSER / UPGRADE KIT 2 (Years 1989 & Prior) 2-1/2 (Years 1989 & Prior) SP3020X25/SP3020X252 $84.65 Description
8 5110-10N SPX3021C IMPELLER 2 (Years 1990 & Later) 2-1/2 (Years 1990 & Later) SP3021X25 $77.51 Description

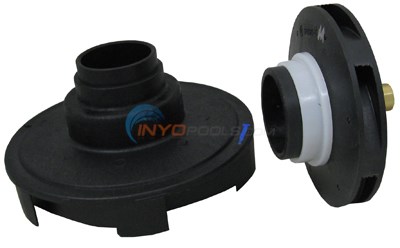

8 5110-102 SPX3025CKIT IMPELLER/DIFFUSER UPGRADE KIT 3 (Years 1989 & prior) 3 ( Years 1989 & prior) SP-3025X30 $103.01 Description
8 5110-10R SPX3026C IMPELLER 2-1/2 (Years 1990 & Later) 3 (Years 1990 & Later) SP3026X30 $77.51 Description

Key Part # Mfg Code Item Price
9 5110-11 PS-201 Standard Shaft Seal $9.99 Description
9 5250-235 PS-3868 Heavy-Duty Shaft Seal (Saltwater Pools) $19.37 Description

Key Part # Mfg Code Item Full Rated H.P. Up Rated H.P. Price
10 5110-13E SPX3020E Seal Plate (For 3000 Series Impellers)
Normally $59.99!
1/2 Through 2-1/2HP 3/4 Through 3HP $39.99 Description

Key Part # Mfg Code Item Price
11 5112-013 SPX0125Z44 MOTOR CAP SCREW (SET OF 4) $26.99 Description

Key Part # Mfg Code Item Price
12 5110-20 SPX0125F SLINGER $10.22 Description

Key Part # Mfg Code Item Price
13 5110-14A SPX3000F MOTOR MOUNTING PLATE
Normally $59.99!
$53.55 Description

Key Part # Mfg Code Item Price
14 5110-15 37C200HCS1 HOUSING CAP SCREW 4 Pack
Normally $27.99!
$14.99 Description

Key Part # Mfg Code Item Price
* 6982-0 072184 WASHER SS 7/16"ID X 7/8"OD (SAMPLE W-7) $2.99 Description

Key Part # Mfg Code Item Service Factor Voltage Max Amps Frame Price
15 UST1072 UST1072 Century 3/4 HP Round Flange 56J Up Rate Motor - UST1072 1.0 115/230 13.0/6.5 56J $195.70 Description
15 UST1102 UST1102 Century 1.0 HP Round Flange 56J Up Rate Motor - UST1102 1.1 115/230 15.0/7.5 56J $201.08 Description
15 UST1152 UST1152 Century 1.5 HP Round Flange 56J Up Rate Motor - UST1152 1.0 115/230 18.0/9.0 56J $222.55 Description
15 UST1202 UST1202 Century 2.0 HP Round Flange 56J Up Rate Motor - UST1202 1.1 115/230 20.4/10.2 56J $310.95 Description
15 5213X B230SE A.O. Smith 2 HP Round Flange 56J Up Rate Motor - B230SE 1.0 115/230 18.4/9.2 56J $295.04 Description
15 UST1252 UST1252 A.O. Smith 2.5 HP Round Flange 56J Up Rate Motor - UST1252 1.1 208/230 12.6/11.4 56J $354.63 Description

Key Part # Mfg Code Item Service Factor Voltage Max Amps Frame Price
15** ST1052 ST1052 A.O. Smith 1/2 H.P Pool Motor Round Flange 56J 1.6 115/230 11.0/5.5 56J $226.43 Description
15** ST1072 ST1072 A.O. Smith Round Flange 3/4 HP Full Rate Motor 1.5 115/230 15.0/7.5 56J $238.67 Description

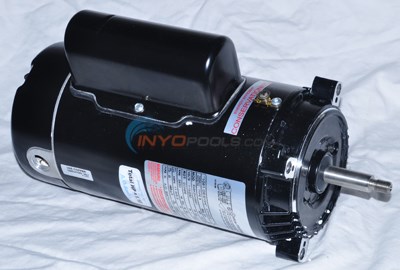

15** CT1072 CT1072 Energy Efficient A.O. Smith Round Flange 3/4 HP Full Rate Motor 1.5 115/230 13.0/6.5 56J $299.87 Description
15** ST1102 ST1102 A.O. Smith 1 HP Full Rate Round Flange Motor 1.5 115/230 19.6/10.4-9.8 56J $261.11 Description
15** CT1102 CT1102 Energy Efficient A.O. Smith Round Flange 1 HP Full Rate Motor 1.4 115/230 13.6/6.8 56J $295.35 Description
15** ST1152 ST1152 A.O. Smith Round Flange 1 1/2 HP Full Rate Motor (C1101, ST1152) 1.5 115/230 19.6/10.4-9.8 56J $336.59 Description
15** ST1202 ST1202 A.O. Smith Round Flange 2 HP Full Rate Motor 1.3 230 12.6-11.4 56J $373.88 Description
15** ST1302 ST1302V1 A.O. Smith 3 HP Round Flange Replacement Motor (ST1302, ST1302V1) 1.15 230 14.5-13.8 56J $489.83 Description

Key Part # Mfg Code Item Service Factor Voltage Max Amps Frame Price
15 STS1102 STS1102RV1 A.O. Smith 1 H.P Round Flange Dual Speed Full Rate Motor W/Out Switch (STS1102, STS1102RV1) 1.5 230 8.5/2.5 56J $407.87 Description
15 STS1152 STS1152R A.O. Smith 1-1/2 HP Round Flange Dual Speed Full Rate Motor 1.3 230 9.0/3.3 56J $466.95 Description

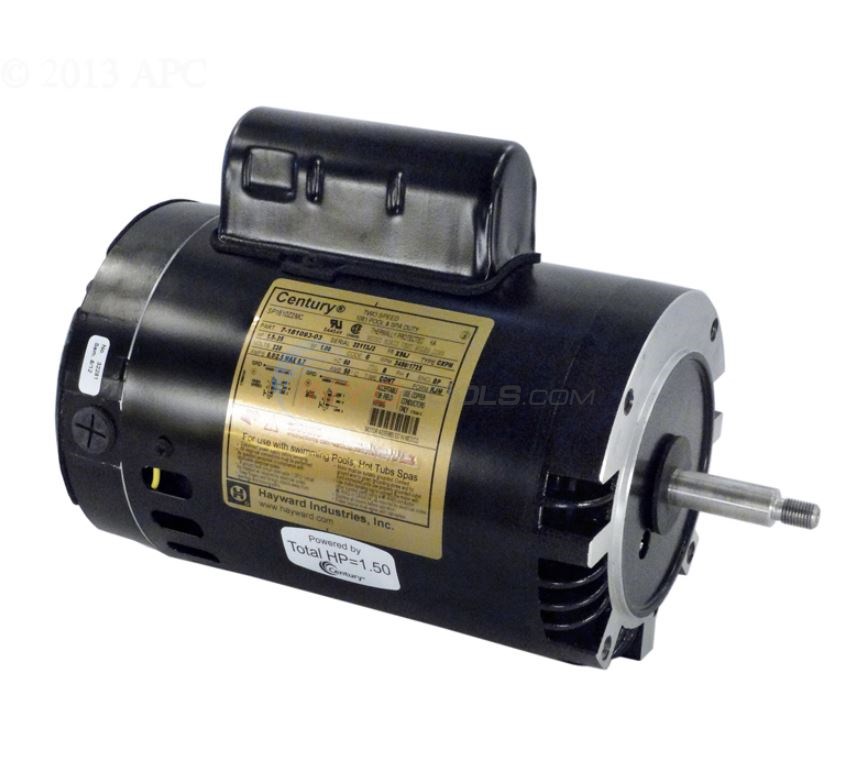

15 SPX1610Z2M SPX1610Z2M Hayward 1-1/2 HP Uprate Dual Speed 1.1 230 56J $562.37 Description
15 STS1202 B2979 A.O. Smith 2 H.P Round Flange Dual Speed Full Rate Motor (B979) 1.1 230 11.4/4.1 56J $537.53 Description
15 SPX1620Z2M Hayward 2.5 HP Dual Speed Up Rate Replacement Motor 1.1 230 56J $610.47 Description

Key Part # Mfg Code Item Price
* 3050-38 R221016 Protective Pool Motor Cover $39.13 Description

Key Part # Mfg Code Item Price
16 5110-17B SPX3000GA MOUNTING BRACKET With ADAPTER & 2 CAP SCREWS
Normally $49.99!
$43.99 Description

Key Part # Mfg Code Item Price
17 5112-015 SPX1600Z52 MOUNTING FOOT CAP SCREW (SET OF 2) $17.99 Description

Key Part # Mfg Code Item Price

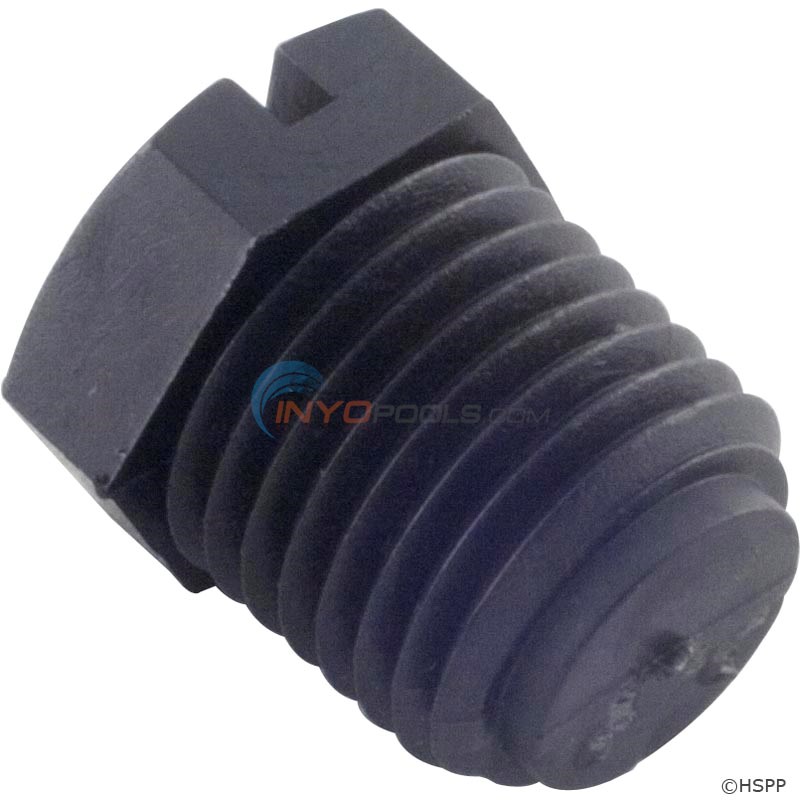

18 6761B SPX1600V 1/4” DRAIN PLUG (1991 AND PRIOR) $11.99 Description
18 6761A SPX1700FG 1/4” DRAIN PLUG With GASKET $9.17 Description

Key Part # Mfg Code Item Price
19 5110-03B SPX3000D STRAINER COVER, CLEAR $89.75 Description

Key Part # Mfg Code Item Price
20 5110-62 SPX1600PN KNOB KIT (SWIVEL NUT & KNOB) $20.59 Description

Key Part # Mfg Code Item Price
23 5110-03C SPX3100D COVER THREADED
Normally $59.99!
$39.99 Description

Key Part # Mfg Code Item Price
24 5110-24 SP3100T TOOL, COVER REMOVAL
Normally $39.99!
$34.67 Description

Key Part # Mfg Code Item Price
25 REPLACE SPX3100-AA No Longer Available STRAINER Replace With 5110-07G & (2) 7194-0 - -

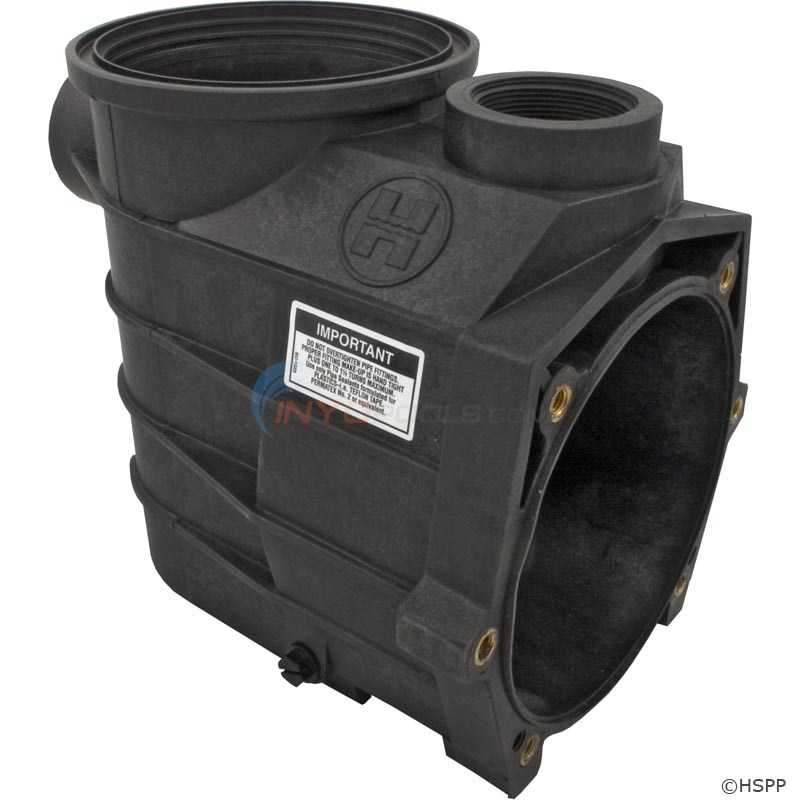

25 5110-07G SPX3120AA PUMP HOUSING, EZ FLO 2" $358.43 Description

Key Part # Mfg Code Item Price
26 7194-0 439-251 BUSHING, RDCR 2”MPT X 1 1/2”FPT $17.99 Description

Key Part # Mfg Code Item Price
* 5110-22 SP1600TAP REPAIR TAP SET, PUMP HOUSING $29.99 Description

ALSO SOLD AS
LESLIES RS PUMP

* NOT SHOWN

** SUPER II ENERGY EFFICIENT FULL-RATED and SUPER II ENERGY EFFICIENT FULL-RATED ULTRA EE
