Aqua Flo Dominator - High Head Parts

D SERIES, DU SERIES(UPRATED), DE SERIES(ENERGY), DEU SERIES(UPRATED & ENERGY)

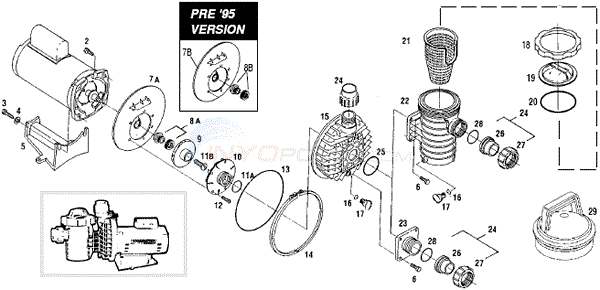

Aqua Flo Dominator - High Head Diagram

Click to zoom in

Diagram #	Part Title
**	Tune Up Kit - Dominator Pump (Pre-1995)
1	Motor, 1/2 HP Full Rate
***	Protective Pool Motor Cover
2	Bolt, 3/8-16 x 1"
3	Bolt, 3/8"-16 x 1-1/2"
4	Washer, 3/8"
5	Base
6	Screw, Cap 3/8-16 x 3/4"
7A	Seal Plate (Pre-1995)
8A	Shaft Seal, Pump 5/8" (Standard)
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
9	Impeller, 1/2 HP - Replace With 91692450
10	Diffuser
11A	O-ring, Diffuser
12	Screw, Diffuser
13	O-ring, Seal Plate
14	Clamp Ring, w/ Knob
15	Volute
16	O-ring, Drain Plug
17	Plug, Drain 1/4"
18	Lock Ring, Trap Cover
19	Cover, Trap
20	O-ring, Lid
21	Basket, Trap
22	Trap Body, New Style 2"
23	Flange, 2"
24	Fitting, 2" x 1.5" (Set of 2)
25	O-ring, Float Valve O-Ring, 2-3/8" ID, 1/8" Cross Section, Generic
26	Tailpiece, 2" Slip x 1-1/2" Slip
27	Nut, Union 2"
28	O-ring, Union
*	Fitting, 2" FBT x 2" Slip (Set of 2)

View Parts List

Diagram #	Part Title
**	Tune Up Kit - Dominator Pump (Pre-1995)
1	Motor, 1/2 HP Full Rate
***	Protective Pool Motor Cover
2	Bolt, 3/8-16 x 1"
3	Bolt, 3/8"-16 x 1-1/2"
4	Washer, 3/8"
5	Base
6	Screw, Cap 3/8-16 x 3/4"
7A	Seal Plate (Pre-1995)
8A	Shaft Seal, Pump 5/8" (Standard)
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
9	Impeller, 1/2 HP - Replace With 91692450
10	Diffuser
11A	O-ring, Diffuser
12	Screw, Diffuser
13	O-ring, Seal Plate
14	Clamp Ring, w/ Knob
15	Volute
16	O-ring, Drain Plug
17	Plug, Drain 1/4"
18	Lock Ring, Trap Cover
19	Cover, Trap
20	O-ring, Lid
21	Basket, Trap
22	Trap Body, New Style 2"
23	Flange, 2"
24	Fitting, 2" x 1.5" (Set of 2)
25	O-ring, Float Valve O-Ring, 2-3/8" ID, 1/8" Cross Section, Generic
26	Tailpiece, 2" Slip x 1-1/2" Slip
27	Nut, Union 2"
28	O-ring, Union
*	Fitting, 2" FBT x 2" Slip (Set of 2)

Available Parts:

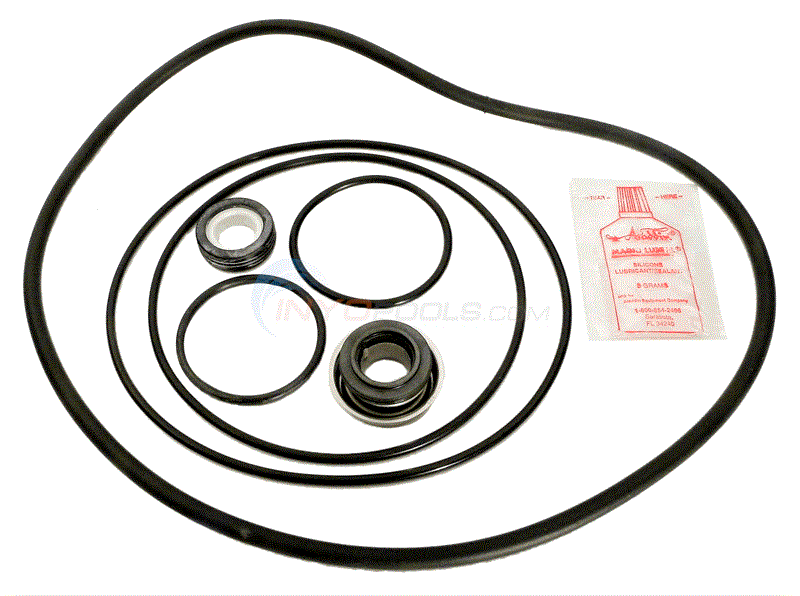

Tune Up Kit - Dominator Pump (Pre-1995)

Part # APCK1031

Tune Up Kit - Dominator Pump (Pre-1995)

$39.44

Tune Up Kit - Dominator Pump (After-1995)

Part # APCK1041

Tune Up Kit - Dominator Pump (After-1995)

$24.00 IN STOCK

Qty:

Motor, 1/2 HP Full Rate

Part # SQ1052 Mfg # SQ1052

Motor, 1/2 HP Full Rate

$274.84 IN STOCK

Service Factor 1.9 Voltage 115/230 Max Amps 13.4/6.7 Frame 48Y

Service Factor 1.9 Voltage 115/230 Max Amps 13.4/6.7 Frame 48Y

Qty:

Motor, 3/4 HP Full Rate

Part # SQ1072 Mfg # SQ1072

Motor, 3/4 HP Full Rate

$263.34 IN STOCK

Service Factor 1.65 Voltage 115/230 Max Amps 15.3/7.6 Frame 48Y

Service Factor 1.65 Voltage 115/230 Max Amps 15.3/7.6 Frame 48Y

Qty:

Motor, 1.0 HP Full Rate

Part # SQ1102 Mfg # SQ1102

Motor, 1.0 HP Full Rate

$288.42 IN STOCK

Service Factor 1.65 Voltage 115/230 Max Amps 19.2/9.6 Frame 48Y

Service Factor 1.65 Voltage 115/230 Max Amps 19.2/9.6 Frame 48Y

Qty:

Motor, 1.5 HP Full Rate

Part # SQ1152 Mfg # SQ1152

Motor, 1.5 HP Full Rate

$376.20 IN STOCK

Service Factor 1.47 Voltage 230 Max Amps 10.4 Frame 48Y

Service Factor 1.47 Voltage 230 Max Amps 10.4 Frame 48Y

Qty:

Motor, 2.0 HP Full Rate

Part # SQ1202 Mfg # SQ1202

Motor, 2.0 HP Full Rate

$443.08 IN STOCK

Service Factor 1.3 Voltage 230 Max Amps 11.2 Frame 48Y

Service Factor 1.3 Voltage 230 Max Amps 11.2 Frame 48Y

Qty:

Motor, 1/2 HP Up Rate

Part # USQ1052 Mfg # USQ1052

Motor, 1/2 HP Up Rate

$223.63 IN STOCK

Service Factor 1.3 Voltage 115/230 Max Amps 9.9/5.0 Frame 48Y

Service Factor 1.3 Voltage 115/230 Max Amps 9.9/5.0 Frame 48Y

Qty:

Pureline 3/4 HP Pool Motor Square Flange 48Y

Part # PL2073

Pureline 3/4 HP Pool Motor Square Flange 48Y

$179.99 IN STOCK

Service Factor 1.0 Voltage 115/230 Max Amps 13.4/6.7 Frame 48Y

Service Factor 1.0 Voltage 115/230 Max Amps 13.4/6.7 Frame 48Y

Qty:

Pureline 1 HP Pool Motor Square Flange 48Y - PL2103

Part # PL2103

Pureline 1 HP Pool Motor Square Flange 48Y - PL2103

$257.29 IN STOCK

Service Factor 1.0 Voltage 115/230 Max Amps 15.3/7.6 Frame 48Y

Service Factor 1.0 Voltage 115/230 Max Amps 15.3/7.6 Frame 48Y

Qty:

Century (A.O. Smith) 1.5 HP Up Rate Motor, Square Flange 48Y Frame, Single Speed - Model USQ1152

Part # USQ1152 Mfg # USQ1152

Century (A.O. Smith) 1.5 HP Up Rate Motor, Square Flange 48Y Frame, Single Speed - Model USQ1152

$274.99 IN STOCK

Service Factor 1.0 Voltage 115/230 Max Amps 19.2/9.6 Frame 48Y

Service Factor 1.0 Voltage 115/230 Max Amps 19.2/9.6 Frame 48Y

Qty:

Motor, 2.0 HP Up Rate

Part # USQ1202 Mfg # USQ1202

Motor, 2.0 HP Up Rate

$369.34 IN STOCK

Service Factor 1.1 Voltage 230 Max Amps 10.4 Frame 48Y

Service Factor 1.1 Voltage 230 Max Amps 10.4 Frame 48Y

Qty:

Protective Pool Motor Cover

Part # 3050-38 Mfg # R221016

Protective Pool Motor Cover

$36.03 IN STOCK

Qty:

Bolt, 3/8-16 x 1"

Part # 6901-0 Mfg # 354290

Bolt, 3/8-16 x 1"

$7.06 IN STOCK

Qty:

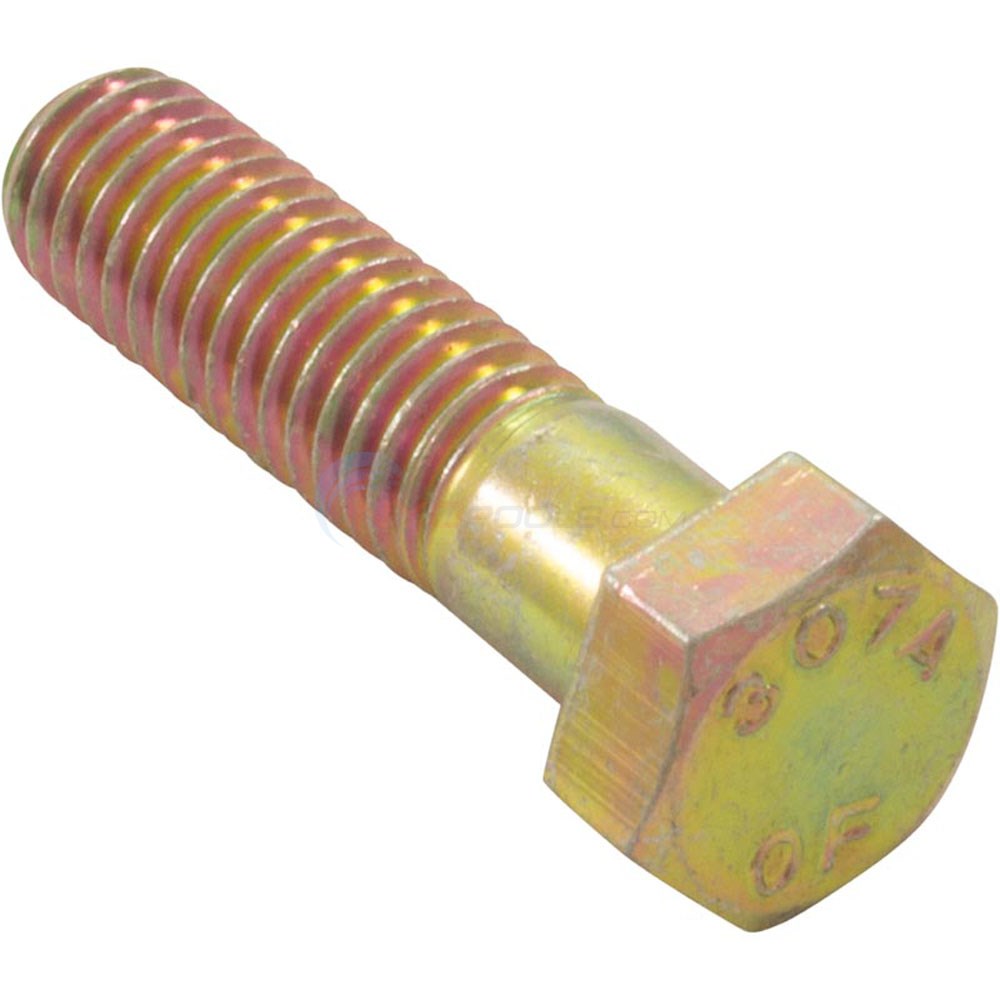

Bolt, 3/8"-16 x 1-1/2"

Part # 6272-17A Mfg # 070416

Bolt, 3/8"-16 x 1-1/2"

$11.71 IN STOCK

Qty:

Washer, 3/8"

Part # 6982-0 Mfg # 072184

Washer, 3/8"

$3.32 IN STOCK

Qty:

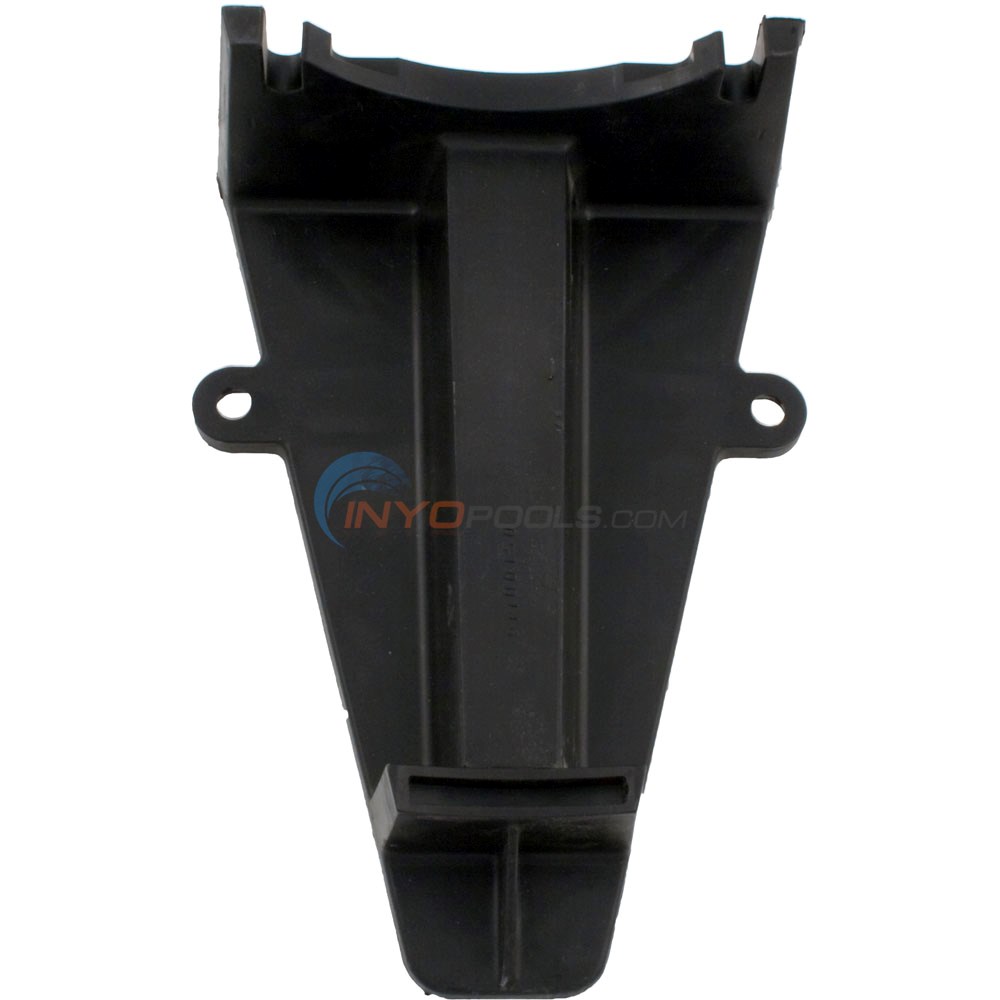

Base

Part # 5124-05 Mfg # 91100150

Base

$120.47 IN STOCK

Qty:

Screw, Cap 3/8-16 x 3/4"

Part # 6916-0 Mfg # U3072SS

Screw, Cap 3/8-16 x 3/4"

$10.65 IN STOCK

Qty:

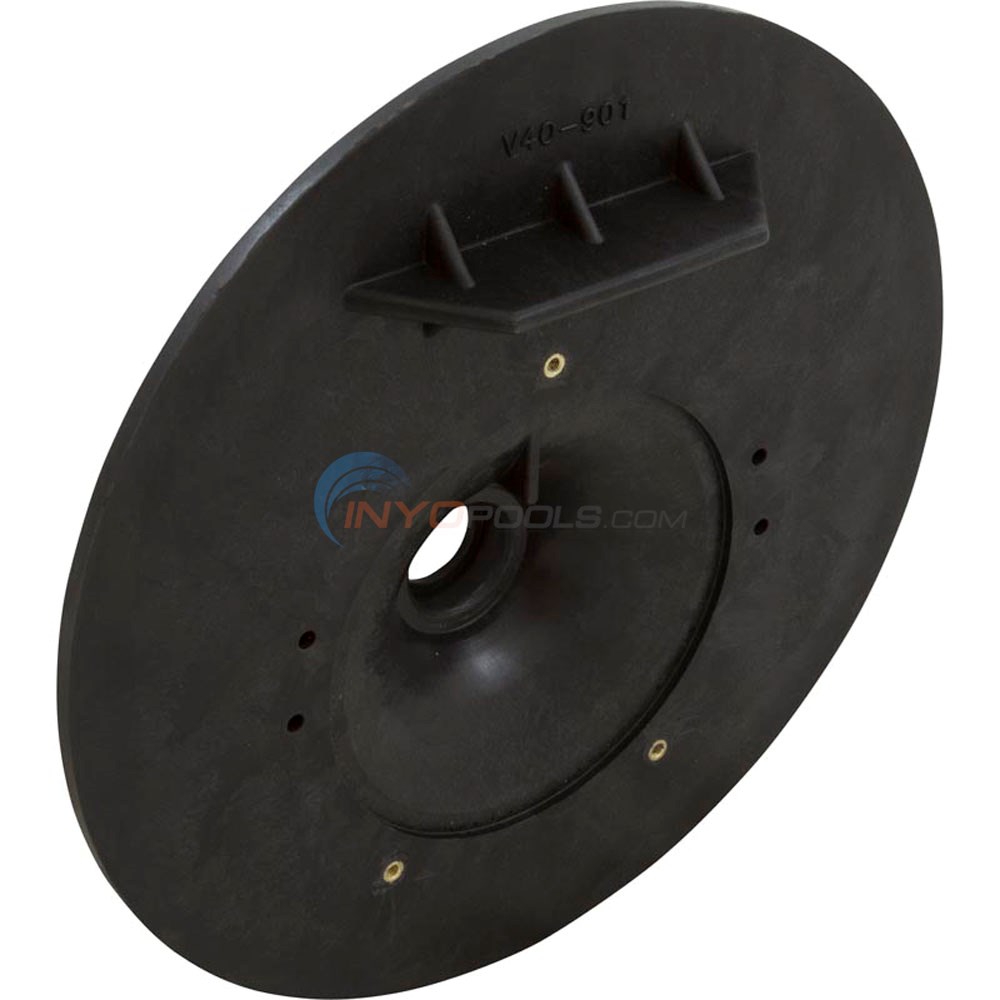

Seal Plate (Pre-1995)

Part # 5124-07 Mfg # V40-901

Seal Plate (Pre-1995)

$148.19 IN STOCK

Qty:

7B

Seal Plate (After-1995)

Mfg # 92280002

Seal Plate (After-1995)

NOT AVAILABLE

Shaft Seal, Pump 5/8" (Standard)

Part # 5250-104 Mfg # PSR-200

Shaft Seal, Pump 5/8" (Standard)

$8.79 IN STOCK

Year After-1995

Year After-1995

Qty:

Shaft Seal, Pump 5/8" (Heavy Duty)

Part # 5250-210 Mfg # PS-3867

Shaft Seal, Pump 5/8" (Heavy Duty)

$18.74 IN STOCK

Year After-1995

Year After-1995

Qty:

Shaft Seal, Pump 5/8" (Standard)

Part # 5250-106 Mfg # PS-1000

Shaft Seal, Pump 5/8" (Standard)

$8.39 IN STOCK

Year Pre-1995

Year Pre-1995

Qty:

Shaft Seal, Pump 5/8" (Heavy Duty)

Part # 5250-225 Mfg # PS-3865

Shaft Seal, Pump 5/8" (Heavy Duty)

$17.65 IN STOCK

Year Pre-1995

Year Pre-1995

Qty:

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

Part # LUBE-PP

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

$6.11

9

Impeller, 1/2 HP - Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352019791.htm">91692450</a>

Mfg # 91692400

Impeller, 1/2 HP - Replace With 91692450

NOT AVAILABLE

Replaces 91692400

Replaces 91692400

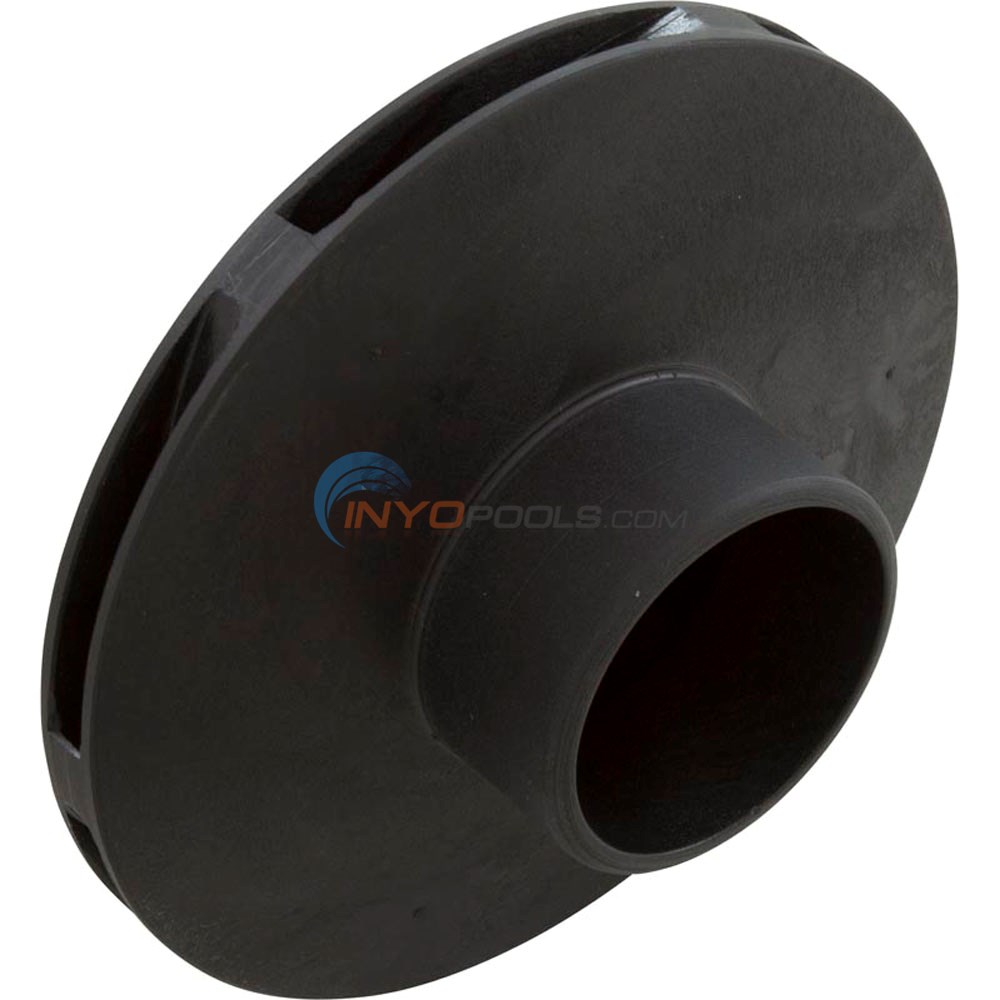

Impeller, 3/4 HP

Part # 5124-09A Mfg # V40-416

Impeller, 3/4 HP

$104.47 IN STOCK

Replaces 91692450

Replaces 91692450

Qty:

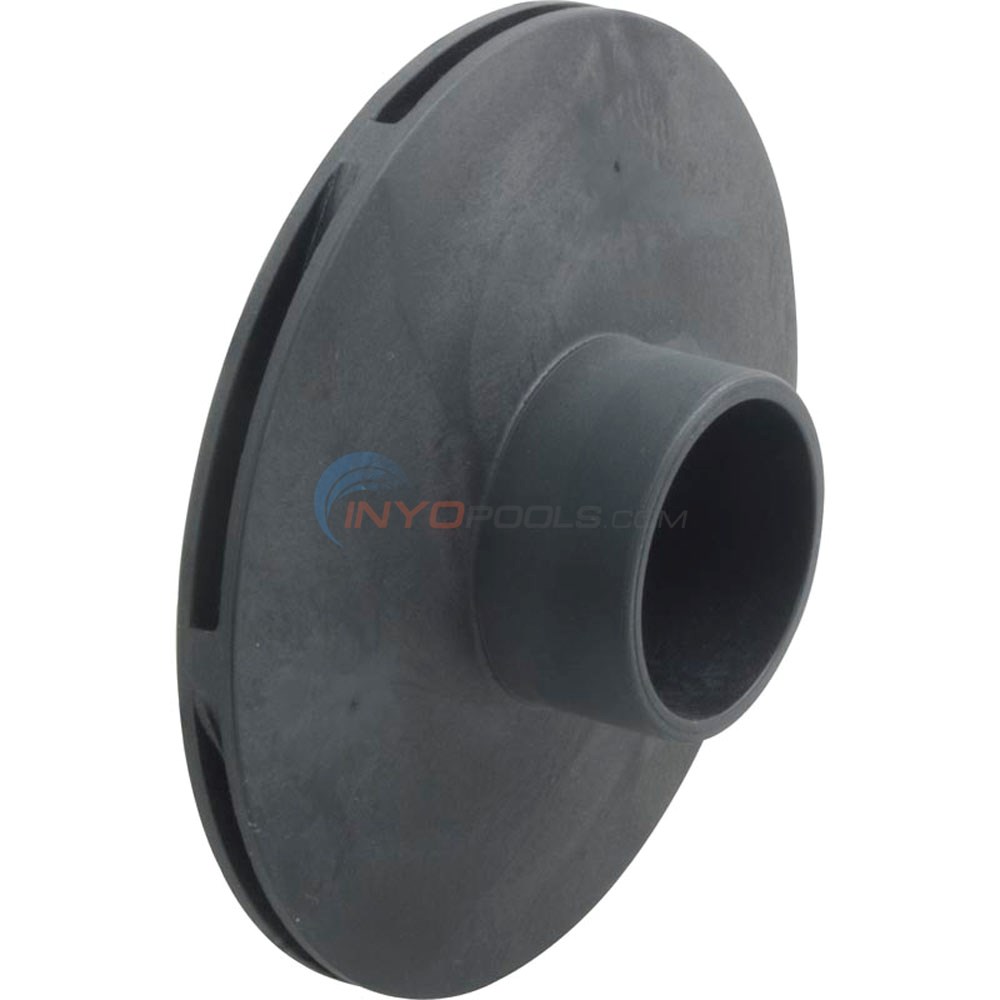

Impeller, 1.0 HP

Part # 5124-09B Mfg # V40-417

Impeller, 1.0 HP

$122.60 IN STOCK

Replaces 91692500

Replaces 91692500

Qty:

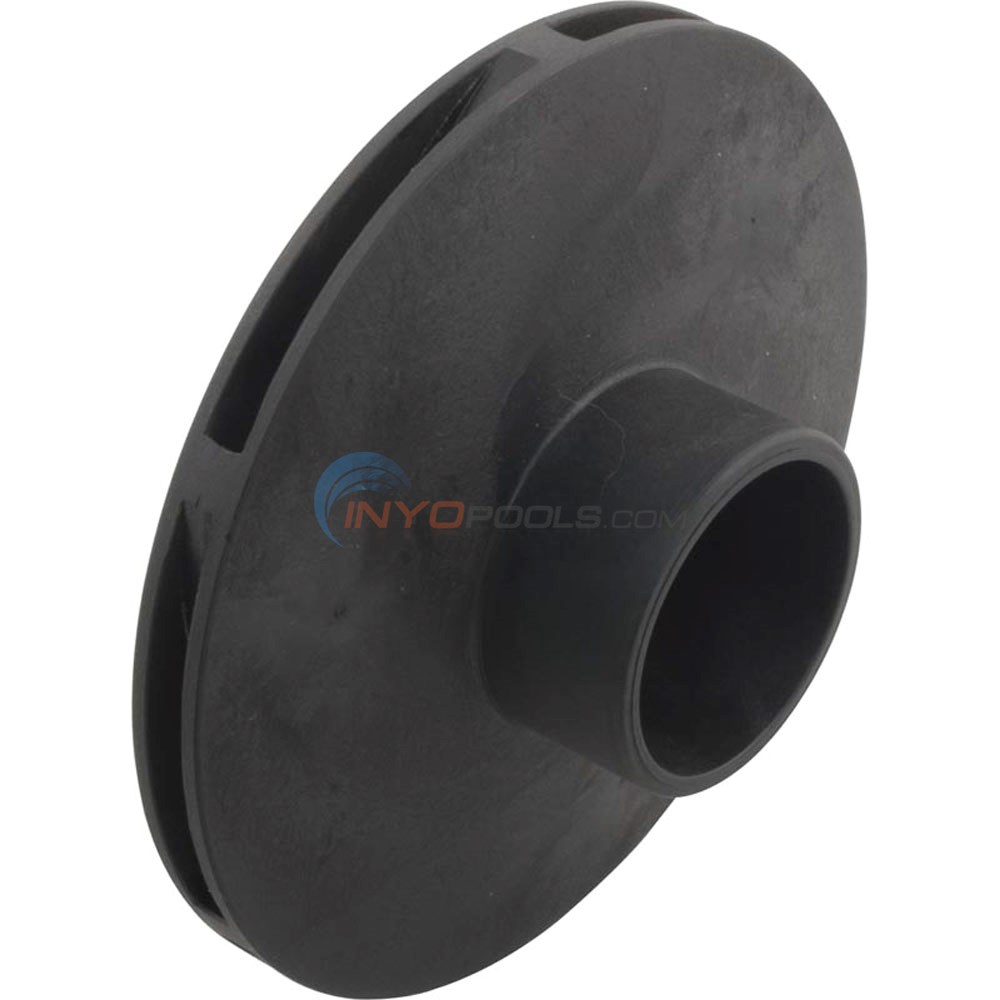

Impeller, 1.5 HP

Part # 5124-09C Mfg # V40-418

Impeller, 1.5 HP

$148.19 IN STOCK

Replaces 91692550

Replaces 91692550

Qty:

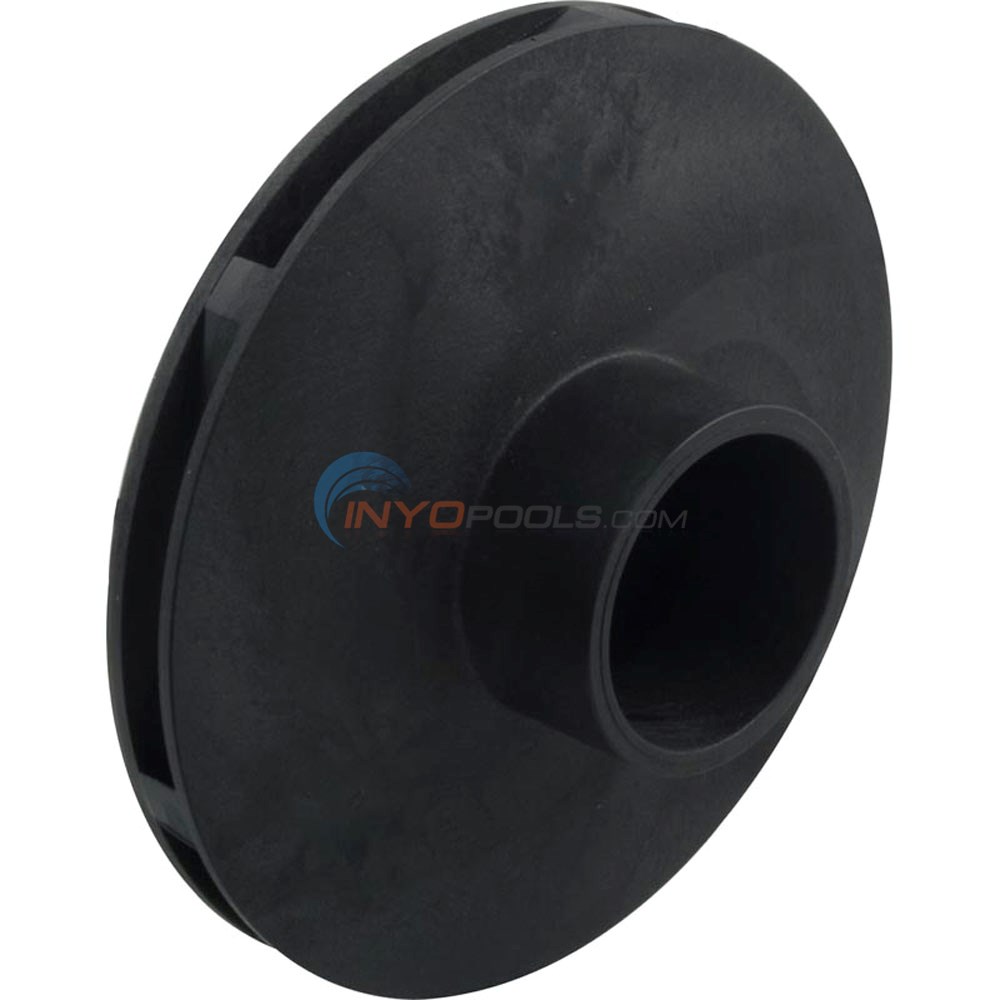

Impeller, 2.0 HP

Part # 5124-09D Mfg # V40-419

Impeller, 2.0 HP

$107.67

Replaces 91692600

Replaces 91692600

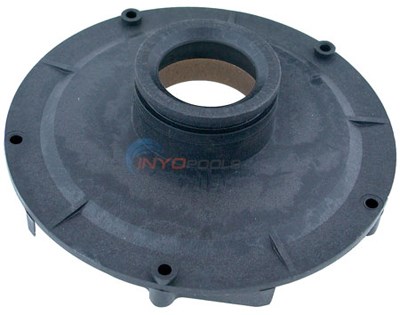

Diffuser

Part # 5124-10 Mfg # V40-415

Diffuser

$88.48 IN STOCK

Qty:

O-ring, Diffuser

Part # 5056-11 Mfg # O-49

O-ring, Diffuser

$9.77 IN STOCK

Qty:

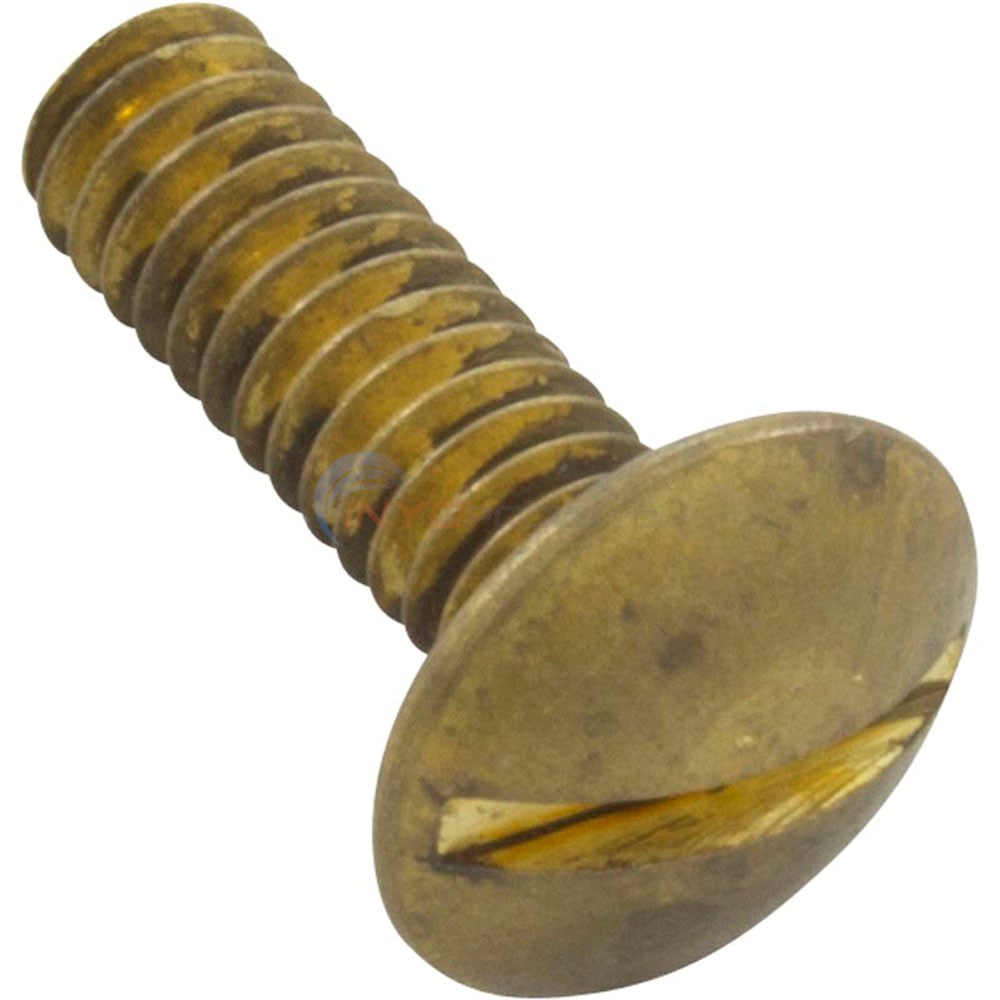

Screw, Impeller

Part # 5124-11A Mfg # V40-428

Screw, Impeller

$11.71 IN STOCK

Qty:

Screw, Diffuser

Part # 5124-12 Mfg # V40-426

Screw, Diffuser

$15.98 IN STOCK

Qty:

O-ring, Seal Plate

Part # 5056-06 Mfg # 449

O-ring, Seal Plate

$10.06 IN STOCK

Qty:

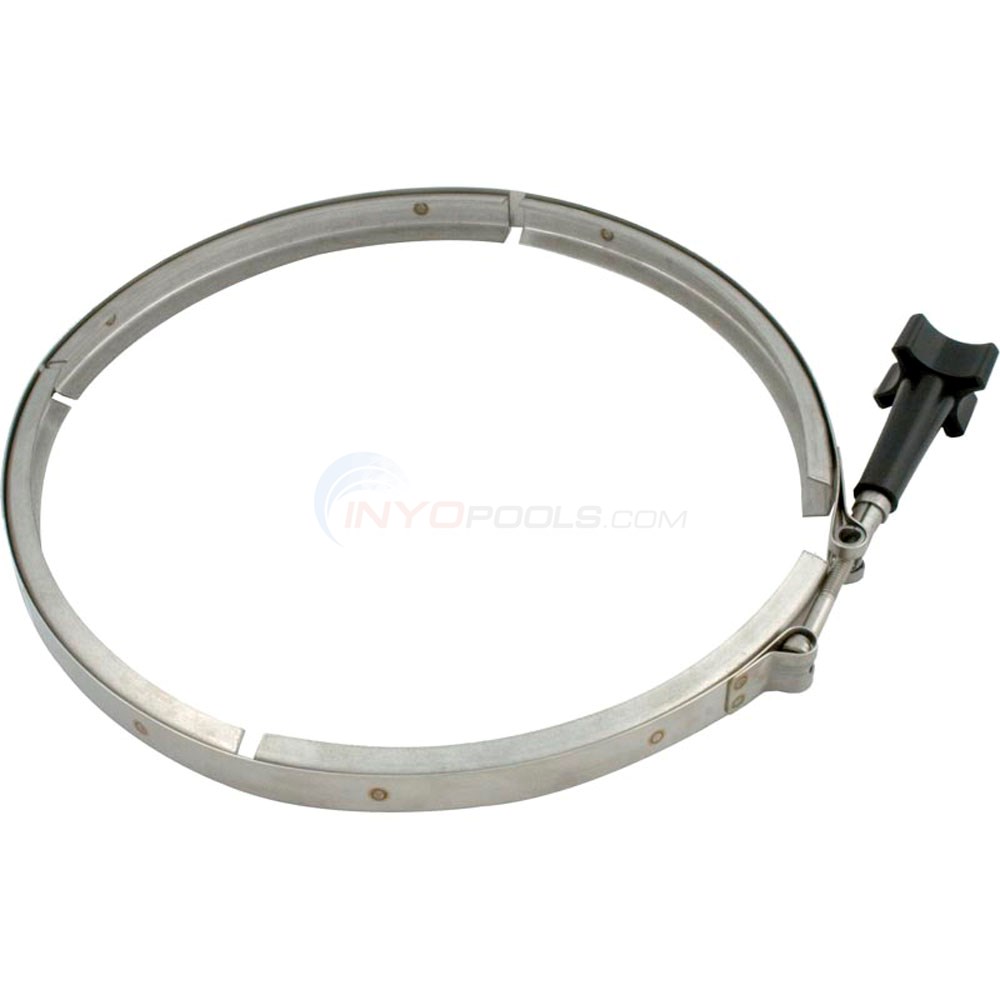

Clamp Ring, w/ Knob

Part # 5124-14 Mfg # V40-906

Clamp Ring, w/ Knob

$159.92 IN STOCK

Qty:

Volute

Part # 5124-15 Mfg # V40-900

Volute

$226.02

O-ring, Drain Plug

Part # 4600-4661 Mfg # 111

O-ring, Drain Plug

$11.43 IN STOCK

Qty:

Plug, Drain 1/4"

Part # 4600-4699 Mfg # 154699

Plug, Drain 1/4"

$10.66 IN STOCK

Qty:

Lock Ring, Trap Cover

Part # 5124-18 Mfg # V40-905

Lock Ring, Trap Cover

$84.21 IN STOCK

Qty:

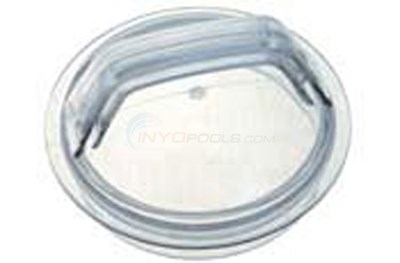

Cover, Trap

Part # 5124-19 Mfg # V40-430

Cover, Trap

$88.48

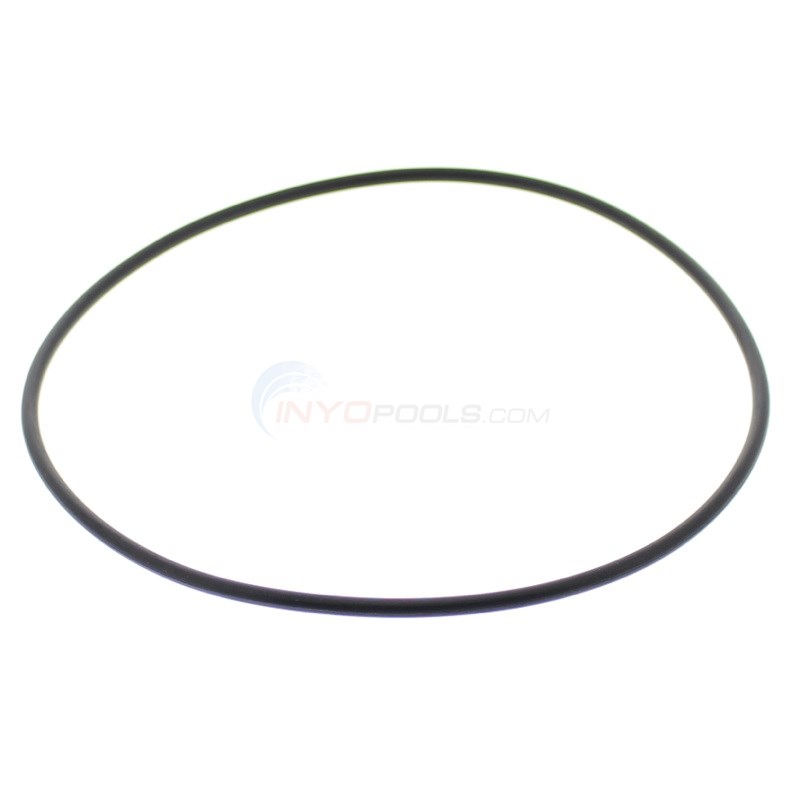

O-ring, Lid

Part # 4659-36A Mfg # 50151700

O-ring, Lid

$15.43 IN STOCK

Qty:

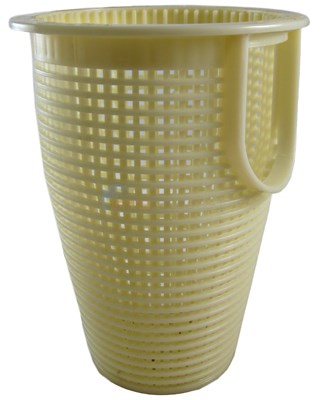

Basket, Trap

Part # 5406-016 Mfg # V40-409

Basket, Trap

$38.38 IN STOCK

Qty:

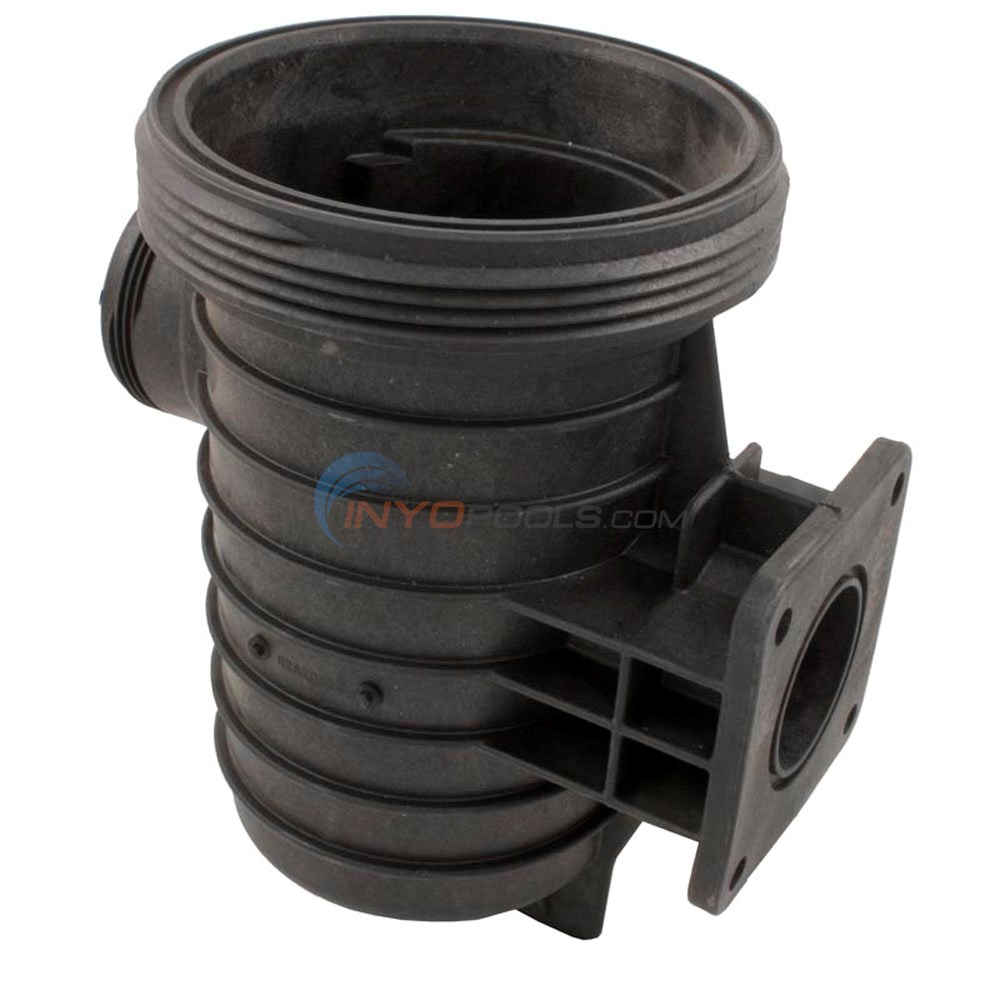

Trap Body, New Style 2"

Part # 5124-22 Mfg # V40-903

Trap Body, New Style 2"

$165.24

23

Flange, 2"

Mfg # 91450210

Flange, 2"

NOT AVAILABLE

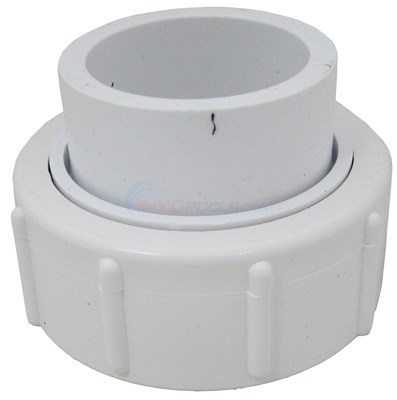

Fitting, 2" x 1.5" (Set of 2)

Part # 5123-22 Mfg # 52273000

Fitting, 2" x 1.5" (Set of 2)

$35.16 IN STOCK

Qty:

O-ring, Float Valve O-Ring, 2-3/8" ID, 1/8" Cross Section, Generic

Part # 4042-19

O-ring, Float Valve O-Ring, 2-3/8" ID, 1/8" Cross Section, Generic

$10.90 IN STOCK

Qty:

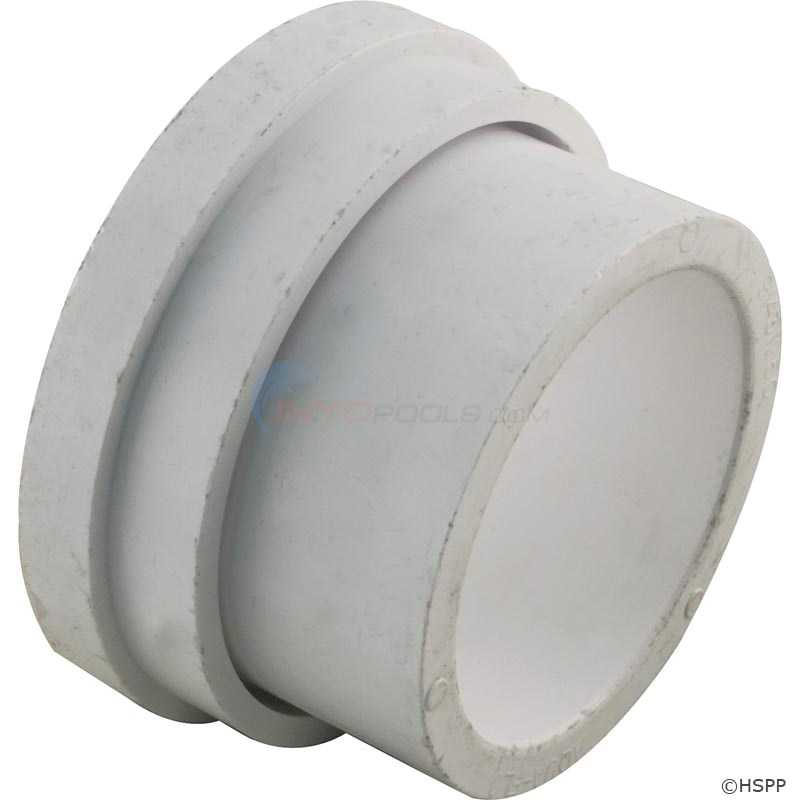

Tailpiece, 2" Slip x 1-1/2" Slip

Part # 5123-20A Mfg # 91431250

Tailpiece, 2" Slip x 1-1/2" Slip

$21.31

Nut, Union 2"

Part # 5123-21 Mfg # 91431150

Nut, Union 2"

$22.27 IN STOCK

Qty:

O-ring, Union

Part # 4800-23 Mfg # O-43

O-ring, Union

$9.68 IN STOCK

Qty:

Fitting, 2" FBT x 2" Slip (Set of 2)

Part # 5123-22A Mfg # 52202000

Fitting, 2" FBT x 2" Slip (Set of 2)

$31.18 IN STOCK

Qty:

Tailpiece, 2"

Part # 5123-20 Mfg # 91431200

Tailpiece, 2"

$19.18 IN STOCK

Qty:

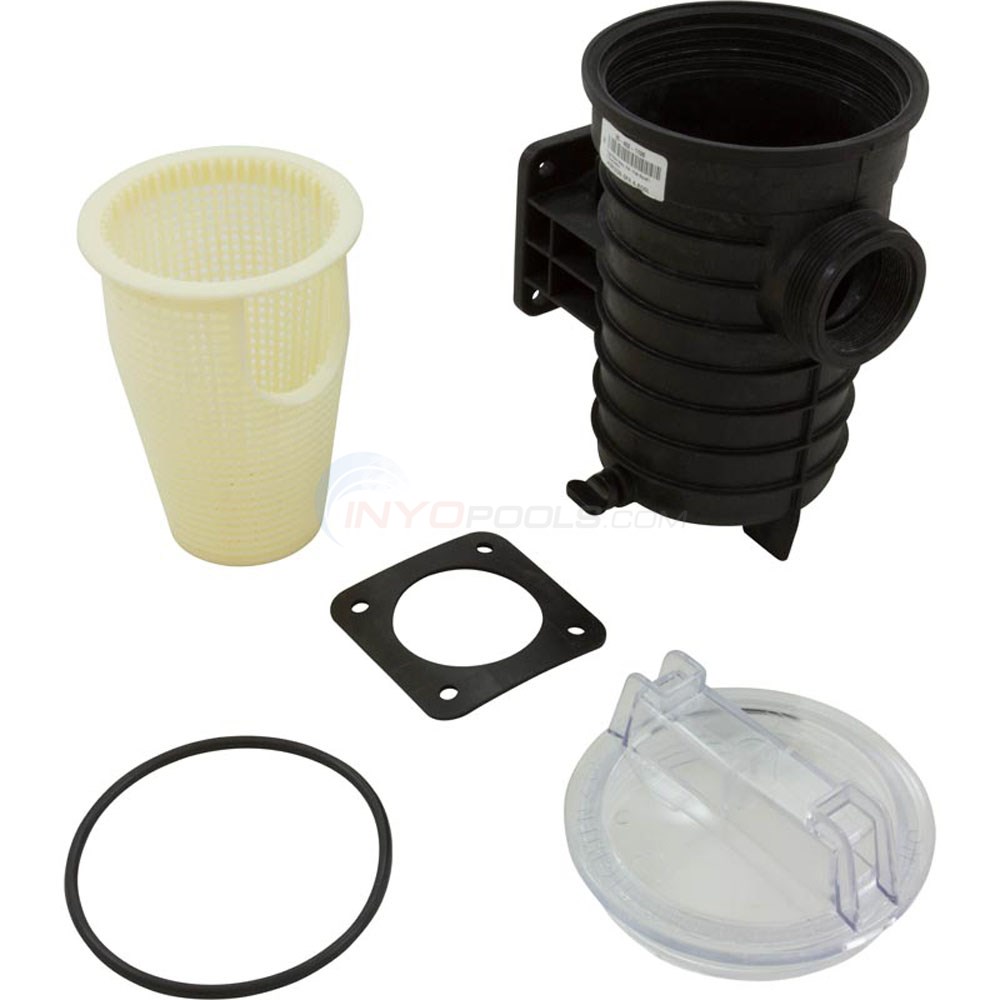

Trap Body Assembly

Part # 5124-29 Mfg # V40-903-1

Trap Body Assembly

$247.34

* NOT SHOWN
** O-RING/GASKET REPAIR KIT
*** NOT SHOWN
