Aqua-Flo Flo-Master FMVP Parts

Note: FMC, FMH, and FMV replacement parts (including gray impellers) are no longer available. Do not attempt to replace plastic parts with current items. Replace with corresponding wet end in the correct horsepower.

Click to zoom in

Diagram #	Part Title
2	Volute, Side Discharge (92770500)
3	Seal Assembly, A/F
6	Impeller, 3/4 Hp
7	O-Ring, Pump Volute,FMHP #158

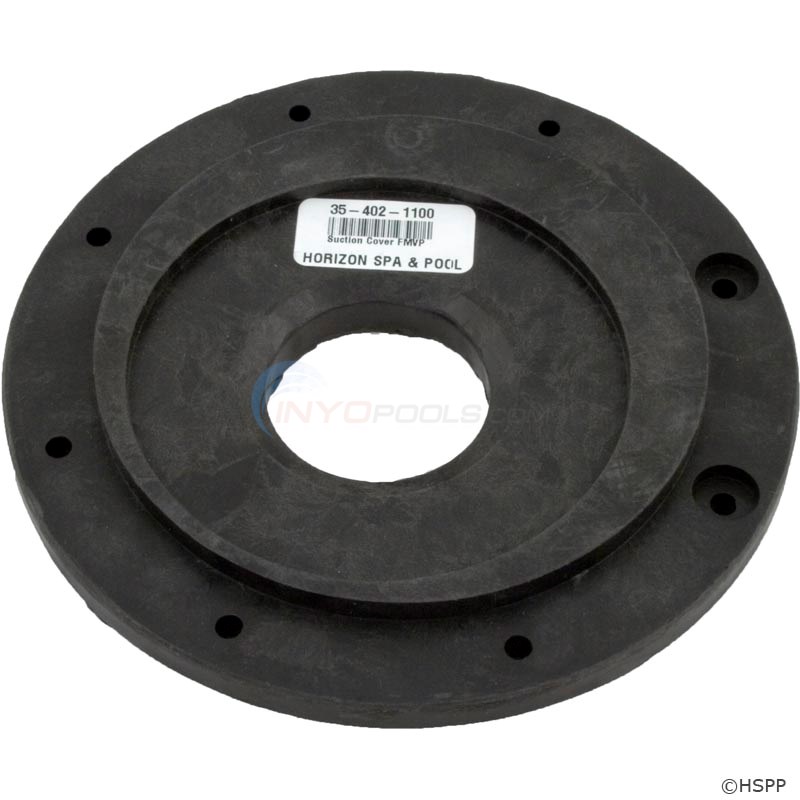

9	Suction Cover FMVP
10	Screw
11	O-Ring,Pump Pipe Plug,FMHP#011

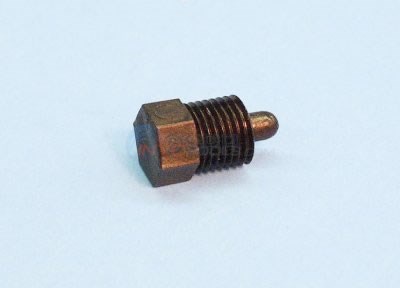

12	Pump Plug, 1/4", A/F
13	O-Ring, Pump Cover, Dominator #229,
14	Flange, Suction (91450150)

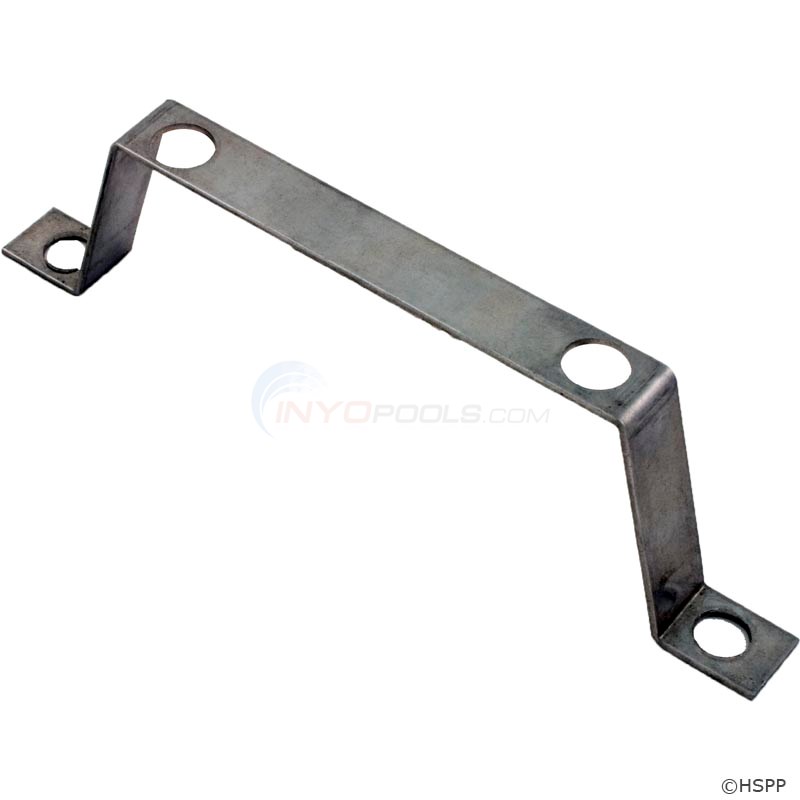

15	Mounting Bracket

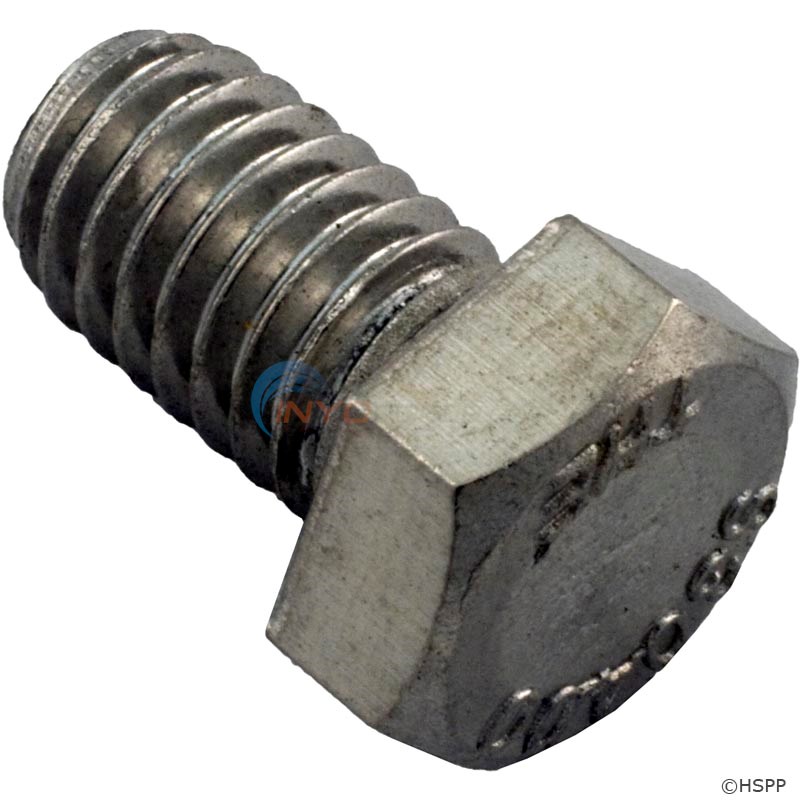

16	Screw, Hex Cap 3/8in 16 X 5/8in
17	Pump Union, 1-1/2" FBT x 1-1/2" S
18	3/4 HP 115V Thru Bolt Motor

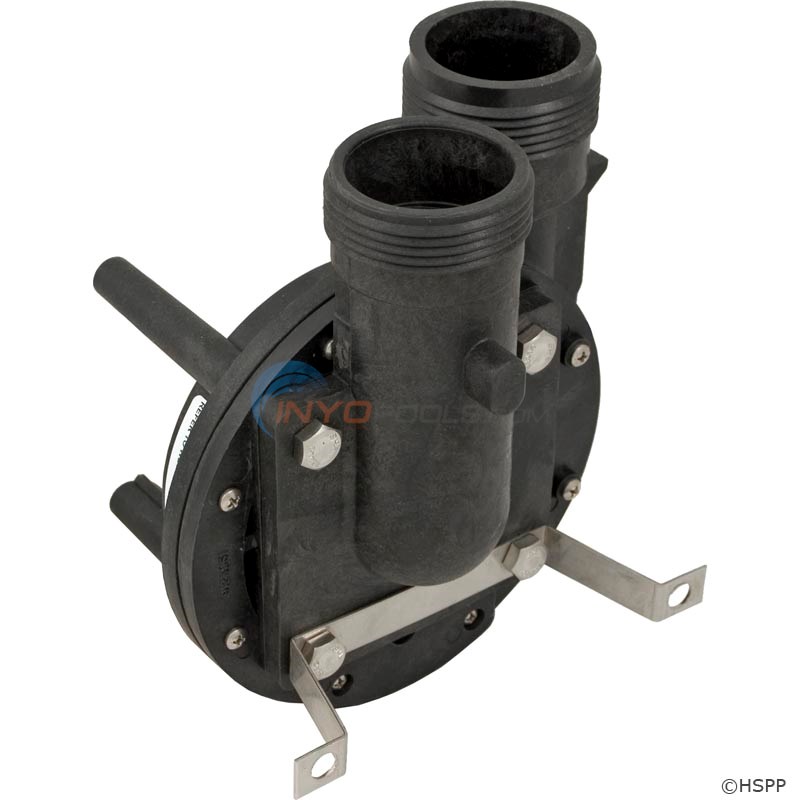

19	Wet End 1.0 HP FMVP
20	Flo-Master FMVP Pump & motor complete 1.0 Hp, 1-spd, 115v

View Parts List

Diagram #	Part Title
2	Volute, Side Discharge (92770500)
3	Seal Assembly, A/F
6	Impeller, 3/4 Hp
7	O-Ring, Pump Volute,FMHP #158
9	Suction Cover FMVP
10	Screw
11	O-Ring,Pump Pipe Plug,FMHP#011
12	Pump Plug, 1/4", A/F
13	O-Ring, Pump Cover, Dominator #229,
14	Flange, Suction (91450150)
15	Mounting Bracket
16	Screw, Hex Cap 3/8in 16 X 5/8in
17	Pump Union, 1-1/2" FBT x 1-1/2" S
18	3/4 HP 115V Thru Bolt Motor
19	Wet End 1.0 HP FMVP
20	Flo-Master FMVP Pump & motor complete 1.0 Hp, 1-spd, 115v

Available Parts:

Part # 5121-02 Mfg # 92770501

Volute, Side Discharge (92770500)

$57.99 IN STOCK
