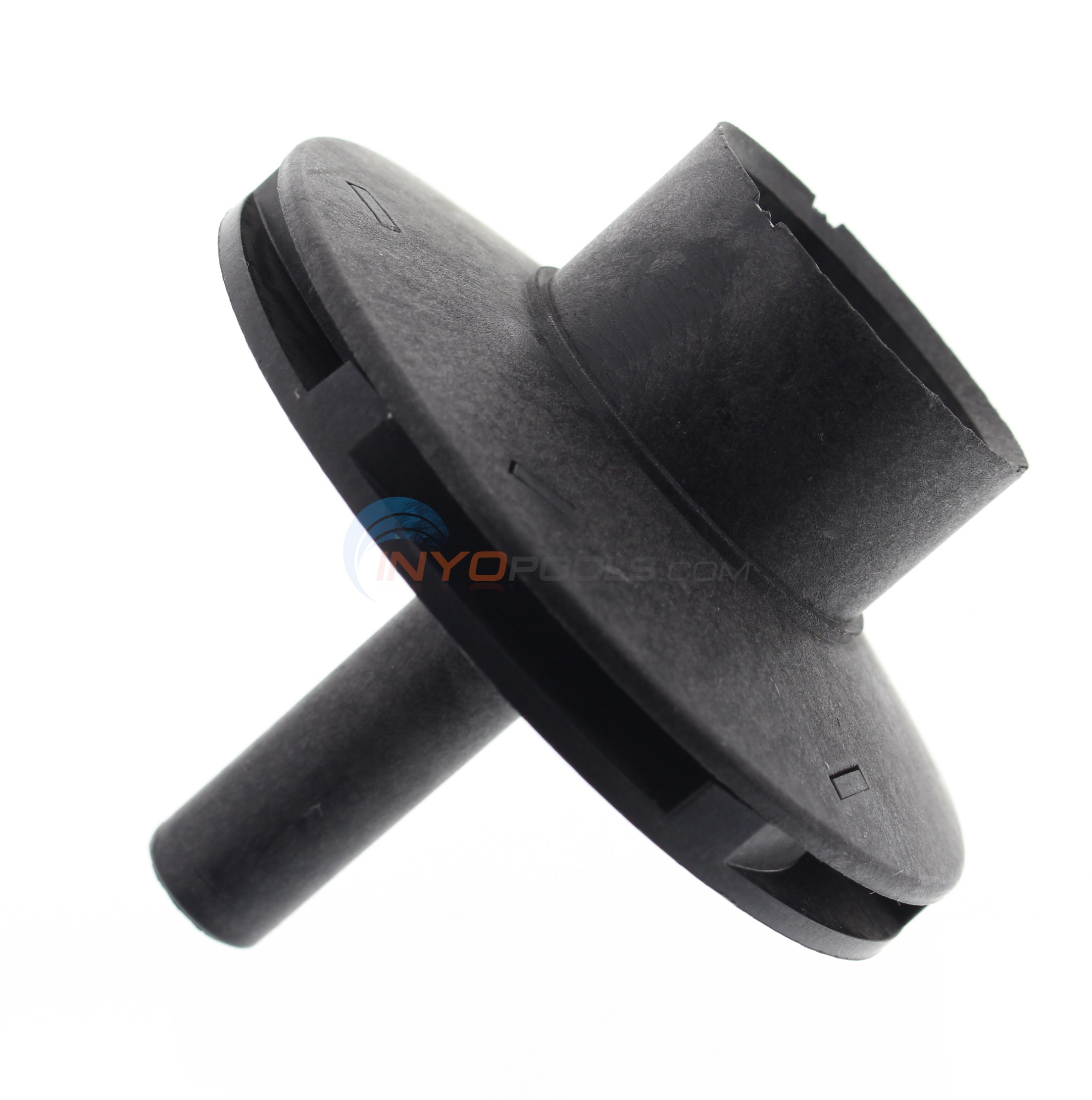

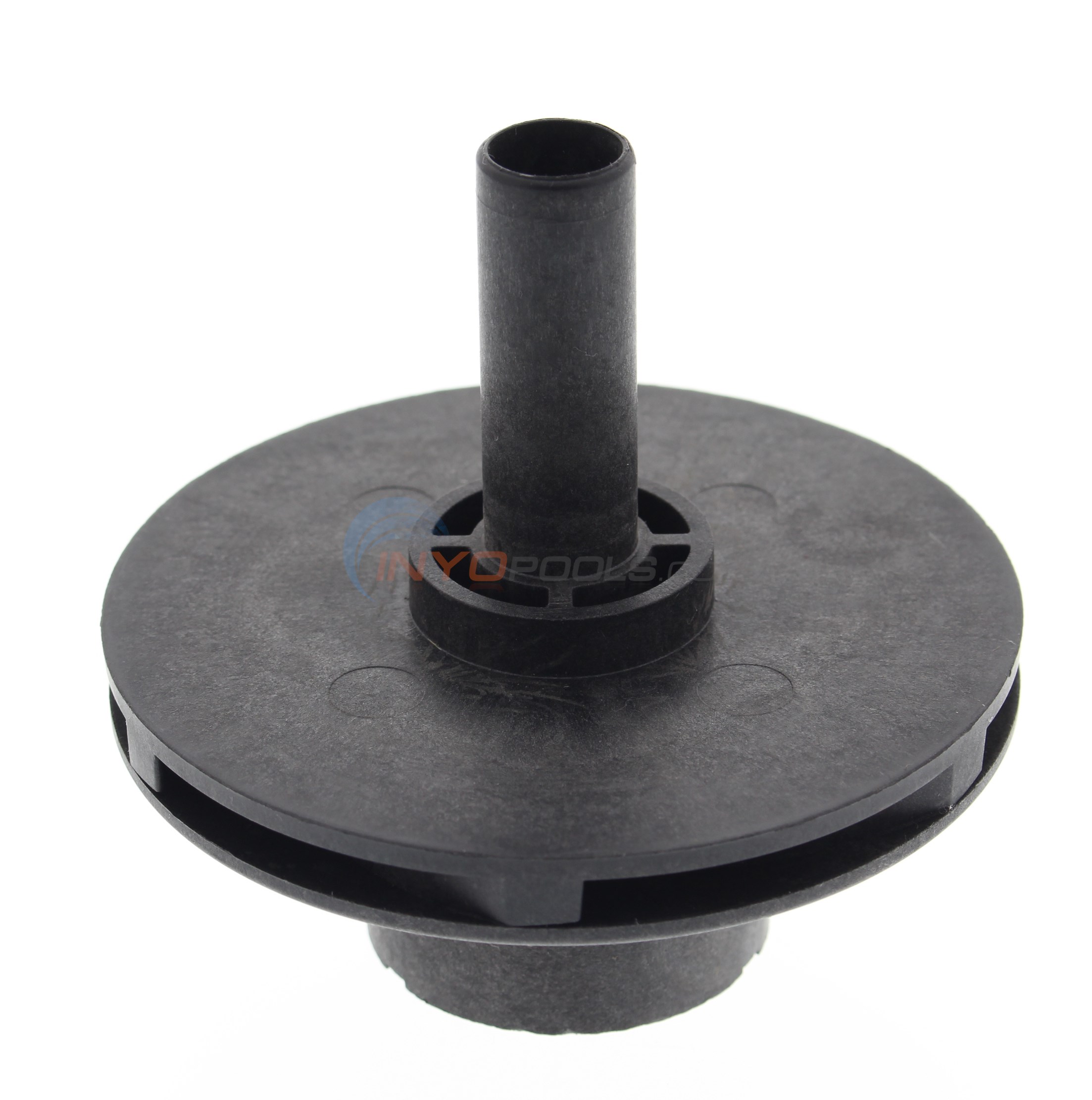

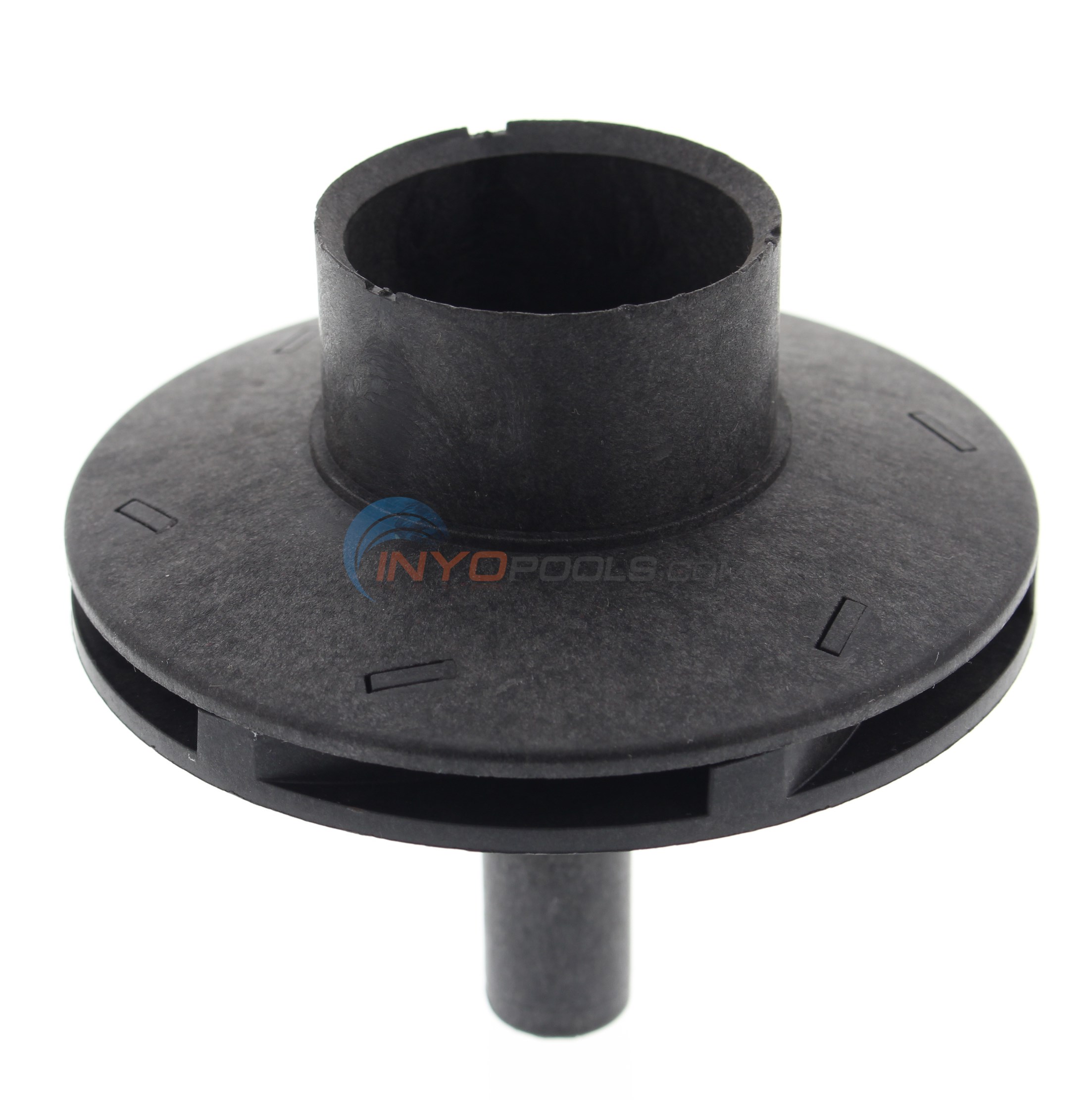

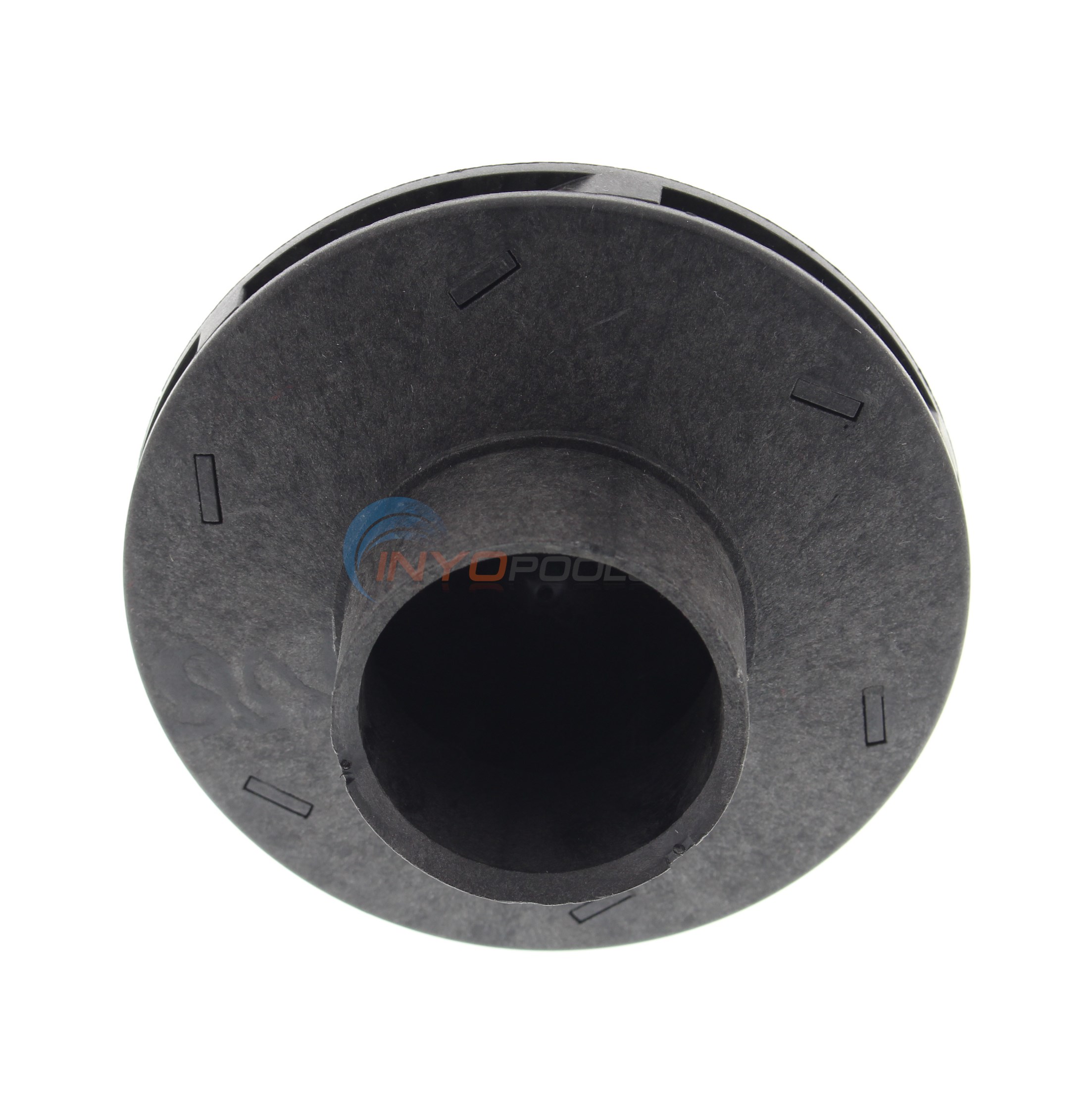

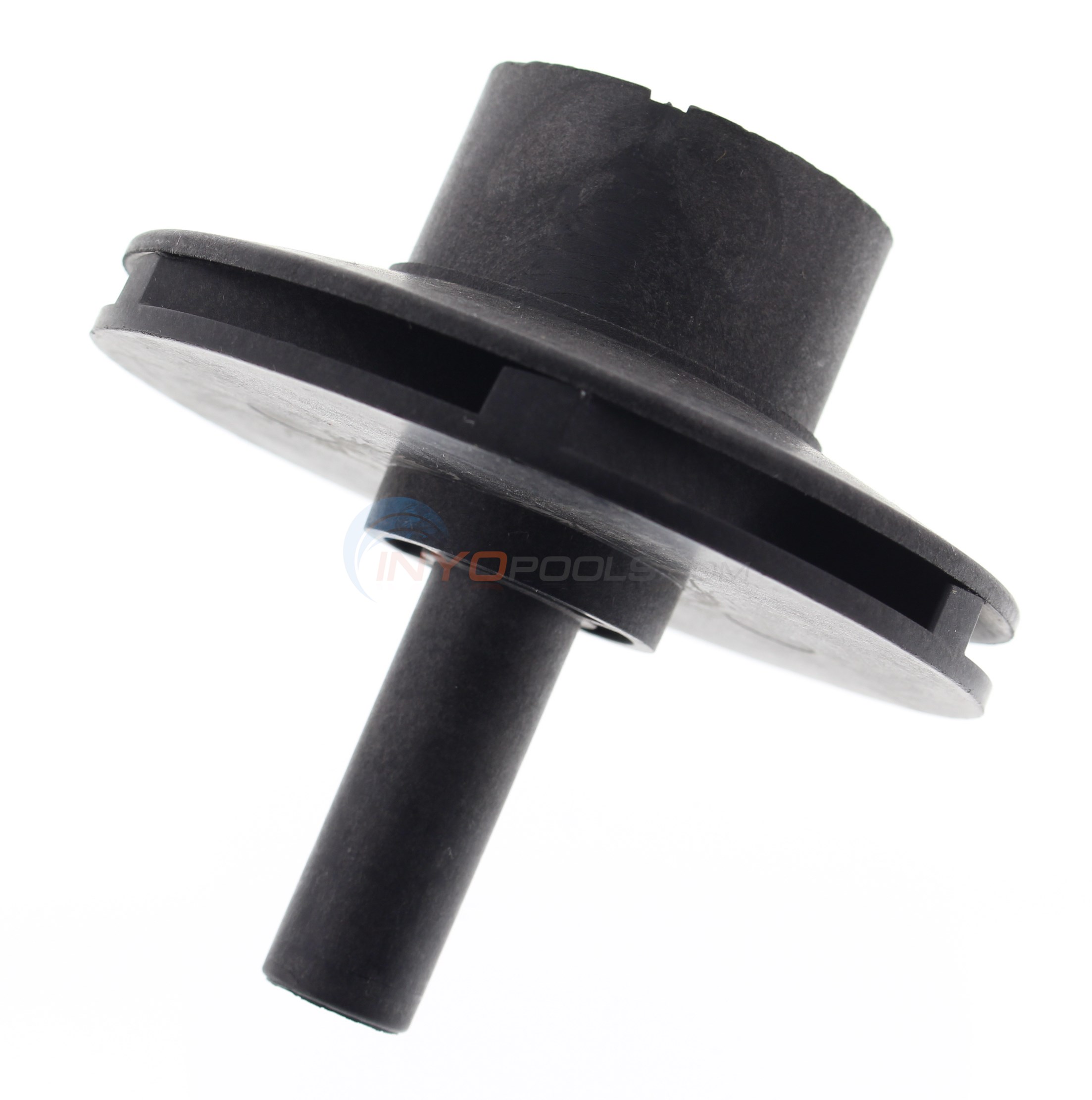

Impeller, 3/4 HP - 91693551

$41.99

IN STOCK
FREE SHIPPING

Part # 5121-06A

By Gecko Alliance


Details

Top

Part # 5121-06A

Manufacturer Code 91693551

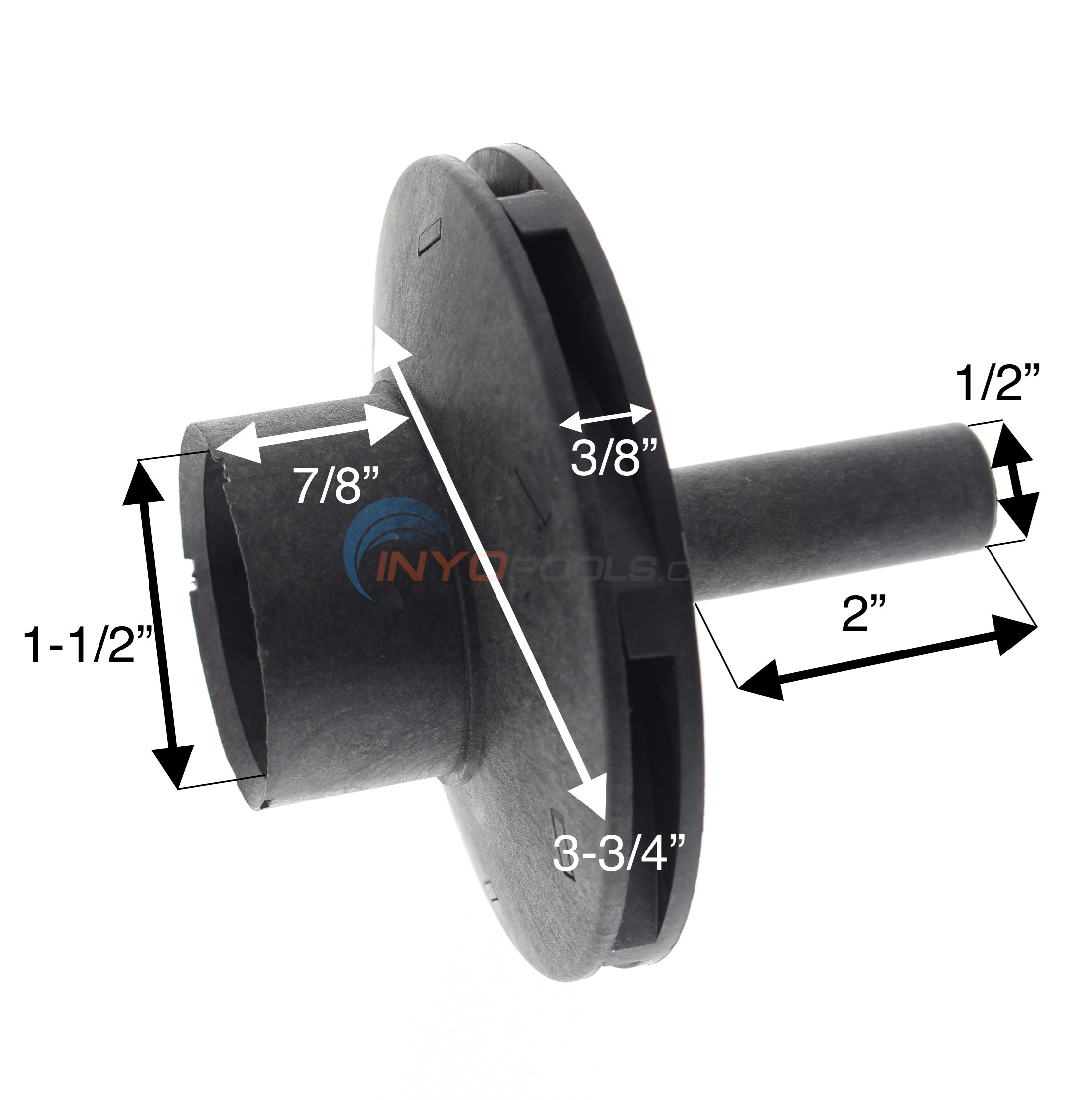

Dimensions 3-3/4" X 1-1/2"

Alternate Part #'s 30238, 354021012, 91693551, AF91693551, AQF1016708, FPF0407, 35-402-1012

Product Description

INYO # 5121-06A AQUA FLO # 91693551 THIS IS A 3/4 HP IMPELLER USED ON THESE AQUA FLO PUMPS FMCP, FMHP, TMCP BLACK PLASTIC IMPELLER INCLUDES: IMPELLER ONLY CLOSED FACE NUMBER OF VANES: 6 OUTSIDE DIAMETER: 3-3/4" THICKNESS: 13/32" (OUTSIDE THICKNESS AT OUTSIDE EDGE) THICKNESS: 7/32" (B) (INSIDE THICKNESS AT OUTSIDE EDGE) FRONT TO BACK: 3-5/8" (FROM END OF SHAFT TO FRONT ON INTAKE) INLET OUTSIDE DIAMETER: 1-3/4" INLET INSIDE DIAMETER: 1-1/2" SHAFT COVER LENGTH: 1-3/4" SHAFT COVER OD 5/8" (THIS IS WHERE THE IMPELLER SCREWS ONTO THE MOTOR SHAFT) MARKINGS: THERE IS A RED DOT ON THE SHAFT NEAR THE END SHAFT SEAL USED WITH THIS IMPELLER OPT # 5250-104 MFG# 92500150 GENERIC # PS-200 OR AS-200
