Generation 12'x18' Oval (Steel Top Rail, Steel Upright) Parts

PGEN-GB52SSSSTSSEA1

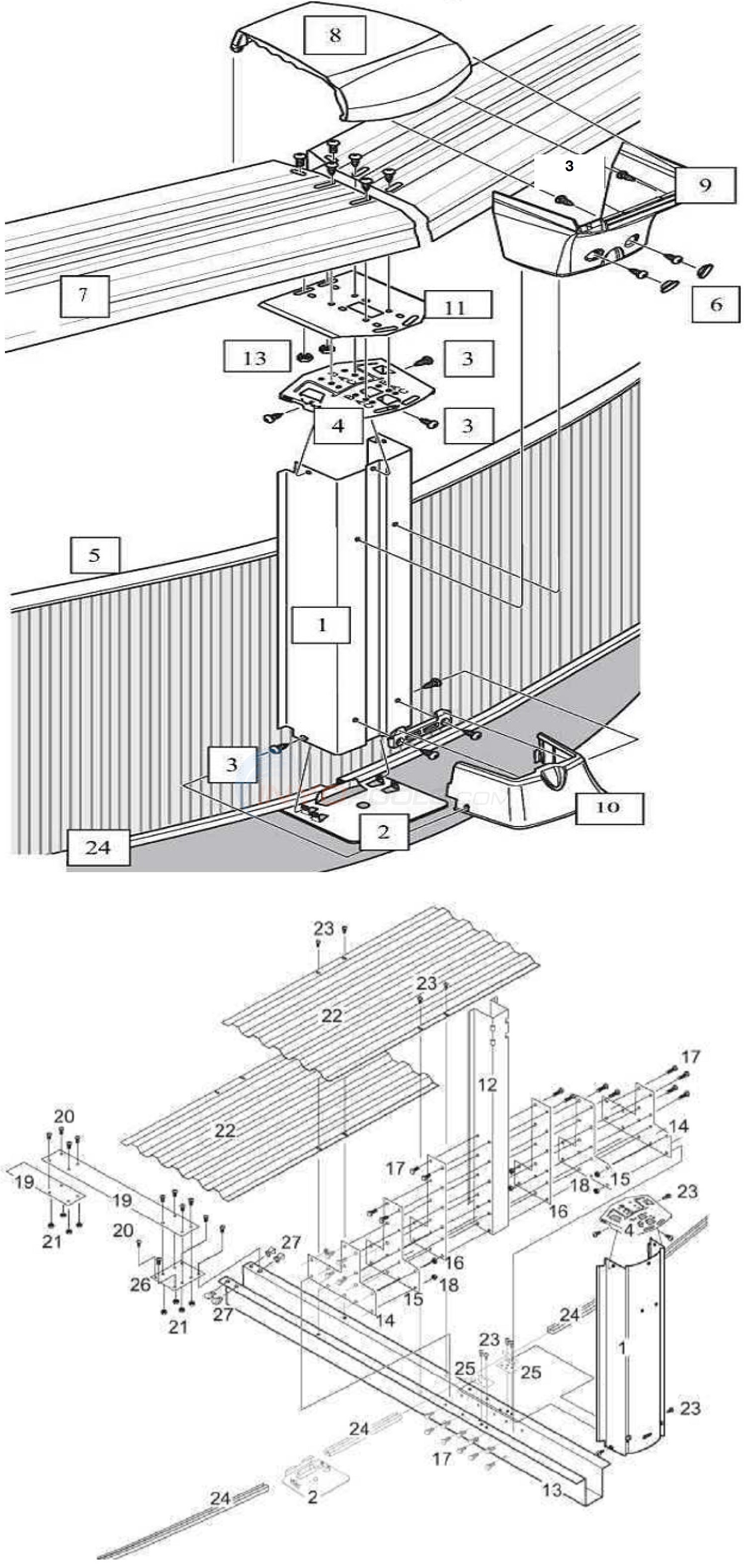

Generation 12'x18' Oval (Steel Top Rail, Steel Upright) Diagram

Click to zoom in

Diagram #	Part Title
1	Upright 51-1/2" - Steel (Single)
2	Bottom Plate Steel for Estate, Generation, Malibu, Neptune (Single)
4	Top Plate 7" (Single)
5	Slotted Tube 44" (Single)
6	Plugs for ledge cover (6/bag) J3000, Sierra
7	Top Ledge 45-9/16" Generation (single)
8	Top Connector Upper Piece for Generation (Single)
9	Top Connector Lower Piece for Generation (Single)
10	Foot Cover (Single)
11	Support Plate (Single)
12	Upright channel 52" (single)
13	Bottom Channel J4000 (single)
14	Outside "T" bracket (single)
15	Middle "T" bracket (single)
16	Inside "L" bracket (single)
19	Strap - GIB 46-9/16" J4000 (Single)
20&24	Bottom Rail - Steel 44-5/8"
22	Hold Down Plate J4000 (single)
25	Vertical Bracket
26	Bracket for Strap J4000 (single)
*	6" Slotted Tube Connector (Single)
*	Resin Slotted Tube (SINGLE) Conn For Atlantic Pools, J3000, SIERRA, J5000, J4000, ESPRIT, BE
*	Haughs Atlantic Ag Pool Coping Strip (1382480)
*	Wall Joiner Bar

View Parts List

Diagram #	Part Title
1	Upright 51-1/2" - Steel (Single)
2	Bottom Plate Steel for Estate, Generation, Malibu, Neptune (Single)
4	Top Plate 7" (Single)
5	Slotted Tube 44" (Single)
6	Plugs for ledge cover (6/bag) J3000, Sierra
7	Top Ledge 45-9/16" Generation (single)
8	Top Connector Upper Piece for Generation (Single)
9	Top Connector Lower Piece for Generation (Single)
10	Foot Cover (Single)
11	Support Plate (Single)
12	Upright channel 52" (single)
13	Bottom Channel J4000 (single)
14	Outside "T" bracket (single)
15	Middle "T" bracket (single)
16	Inside "L" bracket (single)
19	Strap - GIB 46-9/16" J4000 (Single)
20&24	Bottom Rail - Steel 44-5/8"
22	Hold Down Plate J4000 (single)
25	Vertical Bracket
26	Bracket for Strap J4000 (single)
*	6" Slotted Tube Connector (Single)
*	Resin Slotted Tube (SINGLE) Conn For Atlantic Pools, J3000, SIERRA, J5000, J4000, ESPRIT, BE
*	Haughs Atlantic Ag Pool Coping Strip (1382480)
*	Wall Joiner Bar

Available Parts:

Upright 51-1/2" - Steel (Single)

Part # UR10013 Mfg # UR10013

Upright 51-1/2" - Steel (Single)

$64.04 OUT OF STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Bottom Plate Steel for Estate, Generation, Malibu, Neptune (Single)

Part # 1320195

Bottom Plate Steel for Estate, Generation, Malibu, Neptune (Single)

$11.08 IN STOCK

Quantity Per Pool 10

Quantity Per Pool 10

Qty:

Top Plate 7" (Single)

Part # 1320143

Top Plate 7" (Single)

$20.99 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Slotted Tube 44" (Single)

Part # NBP2003 Mfg # 1470096

Slotted Tube 44" (Single)

$15.13 IN STOCK

Quantity Per Pool 8

Quantity Per Pool 8

Qty:

Slotted Tube 55-1/4" (Single)

Part # NBP2005 Mfg # 1470098

Slotted Tube 55-1/4" (Single)

$30.26 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

Slotted Tube 55-1/4" (4-PACK) 1470098 For Atlantic Pools 1470098 J3000, J2000, SIERRA, J5000, J4000,

Part # NBP2005-PACK4

Slotted Tube 55-1/4" (4-PACK) 1470098 For Atlantic Pools 1470098 J3000, J2000, SIERRA, J5000, J4000,

$106.91 OUT OF STOCK

Quantity Per Pool 4-PACK

Quantity Per Pool 4-PACK

Slotted Tube 55-1/4" (8-PACK) 1470098 For Atlantic Pools 1470098 J3000, J2000, SIERRA, J5000, J4000,

Part # NBP2005-PACK8

Slotted Tube 55-1/4" (8-PACK) 1470098 For Atlantic Pools 1470098 J3000, J2000, SIERRA, J5000, J4000,

$184.74 OUT OF STOCK

Quantity Per Pool 8-PACK

Quantity Per Pool 8-PACK

Plugs for ledge cover (6/bag) J3000, Sierra

Part # 1490256

Plugs for ledge cover (6/bag) J3000, Sierra

$16.79 IN STOCK

Quantity Per Pool 2

Quantity Per Pool 2

Qty:

Top Ledge 45-9/16" Generation (single)

Part # TL10032

Top Ledge 45-9/16" Generation (single)

$104.99 IN STOCK

Quantity Per Pool 8

Quantity Per Pool 8

Qty:

Top Ledge 58-1/4" Generation (single)

Part # TL10036

Top Ledge 58-1/4" Generation (single)

$139.00 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

Top Connector Upper Piece for Generation (Single)

Part # 1490487

Top Connector Upper Piece for Generation (Single)

$20.99 OUT OF STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Top Connector Lower Piece for Generation (Single)

Part # 1490277

Top Connector Lower Piece for Generation (Single)

$20.99 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Foot Cover (Single)

Part # 1490281

Foot Cover (Single)

$18.89 OUT OF STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Support Plate (Single)

Part # 1320029

Support Plate (Single)

$11.54 OUT OF STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Upright channel 52" (single)

Part # 1440383

Upright channel 52" (single)

$238.34 OUT OF STOCK

Quantity Per Pool 2

Quantity Per Pool 2

Bottom Channel J4000 (single)

Part # 1440335

Bottom Channel J4000 (single)

$239.39 OUT OF STOCK

Quantity Per Pool 2

Quantity Per Pool 2

Outside "T" bracket (single)

Part # 1320139

Outside "T" bracket (single)

$20.99 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

Middle "T" bracket (single)

Part # 1320138

Middle "T" bracket (single)

$65.09 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

Inside "L" bracket (single)

Part # 1320147

Inside "L" bracket (single)

$65.09 OUT OF STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Strap - GIB 46-9/16" J4000 (Single)

Part # 1510139

Strap - GIB 46-9/16" J4000 (Single)

$75.59 OUT OF STOCK

Quantity Per Pool 2

Quantity Per Pool 2

Bottom Rail - Steel 44-5/8"

Part # NLR-1254412

Bottom Rail - Steel 44-5/8"

$58.13 OUT OF STOCK

Quantity Per Pool 8

Quantity Per Pool 8

Bottom Rail - Steel 55-7/8"

Part # NLR-1255618

Bottom Rail - Steel 55-7/8"

$31.49 OUT OF STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Wall Channel - Steel 45" (4-PACK)

Part # NLR-1254412-PACK4

Wall Channel - Steel 45" (4-PACK)

$146.99 OUT OF STOCK

Quantity Per Pool 4-PACK

Quantity Per Pool 4-PACK

Wall Channel - Steel 45" (8-PACK)

Part # NLR-1254412-PACK8

Wall Channel - Steel 45" (8-PACK)

$149.04 OUT OF STOCK

Quantity Per Pool 8-PACK

Quantity Per Pool 8-PACK

Hold Down Plate J4000 (single)

Part # 1320166

Hold Down Plate J4000 (single)

$93.44 OUT OF STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Vertical Bracket

Part # NBP2054 Mfg # 1320169

Vertical Bracket

$10.49 IN STOCK

Quantity Per Pool 2

Quantity Per Pool 2

Qty:

Bracket for Strap J4000 (single)

Part # 1320164

Bracket for Strap J4000 (single)

$37.79 IN STOCK

Quantity Per Pool 2

Quantity Per Pool 2

Qty:

6" Slotted Tube Connector (Single)

Part # 1470108

6" Slotted Tube Connector (Single)

$6.83 IN STOCK

Quantity Per Pool 10

Quantity Per Pool 10

Qty:

Resin Slotted Tube (SINGLE) Conn For Atlantic Pools, J3000, SIERRA, J5000, J4000, ESPRIT, BE

Part # NBP2002 Mfg # 1470087

Resin Slotted Tube (SINGLE) Conn For Atlantic Pools, J3000, SIERRA, J5000, J4000, ESPRIT, BE

$4.69 IN STOCK

Quantity Per Pool 2

Quantity Per Pool 2

Qty:

Haughs Atlantic Ag Pool Coping Strip (1382480)

Part # S1382480

Haughs Atlantic Ag Pool Coping Strip (1382480)

$15.21 IN STOCK

Quantity Per Pool 13

Quantity Per Pool 13

Qty:

Wall Joiner Bar

Part # 11823

Wall Joiner Bar

$33.59 OUT OF STOCK

Quantity Per Pool 2

Quantity Per Pool 2
