Hayward S-160T Filter Parts

2 PIECE MOLDED SAND FILTER - 16"

Hayward S-160T Filter Diagram

Click to zoom in

Diagram #	Part Title
***	Hayward S160T O-ring Kit
1	TOP MOUNT VALVE, BUTTRESS THRD WG
2	Bottom Mount Pressure Gauge 0-60 1/4" NPT
3	Valve Body O-ring (O-284)
4	FILTER TANK HEAD (TOP), IVORY
5	NUT 1/4-20 S.S.
6	WASHER
7	LATERAL, PIPE ASSY FOLDING VERSION
8	O-RING, TANK
9	LATERAL OLD THREADED STYLE
10	OBSOLETE FILTER TANK (BOTTOM)
11	SCREEN, BOTTOM
12	BOLT, HEX HEAD SS 1/4-20X 1.75 IN
13	O-RING, 13/16" OD (PRIOR TO 1980)
14	GASKET, DRAIN CAP
15	DRAIN CAP WITH GASKET
16	PIPE, DRAIN
17	STAND, FILTER SUPPORT
*	OBSOLETE CAP
*	Pump/Filter Base

View Parts List

Diagram #	Part Title
***	Hayward S160T O-ring Kit
1	TOP MOUNT VALVE, BUTTRESS THRD WG
2	Bottom Mount Pressure Gauge 0-60 1/4" NPT
3	Valve Body O-ring (O-284)
4	FILTER TANK HEAD (TOP), IVORY
5	NUT 1/4-20 S.S.
6	WASHER
7	LATERAL, PIPE ASSY FOLDING VERSION
8	O-RING, TANK
9	LATERAL OLD THREADED STYLE
10	OBSOLETE FILTER TANK (BOTTOM)
11	SCREEN, BOTTOM
12	BOLT, HEX HEAD SS 1/4-20X 1.75 IN
13	O-RING, 13/16" OD (PRIOR TO 1980)
14	GASKET, DRAIN CAP
15	DRAIN CAP WITH GASKET
16	PIPE, DRAIN
17	STAND, FILTER SUPPORT
*	OBSOLETE CAP
*	Pump/Filter Base

Available Parts:

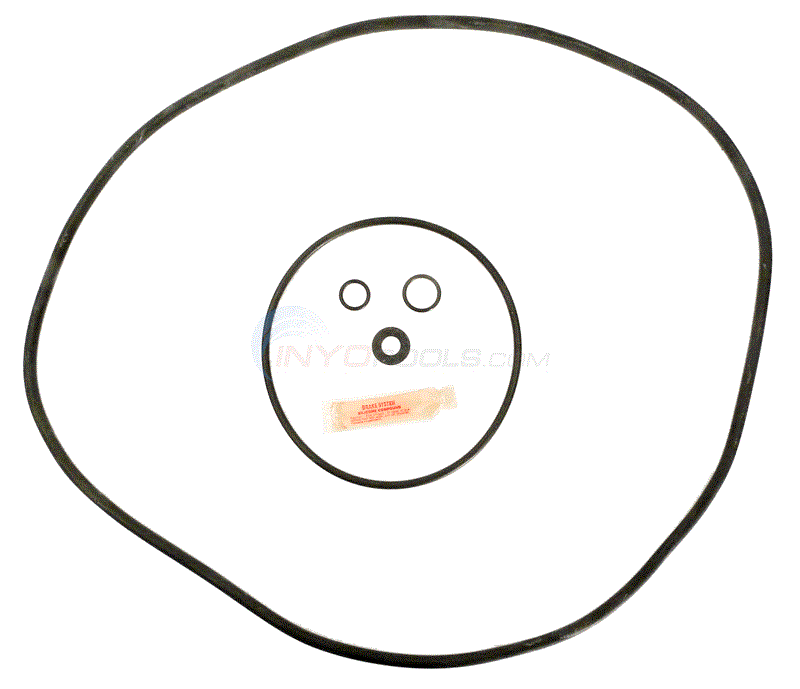

Hayward S160T O-ring Kit

Part # APCK1134

Hayward S160T O-ring Kit

$34.99 IN STOCK

Qty:

TOP MOUNT VALVE, BUTTRESS THRD WG

Part # 4707-0 Mfg # SP07121

TOP MOUNT VALVE, BUTTRESS THRD WG

$216.99

VALVE,TOP MT.BUTRS.THD.1 1/2"PRAHER

Part # 4707P Mfg # TM-12-PB

VALVE,TOP MT.BUTRS.THD.1 1/2"PRAHER

$151.97 IN STOCK

Qty:

Bottom Mount Pressure Gauge 0-60 1/4" NPT

Part # 4726-0 Mfg # 101D-204D

Bottom Mount Pressure Gauge 0-60 1/4" NPT

$14.85 IN STOCK

Qty:

Valve Body O-ring (O-284)

Part # 4600-5333 Mfg # 275333

Valve Body O-ring (O-284)

$8.31 IN STOCK

Qty:

FILTER TANK HEAD (TOP), IVORY

Part # 4800-05B

FILTER TANK HEAD (TOP), IVORY

$485.99

NUT 1/4-20 S.S.

Part # 6930-0 Mfg # 14072508R

NUT 1/4-20 S.S.

$11.15 IN STOCK

Qty:

WASHER

Part # 4810-14A Mfg # ECX1077

$10.22 IN STOCK

Qty:

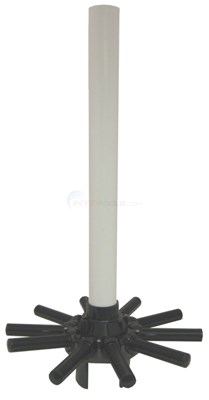

LATERAL, PIPE ASSY FOLDING VERSION

Part # 4802-07 Mfg # SX160QA

LATERAL, PIPE ASSY FOLDING VERSION

$143.77 IN STOCK

Qty:

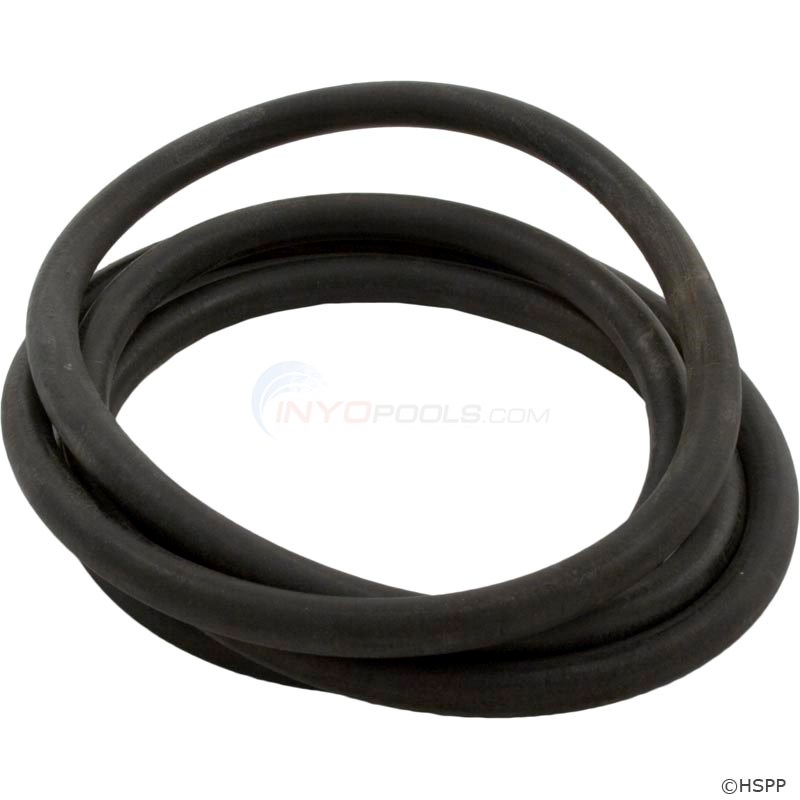

O-RING, TANK

Part # 4824-01 Mfg # O-339

$19.99 IN STOCK

Qty:

LATERAL OLD THREADED STYLE

Part # 4800-15 Mfg # SX200Q

LATERAL OLD THREADED STYLE

$6.99 IN STOCK

Qty:

LATERAL NEW PIVOT STYLE

Part # 4800-30 Mfg # SX200QN

LATERAL NEW PIVOT STYLE

$11.54 IN STOCK

Qty:

10

OBSOLETE FILTER TANK (BOTTOM)

Mfg # SX160AA1

OBSOLETE FILTER TANK (BOTTOM)

NOT AVAILABLE

SCREEN, BOTTOM

Part # 4800-17 Mfg # SX200H

$19.99 IN STOCK

Qty:

BOLT, HEX HEAD SS 1/4-20X 1.75 IN

Part # 4800-08 Mfg # ECX1642215

BOLT, HEX HEAD SS 1/4-20X 1.75 IN

$9.29 IN STOCK

Qty:

O-RING, 13/16" OD (PRIOR TO 1980)

Part # 4800-02 Mfg # 114

O-RING, 13/16" OD (PRIOR TO 1980)

$14.15 IN STOCK

Qty:

O-RING, 1" OD (1980-CURRENT)

Part # 4662-04A Mfg # 210

O-RING, 1" OD (1980-CURRENT)

$2.99 IN STOCK

Qty:

GASKET, DRAIN CAP

Part # 4800-20 Mfg # HWS-200-Z-9

GASKET, DRAIN CAP

$10.99 IN STOCK

Qty:

DRAIN CAP WITH GASKET

Part # 4800-210 Mfg # SX200Z8A

DRAIN CAP WITH GASKET

$11.70 IN STOCK

Qty:

PIPE, DRAIN

Part # 4800-22 Mfg # SX200EB

$36.67 IN STOCK

Qty:

STAND, FILTER SUPPORT

Part # 4800-19 Mfg # SX200J

STAND, FILTER SUPPORT

$134.99 IN STOCK

Qty:

*

OBSOLETE CAP

Mfg # SX200Z10

OBSOLETE CAP

NOT AVAILABLE

Pump/Filter Base

Part # 31-150-1149 Mfg # ECX1291

Pump/Filter Base

$211.99 IN STOCK

Qty:

* NOT SHOWN
**REPLACEMENT VALVE BY PRAHER
*** O-RING/GASKET REPLACEMENT KIT
