Hayward SwimClear Cartridge Filter C100S, C150S, C200S Parts

Models C100S, C150S, C200S

Hayward SwimClear Cartridge Filter C100S, C150S, C200S Diagram

Click to zoom in

Diagram #	Part Title
1	Pressure Gauge With Dial - Bottom Mount
2	Threaded Adapter For Pressure Gauge
3	Air Relief Assembly with O-Ring
4	O-Ring for Gauge Adapter and Air Relief Assembly (set of 2)
5	Nut Adapter (Set of 2)
6a	Filter Head Assembly C100S
7	Latch for Lock Ring
8	O-Ring for Filter Head
9a	C100S Replacement Cartridge - Generic
9b	C150S Replacement Cartridge - Generic
9c	C200S Replacement Cartridge - Generic
10	Filter Body Assembly
11a	Filter Diffuser Assembly C100S
12	Drain Plug with O-Ring
13	Union Connection Kit (Set of 2)
*	Union Connector 1.5” Socket

View Parts List

Diagram #	Part Title
1	Pressure Gauge With Dial - Bottom Mount
2	Threaded Adapter For Pressure Gauge
3	Air Relief Assembly with O-Ring
4	O-Ring for Gauge Adapter and Air Relief Assembly (set of 2)
5	Nut Adapter (Set of 2)
6a	Filter Head Assembly C100S
7	Latch for Lock Ring
8	O-Ring for Filter Head
9a	C100S Replacement Cartridge - Generic
9b	C150S Replacement Cartridge - Generic
9c	C200S Replacement Cartridge - Generic
10	Filter Body Assembly
11a	Filter Diffuser Assembly C100S
12	Drain Plug with O-Ring
13	Union Connection Kit (Set of 2)
*	Union Connector 1.5” Socket

Available Parts:

Pressure Gauge With Dial - Bottom Mount

Part # ECX271261

Pressure Gauge With Dial - Bottom Mount

$35.99 IN STOCK

Qty:

Bottom Mount Pressure Gauge 0-60 1/4" NPT (Generic)

Part # 4726-0 Mfg # 101D-204D/ 25501-000-800

Bottom Mount Pressure Gauge 0-60 1/4" NPT (Generic)

$18.99 IN STOCK

Qty:

Threaded Adapter For Pressure Gauge

Part # 4663-34 Mfg # CCX1000L

Threaded Adapter For Pressure Gauge

$16.49 IN STOCK

Qty:

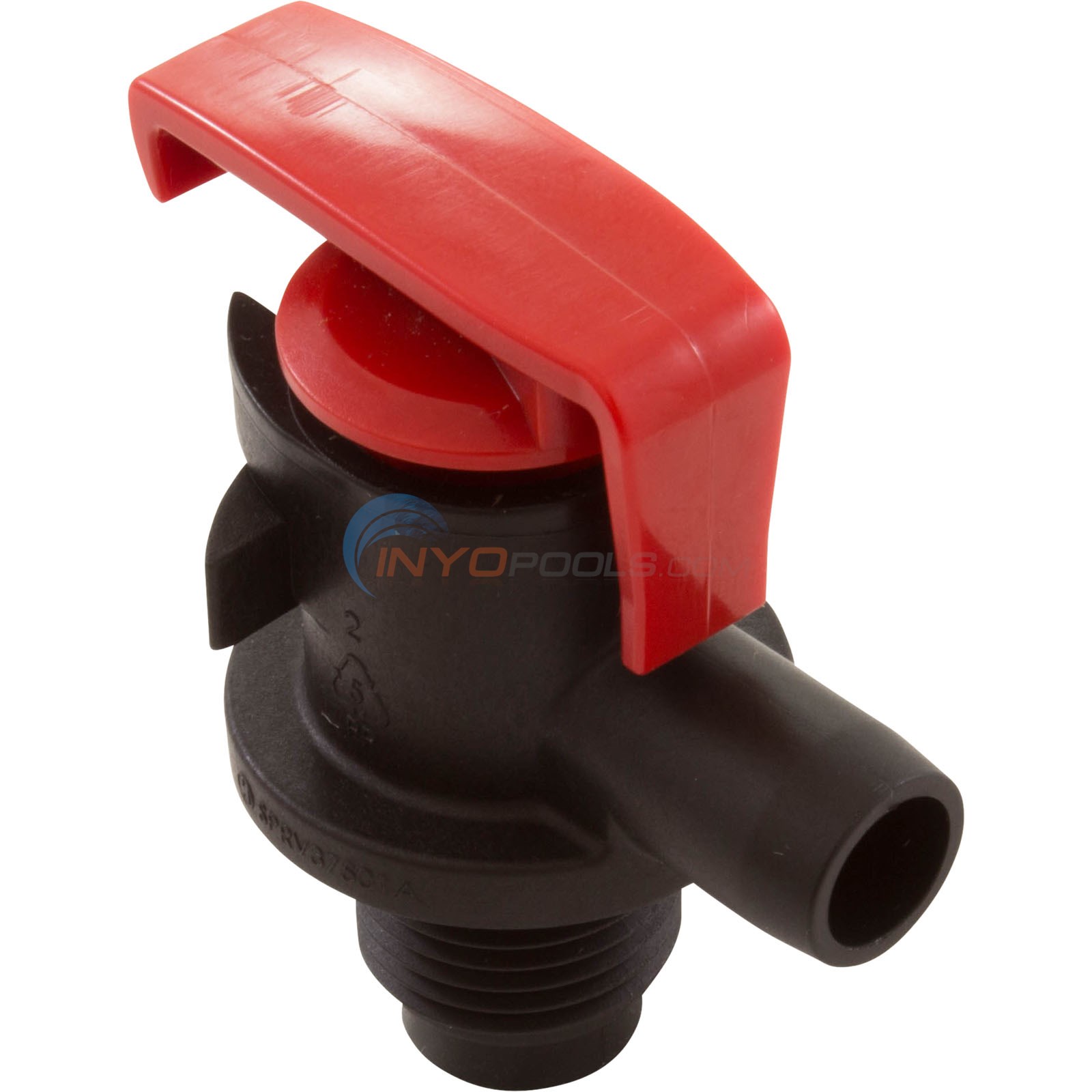

Air Relief Assembly with O-Ring

Part # CXRLV1001

Air Relief Assembly with O-Ring

$29.99 IN STOCK

Qty:

O-Ring for Gauge Adapter and Air Relief Assembly (set of 2)

Part # CXGAR1001PAK2

O-Ring for Gauge Adapter and Air Relief Assembly (set of 2)

$17.99 IN STOCK

Qty:

Nut Adapter (Set of 2)

Part # 4663-38 Mfg # CCX1000N

Nut Adapter (Set of 2)

$15.99 IN STOCK

Qty:

Filter Head Assembly C100S

Part # CX100B

Filter Head Assembly C100S

$319.99 IN STOCK

Qty:

Filter Head Assembly C150S

Part # CX150B

Filter Head Assembly C150S

$345.99 IN STOCK

Qty:

Filter Head Assembly C200S

Part # CX200B Mfg # CX200B

Filter Head Assembly C200S

$438.99 IN STOCK

Qty:

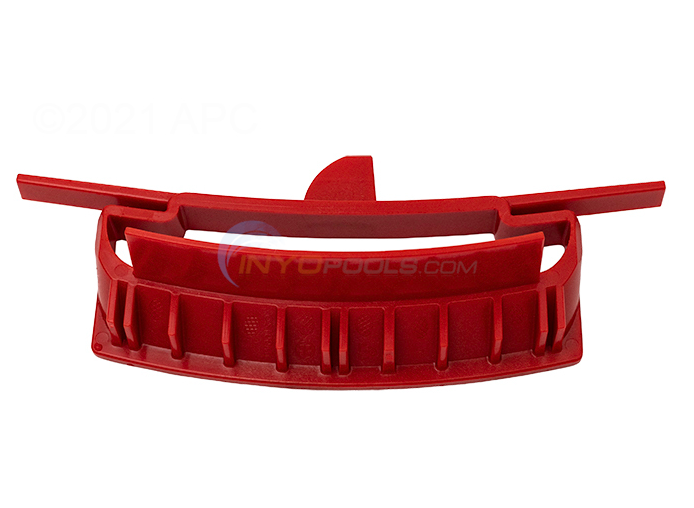

Latch for Lock Ring

Part # CXLRL1001

Latch for Lock Ring

$21.99 IN STOCK

Qty:

O-Ring for Filter Head

Part # CXFHR1001

O-Ring for Filter Head

$27.99 IN STOCK

Qty:

C100S Replacement Cartridge - Generic

Part # PL0165 Mfg # CX100XRE

C100S Replacement Cartridge - Generic

$69.00 IN STOCK

Qty:

C100S Replacement Cartridge - Generic (2 Pack)

Part # PL0165-2 Mfg # CX100XRE

C100S Replacement Cartridge - Generic (2 Pack)

$131.00 IN STOCK

Qty:

C150S Replacement Cartridge - Generic

Part # PL0166 Mfg # CX150XRE

C150S Replacement Cartridge - Generic

$65.00 IN STOCK

Qty:

C150S Replacement Cartridge - Generic (2 Pack)

Part # PL0166-2 Mfg # CX150XRE

C150S Replacement Cartridge - Generic (2 Pack)

$155.00 IN STOCK

Qty:

C200S Replacement Cartridge - Generic

Part # PL0167 Mfg # CX200XRE

C200S Replacement Cartridge - Generic

$69.00 IN STOCK

Qty:

C200S Replacement Cartridge - Generic (2 Pack)

Part # PL0167-2 Mfg # CX200XRE

C200S Replacement Cartridge - Generic (2 Pack)

$170.00 IN STOCK

Qty:

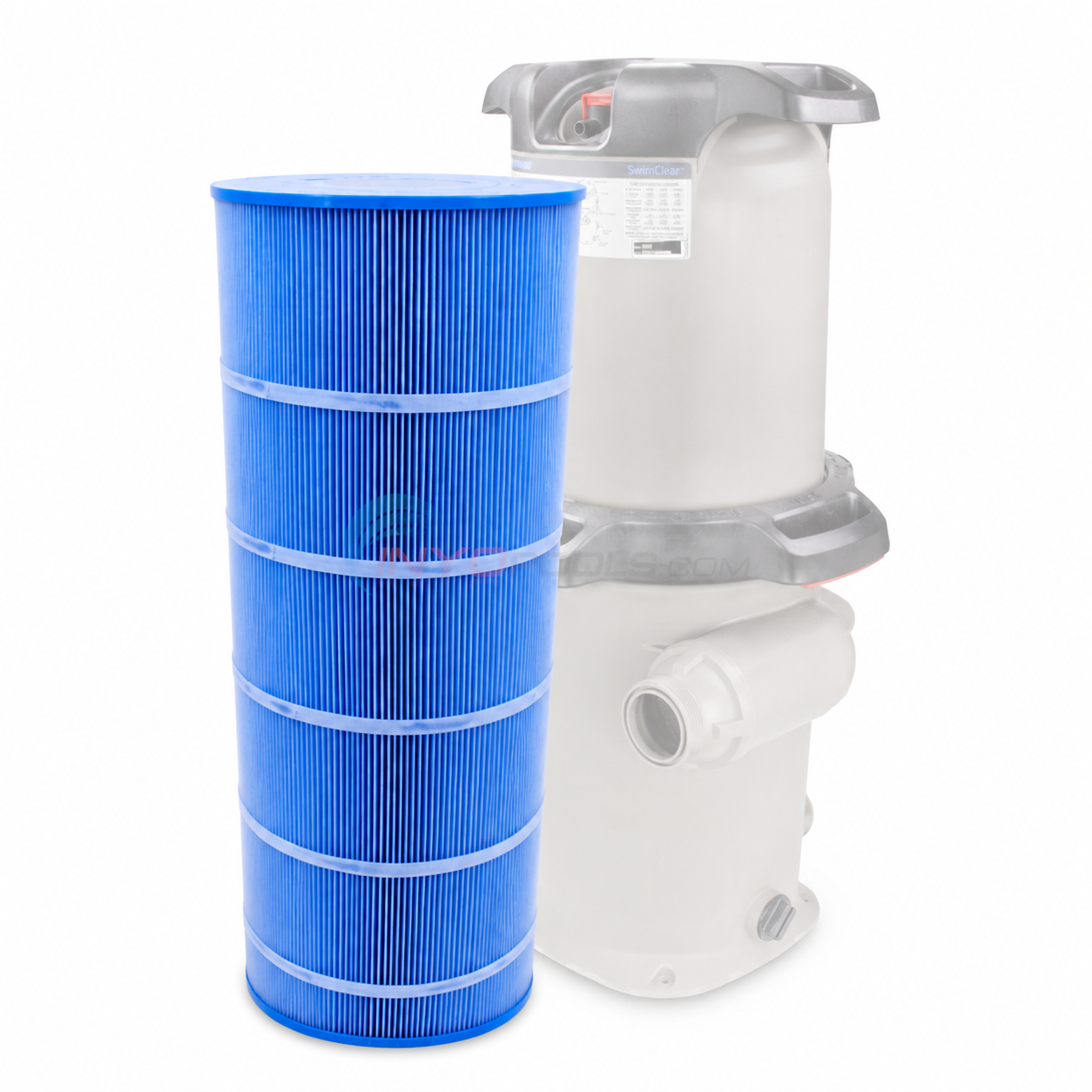

Pureline CX200XRE Replacement Cartridge for Hayward 200 Sq. Ft. CX200XRE C200S 3oz Blue Plate Antibacterial

Part # PL0217

Pureline CX200XRE Replacement Cartridge for Hayward 200 Sq. Ft. CX200XRE C200S 3oz Blue Plate Antibacterial

$109.99 IN STOCK

Qty:

Filter Body Assembly

Part # CXFBA1001 Mfg # CXFBA1001

Filter Body Assembly

$616.99

Filter Diffuser Assembly C100S

Part # CXFDA100

Filter Diffuser Assembly C100S

$30.99

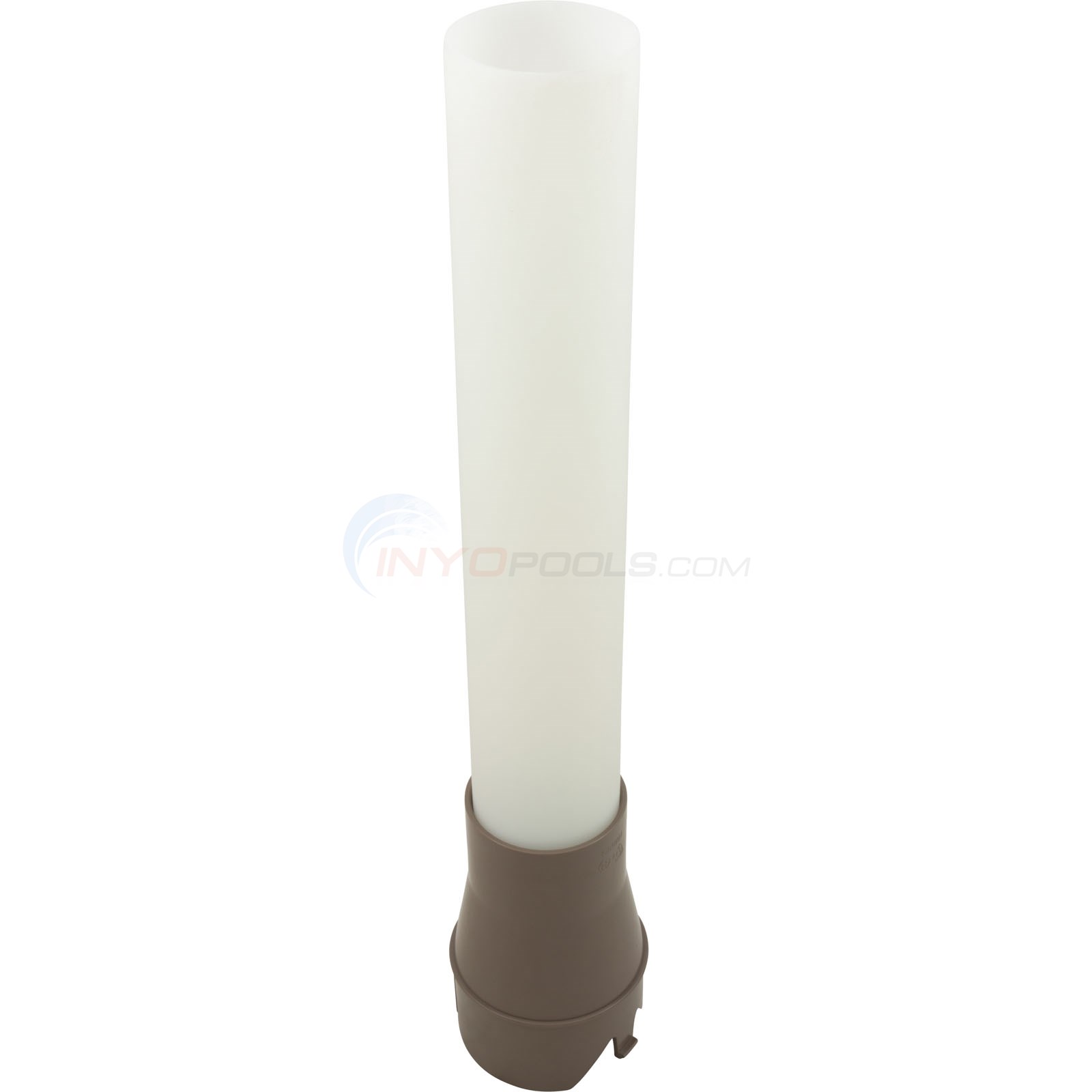

Filter Diffuser Assembly C150S

Part # CXFDA150

Filter Diffuser Assembly C150S

$50.49

Filter Diffuser Assembly C200S

Part # CXFDA200

Filter Diffuser Assembly C200S

$45.99 IN STOCK

Qty:

Drain Plug with O-Ring

Part # 4663-44 Mfg # SP1022CBLK

Drain Plug with O-Ring

$11.99 IN STOCK

Qty:

Union Connection Kit (Set of 2)

Part # 5112-200 Mfg # SPX3200UNKIT

Union Connection Kit (Set of 2)

$74.99 IN STOCK

Qty:

Union Connector 1.5” Socket

Part # 5111-24 Mfg # SPX1500JS

Union Connector 1.5” Socket

$39.99 IN STOCK

Qty:

Union Connector 1.5” NPTF

Part # 5111-24A Mfg # SPX1500JT

Union Connector 1.5” NPTF

$41.99

* Optional (Not Shown)
