Jacuzzi Sherlock Cartridge Filter Parts

1 1/2” & 2” MODELS SHER80, 120, 160, 200

Jacuzzi Sherlock Cartridge Filter Diagram

Click to zoom in

Diagram #	Part Title
*	Jacuzzi Sherlock SHER80 Cartridge Filter
1	FILTER NUT (42367102R000)
2	COVER LATCH (42367706R000)
3	VALVE, AIR BLEEDER (39254701R000)
4	O-RING
5	Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK
5	Jacuzzi Carvin Back Mount Pressure Gauge
6	COVER 80 SQ FT
7	O-RING
8	Jacuzzi Sherlock 80 Replacement Cartridge
9	DIRT CATCHER, 80 FT (42294603R000)
10	FILTER BODY, AVALANCHE, 1 1/2" NPT (42366200R000)
11	O-RING
12	PLUG, 2" With GASKET (43309202R000)
13	INTERCONNECT ASSEMBLY (42363408R000)
14	O-RING, PISTON (SMALL)
15	No Longer Available BODY Replace With 4639-015
16	Inter connect Nut PVC White
17	O-RING

View Parts List

Diagram #	Part Title
*	Jacuzzi Sherlock SHER80 Cartridge Filter
1	FILTER NUT (42367102R000)
2	COVER LATCH (42367706R000)
3	VALVE, AIR BLEEDER (39254701R000)
4	O-RING
5	Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK
5	Jacuzzi Carvin Back Mount Pressure Gauge
6	COVER 80 SQ FT
7	O-RING
8	Jacuzzi Sherlock 80 Replacement Cartridge
9	DIRT CATCHER, 80 FT (42294603R000)
10	FILTER BODY, AVALANCHE, 1 1/2" NPT (42366200R000)
11	O-RING
12	PLUG, 2" With GASKET (43309202R000)
13	INTERCONNECT ASSEMBLY (42363408R000)
14	O-RING, PISTON (SMALL)
15	No Longer Available BODY Replace With 4639-015
16	Inter connect Nut PVC White
17	O-RING

Available Parts:

Jacuzzi Sherlock SHER80 Cartridge Filter

Part # 4666-121 Mfg # 94223380

Jacuzzi Sherlock SHER80 Cartridge Filter

$574.99

Jacuzzi Sherlock SHER120 Cartridge Filter

Part # 4666-122 Mfg # 94223390

Jacuzzi Sherlock SHER120 Cartridge Filter

$556.99 IN STOCK

Qty:

Jacuzzi Sherlock SHER160 Cartridge Filter

Part # 4666-123 Mfg # 94223810

Jacuzzi Sherlock SHER160 Cartridge Filter

$511.99 IN STOCK

Qty:

Jacuzzi Sherlock SHER200 Cartridge Filter

Part # 4666-124 Mfg # 94223850

Jacuzzi Sherlock SHER200 Cartridge Filter

$469.99

FILTER NUT (42367102R000)

Part # 4666-20 Mfg # 42367102R

FILTER NUT (42367102R000)

$83.49 IN STOCK

Qty:

COVER LATCH (42367706R000)

Part # 4666-21 Mfg # 42367706R

COVER LATCH (42367706R000)

$15.49 IN STOCK

Qty:

VALVE, AIR BLEEDER (39254701R000)

Part # 4666-11 Mfg # 39254701R

VALVE, AIR BLEEDER (39254701R000)

$11.99 IN STOCK

Qty:

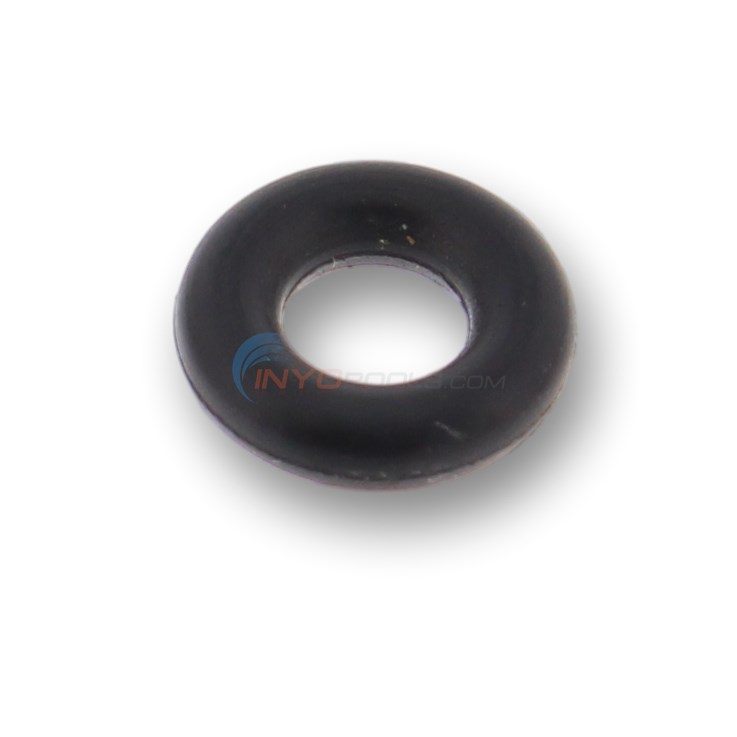

O-RING

Part # 4666-12 Mfg # 106

O-RING

$8.49 IN STOCK

Qty:

Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

Part # 4727-0 Mfg # 102D-204D

Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

$12.49 IN STOCK

Qty:

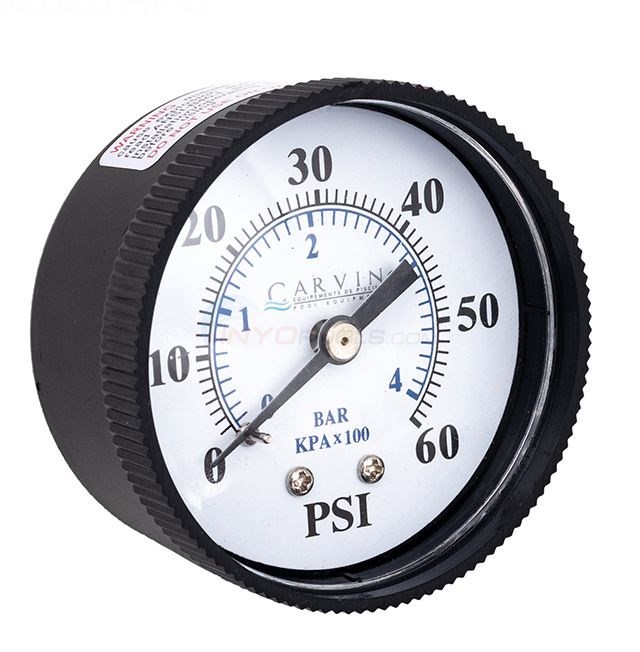

Jacuzzi Carvin Back Mount Pressure Gauge

Part # 91934182R

Jacuzzi Carvin Back Mount Pressure Gauge

$28.99 IN STOCK

Qty:

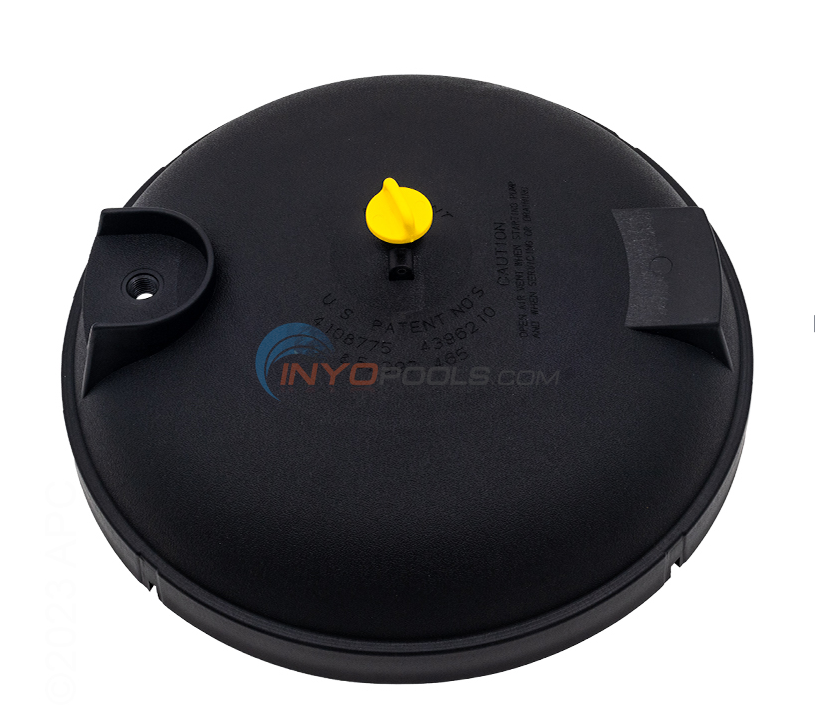

COVER 80 SQ FT

Part # 4666-13 Mfg # 42285205R

COVER 80 SQ FT

$70.49 IN STOCK

Qty:

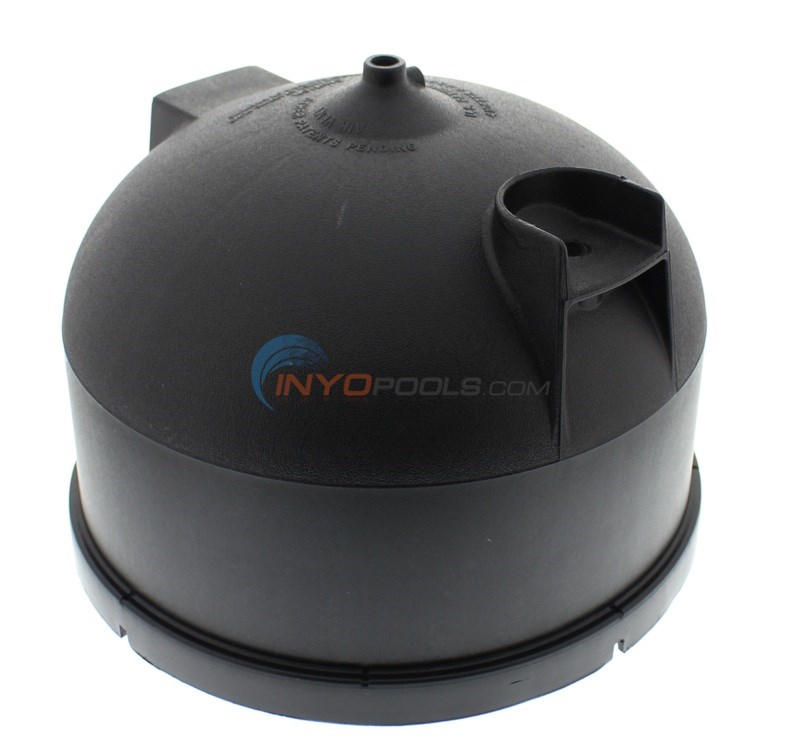

COVER 120 SQ FT

Part # 4666-13A Mfg # 42299800R

COVER 120 SQ FT

$113.99 IN STOCK

Qty:

COVER 160 SQ FT

Part # 4638-42 Mfg # 42361000R

COVER 160 SQ FT

$220.99 IN STOCK

Qty:

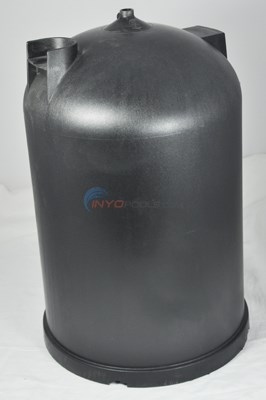

COVER 200 SQ FT

Part # 4638-43 Mfg # 42361101R

COVER 200 SQ FT

$207.99 IN STOCK

Qty:

O-RING

Part # 4666-05 Mfg # O-413

O-RING

$10.49 IN STOCK

Qty:

Jacuzzi Sherlock 80 Replacement Cartridge

Part # PL0149 Mfg # 42367409R

Jacuzzi Sherlock 80 Replacement Cartridge

$79.99 IN STOCK

Qty:

Jacuzzi Sherlock 120 Replacement Cartridge

Part # PL0150 Mfg # 42367508R

Jacuzzi Sherlock 120 Replacement Cartridge

$81.95 IN STOCK

Qty:

Jacuzzi Sherlock 160 Replacement Cartridge

Part # PL0151 Mfg # 42366707R

Jacuzzi Sherlock 160 Replacement Cartridge

$90.65 IN STOCK

Qty:

Jacuzzi Sherlock 200 Replacement Cartridge

Part # PL0152 Mfg # 42366808R

Jacuzzi Sherlock 200 Replacement Cartridge

$132.04 IN STOCK

Qty:

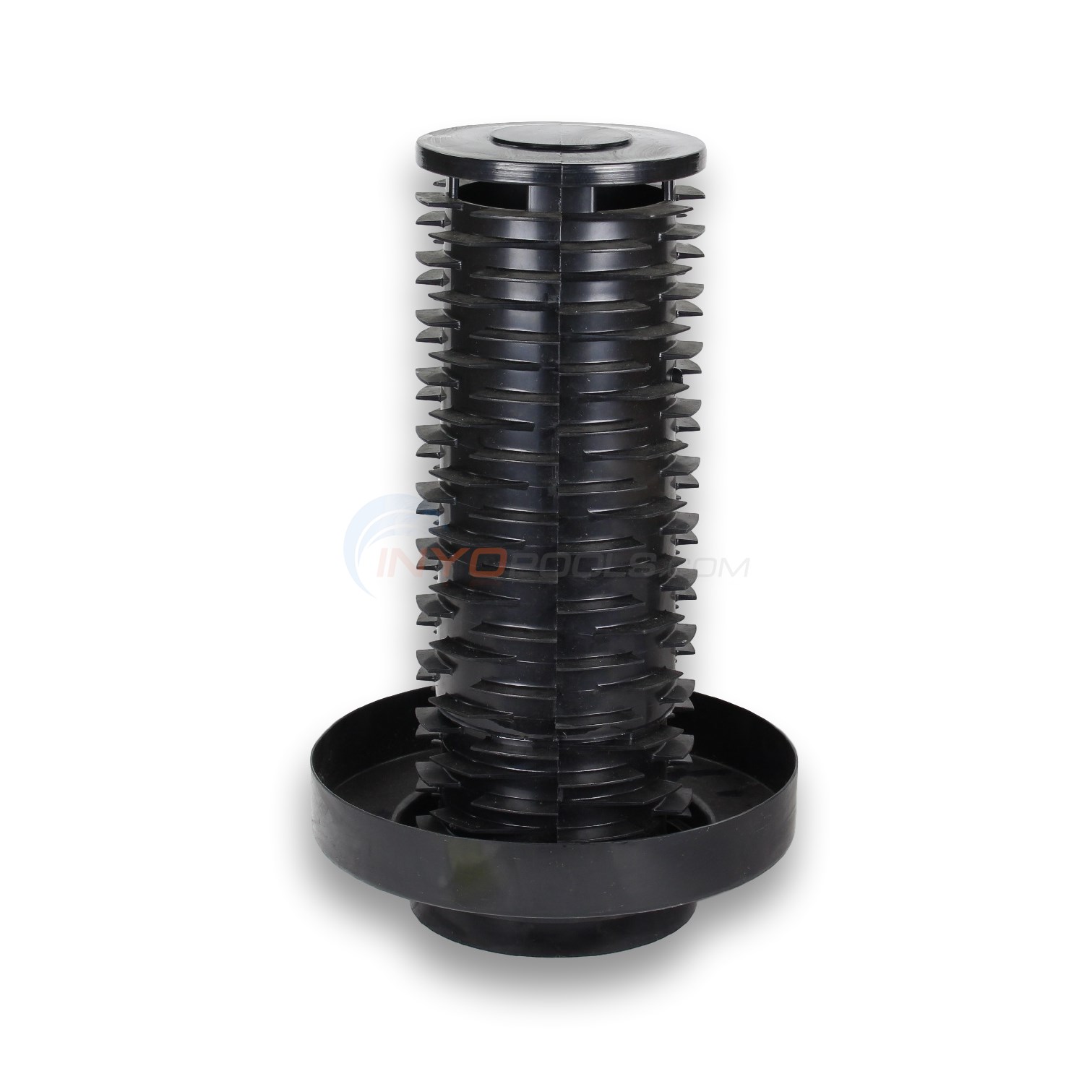

DIRT CATCHER, 80 FT (42294603R000)

Part # 4666-22A Mfg # 42294603R

DIRT CATCHER, 80 FT (42294603R000)

$131.99 IN STOCK

Qty:

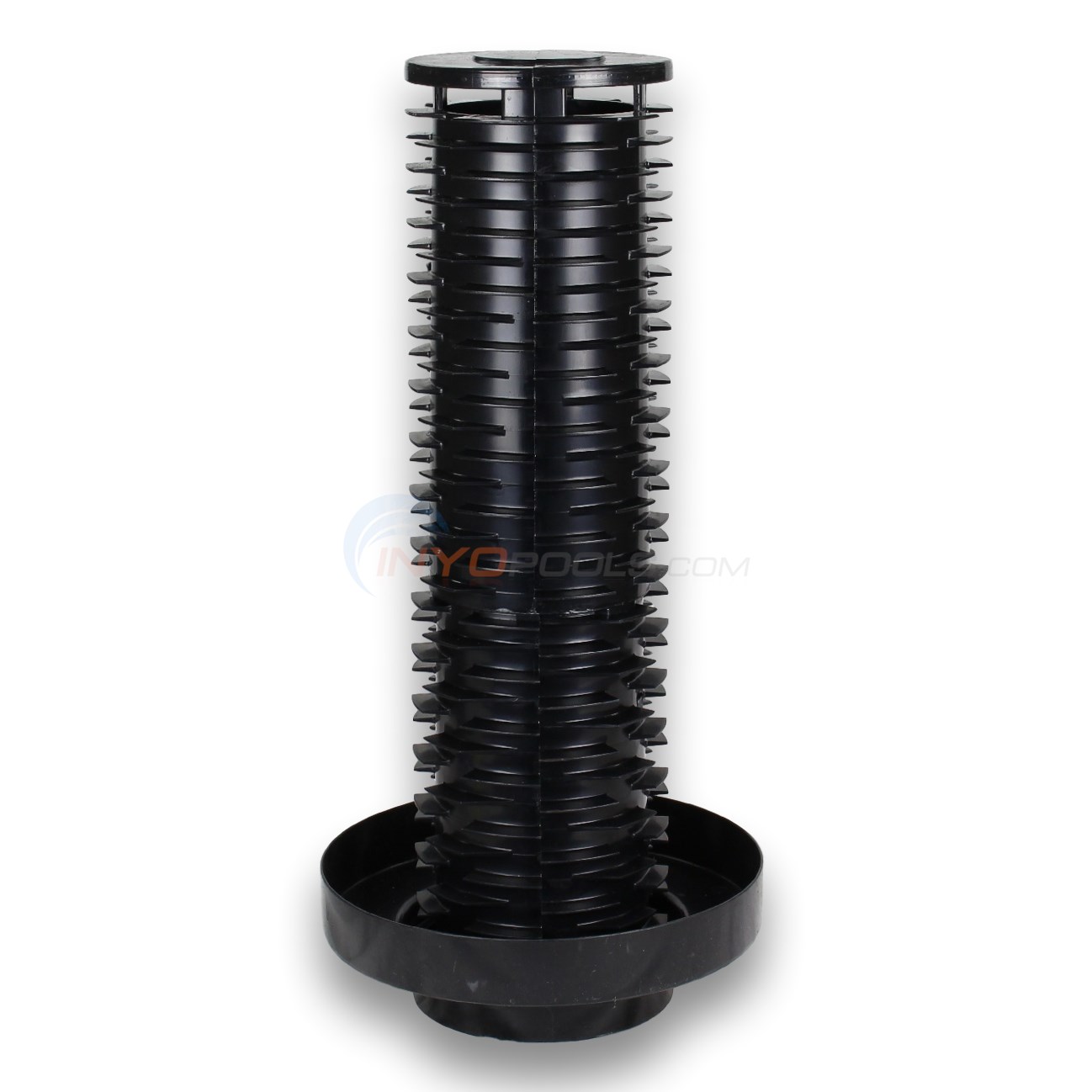

DIRT CATCHER, 120 FT (42294702R000)

Part # 4666-22B Mfg # 42294702R

DIRT CATCHER, 120 FT (42294702R000)

$185.99 IN STOCK

Qty:

DIRT CATCHER 160 SQ FT (42373902R000)

Part # 4666-22C Mfg # 42373902R

DIRT CATCHER 160 SQ FT (42373902R000)

$196.99 IN STOCK

Qty:

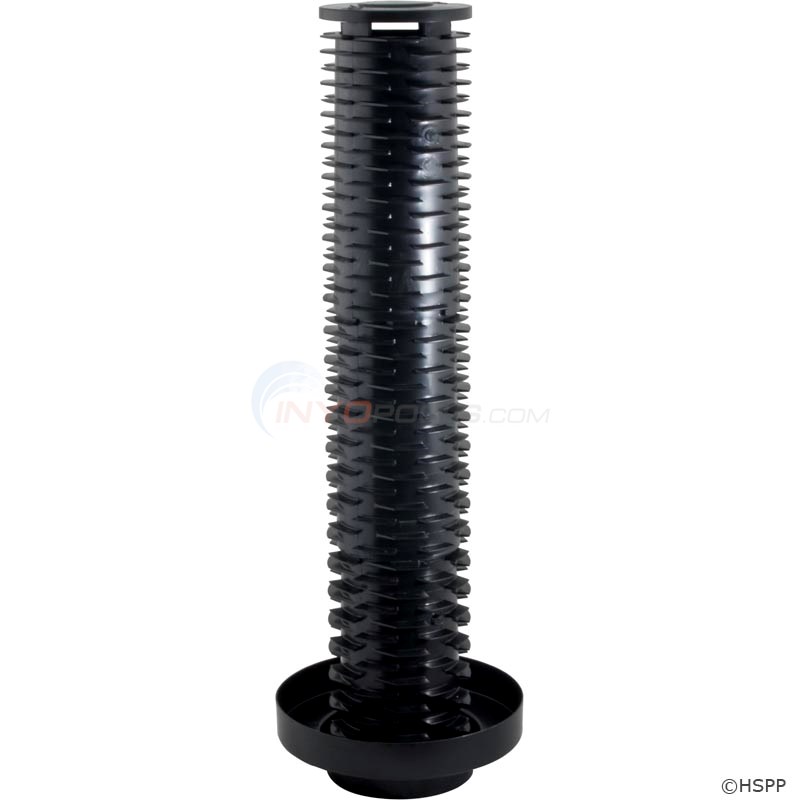

DIRT CATCHER, 200 SQ FT (42374009R000)

Part # 4666-22D Mfg # 42374009R

DIRT CATCHER, 200 SQ FT (42374009R000)

$199.99 IN STOCK

Qty:

FILTER BODY, AVALANCHE, 1 1/2" NPT (42366200R000)

Part # 4638-47B Mfg # 42366200R

FILTER BODY, AVALANCHE, 1 1/2" NPT (42366200R000)

$213.99 IN STOCK

Qty:

FILTER BODY, SHERLOCK (42367300R000)

Part # 4666-23 Mfg # 42367300R

FILTER BODY, SHERLOCK (42367300R000)

$182.99

O-RING

Part # 4800-27 Mfg # 228

O-RING

$8.99 IN STOCK

Qty:

PLUG, 2" With GASKET (43309202R000)

Part # 4052-08 Mfg # 43309202R

PLUG, 2" With GASKET (43309202R000)

$18.49 IN STOCK

Qty:

PLUG, 1 1/2" With GASKET (43309103R000)

Part # 4052-08A Mfg # 43309103R

PLUG, 1 1/2" With GASKET (43309103R000)

$15.99 IN STOCK

Qty:

INTERCONNECT ASSEMBLY (42363408R000)

Part # 4639-015 Mfg # 42363408R

INTERCONNECT ASSEMBLY (42363408R000)

$42.49 IN STOCK

Qty:

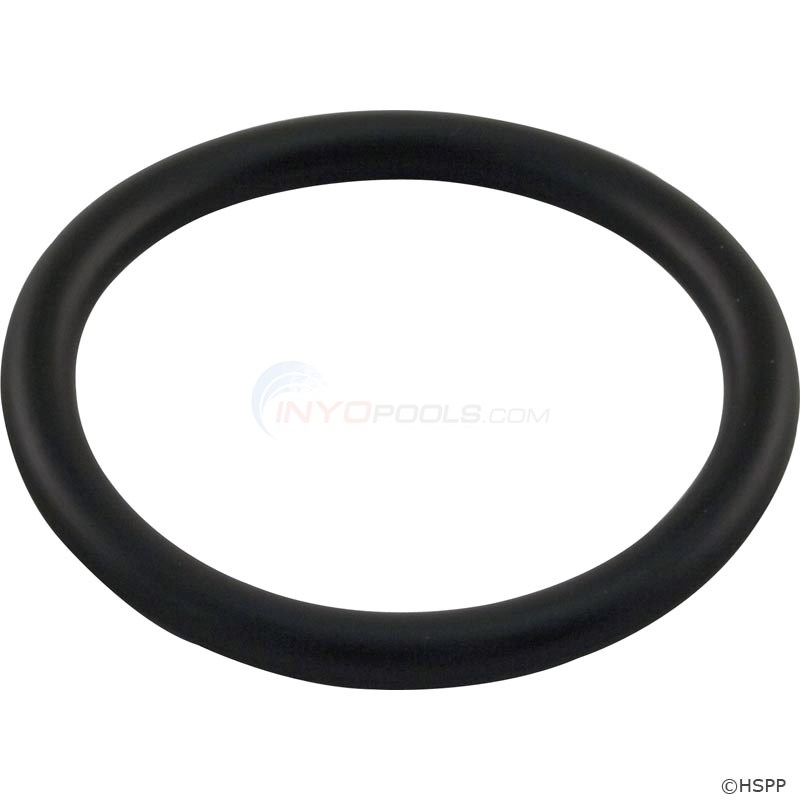

O-RING, PISTON (SMALL)

Part # 4708-06 Mfg # 328

O-RING, PISTON (SMALL)

$6.99 IN STOCK

Qty:

15

No Longer Available BODY Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352020095.htm">4639-015</a>

Mfg # 42-3632-00-R

No Longer Available BODY Replace With 4639-015

NOT AVAILABLE

Inter connect Nut PVC White

Part # 14427306R

Inter connect Nut PVC White

$21.99 IN STOCK

Qty:

O-RING

Part # 4800-27 Mfg # 228

O-RING

$8.99 IN STOCK

Qty:

NOTE; THE 1 1/2” MODELS ARE USED
ON THE ABOVE GROUND FILTER SYSTEM
