Malibu 15'x30' Oval (Steel Top Rail, Steel Upright) Parts

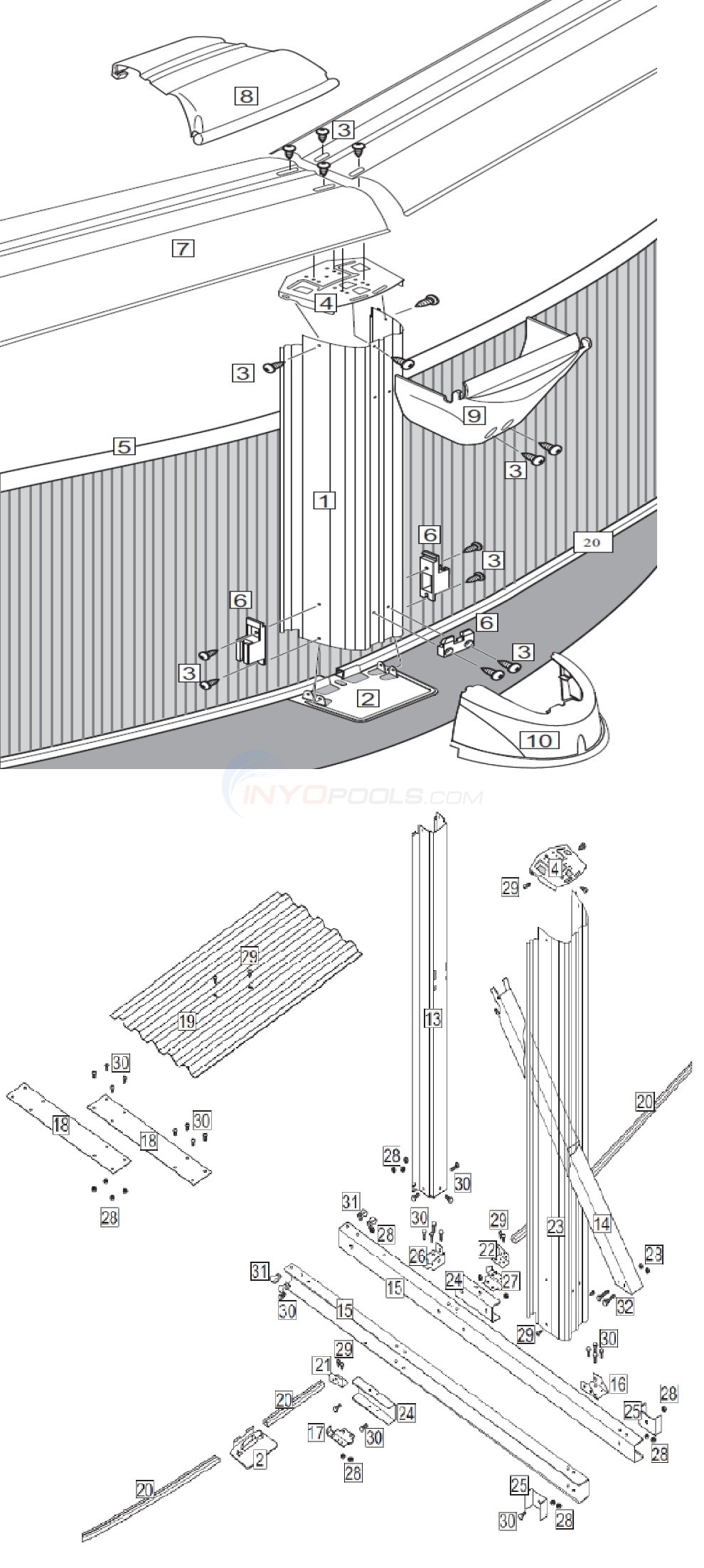

Malibu 15'x30' Oval (Steel Top Rail, Steel Upright) Diagram

Click to zoom in

Diagram #	Part Title
*Liner	15' x 30' 48"-54" Depth All Swirl Overlap Standard Gauge
1	Upright 51-1/2" for Malibu (Single)
2	Base Plate STEEL (SINGLE) For Aegean, St. Croix, Liberty, Imperial, Sierra, J3000, Sierra, Prestige,
3	Hardware
4	Top Plate (Single)
5	15' Slotted Tube (Single) For Atlantic Pools 55-1/2" 1470097 J3000, SIERRA, J5000, ESTAE, AGEAN ESP
6	Clips Foot Cover for Malibu (Single)
7	Top Rail 56-27/32" - Steel (SINGLE)
8	Atlantic Cap Upper (Single)
9	Atlantic Cap Lower (Single)
10	Foot Cover for Malibu (Single)
13	Buttress Upright (SINGLE) For The Aegean
14	Diagonal Buttress for Malibu (Single)
15	Base Channel (SINGLE) For The Aegean
16	Diagonal Bracket (SINGLE) For The Aegean And Atlantis
17 & 27	Lt/Rt Vertical Support Bracket (Single)
18	Strap 2-7/8x54-1/8 (SINGLE) 15' For The Aegean
19	Hold Down Plate For The Aegean
20	Bottom Rail 56" (single)
21 & 22	Vertical Bracket 1320169 For Aegean, Aruba, And St Croix
23	Notched Upright 51-1/2" for Malibu (Single)
24	Reinforcing Bracket (SINGLE) For The Aegean
25	Support Bracket (SINGLE) For The Aegen
26	Oval Base Plate (SINGLE) For Atlantis Oval Pool

View Parts List

Diagram #	Part Title
*Liner	15' x 30' 48"-54" Depth All Swirl Overlap Standard Gauge
1	Upright 51-1/2" for Malibu (Single)
2	Base Plate STEEL (SINGLE) For Aegean, St. Croix, Liberty, Imperial, Sierra, J3000, Sierra, Prestige,
3	Hardware
4	Top Plate (Single)
5	15' Slotted Tube (Single) For Atlantic Pools 55-1/2" 1470097 J3000, SIERRA, J5000, ESTAE, AGEAN ESP
6	Clips Foot Cover for Malibu (Single)
7	Top Rail 56-27/32" - Steel (SINGLE)
8	Atlantic Cap Upper (Single)
9	Atlantic Cap Lower (Single)
10	Foot Cover for Malibu (Single)
13	Buttress Upright (SINGLE) For The Aegean
14	Diagonal Buttress for Malibu (Single)
15	Base Channel (SINGLE) For The Aegean
16	Diagonal Bracket (SINGLE) For The Aegean And Atlantis
17 & 27	Lt/Rt Vertical Support Bracket (Single)
18	Strap 2-7/8x54-1/8 (SINGLE) 15' For The Aegean
19	Hold Down Plate For The Aegean
20	Bottom Rail 56" (single)
21 & 22	Vertical Bracket 1320169 For Aegean, Aruba, And St Croix
23	Notched Upright 51-1/2" for Malibu (Single)
24	Reinforcing Bracket (SINGLE) For The Aegean
25	Support Bracket (SINGLE) For The Aegen
26	Oval Base Plate (SINGLE) For Atlantis Oval Pool

Available Parts:

15' x 30' 48"-54" Depth All Swirl Overlap Standard Gauge

Part # LI1530ASO

15' x 30' 48"-54" Depth All Swirl Overlap Standard Gauge

$471.33

Findlay Vinyl 15' x 30' Country Stone Overlap

Part # FC1530OVOL

Findlay Vinyl 15' x 30' Country Stone Overlap

$419.07

Upright 51-1/2" for Malibu (Single)

Part # 1440483

Upright 51-1/2" for Malibu (Single)

$76.12

Quantity Per Pool 10

Quantity Per Pool 10

Base Plate STEEL (SINGLE) For Aegean, St. Croix, Liberty, Imperial, Sierra, J3000, Sierra, Prestige,

Part # NBP2017 Mfg # 1320100

Base Plate STEEL (SINGLE) For Aegean, St. Croix, Liberty, Imperial, Sierra, J3000, Sierra, Prestige,

$4.00 IN STOCK

Quantity Per Pool 10

Quantity Per Pool 10

Qty:

Base Plate Resin (Single)

Part # 1320170

Base Plate Resin (Single)

$13.42

Quantity Per Pool 10

Quantity Per Pool 10

Hardware

Part # 1184299

Hardware

$72.76

Quantity Per Pool 2

Quantity Per Pool 2

Hardware for ledge cover (J4000)

Part # 1184232

Hardware for ledge cover (J4000)

$3.35

Quantity Per Pool 4

Quantity Per Pool 4

Top Plate (Single)

Part # 1320143

Top Plate (Single)

$13.28 IN STOCK

Quantity Per Pool 16

Quantity Per Pool 16

Qty:

15' Slotted Tube (Single) For Atlantic Pools 55-1/2" 1470097 J3000, SIERRA, J5000, ESTAE, AGEAN ESP

Part # NBP2004 Mfg # 1470097

15' Slotted Tube (Single) For Atlantic Pools 55-1/2" 1470097 J3000, SIERRA, J5000, ESTAE, AGEAN ESP

$45.29 IN STOCK

Quantity Per Pool 8

Quantity Per Pool 8

Qty:

Slotted Tube (4-PACK) 1470097 For Atlantic Pools 55-1/2" 1470097 J3000, J2000, SIERRA, J5000, ESTAE

Part # NBP2004-PACK4

Slotted Tube (4-PACK) 1470097 For Atlantic Pools 55-1/2" 1470097 J3000, J2000, SIERRA, J5000, ESTAE

$153.99 IN STOCK

Quantity Per Pool 4-PACK

Quantity Per Pool 4-PACK

Qty:

Slotted Tube (8-PACK) 1470097 For Atlantic Pools 55-1/2" 1470097 J3000, J2000, SIERRA, J5000, ESTAE

Part # NBP2004-PACK8

Slotted Tube (8-PACK) 1470097 For Atlantic Pools 55-1/2" 1470097 J3000, J2000, SIERRA, J5000, ESTAE

$226.05

Quantity Per Pool 8-PACK

Quantity Per Pool 8-PACK

Clips Foot Cover for Malibu (Single)

Part # 1490473

Clips Foot Cover for Malibu (Single)

$26.86

Quantity Per Pool 16

Quantity Per Pool 16

Top Rail 56-27/32" - Steel (SINGLE)

Part # 1450360

Top Rail 56-27/32" - Steel (SINGLE)

$77.23

Quantity Per Pool 8

Quantity Per Pool 8

Top Rail 58-3/4" - Steel (SINGLE)

Part # 1450465

Top Rail 58-3/4" - Steel (SINGLE)

$73.88

Quantity Per Pool 4

Quantity Per Pool 4

Top Rail 58-1/4" - Steel (SINGLE)

Part # 1450483

Top Rail 58-1/4" - Steel (SINGLE)

$68.28

Quantity Per Pool 4

Quantity Per Pool 4

Atlantic Cap Upper (Single)

Part # 1490211

Atlantic Cap Upper (Single)

$44.77

Quantity Per Pool 16

Quantity Per Pool 16

Atlantic Cap Lower (Single)

Part # 1490197

Atlantic Cap Lower (Single)

$15.98 IN STOCK

Quantity Per Pool 16

Quantity Per Pool 16

Qty:

Foot Cover for Malibu (Single)

Part # 1490463

Foot Cover for Malibu (Single)

$7.81

Quantity Per Pool 16

Quantity Per Pool 16

Buttress Upright (SINGLE) For The Aegean

Part # NBP2027 Mfg # 1440455

Buttress Upright (SINGLE) For The Aegean

$116.42

Quantity Per Pool 6

Quantity Per Pool 6

Diagonal Buttress for Malibu (Single)

Part # 1440314

Diagonal Buttress for Malibu (Single)

$76.12

Quantity Per Pool 6

Quantity Per Pool 6

Base Channel (SINGLE) For The Aegean

Part # NBP2024 Mfg # 1440336

Base Channel (SINGLE) For The Aegean

$58.21

Quantity Per Pool 12

Quantity Per Pool 12

Diagonal Bracket (SINGLE) For The Aegean And Atlantis

Part # NBP2062 Mfg # 1320152

Diagonal Bracket (SINGLE) For The Aegean And Atlantis

$47.01

Quantity Per Pool 6

Quantity Per Pool 6

Lt/Rt Vertical Support Bracket (Single)

Part # NBP2022 Mfg # 1320177

Lt/Rt Vertical Support Bracket (Single)

$54.85

Quantity Per Pool 6

Quantity Per Pool 6

Strap 2-7/8x54-1/8 (SINGLE) 15' For The Aegean

Part # NBP2046 Mfg # 1510136

Strap 2-7/8x54-1/8 (SINGLE) 15' For The Aegean

$69.40

Quantity Per Pool 9

Quantity Per Pool 9

Hold Down Plate For The Aegean

Part # NBP2021 Mfg # 1320165

Hold Down Plate For The Aegean

$62.99

Quantity Per Pool 6

Quantity Per Pool 6

Bottom Rail 56" (single)

Part # 1460030

Bottom Rail 56" (single)

$47.97 IN STOCK

Quantity Per Pool 8 Material Steel

Quantity Per Pool 8 Material Steel

Qty:

Bottom Rail 56-1/4" (single)

Part # 1460033

Bottom Rail 56-1/4" (single)

$47.97 IN STOCK

Quantity Per Pool 8 Material Steel

Quantity Per Pool 8 Material Steel

Qty:

Bottom Rail 54" (Single)

Part # 1460182

Bottom Rail 54" (Single)

$54.85

Quantity Per Pool 8 Material Resin

Quantity Per Pool 8 Material Resin

Bottom Rail 55-1/4 (Single)

Part # 1460191

Bottom Rail 55-1/4 (Single)

$53.72

Quantity Per Pool 4 Material Resin

Quantity Per Pool 4 Material Resin

Bottom Rail 56-1/4" (Single)

Part # 1460193

Bottom Rail 56-1/4" (Single)

$43.64

Quantity Per Pool 4 Material Resin

Quantity Per Pool 4 Material Resin

Vertical Bracket 1320169 For Aegean, Aruba, And St Croix

Part # NBP2054 Mfg # 1320169

Vertical Bracket 1320169 For Aegean, Aruba, And St Croix

$11.19 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:

Notched Upright 51-1/2" for Malibu (Single)

Part # 1440485

Notched Upright 51-1/2" for Malibu (Single)

$126.49

Quantity Per Pool 6

Quantity Per Pool 6

Reinforcing Bracket (SINGLE) For The Aegean

Part # NBP2018 Mfg # 1320150

Reinforcing Bracket (SINGLE) For The Aegean

$54.85

Quantity Per Pool 12

Quantity Per Pool 12

Support Bracket (SINGLE) For The Aegen

Part # NBP2019 Mfg # 1320151

Support Bracket (SINGLE) For The Aegen

$53.72

Quantity Per Pool 12

Quantity Per Pool 12

Oval Base Plate (SINGLE) For Atlantis Oval Pool

Part # NBP2020 Mfg # 1320154

Oval Base Plate (SINGLE) For Atlantis Oval Pool

$5.59 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:
