Maytronics Dolphin Orion Parts

DOLPHIN ORION

Maytronics Dolphin Orion Diagram

Click to zoom in

Diagram #	Part Title
1	IMPELLER COVER AZURE LIGHT BLUE
2	AZURE HANDLE
3	ORION COVER ASSY
4	IMPELLER & SCREW DOLPHIN (DL-9995269)
5	RETROFIT FOR CABLE CONN.-3 PIN
6	INTERNAL FLOAT
7	Motor Unit D.basic 3 Hour Ac New
8	S.PANEL DB W. FINS - LIGHT BLUE
9	DIAG BASIC WHEEL TUBE ASSY
10	PVC BRUSH, AZURE LIGHT BLUE
11	DIAG. BASIC FILTER SCREEN
12	Pureline Replacement 70 Micron Filter Bag, Compatible with select Dolphin Cleaners - PL4301
13*	BOTTOM LID ASSY D.BASIC & SUPPORT
14	FILTER BAG CLIP DOLPHIN (DL-9981430)
15	DIAG.BASIC - CHASSIS
16	DIAG.BASIC - NON RETURN DIAFRAGM
17	DIAG BASIC AZURE TRACK
18	Dolphin (Maytronics) Two Guide Wheels and One Pulley Gear - 3884997-R3
19	SINGLE DRIVE PULLEY
20	HEXAGON ADAPTOR
24	Cable (W/ Swivel, 2 Wire) - 60 Feet
26	DIAG BASIC POWER SUPPLY 115V
27	SIDE PANEL ASSY D.BAS W.R-P.GREY
A	SCREW KA50X12 A2 WN1412
B	SCREW WN1412 A2 KA50X25
C	SCREW KA40X20
D	SCREW A2 WN1412 KA50X50
E	SCREW KA50X30
F	SCREW KA40X12
G	SCREW KA50X20 (3379720)
*	DX6 BOTTOM LID CARTRIDGE ASSEMBLY & 4 FILTERS, 5-7/8" TALL (9991414-ASSY)

View Parts List

Diagram #	Part Title
1	IMPELLER COVER AZURE LIGHT BLUE
2	AZURE HANDLE
3	ORION COVER ASSY
4	IMPELLER & SCREW DOLPHIN (DL-9995269)
5	RETROFIT FOR CABLE CONN.-3 PIN
6	INTERNAL FLOAT
7	Motor Unit D.basic 3 Hour Ac New
8	S.PANEL DB W. FINS - LIGHT BLUE
9	DIAG BASIC WHEEL TUBE ASSY
10	PVC BRUSH, AZURE LIGHT BLUE
11	DIAG. BASIC FILTER SCREEN
12	Pureline Replacement 70 Micron Filter Bag, Compatible with select Dolphin Cleaners - PL4301
13*	BOTTOM LID ASSY D.BASIC & SUPPORT
14	FILTER BAG CLIP DOLPHIN (DL-9981430)
15	DIAG.BASIC - CHASSIS
16	DIAG.BASIC - NON RETURN DIAFRAGM
17	DIAG BASIC AZURE TRACK
18	Dolphin (Maytronics) Two Guide Wheels and One Pulley Gear - 3884997-R3
19	SINGLE DRIVE PULLEY
20	HEXAGON ADAPTOR
24	Cable (W/ Swivel, 2 Wire) - 60 Feet
26	DIAG BASIC POWER SUPPLY 115V
27	SIDE PANEL ASSY D.BAS W.R-P.GREY
A	SCREW KA50X12 A2 WN1412
B	SCREW WN1412 A2 KA50X25
C	SCREW KA40X20
D	SCREW A2 WN1412 KA50X50
E	SCREW KA50X30
F	SCREW KA40X12
G	SCREW KA50X20 (3379720)
*	DX6 BOTTOM LID CARTRIDGE ASSEMBLY & 4 FILTERS, 5-7/8" TALL (9991414-ASSY)

Available Parts:

IMPELLER COVER AZURE LIGHT BLUE

Part # 3295-028 Mfg # 9982284

IMPELLER COVER AZURE LIGHT BLUE

$71.99

AZURE HANDLE

Part # 3295-072 Mfg # 99960020

AZURE HANDLE

$97.49

ORION COVER ASSY

Part # 3295-426 Mfg # 99960060

ORION COVER ASSY

$189.99

IMPELLER & SCREW DOLPHIN (DL-9995269)

Part # 3295-152 Mfg # 9995269

IMPELLER & SCREW DOLPHIN (DL-9995269)

$16.99 IN STOCK

Qty:

RETROFIT FOR CABLE CONN.-3 PIN

Part # 3295-325 Mfg # 9991279

RETROFIT FOR CABLE CONN.-3 PIN

$12.49 IN STOCK

Qty:

INTERNAL FLOAT

Part # 3295-026 Mfg # 6250931

INTERNAL FLOAT

$7.49 IN STOCK

Qty:

Motor Unit D.basic 3 Hour Ac New

Part # 3295-381 Mfg # 99953003-ASSY

Motor Unit D.basic 3 Hour Ac New

$795.99

S.PANEL DB W. FINS - LIGHT BLUE

Part # 3295-287 Mfg # 9982321

S.PANEL DB W. FINS - LIGHT BLUE

$103.99

DIAG BASIC WHEEL TUBE ASSY

Part # 3295-131 Mfg # 99955951-ASSY

DIAG BASIC WHEEL TUBE ASSY

$48.99 IN STOCK

Qty:

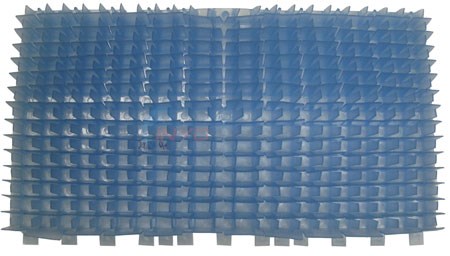

PVC BRUSH, AZURE LIGHT BLUE

Part # 3295-045 Mfg # 6101598

PVC BRUSH, AZURE LIGHT BLUE

$120.99

DIAG. BASIC FILTER SCREEN

Part # 3295-084 Mfg # 9982300

DIAG. BASIC FILTER SCREEN

$14.99 IN STOCK

Qty:

Pureline Replacement 70 Micron Filter Bag, Compatible with select Dolphin Cleaners - PL4301

Part # PL4301

Pureline Replacement 70 Micron Filter Bag, Compatible with select Dolphin Cleaners - PL4301

$21.31 IN STOCK

Qty:

BOTTOM LID ASSY D.BASIC & SUPPORT

Part # 3295-071 Mfg # 99919116

BOTTOM LID ASSY D.BASIC & SUPPORT

$43.49 IN STOCK

Qty:

FILTER BAG CLIP DOLPHIN (DL-9981430)

Part # 3295-050 Mfg # 9981430-R2

FILTER BAG CLIP DOLPHIN (DL-9981430)

$12.49 IN STOCK

Qty:

DIAG.BASIC - CHASSIS

Part # 3295-256 Mfg # 9980200

DIAG.BASIC - CHASSIS

$62.99 IN STOCK

Qty:

DIAG.BASIC - NON RETURN DIAFRAGM

Part # 3295-257 Mfg # 9980220

DIAG.BASIC - NON RETURN DIAFRAGM

$28.49 IN STOCK

Qty:

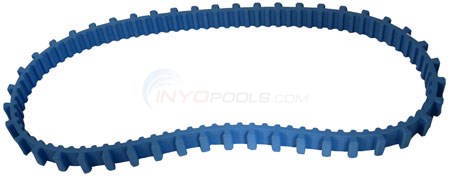

DIAG BASIC AZURE TRACK
