Pac Fab Sea Horse Fiberglass Cart Parts

FSH CARTRIDGE FILTER MODELS FSH 300, FSH 400, FSH 500

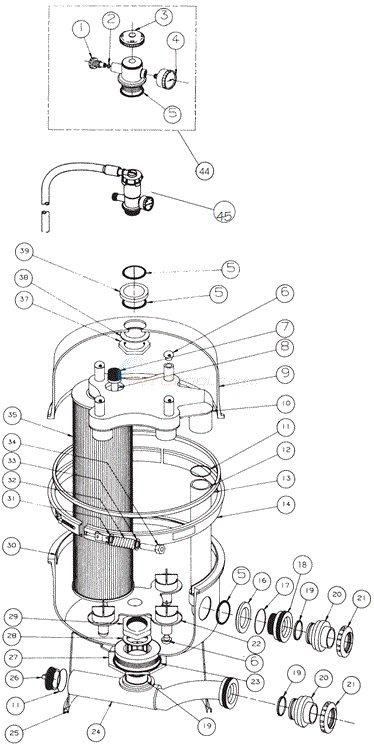

Pac Fab Sea Horse Fiberglass Cart Diagram

Click to zoom in

Diagram #	Part Title
1	AIR BLEEDER With O-RING (273512)

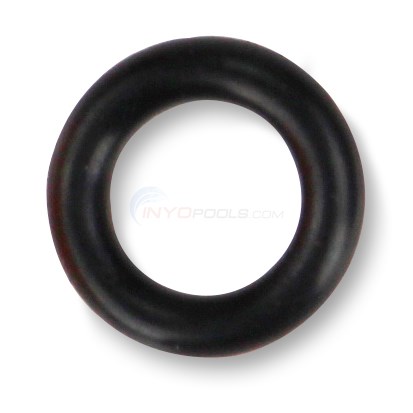

2	O-RING, BLEEDER (273513)

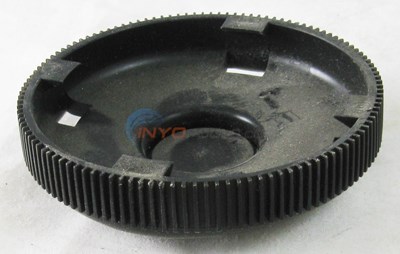

3	CAP
4	Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK
5	O-RING, BULKHEAD 2IN (334)
6	OBSOLETE BUMPER, RUBBER
7	STRAINER, AIR RELIEF 3/4IN
8	TUBE, AIR RELIEF 3/4IN OD X 4 3/8IN
9	OBSOLETE TANK TOP With RELIEF f FSH 300
10	OBSOLETE MANIFOLD, CARTRIDGE
11	O-RING
12	PIPING ASSY., UPPER FSH 300
13	O-RING, TANK
14	BAND ASSEMBLY

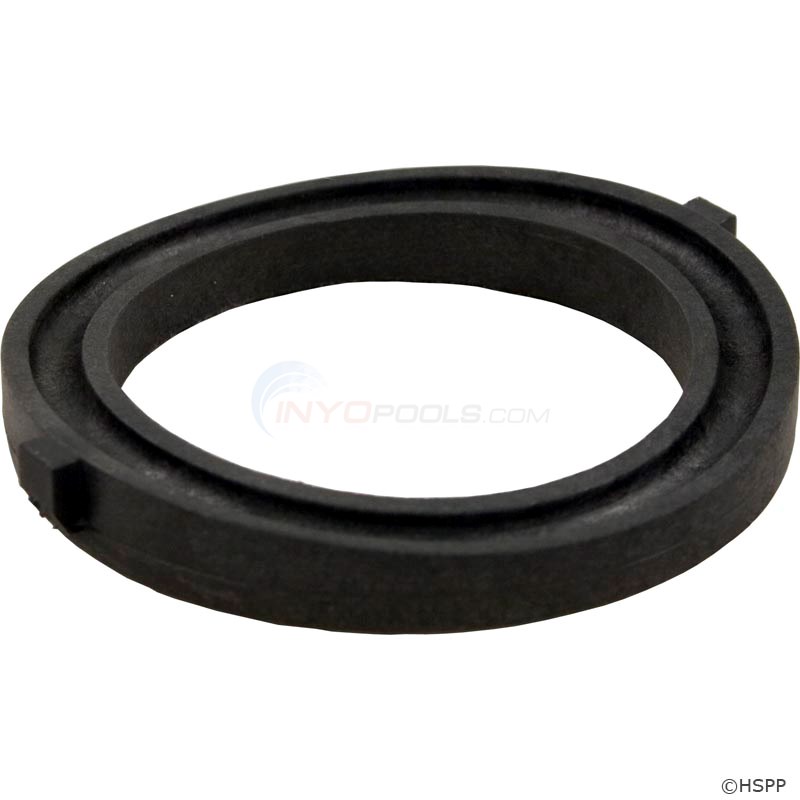

16	SPACER, EXTERNAL 2IN
17	O-RING, BULKHEAD (145)
18	BULKHEAD, 2" WITH GROOVE
19	O-RING, VALVE ADAPTER (4620-529)
20	ADAPTER, BULKHEAD 1 1/2" X 2" SLIP
21	NUT, VALVE ADAPTER
22	OBSOLETE CARTRIDGE SUPPORT
23	O-RING
24	PIPING ASSY., LOWER

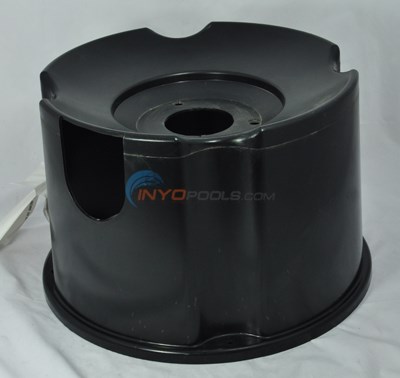

25	FOOT
26	PLUG, 2" NPSM

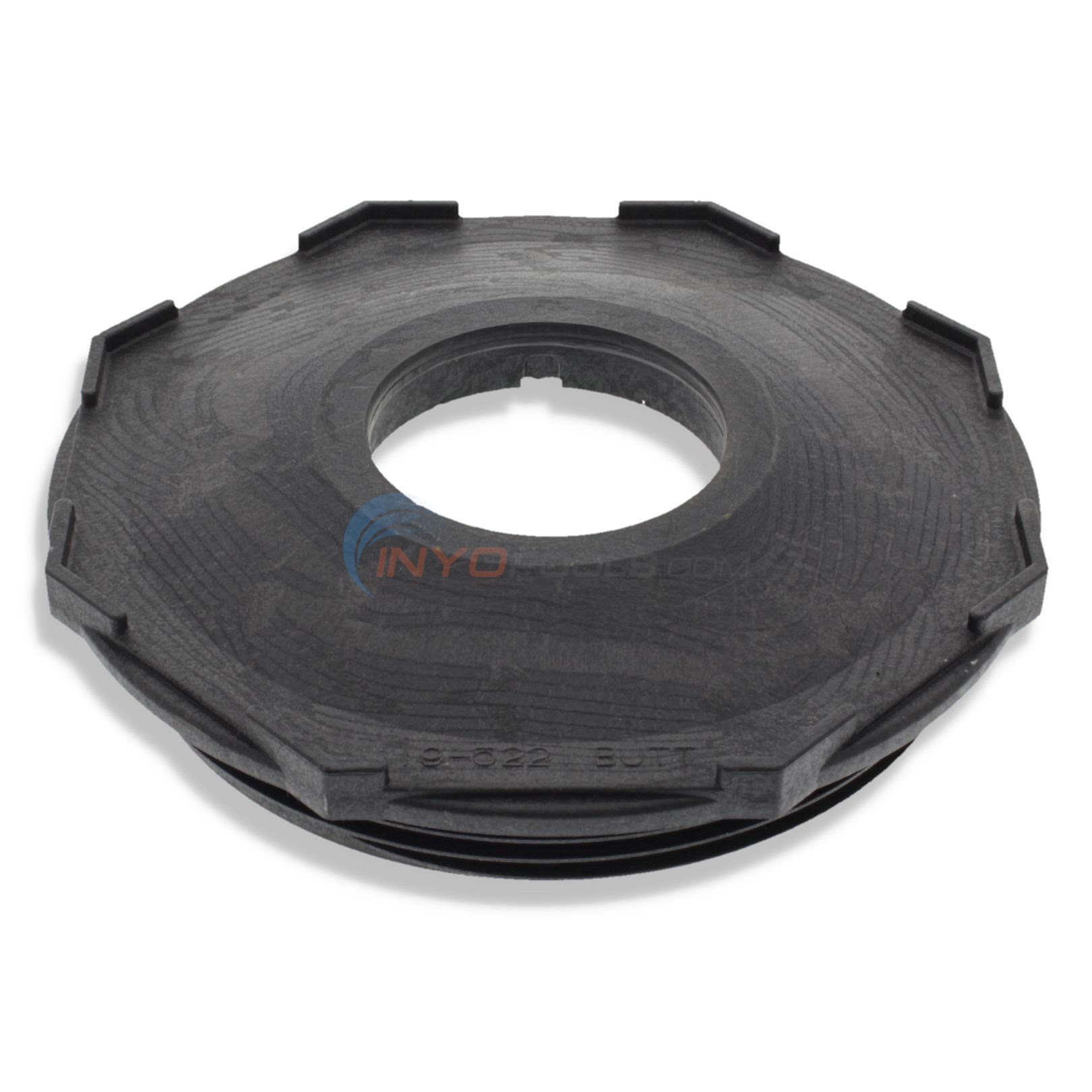

27	ADAPTOR, 6" BUTTRESS - BLACK
28	WASHER, POLYETHYLENE
29	LOCKNUT, INTERNAL 2IN

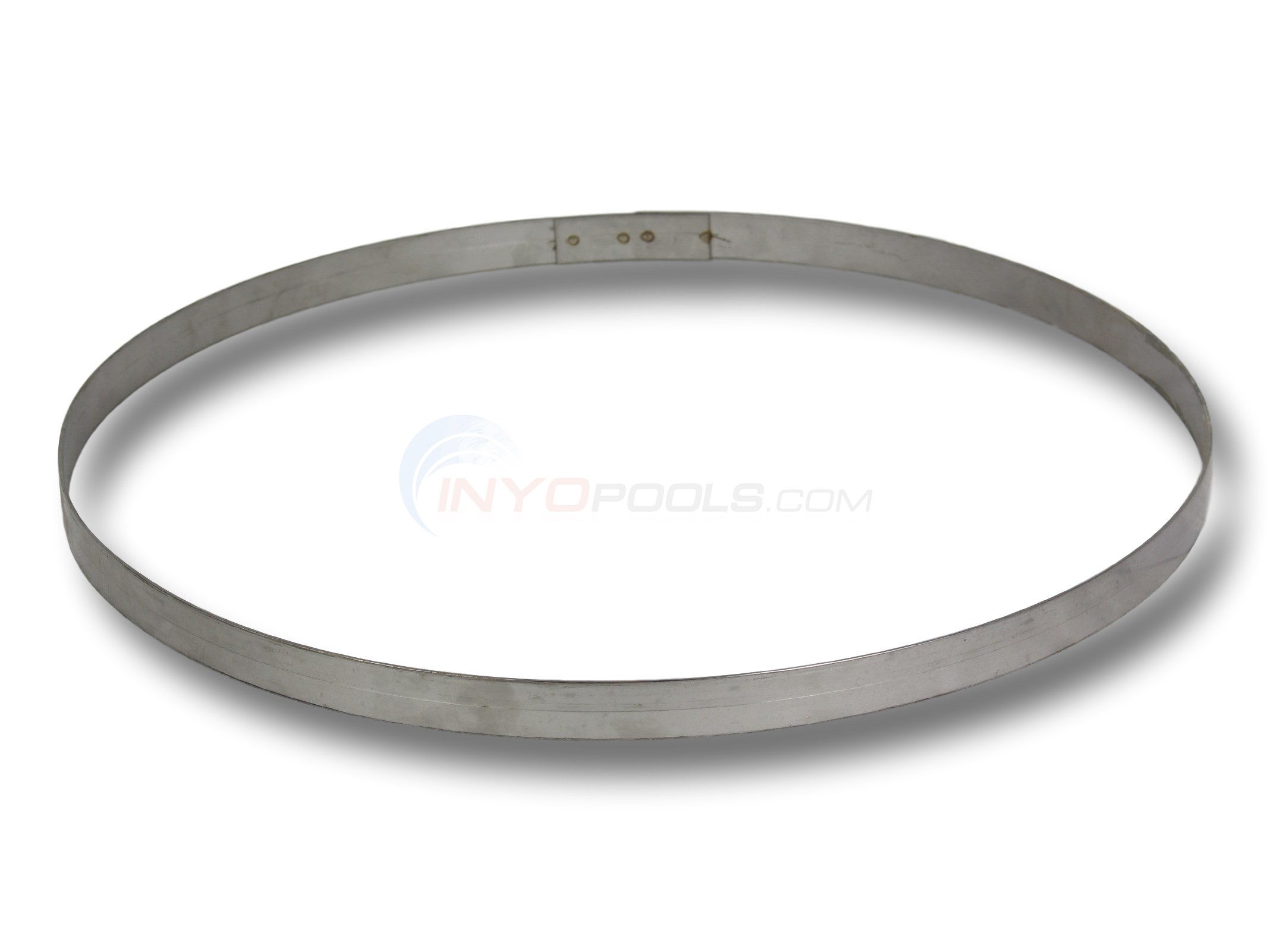

30	RETAINER, TANK SEAL 15/16"HI S.S.
31	WASHER, 1" OD, 5/16" ID, 1/8" THICK

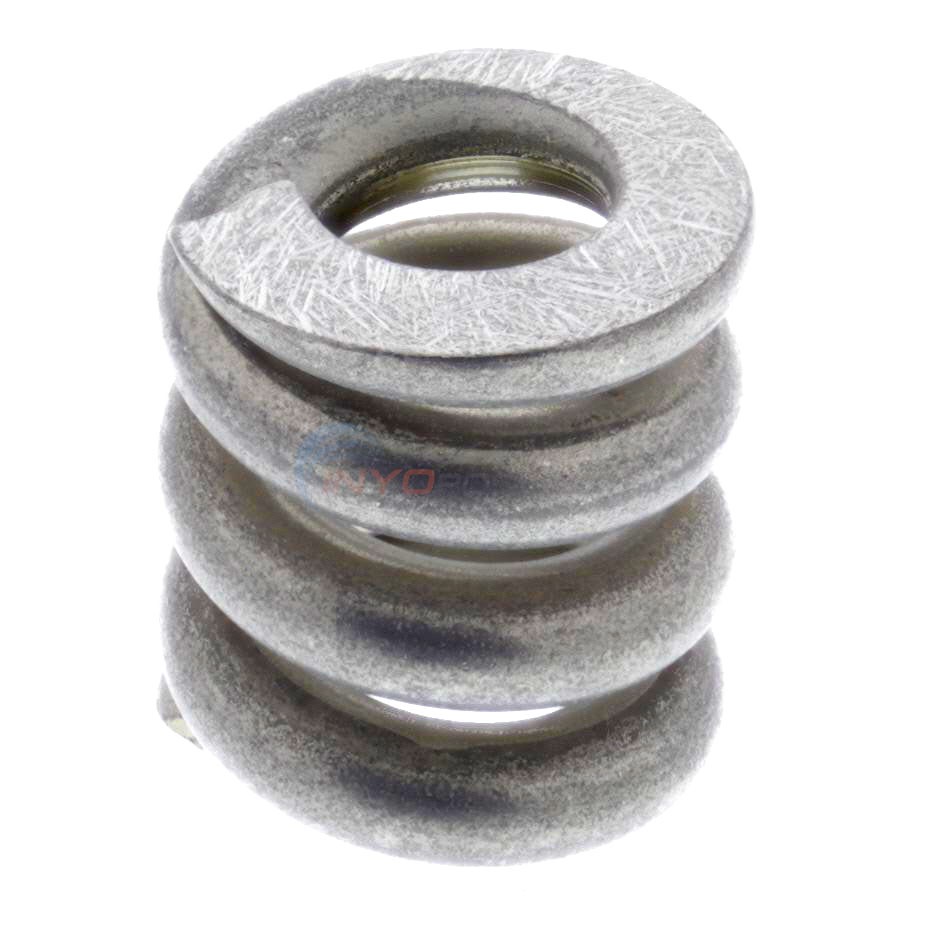

32	SPRING FOR FNS/INS FILTERS

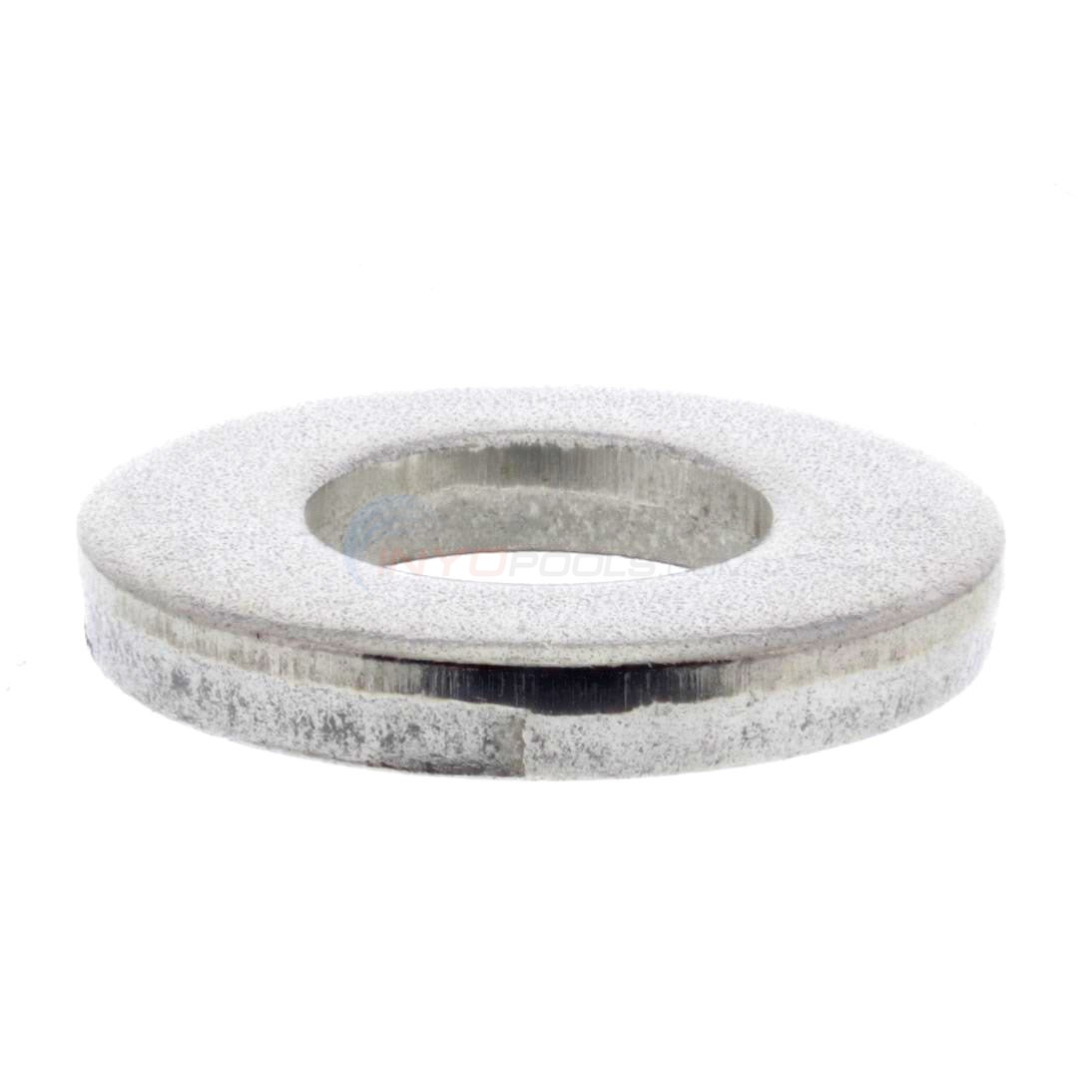

33	WASHER, 1-3/16" OD, 9/16" ID, 1/8" THICK
34	NUT, MACHINED (194997)

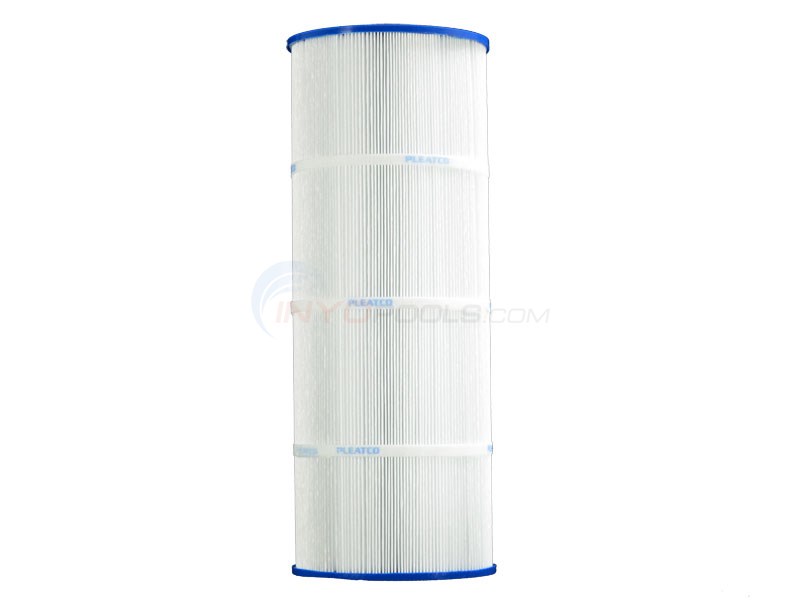

35	FILTER, CARTRIDGE 75 SQ.FT. (FSH 300)
37	LOCKNUT, INTERNAL 2IN

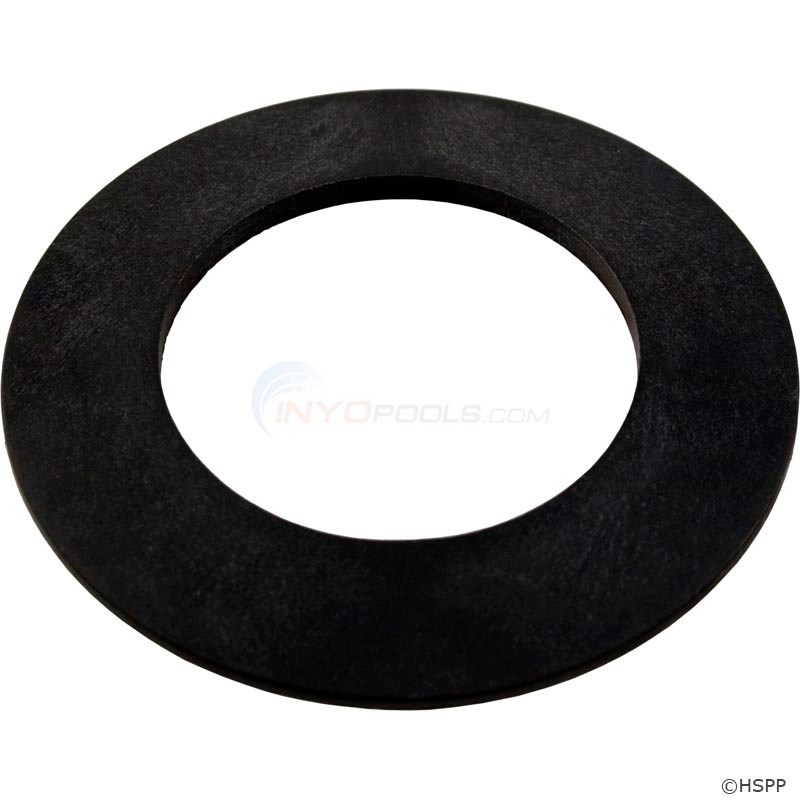

38	SPACER

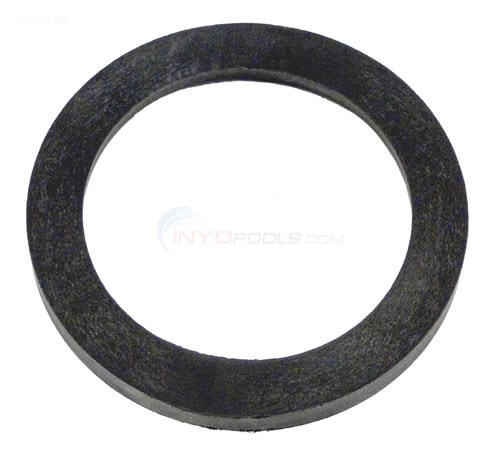

39	SPACER, TOP-BLACK
44	AIR RELIEF ASSEMBLY
45	No Longer Available AIR RELIEF Replace With 4600-3550

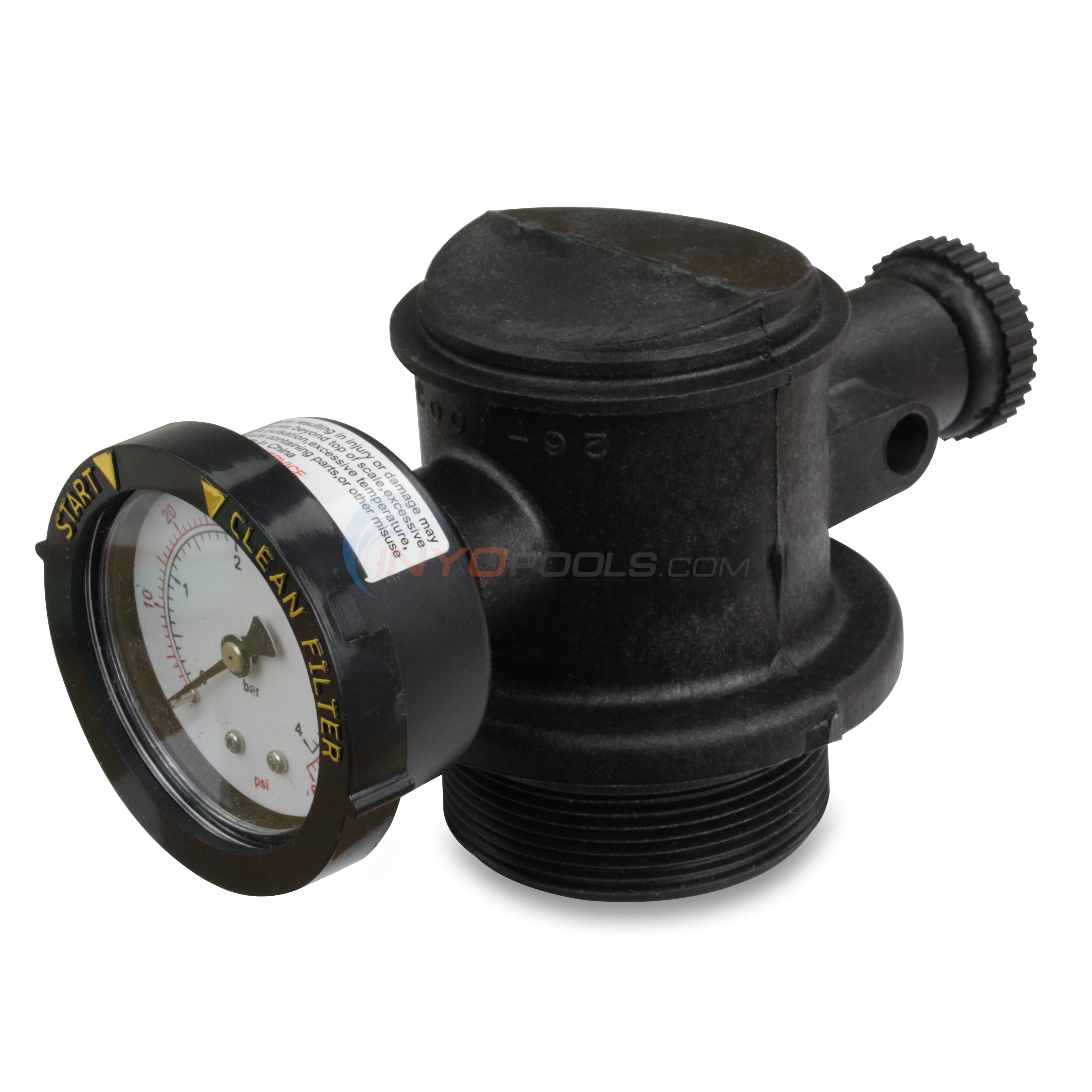

*	AIR RELIEF MANUAL

View Parts List

Diagram #	Part Title
1	AIR BLEEDER With O-RING (273512)
2	O-RING, BLEEDER (273513)
3	CAP
4	Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK
5	O-RING, BULKHEAD 2IN (334)
6	OBSOLETE BUMPER, RUBBER
7	STRAINER, AIR RELIEF 3/4IN
8	TUBE, AIR RELIEF 3/4IN OD X 4 3/8IN
9	OBSOLETE TANK TOP With RELIEF f FSH 300
10	OBSOLETE MANIFOLD, CARTRIDGE
11	O-RING
12	PIPING ASSY., UPPER FSH 300
13	O-RING, TANK
14	BAND ASSEMBLY
16	SPACER, EXTERNAL 2IN
17	O-RING, BULKHEAD (145)
18	BULKHEAD, 2" WITH GROOVE
19	O-RING, VALVE ADAPTER (4620-529)
20	ADAPTER, BULKHEAD 1 1/2" X 2" SLIP
21	NUT, VALVE ADAPTER
22	OBSOLETE CARTRIDGE SUPPORT
23	O-RING
24	PIPING ASSY., LOWER
25	FOOT
26	PLUG, 2" NPSM
27	ADAPTOR, 6" BUTTRESS - BLACK
28	WASHER, POLYETHYLENE
29	LOCKNUT, INTERNAL 2IN
30	RETAINER, TANK SEAL 15/16"HI S.S.
31	WASHER, 1" OD, 5/16" ID, 1/8" THICK
32	SPRING FOR FNS/INS FILTERS
33	WASHER, 1-3/16" OD, 9/16" ID, 1/8" THICK
34	NUT, MACHINED (194997)
35	FILTER, CARTRIDGE 75 SQ.FT. (FSH 300)
37	LOCKNUT, INTERNAL 2IN
38	SPACER
39	SPACER, TOP-BLACK
44	AIR RELIEF ASSEMBLY
45	No Longer Available AIR RELIEF Replace With 4600-3550
*	AIR RELIEF MANUAL

Available Parts:

Part # 4600-3512 Mfg # 273512/273512Z

AIR BLEEDER With O-RING (273512)

$20.49 IN STOCK

Qty:

Pac Fab Sea Horse Fiberglass Cart Parts

View Parts List

Available Parts:

OBSOLETE BUMPER, RUBBER

OBSOLETE TANK TOP With RELIEF f FSH 300

OBSOLETE TANK TOP With RELIEF f FSH 400

OBSOLETE TANK TOP With RELIEF f FSH 500

OBSOLETE MANIFOLD, CARTRIDGE

OBSOLETE CARTRIDGE SUPPORT

OBSOLETE PIPING, (PRE-OCT 1992)

No Longer Available AIR RELIEF Replace With 4600-3550
