Pentair / Sta-Rite SuperMax VS Variable Speed Pump (Before 11/02/2020) Parts

* = Not Shown Parts for the SuperFlo VST, SuperFlo VS, and SuperMax VS Pumps manufactured before 11/02/2020.

Pentair / Sta-Rite SuperMax VS Variable Speed Pump (Before 11/02/2020) Diagram

Click to zoom in

Diagram #	Part Title
1	Almond Drive Cover with Control Panel
2	Drive Kit
3	Almond Superflo Variable Speed Motor without Drive
4	Motor Drive Assembly
5	Seal Plate, Almond (Mfg. before 6/17/2019)
6	Seal Plate Gasket
7	Impeller (Mfg. before 6/17/2019)
8	Diffuser (Mfg. before 6/17/2019)
9	Diffuser O-ring (Mfg. before 6/17/2019)
10	Base
11	Drain Plug
12	Drain Plug O-Ring
13	Strainer Pot, Almond
14	Strainer Lid O-Ring
15	Pump Basket Strainer, Generic
16	Strainer Lid Replacement
17	Locking Ring
18	Almond Volute Kit Assembly
19	Washer, Stainless Steel, 7/16" Inner, 7/8" Outer
20	Hex Head Screw
21	Diffuser Screw (3 Required)
22	Impeller Screw
23	Shaft Seal, 5/8" (Mfg. before 6/17/2019)
24	Bolt, Hex 3/8"-16 x 3/4"
25	Union Adapter
26	Union Adapter O-Ring
27	Union Nut
28	Union Kit Compatible with Pentair Pumps
*	Pump Digital Comm. Cable Kit
*	Motor Fan Guard Kit, Almond, TEFC/Super-Duty

View Parts List

Diagram #	Part Title
1	Almond Drive Cover with Control Panel
2	Drive Kit
3	Almond Superflo Variable Speed Motor without Drive
4	Motor Drive Assembly
5	Seal Plate, Almond (Mfg. before 6/17/2019)
6	Seal Plate Gasket
7	Impeller (Mfg. before 6/17/2019)
8	Diffuser (Mfg. before 6/17/2019)
9	Diffuser O-ring (Mfg. before 6/17/2019)
10	Base
11	Drain Plug
12	Drain Plug O-Ring
13	Strainer Pot, Almond
14	Strainer Lid O-Ring
15	Pump Basket Strainer, Generic
16	Strainer Lid Replacement
17	Locking Ring
18	Almond Volute Kit Assembly
19	Washer, Stainless Steel, 7/16" Inner, 7/8" Outer
20	Hex Head Screw
21	Diffuser Screw (3 Required)
22	Impeller Screw
23	Shaft Seal, 5/8" (Mfg. before 6/17/2019)
24	Bolt, Hex 3/8"-16 x 3/4"
25	Union Adapter
26	Union Adapter O-Ring
27	Union Nut
28	Union Kit Compatible with Pentair Pumps
*	Pump Digital Comm. Cable Kit
*	Motor Fan Guard Kit, Almond, TEFC/Super-Duty

Available Parts:

Almond Drive Cover with Control Panel

Part # 353123 Mfg # 353123

Almond Drive Cover with Control Panel

$287.00 IN STOCK

Qty:

Drive Kit

Part # 353127

Drive Kit

$699.99 IN STOCK

Qty:

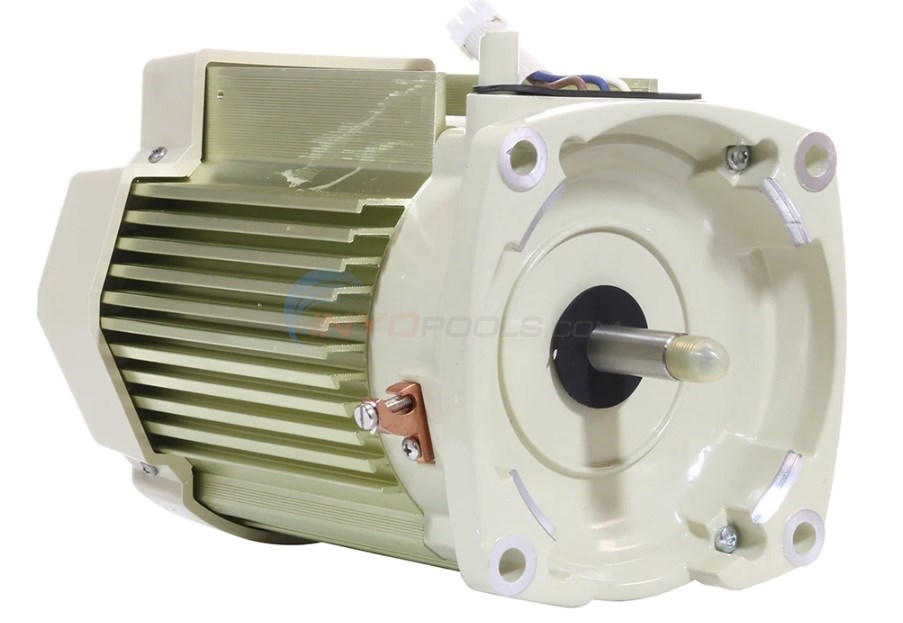

Almond Superflo Variable Speed Motor without Drive

Part # 353134S Mfg # 353134S

Almond Superflo Variable Speed Motor without Drive

$500.06

Motor Drive Assembly

Part # 353132S Mfg # 353132S

Motor Drive Assembly

$1070.31

Seal Plate, Almond (Mfg. before 6/17/2019)

Part # 5003-031 Mfg # 356012

Seal Plate, Almond (Mfg. before 6/17/2019)

$91.68 IN STOCK

Qty:

Seal Plate, Almond (Mfg. after 6/17/2019)

Part # 356071 Mfg # 356071Z

Seal Plate, Almond (Mfg. after 6/17/2019)

$81.80 IN STOCK

Qty:

Seal Plate Gasket

Part # 31-110-1336 Mfg # 355619

Seal Plate Gasket

$9.58 IN STOCK

Qty:

Impeller (Mfg. before 6/17/2019)

Part # 5002-05CA Mfg # 355074

Impeller (Mfg. before 6/17/2019)

$70.36 IN STOCK

Qty:

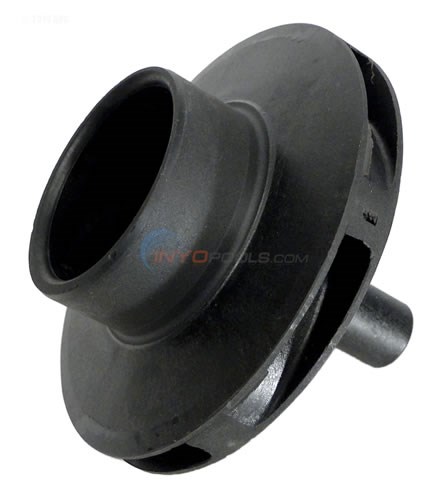

Impeller (Mfg. after 6/17/2019)

Part # 5056-88 Mfg # C105-238PDCA

Impeller (Mfg. after 6/17/2019)

$129.00 IN STOCK

Qty:

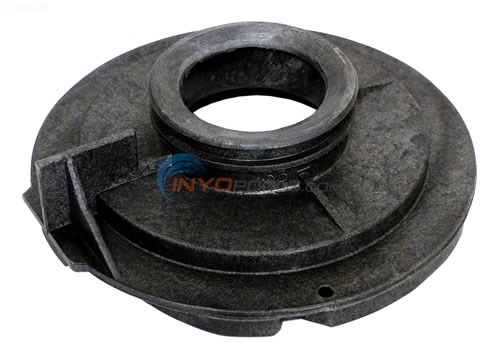

Diffuser (Mfg. before 6/17/2019)

Part # 5003-10 Mfg # 355618

Diffuser (Mfg. before 6/17/2019)

$105.30 IN STOCK

Qty:

Diffuser (Mfg. after 6/17/2019)

Part # 355949 Mfg # 355949Z

Diffuser (Mfg. after 6/17/2019)

$80.66 IN STOCK

Qty:

Diffuser O-ring (Mfg. before 6/17/2019)

Part # 5002-13A Mfg # 355030

Diffuser O-ring (Mfg. before 6/17/2019)

$12.31 IN STOCK

Qty:

Diffuser O-ring (Mfg. after 6/17/2019)

Part # 355331

Diffuser O-ring (Mfg. after 6/17/2019)

$5.59 IN STOCK

Qty:

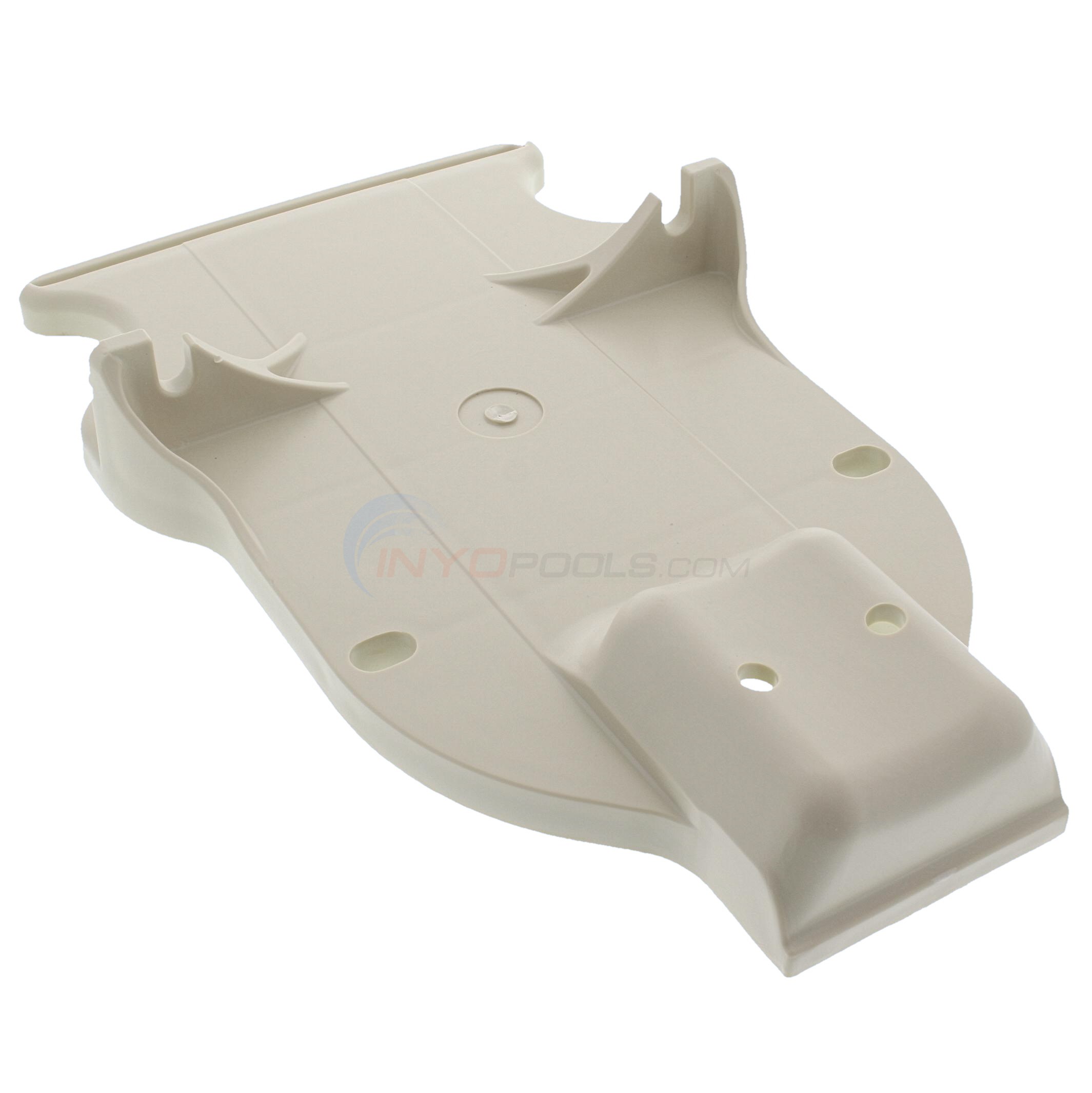

Base

Part # 5007-030 Mfg # 350094

Base

$141.55 IN STOCK

Qty:

Drain Plug

Part # 5074-24 Mfg # 071131

Drain Plug

$4.79 IN STOCK

Qty:

Drain Plug O-Ring

Part # 35-110-1652 Mfg # 192115

Drain Plug O-Ring

$14.64 IN STOCK

Qty:

Strainer Pot, Almond

Part # 5007-070 Mfg # 350089

Strainer Pot, Almond

$277.20 IN STOCK

Qty:

Strainer Lid O-Ring

Part # 35-110-1160 Mfg # 357255

Strainer Lid O-Ring

$6.39 IN STOCK

Qty:

Pump Basket Strainer, Generic

Part # 5003-5667 Mfg # 355667

Pump Basket Strainer, Generic

$22.88 IN STOCK

Qty:

Strainer Lid Replacement

Part # 5007-050 Mfg # 350091

Strainer Lid Replacement

$34.92 IN STOCK

Qty:

Locking Ring

Part # 5007-040 Mfg # 350090

Locking Ring

$53.30 IN STOCK

Qty:

Almond Volute Kit Assembly

Part # 353010 Mfg # 353010

Almond Volute Kit Assembly

$409.61 IN STOCK

Qty:

Washer, Stainless Steel, 7/16" Inner, 7/8" Outer

Part # 6982-0 Mfg # 072184

Washer, Stainless Steel, 7/16" Inner, 7/8" Outer

$3.18 IN STOCK

Qty:

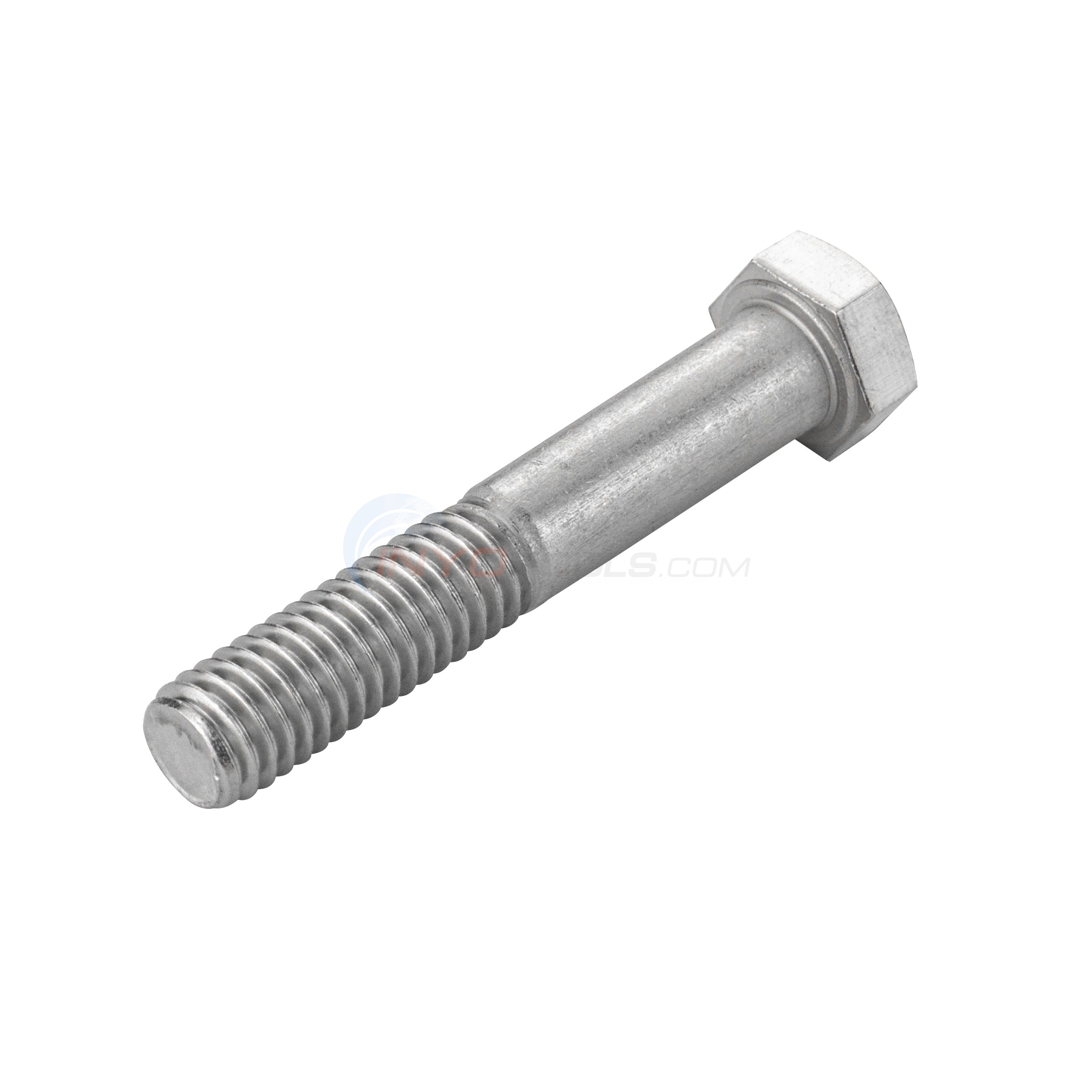

Hex Head Screw

Part # 5003-18 Mfg # 355621

Hex Head Screw

$9.17

Diffuser Screw (3 Required)

Part # 5002-12 Mfg # 355334

Diffuser Screw (3 Required)

$5.99 IN STOCK

Qty:

Impeller Screw

Part # 5002-10 Mfg # 355389

Impeller Screw

$4.73 IN STOCK

Qty:

Shaft Seal, 5/8" (Mfg. before 6/17/2019)

Part # 354545S

Shaft Seal, 5/8" (Mfg. before 6/17/2019)

$40.51 IN STOCK

Qty:

Shaft Seal, 3/4" (Mfg. after 6/17/2019)

Part # 5053-100 Mfg # 17351-0101S

Shaft Seal, 3/4" (Mfg. after 6/17/2019)

$31.53 IN STOCK

Qty:

Bolt, Hex 3/8"-16 x 3/4"

Part # 6901-0 Mfg # 354290

Bolt, Hex 3/8"-16 x 3/4"

$7.06 IN STOCK

Qty:

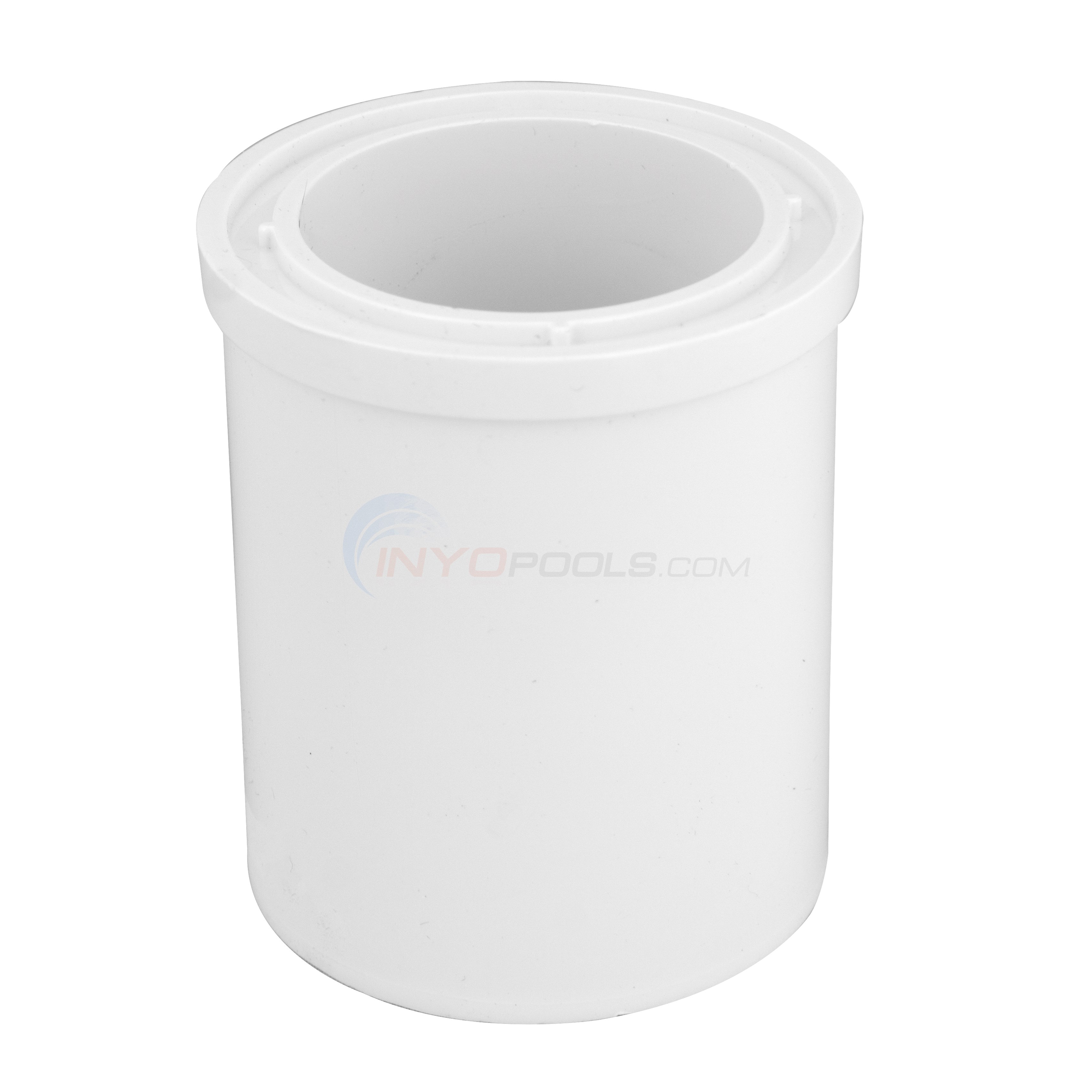

Union Adapter

Part # 5007-080 Mfg # 350093

Union Adapter

$23.39 IN STOCK

Qty:

Union Adapter O-Ring

Part # 5056-11 Mfg # O-49

Union Adapter O-Ring

$9.35 IN STOCK

Qty:

Union Nut

Part # 5007-090 Mfg # 270141

Union Nut

$25.14 IN STOCK

Qty:

Union Kit Compatible with Pentair Pumps

Part # 5007-240 Mfg # 350157

Union Kit Compatible with Pentair Pumps

$40.18 IN STOCK

Qty:

Pump Digital Comm. Cable Kit

Part # 353129Z

Pump Digital Comm. Cable Kit

$95.94 IN STOCK

Qty:

Motor Fan Guard Kit, Almond, TEFC/Super-Duty

Part # 357923Z Mfg # 357923Z

Motor Fan Guard Kit, Almond, TEFC/Super-Duty

$94.85 IN STOCK

Qty:
