Hayward Star Clear Parts

CARTRIDGE FILTER MODELS C-250, C-500, C-750, C-1000

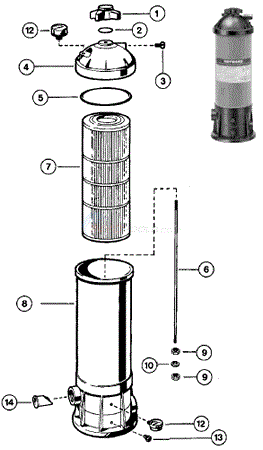

Hayward Star Clear Diagram

Click to zoom in

Diagram #	Part Title
1	Star Clear Locking Knob
2	Star Clear Locking Knob Oring
3	No Longer Available VALVE Replace With 4662-03B
4	Star Clear Filter Head
5	Star Clear Filter Head Gasket
6	C-250 Tie Rod Post 1991
7	FILTER, CARTRIDGE 25 SQ.FT.
8	BODY, FILTER TANK C-250
9**	NUT
10**	OBSOLETE WASHER, SEAL
12	Bottom Mount Pressure Gauge 0-60 1/4" NPT
13	DRAIN PLUG, With O-RING
*	Star-Clear Oring 1/2IN
14	Star-Clear Check Valve
*	OBSOLETE PLUG

View Parts List

Diagram #	Part Title
1	Star Clear Locking Knob
2	Star Clear Locking Knob Oring
3	No Longer Available VALVE Replace With 4662-03B
4	Star Clear Filter Head
5	Star Clear Filter Head Gasket
6	C-250 Tie Rod Post 1991
7	FILTER, CARTRIDGE 25 SQ.FT.
8	BODY, FILTER TANK C-250
9**	NUT
10**	OBSOLETE WASHER, SEAL
12	Bottom Mount Pressure Gauge 0-60 1/4" NPT
13	DRAIN PLUG, With O-RING
*	Star-Clear Oring 1/2IN
14	Star-Clear Check Valve
*	OBSOLETE PLUG

Available Parts:

Star Clear Locking Knob

Part # 4662-08 Mfg # CX250G

Star Clear Locking Knob

$37.36 IN STOCK

Qty:

Star Clear Locking Knob Oring

Part # 4662-09 Mfg # 121

Star Clear Locking Knob Oring

$19.18 IN STOCK

Qty:

3

No Longer Available VALVE Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352028169.htm">4662-03B</a>

Mfg # NOT AVAILABLE

No Longer Available VALVE Replace With 4662-03B

NOT AVAILABLE

Old Mfg.# ECX1321-A

Old Mfg.# ECX1321-A

Star Clear O-ring (110)

Part # 4654-13 Mfg # O-155

Star Clear O-ring (110)

$6.93 IN STOCK

Old Mfg.#

Old Mfg.#

Qty:

Star Clear Filter Head

Part # 4662-10 Mfg # CX250C

Star Clear Filter Head

$132.61 IN STOCK

Qty:

Star Clear Filter Head Gasket

Part # 4662-11 Mfg # HWC-250-F

Star Clear Filter Head Gasket

$30.77 IN STOCK

Qty:

C-250 Tie Rod Post 1991

Part # 4662-20 Mfg # CX250Z2S

C-250 Tie Rod Post 1991

$101.27 IN STOCK

Qty:

C-500 Tie Rod Post 1991

Part # 4662-20A Mfg # CX500Z2S

C-500 Tie Rod Post 1991

$120.47 IN STOCK

Qty:

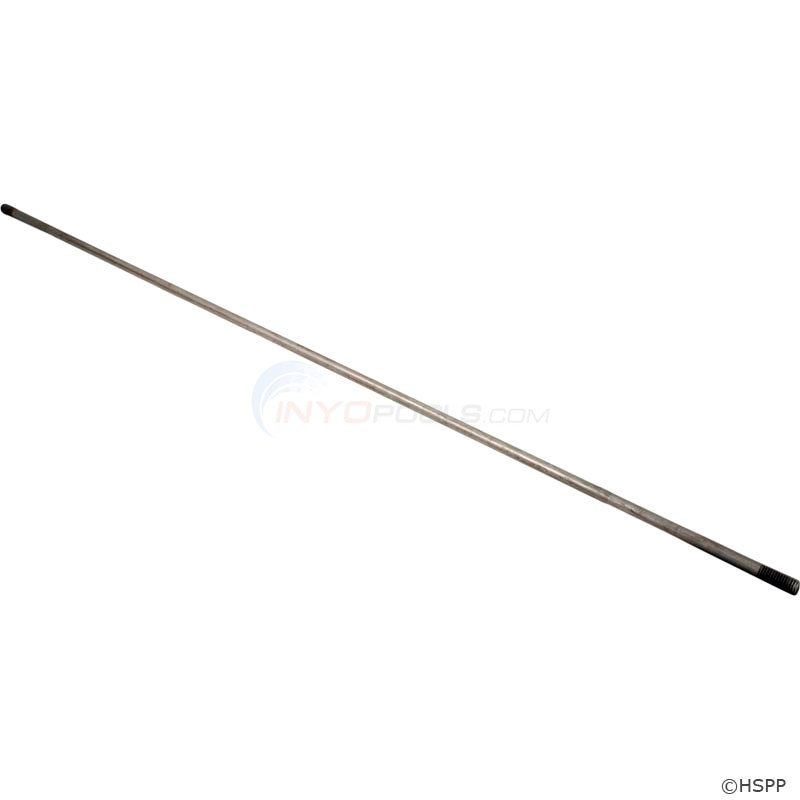

C-750 Tie Rod Post 1991

Part # 4662-20B Mfg # CX750Z2S

C-750 Tie Rod Post 1991

$119.99 IN STOCK

Qty:

FILTER, CARTRIDGE 25 SQ.FT.

Part # 4900-93 Mfg # C-7626

FILTER, CARTRIDGE 25 SQ.FT.

$70.13 IN STOCK

Qty:

7

FILTER, CARTRIDGE 50 SQ.FT. (C-7656)

Part # NFC1240 Mfg # CX500-RE

FILTER, CARTRIDGE 50 SQ.FT. (C-7656)

NOT AVAILABLE

7

FILTER, CARTRIDGE 75 SQ.FT. (C-7676)

Part # NFC1250 Mfg # CX750-RE

FILTER, CARTRIDGE 75 SQ.FT. (C-7676)

NOT AVAILABLE

CARTRIDGE C-1000 STAR-CLEAR (CX1000-RE)

Part # 4900-165 Mfg # C-7698

CARTRIDGE C-1000 STAR-CLEAR (CX1000-RE)

$98.97 IN STOCK

Qty:

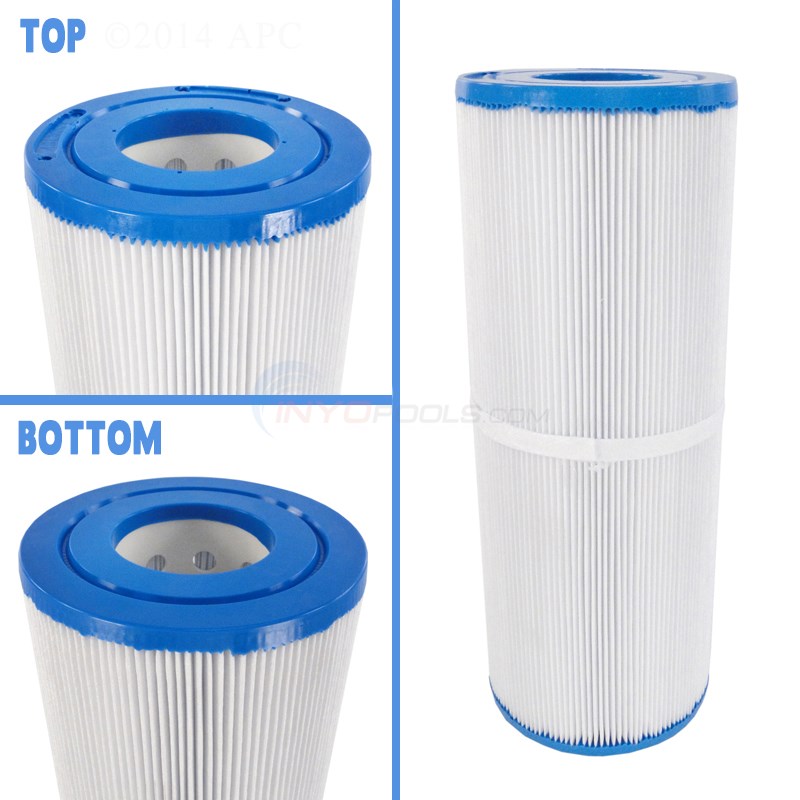

Generic Cartridge for Hayward C-225

Part # NFC1220

Generic Cartridge for Hayward C-225

$46.22 IN STOCK

Qty:

BODY, FILTER TANK C-250

Part # 4662-18 Mfg # CX250AA1

BODY, FILTER TANK C-250

$387.01

BODY, FILTER TANK C-500

Part # 4662-18A Mfg # CX500AA1

BODY, FILTER TANK C-500

$385.95

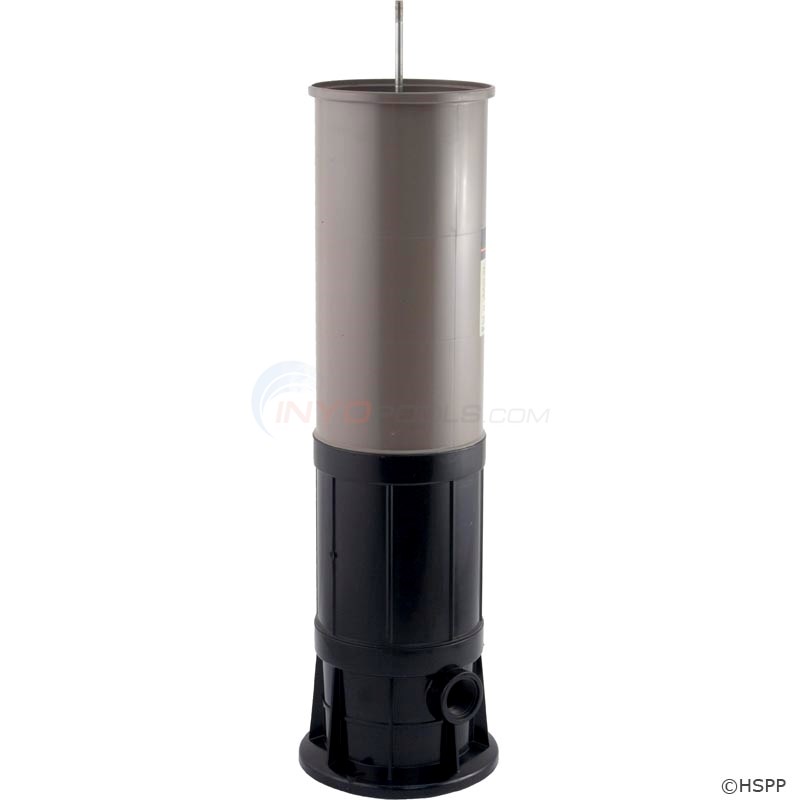

BODY, FILTER TANK C-750

Part # 4662-18B Mfg # CX750AA1

BODY, FILTER TANK C-750

$464.86

9**

NUT

Part # 4662-12 Mfg # NOT AVAILABLE

NUT

NOT AVAILABLE

Old Mfg.# CX250-Z-3

Old Mfg.# CX250-Z-3

10**

OBSOLETE WASHER, SEAL

Mfg # NOT AVAILABLE

OBSOLETE WASHER, SEAL

NOT AVAILABLE

Old Mfg.# CX250-Z-16

Old Mfg.# CX250-Z-16

Bottom Mount Pressure Gauge 0-60 1/4" NPT

Part # 4726-0 Mfg # 101D-204D

Bottom Mount Pressure Gauge 0-60 1/4" NPT

$16.38 IN STOCK

Qty:

Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

Part # 4727-0 Mfg # 102D-204D

Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

$11.40 IN STOCK

Qty:

13

DRAIN PLUG, With O-RING

Part # 4662-05 Mfg # NOT AVAILABLE

DRAIN PLUG, With O-RING

NOT AVAILABLE

Old Mfg.# ECX1321-A

Old Mfg.# ECX1321-A

13

No Longer Available PLUG Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352015726.htm">4662-051</a>

Mfg # NOT AVAILABLE

No Longer Available PLUG Replace With 4662-051

NOT AVAILABLE

Old Mfg.# CX250-Z-14

Old Mfg.# CX250-Z-14

Star-Clear Oring 1/2IN

Part # 4662-04A Mfg # 210

Star-Clear Oring 1/2IN

$3.18 IN STOCK

Qty:

Star-Clear Check Valve

Part # 4662-16 Mfg # ECX4077B1

Star-Clear Check Valve

$24.50 IN STOCK

Qty:

*

OBSOLETE PLUG

Mfg # NOT AVAILABLE

OBSOLETE PLUG

NOT AVAILABLE

Old Mfg.# CX250-Z-15

Old Mfg.# CX250-Z-15

*NOT SHOWN
**PARTS APPLY TO 1981 AND PRIOR MODELS. NOT REQUIRED FOR LATER UNITS.
TIE RODS PRIOR TO 1991 ARE OBSOLETE
