Sta-Rite 1-1/2" WC112 Series Multiport Valve Parts

MODEL WC-112-148 FITS CRISTAL-FLO, WATERFORD AND ONGA PANTERA SYSTEMS

Sta-Rite 1-1/2" WC112 Series Multiport Valve Diagram

Click to zoom in

Diagram #	Part Title
A	COMPLETE VALVE, ASSY TOP MT With DECAL
2	HANDLE
3	PIN, DOWELL
4	WASHER
6	SCREW, MACHINE
7	VALVE COVER
8	O-RING, DIVERTER
9	WASHER
10	SPRING
11	SR PRESSURE GAUGE
12	ROTOR, With GASKET
13	O-RING, BRACKET TO VOLUTE
14	VALVE BODY, #WC112-148
15	NUT 345
16	O-RING, VALVE FLANGE (U9-369)
17	PLUG AND COVER ASSEMBLY
*	CLAMP, ASSEMBLY-#WC112-148
*	UNION COUPLING PACKAGE

View Parts List

Diagram #	Part Title
A	COMPLETE VALVE, ASSY TOP MT With DECAL
2	HANDLE
3	PIN, DOWELL
4	WASHER
6	SCREW, MACHINE
7	VALVE COVER
8	O-RING, DIVERTER
9	WASHER
10	SPRING
11	SR PRESSURE GAUGE
12	ROTOR, With GASKET
13	O-RING, BRACKET TO VOLUTE
14	VALVE BODY, #WC112-148
15	NUT 345
16	O-RING, VALVE FLANGE (U9-369)
17	PLUG AND COVER ASSEMBLY
*	CLAMP, ASSEMBLY-#WC112-148
*	UNION COUPLING PACKAGE

Available Parts:

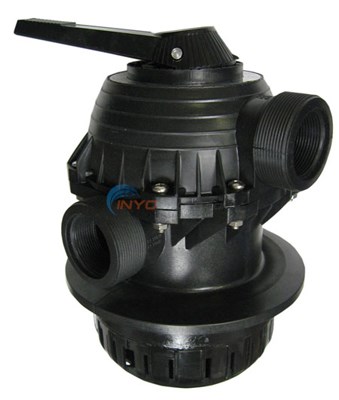

COMPLETE VALVE, ASSY TOP MT With DECAL

Part # 4684-091 Mfg # WC112-148

COMPLETE VALVE, ASSY TOP MT With DECAL

$254.25

Pentair 1-1/2" Top Mount Clamp Style Valve - 261186

Part # WC112-148 Mfg # 261186

Pentair 1-1/2" Top Mount Clamp Style Valve - 261186

$267.82 IN STOCK

Qty:

Praher Top Mount Valve 6-Way - TM-12-L

Part # 4770-01 Mfg # TM-12-L

Praher Top Mount Valve 6-Way - TM-12-L

$110.75 IN STOCK

Qty:

HANDLE

Part # 4679-02 Mfg # 14962-0032

HANDLE

$27.67

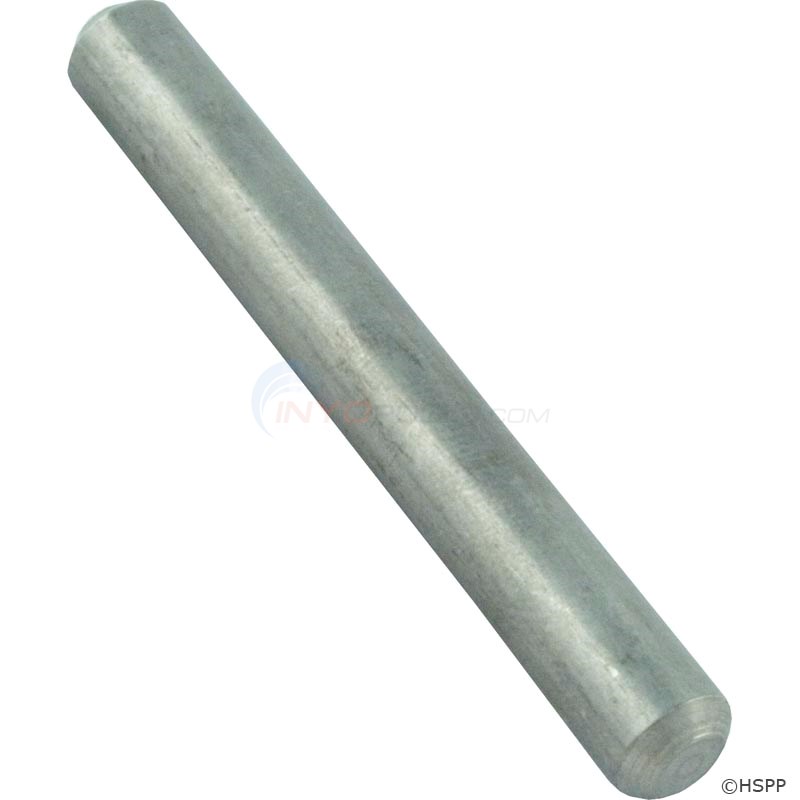

PIN, DOWELL

Part # 4685-07 Mfg # 35857-0021

PIN, DOWELL

$21.09 IN STOCK

Qty:

WASHER

Part # 4679-09 Mfg # 14965-0007

WASHER

$17.83 IN STOCK

Qty:

SCREW, MACHINE

Part # 4685-01 Mfg # 37337-3056

SCREW, MACHINE

$12.05

VALVE COVER

Part # 4679-07 Mfg # 14965-0011S

VALVE COVER

$101.49

O-RING, DIVERTER

Part # 4685-12 Mfg # 216

O-RING, DIVERTER

$12.28 IN STOCK

Qty:

WASHER

Part # 4679-09 Mfg # 14965-0007

WASHER

$17.83 IN STOCK

Qty:

SPRING

Part # 4679-10 Mfg # 14965-0006

SPRING

$13.26 IN STOCK

Qty:

SR PRESSURE GAUGE

Part # 4680-23T Mfg # 33600-0023T

SR PRESSURE GAUGE

$55.16 IN STOCK

Qty:

ROTOR, With GASKET

Part # 4679-12 Mfg # 14965-0028

ROTOR, With GASKET

$64.64 IN STOCK

Qty:

O-RING, BRACKET TO VOLUTE

Part # 3262-17 Mfg # 258

O-RING, BRACKET TO VOLUTE

$17.89 IN STOCK

Qty:

VALVE BODY, #WC112-148

Part # 4679-14 Mfg # 14965-0013

VALVE BODY, #WC112-148

$214.05

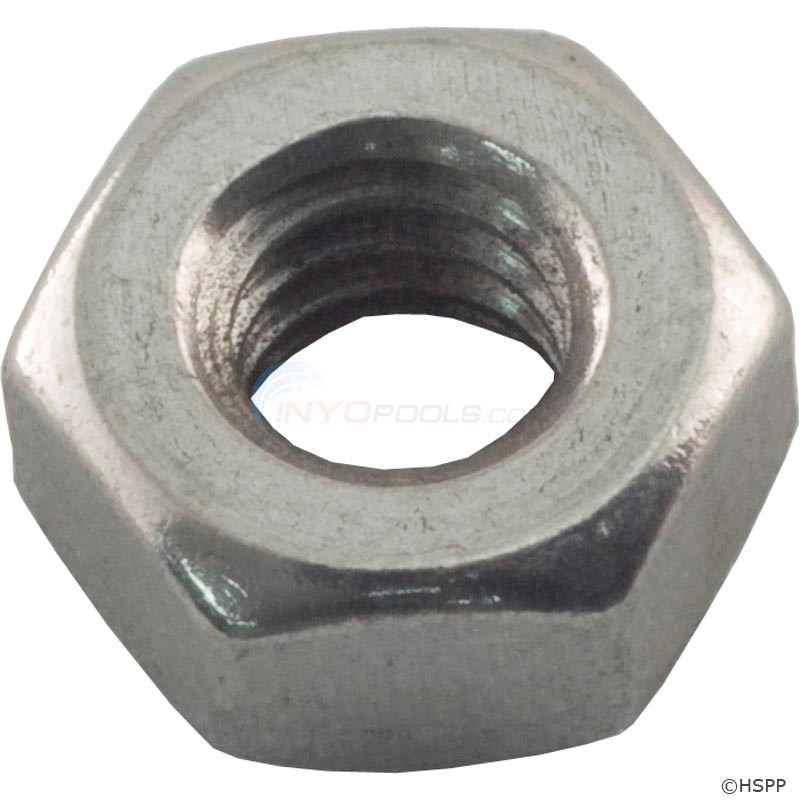

NUT 345

Part # 4679-15 Mfg # 35407-0071

NUT 345

$18.08 IN STOCK

Qty:

O-RING, VALVE FLANGE (U9-369)

Part # 4684-11 Mfg # O-236

O-RING, VALVE FLANGE (U9-369)

$14.71 IN STOCK

Qty:

PLUG AND COVER ASSEMBLY

Part # 4679-18 Mfg # 77704-0104

PLUG AND COVER ASSEMBLY

$144.95 IN STOCK

Qty:

CLAMP, ASSEMBLY-#WC112-148

Part # 4679-17 Mfg # WC119-87

CLAMP, ASSEMBLY-#WC112-148

$194.60 IN STOCK

Qty:

UNION COUPLING PACKAGE

Part # 4684-18 Mfg # C198-5

UNION COUPLING PACKAGE

$58.28

*NOT SHOWN
