Sta-Rite Posi-Flo II Cartridge Filters Parts

GLASS-REINFORCED THERMOPLASTIC FILTER MODELS: PTM 50, 70, 100, 135
MODEL PTM 135 USES THE SAME PARTS EXCEPT AS SHOW AT THE END OF THE PAGE.
CARTRIDGE DIAMETER IS 8 11/16” FOR ALL MODELS

Sta-Rite Posi-Flo II Cartridge Filters Diagram

Click to zoom in

Diagram #	Part Title
1	Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK
2	AIR RELEASE VALVE WITH O-RING
3	Lid Assembly
4	O-RING (31935-0001)
5	CLAMP (25010-9101)
6	FILTER, CARTRIDGE 50 SQ.FT.
7	FILTER, AIR BLEED
8	AIR BLEED TUBE
9	CLAMP WITHOUT NUT
10	BASE WITH PIPE PLUG
11	DRAIN PLUG STARITE TX FILTER
12	NUT, CLAMP
13	O-RING, BOTTOM-BLACK (WC9-3)
14	TANK BODY, LOWER
15	KNOB, FOR SS CLAMP (WC36-22-50)
5*	TANK BODY, UPPER
6*	FILTER, CARTRIDGE 137 SQ.FT.
17*	PLUG, 2" MPT

View Parts List

Diagram #	Part Title
1	Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK
2	AIR RELEASE VALVE WITH O-RING
3	Lid Assembly
4	O-RING (31935-0001)
5	CLAMP (25010-9101)
6	FILTER, CARTRIDGE 50 SQ.FT.
7	FILTER, AIR BLEED
8	AIR BLEED TUBE
9	CLAMP WITHOUT NUT
10	BASE WITH PIPE PLUG
11	DRAIN PLUG STARITE TX FILTER
12	NUT, CLAMP
13	O-RING, BOTTOM-BLACK (WC9-3)
14	TANK BODY, LOWER
15	KNOB, FOR SS CLAMP (WC36-22-50)
5*	TANK BODY, UPPER
6*	FILTER, CARTRIDGE 137 SQ.FT.
17*	PLUG, 2" MPT

Available Parts:

Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

Part # 4727-0 Mfg # 102D-204D

Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

$11.40 IN STOCK

Qty:

SCREEN

Part # 9239-01A Mfg # WC8-72D

SCREEN

$14.44 IN STOCK

Qty:

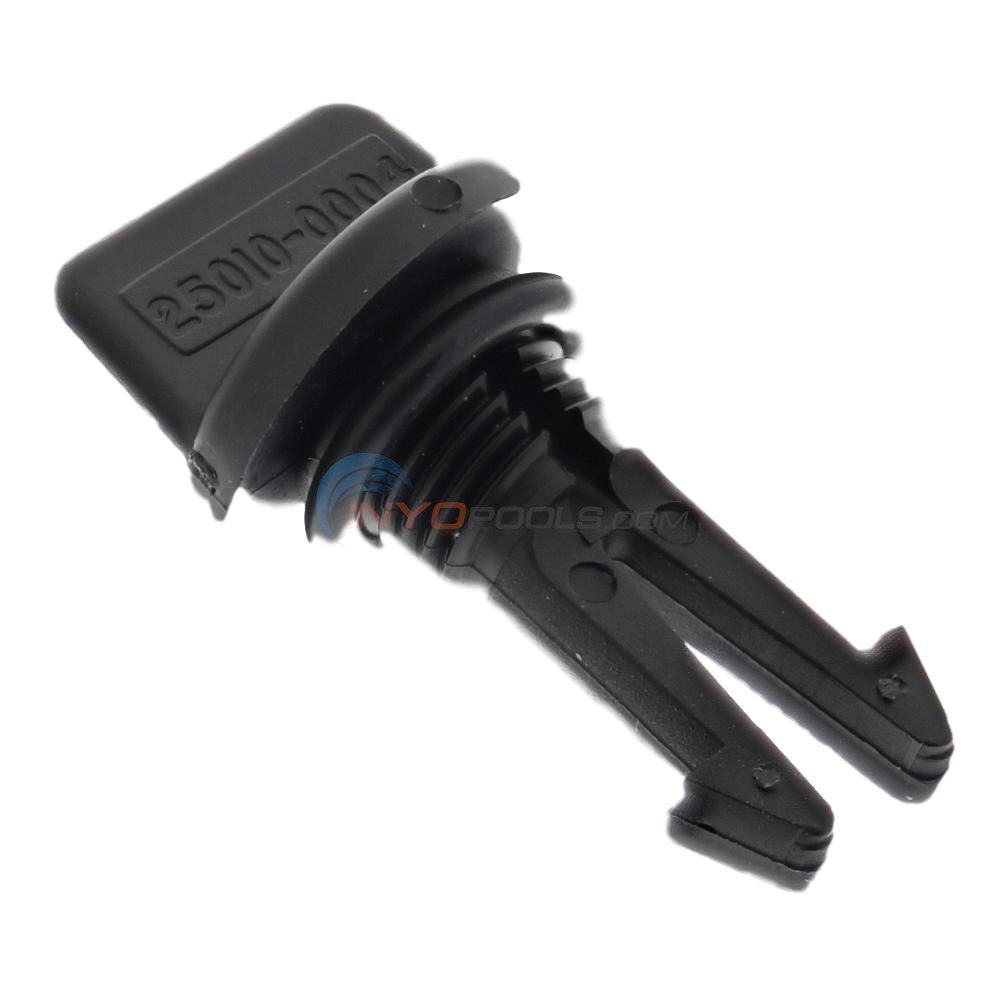

AIR RELEASE VALVE WITH O-RING

Part # 4686-01 Mfg # 25010-0200

AIR RELEASE VALVE WITH O-RING

$36.79 IN STOCK

Qty:

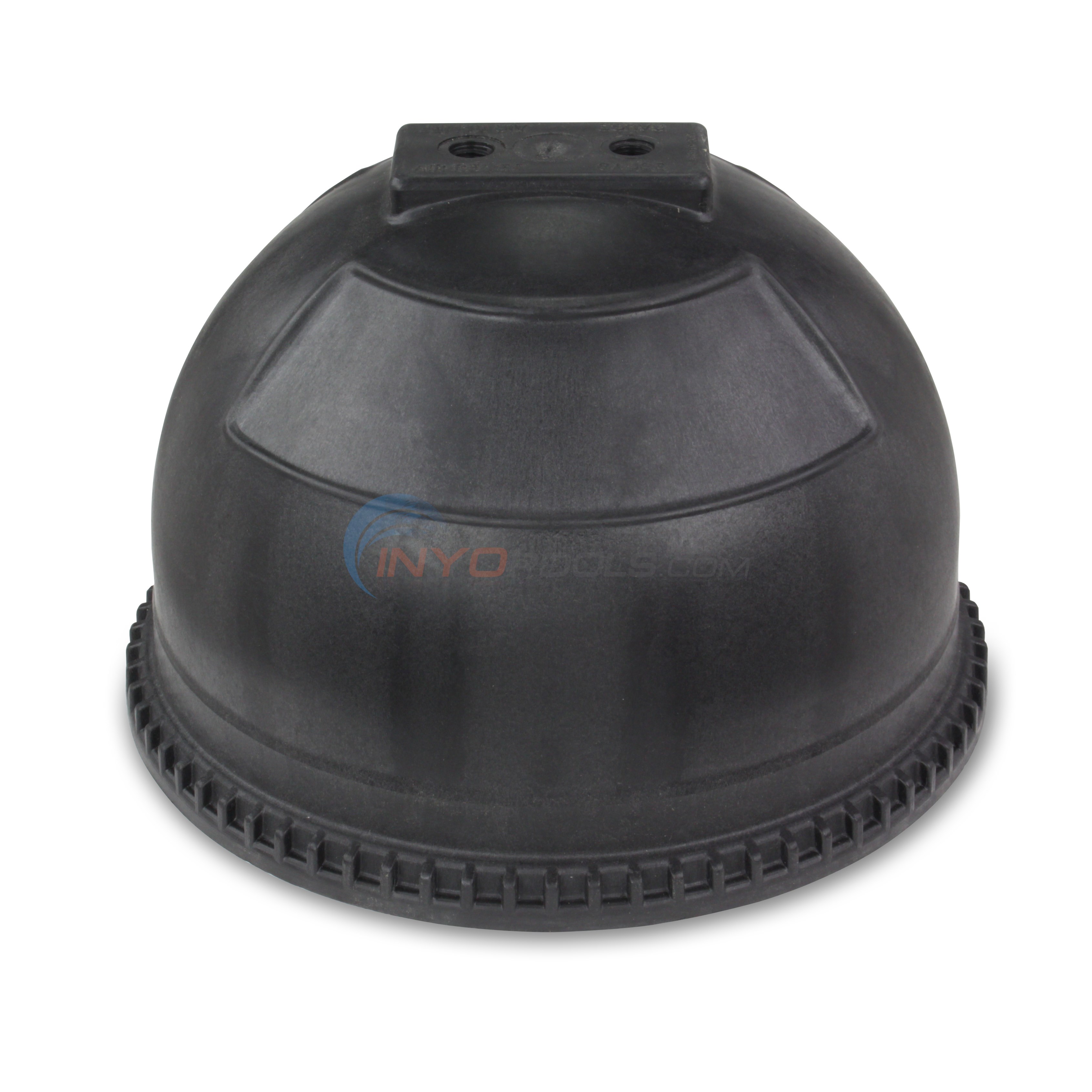

Lid Assembly

Part # 4686-02 Mfg # 25010-9201

Lid Assembly

$324.12

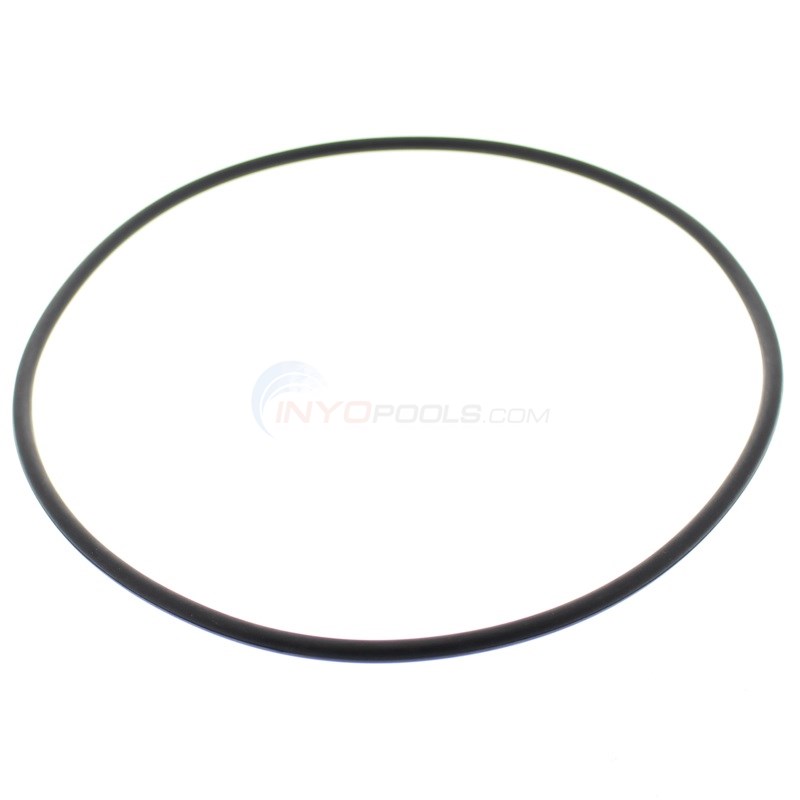

O-RING (31935-0001)

Part # 4686-03 Mfg # 31935-0001/25230-0010S

O-RING (31935-0001)

$33.43

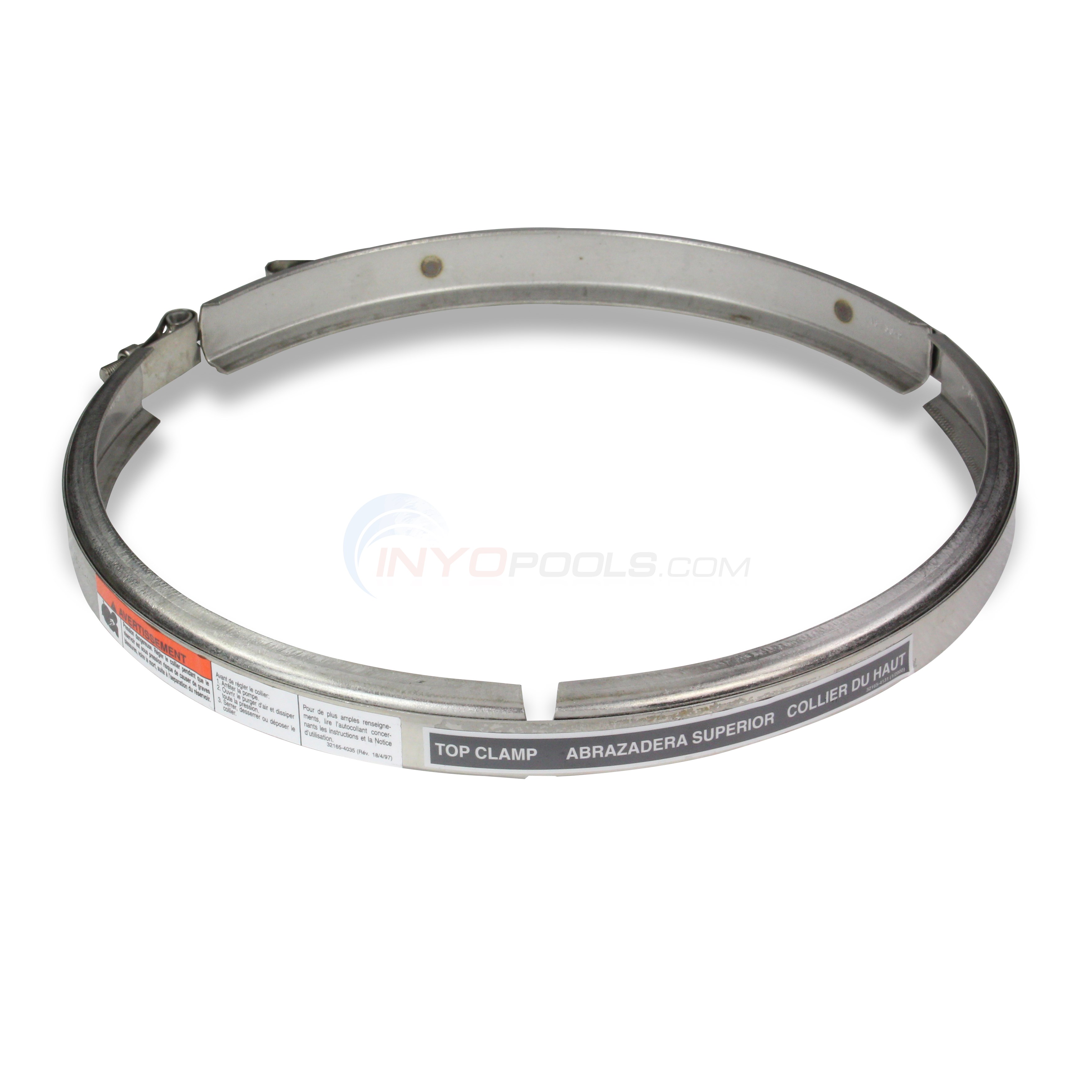

CLAMP (25010-9101)

Part # 4686-07 Mfg # 25010-9101/25010-0101Z

CLAMP (25010-9101)

$200.20 IN STOCK

Qty:

FILTER, CARTRIDGE 50 SQ.FT.

Part # 4900-145 Mfg # UHD-SR50

FILTER, CARTRIDGE 50 SQ.FT.

$82.77 IN STOCK

Qty:

FILTER, CARTIRDGE 70 SQ.FT. (UHD-SR70)

Part # NFC2540 Mfg # WC108-57S2X

FILTER, CARTIRDGE 70 SQ.FT. (UHD-SR70)

$101.77 IN STOCK

Qty:

FILTER, CARTRIDGE 100 SQ.FT. GENERIC (UHD-SR100)

Part # NFC2550 Mfg # WC108-58S2X

FILTER, CARTRIDGE 100 SQ.FT. GENERIC (UHD-SR100)

$129.00 IN STOCK

Qty:

FILTER, AIR BLEED

Part # 9239-13 Mfg # WC8-35

FILTER, AIR BLEED

$38.68 IN STOCK

Qty:

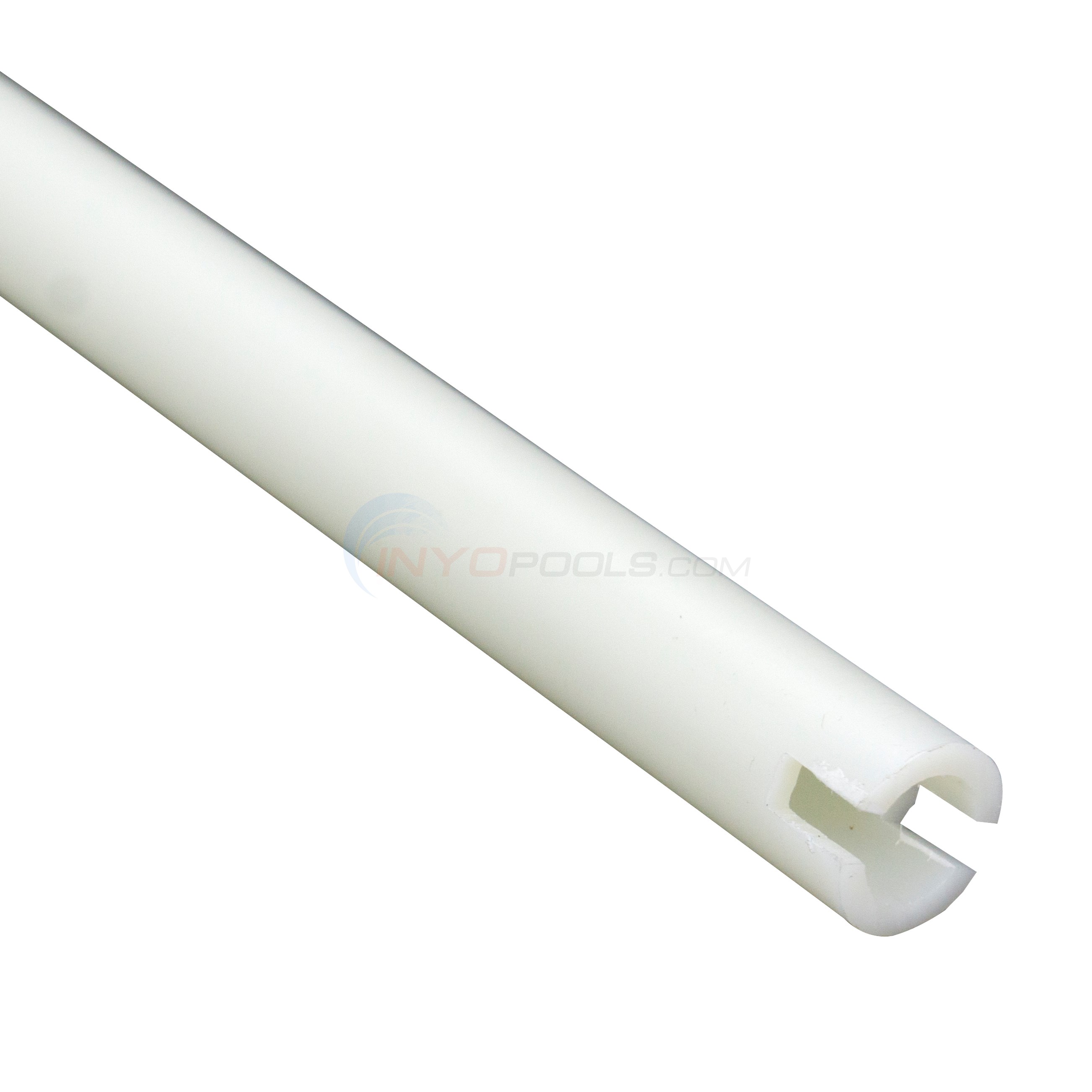

AIR BLEED TUBE

Part # 4686-06 Mfg # 25010-0007

AIR BLEED TUBE

$12.88

AIR BLEED TUBE

Part # 4686-06A Mfg # 25010-0008

AIR BLEED TUBE

$28.77

9

CLAMP WITHOUT NUT

Part # 4685-05 Mfg # NOT AVAILABLE

CLAMP WITHOUT NUT

NOT AVAILABLE

Old Mfg. #

Old Mfg. #

BASE WITH PIPE PLUG

Part # 9239-07 Mfg # WC104-78P

BASE WITH PIPE PLUG

$211.10

DRAIN PLUG STARITE TX FILTER

Part # 9239-13AT Mfg # WC78-38T

DRAIN PLUG STARITE TX FILTER

$14.54 IN STOCK

Qty:

NUT, CLAMP

Part # 9239-10 Mfg # WC36-1

NUT, CLAMP

$44.34

O-RING, BOTTOM-BLACK (WC9-3)

Part # 9239-04 Mfg # STWC9-3

O-RING, BOTTOM-BLACK (WC9-3)

$17.02 IN STOCK

Qty:

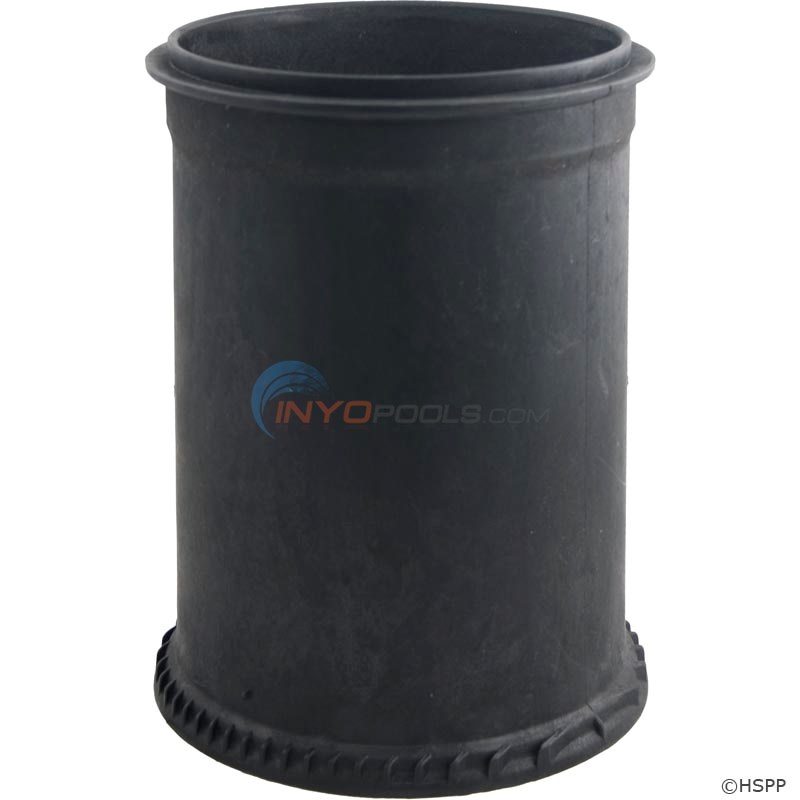

TANK BODY, LOWER

Part # 4686-04 Mfg # 25010-0001

TANK BODY, LOWER

$489.37

KNOB, FOR SS CLAMP (WC36-22-50)

Part # 5056-30 Mfg # WC36-22

KNOB, FOR SS CLAMP (WC36-22-50)

$16.50 IN STOCK

Qty:

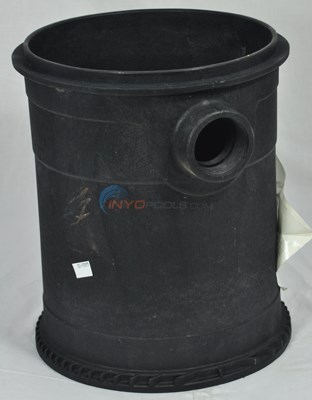

TANK BODY, UPPER

Part # 4686-10 Mfg # 25005-0001

TANK BODY, UPPER

$366.76

Model PTM 135

Model PTM 135

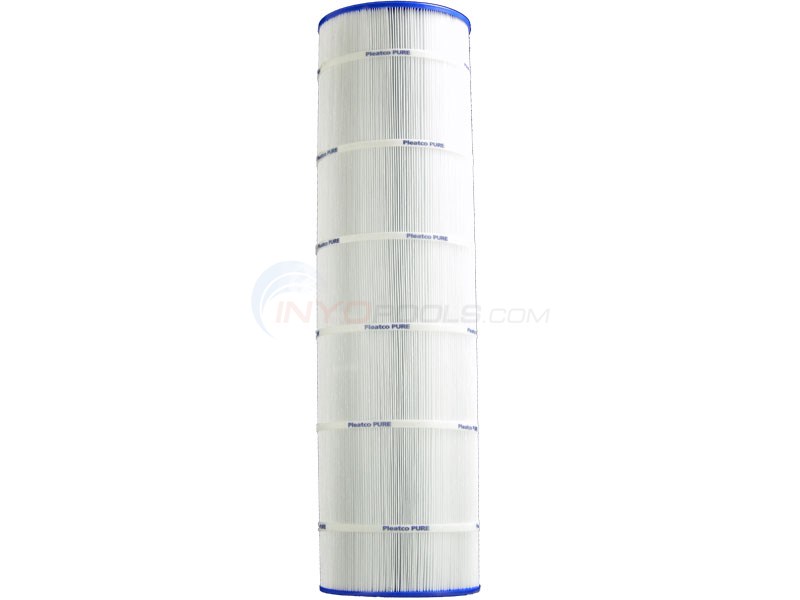

FILTER, CARTRIDGE 137 SQ.FT.

Part # 4900-209 Mfg # UHD-SR137

FILTER, CARTRIDGE 137 SQ.FT.

$121.59 IN STOCK

Model PTM 135

Model PTM 135

Qty:

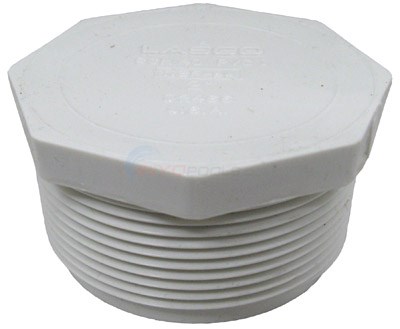

PLUG, 2" MPT

Part # 7137-0 Mfg # 450-020

PLUG, 2" MPT

$18.98 IN STOCK

Model PTM 135

Model PTM 135

Qty:
