Sta-Rite/SwimQuip DEP & DEP-01B D.E. Parts

FIBERGLASS TANK MODELS DEP 36, 51, 83 AND DEP 36-01B, DEP 51-01B, DEP 83-01B

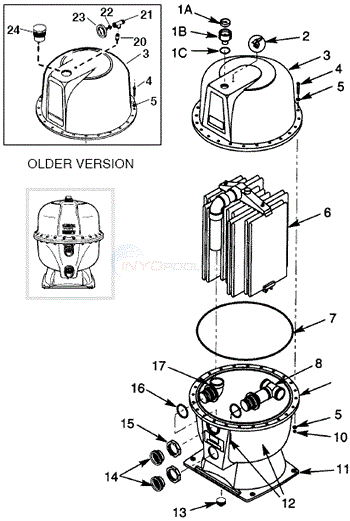

Sta-Rite/SwimQuip DEP & DEP-01B D.E. Diagram

Click to zoom in

Diagram #	Part Title
**	Sta-Rite DEP36 O-Ring Kit
1A	SR PRESSURE GAUGE
2	VALVE, AIR RELEASE
3	OBSOLETE TANK, UPPER
4	SCREW, HOUSING CAP 3/8-16 X 2 (37C200HCS1) 4 Pack
5	WASHER SS 7/16"ID X 7/8"OD (SAMPLE W-7)
6	Sta Rite DEP36 Replacement DE Grids
7	O-RING, TANK (HW S-200-Z7)
8	INLET, BAFFLE DEP 36-01B
9	OBSOLETE TANK, LOWER
10	NUT, 3/8IN (SAMPLE N-2)
11	BASE, MODEL HRP20
13	PLUG
14	ADAPTER, UNION DEP 36-01B
15	NUT, FITTING 2IN
16	O-RING
17	OUTLET ELBOW, DEP 36-01B
20	NIPPLE
21	AIR RELIEF ASSEMBLY (WC212-120P)
22	SCREEN
23	Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK
24	FILL CAP ASSY F/SQ DE FILTER
*	VALVE ASSY., MULTIPORT 1 1/2IN, With UNION
*	No Longer Available 2” PUSH PULL VALVE Replace With 4685-1

View Parts List

Diagram #	Part Title
**	Sta-Rite DEP36 O-Ring Kit
1A	SR PRESSURE GAUGE
2	VALVE, AIR RELEASE
3	OBSOLETE TANK, UPPER
4	SCREW, HOUSING CAP 3/8-16 X 2 (37C200HCS1) 4 Pack
5	WASHER SS 7/16"ID X 7/8"OD (SAMPLE W-7)
6	Sta Rite DEP36 Replacement DE Grids
7	O-RING, TANK (HW S-200-Z7)
8	INLET, BAFFLE DEP 36-01B
9	OBSOLETE TANK, LOWER
10	NUT, 3/8IN (SAMPLE N-2)
11	BASE, MODEL HRP20
13	PLUG
14	ADAPTER, UNION DEP 36-01B
15	NUT, FITTING 2IN
16	O-RING
17	OUTLET ELBOW, DEP 36-01B
20	NIPPLE
21	AIR RELIEF ASSEMBLY (WC212-120P)
22	SCREEN
23	Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK
24	FILL CAP ASSY F/SQ DE FILTER
*	VALVE ASSY., MULTIPORT 1 1/2IN, With UNION
*	No Longer Available 2” PUSH PULL VALVE Replace With 4685-1

Available Parts:

Sta-Rite DEP36 O-Ring Kit

Part # APCK1158 Mfg # APCK1158

Sta-Rite DEP36 O-Ring Kit

$43.99 IN STOCK

Qty:

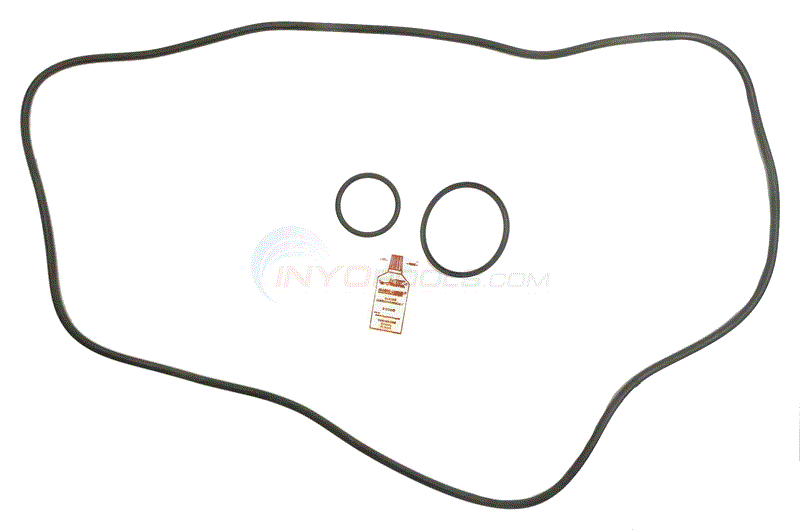

Sta-Rite DEP51 O-Ring Kit

Part # APCK1159

Sta-Rite DEP51 O-Ring Kit

$43.99

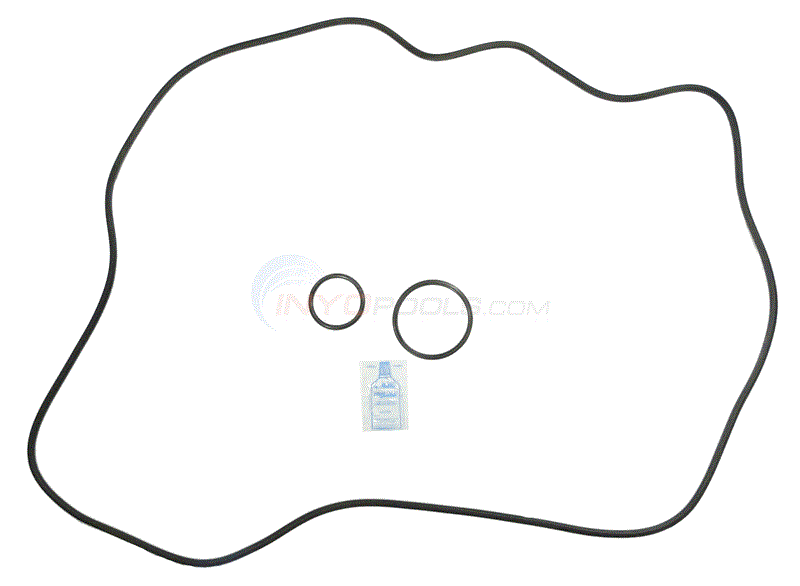

Sta-Rite DEP83 O-Ring Kit

Part # APCK1160

Sta-Rite DEP83 O-Ring Kit

$46.49 IN STOCK

Qty:

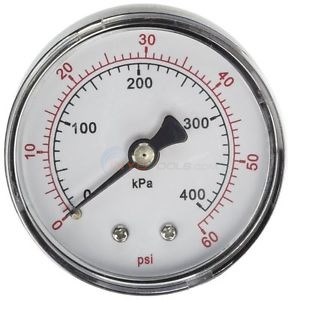

SR PRESSURE GAUGE

Part # 4680-23T Mfg # 33600-0023T

SR PRESSURE GAUGE

$60.49 IN STOCK

Qty:

CAP ASSEMBLY

Part # 4680-16 Mfg # 24750-0065

CAP ASSEMBLY

$40.99

O-RING, BULKHEAD 1 1/2IN

Part # 4600-4491 Mfg # 330

O-RING, BULKHEAD 1 1/2IN

$11.49 IN STOCK

Qty:

VALVE, AIR RELEASE

Part # 4680-03C Mfg # U212-252D

VALVE, AIR RELEASE

$25.49 IN STOCK

Qty:

3

OBSOLETE TANK, UPPER

OBSOLETE TANK, UPPER

NOT AVAILABLE

SCREW, HOUSING CAP 3/8-16 X 2 (37C200HCS1) 4 Pack

Part # 5110-15 Mfg # 37C200HCS1

SCREW, HOUSING CAP 3/8-16 X 2 (37C200HCS1) 4 Pack

$5.29

BOLT, HEX HEAD(1/2-13 X 2 1/4 SS HEX HD)

Part # 4680-04A Mfg # 30726-4260

BOLT, HEX HEAD(1/2-13 X 2 1/4 SS HEX HD)

$24.49

BOLT, HEX HEAD (U30-91C)

Part # 4680-04B Mfg # U30-91ZP

BOLT, HEX HEAD (U30-91C)

$13.49

WASHER SS 7/16"ID X 7/8"OD (SAMPLE W-7)

Part # 6982-0 Mfg # 072184

WASHER SS 7/16"ID X 7/8"OD (SAMPLE W-7)

$3.49 IN STOCK

Qty:

WASHER, FLAT

Part # 4680-05 Mfg # U43-129ZP

WASHER, FLAT

$19.99

Sta Rite DEP36 Replacement DE Grids

Part # DEP36

Sta Rite DEP36 Replacement DE Grids

$359.99

Sta Rite DEP51 Replacement DE Grids

Part # DEP51

Sta Rite DEP51 Replacement DE Grids

$431.99 IN STOCK

Qty:

Sta Rite DEP83 Replacement DE Grids

Part # DEP83

Sta Rite DEP83 Replacement DE Grids

$687.99

O-RING, TANK (HW S-200-Z7)

Part # 4800-14 Mfg # SX200Z7

O-RING, TANK (HW S-200-Z7)

$55.49 IN STOCK

Qty:

O-RING, TANK

Part # 4680-07A Mfg # SQ24751-5

O-RING, TANK

$12.49 IN STOCK

Qty:

O-RING, TANK

Part # 4680-07B Mfg # SQ24752-5

O-RING, TANK

$25.49 IN STOCK

Qty:

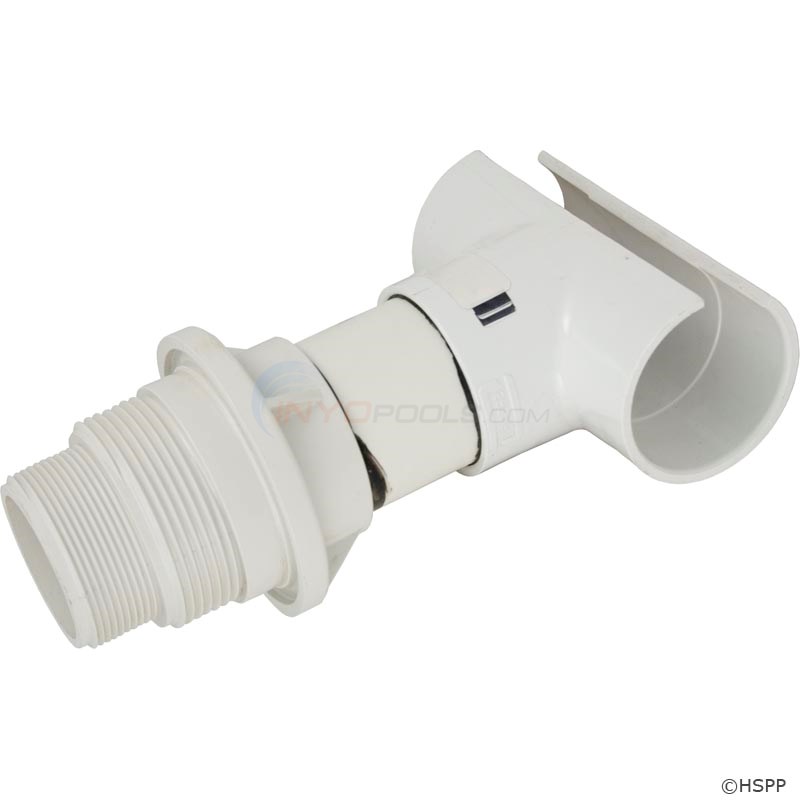

INLET, BAFFLE DEP 36-01B

Part # 4687-08 Mfg # WC178-90P

INLET, BAFFLE DEP 36-01B

$81.49

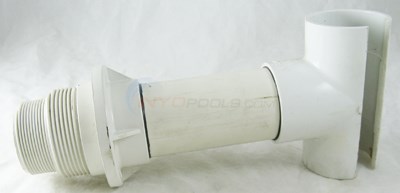

INLET, BAFFLE DEP 51-01B

Part # 4687-08A Mfg # WC178-91P

INLET, BAFFLE DEP 51-01B

$110.99

INLET, BAFFLE DEP 83-01B

Part # 4687-08B Mfg # WC178-92P

INLET, BAFFLE DEP 83-01B

$114.99

8

OBSOLETE BAFFLE <a class="productlink" href="http://www.inyopools.com/Products/04200012000535.htm">DEP36</a>

Mfg # 24760-0037

OBSOLETE BAFFLE DEP36

NOT AVAILABLE

INLET, BAFFLE DEP 51

Part # 4687-08D Mfg # 24761-0037

INLET, BAFFLE DEP 51

$159.99

8

OBSOLETE INLET <a class="productlink" href="http://www.inyopools.com/Products/04200012000537.htm">DEP83</a>

Mfg # 24762-0037

OBSOLETE INLET DEP83

NOT AVAILABLE

9

OBSOLETE TANK, LOWER

OBSOLETE TANK, LOWER

NOT AVAILABLE

NUT, 3/8IN (SAMPLE N-2)

Part # 6932-0 Mfg # 071403

NUT, 3/8IN (SAMPLE N-2)

$9.49 IN STOCK

Qty:

NUT, HEX HEAD

Part # 4680-10 Mfg # U36-39C

NUT, HEX HEAD

$13.49

BASE, MODEL HRP20

Part # 4680-14 Mfg # 23900-0105

BASE, MODEL HRP20

$212.99

BASE, MODELS HRP24-30

Part # 4680-14A Mfg # 23901-0005

BASE, MODELS HRP24-30

$320.99

PLUG

Part # 4680-15 Mfg # 24700-0413

PLUG

$70.49

ADAPTER, UNION DEP 36-01B

Part # 4687-14 Mfg # U11-198P

ADAPTER, UNION DEP 36-01B

$13.99

NUT, FITTING 2IN

Part # 4680-11 Mfg # 24752-0049

NUT, FITTING 2IN

$46.49 IN STOCK

Qty:

O-RING

Part # 4680-12 Mfg # O-109

O-RING

$19.99 IN STOCK

Qty:

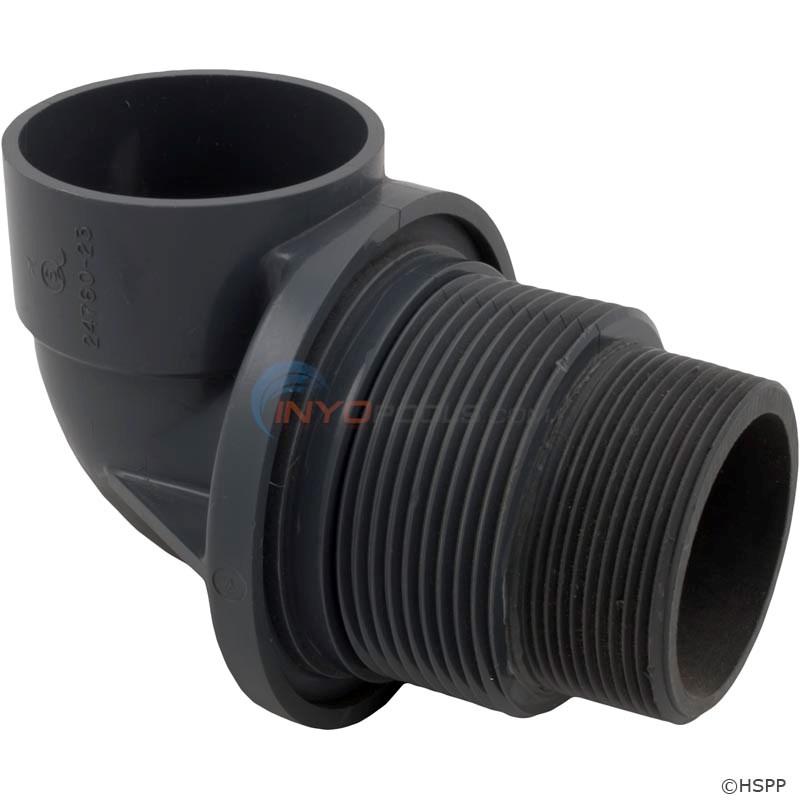

OUTLET ELBOW, DEP 36-01B

Part # 4687-17 Mfg # WC137-505P

OUTLET ELBOW, DEP 36-01B

$114.99

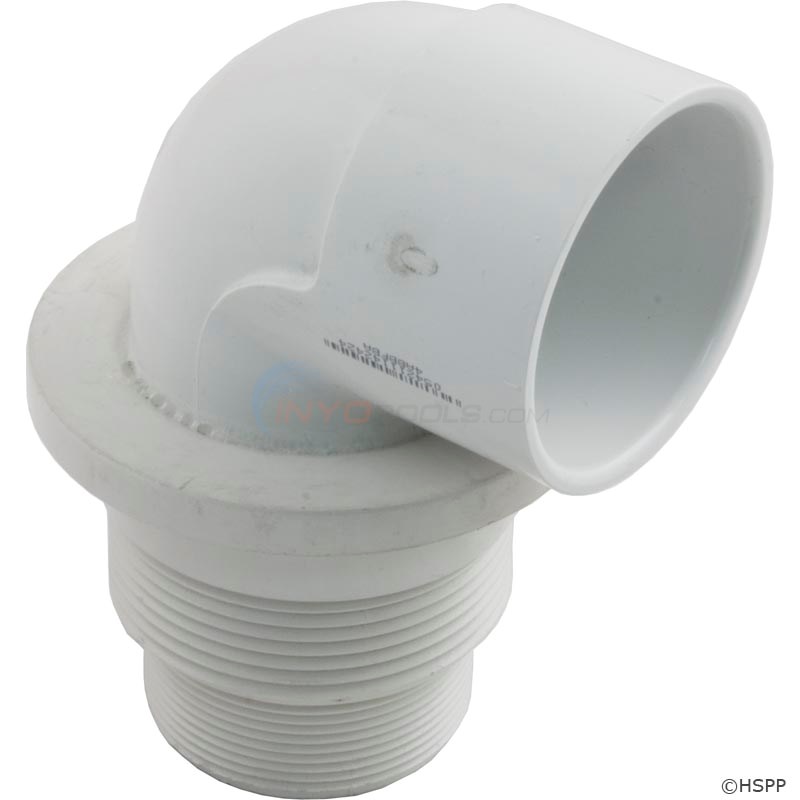

ELBOW, OUTLET DEPB 51,83

Part # 4687-17B Mfg # 24752-0176

ELBOW, OUTLET DEPB 51,83

$146.99

17

OBSOLETE ELBOW, DEP 36, 51, & 83

Mfg # 24760-0005

OBSOLETE ELBOW, DEP 36, 51, & 83

NOT AVAILABLE

NIPPLE

Part # 4680-02 Mfg # 35202-0959

NIPPLE

$19.99 IN STOCK

Qty:

AIR RELIEF ASSEMBLY (WC212-120P)

Part # 9239-02 Mfg # 154689Z

AIR RELIEF ASSEMBLY (WC212-120P)

$32.49 IN STOCK

Qty:

SCREEN

Part # 9239-01A Mfg # WC8-72D

SCREEN

$14.99 IN STOCK

Qty:

Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

Part # 4727-0 Mfg # 102D-204D

Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

$11.99 IN STOCK

Qty:

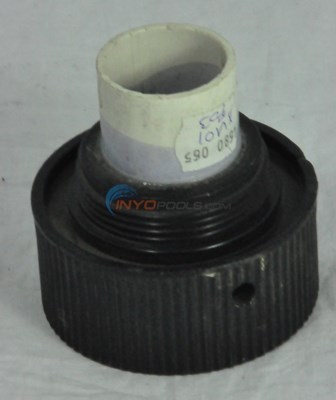

FILL CAP ASSY F/SQ DE FILTER

Part # 4680-065 Mfg # 24762-0065

FILL CAP ASSY F/SQ DE FILTER

$74.99

VALVE ASSY., MULTIPORT 1 1/2IN, With UNION

Part # 4685-0 Mfg # 18202-0150

VALVE ASSY., MULTIPORT 1 1/2IN, With UNION

$246.99

VALVE ASSY., MULTIPORT 2IN

Part # 4685A Mfg # 18201-0200

VALVE ASSY., MULTIPORT 2IN

$348.99 IN STOCK

Qty:

*

No Longer Available 2” PUSH PULL VALVE Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352028319.htm">4685-1</a>

Mfg # WC212-134P

No Longer Available 2” PUSH PULL VALVE Replace With 4685-1

NOT AVAILABLE

* NOT SHOWN
** O-RING/GASKET REPAIR KIT
