Waterway Clearwater Cartridge Filter Parts

MODELS FC075, FC100, FC150 ALSO SOLD AS PROLINE BY NAMCO & WATERWAY SIERRA

Waterway Clearwater Cartridge Filter Diagram

Click to zoom in

Diagram #	Part Title
1	LID ASS'Y SMALL 75
2	AIR RELIEF PLUG
3	O-RING, AIR RELIEF
4	HANDLE With SCREWS
5	O-RING, LID
6	Bottom Mount Pressure Gauge 0-60 1/4" NPT
7	FILTER INTERNAL SCREEN (817-0001)
8	CARTRIDGE INTERNAL, 75'
9	AIR BLEEDER ASSY.
10	PIN & ANCHOR ASSY.
11	COUPLING ASSEMBLY
12	OBSOLETE STANDARD SYSTEM BASE
13	OBSOLETE FILTER BODY With O CHECK VALVE
14	PUMP BASE MODULAR
15	FILTER BASE
16	DRAIN ASSEMBLY, 1 1/2" BODY
17	NUT ASSY.
18	OBSOLETE HOSE ADAPTER
19	COUPLING STANDARD
20	TIE NUT
21	UPPER PLATE
22*	CORE CENTER
23	LOWER PLATE ASSEMBLY 75 SQ FT
24	Waterway Clearwater 75 Replacement Cartridge (FC-2960)
25	UNION NUT, BLACK
26	COUPLING MODULAR
27	GASKET, 2" UNION (711-4010)
28	O-RING, FITS WATERWAY MPV
29	DRAIN CAP ASSY. 1 1/2" BODY
30	2" PLUG ASSEMBLY WITH O-RING

View Parts List

Diagram #	Part Title
1	LID ASS'Y SMALL 75
2	AIR RELIEF PLUG
3	O-RING, AIR RELIEF
4	HANDLE With SCREWS
5	O-RING, LID
6	Bottom Mount Pressure Gauge 0-60 1/4" NPT
7	FILTER INTERNAL SCREEN (817-0001)
8	CARTRIDGE INTERNAL, 75'
9	AIR BLEEDER ASSY.
10	PIN & ANCHOR ASSY.
11	COUPLING ASSEMBLY
12	OBSOLETE STANDARD SYSTEM BASE
13	OBSOLETE FILTER BODY With O CHECK VALVE
14	PUMP BASE MODULAR
15	FILTER BASE
16	DRAIN ASSEMBLY, 1 1/2" BODY
17	NUT ASSY.
18	OBSOLETE HOSE ADAPTER
19	COUPLING STANDARD
20	TIE NUT
21	UPPER PLATE
22*	CORE CENTER
23	LOWER PLATE ASSEMBLY 75 SQ FT
24	Waterway Clearwater 75 Replacement Cartridge (FC-2960)
25	UNION NUT, BLACK
26	COUPLING MODULAR
27	GASKET, 2" UNION (711-4010)
28	O-RING, FITS WATERWAY MPV
29	DRAIN CAP ASSY. 1 1/2" BODY
30	2" PLUG ASSEMBLY WITH O-RING

Available Parts:

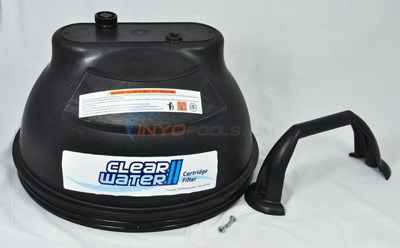

LID ASS'Y SMALL 75

Part # 4742-50 Mfg # 511-7201

LID ASS'Y SMALL 75

$196.97

LID ASSEMBLY (MEDIUM)

Part # 4742-51 Mfg # 511-7301

LID ASSEMBLY (MEDIUM)

$149.73

LID ASSY., 100 SQ FT

Part # 4741-03 Mfg # 511-7311

LID ASSY., 100 SQ FT

$183.90

AIR RELIEF PLUG

Part # 4742-52 Mfg # 715-6011

AIR RELIEF PLUG

$21.09

O-RING, AIR RELIEF

Part # 4742-53 Mfg # 805-0117SD

O-RING, AIR RELIEF

$11.60 IN STOCK

Qty:

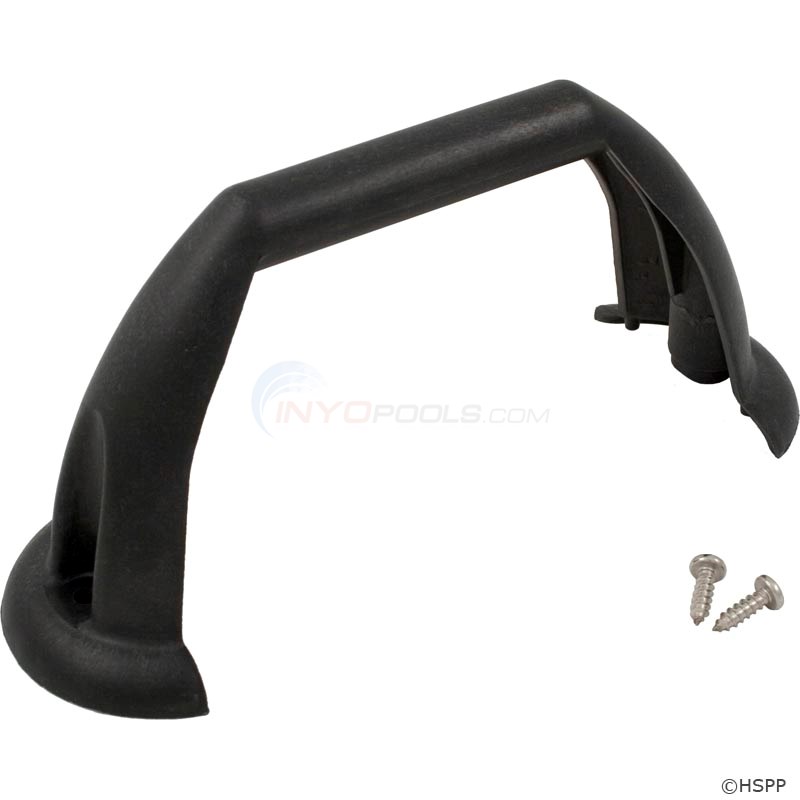

HANDLE With SCREWS

Part # 4742-54 Mfg # 662-7221

HANDLE With SCREWS

$70.34

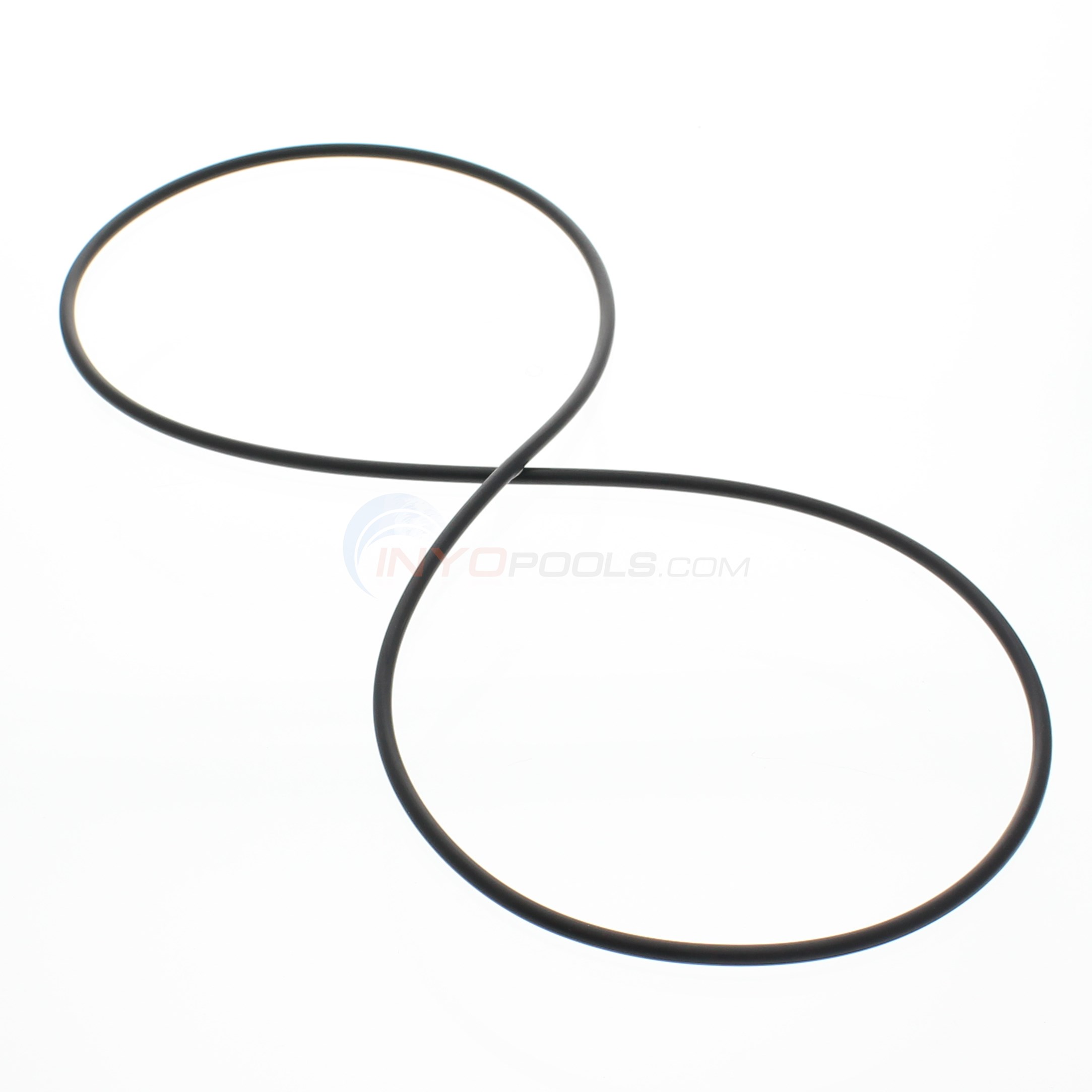

O-RING, LID

Part # 4741-04 Mfg # 805-0383

O-RING, LID

$30.49 IN STOCK

Qty:

Bottom Mount Pressure Gauge 0-60 1/4" NPT

Part # 4726-0 Mfg # 101D-204D

Bottom Mount Pressure Gauge 0-60 1/4" NPT

$14.92 IN STOCK

Qty:

FILTER INTERNAL SCREEN (817-0001)

Part # 4741-06

FILTER INTERNAL SCREEN (817-0001)

$22.10 IN STOCK

Qty:

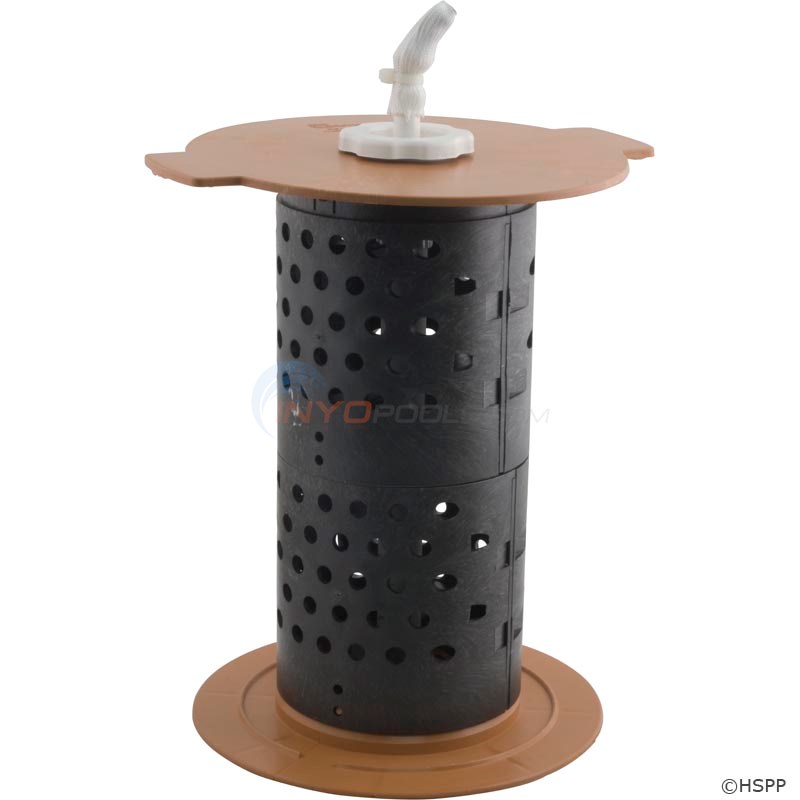

CARTRIDGE INTERNAL, 75'

Part # 4743-04 Mfg # 500-5210

CARTRIDGE INTERNAL, 75'

$78.37

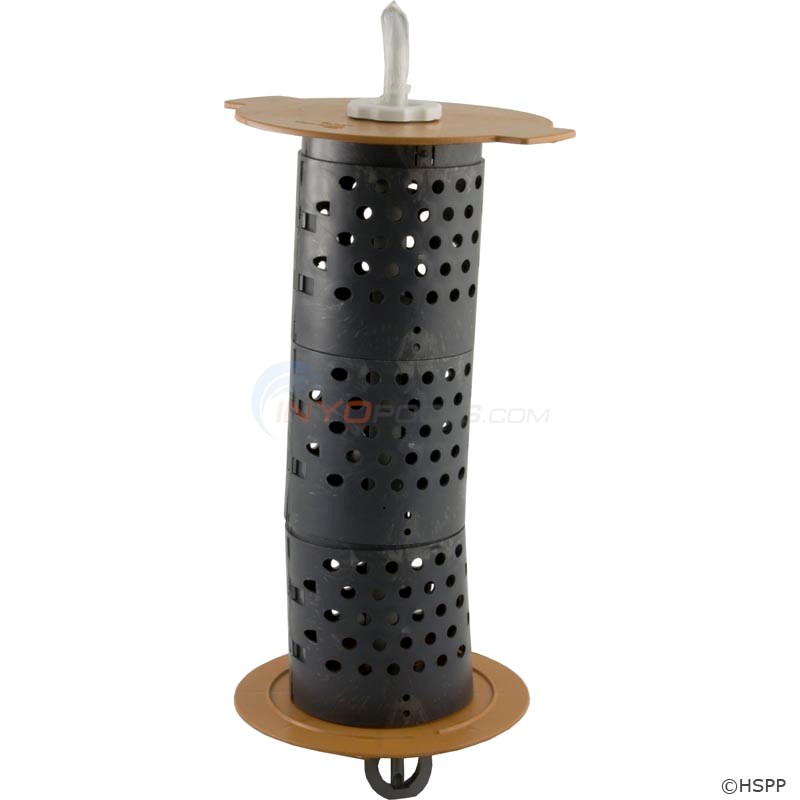

CARTRIDGE INTERNAL, 100' (500-5220)

Part # 4743-05

CARTRIDGE INTERNAL, 100' (500-5220)

$115.08

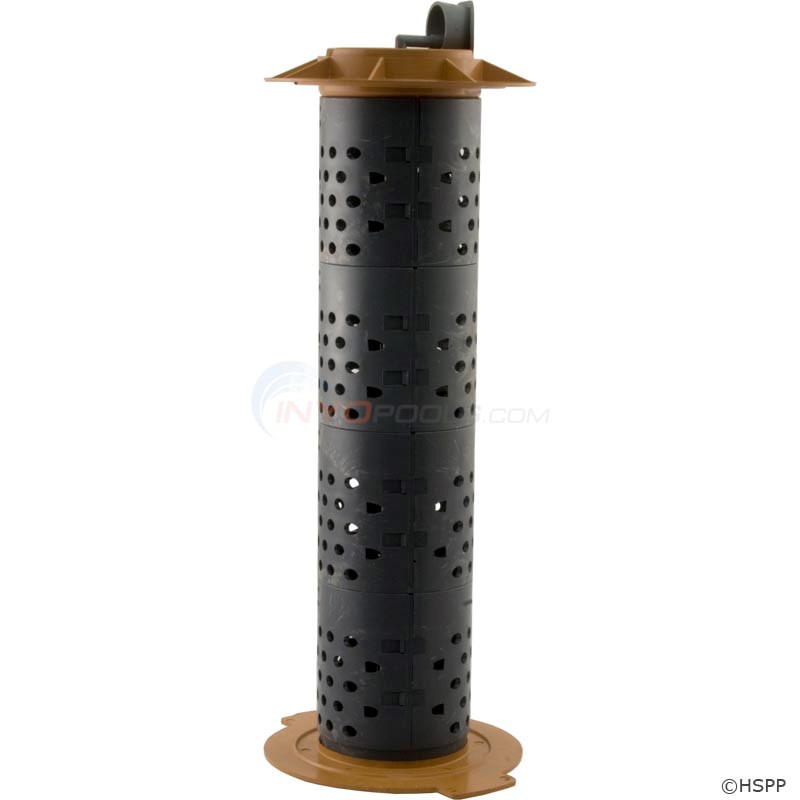

CARTRIDGE INTERNAL, 150'

Part # 4743-06 Mfg # 500-5230

CARTRIDGE INTERNAL, 150'

$117.57

AIR BLEEDER ASSY.

Part # 4741-10 Mfg # 500-7100

AIR BLEEDER ASSY.

$58.28

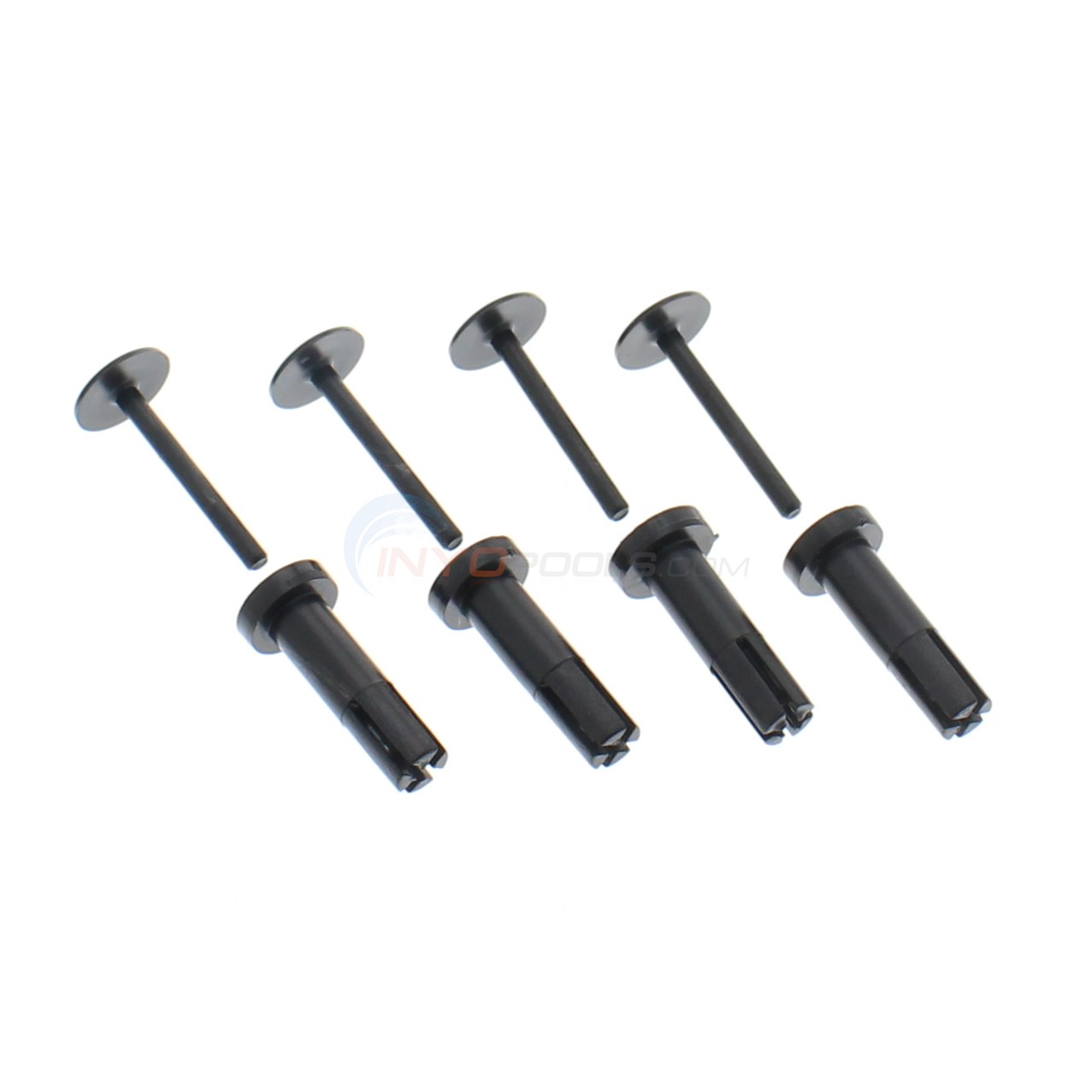

PIN & ANCHOR ASSY.

Part # 4741-11 Mfg # 429-7300

PIN & ANCHOR ASSY.

$10.04 IN STOCK

Qty:

COUPLING ASSEMBLY

Part # 4741-13 Mfg # 419-7220

COUPLING ASSEMBLY

$35.16

12

OBSOLETE STANDARD SYSTEM BASE

Mfg # 672-7241

OBSOLETE STANDARD SYSTEM BASE

NOT AVAILABLE

13

OBSOLETE FILTER BODY With O CHECK VALVE

Mfg # 500-7201

OBSOLETE FILTER BODY With O CHECK VALVE

NOT AVAILABLE

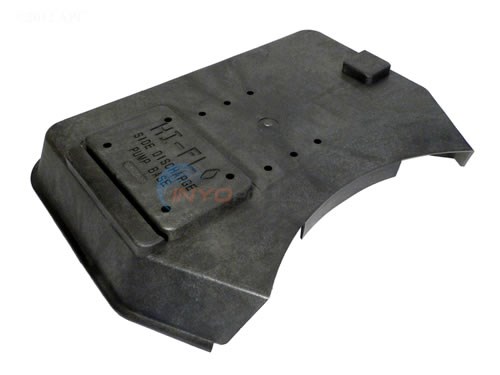

PUMP BASE MODULAR

Part # 4742-69 Mfg # 672-7221

PUMP BASE MODULAR

$57.27

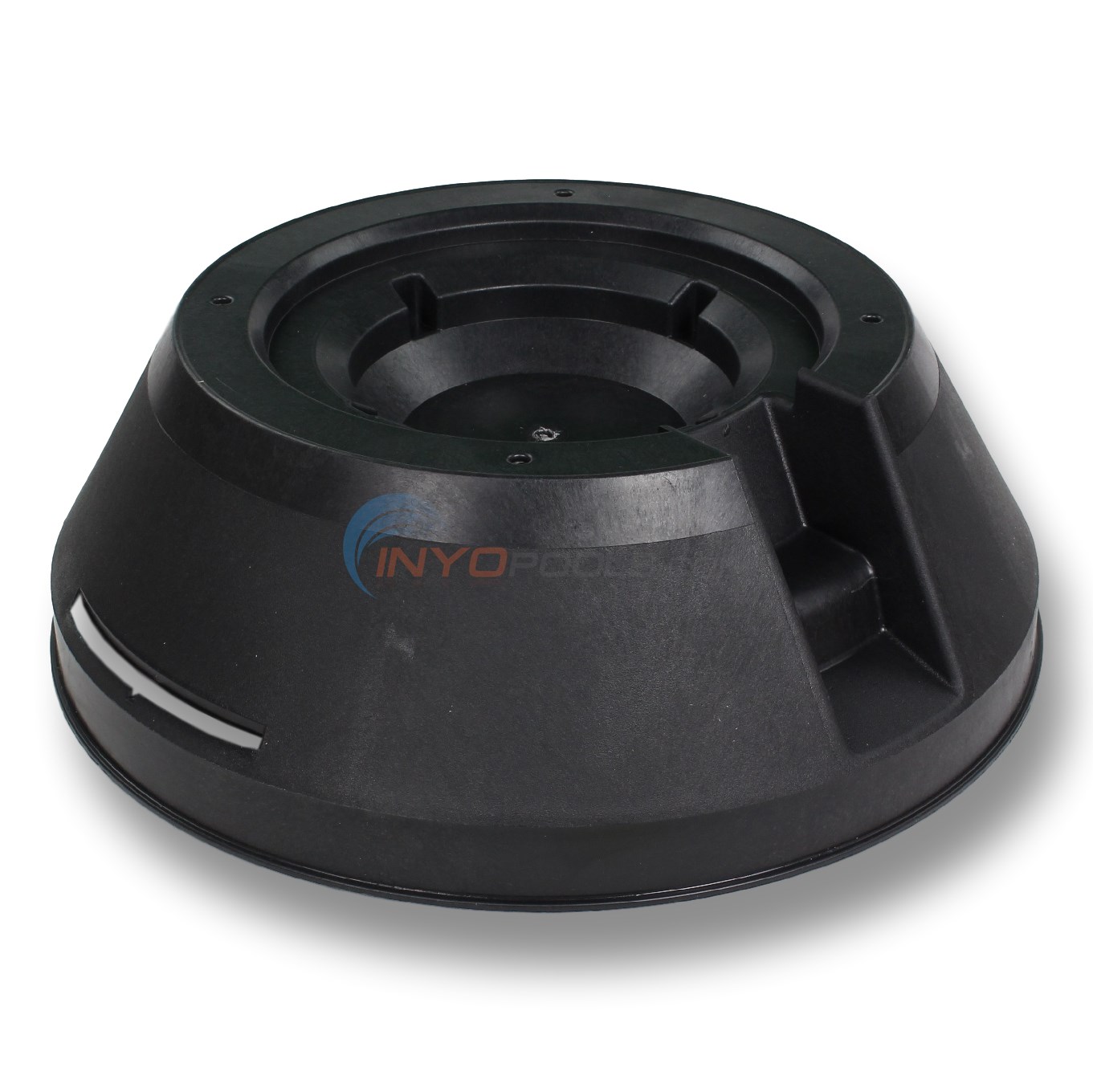

FILTER BASE

Part # 4742-11 Mfg # 672-7211

FILTER BASE

$99.48 IN STOCK

Qty:

DRAIN ASSEMBLY, 1 1/2" BODY

Part # 4742-70 Mfg # 500-5300

DRAIN ASSEMBLY, 1 1/2" BODY

$26.27 IN STOCK

Qty:

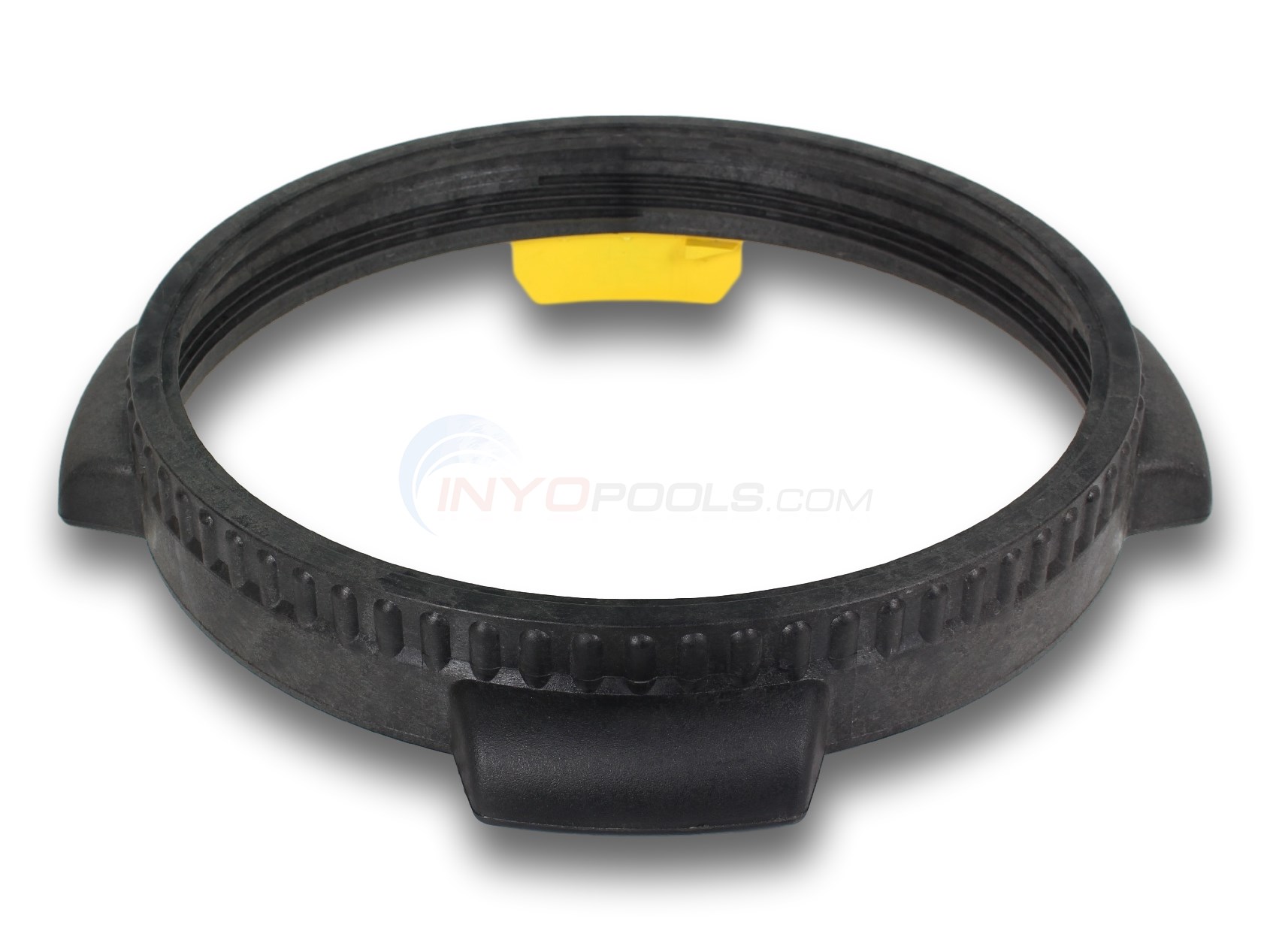

NUT ASSY.

Part # 4741-05 Mfg # 511-7221

NUT ASSY.

$105.51

18

OBSOLETE HOSE ADAPTER

Mfg # 425-1801

OBSOLETE HOSE ADAPTER

NOT AVAILABLE

COUPLING STANDARD

Part # 4742-72 Mfg # 419-7241

COUPLING STANDARD

$32.60 IN STOCK

Qty:

TIE NUT

Part # 4742-55 Mfg # 718-7219

TIE NUT

$25.11

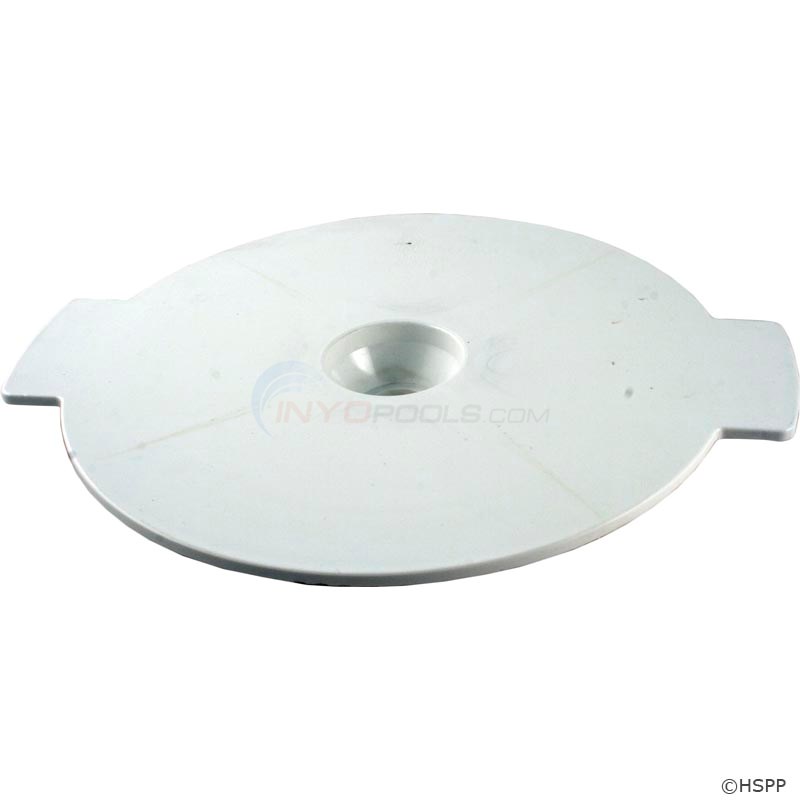

UPPER PLATE

Part # 4742-56 Mfg # 519-7229

UPPER PLATE

$36.17

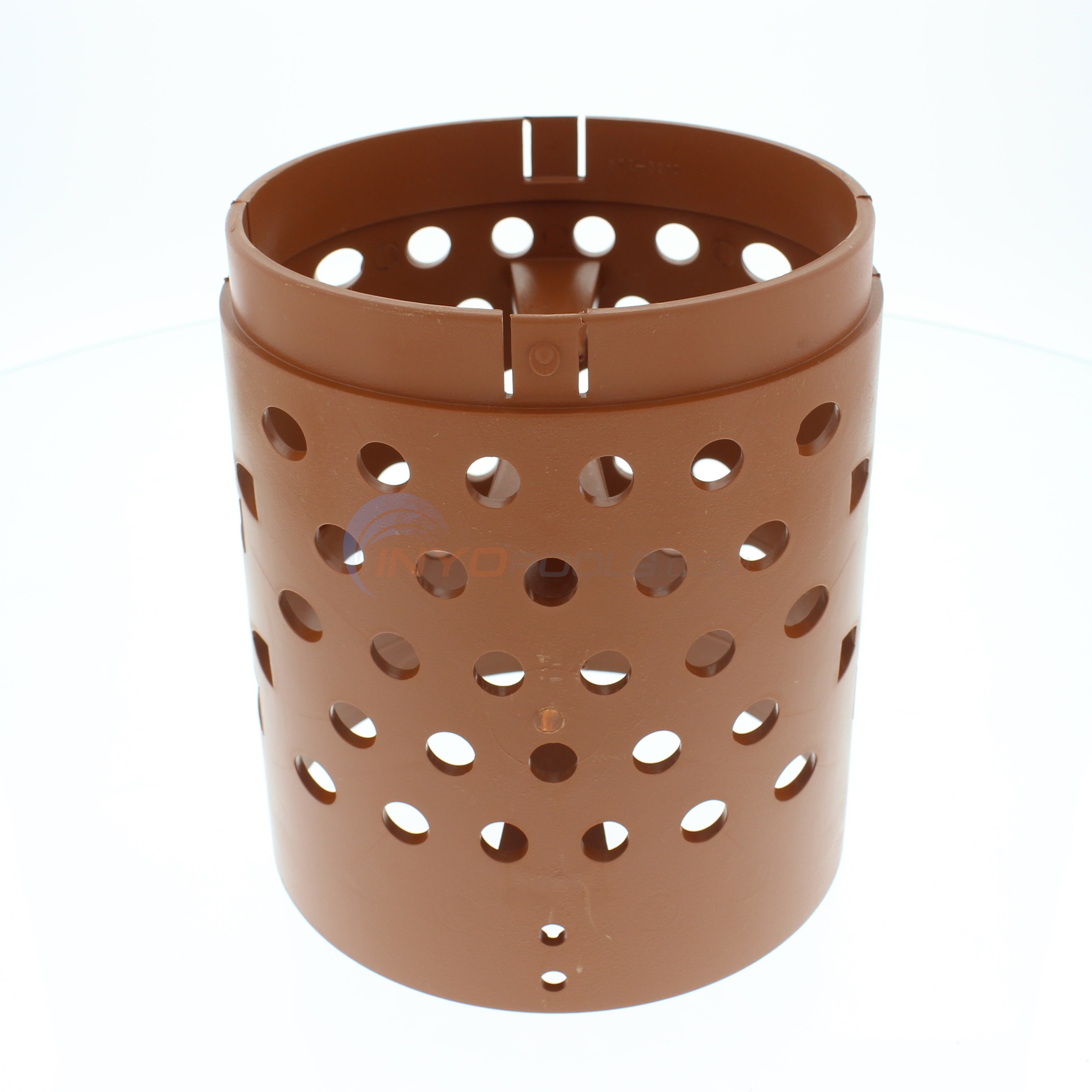

CORE CENTER

Part # 4742-57 Mfg # 519-5219

CORE CENTER

$28.13

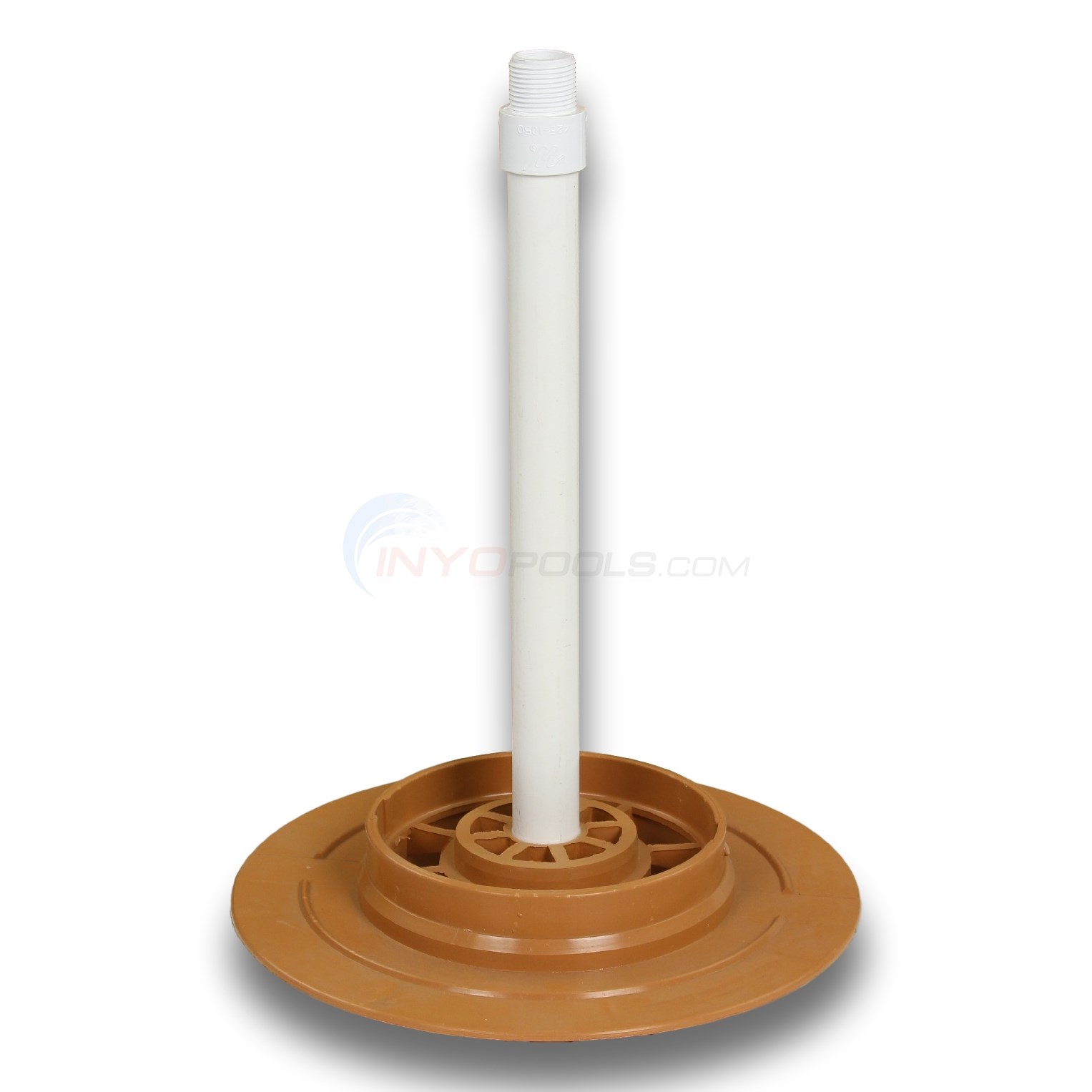

LOWER PLATE ASSEMBLY 75 SQ FT

Part # 4742-58 Mfg # 500-5270

LOWER PLATE ASSEMBLY 75 SQ FT

$86.42 IN STOCK

Qty:

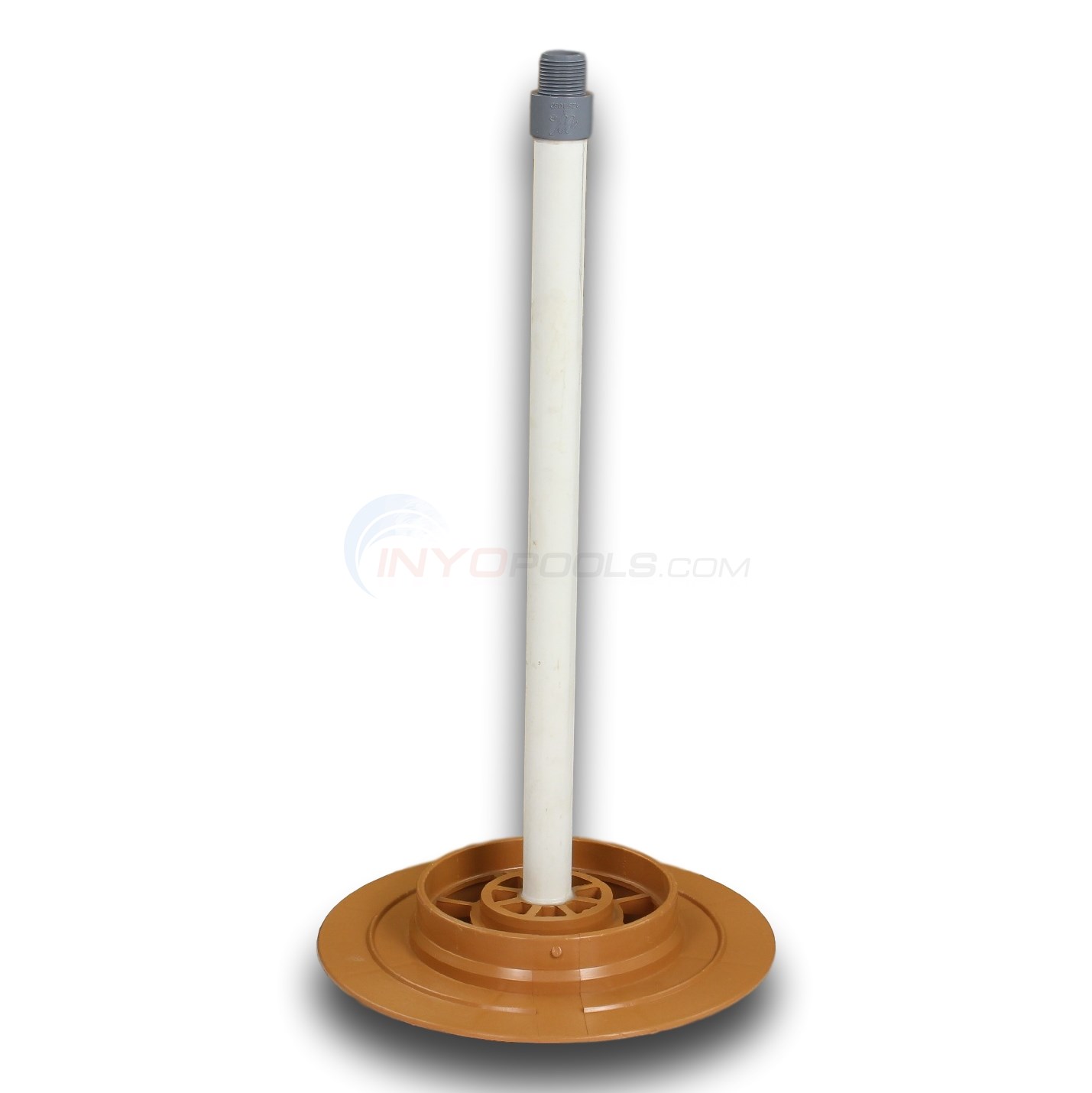

LOWER PLATE ASS'Y 100 SQ FT

Part # 4742-59 Mfg # 500-5280

LOWER PLATE ASS'Y 100 SQ FT

$101.49

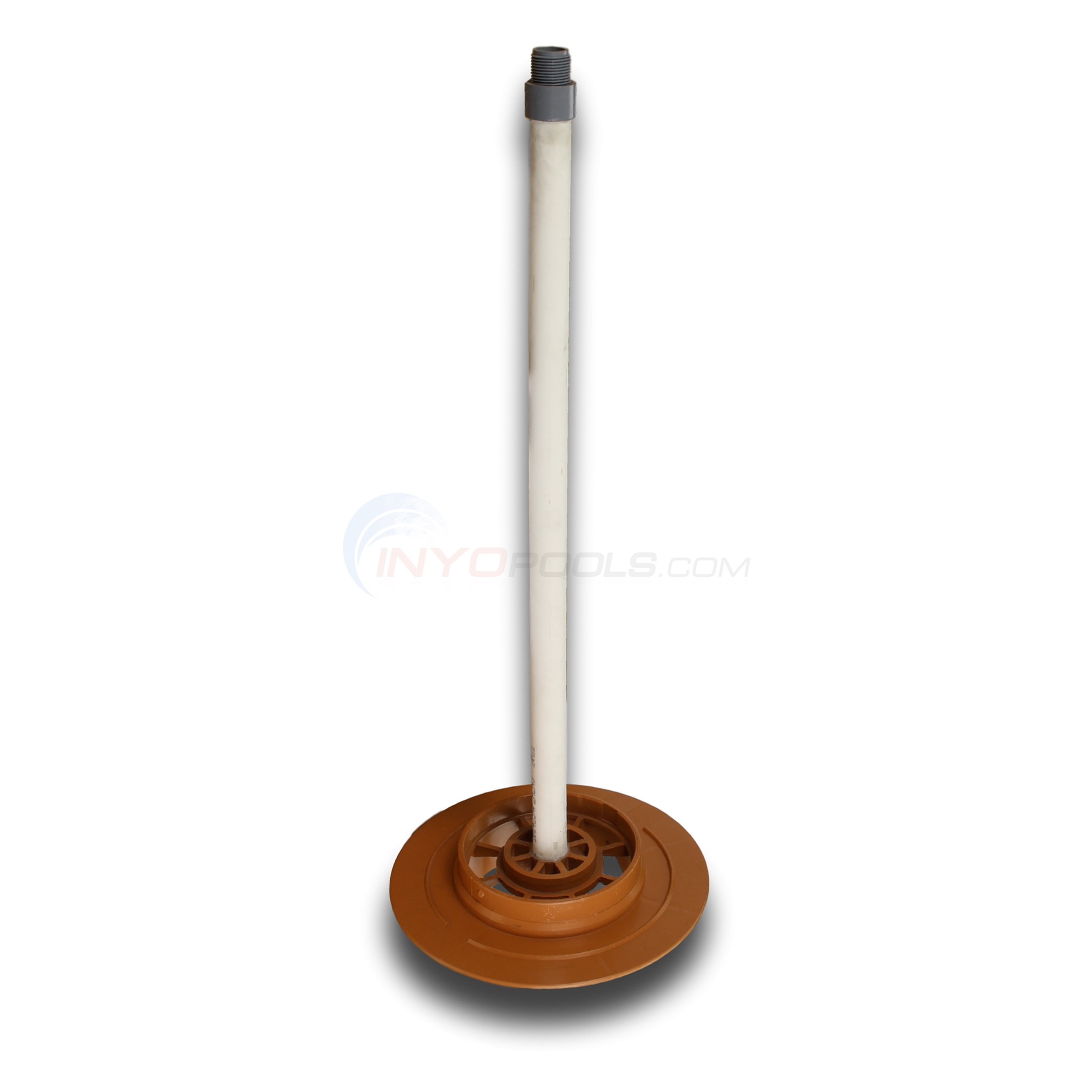

LOWER PLATE ASS'Y 150 SQ FT

Part # 4742-60 Mfg # 500-5290

LOWER PLATE ASS'Y 150 SQ FT

$126.62

Waterway Clearwater 75 Replacement Cartridge (FC-2960)

Part # PL0157 Mfg # 817-0075

Waterway Clearwater 75 Replacement Cartridge (FC-2960)

$58.28 IN STOCK

Qty:

Waterway Clearwater 100 Replacement Cartridge (C-9402)

Part # PL0158

Waterway Clearwater 100 Replacement Cartridge (C-9402)

$60.29 IN STOCK

Qty:

Waterway Clearwater 150 Replacement Cartridge

Part # PL0159 Mfg # C-9403

Waterway Clearwater 150 Replacement Cartridge

$75.36 IN STOCK

Qty:

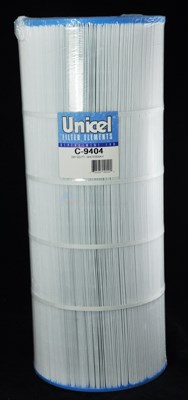

CARTRIDGE 200 SQ FT (817-0200)

Part # 4742-61 Mfg # C-9404

CARTRIDGE 200 SQ FT (817-0200)

$148.55

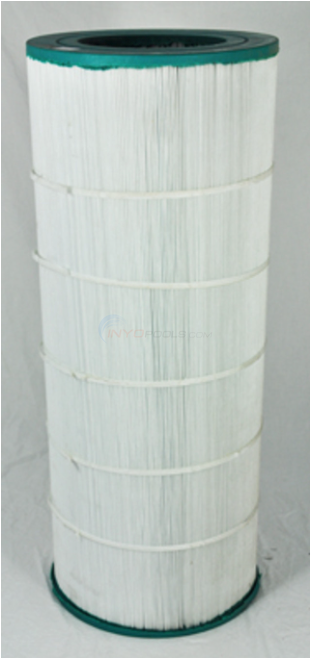

CARTRIDGE 250 SQ. FT.

Part # 4742-62 Mfg # 817-0250

CARTRIDGE 250 SQ. FT.

$236.16

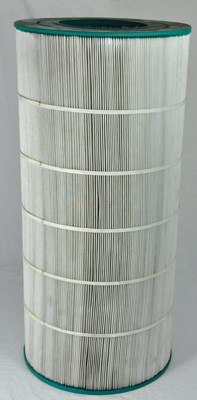

CARTRIDGE 300 SQ FT

Part # 4742-63 Mfg # 817-0300

CARTRIDGE 300 SQ FT

$415.05

UNION NUT, BLACK

Part # 5081-20B Mfg # 415-5001

UNION NUT, BLACK

$13.61 IN STOCK

Qty:

26

COUPLING MODULAR

Part # 4742- 64 Mfg # 419-7211

COUPLING MODULAR

NOT AVAILABLE

GASKET, 2" UNION (711-4010)

Part # 9175-17 Mfg # 711-4010B

GASKET, 2" UNION (711-4010)

$5.01 IN STOCK

Qty:

O-RING, FITS WATERWAY MPV

Part # 4742-38 Mfg # 805-0224

O-RING, FITS WATERWAY MPV

$10.78 IN STOCK

Qty:

DRAIN CAP ASSY. 1 1/2" BODY

Part # 4742-10 Mfg # 505-2030

DRAIN CAP ASSY. 1 1/2" BODY

$17.83 IN STOCK

Qty:

2" PLUG ASSEMBLY WITH O-RING

Part # 4742-119 Mfg # 400-6651

2" PLUG ASSEMBLY WITH O-RING

$16.07 IN STOCK

Qty:

* WHEN PURCHASING A CENTER CORE BE AWARE THEY ARE SOLD INDIVIDUALLY

FC075 REQUIRES 2 CENTER CORES
FC0100 REQUIRES 3 CENTER CORES FC0150 REQUIRES 4 CENTER CORES
