Waterway SVL56 High-Flow Pump Parts

1 H.P. through 3 H.P. Models
Mustang Inground Pool Pump

Waterway SVL56 High-Flow Pump Diagram

Click to zoom in

Diagram #	Part Title
1	Trap Lid
2	Strainer Cover O-ring (805-0439)
3	Basket Assembly
4	Volute Housing
6	Diffuser - High-Flow
7	Diffuser O-ring
8	Diffuser Screw #4 40-1-1/4"
9	Impeller, 1.0 HP
10	Pump Shaft Seal
11	Volute Faceplate
12	Faceplate Gasket
13	Century 1.0 HP Square Flange 56Y Full Rate EE Motor - B2841V1
**	Protective Pool Motor Cover
14	Bolt 3/8"-16 x 1/8"
15	Washer 3/8" Flat
16	16-Fin 3/8" Serrated Hex Nut
17	Screw Phil. Pan Head Left Hand 1/4-20 x 1"
18	Gasket for Left Hand Screw
19	Screw Slot Hex Washer 1/4" x 1-1/4"
20	Flat Washer
21	Quarter Slot 3/8" Drain Plug
22	Drain Plug O-ring
23	Base
24	Motor Support Strip
25	Bolt, 3/8-16 x 2"
1	Union Nut 2-1/2"

View Parts List

Diagram #	Part Title
1	Trap Lid
2	Strainer Cover O-ring (805-0439)
3	Basket Assembly
4	Volute Housing
6	Diffuser - High-Flow
7	Diffuser O-ring
8	Diffuser Screw #4 40-1-1/4"
9	Impeller, 1.0 HP
10	Pump Shaft Seal
11	Volute Faceplate
12	Faceplate Gasket
13	Century 1.0 HP Square Flange 56Y Full Rate EE Motor - B2841V1
**	Protective Pool Motor Cover
14	Bolt 3/8"-16 x 1/8"
15	Washer 3/8" Flat
16	16-Fin 3/8" Serrated Hex Nut
17	Screw Phil. Pan Head Left Hand 1/4-20 x 1"
18	Gasket for Left Hand Screw
19	Screw Slot Hex Washer 1/4" x 1-1/4"
20	Flat Washer
21	Quarter Slot 3/8" Drain Plug
22	Drain Plug O-ring
23	Base
24	Motor Support Strip
25	Bolt, 3/8-16 x 2"
1	Union Nut 2-1/2"

Available Parts:

Trap Lid

Part # 5032-39 Mfg # 511-1310

Trap Lid

$44.77 IN STOCK

Qty:

Strainer Cover O-ring (805-0439)

Part # 5112-205 Mfg # SPX3200S

Strainer Cover O-ring (805-0439)

$7.75 IN STOCK

Qty:

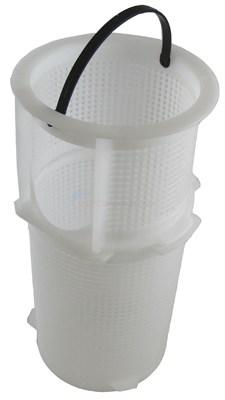

Basket Assembly

Part # 5032-38 Mfg # 319-1310

Basket Assembly

$30.90 IN STOCK

Qty:

Volute Housing

Part # 5032-36 Mfg # 315-1300

Volute Housing

$278.80 IN STOCK

Qty:

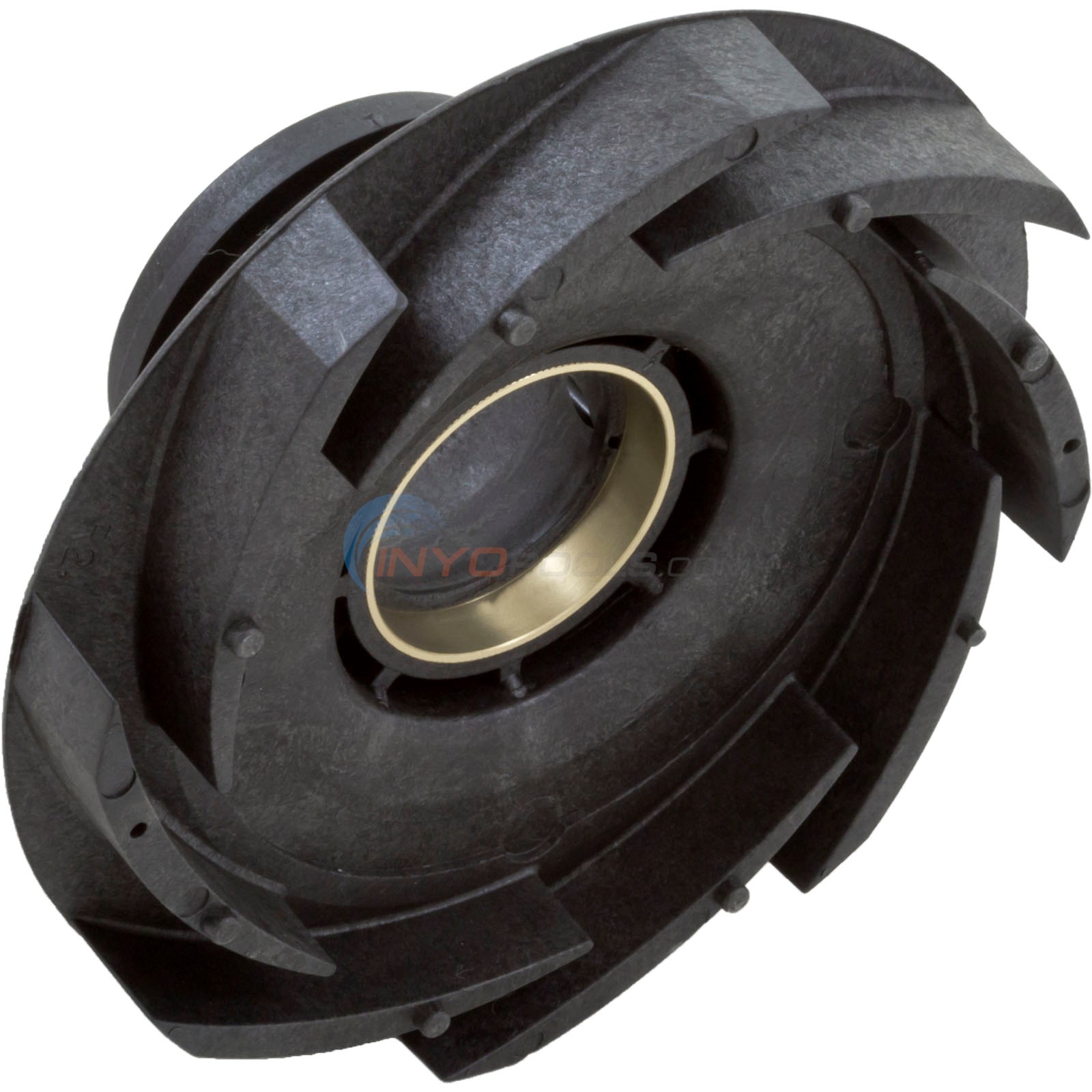

Diffuser - High-Flow

Part # 5032-41 Mfg # 310-3300

Diffuser - High-Flow

$84.03 IN STOCK

Qty:

Diffuser O-ring

Part # 5032-51 Mfg # 805-0238

Diffuser O-ring

$10.63 IN STOCK

Qty:

Diffuser Screw #4 40-1-1/4"

Part # 5032-52 Mfg # 819-0018B

Diffuser Screw #4 40-1-1/4"

$13.03 IN STOCK

Qty:

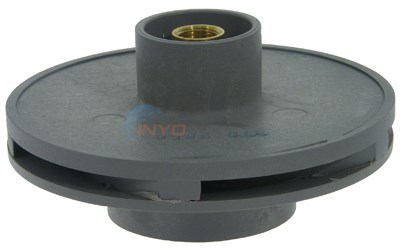

Impeller, 1.0 HP

Part # 5032-53 Mfg # 310-3650B

Impeller, 1.0 HP

$78.89

Model SVL56E-110, SVL56S-107, SVL56S-110, SVL56S-210

Model SVL56E-110, SVL56S-107, SVL56S-110, SVL56S-210

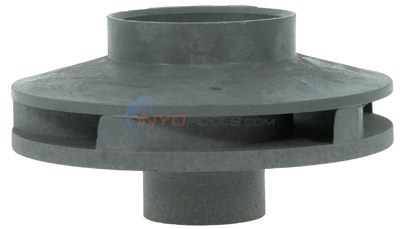

Impeller, 1.5 HP

Part # 5032-54 Mfg # 310-3660

Impeller, 1.5 HP

$82.61 IN STOCK

Model SVL56E-115, SVL56S-115, SVL56S-215

Model SVL56E-115, SVL56S-115, SVL56S-215

Qty:

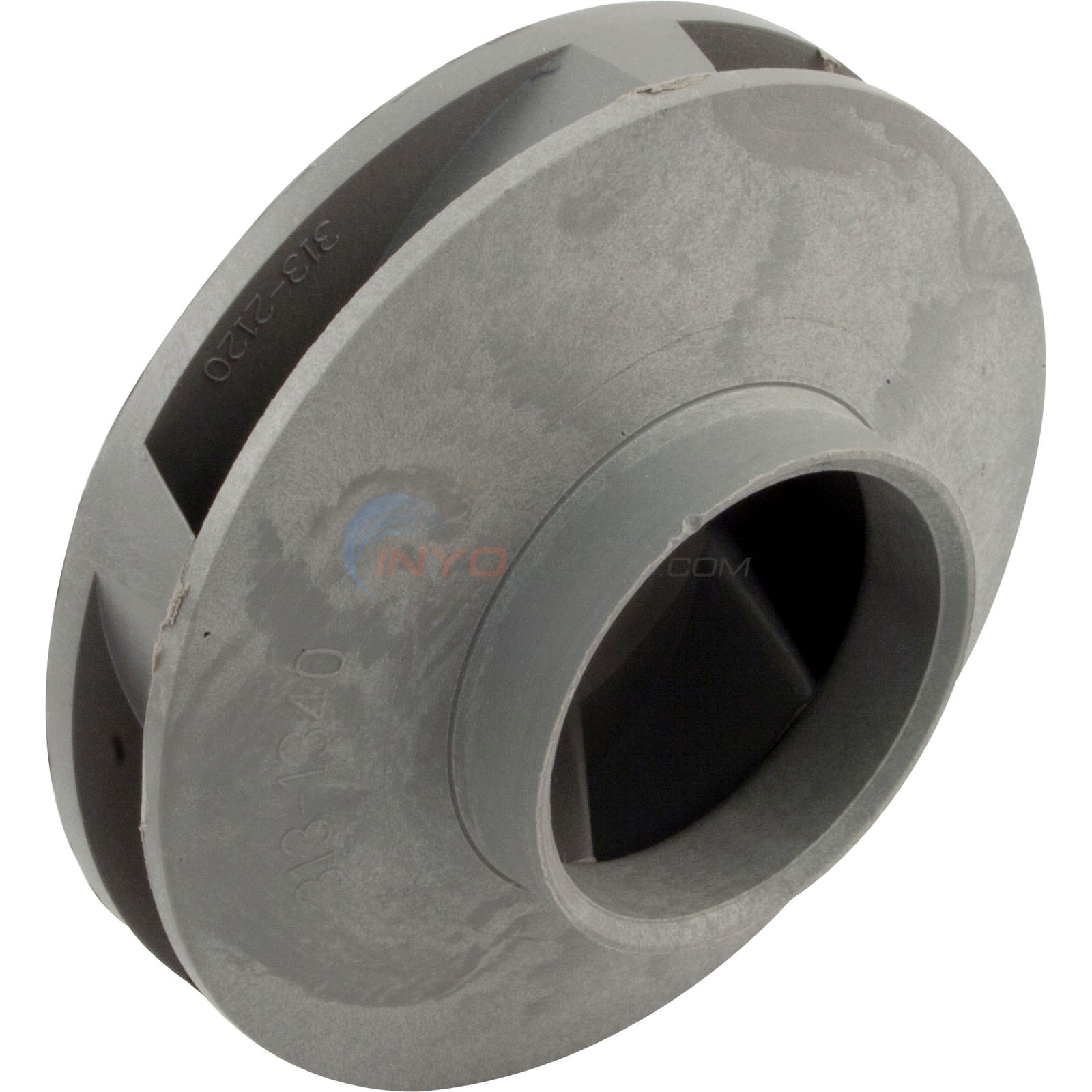

Impeller, 2.0 HP

Part # 35-270-2030 Mfg # 310-3670

Impeller, 2.0 HP

$68.92 IN STOCK

Model SVL56E-120, SVL56S-120, SVL56S-125

Model SVL56E-120, SVL56S-120, SVL56S-125

Qty:

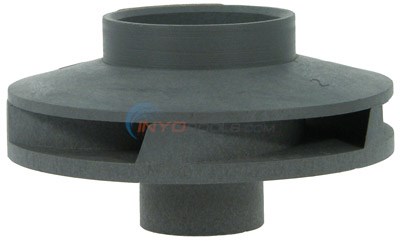

Impeller, 2.5 HP

Part # 5032-56 Mfg # 310-3680

Impeller, 2.5 HP

$69.29 IN STOCK

Model SVL56E-130

Model SVL56E-130

Qty:

Pump Shaft Seal

Part # 5250-106 Mfg # PS-1000

Pump Shaft Seal

$8.39 IN STOCK

Qty:

Pump Shaft Seal - Viton

Part # 5250-225 Mfg # PS-3865

Pump Shaft Seal - Viton

$17.65 IN STOCK

Qty:

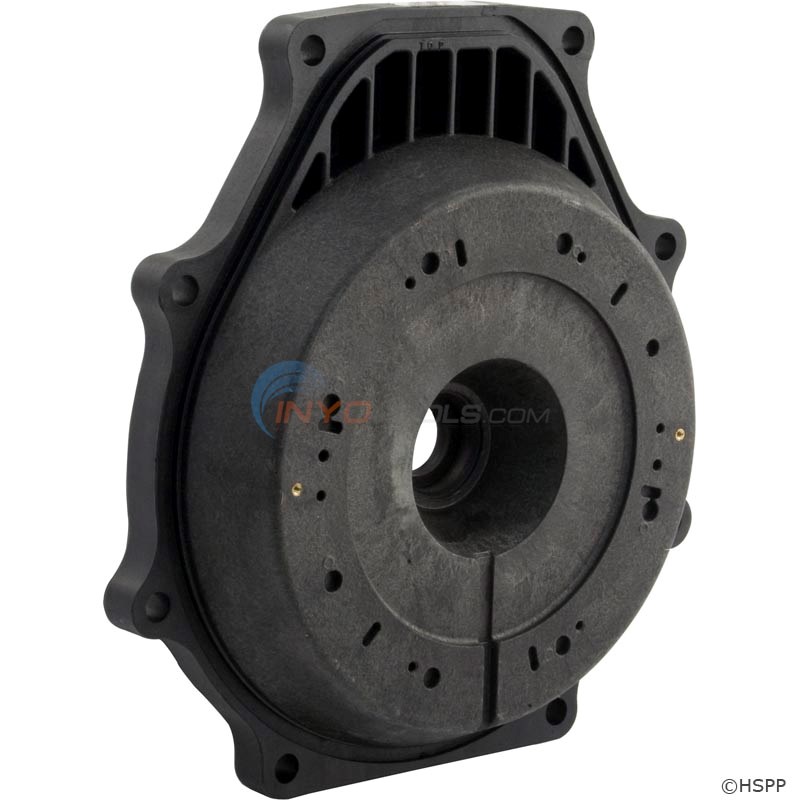

Volute Faceplate

Part # 5032-30 Mfg # 311-1400B

Volute Faceplate

$126.08 IN STOCK

Qty:

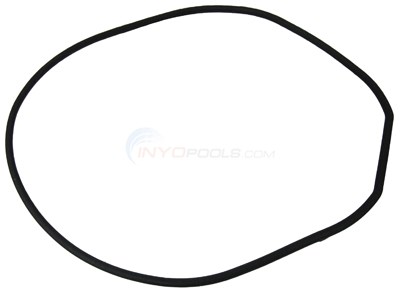

Faceplate Gasket

Part # 5032-444 Mfg # 711-4290B

Faceplate Gasket

$20.83 IN STOCK

Qty:

Century 1.0 HP Square Flange 56Y Full Rate EE Motor - B2841V1

Part # B841 Mfg # B2841V1

Century 1.0 HP Square Flange 56Y Full Rate EE Motor - B2841V1

$308.28 IN STOCK

Service Factor 1.65 Voltage 208-230/115 Frame Y56Y

Service Factor 1.65 Voltage 208-230/115 Frame Y56Y

Qty:

Century 1.5 HP Square Flange 56Y Full Rate EE Motor - B2842

Part # B842 Mfg # B2842

Century 1.5 HP Square Flange 56Y Full Rate EE Motor - B2842

$401.28 IN STOCK

Service Factor 1.47 Voltage 208-230 Frame Y56Y

Service Factor 1.47 Voltage 208-230 Frame Y56Y

Qty:

Century 2.0 HP Square Flange 56Y Full Rate EE Motor - B2843

Part # B843 Mfg # B2843

Century 2.0 HP Square Flange 56Y Full Rate EE Motor - B2843

$446.31 IN STOCK

Service Factor 1.30 Voltage 208-230 Frame Y56Y

Service Factor 1.30 Voltage 208-230 Frame Y56Y

Qty:

Century 3.0 HP Square Flange 56Y Full Rate EE Motor - B2844

Part # B844 Mfg # B2844

Century 3.0 HP Square Flange 56Y Full Rate EE Motor - B2844

$525.35 IN STOCK

Service Factor 1.15 Voltage 208-230 Frame Y56Y

Service Factor 1.15 Voltage 208-230 Frame Y56Y

Qty:

Protective Pool Motor Cover

Part # 3050-38 Mfg # R221016

Protective Pool Motor Cover

$36.03 IN STOCK

Qty:

Bolt 3/8"-16 x 1/8"

Part # 5032-47 Mfg # 819-0011

Bolt 3/8"-16 x 1/8"

$18.11 IN STOCK

Qty:

Washer 3/8" Flat

Part # 5033-012 Mfg # 820-0017

Washer 3/8" Flat

$10.90 IN STOCK

Qty:

16-Fin 3/8" Serrated Hex Nut

Part # 5032-48 Mfg # 820-0016

16-Fin 3/8" Serrated Hex Nut

$6.11 IN STOCK

Qty:

Screw Phil. Pan Head Left Hand 1/4-20 x 1"

Part # 5032-61 Mfg # 819-4360

Screw Phil. Pan Head Left Hand 1/4-20 x 1"

$16.78 IN STOCK

Qty:

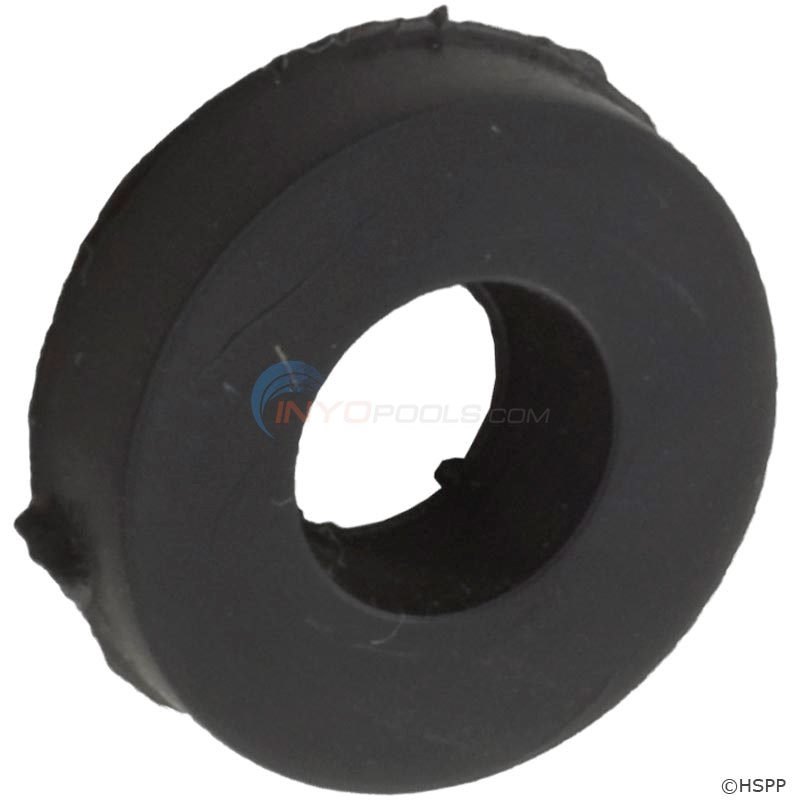

Gasket for Left Hand Screw

Part # 5032-62 Mfg # 711-4300

Gasket for Left Hand Screw

$25.74 IN STOCK

Qty:

Screw Slot Hex Washer 1/4" x 1-1/4"

Part # 5033-009 Mfg # 819-0013B

Screw Slot Hex Washer 1/4" x 1-1/4"

$11.71 IN STOCK

Qty:

Flat Washer

Part # 5039-039 Mfg # 820-0018

Flat Washer

$11.71 IN STOCK

Qty:

Quarter Slot 3/8" Drain Plug

Part # 5039-001 Mfg # 715-1201B

Quarter Slot 3/8" Drain Plug

$17.15 IN STOCK

Qty:

Drain Plug O-ring

Part # 5039-031 Mfg # 805-0112B

Drain Plug O-ring

$12.54 IN STOCK

Qty:

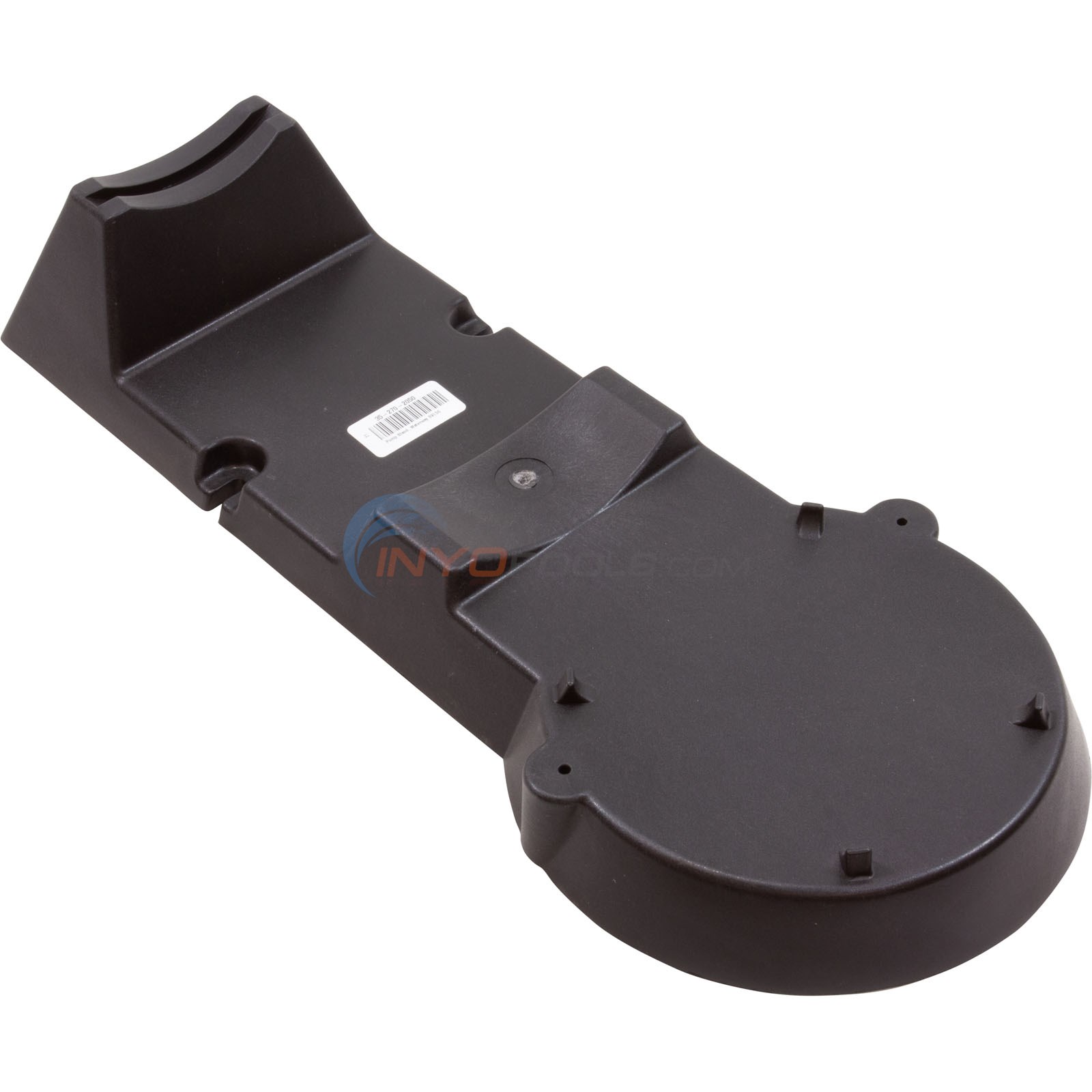

Base

Part # 5032-46 Mfg # 672-1300

Base

$72.49 IN STOCK

Qty:

Motor Support Strip

Part # 5032-45 Mfg # 672-1310

Motor Support Strip

$28.77 IN STOCK

Qty:

Bolt, 3/8-16 x 2"

Part # 4742-35 Mfg # 819-0016

Bolt, 3/8-16 x 2"

$12.78 IN STOCK

Qty:

Union Nut 2-1/2"

Part # 4742-134 Mfg # 415-6001

Union Nut 2-1/2"

$24.50 IN STOCK

Qty:

2

Tailpiece 2"

Part # 417-5971B Mfg # 417-5971B

Tailpiece 2"

NOT AVAILABLE

2

Tailpiece 2-1/2"

Part # 417-6001B Mfg # 417-6001B

Tailpiece 2-1/2"

NOT AVAILABLE

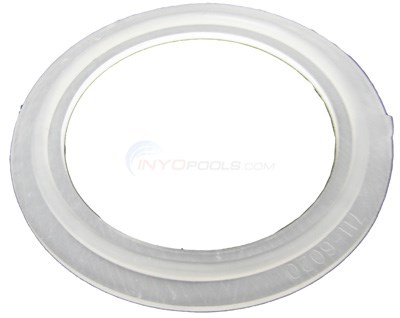

Union Gasket 2-1/2"

Part # 9175-51 Mfg # 711-6020B

Union Gasket 2-1/2"

$6.39 IN STOCK

Qty:

* USES IMPELLER SCREW
NOTE: WEAR RING IS NOW PART OF THE DIFFUSER
** NOT SHOWN
