Part # 5112-205

Manufacturer Code SPX3200S

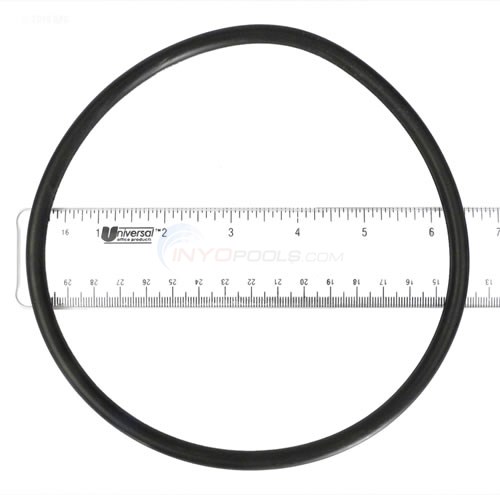

Dimensions 6" ID, 1/4" Cross Section

Alternate Part #'s 31-418, 320-102, 720R1517069, 805-0439, 805-0439B, O-13, O-2167, SPX3200S, 90-423-5437, ALDO-13-0, APCO2394

Product Description

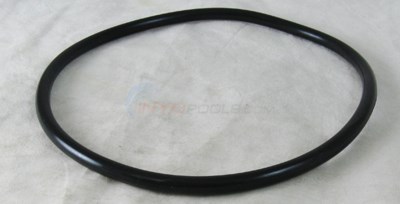

Replacement Strainer Cover O-ring for Hayward Tri-Star and Waterway SVL56 Pump.

6" ID, 1/4" Cross Section

Frequently Bought with O-rings

Magic Lube O-ring Lubricant


?     Asked on 7/25/2015by Julie

We have the Hayward model SP3200DR. Is this the correct strainer o-ring for this model?

A  Answered on 7/25/2015 by InyoPools Product Specialist Lennox H.

Hi Julie, The Strainer Cover O-ring (SPX3200S) will be the correct O-ring for the Hayward Ecostar Pump.

?     Asked on 10/20/2015by sam

I have Howard tri star model # sp3215ee I need O-ring part #.

A  Answered on 10/21/2015 by InyoPools Product Specialist Lennox H.

Hi Sam, The Hayward Tri-Star Pump have serveral different o-rings and gaskets. The Strainer Cover O-ring (SPX3200S) will be the correct o-ring for the housing strainer. You can find other parts via the >Hayward Tri Star Parts List.<

?     Asked on 5/30/2016by Cindy M

I am needing a cover o ring for the strainer portion of my pump. My pump is about 10 years old....Power Flo LX Pump.... SP1515-Z-1-BC Can you direct me in the right direction for this part? Thank you!

A  Answered on 6/3/2016 by InyoPools Product Specialist Lennox H.

Hi Cindy, The Cover O-ring (SPX1500P) is the correct o-ting for the Power Flo LX Pump strainer.

?     Asked on 9/22/2020by Jeffrey Sherwood

I need replacement orings 2 of them for a jandy stealth pump lid Sphf 1

A  Answered on 12/16/2020 by InyoPools Product Specialist Hector F.

Hi Jeffrey, the lid seal and o ring for the Jandy Stealth SHPF series pool pump is part number 5020-135


Est. Repair Time

Less than 1 hr

Tools Needed


1     0

I was getting air in my strainer basket

Written on 6/7/2018 by Guest

1. I removed my strainer basket lid by hand.
2. I used a screwdriver to gently remove the old o-ring.
3. I lubricated the new o-ring with a silicone lubricant.
4. I gently placed the new o-ring in the strainer basket lid.
5. I put the lid back on the pump housing.

Were these instructions helpful?
