Wet Institute D.E. Filter Parts

DIATOMACEOUS EARTH FILTER D.E.36, D.E.48, D.E.60, D.E.72

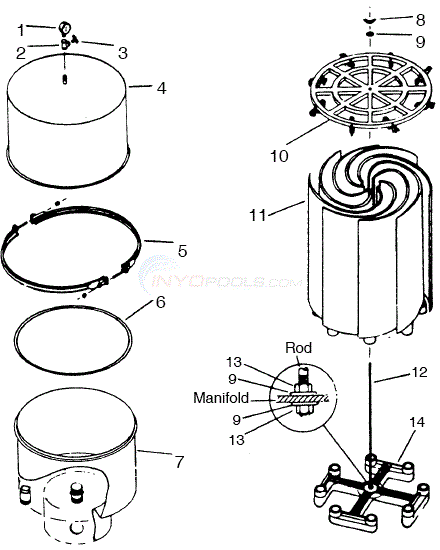

Wet Institute D.E. Filter Diagram

Click to zoom in

Diagram #	Part Title
1	Bottom Mount Pressure Gauge 0-60 1/4" NPT
2	TEE, 1/4" BRASS FPT
3	DRAIN COCK, 1/4" NPT (09432-04)
4	TANK LID 18 X 12 1/4" ALL SIZES
5	No Longer Available 18” CLAMP Replace With 4655-09A
6	O-RING, FOR 18" TANK
7	OBSOLETE TANK BOTTOM D.E. 36 1 1/2”
8	NUT, WING 1/4-20 S.S.
9	WASHER (5140-37-)
10	TOP SPREADER, D E FILTER - ABS
11	FILTER, GRID 18, 36SQ.FT.
12	S.S. ROD With NUTS-36 SQ FT.
13	NUT 1/4-20 S.S. (4700-13N)
14	D E MANIFOLD - ABS
*	INTERNAL AIR STRAINER
*	OBSOLETE INTER AIR TUBE DE36 22”

View Parts List

Diagram #	Part Title
1	Bottom Mount Pressure Gauge 0-60 1/4" NPT
2	TEE, 1/4" BRASS FPT
3	DRAIN COCK, 1/4" NPT (09432-04)
4	TANK LID 18 X 12 1/4" ALL SIZES
5	No Longer Available 18” CLAMP Replace With 4655-09A
6	O-RING, FOR 18" TANK
7	OBSOLETE TANK BOTTOM D.E. 36 1 1/2”
8	NUT, WING 1/4-20 S.S.
9	WASHER (5140-37-)
10	TOP SPREADER, D E FILTER - ABS
11	FILTER, GRID 18, 36SQ.FT.
12	S.S. ROD With NUTS-36 SQ FT.
13	NUT 1/4-20 S.S. (4700-13N)
14	D E MANIFOLD - ABS
*	INTERNAL AIR STRAINER
*	OBSOLETE INTER AIR TUBE DE36 22”

Available Parts:

Bottom Mount Pressure Gauge 0-60 1/4" NPT

Part # 4726-0 Mfg # 101D-204D

Bottom Mount Pressure Gauge 0-60 1/4" NPT

$16.38 IN STOCK

Qty:

TEE, 1/4" BRASS FPT

Part # 4600-4660 Mfg # 06101-04

TEE, 1/4" BRASS FPT

$35.71 IN STOCK

Qty:

DRAIN COCK, 1/4" NPT (09432-04)

Part # 5054-10 Mfg # U212-68T

DRAIN COCK, 1/4" NPT (09432-04)

$11.18 IN STOCK

Qty:

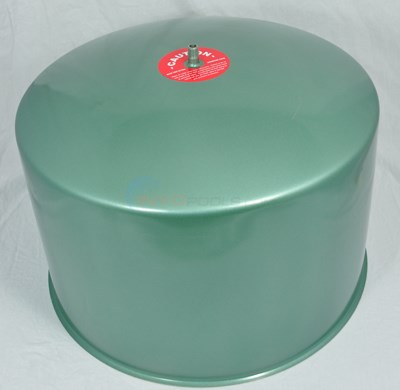

TANK LID 18 X 12 1/4" ALL SIZES

Part # 4850-04 Mfg # 32-050-704

TANK LID 18 X 12 1/4" ALL SIZES

$628.39

5

No Longer Available 18” CLAMP Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352014451.htm">4655-09A</a>

Mfg # 32-050-706

No Longer Available 18” CLAMP Replace With 4655-09A

NOT AVAILABLE

CLAMP FOR 18" (BEFORE 11-94)

Part # 4655-09A Mfg # 98201300

CLAMP FOR 18" (BEFORE 11-94)

$260.15

O-RING, FOR 18" TANK

Part # 4655-10A Mfg # AP530028

O-RING, FOR 18" TANK

$21.05 IN STOCK

Qty:

7

OBSOLETE TANK BOTTOM D.E. 36 1 1/2”

Mfg # 32-050-923

OBSOLETE TANK BOTTOM D.E. 36 1 1/2”

NOT AVAILABLE

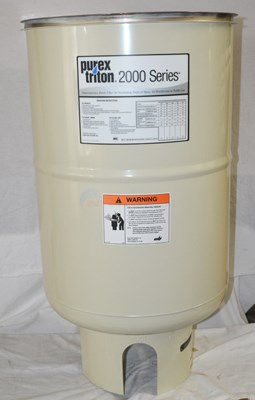

TANK BOTTOM - 18-1/2 X 18" - 48 SQ FT

Part # 4850-14A Mfg # 32-050-924

TANK BOTTOM - 18-1/2 X 18" - 48 SQ FT

$1017.36

7

OBSOLETE TANK BOTTOM D.E. 60 1 1/2”

Mfg # 32-050-925

OBSOLETE TANK BOTTOM D.E. 60 1 1/2”

NOT AVAILABLE

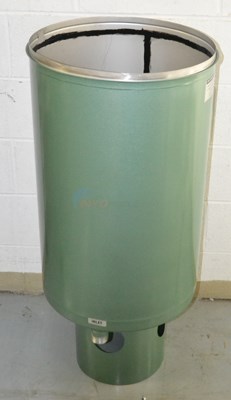

TANK BOTTOM - 26-1/2" X 18" - 72 SQ FT

Part # 4850-14C Mfg # 32-050-926

TANK BOTTOM - 26-1/2" X 18" - 72 SQ FT

$1443.96

NUT, WING 1/4-20 S.S.

Part # 4672-16 Mfg # 071404

NUT, WING 1/4-20 S.S.

$18.16 IN STOCK

Qty:

WASHER (5140-37-)

Part # 4670-26 Mfg # 072183

WASHER (5140-37-)

$11.43 IN STOCK

Qty:

TOP SPREADER, D E FILTER - ABS

Part # 4850-09A Mfg # 32-050-912

TOP SPREADER, D E FILTER - ABS

$110.88

FILTER, GRID 18, 36SQ.FT.

Part # 4950-12 Mfg # FG-1036

FILTER, GRID 18, 36SQ.FT.

$35.16 IN STOCK

Qty:

FILTER, GRID 24, 48SQ.FT.

Part # 4950-13 Mfg # FG-1048

FILTER, GRID 24, 48SQ.FT.

$37.88 IN STOCK

Qty:

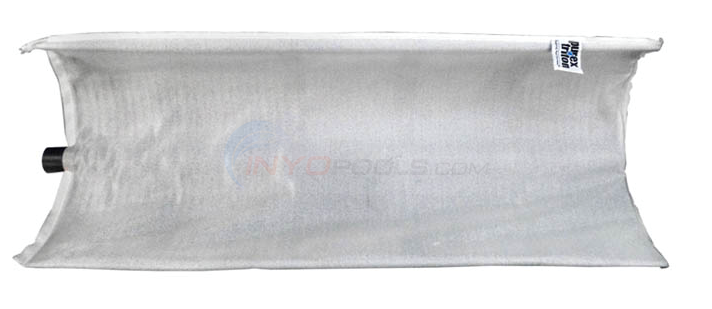

FILTER, GRID 30, 60SQ.FT.

Part # 4950-14 Mfg # FG-1060

FILTER, GRID 30, 60SQ.FT.

$58.47 IN STOCK

Qty:

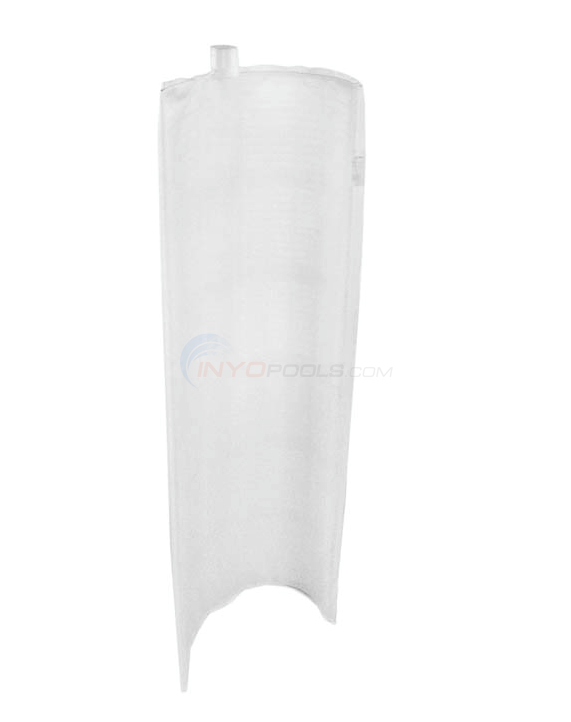

FILTER, GRID 36, 72SQ.FT.

Part # 4950-15 Mfg # FG-1072

FILTER, GRID 36, 72SQ.FT.

$67.40 IN STOCK

Qty:

S.S. ROD With NUTS-36 SQ FT.

Part # 4850-11 Mfg # 32-050-913

S.S. ROD With NUTS-36 SQ FT.

$94.87

ROD S/S With NUTS48 SQ FT - 27-1/8"

Part # 4850-11A Mfg # 32-050-914

ROD S/S With NUTS48 SQ FT - 27-1/8"

$107.67

12

OBSOLETE S.S. ROD With NUTS DE60 33”

Mfg # 32-050-915

OBSOLETE S.S. ROD With NUTS DE60 33”

NOT AVAILABLE

BRASS ROD With NUTS - 72 SQ FT - 39-1/8"

Part # 4850-11C Mfg # 32-050-916

BRASS ROD With NUTS - 72 SQ FT - 39-1/8"

$92.74

NUT 1/4-20 S.S. (4700-13N)

Part # 6930-0 Mfg # 14072508R

NUT 1/4-20 S.S. (4700-13N)

$11.90 IN STOCK

Qty:

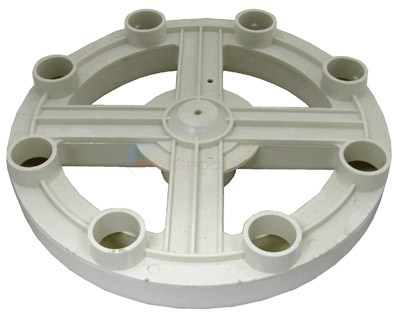

D E MANIFOLD - ABS

Part # 4850-12 Mfg # 32-050-917

D E MANIFOLD - ABS

$163.11

INTERNAL AIR STRAINER

Part # 4850-07 Mfg # 32-050-607

INTERNAL AIR STRAINER

$23.44

*

OBSOLETE INTER AIR TUBE DE36 22”

Mfg # 32-050-908

OBSOLETE INTER AIR TUBE DE36 22”

NOT AVAILABLE

*

OBSOLETE INTER AIR TUBE DE48 28”

Mfg # 32-050-909

OBSOLETE INTER AIR TUBE DE48 28”

NOT AVAILABLE

*

OBSOLETE INTER AIR TUBE DE60 34”

Mfg # 32-050-910

OBSOLETE INTER AIR TUBE DE60 34”

NOT AVAILABLE

*

OBSOLETE INTER AIR TUBE DE72 40”

Mfg # 32-050-911

OBSOLETE INTER AIR TUBE DE72 40”

NOT AVAILABLE

* NOT SHOWN
