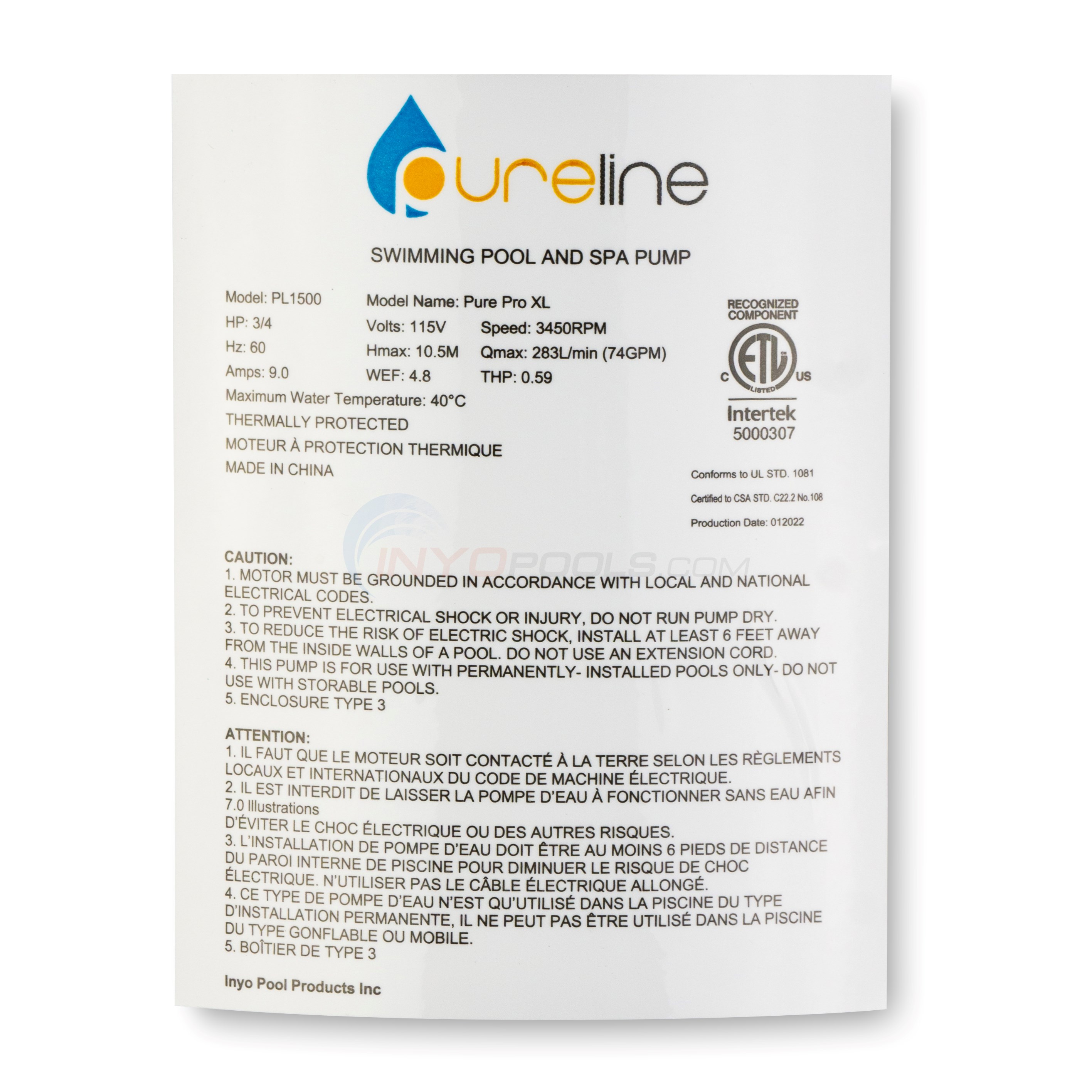

Part # PL1500
Alternate Part #'s 2601, 72729, NE6150B, NE6151B
Same quality as Hayward®, Sta-Rite® and Pentair®!
The PureLine Pure Pro XL is a powerful above-ground pump featuring a corrosion proof construction that delivers years of reliable service. This Pure Pro XL is high performance pump that is quiet, efficient and all of this at an affordable price. The top discharge design fits most filters making installation a snap and its extra large clear lid allows for easy cleaning. Replace your old inefficient pump with this water moving dynamo.
Click here for 1.5" Quick Disconnect Unions for the Pure Pro XL Pump
Click here for Hose Connectors 1.5"
Click here for Pool Pump Timer for the Pure Fro XL Pump
Click here for the Inground Pool Version of this Pump
Application
Features
Dimensions
Pump Curve
Disclaimer:
All manufacturers’ names, brand names, trademarks, images, symbols, descriptions, and part numbers are used herein for reference purposes only.
We had a hose bust and water level go to low and I assumed it blew our breaker... but after fixing hose and refilling with water, pump just hums when we turn it on. Do you think this is a capacitor or the motor??
Reply
Hello Cheryl. Attached please find brief tutorials How To Test A Pool Pump Motor Capacitor How To Select the Right Capacitor For Your Pool Pump Motor Capacitor failure usually results in the motor humming with no start-up If the multimeter indicates the capacitor is good, the motor has failed.
Reply
I have a cp2000-s pump 0.48 HP, would this be a good replacement pump
Reply
Hello. The Pureline 3/4 HP Above Ground Pump would be a nice upgrade from your 0.48 HP current pump. Please check the pool filter's maximum flow capacity, gallons per minute - GPM, to make sure the filter can accommodate the increase in water flow this pump may produce. Additionally, there may be some re-plumbing required to add this pump to your existing circulation system.
Reply
My Gamepro 50d needs to be replaced. Would this pump work?
Reply
Hello. The Pureline 3/4 HP Above Ground Pool Pump is compatible with the GamePro 50D filter system. Some plumbing adjustments may have to be made to accommodate the new pump as the inlet/outlet may differ from the existing pump.
Reply
My game sandpro 75d pump went out. Would this size pump work perfect with my 75 pound sand filter?
Reply
This pump is sized properly to be used with the Game 75 Sand Filter however you may need to do some re-plumbing to have it attach to your filter as the plumbing ports are in a different location than the original pump that comes with the Game system.
Reply
can i use this pump on a 24 ft. above ground pool?
Reply
Hi Charles for a 24' round above ground pool we would suggest the 1.5 HP version of this pump which can be found by clicking on this link here - PL1502 PureLine Pure Pro XL 1.5 HP Pump
Reply
If I purchase a 3/4 HP Above Ground Pool Pump - PL1500, do I also need to purchase a filter to attach to it?
Reply
Hi Debbie, If this is for a new pool then yes you will also need a filter. We would suggest the Hayward S180T Sand Filter to go with this pump
Reply
Is this pump self-priming? I am using it for a waterwall.
Reply
No, this pump is not self-priming. Depending on how large the waterfall is then you may consider the Power Flo II Self Priming Pumps
Reply
My pool (9x19x5 intex). Sand filter rated up to 30 GPM and max working pressure 30 psi. It says it takes about 100 pounds of sand.
Will this work? (I assume I need a couple of adapters to hook up to the intex hoses?)
Reply
Hi John, Unfortunately, this pump is not designed for use with Intex pools.
Reply
Is this pump large enough for a 4 by 15 above ground pump and will it connect to Hayward s210t sand filter. If so what connections are needed to connect the two together
Reply
Hi, For your sized pool and filter this 3/4 HP pump should work just fine. As long as your pump and filter are using hoses to connect to each other then this pump will hook up to Hayward filter with no issue.
Reply
I need go find a replacement pump for GAME SandPro 50D that has 40lbs of sand. Will this pump work?
Reply
Hi Rogelio,This pool pump is too large for your size game Sandpro 50D. I would suggest either getting a smaller pump or a larger filter depending on the size of your above ground swimming pool.
Reply
we have a 2716 pump 1.5 hp 115 \230 volt it is fed with 1/1/2 inch pipe we think it is two small it kicks out heater in unit is this our problem?
Reply
Hi, Fred. We're unable to confirm since we do not know the hater model, required flow rate, the pump flow rate etc. A technician will have to come out to diagnose the issue.
Reply
Would this fit the hoses I already have if I have a Waterford system Model JWPA5DL-A20 Serial number 94A?
Reply
If you have a pump and filter kit that came as a set then no, however, if you are using a standard above ground hose then you can always use above ground pool hose adapters and hose clamps.
Reply
I need to replace model number JWPAS5F-2A4. Is this the pump I need?
Reply
The Pureline series pump that we currently have that matches that original model HP would be the side-discharge PL1505 which may require some plumbing adjustments and the direct replacement for your original model is the 340210.
Reply
Can This replace my Hayward powerflo matrix? Which is also 3/4 horsepower 115 volts. It is 10 amps. Thank you for your help!
Reply
Good day, Bridgette, yes if you have the PowerFlo Matrix Pump 3/4 HP - SP1591 the PL1500 PureLine 3/4 HP Above Ground Pool Pump would be a good switch. You would not be able to use the Hayward connections so you would need to order either Above Ground Pool Pump Hose Adapter - 1 Pack (417-6060) or 1.5" Male Threaded Union x 1.5" Slip Union - PL1643.
Reply
Hi,
What’s the GPM for the PL1500
Reply
Hi, Tony. The flow rate of the pump is based on the Total Dynamic Head (TDH). For example, 72 GPM at 15 TDH.
Reply
Hi, I have a 10 x 6 round, above ground intex pool, it has a filter pump with it, the normal one for that pool. Does your pump clean better? Does it pump water out when emptying the pool? Thanks Marguerite
Reply
Marguerite, in order to compare the two pumps we would need to know the model number of the existing pump. Please get that information to us at upload@inyopools.com.
Reply
Have a 21 ft diameter by 52 ft pool DE filter with horizontal discharge from pump to filter what do you recomend. Currently have a 2 here 2 speed that is leaking at the housing.
Reply
Hello, We would need to know a little bit more information on your pool. What is the brand and the model number of your filter? How many hours do you run your pool pump a day? What is the total dynamic feet of head on your pool?What is the plumbing size?
Reply
Does this pump a have an internal thread 1.5 and external?
Reply
Yes the threads on this pump use a 1-/12" internal thread and an external 1-1/2" thread. This means you can use a 1-1/2" female adapter or 1-1/2" male adapter.
Reply
I have an above ground pool oval 18 x 34 x 54 should I use a 3/4hp motor or a 1hp motor. need one that is less noisy
Reply
Angel, what is the size of the filter that you will be using? What is the size of the plumbing?
Reply
Will this work for a 18 ft above ground pool
Reply
I have an 8 x 12’ spa about 2800 gallons will this 3/4 pump work and do I need some type of filtration other than the basket?
Reply
Hi Jesse, Could you answer a few questions for us on this... 1.) is this an inground spa or an above ground hot tub? 2.) will the pump be above or below the waterline of the spa? 3.) is this just being used for filtration in the spa or to power jets? 4.) If it is powering jets then how many jets do you have? 5.) Is this replacing an existing pump, if so could you supply the HP, Volts, Amps, RPM, Manufacturer, Model Name and Model # of your current pump? To supply this information click on the reply link below, the more information you can give us then the more accurate suggestion we can make. Thanks so much!
Reply
Will 1.5 inch hoses screw directly to the ports on this pump, or are they a different size?
Reply
Hi John, No you will need these Hose Adapters the hose adapter screws into the port on the pump and then the hose will slide over the adapter.
Reply
I have a 300 Gallon Koi Pond (yes, it is small) and I need to replace the pump. will this pump be able to run consistently for 24/7?
I am replacing a 1 1/2 HP pump that died. I think this old pump was way to big for this little pond. Will this pump do the job. Thank you for your help.
Reply
Hello,We recommend getting a pump that is meant for a fish pond. We do not recommend getting a pool pump.
Reply
I just bought a 24 foot 55 depth pool still in box's I want to do salt water pump. What all do I need to do salt water system
Reply
Hi Teri, You would need this Crystal Pure Above-Ground Pool Salt System and if you don't have a pump and filter then you would also need a 1.5 HP PUmp and Sand Filter System You will also require the salt for startup and you can purchase that at a local hardware store.
Reply
I have a 15' diameter 52" height pool with a 100lbs sandfilter. Distance from pool
About 12'.
Need to replace pump motor should l use 3/4 or 1 hp. Which is better for my
Electric consumption and still do the job
Reply
Hi Rick, For your 15' Round Pool you could go with the PL1500 3/4 HP PureLine Pump as it will cost less to operate than the 1 HP and will be adequate for your sized pool
Reply
I have a Blue Wave Roaring River 50 lb sand filter with .5hp motor. Model number cr1g234l. Frame 63b35.
Will this motor be a good replacement.
Pool size is 22x52 round. With a salt system
I have a above ground 15ft diameter pool that holds 2640 gallons. My filter is inadequate for all of the dirt in the air in California’s San Joaquin Valley. It is rated at 600GPH. What would you suggest as a upgrade?
Reply
Hi, Gary. A 600 GPH filter will be too small for this pump. This pump requires a filter that is rated at 3000 GPH or higher.
Reply
I have a StarBright Century LASAR Pool/Spa Motor BN50 2 speed, for a 24 foot round 52 in high above ground. It also has the round 3 prong plug. I think I can use your 3/4 hp pump but do you have the round 3 prong plug for it. Your thoughts on the pump size too.
Reply
Hi Bob, Normally for a 24' Round pool we would suggest this 1 HP Pure Pro XL Pool Pump please note it would be a single speed and not a dual speed. Typically you could use your old twist lock plug if it is still in good working condition. You would simply remove the cord from you old pump and attach to the new pump.
Reply
Have above ground pool 15 ' Diam. And 4' Deep. Would the 3/4 GO model Pure Pro CO, PL1500 WORK OK? I As this pump and Motor? Looks like it has more?
Reply
Just looking to see if this pump would be good option to run de filter Hayward EC65A 10000 gallon above ground. 3/4 Hp dayton motor just died after 10 years .
Reply
Hi. Yes, this pump will be sufficient for a 10,000 gallon above ground pool with an EC65A filter. If you have additional features or equipment, it will need to known in order to confirm if this pump will suffice.
Reply
Could this pump directly connect to pool vacuum hose to use as pool cleaner separate from the pool pump/filter system?
Reply
Hi, TSC. This pump is not a self-priming pump so it will not work if operating above the water level.
Reply
Will this pump work with a intex sf70110 14 inch sand filter on an 18ft round pool? The filter has a maximum 30 gpm.
Reply
I have an older Hayward Power Flo? pump (BN25 motor, 1HP 115V, 12A, 3450 RPM). Pool is a 15'x30'x48". 150 lb Hayward sand filter. Is this 3//4HP pump sufficient for my 10,000 gallon pool? At 7.3 Amp vs. 12 Amp with the same RPM, it seems that it would save a lot of electricity. Am I missing something? Thanks!
Reply
Hi Don, yes the PL1500 3/4 HP would be sufficient for a 15' x 30' and would save you a considerable amount on your operational costs.
Reply
will my flex hoses connect with the quick connects? I now use hose clamps.
Reply
Cedric, The quick disconnect would be used if you planned on hard plumbing the system. If you would like to use hoses and clamps, you would need to order hose adapters.
Reply
Could you use this as a separate stand alone pump from the one that filters the pool to use for vacuum to waste?
Reply
Hi, Jack. Only if the water level is higher than the pump, you'll need a self-priming inground pool pump like the PureLine Pure Flow Pool Pump.
Reply
I am looking to replace my standard intex pump with something better. (15x48" pro series) Would this work with adapters? Would this be too strong for a standard filtration system?
Reply
Hi. This pump will not work with Intex adapters and will be too strong for the Intex filter. I would recommend using the PureLine 19" Above Ground Pool Sand Filter System W/ 1 H.P Pump - PL1511 or Jacuzzi Laser 16" Sand Filter W/ 1 HP Pump - 94084953
Reply
I have a Coleman "steel wall" 15' x 36". Pump that came with it is not sufficient. Would this pump work?
Reply
Yes we would suggest the PL1500 pump as a great upgrade for your Coleman steel wall 15' x 36"
Reply
Will this work as a replacement pump for my Sandpro 50d 1/2 hp pump? Mine froze. Does it come with strainer basket & 2 hoses?
Reply
Hi Karen, This pump is a bit too large for the SandPro 50 filter but can be used. The strainer is included but not the hoses.
Reply
Any reason that I couldn't unbolt the motor from the pump, rotate the discharge 90 degrees, bolt it back together and use it as such? (This is what we did with a SP1575, for which this is a replacement)
Reply
The PL1500 is only able to be used as a vertical discharge pump.
Reply
Hi all,
Can I use this pump for my Koi Pond filter? Can It be used 24/7?
Thanks
Reply
Hi, Viet. This pump can be used to filter a koi pond depending on the pumps location and elevation. It can also operate 24/7.
Reply
What type of enclosure is needed for weather proofing the motor?
Reply
Hi, Preston. You can use the Protective Pool Motor Cover - R221016 if the pump will be placed outdoors or you can build a small shed to house your pool equipment.
Reply
Hello, I have a 18'x12' variable depth of 36" to 60". Will this pump be sufficient?
Reply
Hi, OJ. Unfortunately, this pump will not be sufficient for your pool because it's designed specifically for above ground, not in-ground pools.
Reply
I have a 20' x 48" round Intex pool, 10,000 gallons with a Intex pump SFS1000 rated at 1000 GPH or approx. 16 GPM and a Intex Krystal Clear Sand Filter Pump, rated @ 1600 GPH system flow rate, 2,100 GPH pump flow rate.. Pool pump sits next to pool with a sand filter. Need to replace this pump as I need more suction for cleaning and running pool cleaner, Wanda the Whale. Do you have any suggests on how many HP and what model I would need to get the max. suction . Thanks for you time and help!
Reply
I have an 5063-101 3/4 115/230 8.0/4.0 SINGLE VERTICAL NO CORD 20” 94026929 S7LR-S. Can I replace my old one with the one that you offer? Thanks
Reply
Hi Avil, Yes the PL1500 3/4 HP pump would be a suitable replacement for your Jacuzzi 94026929 S7LR-S pump.
Reply
I have a Sand Dollar SD60 system on a 22' X 52" round pool. I think the 1 1/2hp pump on it right now is overkill. Would this pump be a good replacement pump for my current system and still be able to efficiently run water through the sand filter?
Reply
Hi Brad, A 1-1/2 hp pump is too much if you're just using it for water circulation. The PL1500 can be used as a replacement, and circulate the water in you pool efficiently.
Reply
Is this pump a dual voltage (208/230 - 115V) and what's the amperage rating?
Reply
Hi John, This is not a dual voltage pump it is 115V only and comes with a cord and standard 3-prong plug. The amp draw on the 3/4 HP PureLine Pure Pro XL is 7.3 amps
Reply
Will this pump replace my -aquatools model at2410110pump
Reply
Hi Bill, Yes this would be a great replacement for your AquaTools pump the plumbing ports may not be in the exact location as your AquaTools pump but if your are using flexible hoses this would not be an issue. This pump uses a 115V standard 3-prong cord so you may want to double check that your current pump is using a standard 3 prong cord.
Reply
Would this pump work for my 24 ft, 36 in deep above ground pool? Also, is it safe to use outdoors?
Reply
Hi, The 3/4 Hp Above Ground Pool Pump can work with your 24' x 36" above ground pool and is safe to use outdoors.
Reply
will this replace a Pro line sd 0910231879 1 HP pump
Reply
I was not able to find any information on your Proline SD 0910231879 1 HP Pump to confirm if this 1 Hp Above Ground Pool Pump would be a suitable replacement. Can you provide information on your size pool, filter and distance from pool to equipment.
Reply
I have an above ground oval pool, 12,000 gallons with a 150 lb. sand filter.. I have calculated my gpm to be 25.. Will this be enough pump for my pool, could I use a smaller one or do I need a larger hp pump?
Reply
Hi Jeff this 3/4 HP Pump would be a great option for a 12,000 gallon pool.
Reply
Does this pump have an on and off switch ?
Reply
No this pump does not have an on/off switch. We would suggest going with this Above Ground Pool Pump Timer, which gives you an on/off switch as well as a timer.
Reply
I have a 24 foot round above ground pool.the motor is a 1 hp 3450 rpm part number 9402-7588 description of pump is S7LR6. this is a JACUZZI system. I want to know what will enterchange.where I can get one for a reasonable price.
Reply
Hi Edward, We do carry your same Jacuzzi 1HP SLR Pump here. You could possibly go with the NE6150B pump but you may have some re-plumbing. The Jacuzzi SLR Pump would be a drop in replacement.
Reply
I have a Reliant model #72729, 115 volts, 60 hz, 8.8 amps, 1-1/2 pipe size, 1 HP. My pool is 27 feet. Would this one work for my pool or would i be better off getting the 1.5 HP? And would it works for my pool? I have a huge sand filter with it
Reply
For a 27' round pool I would suggest going up to the 1-1/2 HP Above Ground Pool Pump especially since you have a very large sand filter which likely will have no problem handling the output of the 1-1/2 HP pump.
Reply
I have a pentair pump 1.5 hp model 019326210 would like to replace it with this one will this work,what are the amps,and is it quiet thanks
Reply
This pump draws 8.8 amps and is a suitable replacement for your Pentair pump. This pump would be as quiet as any standard above ground pool pump.
Reply
Will this pump handle a 24ft above ground pool or would I need a 1.5 hp?
Reply
Paul, Yes this 1 Hp Above Ground Pool Pump can handle a 24ft round above ground pool. A 1.5 hp pump will be excessive but if you have a big enough filter you can use a 1.5hp pump.
Reply
Less than 1 hr
Socket Set, Adjustable Wrench
2 0
1) Disconnected old pumps power supply.
2) Plugged pool intake and discharge hoses.
3) Drained pool hoses, filter/check valve assemble, and old pump.
4) Removed hose clamps and disconnected pump hose from old pump.
5) Removed old pump from mounting.
6) Disconnected filter/check valve assemble from old pump.
7) Installed new pump on mount.
8) Attached filter/check valve assemble to new pump.
9) Connected hoses to new pump and installed new hose clamps.
10) Unplugged pool intake and discharge hoses.
11) Bleed air out of pool hoses, filter/check valve assemble and new pump by loosening the bleed port on the bottom of the pump assemble.
12) Connected power supply to new pump.
13) Enjoyed the pool!
Less than 1 hr
Screwdriver, Adjustable Wrench
3 0
We replaced our old pump (old one was bigger HP and more expensive) with this 3/4 HP and I couldn't be happier. It works perfectly!! It is so much quieter than our old one and it works 100% more efficiently. So easy to install too, would highly recommend!
The Most Helpful Review
8 0
(5 out of 5 stars) Great Pool Pump
Reviewed By: Eric S. from Herndon, VA ()
Pros: It functions as advertized.
Cons: None
The pool pump works great. The pump also came with the two unions needed to connect it into my system.
Was this review helpful to you?
The Most Recent Reviews
1 0
(5 out of 5 stars) Great Pump and Great Value
Reviewed By: Inyo Customer ()
Great pump so far, much quieter than the pump it is replacing. This pump is replacing a Pentair Maxim pump that lasted 15+ years, I hope this one last at least half as long.
Was this review helpful to you?
1 0
(5 out of 5 stars) Love it
Reviewed By: Inyo Customer ()
Easy hook up, quiet, and circulates water like it should!!! Great buy for the money!!
Was this review helpful to you?
1 0
(5 out of 5 stars) Great price, Good performance
Reviewed By: Inyo Customer ()
Bought to replace a worn out motor, works well and has been going good for this past swim season.
Was this review helpful to you?
1 0
(5 out of 5 stars) Price was right. Quiet running
Reviewed By: Inyo Customer ()
Price was right. Quiet running
Was this review helpful to you?
4 0
(5 out of 5 stars) Great Pump!
Reviewed By: Inyo Customer ()
Replaced an older pump (with more HP) with this pump and am so pleased! It works so much better and more efficiently than the pump with bigger HP, and it's so much quieter! Couldn't be happier, would highly recommend!!!
Was this review helpful to you?
5 0
(5 out of 5 stars)
Reviewed By: Inyo Customer ()
Very Quiet!
Was this review helpful to you?
4 0
(5 out of 5 stars) Great Pump
Reviewed By: Douglas A. ()
Pros: Quiet
Cons: None
Pump works great. Easy to connect. Up and running in no time and it does a great job cleaning my pool water.
Was this review helpful to you?
