Model # MKIT32VS22
Alternate Part #'s AOSEVQ225, EVQ225
Pentair Whisperflo Variable Speed Motor Upgrade Kit
This upgrade kit will convert a Pentair Whisperflo into a 2.2HP variable speed pump. We've packaged the correct-sized impeller to ensure maximum efficiency and a heavy-duty shaft seal for ultimate durability.
Upgrade Kit Includes:
| THP | RPM | VOLTS | AMPS | SERVICE FACTORS | FLANGE | VGREEN EVO™ MOTOR STOCK NUMBER |
| 1.65* | 600-3450 | 230/115 | 10.5/17.7 | 1.0 | Square | EVQ165 |
| 2.25* | 600-3450 | 230/115 | 13.5/17.4 | 1.0 | Square | EVQ225 |
| *When motor is running at 115VAC the total horsepower is 1.65 THP. | ||||||

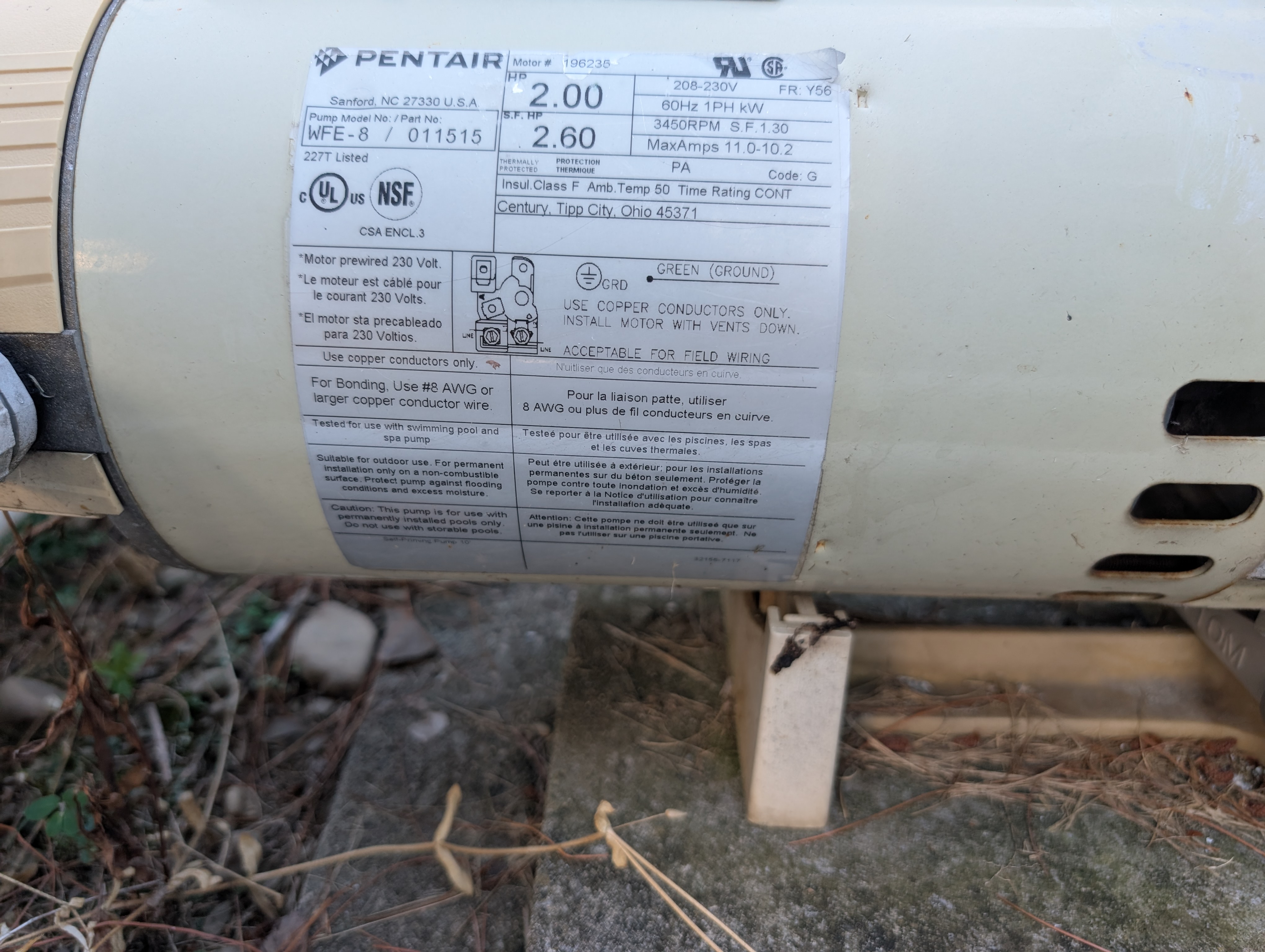

I have a WFE-6 with a single speed 1.5hp motor, will this fit and work well?
Reply
Hello mark. The Pentair Whisperflo VS Motor Upgrade Kit - 2.2HP - MKIT32VS22 is compatible with the Pentair WhisperFlo WFE-6 (2.2 total horsepower). Attached please find the VGREEN EVO VARIABLE SPEED MOTOR INSTALLATION MANUAL AND USER GUIDE for reference. The VGreen EVO is designed to function at reduced operating costs while maintaining water quality through the selection of a pre-programmed run schedule that addresses the circulation requirements of your pool.
Reply
