By Goldline Controls



Model # AQL2WWPS8

Manufacturer Code AQL2-WW-PS-8

Alternate Part #'s GOLAQL2-WW-PS-8

Product Description

Wall Mounted Wired Remote - The wired remote requires 4 conductor wire to be run from the equipment pad to the location in the house where the Wall Mounted Wired Remote will be hooked to the wall. You can Add Up to 3 Wired Remotes to your Aqua Logic system. If you are adding the Aqua Logic to an existing pool, the wireless remote may be a better option.

This remote display is compatible with all Pro Logic PS-4/8/16 models and for all Aqua Logic PS-4/8/16 systems running main software r2.00 or higher.

Product Specifications

# of Circuits System can Control:
Pool / Spa Type:
Pool & Spa

?     Asked on 6/30/2020by jon tindall

the system seems to work ok except. when it turns off, the system resets the valves to spillover mode. In this mode the spa drains to the pool level. can i change it so it stays in pool mode.

A  Answered on 12/15/2020 by InyoPools Product Specialist Hector F.

Hi Jon, when the spa drains down to the pool level when the pump is off this is most often associated with a bad check valve in the plumbing for the spa. Once that is replaced that should eliminate the draining issue.

?     Asked on 2/14/2020by DAVID Muir

How do you set the pool to heat

A  Answered on 2/18/2020 by InyoPools Product Specialist Lennox H.

Hi, David. If the heater has already been set up within the configuration and setting menu. You would Press the Button that is assigned to the Heater, it will turn it on. You can review the  ProLogic PL-PS-8 Operation Manual

?     Asked on 12/1/2019by Jo

Will this replace an aql-ttw-rf-ps-8?

A  Answered on 12/2/2019 by InyoPools Product Specialist Lennox H.

Hi, Jo. Yes, it can if it's within 500 ft.

?     Asked on 1/20/2019by Chuck

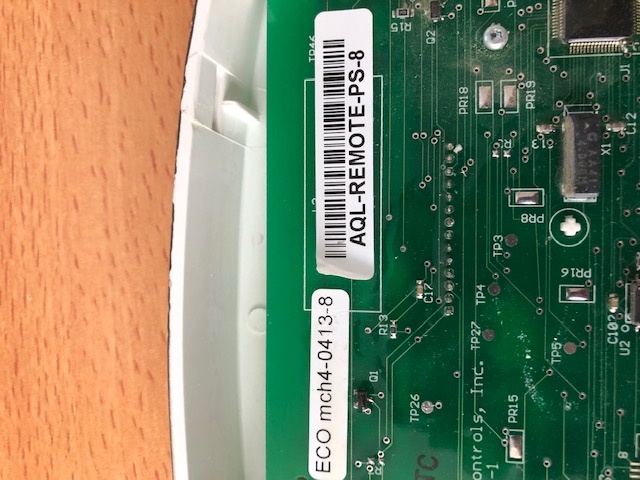

My wired remote has tag on the board labeled AQL-REMOTE-PS-8. Is the AQL2-WW-PS-8 remote compatible as a replacement wired remote?


A  Answered on 1/21/2019 by InyoPools Product Specialist Lennox H.

Hi, Chuck. This PS-8 Wired Wall Mount - White - AQL2WWPS8 will be compatible only if your main software is r2.00 or higher. To locate the main software enter the diagnostic menu then main software revision. If not you will need to replace the Main PCB - GLX-PCB-PRO

?     Asked on 7/27/2017by Inyo Visitor

Does this replace wmw-ps-4

A  Answered on 7/29/2017 by InyoPools Product Specialist Lennox H.

Hi. It will not, you will need model # AQL2WWPS4 with the compatible antenna.

?     Asked on 4/19/2016by Inyo Visitor

is model AQL-WW-PS-8 AND AQL2WWPS8 is same? I need to replace inside home unit which is AQL-WW-PS-8.PLS let me know what item number you have that i can order. thanks

A  Answered on 4/20/2016 by InyoPools Product Specialist Lennox H.

Hi, Model no. AQL-WW-PS-8 is an older unit, the AQL2WWPS8 will replace it.
