By Jandy



Model # 2876

Alternate Part #'s JDY-56-4049, JDY2876


Product Description

Jandy sets the benchmark for valves. For over 30 years Jandy valves have become synonymous with innovation, durability and quality. All Jandy valves pass 18 different quality control checks before leaving the factory.

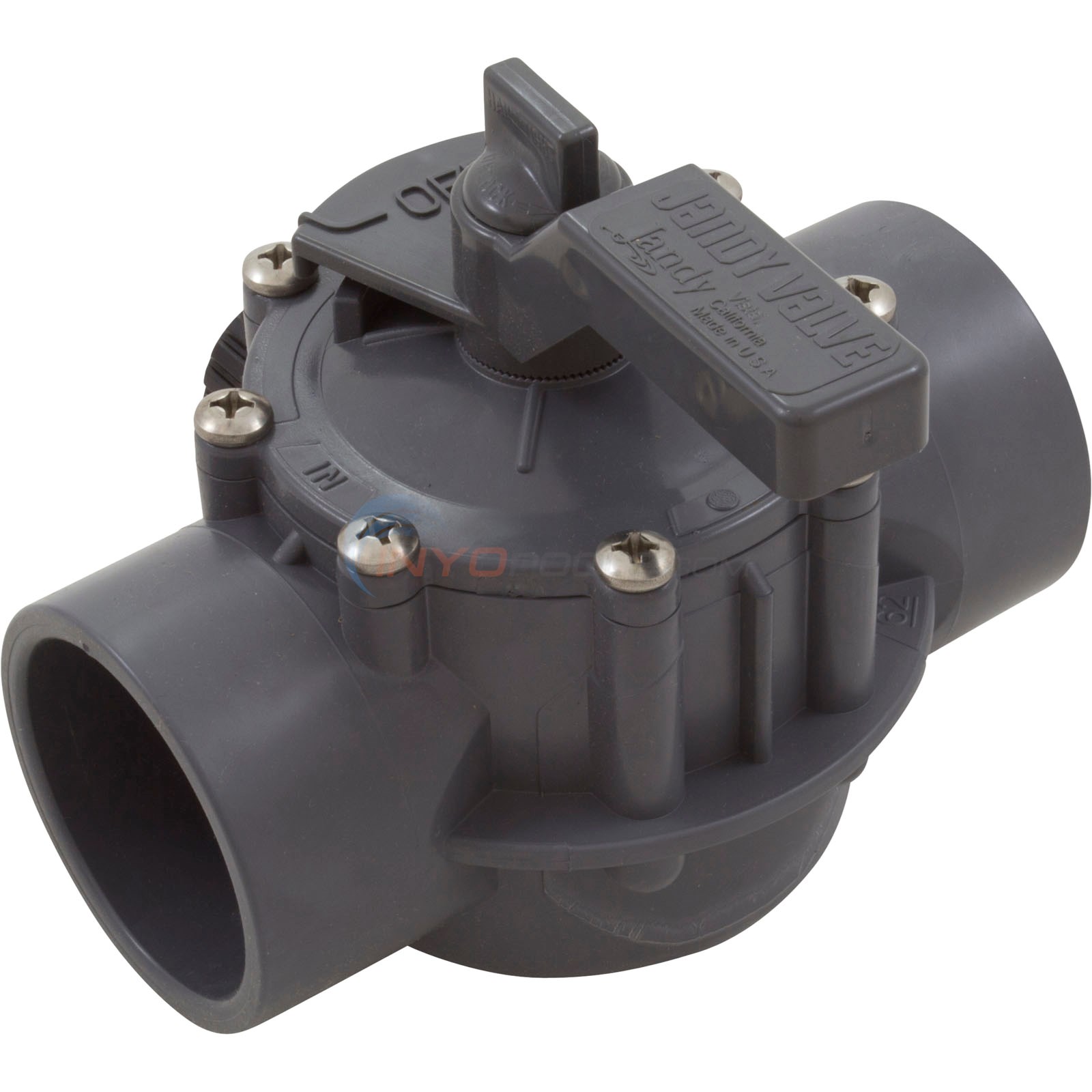

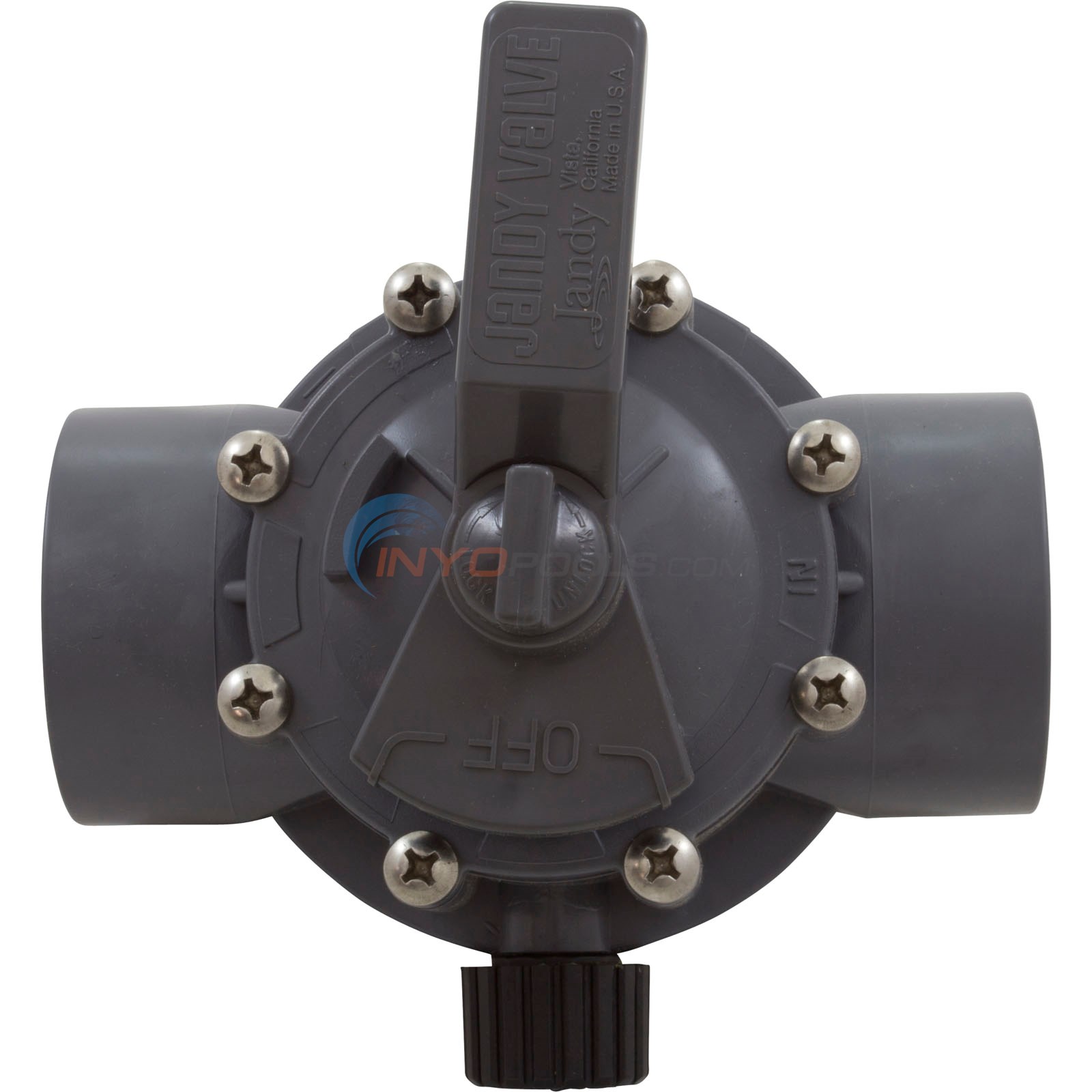

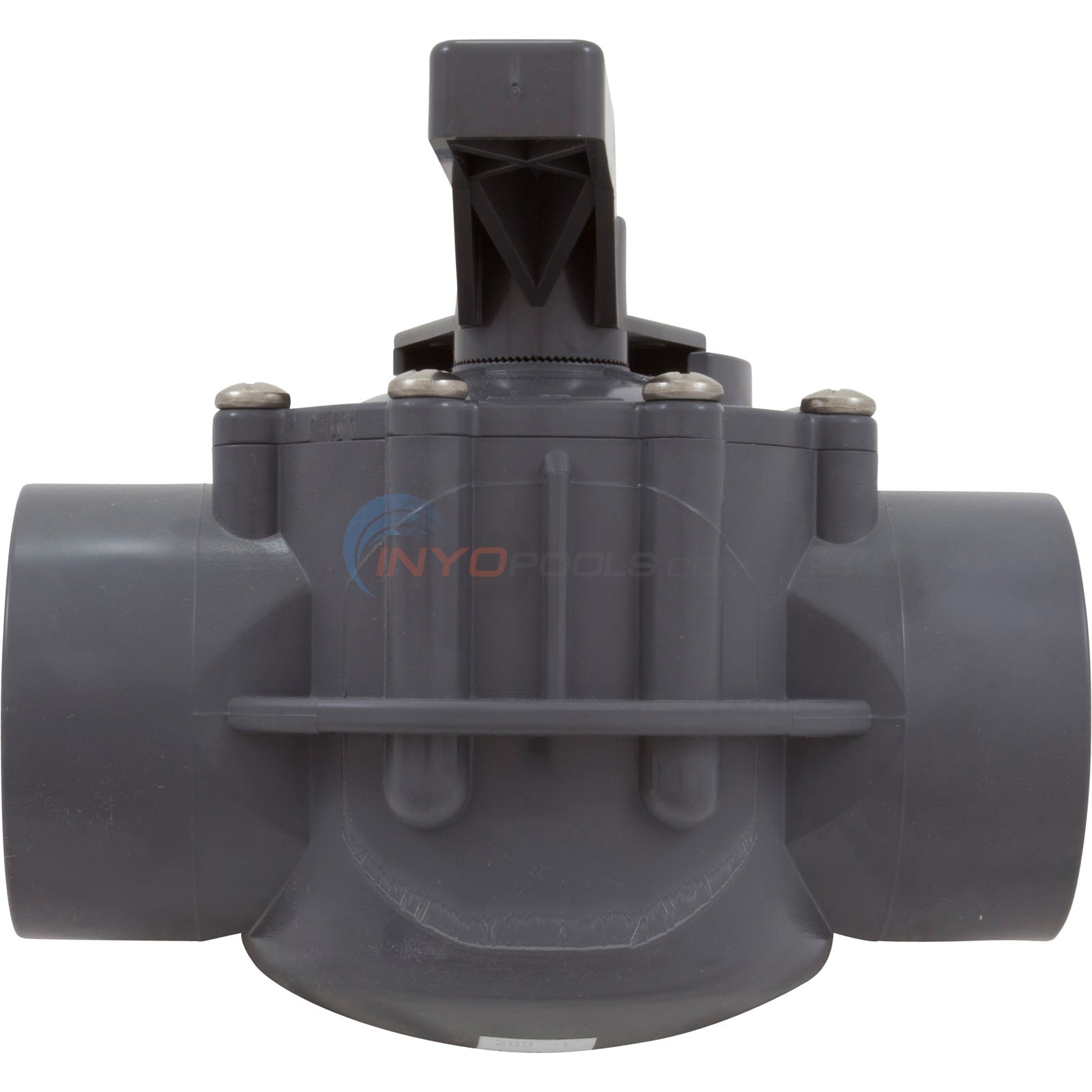

Our workhorse diverter valve is as tough as the NeverLube, and requires no disassembly for lubrication. It comes with a 1-year warranty and a 20-year track record of proven reliability.

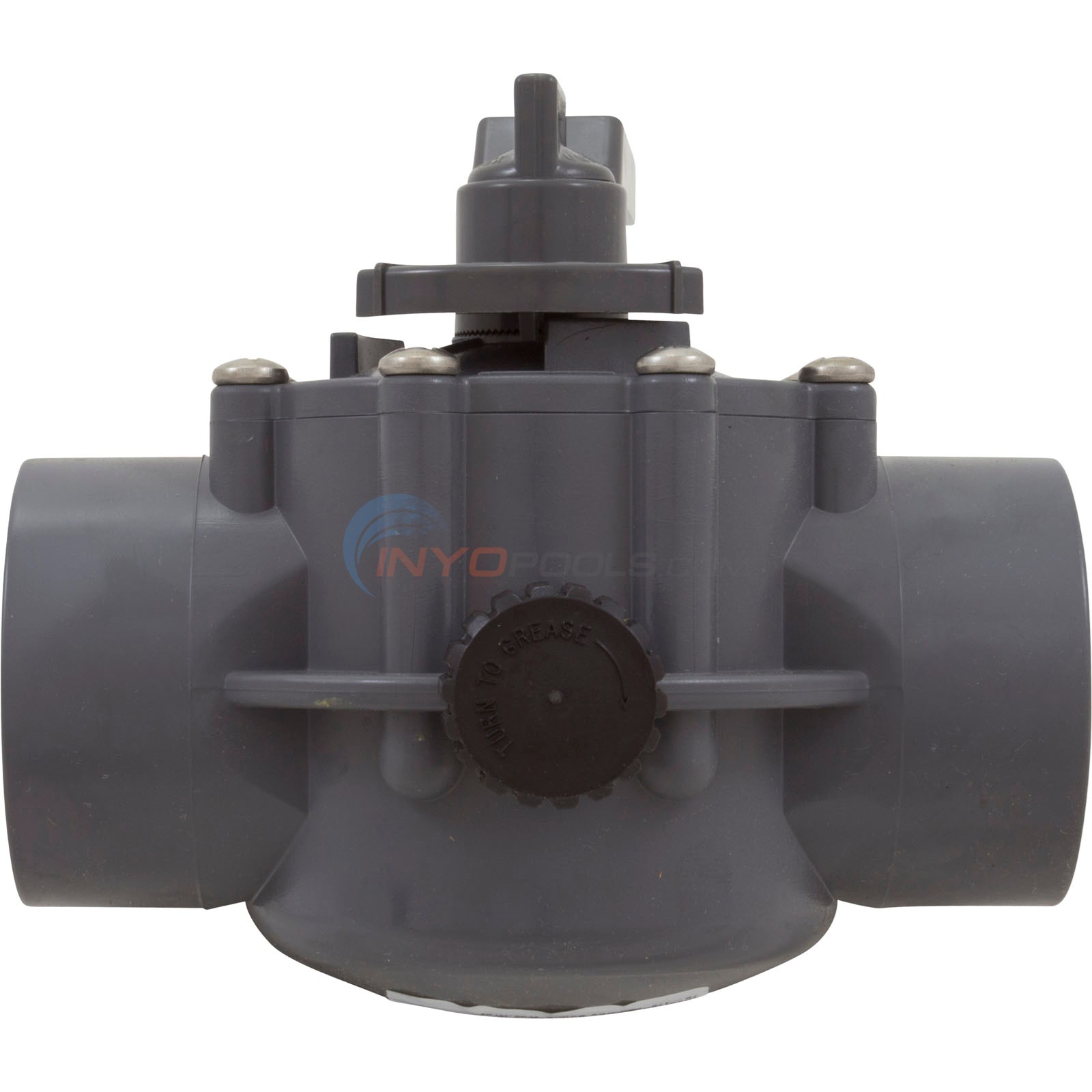

  • Grease cap eliminates need to disassemble valve for lubrication
  • Made from durable CPVC
  • Handle does not extend beyond the valve port – so it can’t interfere with other pool and spa equipment

Click here for more Jandy Valves

Product Specifications

Inside Diameter:
2 in.
2 Way
Outside Diameter:
2 1/2 in.

?     Asked on 1/23/2012by Guest

Why do the Jandy valves list ID and OD for each valve?

A  Answered on 1/23/2012 by InyoPools Product Specialist Patrick P.

Each Jandy valve is designed to connect to two different size pipes. For example on a valve shown with ID 1 1/2" and OD 2", a 1 1/2" pipe can be glued inside the port or a 2" pipe can be glued on the outside of the port.

?     Asked on 9/23/2014by Guest

I have this valve installed at my pump. I have a lot of air coming out of the pool jets and it doesn't stop. If I rotate the valve to vacuum and back to skimmer, it clears the air immediately. Do you have any suggestions?

A  Answered on 9/23/2014 by InyoPools Product Specialist Patrick P.

I would recommend checking the gaskets/o-rings on the valve and pump housing. They may be letting air into the system.

?     Asked on 11/6/2015by Inyo Visitor

Do they sell the just the gaskets for the 2 jandy valve

A  Answered on 11/6/2015 by InyoPools Product Specialist Lennox H.

Hi, You can find the replacement o-ring for the Jandy Valves via the Jandy Standard & Never Lube Valve Parts.

?     Asked on 6/14/2017by Inyo Visitor

do you have sapre parts for the grease fitting and o-ring kit for the Jandy model 2876? My grease cap has broken off.

A  Answered on 6/15/2017 by InyoPools Product Specialist Patrick P.

Yes here we carry those Jandy Valve Parts

?     Asked on 5/30/2020by Kevin Spangler

Yes I need to know if this valve will accommodate connecting to a 1.5" piece of PVC pipe?

A  Answered on 5/30/2020 by InyoPools Product Specialist Hector F.

If you sue 1.5 reducer fittings on the 2-inch ports than yes you can adapt this valve for 1.5-inch plumbing.
