Drain Cap w/ Gasket - 85826300R000

$7.99

IN STOCK

Part # 4626-16

By Jacuzzi Inc.

  5 Average

Details

Top

Part # 4626-16

Manufacturer Code 85826300R

Dimensions 1.06" X 1.63"

Alternate Part #'s 85-8263-00, 85826300, 31-105-1094

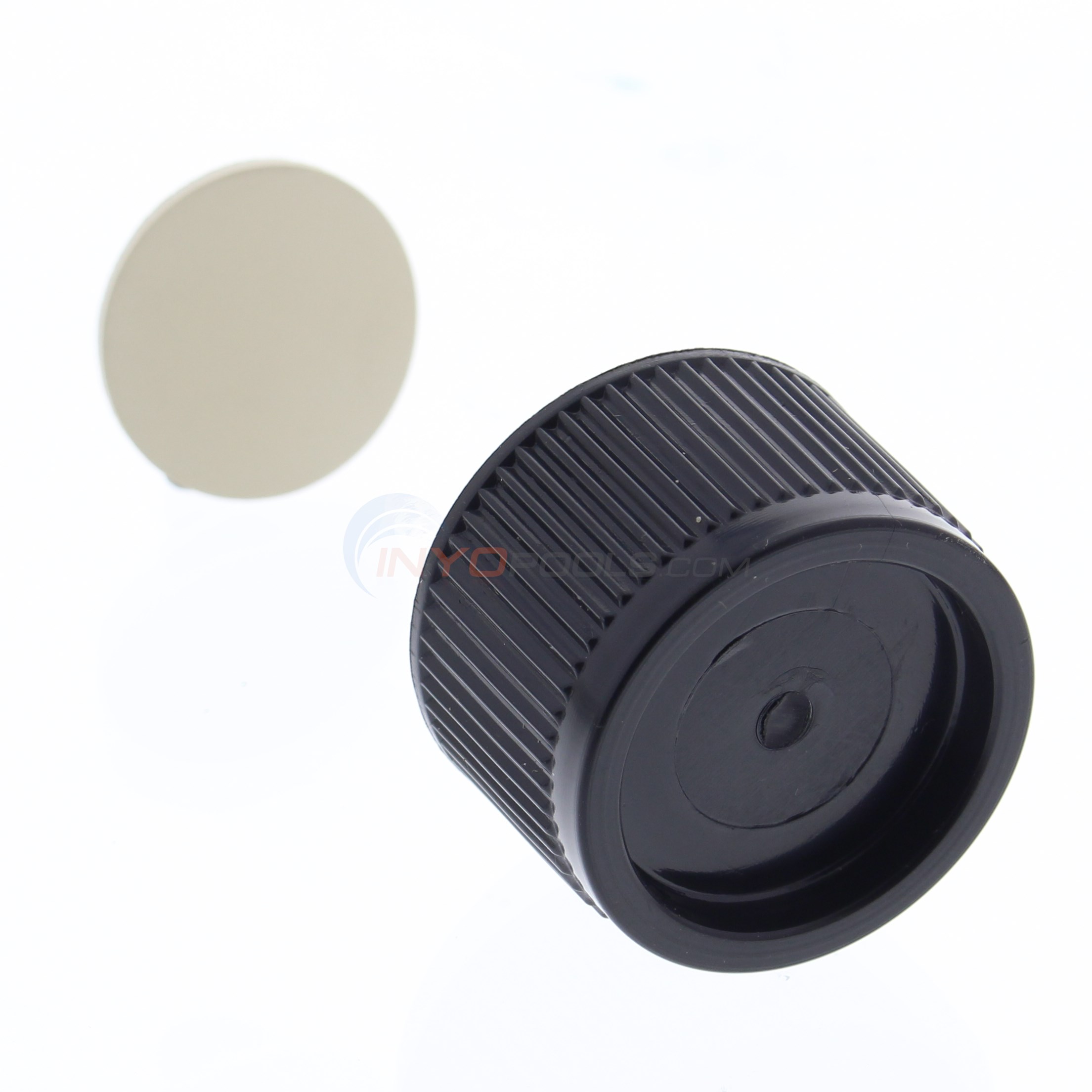

Product Description

INYO # 4626-16 JACUZZI # 85-8263-00 JAC THIS IS A STANDARD THREADED DRAIN CAP WITH GASKET USED ON SOME JACUZZI FILTERS THIS CAP HAS STANDARD 1" FEMALE PIPE THREADS

*******************************************************************************

MATERIAL: BLACK PLASTIC CAP BLACK RUBBER GASKET

*******************************************************************************

DIMENSIONS: CAP THREAD SIZE - 1" FPT (STANDARD FEMALE PIPE THREAD) ACTUAL THREAD DIAMETER: 1-3/16" (A) LENGTH: 1-1/16" (B) OUTSIDE DIAMETER: 1-5/8" (OPEN END) OUTSIDE DIAMETER: 1-1/2" (CLOSED END) THERE IS A VERY SLIGHT TAPER FROM OPEN END TO CLOSED END DIMENSIONS: ROUND SOLID GASKET DIAMETER: 1-3/16" THICKNESS: JUST SLIGHTLY UNDER 1/8"

*******************************************************************************

SPECIAL NOTE: THIS MAY BE REPLACED BY THE HAYWARD SX180HG DRAIN CAP AND GASKET

Top

?     Asked on 7/5/2020by Inyo Visitor

Will this fit a 225L Jacuzzi laser sand filter?
 Reply

A  Answered on 11/19/2020 by InyoPools Product Specialist Hector F.

Hello, yes this drain cap is compatible with the Jacuzzi Laser model 225L sand filter.
 Reply


?     Asked on 5/23/2020by John Siuta

Will this cap fit 225L sand filter Jacuzzi
 Reply

A  Answered on 12/30/2020 by InyoPools Product Specialist Hector F.

Hi John, yes this drain cap is compatible with the Jacuzzi Laser sand filter model 225L.
 Reply


?     Asked on 4/21/2020by Kimberly Mccowen

Will this fit Club Pro Laser 225?
 Reply

A  Answered on 4/21/2020 by InyoPools Product Specialist Lennox H.

Hi, Kimberly. Yes, it will.
 Reply


?     Asked on 4/12/2020by Wren Greene

this appears to be my filter, as mine has the clamp on valve. However, my drain cap is larger than the 1" in the description. Have I misidentified my filter or is there a mistake in the description?
 Reply

A  Answered on 11/19/2020 by InyoPools Product Specialist Megan C.

The Drain Cap w/ Gasket - 85826300R000 on Jacuzzi/Carvin CFR/Landslide/Dirtbag/Laser/Sandstorm model filters. (1" FPT (STANDARD FEMALE PIPE THREAD) ACTUAL THREAD DIAMETER: 1-3/16") There is a special note that it may also be replaced by the Cap & Gasket Kit - SX180HG for the following Hayward pool filters: Sand Master, Swim Pro, Pro Series Side Mount sand filters, Pro Series Top Mount sand filters, and E- Series. It is best to provide the filter model number for verification.
 Reply


?     Asked on 6/3/2019by Kim Willard

Will this work on a jacuzzi sand filter model # 160L?
 Reply

A  Answered on 6/3/2019 by InyoPools Product Specialist Lennox H.

Hi, Kim. Yes, this Drain Cap w/ Gasket - 85826300R000 will fit the Laser 190L model sand filter.
 Reply


?     Asked on 5/29/2018by Inyo Visitor

will this cap fit a Jacuzzi sand filter model # SS160-HK6-FP serial # 053062
 Reply

A  Answered on 5/29/2018 by InyoPools Product Specialist Lennox H.

Hi. Yes, this Drain Cap With Gasket - 85826300R000 will fit the SS160-HK6-FP system.
 Reply


?     Asked on 7/19/2017by Inyo Visitor

I have the "Splapool" sand filter pump model number 72713. The drain opening is fine threaded and seems to measure about a 1" opening.should this part fit it?
 Reply

A  Answered on 7/21/2017 by InyoPools Product Specialist Lennox H.

Hi. This Drain Cap will not fit the Splapool Sand Filter, you will have to replace the entire Drain Plug Assembly - NEP2123.
 Reply


?     Asked on 7/12/2017by Micheal

I have a Jacuzzi Laser 250 sand filter circa. 1998, will this cap fit this filter?
 Reply

A  Answered on 7/12/2017 by InyoPools Product Specialist Patrick P.

Yes this cap will fit your filter.
 Reply


?     Asked on 6/3/2017by Inyo Visitor

will this cap fit model DV 7 POs
 Reply

A  Answered on 6/6/2017 by InyoPools Product Specialist Lennox H.

Hi. I would need the model number of filter tank in order to confirm if this Drain Cap will fit.
 Reply


?     Asked on 6/2/2017by bob

Will this drain cap and gasket fit model #39263009?
 Reply

A  Answered on 6/2/2017 by InyoPools Product Specialist Patrick P.

Im showing the 39263009 is a valve and this drain cap fits the Laser Sand Filter that your valve fits onto.
 Reply


?     Asked on 5/18/2017by Larry

Will this replacement cap fit a FloPro Sand Filter made by Jacuzzi Bros. Model SS160 ?
 Reply

A  Answered on 5/18/2017 by InyoPools Product Specialist Patrick P.

Hi Larry, Yes this drain cap does fit the Jacuzzi SS-160 Sand Filter
 Reply


?     Asked on 5/26/2016by Inyo Visitor

Will this work with model DV7-POS?
 Reply

A  Answered on 5/26/2016 by InyoPools Product Specialist Alan M.

Hello, Unfortunately, the number you provided only references a valve. I cannot confirm the drain cap is compatible until I have the information on which filter system you have. Feel free to respond to this email with that information and I will be happy to look into the compatibility of Drain Cap With Gasket #v for you.
 Reply


?     Asked on 5/21/2016by ROSEMARY CHARLTON

we have a jucuzzi laser 192 sand filter ..is this the correct cap for the drain
 Reply

A  Answered on 5/21/2016 by InyoPools Product Specialist Patrick P.

Hi Rosemary, Yes this is the correct drain cap for the jucuzzi laser 192 sand filter
 Reply


?     Asked on 4/19/2016by Bill

What is pipe thread and size for this cap
 Reply

A  Answered on 4/20/2016 by InyoPools Product Specialist Lennox H.

Hi Bill, This Drain Cap has 1" Female Pipe Thread (FPT).
 Reply


?     Asked on 10/7/2015by lori

does this drain cap fit a 160L Jacuzzi sand filter
 Reply

A  Answered on 10/8/2015 by InyoPools Product Specialist Hector F.

Yes this drain cap works with the Jacuzzi Laser 160L filter.
 Reply
