Jacuzzi Laser Clamp Style Parts

Jacuzzi Laser Clamp Style, Top Mount Sand
L140-7C, L160-7C, L192-7C, L225-7C, L250-7C

Jacuzzi Laser Clamp Style Diagram

Click to zoom in

Diagram #	Part Title
*	5C DIAL VALVE, CLAMP ON
*	6C Clamp On Dial Valve
1	DVK-7C VALVE, CLAMP TYPE
2	CLAMP ASSEMBLY
3	NOZZLE, DRAIN (85853300R000)
4	STANDPIPE, L160C
5	O-RING, ID 6-3/4", OD 7-1/8"
6	Bottom Mount Pressure Gauge 0-60 1/4" NPT
7	LATERAL KIT L160- SNAP FIT (set of 8) (85531102K)
8	CAP, DRAIN WITH GASKET (85826300R000)
9	BASE 160L/190L/225L (85859300R000)
*	UNION, PUMP, 1-1/2" NUT X 1-1/2" SLIP (400-4060)
*	UNION, PUMP, 1-1/2" NUT X 1-1/2" SLIP (400-4060)
*	Adapter, Poly (417-6060) 2 Pak

View Parts List

Diagram #	Part Title
*	5C DIAL VALVE, CLAMP ON
*	6C Clamp On Dial Valve
1	DVK-7C VALVE, CLAMP TYPE
2	CLAMP ASSEMBLY
3	NOZZLE, DRAIN (85853300R000)
4	STANDPIPE, L160C
5	O-RING, ID 6-3/4", OD 7-1/8"
6	Bottom Mount Pressure Gauge 0-60 1/4" NPT
7	LATERAL KIT L160- SNAP FIT (set of 8) (85531102K)
8	CAP, DRAIN WITH GASKET (85826300R000)
9	BASE 160L/190L/225L (85859300R000)
*	UNION, PUMP, 1-1/2" NUT X 1-1/2" SLIP (400-4060)
*	UNION, PUMP, 1-1/2" NUT X 1-1/2" SLIP (400-4060)
*	Adapter, Poly (417-6060) 2 Pak

Available Parts:

Jacuzzi Laser Sand Filter, Top Mount, L160-7C, 16", 1-1/2" Valve (94089160)

Part # 4625-120 Mfg # 94089160

Jacuzzi Laser Sand Filter, Top Mount, L160-7C, 16", 1-1/2" Valve (94089160)

NOT AVAILABLE

Jacuzzi Laser Sand Filter, Top Mount, L192-7C, 19", 1-1/2" Valve (94089192)

Part # 4625-121 Mfg # 94089192

Jacuzzi Laser Sand Filter, Top Mount, L192-7C, 19", 1-1/2" Valve (94089192)

NOT AVAILABLE

Jacuzzi Laser Sand Filter, Top Mount, L225-7C, 22-1/2", 1-1/2" Valve (94089225)

Part # 4625-122 Mfg # 94089225

Jacuzzi Laser Sand Filter, Top Mount, L225-7C, 22-1/2", 1-1/2" Valve (94089225)

NOT AVAILABLE

Jacuzzi Laser 16" Sand Filter W/ 1 HP Pump (94084953)

Part # 4625-201 Mfg # 94084953

Jacuzzi Laser 16" Sand Filter W/ 1 HP Pump (94084953)

NOT AVAILABLE

Jacuzzi Laser 19" Sand Filter W/ 1 HP Pump (94084958)

Part # 4625-202 Mfg # 94084958

Jacuzzi Laser 19" Sand Filter W/ 1 HP Pump (94084958)

NOT AVAILABLE

Jacuzzi Laser 19" Sand Filter W/ 1.5 HP Pump (94084963)

Part # 4625-203 Mfg # 94084963

Jacuzzi Laser 19" Sand Filter W/ 1.5 HP Pump (94084963)

NOT AVAILABLE

Jacuzzi Laser 22.5" Sand Filter W/ 1.5 HP Pump

Part # 4625-204 Mfg # 94084968

Jacuzzi Laser 22.5" Sand Filter W/ 1.5 HP Pump

$680.67

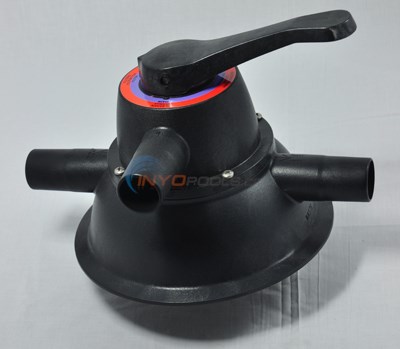

5C DIAL VALVE, CLAMP ON

Part # 4626-200 Mfg # 39258940R

5C DIAL VALVE, CLAMP ON

$159.92

6C Clamp On Dial Valve

Part # 4626-201 Mfg # 39258900R

6C Clamp On Dial Valve

$183.38

DVK-7C VALVE, CLAMP TYPE

Part # 39263020K Mfg # 39263035K

DVK-7C VALVE, CLAMP TYPE

$165.59 IN STOCK

Qty:

CLAMP ASSEMBLY

Part # 4626-130 Mfg # 85813903

CLAMP ASSEMBLY

$55.97 IN STOCK

Qty:

NOZZLE, DRAIN (85853300R000)

Part # 4626-13 Mfg # 85853300R

NOZZLE, DRAIN (85853300R000)

$13.04 IN STOCK

Qty:

STANDPIPE, L160C

Part # 4626-121 Mfg # 42375475R

STANDPIPE, L160C

$102.34 IN STOCK

Qty:

SNAP FIT STANDPIPE, 160C-7

Part # 4626-126 Mfg # 42375475R

SNAP FIT STANDPIPE, 160C-7

$102.34

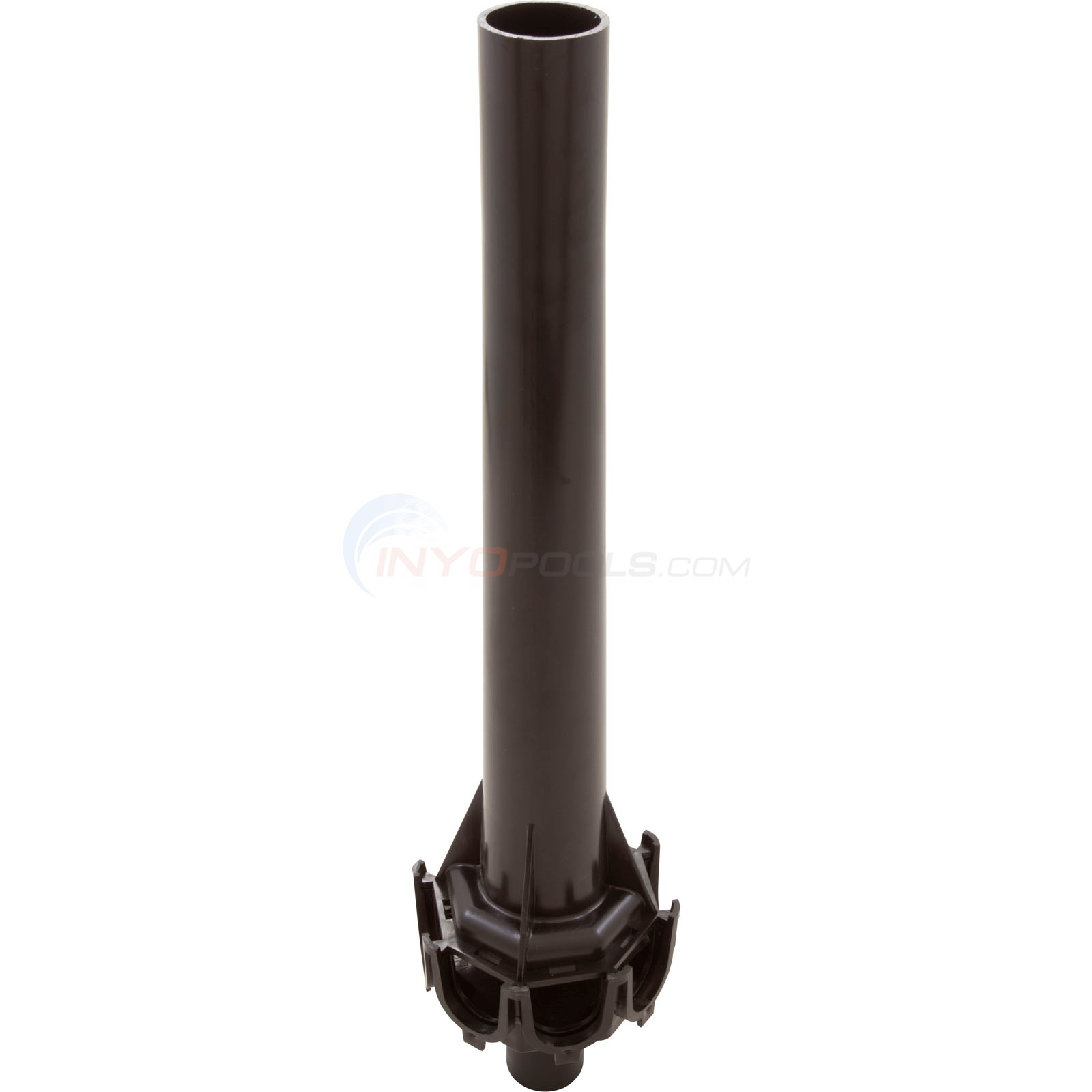

STANDPIPE, L190C

Part # 4626-122 Mfg # 42375470R

STANDPIPE, L190C

$69.29 IN STOCK

Qty:

STANDPIPE, L192C

Part # 4626-123 Mfg # 42375485R

STANDPIPE, L192C

$59.33 IN STOCK

Qty:

STANDPIPE, L225C

Part # 4626-124 Mfg # 42375490R

STANDPIPE, L225C

$81.26

STANDPIPE, 250C (42375495R)

Part # 4626-125 Mfg # 42355250R

STANDPIPE, 250C (42375495R)

$73.94

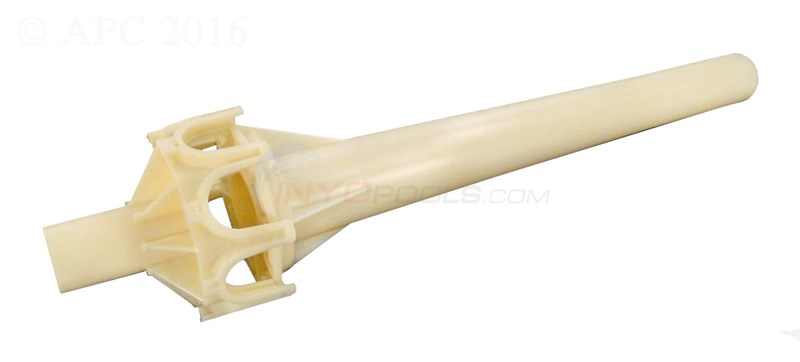

Standpipe Assembly for Carvin L192C-7C

Part # 42355192R

Standpipe Assembly for Carvin L192C-7C

$64.92 IN STOCK

Qty:

O-RING, ID 6-3/4", OD 7-1/8"

Part # 4822-04 Mfg # 364

O-RING, ID 6-3/4", OD 7-1/8"

$11.88 IN STOCK

Qty:

Bottom Mount Pressure Gauge 0-60 1/4" NPT

Part # 4726-0 Mfg # 101D-204D

Bottom Mount Pressure Gauge 0-60 1/4" NPT

$16.38 IN STOCK

Qty:

LATERAL KIT L160- SNAP FIT (set of 8) (85531102K)

Part # 4626-111 Mfg # 85531102R8

LATERAL KIT L160- SNAP FIT (set of 8) (85531102K)

$41.55 IN STOCK

Qty:

LATERAL KIT L190 & L225- SNAP FIT (set of 8) (85531203K)

Part # 4626-112 Mfg # 85531203R8

LATERAL KIT L190 & L225- SNAP FIT (set of 8) (85531203K)

$50.02 IN STOCK

Qty:

L250 LATERAL KIT - SNAP FIT (set of 8 EA) (85531304K)

Part # 4626-113 Mfg # 85531304R8

L250 LATERAL KIT - SNAP FIT (set of 8 EA) (85531304K)

$47.62 IN STOCK

Qty:

CAP, DRAIN WITH GASKET (85826300R000)

Part # 4626-16 Mfg # 85826300R

CAP, DRAIN WITH GASKET (85826300R000)

$12.73 IN STOCK

Qty:

BASE 160L/190L/225L (85859300R000)

Part # 4626-41 Mfg # 85859300R

BASE 160L/190L/225L (85859300R000)

$87.60 IN STOCK

Qty:

UNION, PUMP, 1-1/2" NUT X 1-1/2" SLIP (400-4060)

Part # 9175-02 Mfg # 0602-15

UNION, PUMP, 1-1/2" NUT X 1-1/2" SLIP (400-4060)

$19.18 IN STOCK

Qty:

HOSE ADAPTOR, 1 1/2" BARB X 1 1/2" MPT

Part # 7249F Mfg # SPX1091Z2

HOSE ADAPTOR, 1 1/2" BARB X 1 1/2" MPT

$11.53 IN STOCK

Qty:

UNION, PUMP, 1-1/2" NUT X 1-1/2" SLIP (400-4060)

Part # 9175-02 Mfg # 0602-15

UNION, PUMP, 1-1/2" NUT X 1-1/2" SLIP (400-4060)

$19.18 IN STOCK

Qty:

HOSE ADAPTOR, 1 1/2" BARB X 1 1/2" MPT

Part # 7249F Mfg # SPX1091Z2

HOSE ADAPTOR, 1 1/2" BARB X 1 1/2" MPT

$11.53 IN STOCK

Qty:

*

Adapter, Poly (417-6060) 2 Pak

Part # 7249B Mfg # 417-6060

Adapter, Poly (417-6060) 2 Pak

NOT AVAILABLE

* NOT SHOWN
