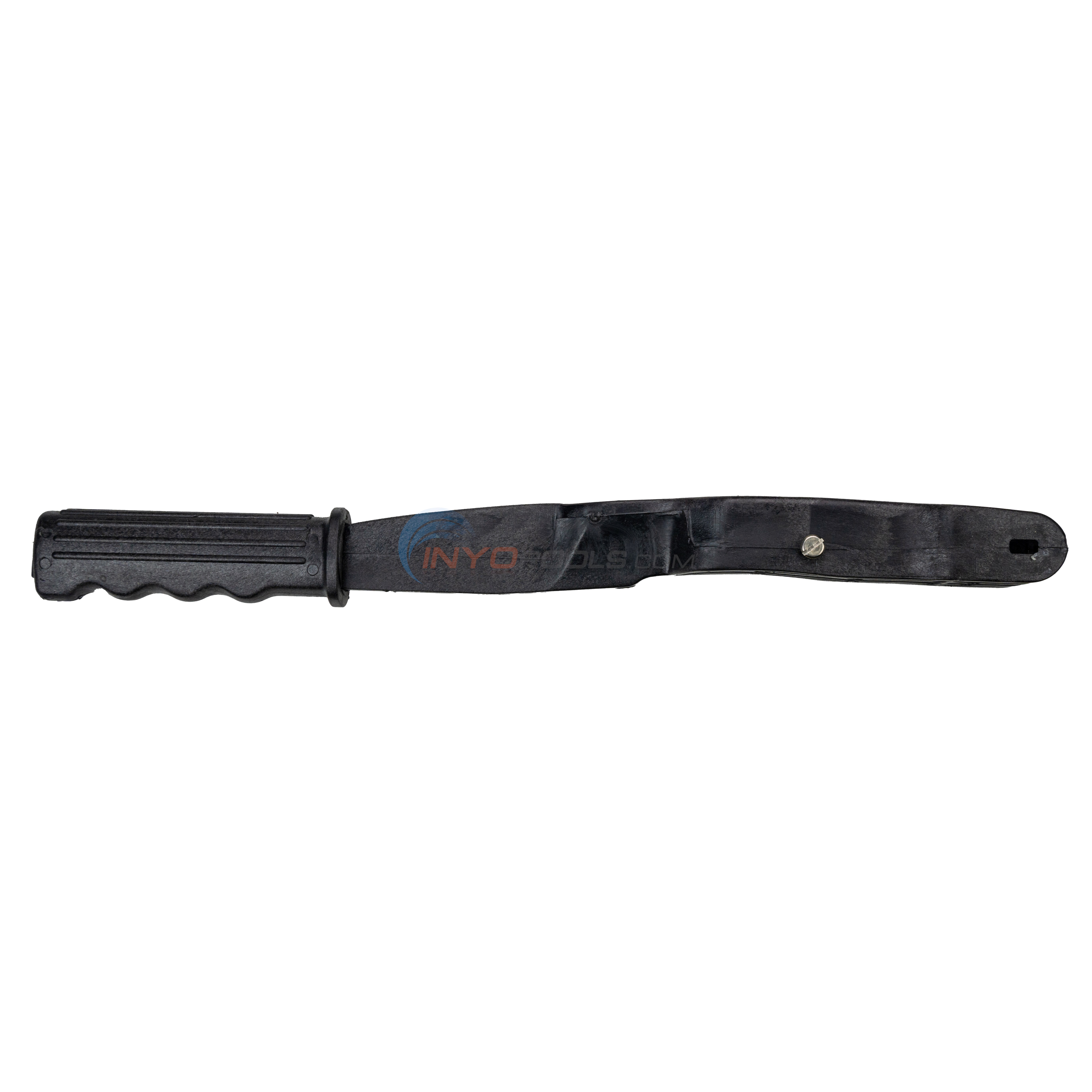

Handle, Bump Assembly - Noryl - ECX1040

$44.99

IN STOCK

Part # 4810-08C

By Hayward Pool Products

  4.43 Average

Details

Top

Part # 4810-08C

Manufacturer Code ECX1040

Dimensions 16" x 1.5" x 2.5"

Alternate Part #'s EC1040, ECX1040, HAY0518384, 14-150-1014, HAYECX1040

Product Description

The ECX1040 Bump Handle is a replacement part for the Hayward Perflex D.E. filters.  The handle connects to and activates the mechanism inside the filter head that purges dirt and D.E. powder from the Flex-Tubes.  Made of Noryl polymer.

Top

?     Asked on 9/5/2019 by

How do you change the handle on a de filter for a Hayward in th ground pool
 Reply

A  Answered on 9/6/2019 by InyoPools Product Specialist Lennox H.

Hi. Instructions are provided in this Hayward EC40 Pool Filter Top Filter Cover Installation video.
 Reply


?     Asked on 9/14/2018 by LUIS ONTIVEROS

IS THIS THE RIGHT PART FOR MY EC40AC ???
 Reply

A  Answered on 9/15/2018 by InyoPools Product Specialist Lennox H.

Hi, Luis. Yes, this Bump Handle Assembly - ECX1040 is correct for your EC40AC filter.
 Reply


?     Asked on 6/8/2018 by

Is the handle section with the 3 groves attached by a bolt or by a rivet? It doesn't seem to have a nut on either side?
 Reply

A  Answered on 6/9/2018 by InyoPools Product Specialist Lennox H.

Hi. The Bump Handle Assy - ECX1040 will use a Pin - ECX100Z9 to secure it to Lid and a Screw and Nut ECX4236A to the Bump Shaft depending on your filter model.
 Reply


?     Asked on 6/6/2015 by Jim

Will this work on the Ec-65 de filter serial #300819(this filter was purchased many years ago? The color and design look different.
 Reply

A  Answered on 6/6/2015 by InyoPools Product Specialist Patrick P.

Hi Jim, Yes this would be the correct handle for your Hayward EC65 filter. I believe they did make a design change but it still works on older models of the EC65 filter.
 Reply


?     Asked on 5/26/2015 by

Does the handle come with instructions on how to replace it. Is it difficult to replace the handle myself or do I need a pool service guy to come out and replace it?
 Reply

A  Answered on 5/26/2015 by InyoPools Product Specialist Patrick P.

The bump handle does not come with installation instructions but here they are. This is a relatively easy replacement which a home owner could perform.TO CHANGE BUMP HANDLE POSITION Remove the bump handle grip. Carefully pry the bump cover from the head retaining groove and slide the cover off the handle. Using a drift (or 10 penny nail), tap the pivot pin out of the filter head anchor point, freeing the end of the handle. Rotate the bump handle to the alternate position and align the handle and the head anchor holes. Tap the pivot pin in place. Reinstall the bump cover and grip.
 Reply


?     Asked on 8/23/2013 by Guest

Will the handle come with the pins?
 Reply

A  Answered on 8/23/2013 by InyoPools Product Specialist Patrick P.

Yes, the handle does come with the pins.
 Reply
