By Hayward Pool Products



Part # 5110-10EA

Manufacturer Code SPX2615C

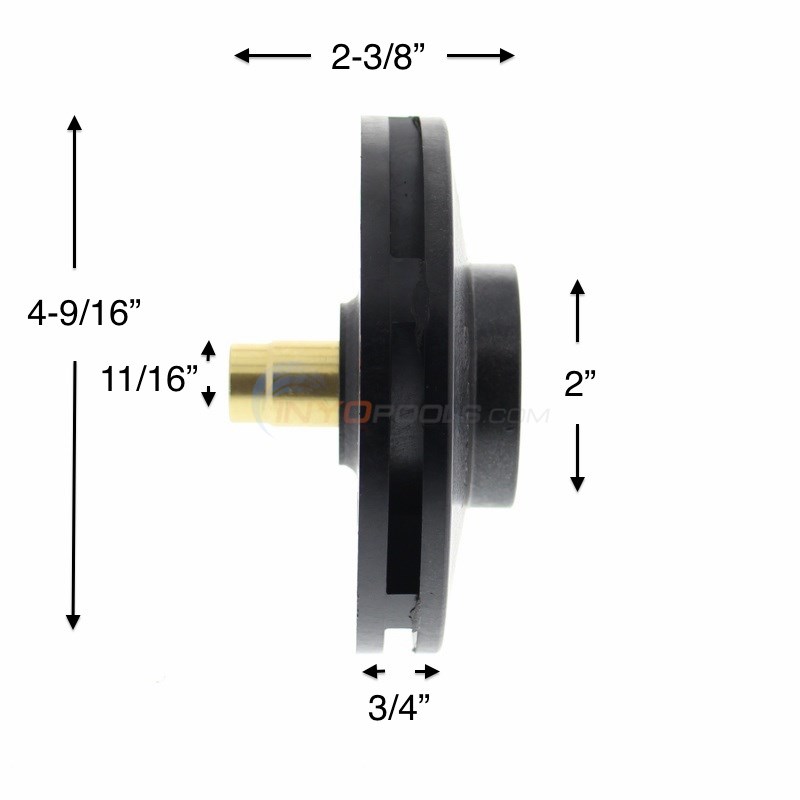

Dimensions 4.6" X 0.7"

Alternate Part #'s 1012055, 25305-615-000, SP2615C, SPX2615C, 35-150-2463, HAYSPX2615C, HPPSPX2615C

Product Description

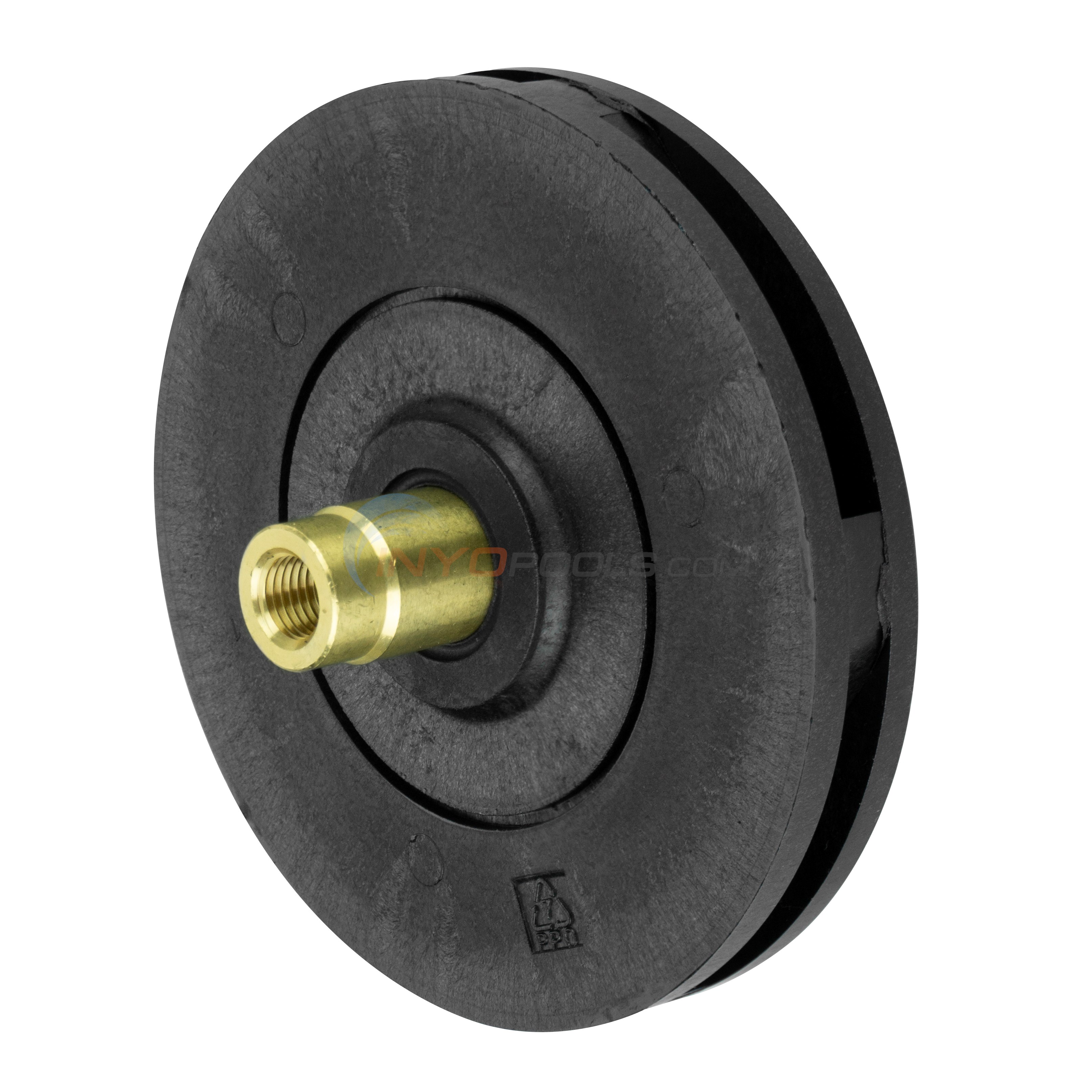

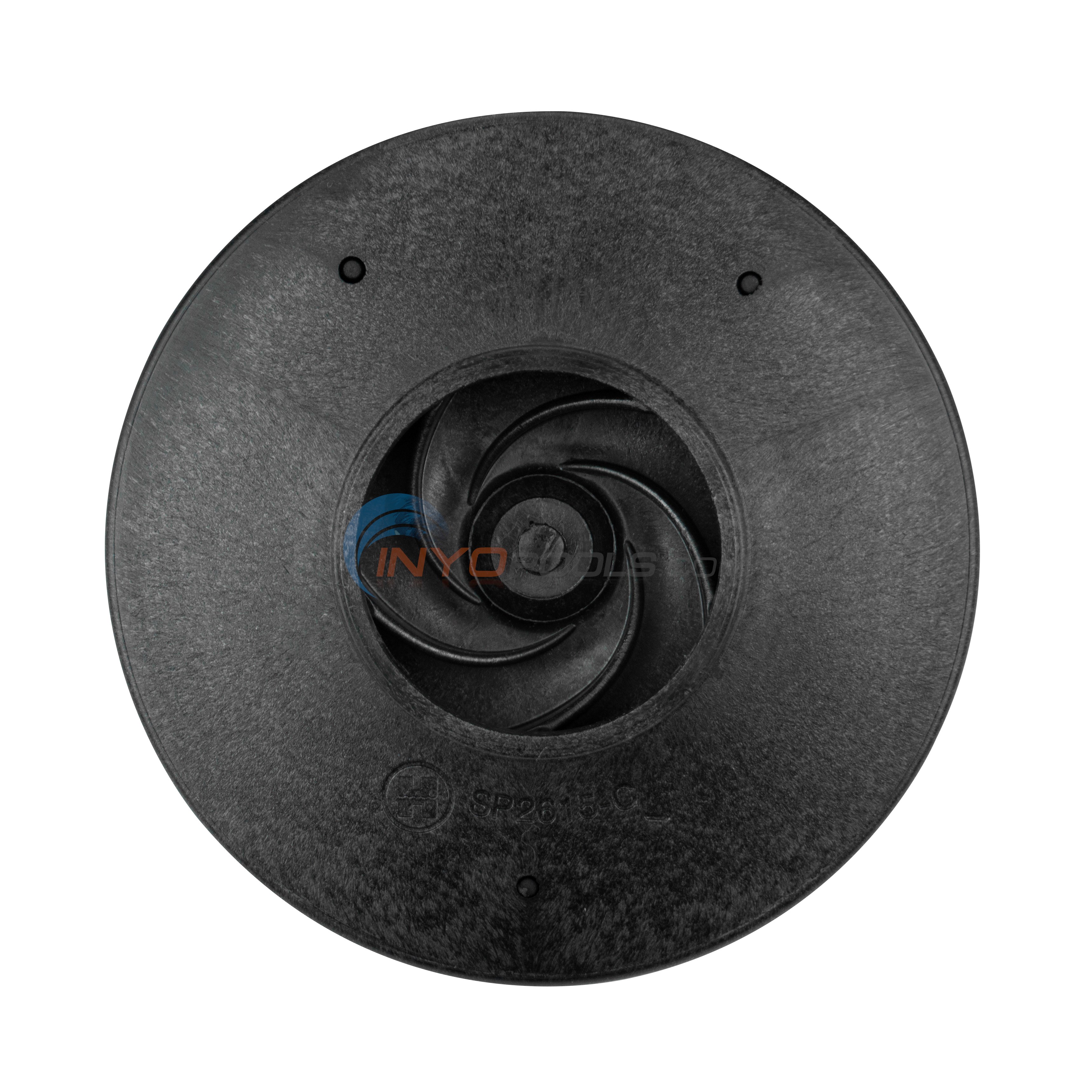

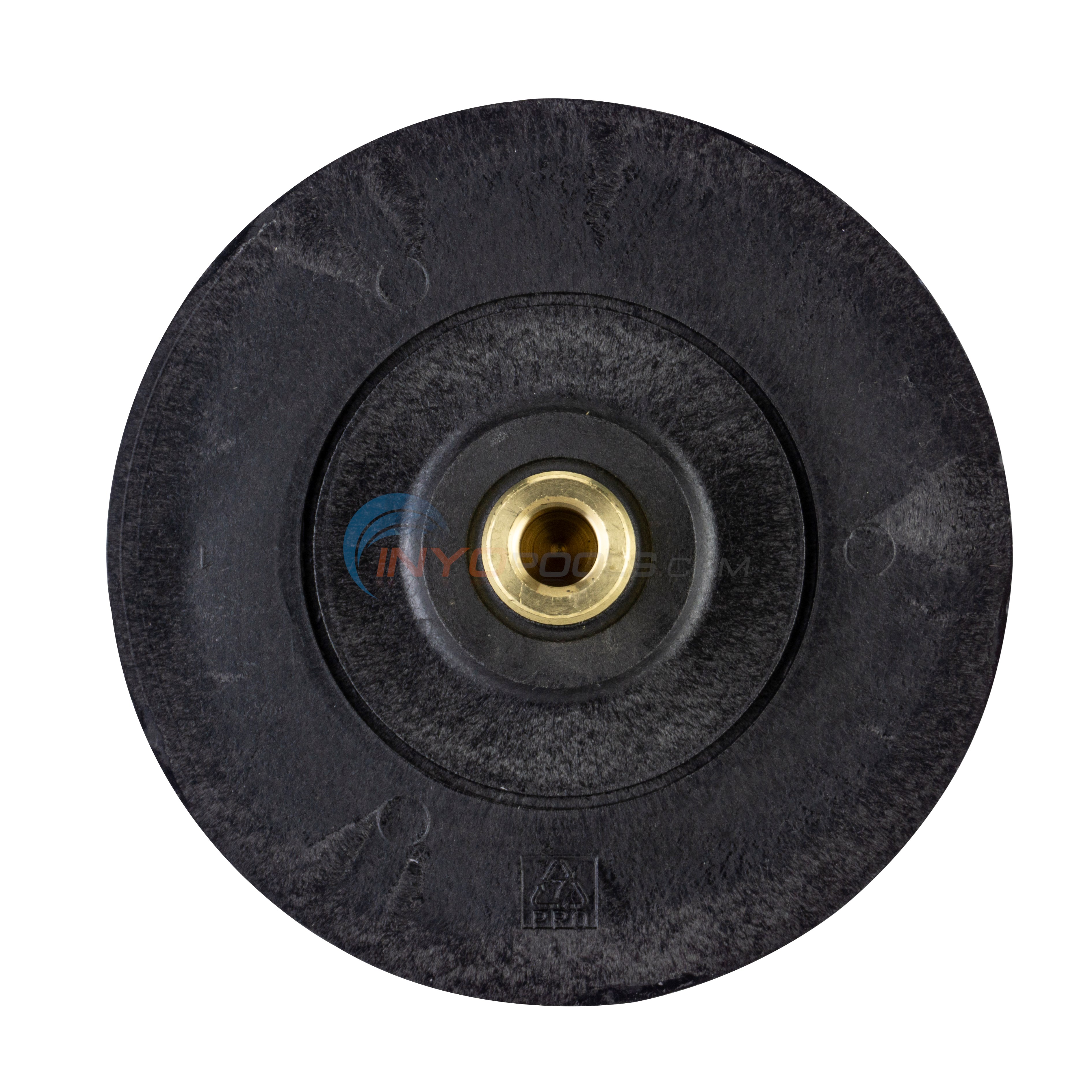

Impeller 2.0THP - SPX2615C Super Pump & MaxFlo


Impeller 2.0 THP - SPX2615C for Hayward Super II Models Manufactured in 1987

Product Specifications

Pump Model:
Super Pump & MaxFlo
1.5 Full & 2 Uprate HP

?     Asked on 3/31/2017by Spenser McKenzie

I have this impeller and im unsure which pump it went too. what is the model of the pump that this impeller will go too?

A  Answered on 3/31/2017 by InyoPools Product Specialist Scott W.

That impeller will go on the Max-Flo and the Super 2.

?     Asked on 7/2/2018by Redonion

will this fit Hayward SP2610X15 Super Pump

A  Answered on 7/2/2018 by InyoPools Product Specialist Hector F.

This impeller does work on a Hayward Super Pump but it is not the original impeller model for this specific Super Pump model. The part number for the original impeller on this specific Super Pump model is 5110-10DA

?     Asked on 8/18/2018by Bob Haas

Which impeller do I need for a dual speed B973T (B2973T) motor?

A  Answered on 8/18/2018 by InyoPools Product Specialist Lennox H.

Hi, Bob. We will need to know the pump model in order to locate the correct size impeller.

?     Asked on 5/29/2019by Ron

I have a SP1610Z1M pump. What seal Kit, Impeller and other items do I need to rebuild? the motor is fine as is the housings. Thanks Ron

A  Answered on 5/29/2019 by InyoPools Product Specialist Michelle B.

Can you please send a side view picture of the entire pump ?

?     Asked on 5/28/2020by Chris

I have a ca. 2014 SP2615X20 SuperPump and the 2 HP impeller is an SP2615-C. The impeller has a brass shaft but with a steel collar and with two nubs on it? The replacement pump seal PS-201 does not seem to fit over my impeller? What would be the correct replacement seal and impeller for this pump with a 2 HP motor?


A  Answered on 10/21/2020 by InyoPools Product Specialist Hector F.

Hi Chris, so that metal collar on your impeller is actually the inner part of your old shaft seal. You will need to remove that using pliers. For your model SP2615X20 Hayward Super Pump, you can use shaft seal part number 5110-11 for a standard chlorine swimming pool and part number 5250-235 for a saltwater swimming pool. Here is a guide that we put together called "How To Replace a Pool Motor Shaft Seal" that may also assist.
