Hayward Super II EZ Find Chart (Impeller, Diffuser, Seal Plate) Parts

Hayward Super II EZ Find Chart (Impeller, Diffuser, Seal Plate)

CLICK HERE FOR A COMPLETE LISTING OF HAYWARD SUPER II PUMP PARTS

Hayward Super II EZ Find Chart (Impeller, Diffuser, Seal Plate) Diagram

Click to zoom in

Diagram #	Part Title
*	Impeller, 1/2-3/4 Hp,sp2605-c
*	Generic Super Pump™ Style Diffuser
*	Plate, Seal, Sp3000-e

View Parts List

Diagram #	Part Title
*	Impeller, 1/2-3/4 Hp,sp2605-c
*	Generic Super Pump™ Style Diffuser
*	Plate, Seal, Sp3000-e

Available Parts:

Impeller, Sp3005-c, Hayward

Part # 5110-10G Mfg # SPX3005C

Impeller, Sp3005-c, Hayward

$26.51 IN STOCK

Full Rate H.P. 1/2 HP Up Rate H.P. 3/4 HP Pump Model SP3005X7 Model Year N/A

Full Rate H.P. 1/2 HP Up Rate H.P. 3/4 HP Pump Model SP3005X7 Model Year N/A

Qty:

Impeller, Sp3007-c, Hayward

Part # 5110-10H Mfg # SPX3007C

Impeller, Sp3007-c, Hayward

$26.51 IN STOCK

Full Rate H.P. 3/4 HP Up Rate H.P. 1 HP Pump Model SP3007X10(-2) Model Year N/A

Full Rate H.P. 3/4 HP Up Rate H.P. 1 HP Pump Model SP3007X10(-2) Model Year N/A

Qty:

Hayward Super II & RS 1.0 HP and 1.5HP Full Rated Impeller

Part # SPX3010C

Hayward Super II & RS 1.0 HP and 1.5HP Full Rated Impeller

$44.84 IN STOCK

Full Rate H.P. 1 HP Up Rate H.P. 1.5 HP Pump Model SP3010X15(-2) Model Year 1988-Present

Full Rate H.P. 1 HP Up Rate H.P. 1.5 HP Pump Model SP3010X15(-2) Model Year 1988-Present

Qty:

Impeller, Sp3015-c, Hayward

Part # 5110-10K Mfg # SPX3015C

Impeller, Sp3015-c, Hayward

$57.03 IN STOCK

Full Rate H.P. 1.5 HP Up Rate H.P. 2 HP Pump Model SP3015X20(-2) Model Year 1988-89

Full Rate H.P. 1.5 HP Up Rate H.P. 2 HP Pump Model SP3015X20(-2) Model Year 1988-89

Qty:

Impeller, Sp3016-c, Hayward

Part # 5110-10L Mfg # SPX3016C

Impeller, Sp3016-c, Hayward

$72.50 IN STOCK

Full Rate H.P. 1.5 HP Up Rate H.P. 2 HP Pump Model SP3016X20 Model Year 1990- Present

Full Rate H.P. 1.5 HP Up Rate H.P. 2 HP Pump Model SP3016X20 Model Year 1990- Present

Qty:

Impeller / Diffusser / Upgrade Kit

Part # 5110-100 Mfg # SPX3020CKIT

Impeller / Diffusser / Upgrade Kit

$91.25 IN STOCK

Full Rate H.P. 2 HP Up Rate H.P. 2.5 HP Pump Model SP3020X25(-2) Model Year Up to 1989

Full Rate H.P. 2 HP Up Rate H.P. 2.5 HP Pump Model SP3020X25(-2) Model Year Up to 1989

Qty:

Impeller, Sp3021-c, Hayward

Part # 5110-10N Mfg # SPX3021C

Impeller, Sp3021-c, Hayward

$79.84 IN STOCK

Full Rate H.P. 2 HP Up Rate H.P. 2.5 HP Pump Model SP3021X25 Model Year 1990-Present

Full Rate H.P. 2 HP Up Rate H.P. 2.5 HP Pump Model SP3021X25 Model Year 1990-Present

Qty:

Impeller/diffuser Upgrade Kit Spx3025ckit

Part # 5110-102 Mfg # SPX3025CKIT

Impeller/diffuser Upgrade Kit Spx3025ckit

$97.76 IN STOCK

Full Rate H.P. 2.5 HP Up Rate H.P. 3 HP Pump Model SP3025X30 Model Year Up to 1989

Full Rate H.P. 2.5 HP Up Rate H.P. 3 HP Pump Model SP3025X30 Model Year Up to 1989

Qty:

Impeller, Sp3026-c, Hayward

Part # 5110-10R Mfg # SPX3026C

Impeller, Sp3026-c, Hayward

$63.96 IN STOCK

Full Rate H.P. 2.5 HP Up Rate H.P. 3 HP Pump Model SP3026X30 Model Year N/A

Full Rate H.P. 2.5 HP Up Rate H.P. 3 HP Pump Model SP3026X30 Model Year N/A

Qty:

Diffuser, Sp3000-bn

Part # 5110-09F Mfg # SPX3000BN

Diffuser, Sp3000-bn

$31.82 IN STOCK

Full Rate H.P. 1/2 HP Up Rate H.P. 3/4 HP Pump Model SP3005X7 Model Year N/A

Full Rate H.P. 1/2 HP Up Rate H.P. 3/4 HP Pump Model SP3005X7 Model Year N/A

Qty:

Diffuser, Sp3000-bn

Part # 5110-09F Mfg # SPX3000BN

Diffuser, Sp3000-bn

$31.82 IN STOCK

Full Rate H.P. 3/4 HP Up Rate H.P. 1 HP Pump Model SP3007X10(-2) Model Year N/A

Full Rate H.P. 3/4 HP Up Rate H.P. 1 HP Pump Model SP3007X10(-2) Model Year N/A

Qty:

Diffuser, Sp3000-bn

Part # 5110-09F Mfg # SPX3000BN

Diffuser, Sp3000-bn

$31.82 IN STOCK

Full Rate H.P. 1 HP Up Rate H.P. 1.5 HP Pump Model SP3010X15(-2) Model Year 1988-Present

Full Rate H.P. 1 HP Up Rate H.P. 1.5 HP Pump Model SP3010X15(-2) Model Year 1988-Present

Qty:

Diffuser, Sp3000-bn

Part # 5110-09F Mfg # SPX3000BN

Diffuser, Sp3000-bn

$31.82 IN STOCK

Full Rate H.P. 1.5 HP Up Rate H.P. 2 HP Pump Model SP3015X20(-2) Model Year 1988-89

Full Rate H.P. 1.5 HP Up Rate H.P. 2 HP Pump Model SP3015X20(-2) Model Year 1988-89

Qty:

Diffuser, Sp3021-b Hayward

Part # 5110-09H Mfg # SPX3021B

Diffuser, Sp3021-b Hayward

$72.74 IN STOCK

Full Rate H.P. 1.5 HP Up Rate H.P. 2 HP Pump Model SP3016X20 Model Year 1990- Present

Full Rate H.P. 1.5 HP Up Rate H.P. 2 HP Pump Model SP3016X20 Model Year 1990- Present

Qty:

Diffuser, Sp3000-b

Part # 5110-09G Mfg # SPX3000B

Diffuser, Sp3000-b

$57.57 IN STOCK

Full Rate H.P. 2 HP Up Rate H.P. 2.5 HP Pump Model SP3020X25(-2) Model Year Up to 1989

Full Rate H.P. 2 HP Up Rate H.P. 2.5 HP Pump Model SP3020X25(-2) Model Year Up to 1989

Qty:

Diffuser, Sp3021-b Hayward

Part # 5110-09H Mfg # SPX3021B

Diffuser, Sp3021-b Hayward

$72.74 IN STOCK

Full Rate H.P. 2 HP Up Rate H.P. 2.5 HP Pump Model SP3021X25 Model Year 1990-Present

Full Rate H.P. 2 HP Up Rate H.P. 2.5 HP Pump Model SP3021X25 Model Year 1990-Present

Qty:

Diffuser, Sp3000-b

Part # 5110-09G Mfg # SPX3000B

Diffuser, Sp3000-b

$57.57 IN STOCK

Full Rate H.P. 2.5 HP Up Rate H.P. 3 HP Pump Model SP3025X30 Model Year Up to 1989

Full Rate H.P. 2.5 HP Up Rate H.P. 3 HP Pump Model SP3025X30 Model Year Up to 1989

Qty:

Diffuser, Sp3021-b Hayward

Part # 5110-09H Mfg # SPX3021B

Diffuser, Sp3021-b Hayward

$72.74 IN STOCK

Full Rate H.P. 2.5 HP Up Rate H.P. 3 HP Pump Model SP3026X30 Model Year N/A

Full Rate H.P. 2.5 HP Up Rate H.P. 3 HP Pump Model SP3026X30 Model Year N/A

Qty:

Plate, Seal, Sp3020-e Hayward

Part # 5110-13E Mfg # SPX3020E

Plate, Seal, Sp3020-e Hayward

$35.51 IN STOCK

Full Rate H.P. ALL Non EE Models Up Rate H.P. ALL Non EE Models Pump Model ALL Non EE Models Model Year 1988-Present

Full Rate H.P. ALL Non EE Models Up Rate H.P. ALL Non EE Models Pump Model ALL Non EE Models Model Year 1988-Present

Qty:

Impeller, 1/2-3/4 Hp,sp2605-c

Part # 5110-10BA Mfg # SPX2605C

Impeller, 1/2-3/4 Hp,sp2605-c

$45.62 IN STOCK

Full Rate H.P 1/2 HP Up Rate H.P. 3/4 HP Pump Model N/A Model Year N/A

Full Rate H.P 1/2 HP Up Rate H.P. 3/4 HP Pump Model N/A Model Year N/A

Qty:

*

Impeller, Sp2607-c (spx2607c)

Part # 5110-10CA Mfg # SPX2607-C

Impeller, Sp2607-c (spx2607c)

NOT AVAILABLE

Full Rate H.P 3/4 HP Up Rate H.P. 1 HP Pump Model SP3007EEAZ Model Year N/A

Full Rate H.P 3/4 HP Up Rate H.P. 1 HP Pump Model SP3007EEAZ Model Year N/A

*

Hayward Impeller, Sp 2610-c (spx2610c)

Part # 5110-10DA Mfg # SPX2610-C

Hayward Impeller, Sp 2610-c (spx2610c)

NOT AVAILABLE

Full Rate H.P 1 HP Up Rate H.P. 1.5 HP Pump Model SP3010EEAZ Model Year N/A

Full Rate H.P 1 HP Up Rate H.P. 1.5 HP Pump Model SP3010EEAZ Model Year N/A

Impeller, Sp2615-c, Hayward

Part # 5110-10EA Mfg # SPX2615C

Impeller, Sp2615-c, Hayward

$67.29 IN STOCK

Full Rate H.P 1.5 HP Up Rate H.P. 2 HP Pump Model SP3015EEAZ Model Year N/A

Full Rate H.P 1.5 HP Up Rate H.P. 2 HP Pump Model SP3015EEAZ Model Year N/A

Qty:

Impeller / Diffusser / Upgrade Kit

Part # 5110-100 Mfg # SPX3020CKIT

Impeller / Diffusser / Upgrade Kit

$91.25 IN STOCK

Full Rate H.P 2 HP Up Rate H.P. 2.5 HP Pump Model SP3020EEAZ Model Year N/A

Full Rate H.P 2 HP Up Rate H.P. 2.5 HP Pump Model SP3020EEAZ Model Year N/A

Qty:

Impeller/diffuser Upgrade Kit Spx3025ckit

Part # 5110-102 Mfg # SPX3025CKIT

Impeller/diffuser Upgrade Kit Spx3025ckit

$97.76 IN STOCK

Full Rate H.P 2.5 HP Up Rate H.P. 3 HP Pump Model SP3025EEAZ Model Year N/A

Full Rate H.P 2.5 HP Up Rate H.P. 3 HP Pump Model SP3025EEAZ Model Year N/A

Qty:

Generic Super Pump™ Style Diffuser

Part # PL2673 Mfg # PL2673

Generic Super Pump™ Style Diffuser

$32.44 IN STOCK

Full Rate H.P 1/2 HP Up Rate H.P. 3/4 HP Pump Model N/A Model Year N/A

Full Rate H.P 1/2 HP Up Rate H.P. 3/4 HP Pump Model N/A Model Year N/A

Qty:

Generic Super Pump™ Style Diffuser

Part # PL2673 Mfg # PL2673

Generic Super Pump™ Style Diffuser

$32.44 IN STOCK

Full Rate H.P 3/4 HP Up Rate H.P. 1 HP Pump Model SP3007EEAZ Model Year N/A

Full Rate H.P 3/4 HP Up Rate H.P. 1 HP Pump Model SP3007EEAZ Model Year N/A

Qty:

Generic Super Pump™ Style Diffuser

Part # PL2673 Mfg # PL2673

Generic Super Pump™ Style Diffuser

$32.44 IN STOCK

Full Rate H.P 1 HP Up Rate H.P. 1.5 HP Pump Model SP3010EEAZ Model Year N/A

Full Rate H.P 1 HP Up Rate H.P. 1.5 HP Pump Model SP3010EEAZ Model Year N/A

Qty:

Generic Super Pump™ Style Diffuser

Part # PL2673 Mfg # PL2673

Generic Super Pump™ Style Diffuser

$32.44 IN STOCK

Full Rate H.P 1.5 HP Up Rate H.P. 2 HP Pump Model SP3015EEAZ Model Year N/A

Full Rate H.P 1.5 HP Up Rate H.P. 2 HP Pump Model SP3015EEAZ Model Year N/A

Qty:

Diffuser, Sp3000-b

Part # 5110-09G Mfg # SPX3000B

Diffuser, Sp3000-b

$57.57 IN STOCK

Full Rate H.P 2 HP Up Rate H.P. 2.5 HP Pump Model SP3020EEAZ Model Year N/A

Full Rate H.P 2 HP Up Rate H.P. 2.5 HP Pump Model SP3020EEAZ Model Year N/A

Qty:

Diffuser, Sp3000-b

Part # 5110-09G Mfg # SPX3000B

Diffuser, Sp3000-b

$57.57 IN STOCK

Full Rate H.P 2.5 HP Up Rate H.P. 3 HP Pump Model SP3025EEAZ Model Year N/A

Full Rate H.P 2.5 HP Up Rate H.P. 3 HP Pump Model SP3025EEAZ Model Year N/A

Qty:

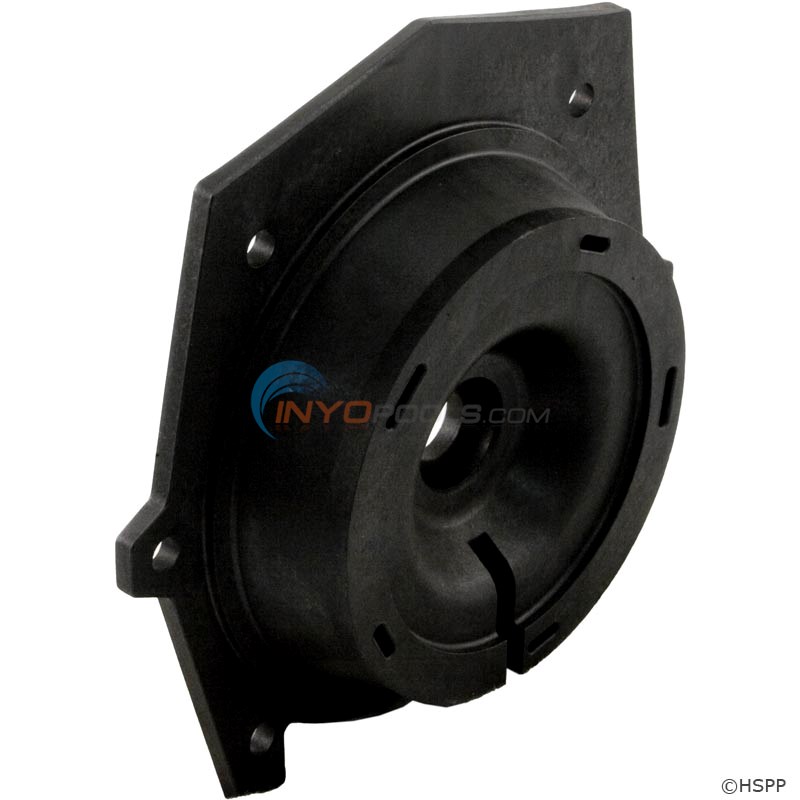

Plate, Seal, Sp3000-e

Part # 5110-13D Mfg # SPX3000E

Plate, Seal, Sp3000-e

$75.68

Full Rate H.P Up to 1.5 HP Up Rate H.P. Up to 2 HP Pump Model Up to SP3015EEAZ Model Year N/A

Full Rate H.P Up to 1.5 HP Up Rate H.P. Up to 2 HP Pump Model Up to SP3015EEAZ Model Year N/A

Plate, Seal, Sp3020-e Hayward

Part # 5110-13E Mfg # SPX3020E

Plate, Seal, Sp3020-e Hayward

$35.51 IN STOCK

Full Rate H.P 2-2.5HP Up Rate H.P. 2.5-3 HP Pump Model SP3020EEA/SP3025EEAZ Model Year N/A

Full Rate H.P 2-2.5HP Up Rate H.P. 2.5-3 HP Pump Model SP3020EEA/SP3025EEAZ Model Year N/A

Qty:

Hayward Super II Standard Efficiency

* Energy Efficient Version
