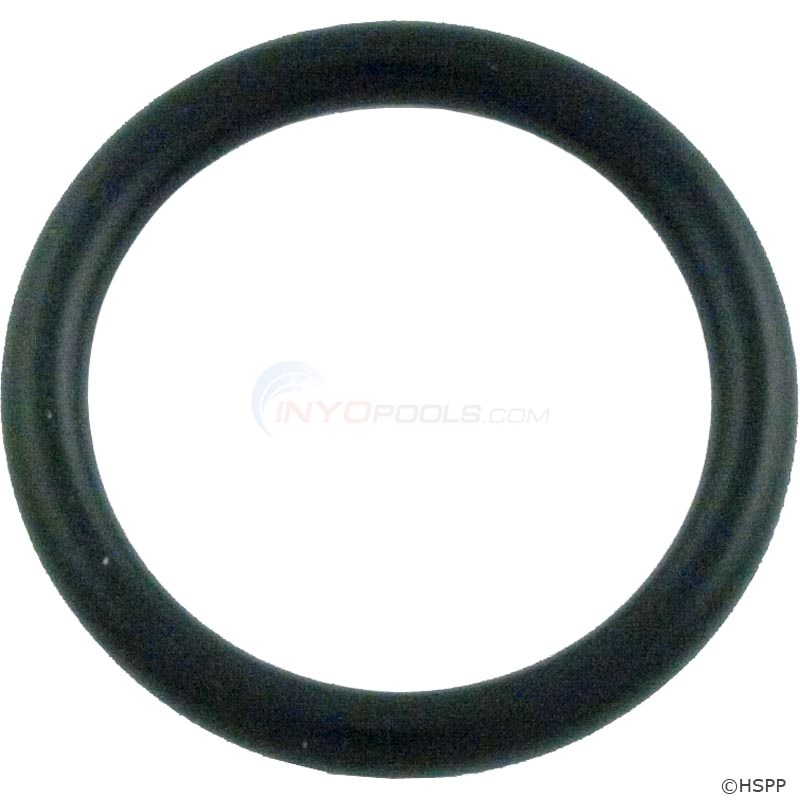

Part # 4656-06
Manufacturer Code 325
Dimensions 1.9" L x 1.9" W x 0.25" D
Alternate Part #'s 152122, 273090, 510050, 51005000, 5280, AMP0611075, O-71, O71, OV11325, PAC0613049, 90-423-5325, APCO2359, PAC-061-3049, PEN273090
INYO # 4656-06 USED ON A NUMBER OF DIFFERENT ITEMS

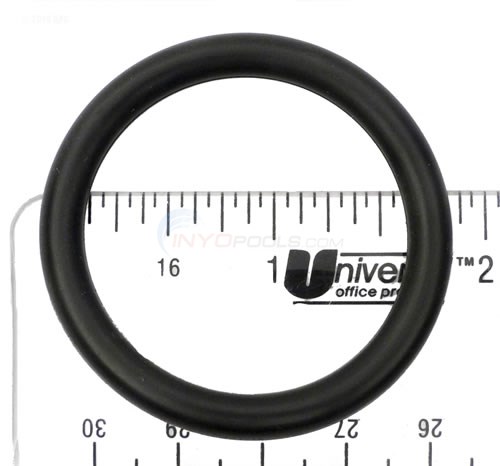

OUTSIDE DIAMETER: 1-7/8"
INSIDE DIAMETER: 1-1/2"
CORD THICKNESS: 3/16"
There are two sizes for the same item # o ring my filter is a PENTAIR FNS Plus 36 P/N 180007 which one do I buy? You list two sizes for part # 23 on your diagram
Outside diameter 1 7/8 or ?
Reply
Hi Kate - The 4600-1474 (191474) would be used on FNS Plus filters manufactured after 05/21/05 and the 4656-06 (51005000) would be used on FNS Plus filters manufactured before 05/21/05. So if you know roughly when your filter was installed then you could determine which o-ring would be needed. We have since updated our page to reflect this information, thank you for bringing this to our attention.
Reply
Is this also for Anthony Pool Filter push pull valve 52Sq Ft surface with a circular top.
Reply
Hi, The American Products 2" Push Pull Valve ABS was also sold under the Anthony brand name, which this o-ring can be used as an Piston O-ring.
Reply
Is this the correct size o-ring for the two sealing orings in the model 263064 backwash valve?
Reply
Hi Jim, so there are a few sealing o rings for this valve. Please see this Pentair Push Pull Slide Valve parts list to help you confirm the proper o rings.
Reply
The Most Recent Reviews
(5 out of 5 stars)
Reviewed By: DIY Poolguy from Cleveland,Ohio ()
Pros: Proper size and fit for application
Cons: none
