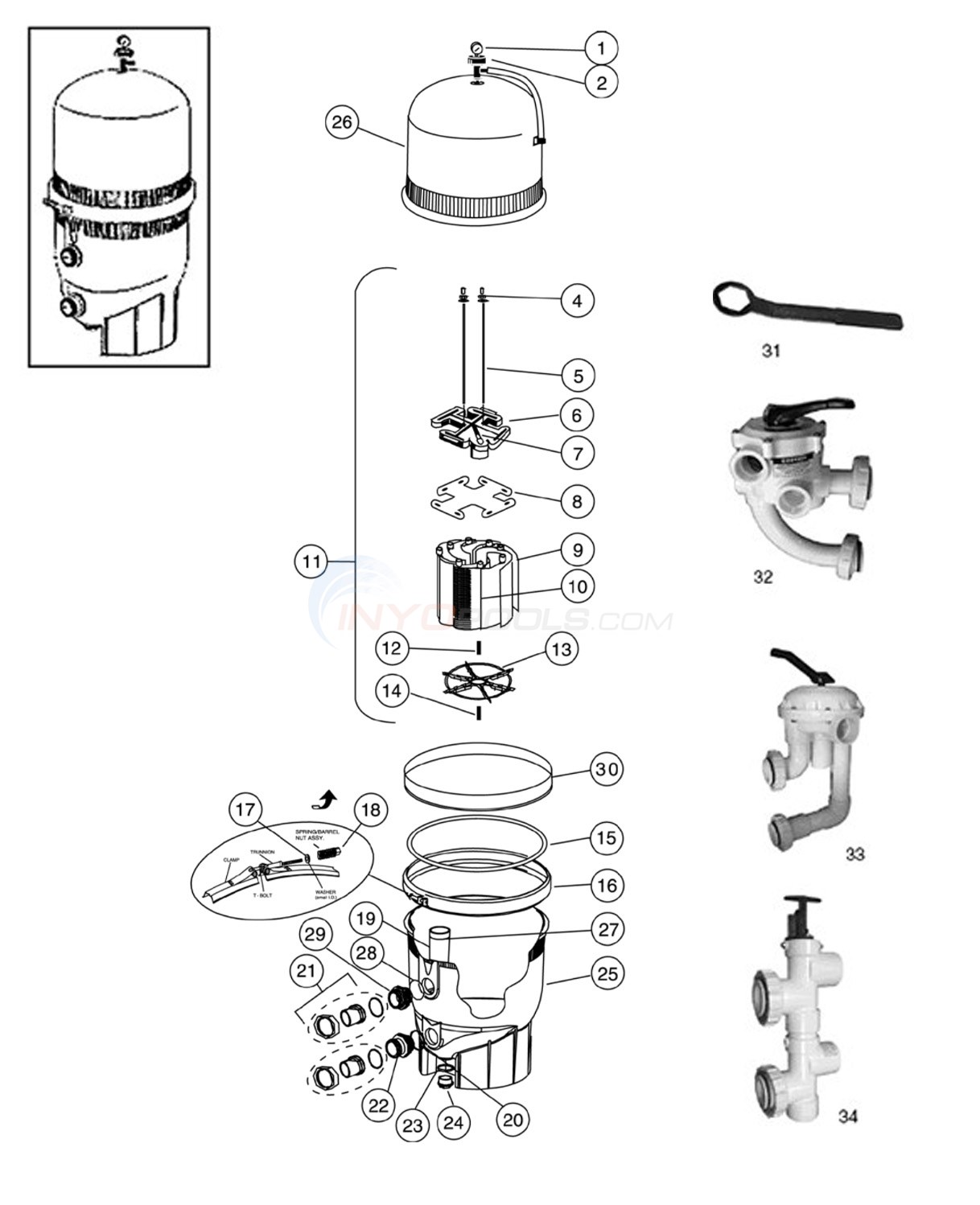

Pentair FNS Plus D.E. Filter 24, 36, 48, 60 Parts

Diagram #	Part Title
*	Pureline Replacement DE Grid Set, 24 sq. ft. Grid Pack 12" (7 Full & 1 Partial)
**	Pentair FNS PLUS Filter O-ring Kit
34	Aftermarket Pentair 2" Slide Valve for DE & Sand Filters Cream
1	Pressure Gauge OEM (53003201)
2	AIR RELIEF MANUAL VALVE ASSEMBLY (98209800)
3	OBSOLETE HOSE AND RETAINER CLIPS
4	NUT, WING 1/4-20 S.S.
5	TIE ROD, 15 1/2" 24 SQ.FT.
6	GENERIC - MANIFOLD, TOP With AIR BLD (REPLACES 59023700 OR 59000400)
6	Pentair (Pac-Fab) Titan and FNS Plus DE Filter Manifold
7	AIR BLEED ASSY., INTERNAL (59023600)
8	TEMPLATE, FILTER
9	24 Sq. Ft. Full Grid 12 (7 Required)
10	24 Sq. Ft. Partial Grid 12 Inches (1 Required)
*	Pureline Replacement DE Grid Set, 24 sq. ft. Grid Pack 12" (7 Full & 1 Partial) for FNSP24
11	Assy, Element Grid 24 Sq Ft Filter
11*	Grid Assy., 60 Sq. Ft. Filter
12	NUT
13	BOTTOM, SPIDER
14	NUT, LOCK 1/4" (3209)
15	O-RING, BODY (PUXP24218)
16	CLAMP ASSEMBLY, PT5000/CLEAN & CLEAR
17	WASHER, 18" CLAMP
18	SPRING BARREL NUT ASSY.
19	ASSY., STANDPIPE, OUTLET, 24 SQ FT
20	BULKHEAD O-RING FOR INLET
21	ADAPTOR KIT, 1 1/2"X2" SLIP (271096 OPTIONAL)
22	ASSY., PIPE, INLET
23	O-RING, 1 3/4IN X 2IN X 1/8IN (4656-09 for Filters Made After 05/21/05
24	Inspection Plug For Filters Made Before 05/21/05
24	Drain Cap. 1-1/2" For Filters Made After 05/21/05
25	TANK BOTTOM ASSY., 24 SQ FT FNS PLUS
26	TANK LID, 24 SQ FT FNS PLUS
27	O-RING (59000600)
28	O-RING, BULKHEAD For Filters Made Before 10/2004
29	Bulkhead, 2" With Groove (194801) For Filters Made Before 10/2004
30	SS BACK-UP RING
31	WRENCH, DRAIN PLUG
32	1 1/2" MULTIPORT VALVE - DE W.G.

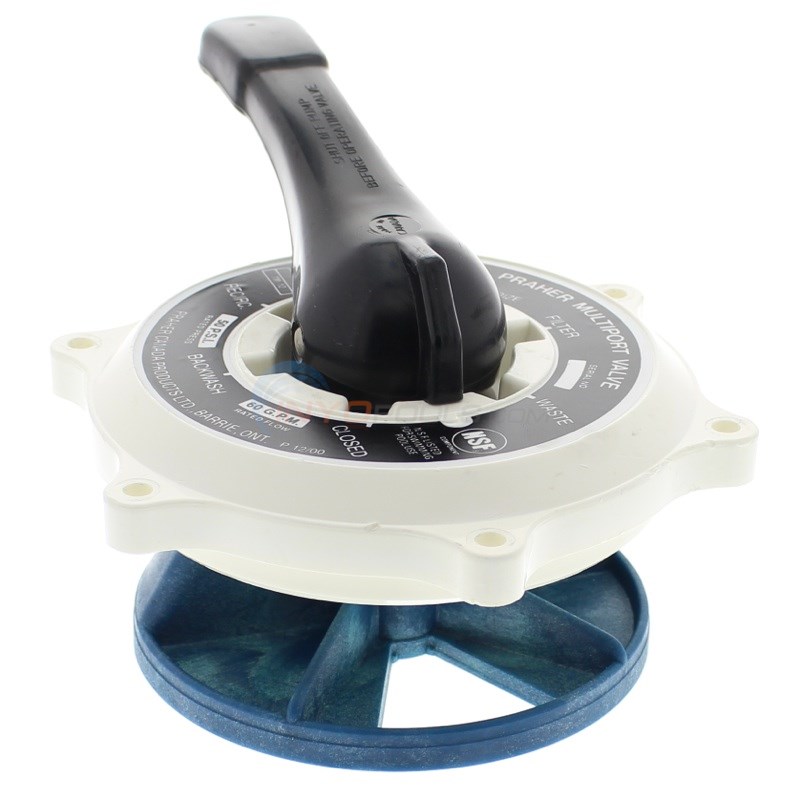

*	Top Assembly, 1-1/2" Valve
*	Diverter Gasket for 1-1/2" SM10 Series & 261177 Valve
*	Top Assy, Valve 2" White w/ decal - E-50-S2
*	Diverter Gasket 2" Valve 5-Spoke For SM20 Series & 261152 Valves
33	VALVE, MULTIPORT HI-FLOW KIT (SLIP ONLY) WG
34	Generic Pentair 2" Slide Valve, Cream

Diagram #	Part Title
*	Pureline Replacement DE Grid Set, 24 sq. ft. Grid Pack 12" (7 Full & 1 Partial)
**	Pentair FNS PLUS Filter O-ring Kit
34	Aftermarket Pentair 2" Slide Valve for DE & Sand Filters Cream
1	Pressure Gauge OEM (53003201)
2	AIR RELIEF MANUAL VALVE ASSEMBLY (98209800)
3	OBSOLETE HOSE AND RETAINER CLIPS
4	NUT, WING 1/4-20 S.S.
5	TIE ROD, 15 1/2" 24 SQ.FT.
6	GENERIC - MANIFOLD, TOP With AIR BLD (REPLACES 59023700 OR 59000400)
6	Pentair (Pac-Fab) Titan and FNS Plus DE Filter Manifold
7	AIR BLEED ASSY., INTERNAL (59023600)
8	TEMPLATE, FILTER
9	24 Sq. Ft. Full Grid 12 (7 Required)
10	24 Sq. Ft. Partial Grid 12 Inches (1 Required)
*	Pureline Replacement DE Grid Set, 24 sq. ft. Grid Pack 12" (7 Full & 1 Partial) for FNSP24
11	Assy, Element Grid 24 Sq Ft Filter
11*	Grid Assy., 60 Sq. Ft. Filter
12	NUT
13	BOTTOM, SPIDER
14	NUT, LOCK 1/4" (3209)
15	O-RING, BODY (PUXP24218)
16	CLAMP ASSEMBLY, PT5000/CLEAN & CLEAR
17	WASHER, 18" CLAMP
18	SPRING BARREL NUT ASSY.
19	ASSY., STANDPIPE, OUTLET, 24 SQ FT
20	BULKHEAD O-RING FOR INLET
21	ADAPTOR KIT, 1 1/2"X2" SLIP (271096 OPTIONAL)
22	ASSY., PIPE, INLET
23	O-RING, 1 3/4IN X 2IN X 1/8IN (4656-09 for Filters Made After 05/21/05
24	Inspection Plug For Filters Made Before 05/21/05
24	Drain Cap. 1-1/2" For Filters Made After 05/21/05
25	TANK BOTTOM ASSY., 24 SQ FT FNS PLUS
26	TANK LID, 24 SQ FT FNS PLUS
27	O-RING (59000600)
28	O-RING, BULKHEAD For Filters Made Before 10/2004
29	Bulkhead, 2" With Groove (194801) For Filters Made Before 10/2004
30	SS BACK-UP RING
31	WRENCH, DRAIN PLUG
32	1 1/2" MULTIPORT VALVE - DE W.G.
*	Top Assembly, 1-1/2" Valve
*	Diverter Gasket for 1-1/2" SM10 Series & 261177 Valve
*	Top Assy, Valve 2" White w/ decal - E-50-S2
*	Diverter Gasket 2" Valve 5-Spoke For SM20 Series & 261152 Valves
33	VALVE, MULTIPORT HI-FLOW KIT (SLIP ONLY) WG
34	Generic Pentair 2" Slide Valve, Cream

Available Parts:

Part # PL0186

Pureline Replacement DE Grid Set, 24 sq. ft. Grid Pack 12" (7 Full & 1 Partial)

$129.00 IN STOCK

Model FNSP24 Grid Height 12"

Qty:

ADD TO CART

Part # PL0187

Pureline Replacement DE Grid Set, 36 sq. ft. Grid Pack 18" (7 Full & 1 Partial)

$149.00 IN STOCK

Model FNSP36 Grid Height 18"

Qty:

ADD TO CART

Part # PL0188

Pureline Replacement DE Grid Set, 48 sq. ft. Grid Pack 24" (7 Full & 1 Partial)

$159.00 IN STOCK

Model FNSP48 Grid Height 24"

Qty:

ADD TO CART

Part # PL0189

Pureline Replacement DE Grid Set, 60 sq. ft. Grid Pack 30" (7 Full & 1 Partial)

$189.00 IN STOCK

Model FNSP60 Grid Height 30"

Qty:

ADD TO CART

Part # APCK1168 Mfg # APCK1168

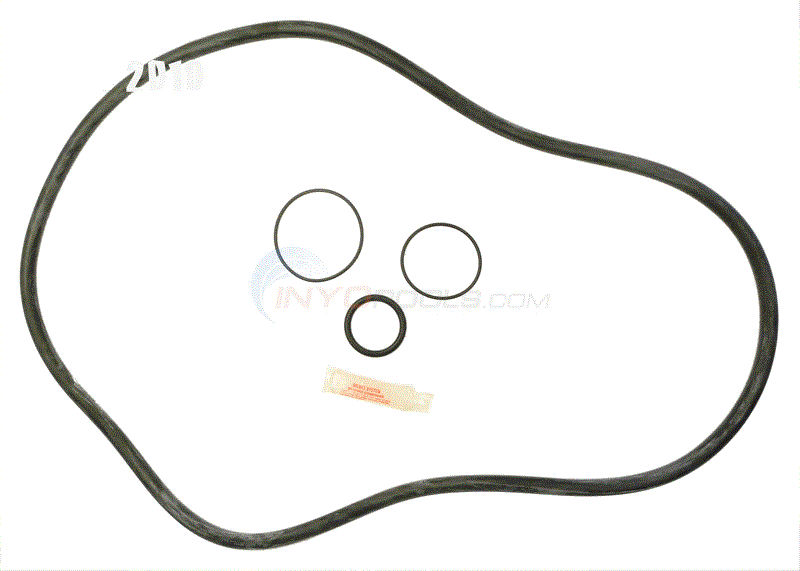

Pentair FNS PLUS Filter O-ring Kit

$96.47 IN STOCK

Qty:

ADD TO CART

Part # 25831-119-750 Mfg # 263064

Aftermarket Pentair 2" Slide Valve for DE & Sand Filters Cream

$119.41 IN STOCK

Qty:

ADD TO CART

Part # 4726-1 Mfg # 190058

Pressure Gauge OEM (53003201)

$57.03 IN STOCK

Qty:

ADD TO CART

Part # 4726-0 Mfg # 101D-204D

Bottom Mount Pressure Gauge 0-60 1/4" NPT (Aftermarket)

$16.38 IN STOCK

Qty:

ADD TO CART

Part # 4655-03D Mfg # 25357-982-00

AIR RELIEF MANUAL VALVE ASSEMBLY (98209800)

$34.19 IN STOCK

Qty:

ADD TO CART

Mfg # 98201200

OBSOLETE HOSE AND RETAINER CLIPS

NOT AVAILABLE

Part # 4672-16 Mfg # 071404

NUT, WING 1/4-20 S.S.

$18.16 IN STOCK

Qty:

ADD TO CART

Part # 4657-20 Mfg # V38-106

TIE ROD, 15 1/2" 24 SQ.FT.

$69.29

VIEW DETAILS

Part # 4657-20A Mfg # V38-107

TIE ROD, 21 1/2" 36 SQ.FT.

$67.16

VIEW DETAILS

Part # 4657-20B Mfg # V38-108

TIE ROD, 27 1/2" 48 SQ.FT.

$59.70

VIEW DETAILS

Part # 4657-20C Mfg # 59002700

TIE ROD, 33 1/2" 60 SQ.FT.

$68.23 IN STOCK

Qty:

ADD TO CART

Part # 25357-600 Mfg # 25357-600-000

GENERIC - MANIFOLD, TOP With AIR BLD (REPLACES 59023700 OR 59000400)

$102.04 IN STOCK

Qty:

ADD TO CART

Part # 59023700

Pentair (Pac-Fab) Titan and FNS Plus DE Filter Manifold

$156.74 IN STOCK

Qty:

ADD TO CART

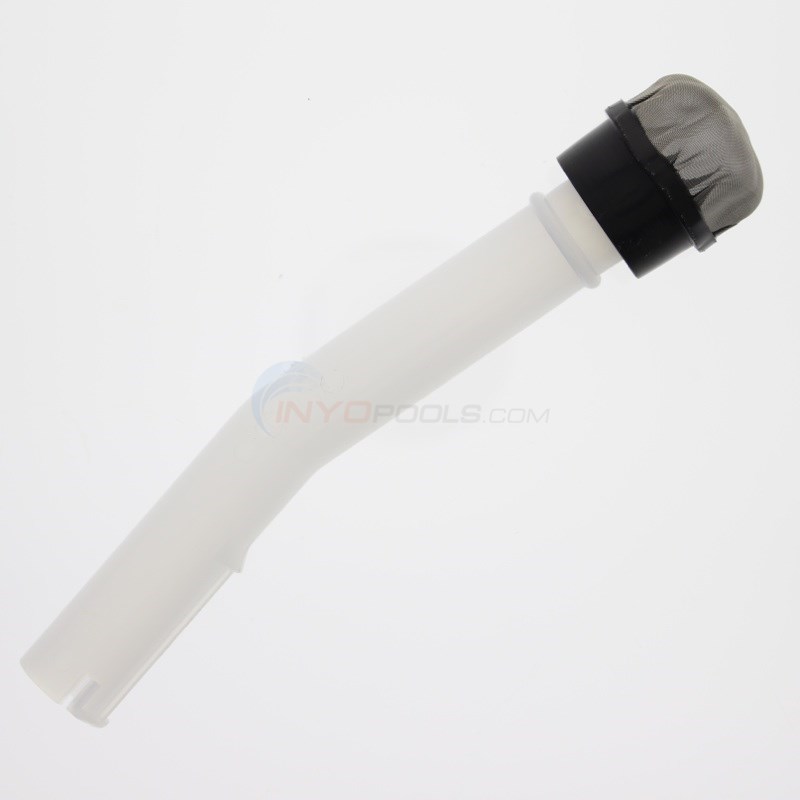

Part # 4657-35 Mfg # 190092

AIR BLEED ASSY., INTERNAL (59023600)

$34.10 IN STOCK

Qty:

ADD TO CART

Part # 4657-90 Mfg # 98725800

TEMPLATE, FILTER

$25.74 IN STOCK

Qty:

ADD TO CART

Part # FG1002 Mfg # 59001100

24 Sq. Ft. Full Grid 12 (7 Required)

NOT AVAILABLE

Part # FG1003 Mfg # 59001800

36 Sq. Ft. Full Grid 18 (7 required)

NOT AVAILABLE

Part # FG1004 Mfg # 59002400

48 Sq. Ft. Full Grid 24 (7 Required)

NOT AVAILABLE

Part # FG1005 Mfg # 59003000

60 Sq. Ft. Full Grid 30 (7 Required)

NOT AVAILABLE

Part # PG1902 Mfg # 59001000

24 Sq. Ft. Partial Grid 12 Inches (1 Required)

NOT AVAILABLE

Part # PG1903 Mfg # 59001700

36 Sq. Ft. Partial Grid 18 Inches (1 Required)

NOT AVAILABLE

Part # PG1904 Mfg # 59002300

48 Sq. Ft. Partial Grid 24" (1 Required)

NOT AVAILABLE

Part # PG1905 Mfg # PG1905

60 Sq. Ft. Partial Grid 30" (1 Required)

NOT AVAILABLE

Part # PL0186

Pureline Replacement DE Grid Set, 24 sq. ft. Grid Pack 12" (7 Full & 1 Partial) for FNSP24

$129.00 IN STOCK

Model FNSP24

Qty:

ADD TO CART

Part # PL0187

Pureline Replacement DE Grid Set, 36 sq. ft. Grid Pack 18" (7 Full & 1 Partial) for FNSP36

$149.00 IN STOCK

Model FNSP36

Qty:

ADD TO CART

Part # PL0188

Pureline Replacement DE Grid Set, 48 sq. ft. Grid Pack 24" (7 Full & 1 Partial) for FNSP48

$159.00 IN STOCK

Model FNSP48

Qty:

ADD TO CART

Part # PL0189

Pureline Replacement DE Grid Set, 60 sq. ft. Grid Pack 30" (7 Full & 1 Partial) for FNSP60

$189.00 IN STOCK

Model FNSP60

Qty:

ADD TO CART

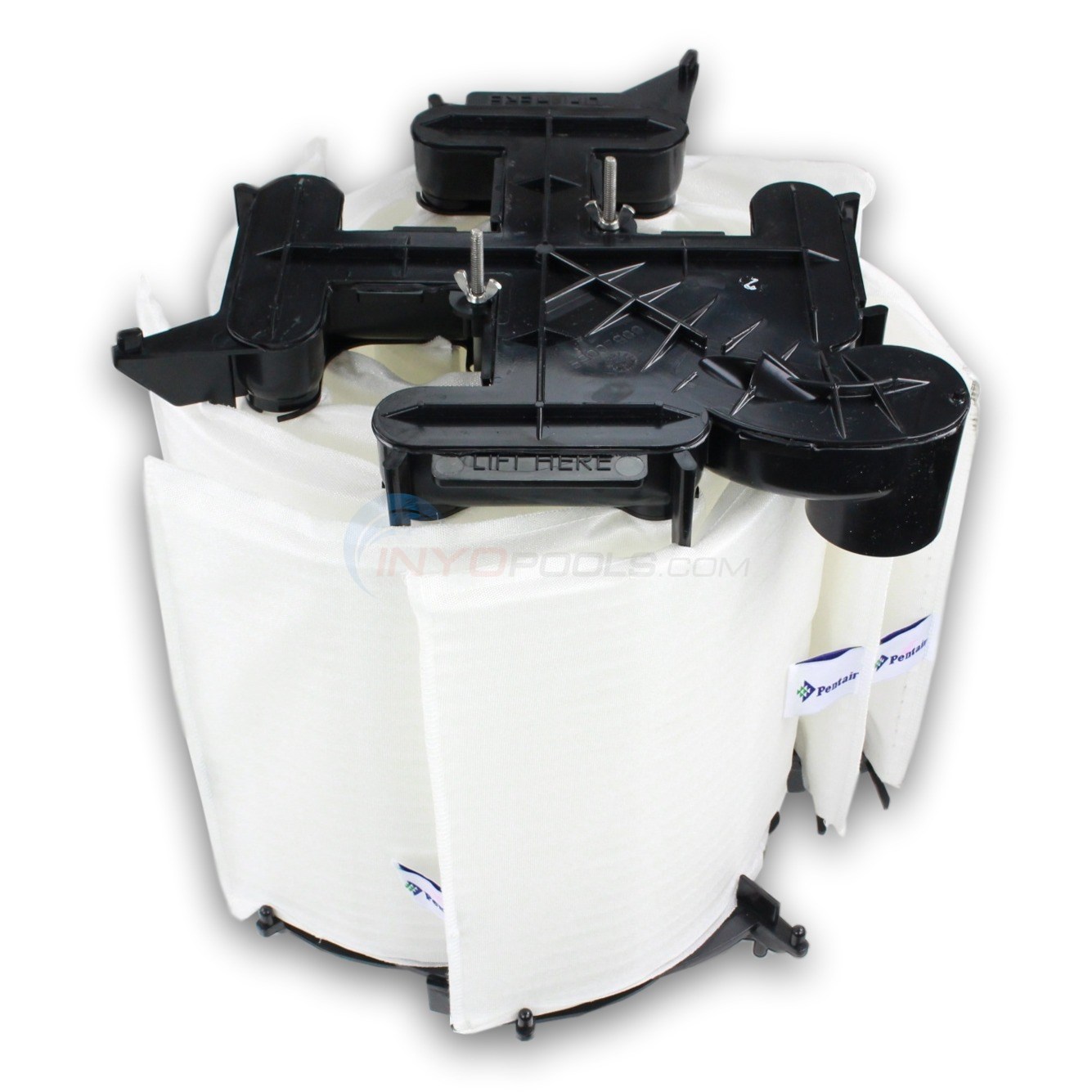

Part # 59023800 Mfg # 59023800

Assy, Element Grid 24 Sq Ft Filter

$447.79 IN STOCK

Qty:

ADD TO CART

Part # 59023500 Mfg # 59023500

Grid Assy., 36 Sq.ft. Filter

$416.96 IN STOCK

Qty:

ADD TO CART

Part # 59023400 Mfg # 59023400

Grid Assy., 48 Sq.ft. Filter

$426.36 IN STOCK

Qty:

ADD TO CART

Part # 59023300 Mfg # 59023300

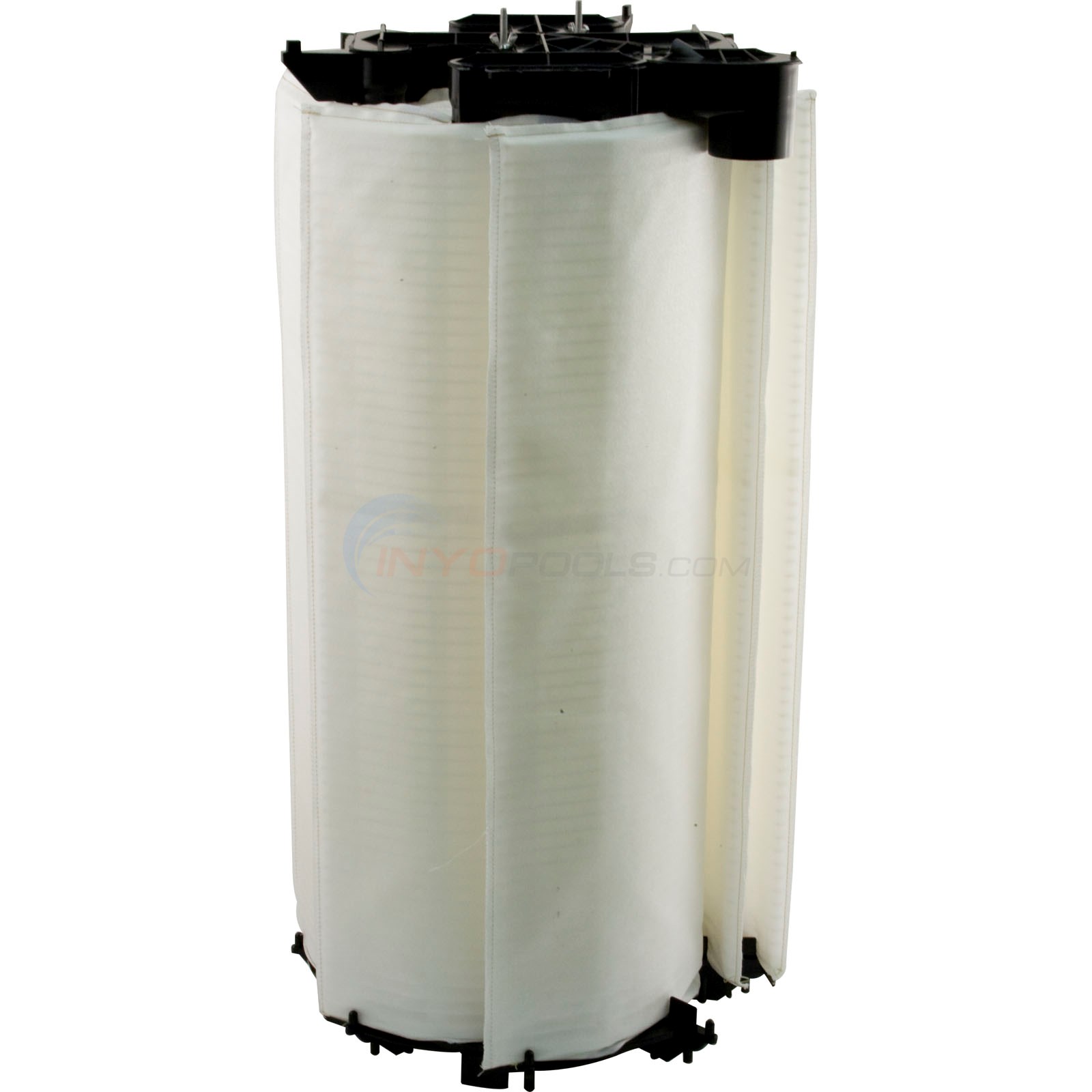

Grid Assy., 60 Sq. Ft. Filter

$513.97 IN STOCK

Qty:

ADD TO CART

11*

Part # 59023300-ALT

Grid Assy., 60 Sq. Ft. Filter

$479.05

VIEW DETAILS

Part # 4659-19 Mfg # 98211400

NUT

$12.78 IN STOCK

Qty:

ADD TO CART

Part # 4657-23 Mfg # 59000500

BOTTOM, SPIDER

$89.50 IN STOCK

Qty:

ADD TO CART

Part # 3267-90 Mfg # RCX3209

NUT, LOCK 1/4" (3209)

$15.66

VIEW DETAILS

Part # 4610-38 Mfg # O-333

O-RING, BODY (PUXP24218)

$30.44 IN STOCK

Qty:

ADD TO CART

Part # 4600-1016 Mfg # 190003

CLAMP ASSEMBLY, PT5000/CLEAN & CLEAR

$298.70 IN STOCK

Qty:

ADD TO CART

Part # 4655-43A Mfg # 53006300

WASHER, 18" CLAMP

$14.44 IN STOCK

Qty:

ADD TO CART

Part # 4654-33 Mfg # 53108900

SPRING BARREL NUT ASSY.

$54.75 IN STOCK

Qty:

ADD TO CART

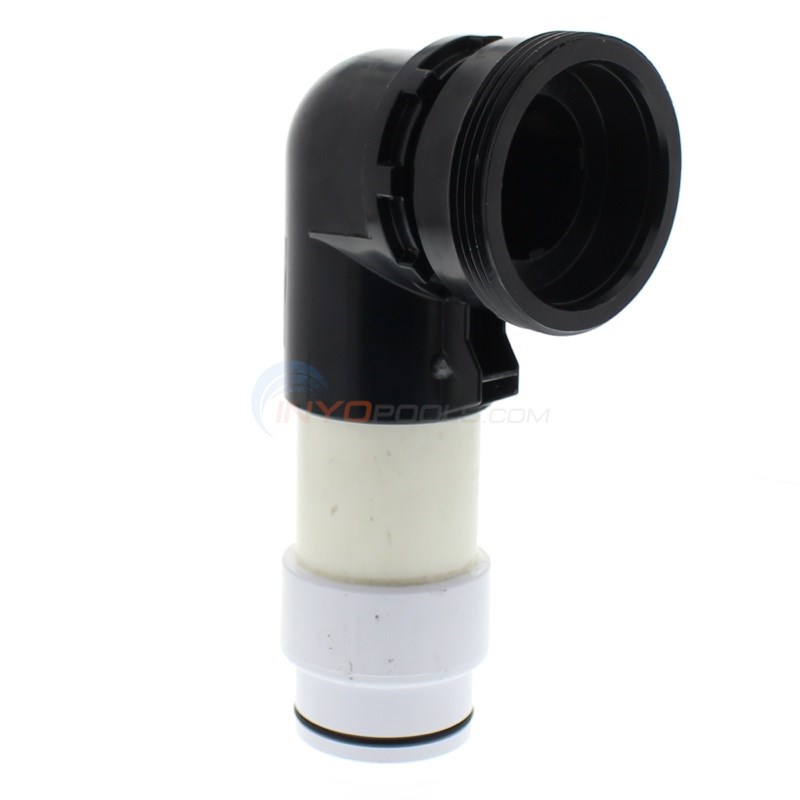

Part # 4600-0034 Mfg # 190034

ASSY., STANDPIPE, OUTLET, 24 SQ FT

$101.27

VIEW DETAILS

Part # 4600-0035 Mfg # 190035

ASSY., STANDPIPE, OUTLET, 36 SQ FT

$110.88 IN STOCK

Qty:

ADD TO CART

Part # 4600-0036 Mfg # 190036

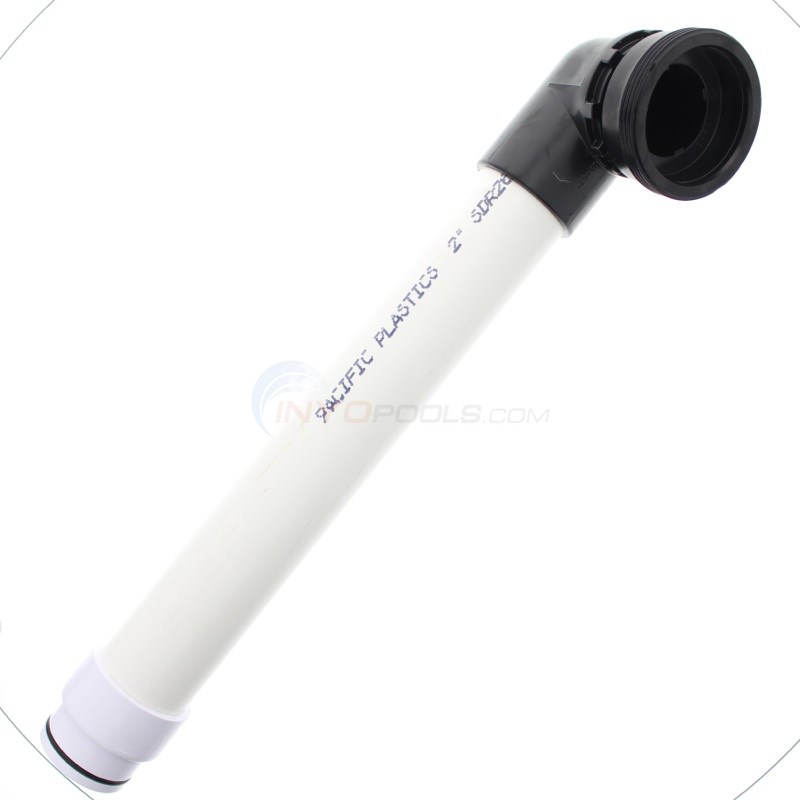

ASSY., STANDPIPE, OUTLET, 48 SQ FT

$129.00 IN STOCK

Qty:

ADD TO CART

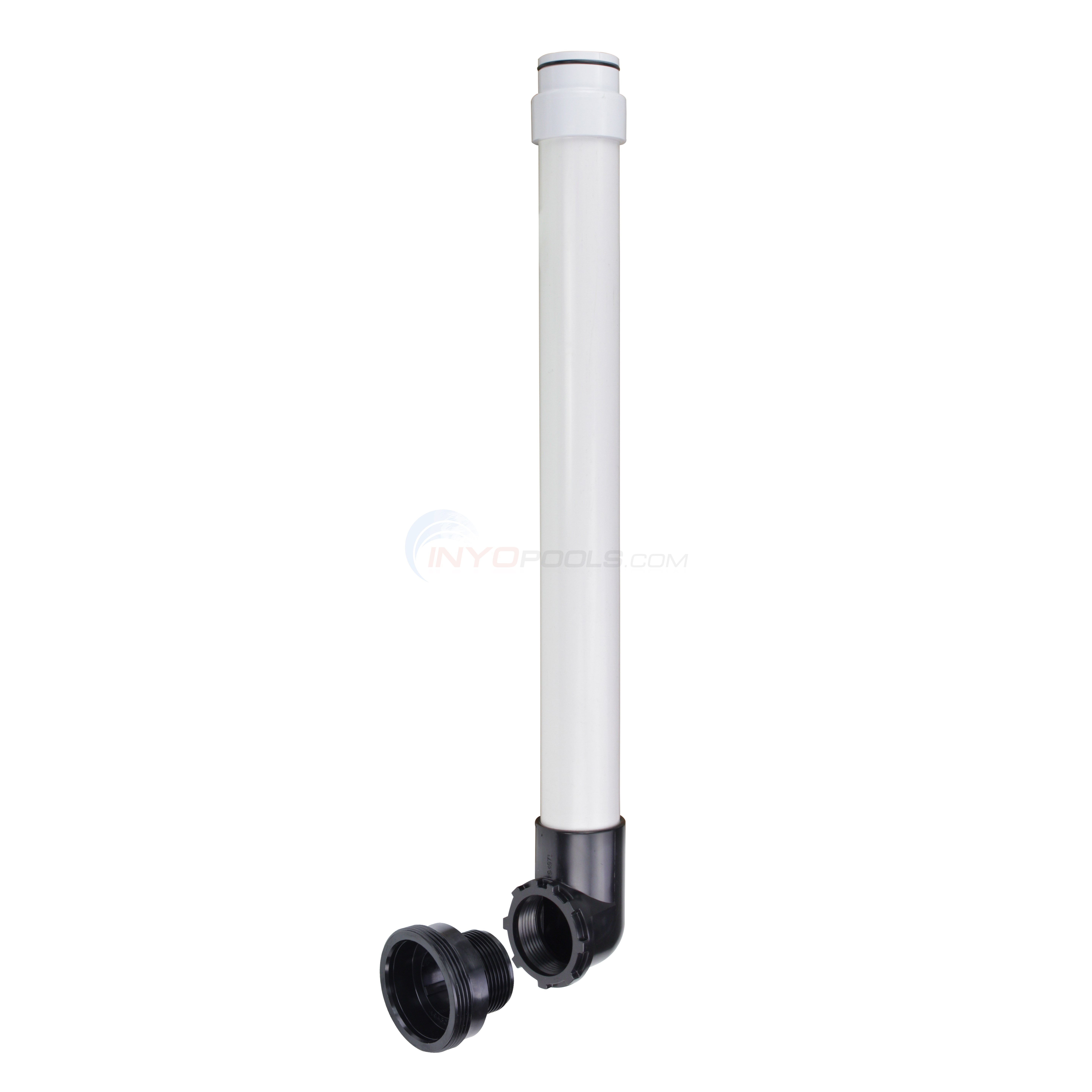

Part # 4600-0037 Mfg # 190037

ASSY., STANDPIPE, OUTLET, 60 SQ FT

$118.53 IN STOCK

Qty:

ADD TO CART

Part # 4655-37A Mfg # O-180

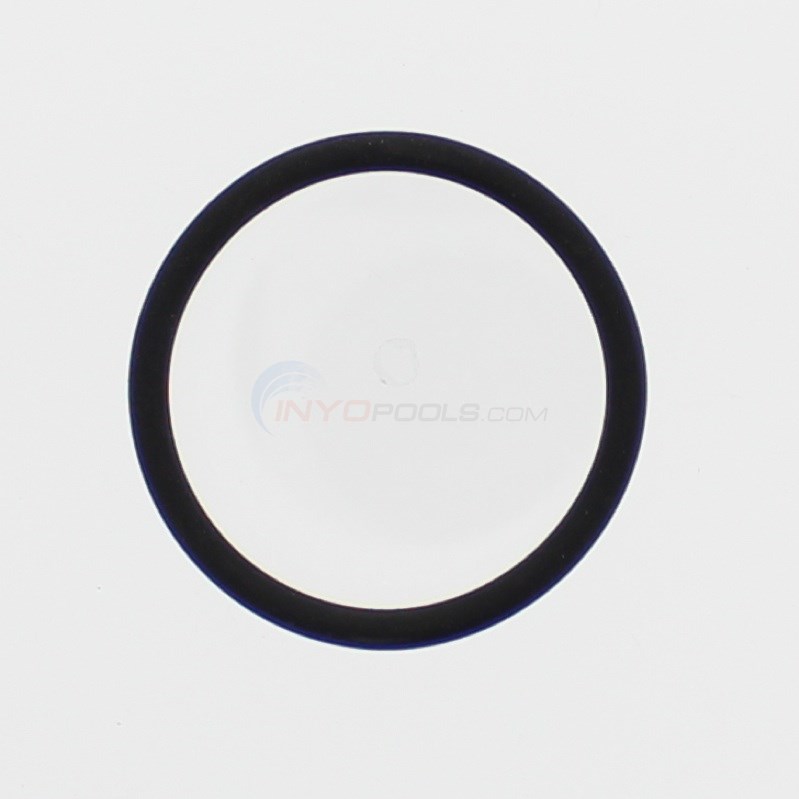

BULKHEAD O-RING FOR INLET

$10.45 IN STOCK

Qty:

ADD TO CART

Part # 4600-03 Mfg # 271096

ADAPTOR KIT, 1 1/2"X2" SLIP (271096 OPTIONAL)

$80.22 IN STOCK

Qty:

ADD TO CART

Part # 4600-0043 Mfg # 190043

ASSY., PIPE, INLET

$129.00 IN STOCK

Qty:

ADD TO CART

Part # 4600-1474 Mfg # 191474

O-RING, 1 3/4IN X 2IN X 1/8IN (4656-09 for Filters Made After 05/21/05

$13.59 IN STOCK

Mfg. Date After 05/21/05

Qty:

ADD TO CART

Part # 4656-06 Mfg # 325

O-ring (325) For Filters Made Before 05/21/05

$9.63 IN STOCK

Mfg. Date Before 05/21/05

Qty:

ADD TO CART

Part # 4650-08 Mfg # 86202000

Inspection Plug For Filters Made Before 05/21/05

$22.38 IN STOCK

Mfg. Date Before 05/21/05

Qty:

ADD TO CART

Part # 4600-0030 Mfg # 190030

Drain Cap. 1-1/2" For Filters Made After 05/21/05

$32.60 IN STOCK

Qty:

ADD TO CART

Part # 4600-0015 Mfg # 170015

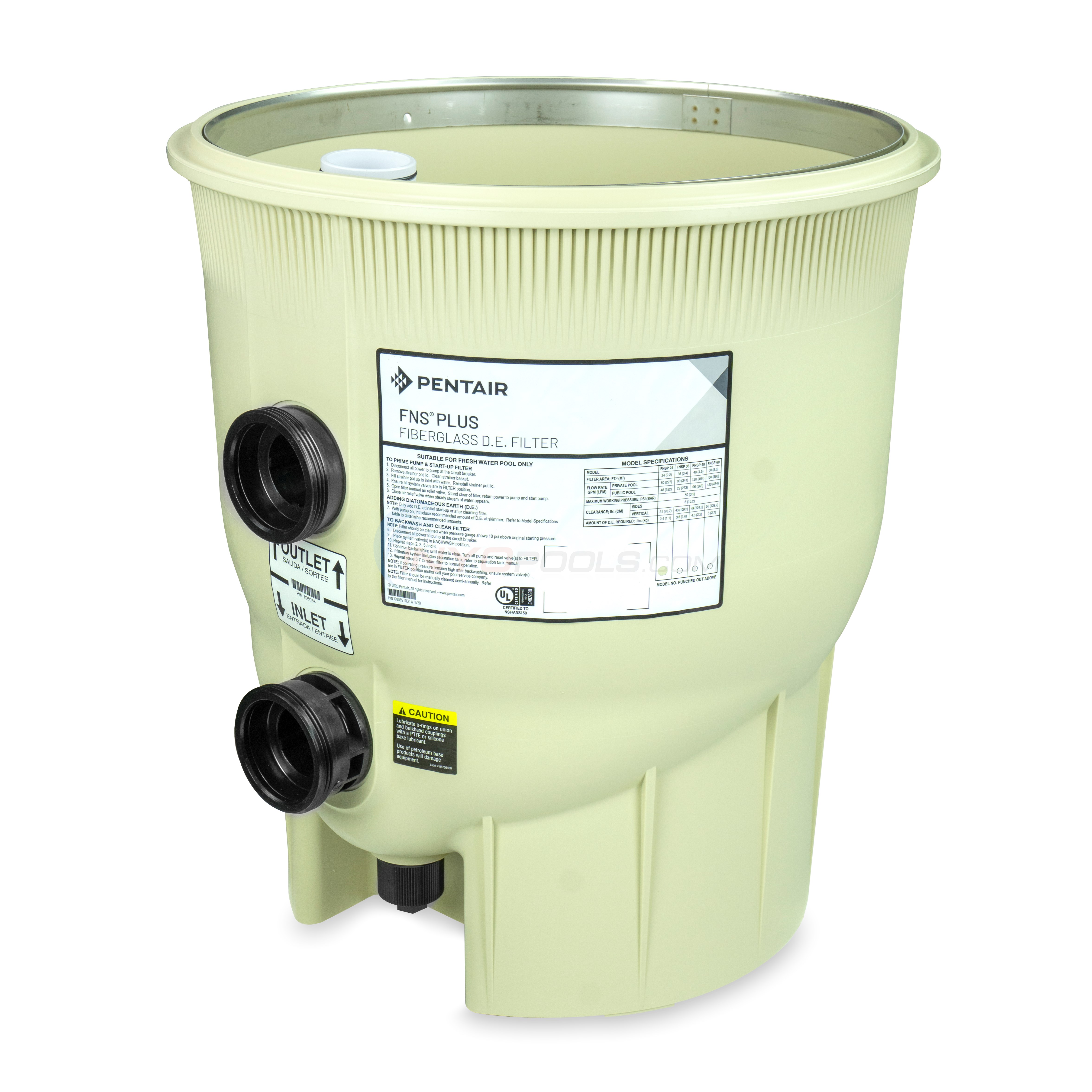

TANK BOTTOM ASSY., 24 SQ FT FNS PLUS

$494.71 IN STOCK

Qty:

ADD TO CART

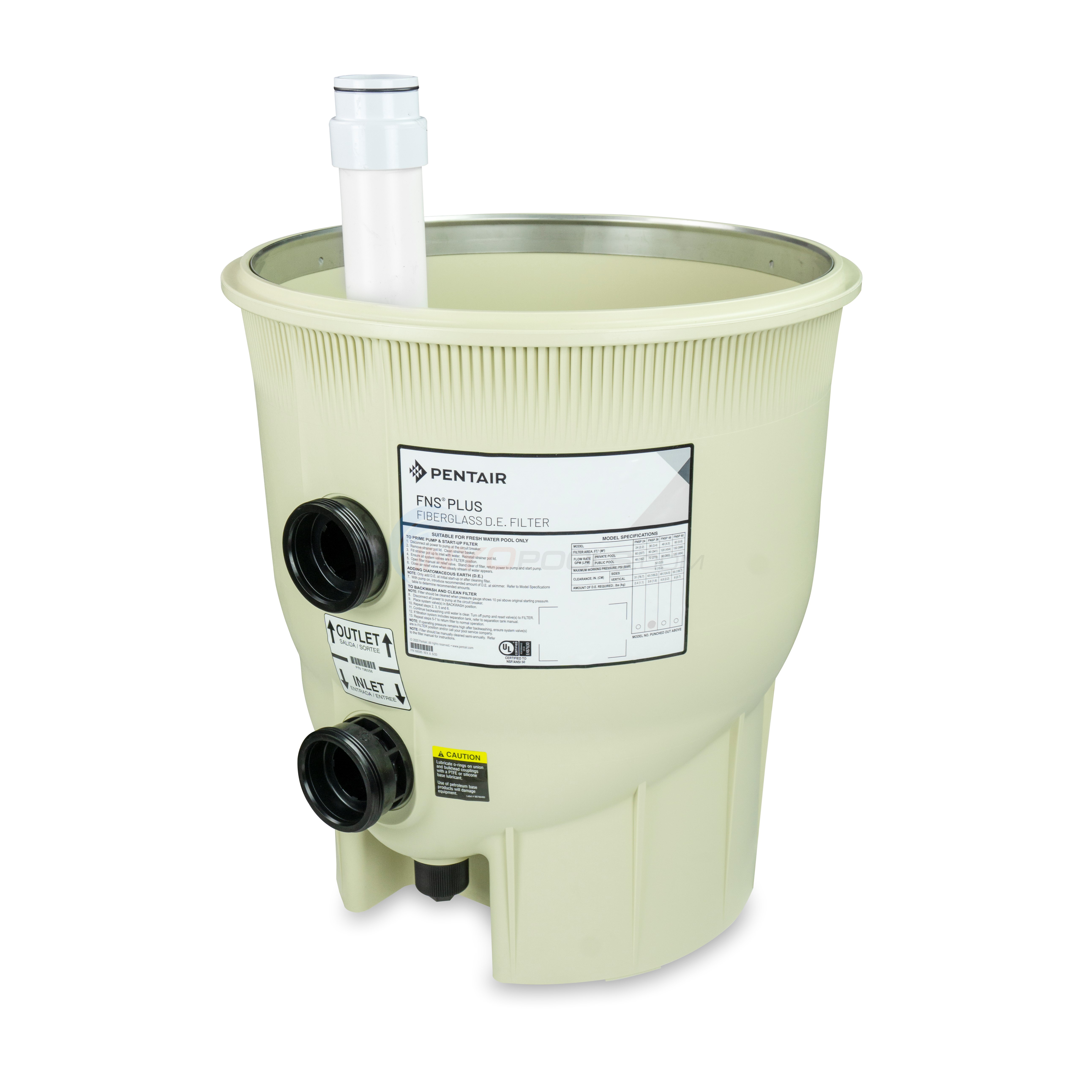

Part # 4600-0016 Mfg # 170016

TANK BOTTOM ASSY., 36 SQ FT FNS PLUS

$452.57 IN STOCK

Qty:

ADD TO CART

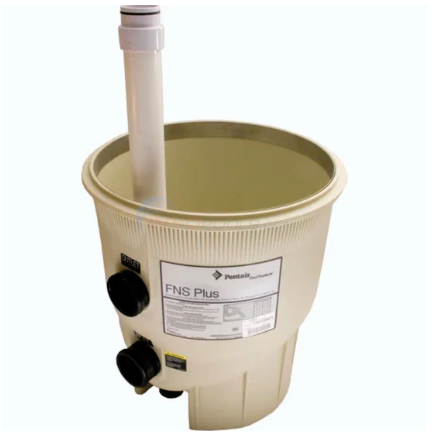

Part # 4600-0017 Mfg # 170017

TANK BOTTOM ASSY., 48 SQ FT FNS PLUS

$604.02 IN STOCK

Qty:

ADD TO CART

Part # 4600-0018 Mfg # 170018

TANK BOTTOM ASSEMBLY 60 SQ FT FNS PLUS

$546.32 IN STOCK

Qty:

ADD TO CART

Part # 4601-0019 Mfg # 170019

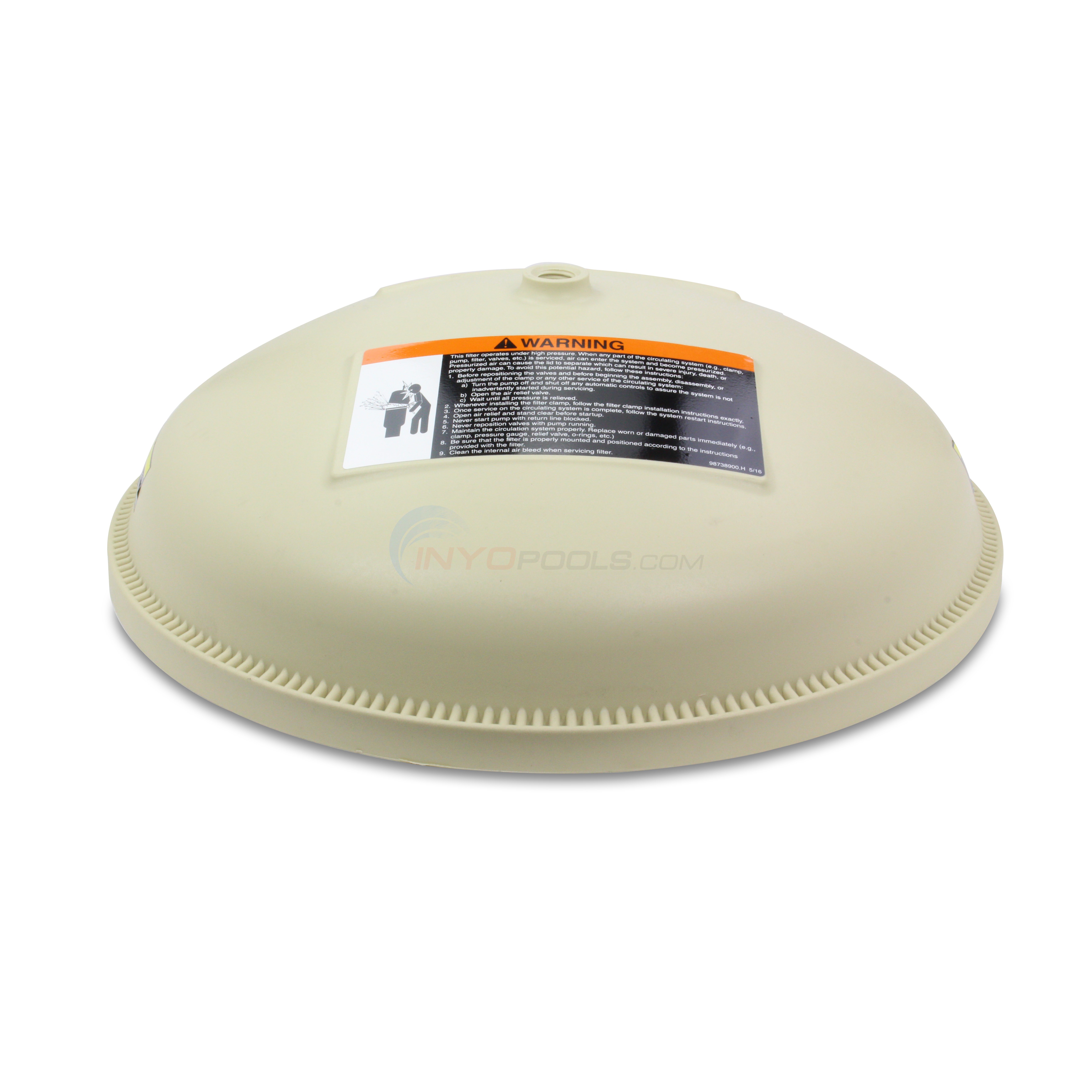

TANK LID, 24 SQ FT FNS PLUS

$189.99 IN STOCK

Qty:

ADD TO CART

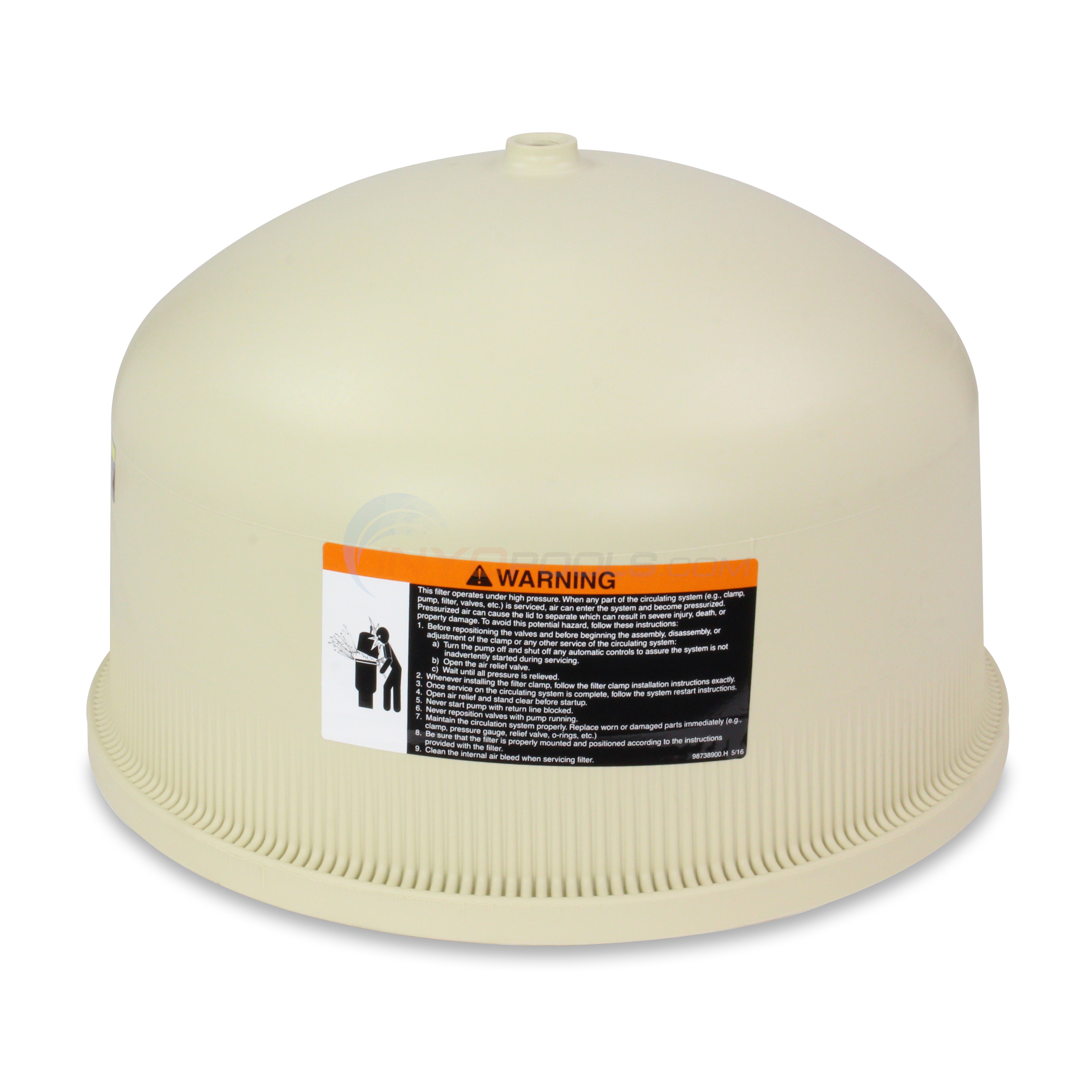

Part # 4600-0020 Mfg # 170020

TANK LID, 36 SQ FT FNS PLUS

$284.81 IN STOCK

Qty:

ADD TO CART

Part # 4600-0021 Mfg # 170021

FILTER TANK, FNS PLUS 48 SQ FT

$371.66 IN STOCK

Qty:

ADD TO CART

Part # 4600-0022 Mfg # 170022

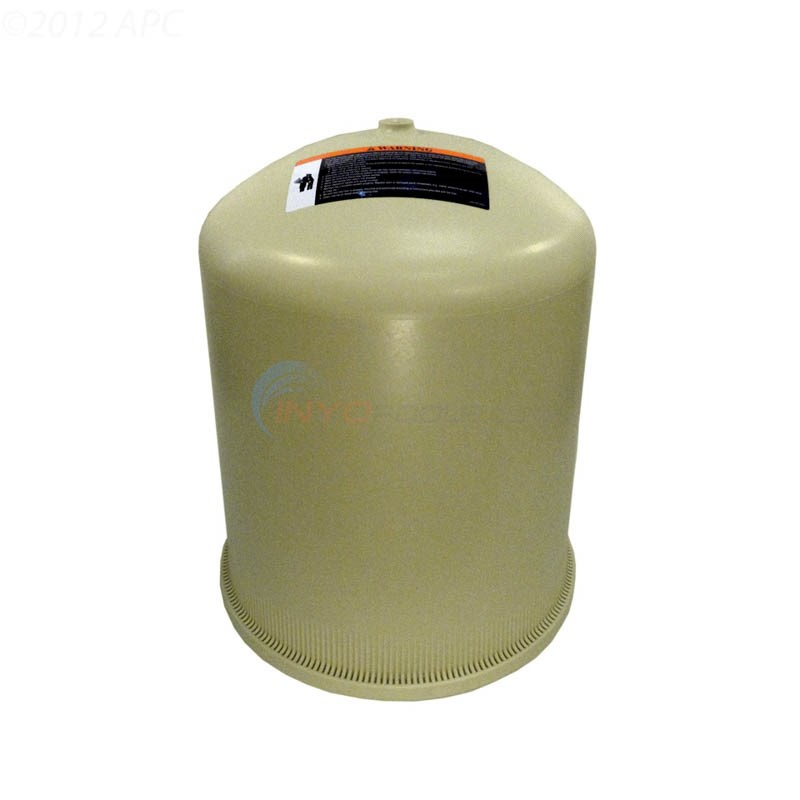

TANK LID, 60 SQ FT FNS PLUS

$423.38 IN STOCK

Qty:

ADD TO CART

Part # 4657-26 Mfg # O-24

O-RING (59000600)

$9.61 IN STOCK

Qty:

ADD TO CART

Part # 4600-2320 Mfg # O-409

O-RING, BULKHEAD For Filters Made Before 10/2004

$10.19 IN STOCK

Mfg. Date Before 10/2004

Qty:

ADD TO CART

Part # 4655-37A Mfg # O-180

O-RING (86006900) For Filters Made After 10/2004

$10.45 IN STOCK

Mfg. Date After 10/2004

Qty:

ADD TO CART

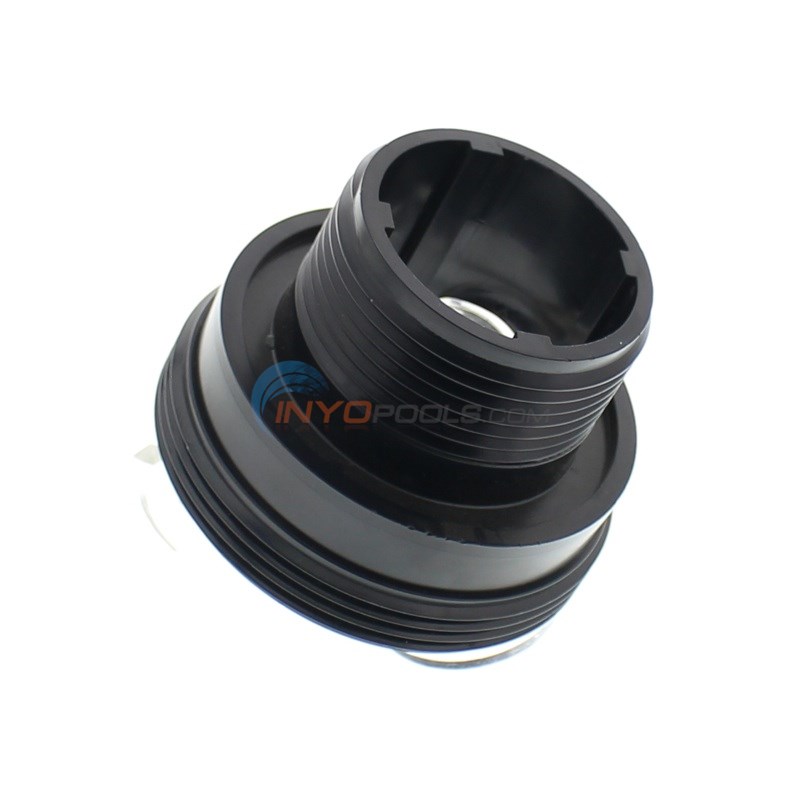

Part # 4601-4801 Mfg # 194801

Bulkhead, 2" With Groove (194801) For Filters Made Before 10/2004

$119.07 IN STOCK

Mfg. Date Before 10/2004

Qty:

ADD TO CART

Part # 4600-0141 Mfg # 190141

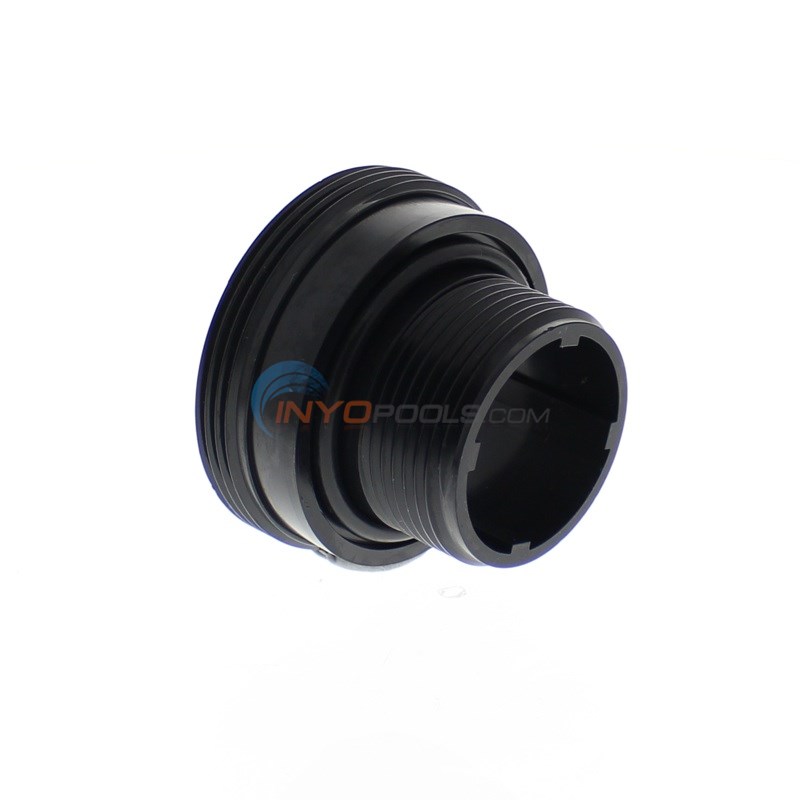

Bulkhead Replacement Kit For Filters Made After 10/2004

$133.70 IN STOCK

Mfg. Date After 10/2004

Qty:

ADD TO CART

Part # 4600-5339 Mfg # 195339

SS BACK-UP RING

$112.73 IN STOCK

Qty:

ADD TO CART

Part # 4600-2019 Mfg # 192019

WRENCH, DRAIN PLUG

$60.47 IN STOCK

Qty:

ADD TO CART

Part # 4600-1177 Mfg # 261177

1 1/2" MULTIPORT VALVE - DE W.G.

$202.57 IN STOCK

Qty:

ADD TO CART

Part # 4715A Mfg # SM2-PP2

VALVE, SM With PLUMBING 2" P.F. D.E.

$219.71 IN STOCK

Qty:

ADD TO CART

Part # 27507-200-000

Generic Pentair 2" Side Mount Multiport Valve w/ Plumbing

$182.41 IN STOCK

Qty:

ADD TO CART

Part # 4600-1102 Mfg # E-50-S1

Top Assembly, 1-1/2" Valve

$86.24 IN STOCK

Valve Size 1-1/2"

Qty:

ADD TO CART

Part # 4600-1104 Mfg # 271104

Diverter Gasket for 1-1/2" SM10 Series & 261177 Valve

$15.43 IN STOCK

Valves SM10 Series & 261177

Qty:

ADD TO CART

Part # 4600-1152 Mfg # E-50-S2

Top Assy, Valve 2" White w/ decal - E-50-S2

$108.36 IN STOCK

Valve Size 2"

Qty:

ADD TO CART

Part # 4600-1148 Mfg # E-12-S-2

Diverter Gasket 2" Valve 5-Spoke For SM20 Series & 261152 Valves

$15.43 IN STOCK

Valves SM20 Series & 261152

Qty:

ADD TO CART

Part # 4600-1142 Mfg # 261142

VALVE, MULTIPORT HI-FLOW KIT (SLIP ONLY) WG

$266.10 IN STOCK

Qty:

ADD TO CART

Part # 25831-119-750 Mfg # 263064

Generic Pentair 2" Slide Valve, Cream

$119.41 IN STOCK

Qty:

ADD TO CART

Pentair FNS Plus D.E. Filter 24, 36, 48, 60 Parts

View Parts List

Available Parts:

OBSOLETE HOSE AND RETAINER CLIPS

24 Sq. Ft. Full Grid 12 (7 Required)

36 Sq. Ft. Full Grid 18 (7 required)

48 Sq. Ft. Full Grid 24 (7 Required)

60 Sq. Ft. Full Grid 30 (7 Required)

24 Sq. Ft. Partial Grid 12 Inches (1 Required)

36 Sq. Ft. Partial Grid 18 Inches (1 Required)

48 Sq. Ft. Partial Grid 24" (1 Required)

60 Sq. Ft. Partial Grid 30" (1 Required)
