Sta-Rite Dura-Glas and Max-E-Glas

Sta-Rite Dura-Glas and Max-E-Glas Diagram
Replacement Parts for the following Sta-Rite Dura-Glas and Max-E-Glas Pump Models; PE52C-180L, PE5C-180L, P2R5C-180L, P2RA5C-179L, PE52D-181L, PE5D-181L, PEA5D-180L, PEAXSSD-180, P2R5D-181L, P2RA5D-180L, 71532, PE52E-182L, PE5E-182L, PEA5E-181L, PEAXSSE-181, P2FA5E-180L, P2R5E-182L, P2RA5E-181L, 71808, PEA5F-182L, PEA6F-182L, PEAXSSF-182, P2FA5F-181L, P2RA5F-182L, PE52F-183L, PEAXSSG-183, P2RA6G-183L, P2RAXG-183LS, PEAAXSSG-184, PE6H-185L, PEXYD-194L, PEAXYE-181L, P2RA5YE-181L, P2RA5YE-194L, P2RA5YF-182L, P2RA5YF-196L, P2RA6YF-182L, PEAXYG-183L, PEAXYG-183LS, P2RA5YG-183L, P2RA5C3-179, P2R5D3-181, P2R52D3-181, P2R5E3-182, P2R52E3-182, P2R5F3-183, P2R52F3-183, P2R5G3-184, P2R52G3-184, PE6H3-185
Key Part # Item Service Factor Voltage Max Amps Frame Price
1 USQ1052 A.O. Smith 1/2 H.P Square Flange Up Rate Motor 1.3 115/230 9.9/5.0 48Y $239.69 Description
1 USQ1072 Century 3/4 HP Square Flange 48Y Up Rate Motor 1.27 115/230 13.4/6.7 48Y $207.05 Description
1 USQ1102 A.O. Smith 1 HP Square Flange 48Y Up Rate Motor - USQ1102 1.0 115/230 15.0/7.5 48Y $213.19 Description
1 USQ1152 A.O. Smith 1.5 HP Square Flange 48Y Up Rate Motor - USQ1152 1.0 115/230 18.0/9.0 48Y $245.43 Description
1 USQ1202 A.O. Smith 2 H.P. Square Flange Up Rate Motor 1.1 230 10.4 48Y $323.43 Description
1 USQ1252 A.O. Smith 2 1/2 H.P Square Flange Up Rate Motor 1.0 230 11.2 48Y $402.72 Description
1 SQ1052 A.O. Smith 1/2 H.P Square Flange Full Rate Motor 1.9 115/230 13.4/6.7 48Y $248.87 Description
1 SQ1072 A.O. Smith 3/4 H.P Square Flange Full Rate Motor 1.65 115/230 15.3/7.6 48Y $243.77 Description
1 SQ1102 A.O. Smith 1 H.P Square Flange Full Rate Motor 1.65 115/230 19.2/9.6 48Y $267.79 Description
1 SQ1152 A.O. Smith 1 1/2 H.P Square Flange Full Rate Motor 1.47 230 10.1 48Y $325.51 Description
1 SQ1202 A.O. Smith 2 H.P Square Flange Full Rate Motor 1.3 230 11.2 48Y $392.42 Description

Key Part # Item Service Factor Voltage Max Amps Frame Price
1 SQL1072R A.O. Smith 3/4 HP Square Flange Dual Speed Full Rate Motor 115V 1.65 115 13.0/4.2 48Y $430.99 Description
1 UQS1102R A.O. Smith 1 H.P Square Flange Dual Speed Up Rate Motor 1.25 230 6.1/2.1 48Y $328.99 Description
1 SQS1102R A.O. Smith 1 H.P Square Flange Dual Speed Full Rate Motor 1.65 230 7.7/2.8 48Y $410.96 Description
1 SQS1152R A.O. Smith 1 1/2 H.P Square Flange Dual Speed Full Rate Motor 1.47 230 10/3 48Y $479.99 Description
1 SQS1202R A.O. Smith 2 H.P Square Flange Dual Speed Full Rate Motor 1.3 230 11.3/3.3 48Y $638.55 Description

Key Part # Mfg Code Item Price
* 3050-38 R221016 Protective Pool Motor Cover $39.13 Description

Key Part # Mfg Code Item Price
2 5056-02 U30-692SS Ground Screw $22.99 Description

Key Part # Mfg Code Item Price
3 5056-03 U17-568 Grounding Lug $26.99 Description

Key Part # Mfg Code Item Price
4 5056-04 G-215 Water Slinger $7.99 Description

Key Part # Mfg Code Item Price
5 REPLACE C103-137P1 No Longer Available SEAL PLATE Replace /W 5056-05 KIT - -

Key Part # Mfg Code Item Price
5A 5056-05 C203-193P Seal Plate Kit $164.79 Description

Key Part # Mfg Code Item Price
6 5056-06 449 Seal Plate O-Ring $8.99 Description

Key Part # Mfg Code Item Material Price
7 5056-07A J3-2-50 Seal Insert Copper $4.99 Description

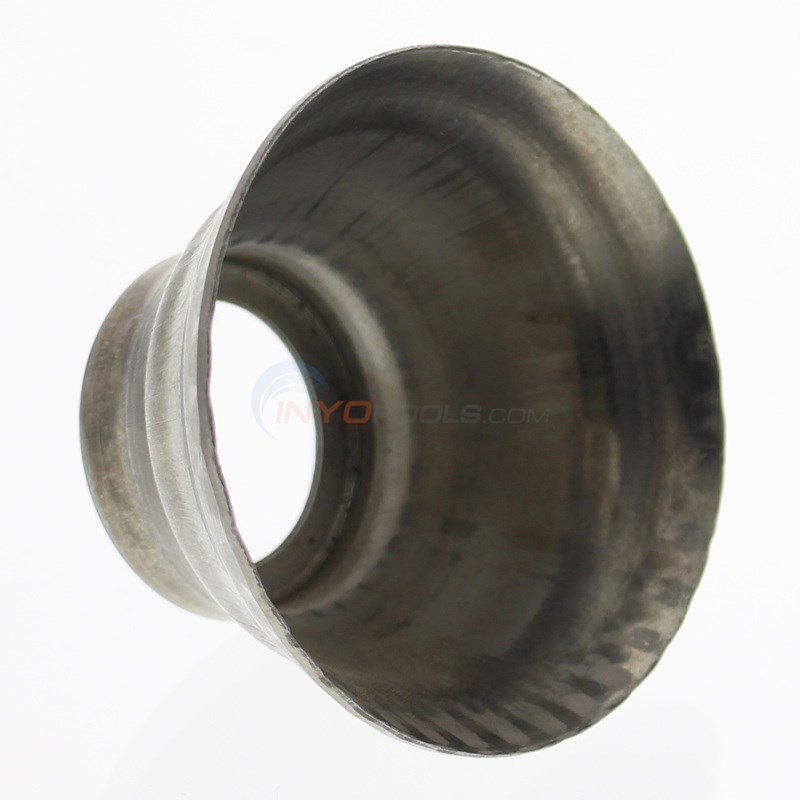

7 5056-07 J3-2SS Seal Insert Stainless Steel $53.03 Description

Key Part # Mfg Code Item Price
8 5250-100 PSR-100 Shaft Seal (PRE-1998) $13.99 Description
8 5250-200 PS-3866 Heavy Duty Shaft Seal (FOR SALTWATER POOLS PRE-1998) $26.99 Description

Key Part # Mfg Code Item Price
8A 5250-104 PSR-200 Shaft Seal (NEW STYLE) $10.99 Description
8A 5250-210 PS-3867 Heavy Duty Shaft Seal (FOR SALTWATER POOLS) (NEW STYLE) $19.99 Description

Key Part # Mfg Code Item Price
9 5056-12A C119-37S Tank Body Clamp (V26-351) $98.99 Description

Key Part # Mfg Code Item Price
12 5056-22 SAMPLE S-3 Cap Screw $6.99 Description

Key Part # Mfg Code Item Price
13 5056-23 SAMPLE W-4 Lock Washer $10.22 Description

Key Part # Mfg Code Item Price
14 5056-11 O-49 Diffuser O-ring (226) $8.36 Description

Key Part # Mfg Code Item Price
15 5056-13A C176-47P1 Tank Body $158.09 Description

Key Part # Mfg Code Item Price
16 5051-30 U178-920P Drain Plug With O-ring $8.99 Description

Key Part # Mfg Code Item Price
16A 3262-08 112 O-Ring OD 11/16" $10.22 Description

Key Part # Mfg Code Item Price
17 5056-24 C104-42P Motor Base With Pad $42.83 Description

Key Part # Mfg Code Item Price
18 5056-26 C35-11 Motor Pad Bumper $11.99 Description

Key Part # Mfg Code Item Price
19 6982-0 072184 Washer SS 7/16"ID X 7/8"OD (SAMPLE W-7) $2.99 Description

Key Part # Mfg Code Item Qty Required Price
20 6901-0 354290 Bolt, Hex 3/8"-16 x 3/4" (Single) 2 $4.11 Description

Key Part # Mfg Code Item Qty Required Price

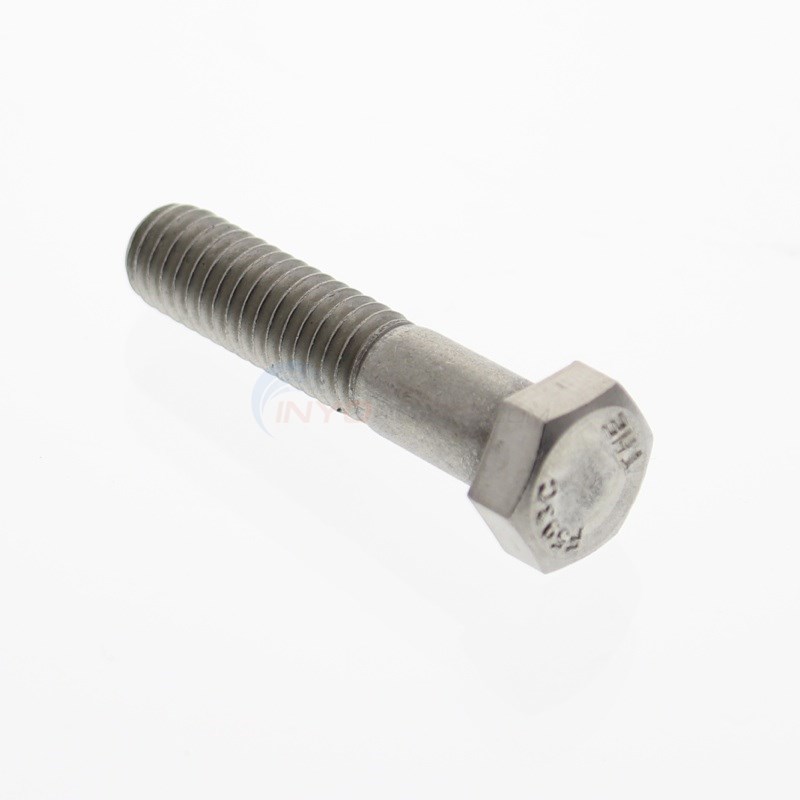

21 5056-25A U30-77SS Cap Screw (HEX HEAD) (U30-77SS) (Single) 2 $7.99 Description

Key Part # Mfg Code Item Price

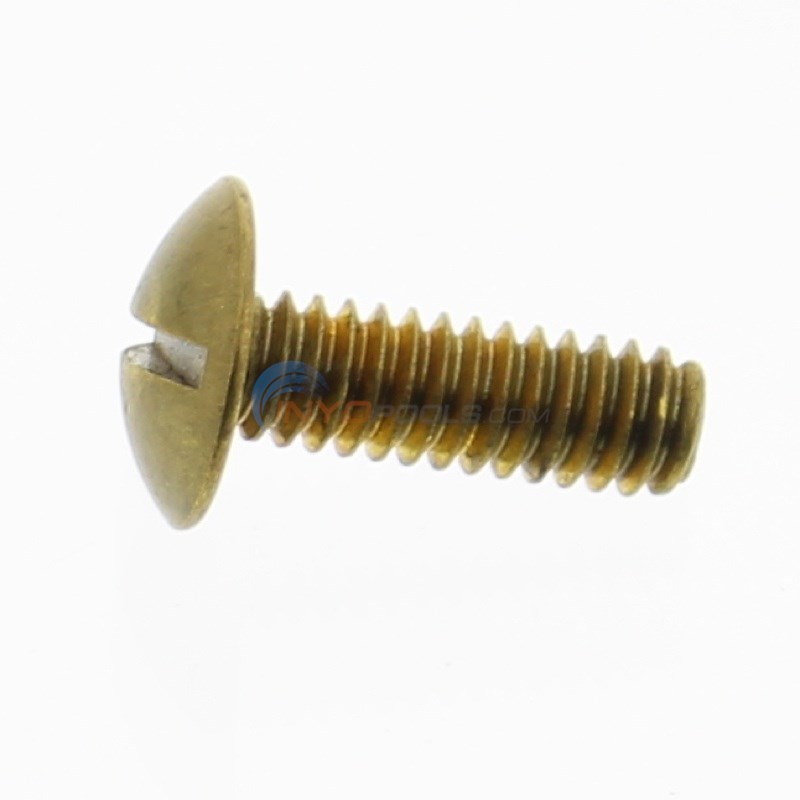

22 5056-31 V26-352 Impeller Screw $6.29 Description

Key Part # Mfg Code Item Price
23 5056-30 WC36-22 Clamp Knob (WC36-22-50) $21.41 Description

Key Part # Item Price
24 25304-000-020 Trap Cover $43.25 Description

Key Part # Mfg Code Item Price
25 5056-15 435 Trap Cover O-ring $11.99 Description

Key Part # Mfg Code Item Price
26 5400-B106 B-106 Pump Housing Basket $13.99 Description

Key Part # Mfg Code Item Price
27 5056-17 C153-53P1 STRAINER, TRAP BODY $97.84 Description
27 25303-054-000 Generic ABG Pool Strainer Pot $88.99 Description

Key Part # Mfg Code Item Material Price
28 5050-21 G-18 Strainer to Volute Gasket Paper $13.94 Description
28 5050-21R G-99R Strainer to Volute Gasket Rubber $11.15 Description

Key Part # Mfg Code Item Price

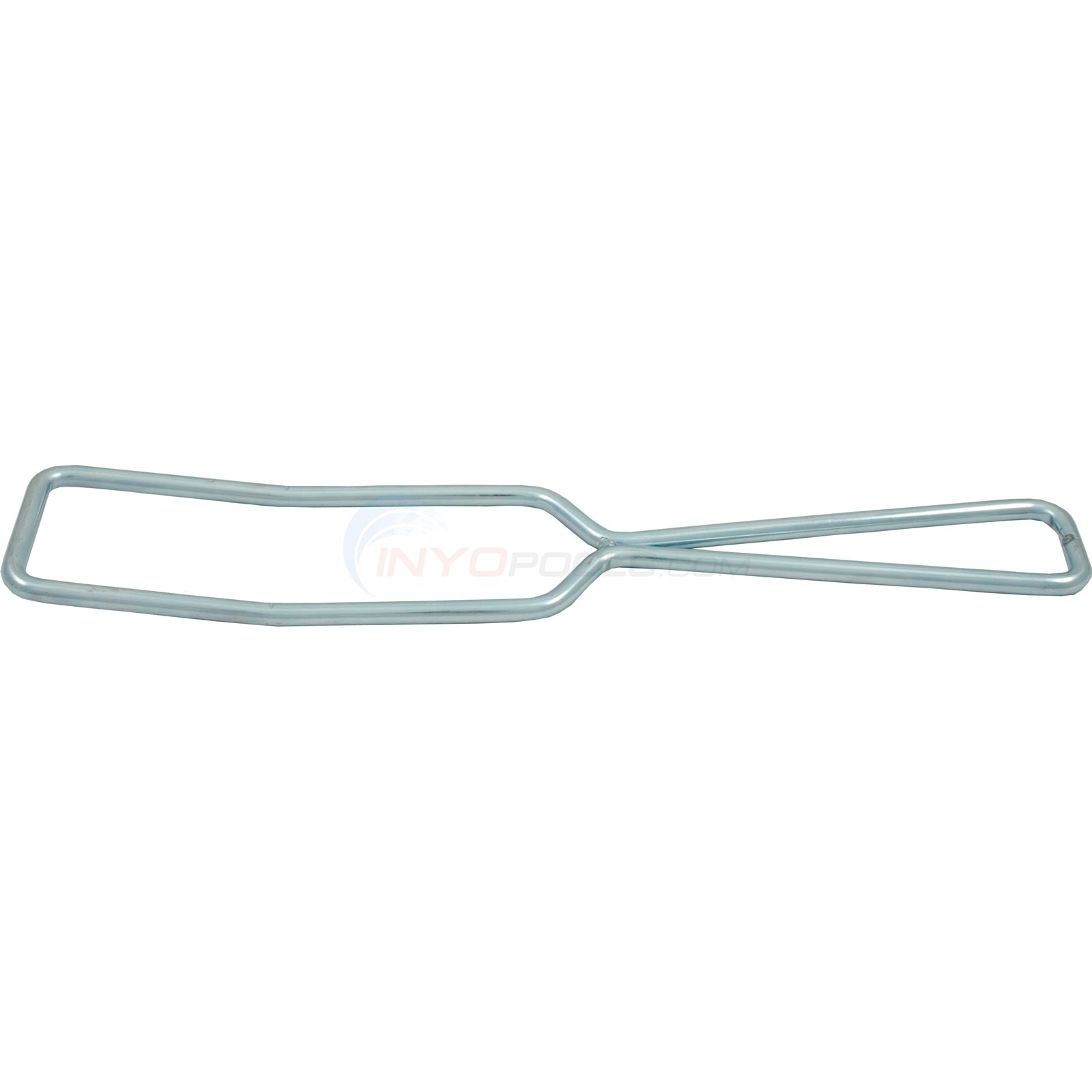

29 5056-29 110 Lid Wrench $46.34 Description

Key Part # Mfg Code Item Price
30 5059J PKG115 Trap Assembly WG $108.14 Description

Key Part # Mfg Code Item Price
31 5056-19 U30-64SS Cap Screw $6.99 Description

Key Part # Mfg Code Item Price
32 5056-20 U43-11SS Lock Washer $6.99 Description

Key Part # Mfg Code Item Price
33 5055-22 U43-41SS Base Washer (2 NEEDED) $4.99 Description

Note 1: EFFECTIVE 10/97 ALL SEAL PLATES MANUFACTURED
WILL NO LONGER USE A SEAL INSERT.
WHEN REPLACING SEAL PLATE FOR ANY VERSION,
ORDER THE SEAL PLATE KIT #5056-05
**GOKIT(INCLUDES KEYS 6,8,14,25)
***GOKIT(INCLUDES KEYS 6,8A,14,25)
29
5A
24
25
26
27
28
6 3/4"
33 32
31
30
4 3/4"
5 1/8"
26
8A
****NOT SHOWN
