$65.01

Qty:

By Hayward Pool Products


Details

Top

Part # 5112-208

Manufacturer Code SPX3200B3

Alternate Part #'s SPX3200B3, 35-150-3527, HAY-101-3207, HAYSPX3200B3, HPPSPX3200B3

Product Description

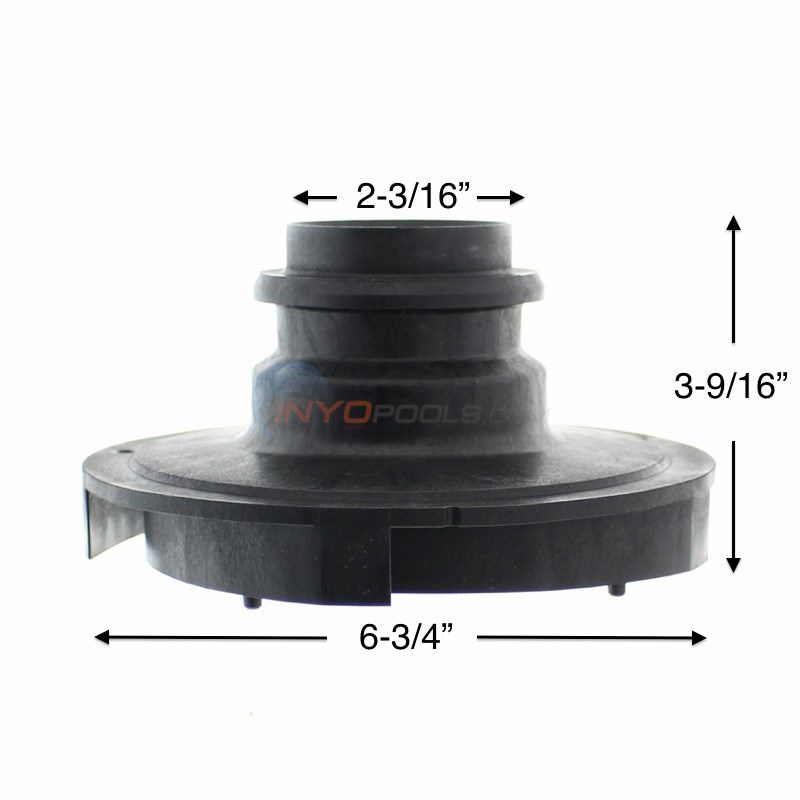

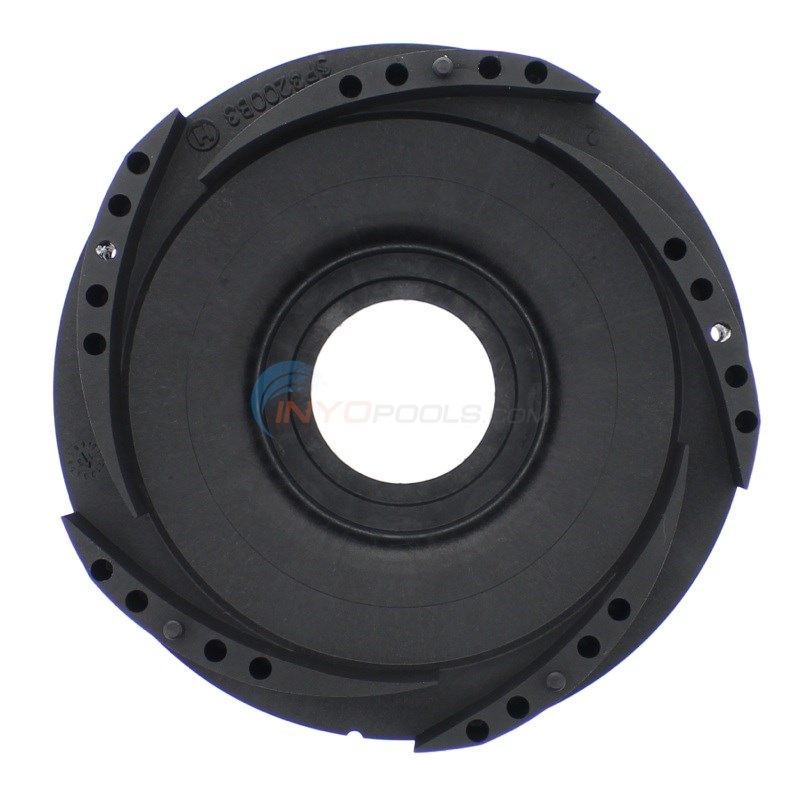

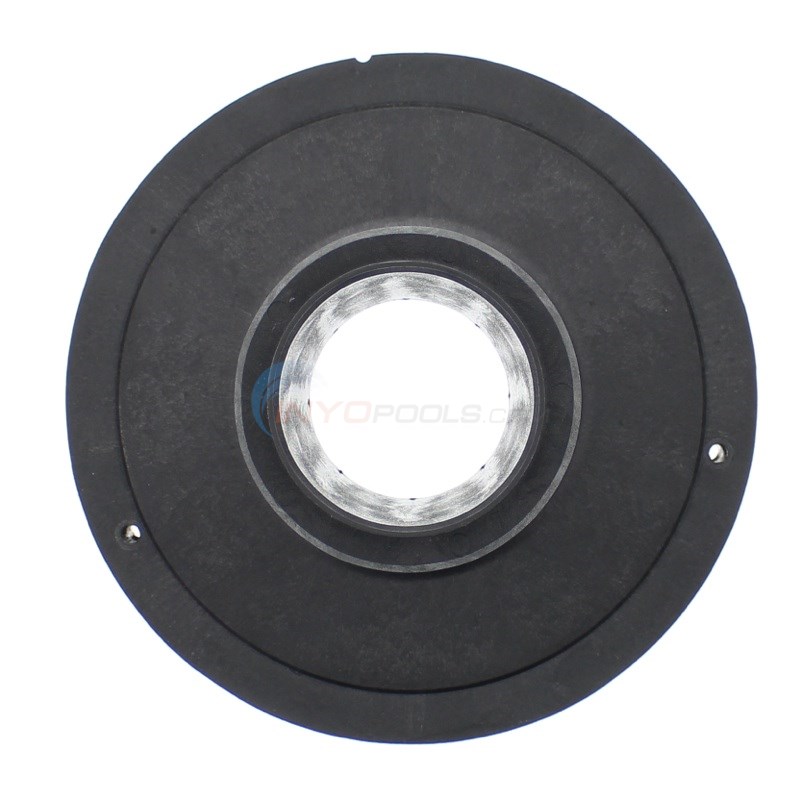

Hayward SPX3200B3 Diffuser with Impeller Ring

For Select Hayward TriStar® and EcoStar® Pool Pumps

The SPX3200B3 Diffuser with Impeller Ring is a genuine Hayward replacement part designed to ensure optimal water flow and priming efficiency in your TriStar® or EcoStar® pump. It helps channel water effectively through the impeller and into the pump volute, maintaining peak performance and quiet operation.

Key Features:

  • OEM Hayward Part – Ensures perfect fit and performance

  • Includes diffuser and integrated impeller wear ring

  • Supports efficient priming and improved hydraulic performance

  • Durable, corrosion-resistant materials for long service life

  • Easy to install

Frequently Bought Together:

  • Diffuser O-ring – [Part #: 5112-35]
    Ensures a watertight seal between the diffuser and pump housing.

  • Magic Lube® O-Ring Lubricant
    Helps extend the life of O-rings and ensures easy assembly and disassembly.

Compatibility:

  • Hayward TriStar® SP3200 Series Pumps

  • Hayward EcoStar® SP3400VSP Series Pumps

Top

?     Asked on 5/25/2016by AQB

Is this diffuser the same for a 3/4hp or a 3hp?
 Reply

A  Answered on 5/25/2016 by InyoPools Product Specialist Patrick P.

Yes this pump uses the same diffuser for all HP's (3/4 - 3 HP)
 Reply


?     Asked on 2/11/2019by Trey Shaw

Will this diffuser work for a Hayward SP200B. I looks the same but want to be sure. Thanks!
 Reply

A  Answered on 2/13/2019 by InyoPools Product Specialist Michelle B.

Hello, What would be the brand and the model of the pump?
 Reply


?     Asked on 7/3/2021by Inyo Visitor

it says impeller ring included with the diffuser, i dont see it in the part picture, and will it fit a hayward tristar sp3210ee
 Reply

A  Answered on 7/4/2021 by InyoPools Product Specialist Patrick P.

Hi, Yes the impeller ring is included and yes this part does fit the Hayward Tristar sp3210ee pump.
 Reply


Top
Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Wrench Set

1     0

Rattling noise in Hayward VSP

Written on 10/29/2022 by Guest

Pump installed 6/2017. In 8/2022 a rattling noise started progressively getting worse. I used a mechanics stethoscope to verify that it was not the motor bearings. When I took it apart the impeller neck and diffuser housing were worn allowing the diffuser ring to rattle around.
