Hayward EcoStar Pump SP3400VSP Series Parts

Diagram #	Part Title
*	Hayward TriStar, EcoStar Pool Pump Seal Kit \| By Pureline \| GOKIT80
*	Hayward TriStar, EcoStar Pool Pump Saltwater Seal Kit By \| By Pureline \| GOKIT80SALT
1	Union Connector Kit
2	Union Gasket, Single
3	Strainer Housing With Plugs
4	Strainer Cover Kit
5	Strainer Cover O-ring
6	Pump Basket
7	Diffuser Screw, Single
8	Diffuser O-Ring
9	Diffuser
10	Impeller Screw
11	Impeller Ring
12	2 Hp Impeller With Screw
13	Shaft Seal
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
14	Housing O-ring
15	Seal Plate
16	Housing Insert & Seal Plate Spacer Kit
17	Housing Bolt
18	Motor Bolt
19	Drain Plug With Gasket
20	Motor Support Bracket
21	Short Riser Base
22	Adapter-Motor Support
23	Motor Assembly
23*	V-Green 2.7 HP Square Flange 48Y Variable Speed Motor
24	Motor Fan Shroud
25	Motor Drive
26	Motor Drive Display Cover
27	Motor Drive Wiring Cover

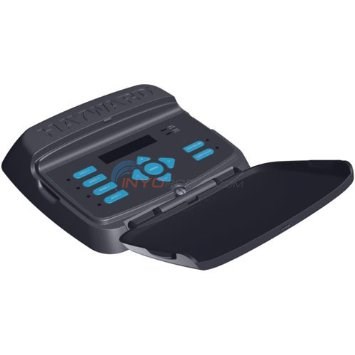

28	Digital Control Interface Assembly
*	Wall Mounting Kit EcoStar
