Hayward TriStar SP3200X Series Pump Parts

MODEL #SP3200 & #SP3200EE FULL-RATED & MAX-RATED SERIES EF1500

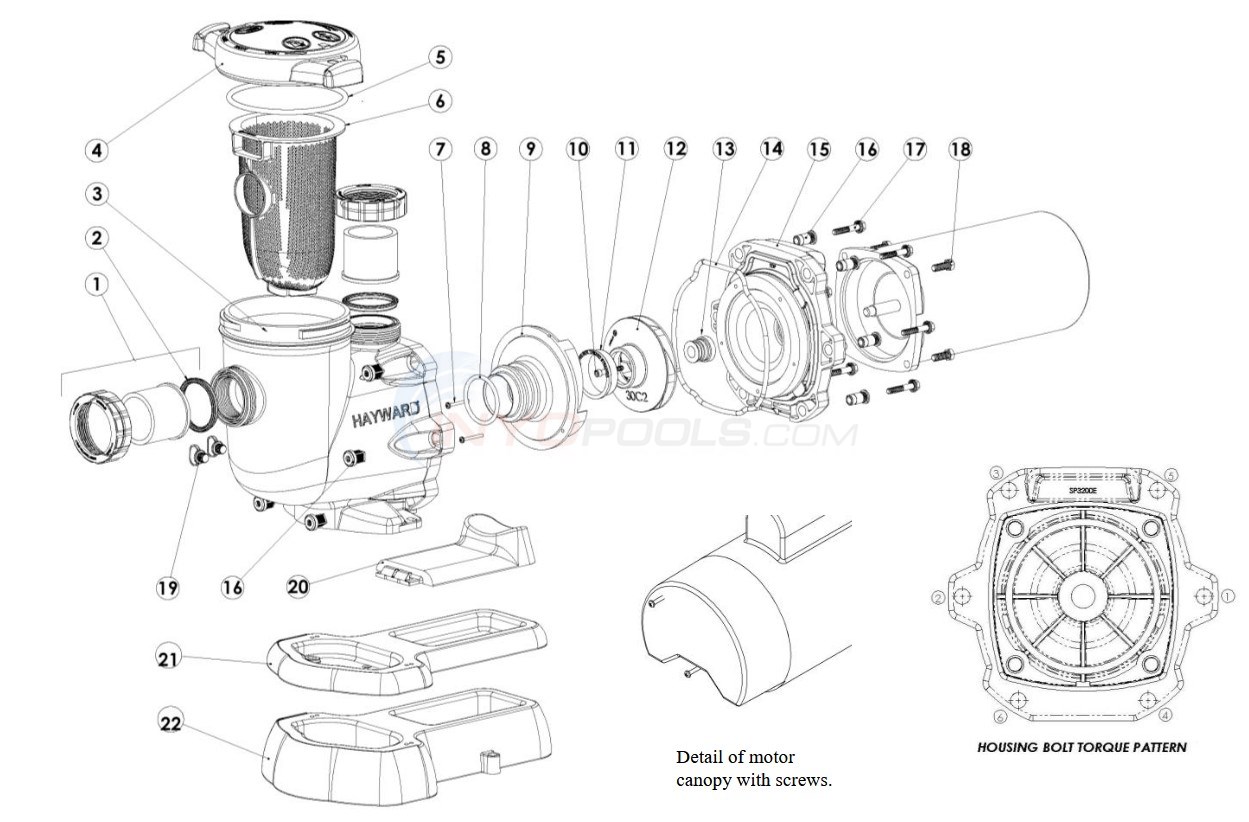

Hayward TriStar SP3200X Series Pump Diagram

Click to zoom in

Diagram #	Part Title
*	Tune Up Kit Hayward Tristar
**	Hayward TriStar VS Motor Upgrade Kit - 1.65HP
1	UNION CONNECTOR KIT (INCLUDES NUT, CONNECTOR, GASKET)
2	UNION GASKET (T-SEAL), 50 DURO EPDM
3	PUMP STRAINER HOUSING, WITH DRAIN PLUGS, THREADED STYLE
4	TRI STAR STRAINER COVER KIT (INCLUDES STRAINER COVER, LOCK RING, O-RING)
5	STRAINER COVER O-RING
6	TRISTAR PUMP BASKET
7	DIFFUSER SCREWS (2 PER)
8	DIFFUSER O-RING
9	DIFFUSER
10	IMPELLER SCREW
11	IMPELLER RING

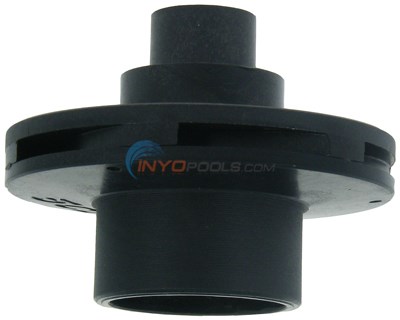

12	IMPELLER ½/ ¾ HP With IMPELLER SCREW for SPX3205C
13	Standard Shaft Seal, Viton 5/8" (SPX3200SA)
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
14	TRI STAR HOUSING O-RING SPX3200T
15	SEAL PLATE SPX3200E
16	HOUSING INSERT & SEAL PLATE SPACER KIT
17	HOUSING BOLT
18	MOTOR BOLT
19	DRAIN PLUG WITH GASKET
20	MOTOR SUPPORT BRACKE
21	TRI STAR SHORT RISER BASE
22	TRI STAR TALL RISER BASE

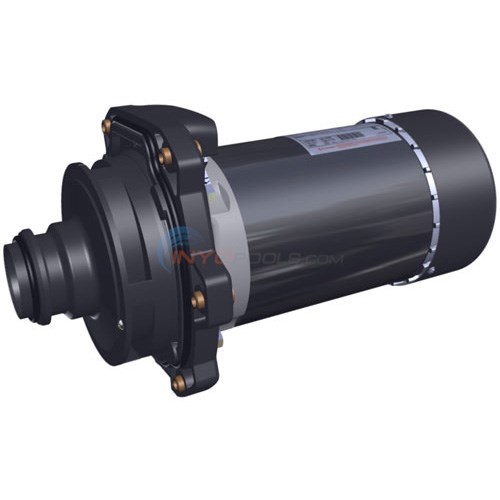

*	POWER END-1HP Full Rate (MTR,SEAL,PLATE,DIFUSSER)
*	Tri-Star POWER END-2HP(MTR,SEAL,PLATE,DIFFUSER)
23	A.O. Smith 1/2 H.P Square Flange Up Rate Motor
23	A.O. Smith 1/2 HP Square Flange 48Y Full Rate Motor - SQ1052
23	A.O. Smith 1 H.P Square Flange Dual Speed Up Rate Motor
23	V-Green EVO 1.3 HP Square Flange 48Y Variable Speed Motor - EVQ130
23	US/Nidec Neptune Variable Speed Motor 2.70 THP Square Flange 230V 48Y
**	Protective Pool Motor Cover

View Parts List

Diagram #	Part Title
*	Tune Up Kit Hayward Tristar
**	Hayward TriStar VS Motor Upgrade Kit - 1.65HP
1	UNION CONNECTOR KIT (INCLUDES NUT, CONNECTOR, GASKET)
2	UNION GASKET (T-SEAL), 50 DURO EPDM
3	PUMP STRAINER HOUSING, WITH DRAIN PLUGS, THREADED STYLE
4	TRI STAR STRAINER COVER KIT (INCLUDES STRAINER COVER, LOCK RING, O-RING)
5	STRAINER COVER O-RING
6	TRISTAR PUMP BASKET
7	DIFFUSER SCREWS (2 PER)
8	DIFFUSER O-RING
9	DIFFUSER
10	IMPELLER SCREW
11	IMPELLER RING
12	IMPELLER ½/ ¾ HP With IMPELLER SCREW for SPX3205C
13	Standard Shaft Seal, Viton 5/8" (SPX3200SA)
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
14	TRI STAR HOUSING O-RING SPX3200T
15	SEAL PLATE SPX3200E
16	HOUSING INSERT & SEAL PLATE SPACER KIT
17	HOUSING BOLT
18	MOTOR BOLT
19	DRAIN PLUG WITH GASKET
20	MOTOR SUPPORT BRACKE
21	TRI STAR SHORT RISER BASE
22	TRI STAR TALL RISER BASE
*	POWER END-1HP Full Rate (MTR,SEAL,PLATE,DIFUSSER)
*	Tri-Star POWER END-2HP(MTR,SEAL,PLATE,DIFFUSER)
23	A.O. Smith 1/2 H.P Square Flange Up Rate Motor
23	A.O. Smith 1/2 HP Square Flange 48Y Full Rate Motor - SQ1052
23	A.O. Smith 1 H.P Square Flange Dual Speed Up Rate Motor
23	V-Green EVO 1.3 HP Square Flange 48Y Variable Speed Motor - EVQ130
23	US/Nidec Neptune Variable Speed Motor 2.70 THP Square Flange 230V 48Y
**	Protective Pool Motor Cover

Available Parts:

Part # GOKIT81 Mfg # GOKIT81

Tune Up Kit Hayward Tristar

$49.99 IN STOCK

Qty:
