Does this work for the propane milli volt model?
Does it include the display?
Thanks.
Reply
Hi Neil, this board does include the display but it does not work with the milivolt units only the electronic ignition (IID) units.
Reply
Is this part a plug and play replacement for the older style board that does not have the replaceable LCD display? P/N 601769
Reply
Dave, This PC BOARD CONTROLLER & 3-WIRE-KIT will work on all models that have a digital display and electronic ignition.
Reply
is the board 405b work in a 406a water heater?
Reply
Hi, This PC Board (013464F) can be used in the R405B manufacture date 11/03-10/04 and R406A manufacture date 11/04- current units.
Reply
pool Heater model 266A don't find part # 013464F on control board.
Has
601944
ID 026
1134-700
0714N502317
What is replacement part and how assured it is bad?
Reply
Hi Lynn, In order to get you the correct PCB, we will need to know the year that your unit was manufactured. We're unable to use the info you provided to located the correct replacement PCB.
Reply
looking to replace and not sure what i need for a rheem ray pak heater ...my display is not readable, have no idea temp settings? Serial #0812047113
Model #pm336aenx BTU/HR inp 332500....ignition board or control panel kit???
Reply
Kimberly, if you need the display, the correct part number is the 013464F PC Board Controller and 3-Wire Kit. In our picture, we do not show the LCD screen on the backside of the board.
Reply
does the replacement PC board come with the 3 wire sensor as well? I was given part number 013464F. Is this everything I need to replace the PC board when I order this or is there something else?
Reply
Hi, The part does include the 3-wire kit along with everything needed to install the board. Some customers usually replace the decal if faded when replacing this board.
Reply

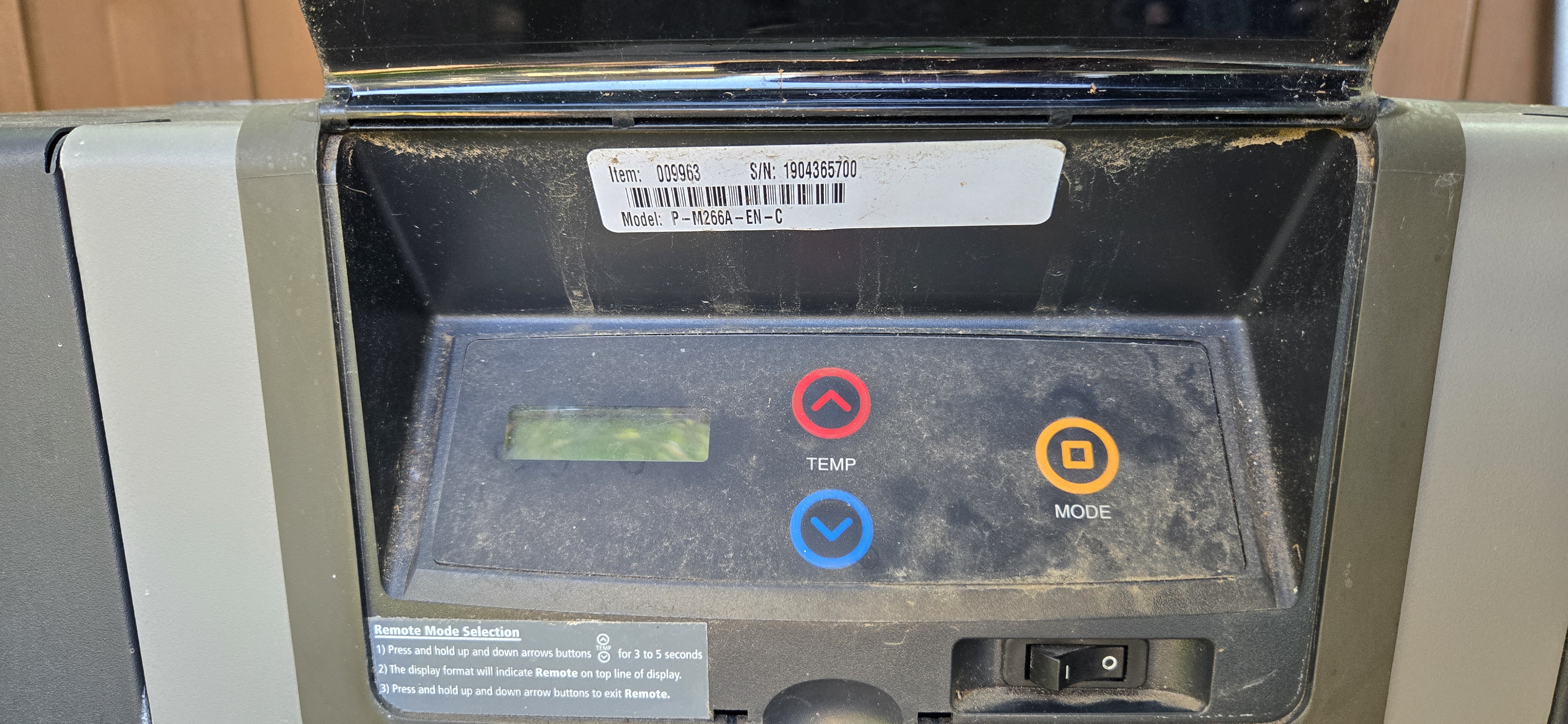

I have a rheem/raypak heater Model#P-M266A-EN-C Serial#0412009103. I'm getting a GVO error which means Gas Valve Open. I was told a new board Raypak#013463F would fix this problem?
Reply
Hi, Tom. To find if the problem is the PCB or the Gas valve, follow these steps.1. Turn power OFF and disconnect Ignition Wire and Gas Valve wires from board.2. Power ON and watch for spark at module.3. If no spark, turn power OFF, and replace board.4. If spark is observed, turn off power and reconnect wires. The unit should fire.5. If unit does not fire and code reappears, power OFF, disconnect valve wires from board and remove MV, PV, and ground wires. Clean and reconnect.7. If unit does not fire, replace the gas valve.8. Low power to transformer can cause a GVO fault.
Reply
Hi, I have a Raypak PR266A EN-C heater and it just stopped heating, When you activate the heat the display shows "CFH" and then "SPK" and the burners do not light. I replaced the standing pilot and tubing but still not firing. Checked 24v transformer and it appears to be ok. So I'm thinking its either the gas valve and or the PC board. Can you recommend the correct replacement parts for both?
Reply
Hi, Michael. To find out if the gas valve or PCB is the issue; you'll need to check for 24 VAC across MV-MV/PV terminals. If no voltage, replace PC board. Also, check electrical connections between PC board and gas control. If okay, replace gas valve or gas control operator, i.e. pilot gas valve, flow switch etc.
Reply
Is this board compatible with the "Control Panel, Iid, Digital (006739f)"? This is the original lid and Switch/Decal membrane on the Raypak 2100 model 405A. The LED on my board is cracked. The heater still works but I have no idea of temp/set point/mode of operation. It appears I need this new board which is compatible with the 405A. So if I purchase this board, do I also purchase the newer 013492F membrane switch or will the 006739f work.
Reply
Hi, I bought item #014941 - Raypak Heater 406,000 BTU's NG ELE W/ Cupro-Nickel Heat Exchanger from you guys a couple years ago. When I try to fire up the heater, it doesn't seem to sense when the burners are lit. Everything operates fine until after the burners light, then it turns itself off and re-lights itself over and over. Is this the part that will fix this issue?
Reply
Hi, Gene. It's possible if you've reset the PC board and checked the continuity of ignition cable and ground wire, and that the pilot flame covers flame rod and is steady and blue. If these two checks out then the PC Board is bad. You will need Part #010253F for your model heater.
Reply
Is this a replacement for 601944, 1134-700? Thank you in advance for your response.
Reply
Hi, David. Yes, this is the correct replacement board based on the info provided.
Reply
Raypak Model P-R406A-EN-C Serial # 0810041575
Need Pc Board Control Digital Gas Heater, is this the right board for this heater?
Thank you
Reply
Hi, Scott. This is the correct replacement board based on your model and serial number.
Reply
I have a Raypak P-R406A-EP-C heater that has a bad display. What part do I need to replace it and is there anything special about installing the new part?
Thanks
Reply
Sorry for the late reply but could you let us know how old is the unit?
Reply
If it is only the display screen only. You can replace the LCD and its board without replacing the entire control board. Search for "Raypak 013640F LCD Display Poolstat Kit". **NOTE: Applicable to modes with P.C. Board P/N 013464F manufactured after 05/11.** YouTube has a video on replacing the LCD and its board.
Reply
Will this work with model (P-M407A-EN-C) Serial Number beginning 080302. The upper row of the display does not show anything anymore. Is there a way to repair just the display? Thank you in advance.
Reply
This 013464F is the correct item.
Reply
To clarify, the LCD and its board can be replaced with 013640F. Search for "Raypak 013640F LCD Display Poolstat Kit". YouTube has a video on replacing the LCD. **NOTE: Applicable to modes with P.C. Board P/N 013464F manufactured after 05/11.**
Reply
Do I understand that there is no way to replace the display only if the controls are working fine?
Reply
That is correct if your display goes out you need to replace it with this entire kit.
Reply
Not true. The display can be purchased separately and is easy to install. It came with simple instructions. If a novice like me can do it, it's EASY! You need NOT purchase the entire circuit board UNLESS you have failures other than the display.
Reply
Hi Joe, Could you give the part # for the display only that you used so we can update our records, thanks so much!
Reply
I have a Raypak model 406a manufactured in 2008. will this item work in my heater ?
Reply
Hi, Richard. This is compatible with the Raypak 406A unit manufactured in 2008.
Reply
I have Raypak Model C-R336A-EN-C serial number 0703263133. Is this the correct part?
Reply
Yes, this is the correct replacement PCB control for the CR336AENC Raypak ASME.
Reply

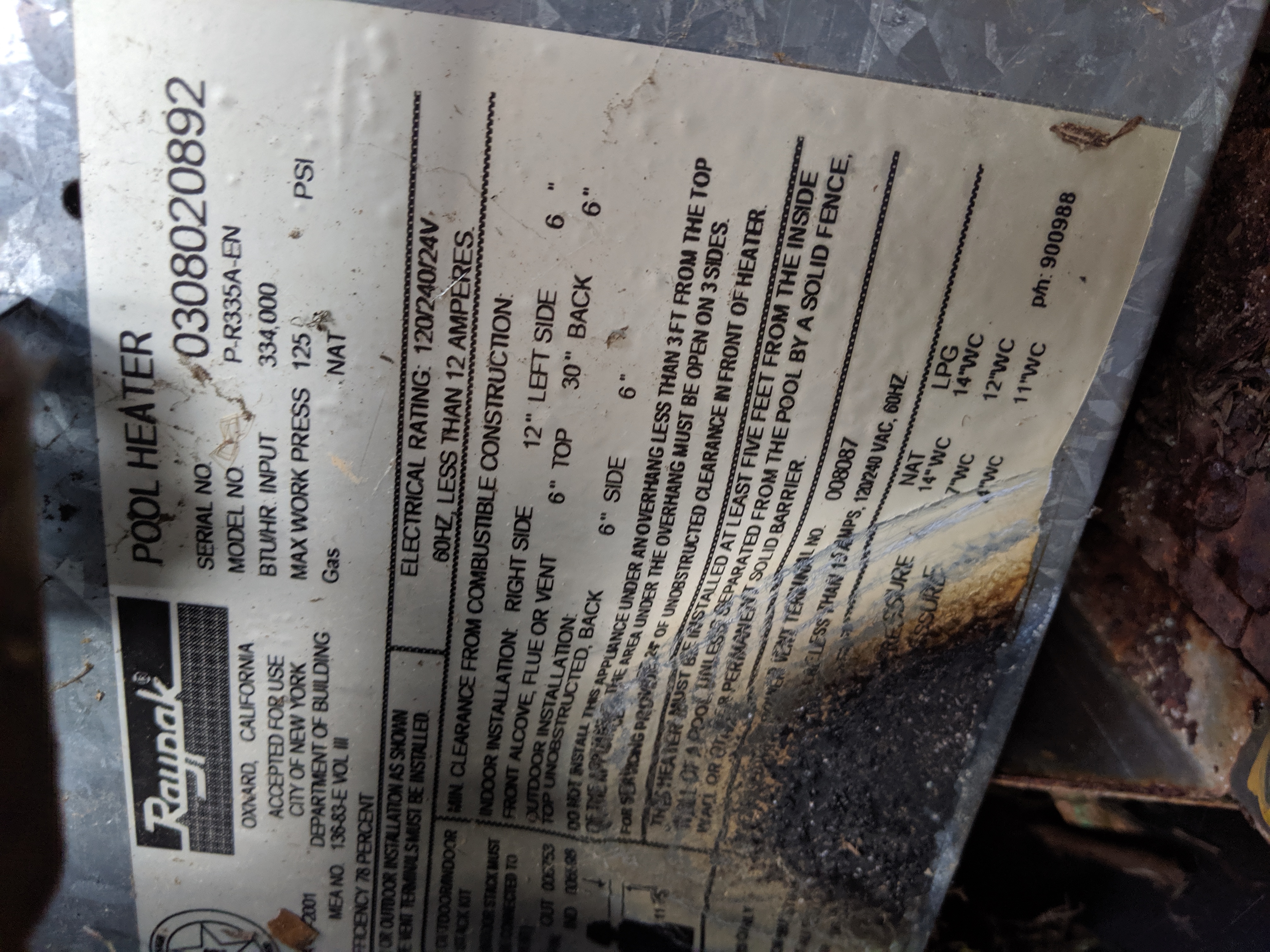

Hi, I have rp2100 p-r335a-en model# 03080208.
My heater turns on by itself and immediately goes to the highest heat setting at 104 degrees. Is this the right part for me and do you think this will solve my problem?
Thanks
Reply
https:www.raypak com/documents yes this is the correct part number
Reply
this question was answered on 06/24/19 we suggest you go to the link provided & check out the troubleshooting guides provided by the mfg. https://www.raypak.com/documents/
Reply
Hi, Brian. This PCB Control Kit is the correct part. It will resolve the issue if it's not being controlled by an external controller.
Reply
Thanks, I got the board, looks good but my p1 sensor wire has 2 female connector and this board has 3 male connector. Am I still good and could I just order a new wire to fit the board? If so what's the wire called. Thanks
Reply
does the lit contain a flame sensor?
Reply
Hello, This will not contain a flame sensor.
Reply
does the lit contain a temp sensor?
Reply
This would not contain the temperature sensor.
Reply
I have a rp 2100 185a natural gas that I think the board has gone out on I am having trouble finding a correct replacement pc board # Could 006700F be the #
Reply
Hi, Russ. The replacement PCB P/N is 017108F. We will have to reach out to Raypak to see if it is available.
Reply
I also have the 185A ser# 0005037505 natural gas heater, according to raypak book I need 017108F but am unable to locate this part anywhere. Has it been updated to another part number? Did you find anything about it from Raypak?
Reply
I have a RP 2100 P-R335A-EP Serial #0103067189 will this pc board work?
Reply
The correct part number for your heater would be a 017110F
Reply
I don’t think that is the correct item. I think its item # 010253F
Reply
The correct part number for your heater would be a 017110F
Reply

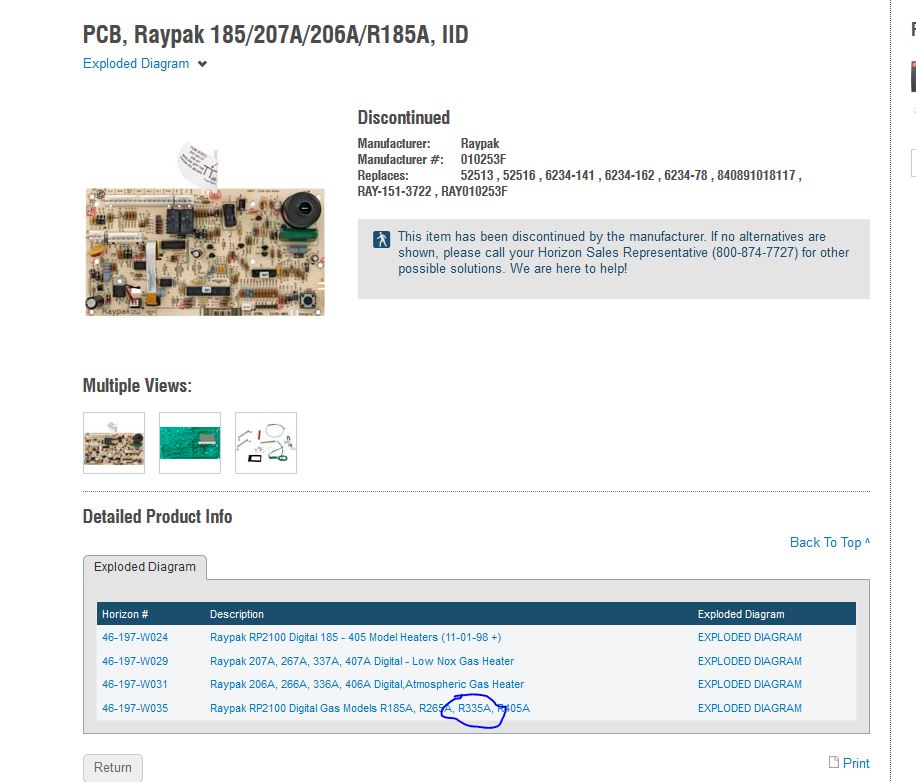

We show the pc board for your model heater as being discontinued. see snip image showing models it was used in.
I have a RP 2100 Model #: P-R335AL-EN Serial: 0306011656. Is this correct part or I need to get 010253F.
Thanks,
Reply
Eric, we apologize for the inconvenience, however, we have been unable to obtain an answer to this question from the manufacturer. We suggest calling RayPak directly to see if they might be able to offer any advice.
Reply
Is this the right mother board Ray Pak model P-M206A-EN-C
Reply
Hi, Darcy. Yes, if your model was manufactured after 11/01/04.
Reply
I got a new mother board and put it in my pool heater it worked fine for two weeks now its not working at all the screen shows nothing its blank
Reply
Hi, Darcy. The unit will have to be troubleshoot confirming that you're getting 24 volts to the Board. If not, you will need to replace the Transformer - 006736F. If the board is getting the required 24 volts, then the Board is bad.
Reply
Mr. Lennox H. Sir I have been trying to get a reply about the mother board !I have checked and cleaned and or replaced everything rollout switch pilot light checked transformer 24.5v in 24.5v out! I have been trying to get a reply for two weeks now im not very happy right now can some one help me or send this to some one that can help.I have spent $153.00 getting every thing checked .
Reply
ok why has no one told me what other things need to be checked I have checked all the things you asked me to all the way back to the board again. I have power up to the board then no power after the board.
Reply
ok as you told me I had the transformer checked it has 12.5 v coming in and 24.5 going to the board and then no reading after the board to anything
Reply
OK had my neighbor who is an electrician come over I have 24 V coming in and 24 V going out from the transformer is there anything else other than the motherboard to Check
Reply
I got this unit PCB Control about three weeks ago now its not working first the rollout sw. burned out replaced it then no pilot light replaced pilot light and now its showing main ignition failure. how do I get another PCB Control ?
Reply
First inspect your heat exchanger, is it clean? Soot? It may not be your PCB board.
Reply
Since purchase of our Raypak heater in July 2014, the PC Board Controller 013464F has been replaced in 2016 and again in 2018 and has failed again. Including the original, when I have it replaced again, it will be the forth unit in the past 5 years! Is this a common occurrence with Raypak?
Reply
No this is not a common problem, things to check excessive moisture, rodent infestation,correct air flow.
Reply
No, this is not common, we recommend you have a professional technician do a service call.
Reply
I have a Raypak 266 pool heater. It worked perfectly for three weeks and now it shows a "flo switch" problem. I have checked the flow switch with a meter, flow switch works fine. The unit starts fine, burns for about 1 minute then shuts the gas valve and shows the flow switch again. I even jumpered the two wires at the flow switch and same thing happens. Starts fine, runs a minute then shuts the gas valve. Could the problem be with the flame sensing wire or is this a board issue. Warrantee?
Reply
If it is reading “Water Switch Open” then it usually means that there is a water flow issue. The filter should be backwashed and/or cleaned, the strainer basket and skimmer basket should be emptied, and adequate flow confirmed. If using a variable speed or two speed pump, then the rpms may need to be increased. If adequate water flow is confirmed and the issue persists, then check the connection at the P2 terminal on PC Board by unplugging the connector and plugging it back in to ensure a snug connection. If the connection is sloppy or loose, then the pins on the PC board could be faulty.
Reply
will this board work on a 405a , how many plug ins are there.Can you send pic of other side.
Reply
Is this unit a direct replacement (updated revision) part for a Raypak p-r336a heater? The PCB board in the unit now is a 601769.
Reply
yes, this is the latest revision pc board
Reply
Will this work in place of a PCB part # 601588 for an RP2100?
Reply
Hi Robert, You will actually need this 005241f Thermostat Control for your 601588
Reply
Will this replace a 1134-83-701A PCB Board
601944
ID 021
1134-7003
1611N220017
Thank You
Reply
Hi George, Yes this is the correct replacement board for your 601944 board.
Reply
Hello, I am having trouble with the display vanishing. sometimes it shows and sometimes its blank. The seriel # on the Raypack is 0101058101. It is an RP2100 Digital. What parts do I need. It would be very helpful.
Thank You
Reply
Hi Shelly, Could you let us know the BTU size of your heater, this should be listed on the heater and the rating would be something like 185,000 (185A), 265,000 (265A), 335,000 (335A) or 405,000 (405A). Also could you please supply the approximate year of the unit, based on the serial I think it is showing Jan. 2001 but I wanted to double-check with you to see if that date seems accurate? Simply click the reply link below to answer these questions. this information will help us suggest the correct part.
Reply
Will this controlwork for my heater Model #P-R106A-AN-C SERIAL# 1508060038
Reply
Hi Ken, Can you double-check your model # to see if you have 206A and Not a 106A as we are not showing a 106A. If you do indeed have the 206A thne yes this is the correct replacement.
Reply
Need a manifold for my Rheem pool heater
Serial Number 070 1191 771
Model #P-M337A-ENC
Rheem/Raypak
Model 105 A Catalog #Ray 151-1656
Item #3-H Return Header (cast Iron)
MFG #004934F
Thank you,
Doug
Reply
Hi Doug, Please click on this link Raypak Heater Manifold Units manufactured from 7/2013 thru 9/2019 and let us know if this looks the part you need.
Reply
need board control 006700F for raypac 2100 pool heater
Reply
Hi, Could you please supply the exact model # and serial # for your Raypak heater as this will allow us to determine the proper replacement board.
Reply
I have a Raypack RP2100 pool heater and the control board is Raypack part number 601588 - will this board replace it? Does it include wire hookup instructions?
Thx, John
Reply
You will actually need this 005241f Thermostat Control for your 601588.I do not think there are any instructions that come with the Control board.
Reply

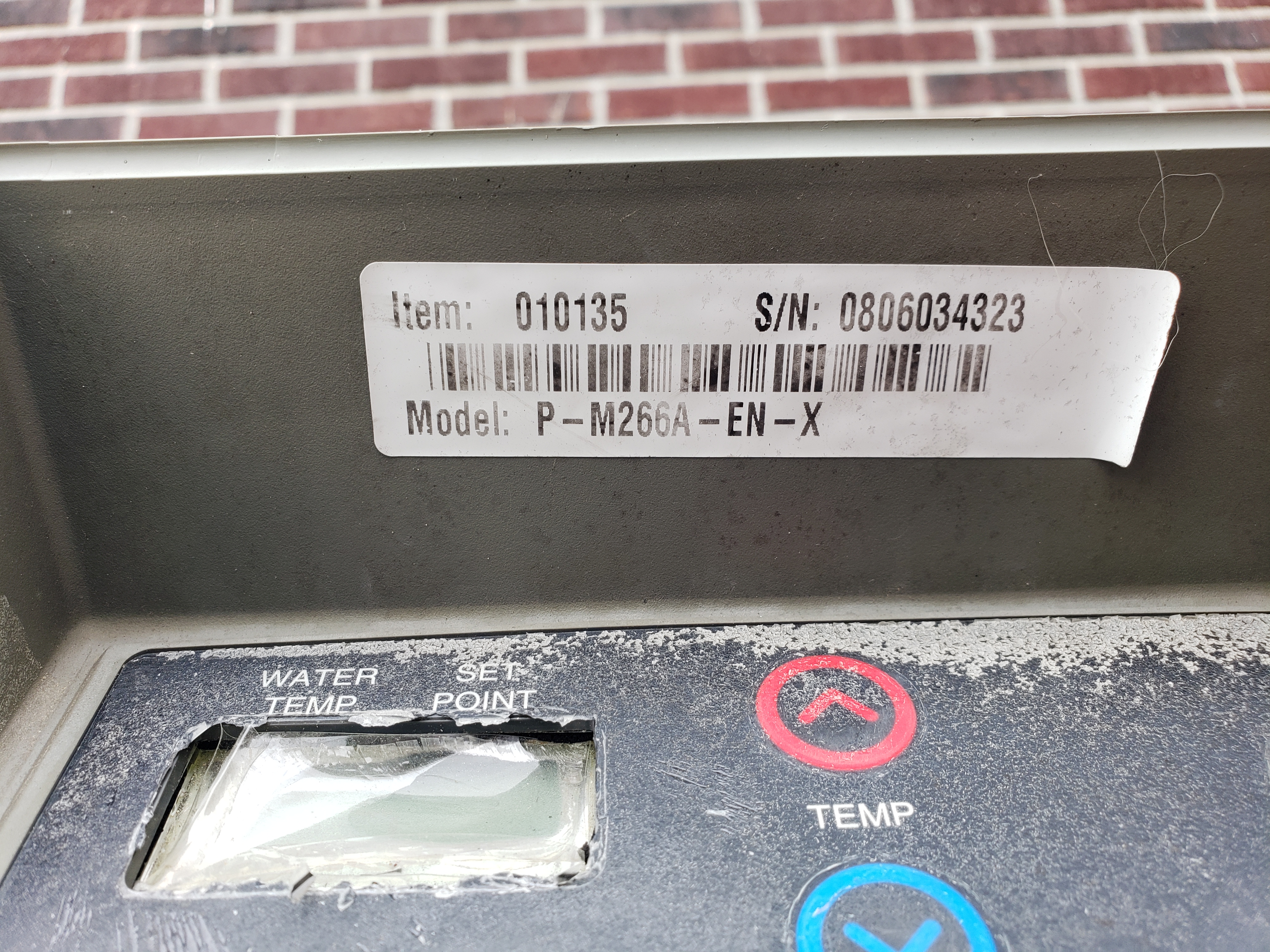

I have a Raypak heater model # P-R266A-EN-X is this the correct control board. Do I need anything else to replace the board.
Reply
Hi Allan, the Raypak Heater PCB Control Kit - 013464F will be perfect for your Raypak P-R266A-EN-X.
Reply
have a 406a heater bought from inyo pools a few years ago. I can no longer read the display will this fix my problem?
Reply
Yes, part number 100-10000345 will work with the Raypak 406A pool heater and fix the issue of not being able to read the display.
Reply
