American Products 6 Position Top Mount Models 501131, 501130, 501231 Parts

11/2 & 2 " MULTIPORT MODELS 501131, 501130, 501231

PRIMARILY USED ON ECLIPSE AND METEOR PRIOR TO '95

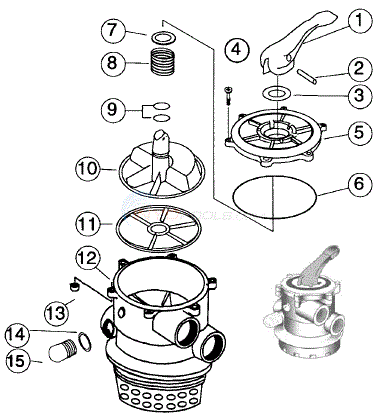

American Products 6 Position Top Mount Models 501131, 501130, 501231 Diagram

Click to zoom in

Diagram #	Part Title
1	No Longer Available HANDLE Replace With 4600-1156
2	No Longer Available PIN, HANDLE Replace With 4700-02X
3	WASHER
4	OBSOLETE BOLT
5	OBSOLETE LID, 1 1/2"

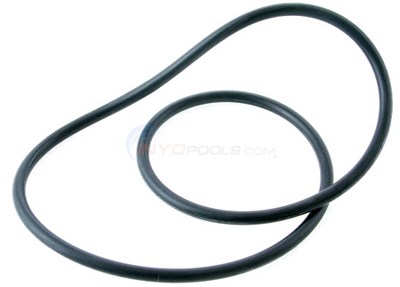

6	O-RING, 1 1/2IN
7	No Longer Available WASHER, SPRING Replace With 4600-1160
8	No Longer Available SPRING Replace With 4600-1161
9	O-RING, VALVE STEM

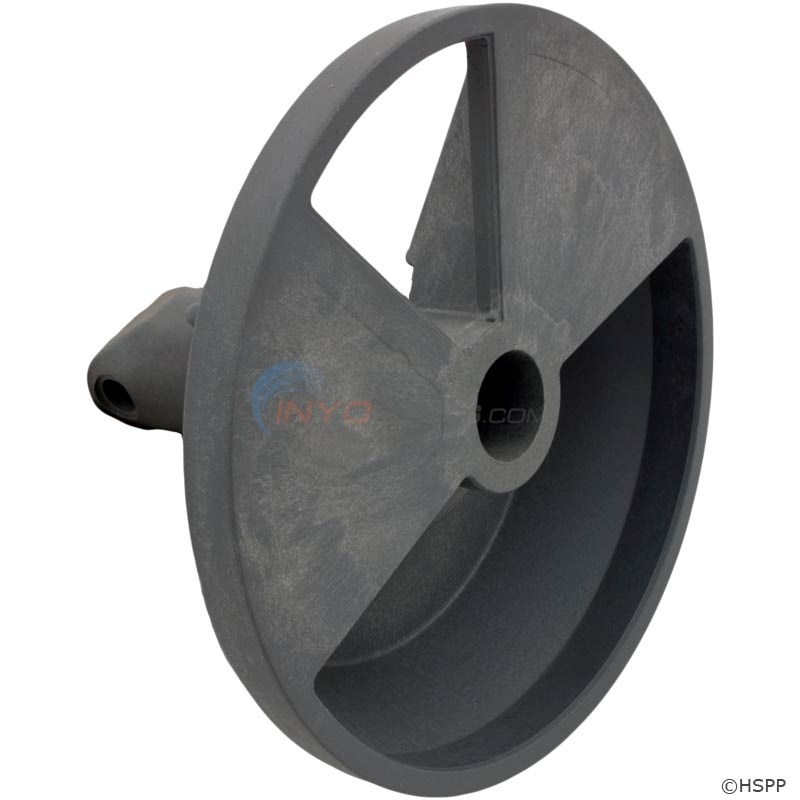

10	ROTOR, 1 1/2IN
11	No Longer Available GASKET, SPIDER 1 1/2" Replace With 4600-1104
12**	No Longer Available BODY Replace With 4650-01A FOR 26" FILTER
13	No Longer Available NUT Replace With 4600-1139
14	OBSOLETE GASKET, SIGHT GLASS
15	OBSOLETE SIGHT GLASS
*	No Longer Available O-RING, STANDPIPE Replace With 4600-5064
