American Products Ultra-Flo Parts

American Products Ultra Flo
Anthony Pools SuperFlow

American Products Ultra-Flo Diagram

Click to zoom in

Diagram #	Part Title
**	Tune Up Kit - Ultra Flow & Bronze Pump
1	Seal Plate - Black
21	Basket for American Products Ultra Flo Pool Pump
2	Shaft Seal, Pump 5/8" PS-1000 (Standard)
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
3	Nut, 3/8"-16
4	Washer, Lock 3/8"
5	Impeller, 1/2 HP
6	Screw, Impeller
7	O-ring, Impeller Screw
8	Diffuser, 1/2 - 1.5 HP
9	Ring, Wear
10	Gasket, Diffuser
11	Volute O-ring
12	Volute, Black - 1-1/2”
13	Clamp, Assembly w/ Knob
14	Knob, 1/4"-20
15	Base - Almond
16	Washer, S.S. 7/16"ID x 7/8"OD
17	Screw, Cap 5/16-18 x 1"
18	Gasket, Pot to Volute
19A	Pot, 1-1/2"
20	Bolt, S.S. 1/4-20 x 1-3/4"
21	Basket, Generic
22A	O-ring, Lid (Pre-11-94)
23	Lid
24A	Clamp Assembly (Pre-11-94)
24B	Locking Ring (After-11-94)
25	Plug, Drain w/ O-ring - Replace With 154699
26	Ring, Reinforcing 2” Pot
27	T-Bolt
28	Washer, 1/4"-20
29	Lid, Old Clamp Style
30	Knob, 1/4"-20
31	O-ring, Plug
32	Motor 1/2 HP Up Rate
***	Protective Pool Motor Cover

View Parts List

Diagram #	Part Title
**	Tune Up Kit - Ultra Flow & Bronze Pump
1	Seal Plate - Black
21	Basket for American Products Ultra Flo Pool Pump
2	Shaft Seal, Pump 5/8" PS-1000 (Standard)
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
3	Nut, 3/8"-16
4	Washer, Lock 3/8"
5	Impeller, 1/2 HP
6	Screw, Impeller
7	O-ring, Impeller Screw
8	Diffuser, 1/2 - 1.5 HP
9	Ring, Wear
10	Gasket, Diffuser
11	Volute O-ring
12	Volute, Black - 1-1/2”
13	Clamp, Assembly w/ Knob
14	Knob, 1/4"-20
15	Base - Almond
16	Washer, S.S. 7/16"ID x 7/8"OD
17	Screw, Cap 5/16-18 x 1"
18	Gasket, Pot to Volute
19A	Pot, 1-1/2"
20	Bolt, S.S. 1/4-20 x 1-3/4"
21	Basket, Generic
22A	O-ring, Lid (Pre-11-94)
23	Lid
24A	Clamp Assembly (Pre-11-94)
24B	Locking Ring (After-11-94)
25	Plug, Drain w/ O-ring - Replace With 154699
26	Ring, Reinforcing 2” Pot
27	T-Bolt
28	Washer, 1/4"-20
29	Lid, Old Clamp Style
30	Knob, 1/4"-20
31	O-ring, Plug
32	Motor 1/2 HP Up Rate
***	Protective Pool Motor Cover

Available Parts:

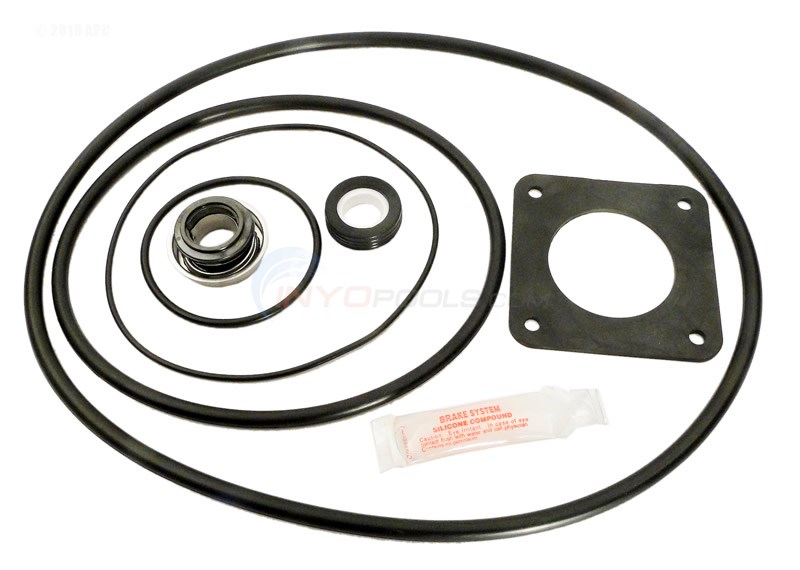

Tune Up Kit - Ultra Flow & Bronze Pump

Part # GOKIT20

Tune Up Kit - Ultra Flow & Bronze Pump

$37.30 IN STOCK

Qty:

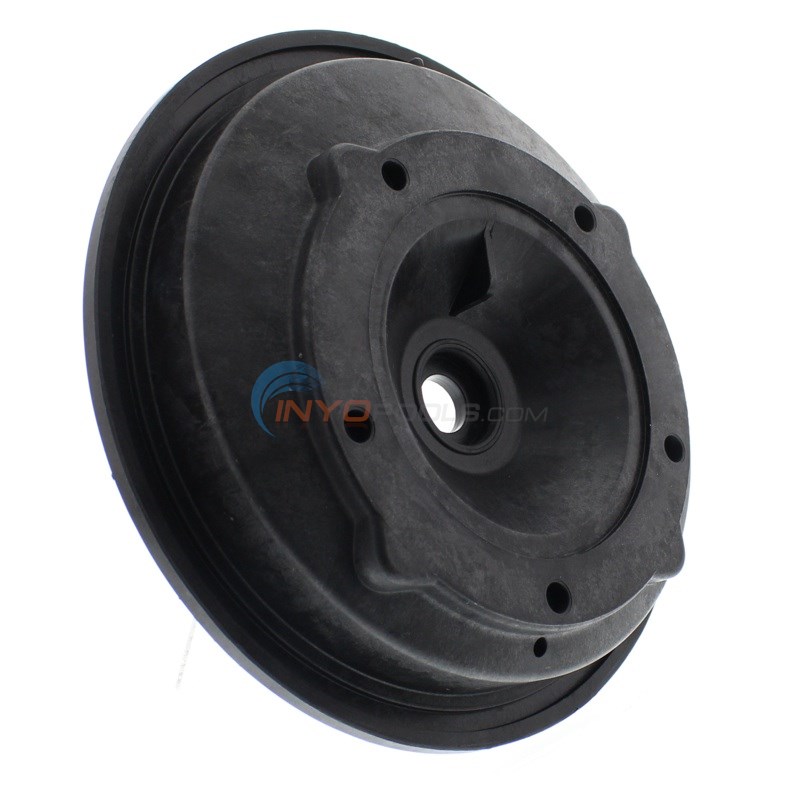

Seal Plate - Black

Part # 5106-210 Mfg # V38-131

Seal Plate - Black

$151.12 IN STOCK

Qty:

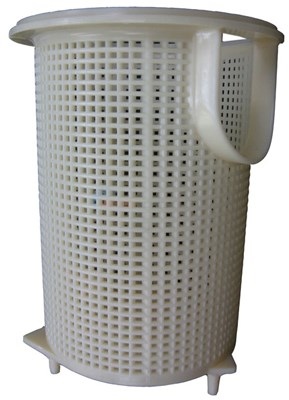

Basket for American Products Ultra Flo Pool Pump

Part # 5406-008 Mfg # V38-185

Basket for American Products Ultra Flo Pool Pump

$49.37 IN STOCK

Qty:

Shaft Seal, Pump 5/8" PS-1000 (Standard)

Part # 5250-106 Mfg # PS-1000

Shaft Seal, Pump 5/8" PS-1000 (Standard)

$8.39 IN STOCK

Qty:

Shaft Seal, Pump 5/8" PS-3865 (Heavy Duty)

Part # 5250-225 Mfg # PS-3865

Shaft Seal, Pump 5/8" PS-3865 (Heavy Duty)

$17.65 IN STOCK

Qty:

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

Part # LUBE-PP

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

$6.11

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

Part # LUBE-10ML

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

$31.97

Nut, 3/8"-16

Part # 6932-0 Mfg # 071403

Nut, 3/8"-16

$9.12 IN STOCK

Qty:

Washer, Lock 3/8"

Part # 4670-26 Mfg # 072183

Washer, Lock 3/8"

$11.43 IN STOCK

Qty:

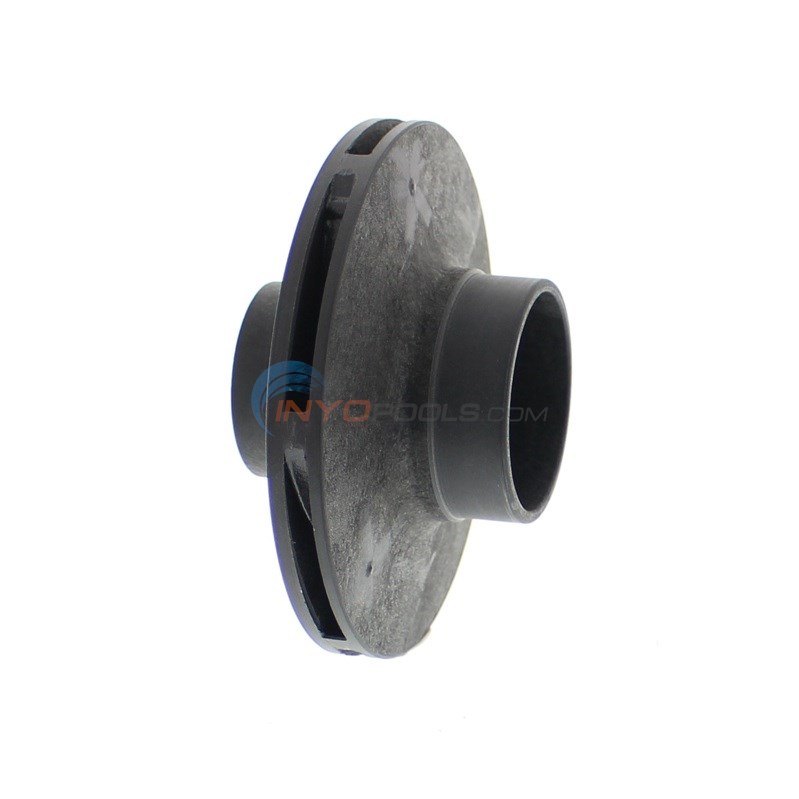

Impeller, 1/2 HP

Part # 5106-230 Mfg # V38-122

Impeller, 1/2 HP

$138.36

Replaces 39005610

Replaces 39005610

Impeller, 3/4 HP

Part # 5106-231 Mfg # V38-123

Impeller, 3/4 HP

$148.19 IN STOCK

Replaces 39005010

Replaces 39005010

Qty:

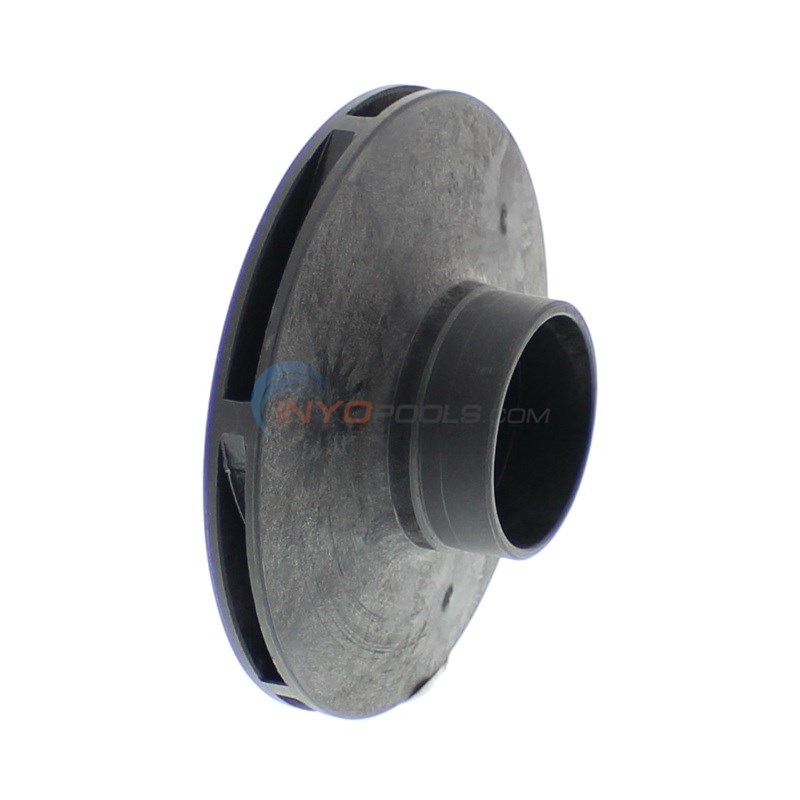

Impeller, 1.0 HP

Part # 5106-232 Mfg # V38-124

Impeller, 1.0 HP

$161.17 IN STOCK

Replaces 39005110

Replaces 39005110

Qty:

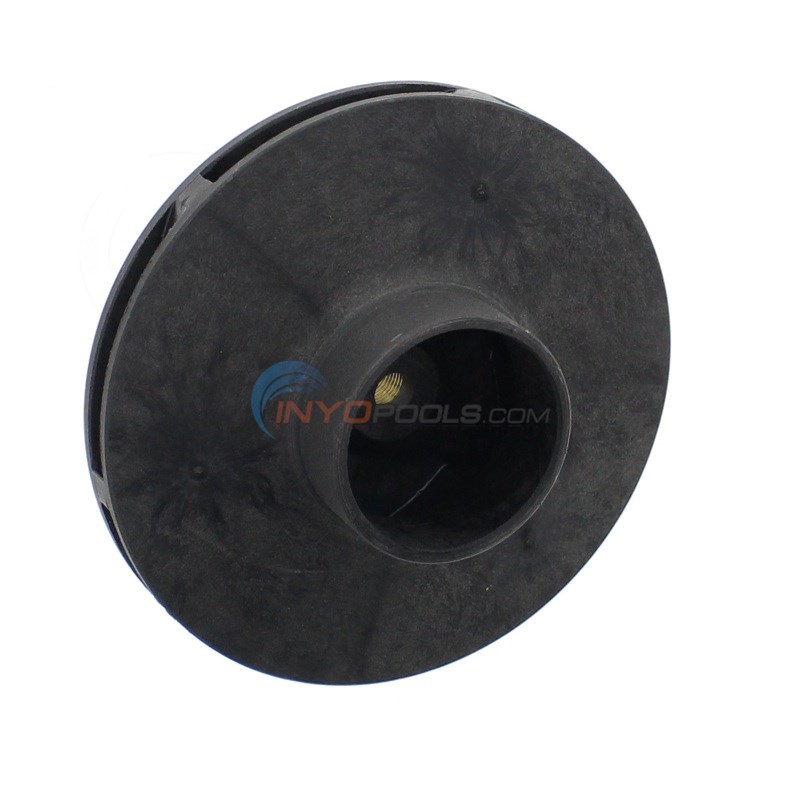

Impeller, 1.5 HP

Part # 5106-233 Mfg # V38-126

Impeller, 1.5 HP

$152.65 IN STOCK

Replaces 39005210

Replaces 39005210

Qty:

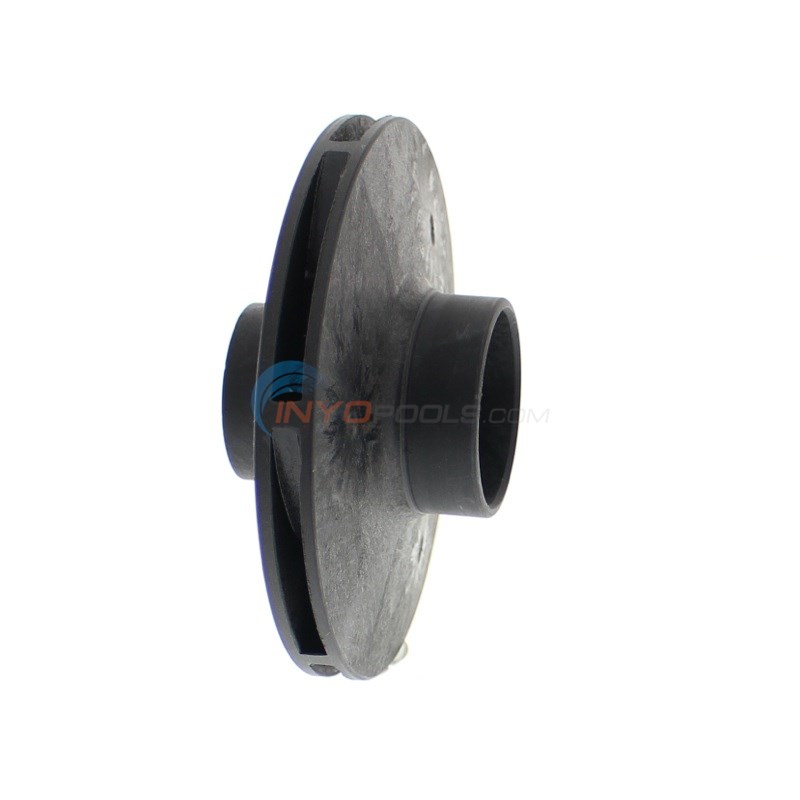

Impeller, 2 HP

Part # 5106-234 Mfg # V38-127

Impeller, 2 HP

$161.17 IN STOCK

Replaces 39005310

Replaces 39005310

Qty:

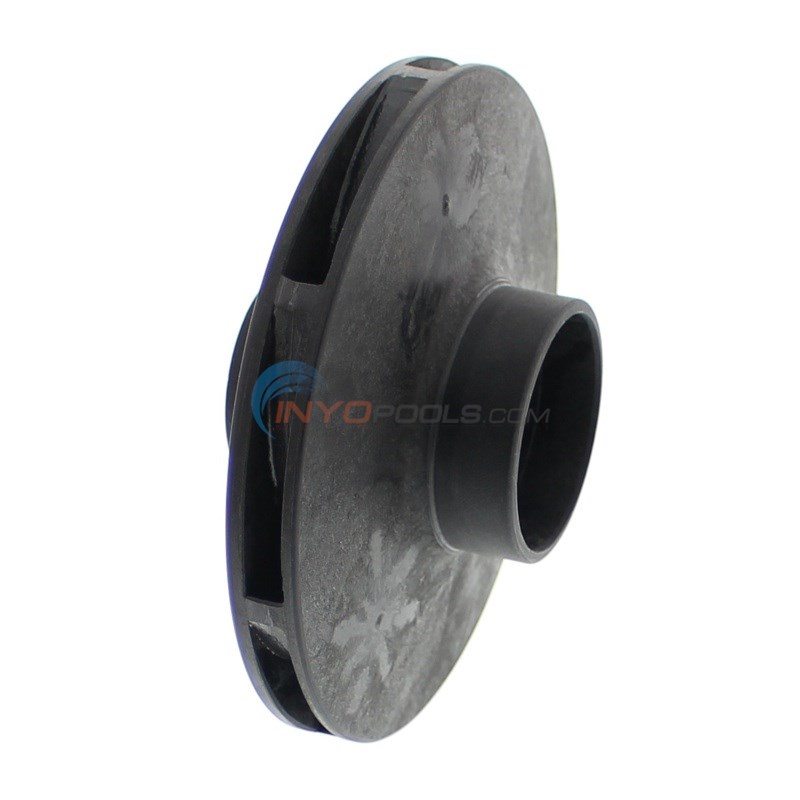

Impeller, 3 HP

Part # 5106-235 Mfg # V38-128

Impeller, 3 HP

$117.51 IN STOCK

Replaces 39005410

Replaces 39005410

Qty:

6

Screw, Impeller

Mfg # 39009900

Screw, Impeller

NOT AVAILABLE

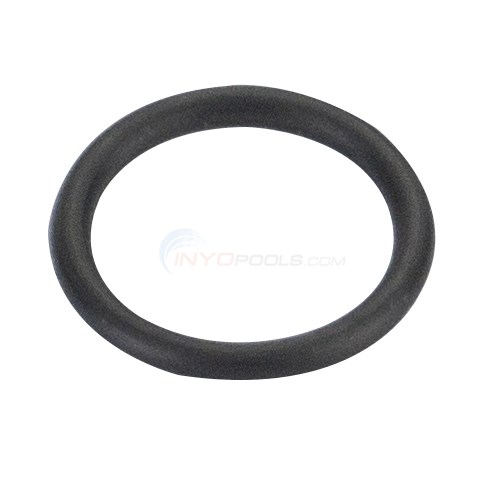

O-ring, Impeller Screw

Part # 5106-29 Mfg # 39010000

O-ring, Impeller Screw

$7.87 IN STOCK

Qty:

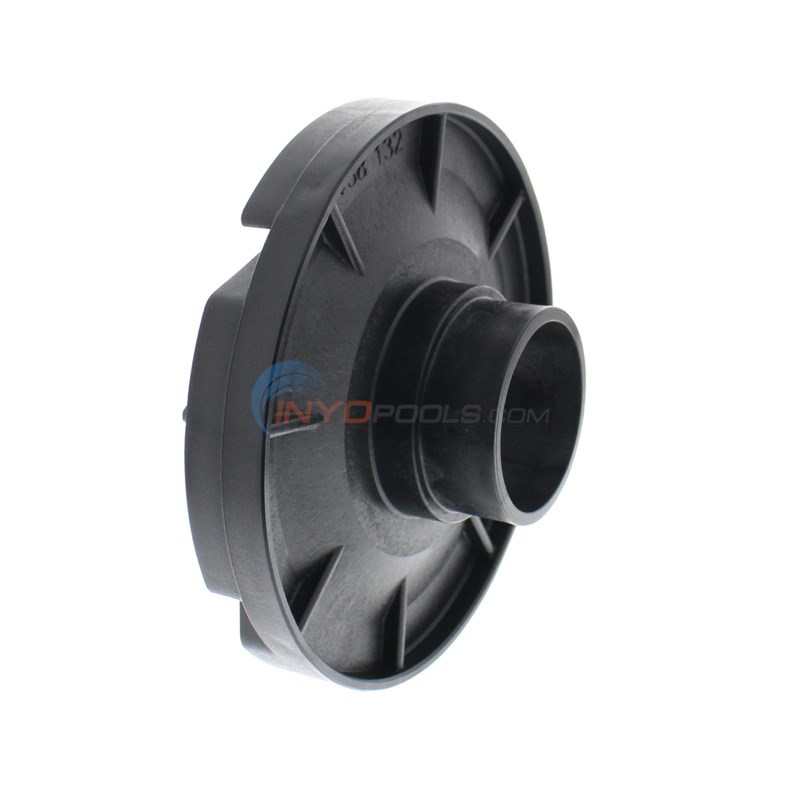

Diffuser, 1/2 - 1.5 HP

Part # 5106-25 Mfg # 39005500

Diffuser, 1/2 - 1.5 HP

$72.84 IN STOCK

Qty:

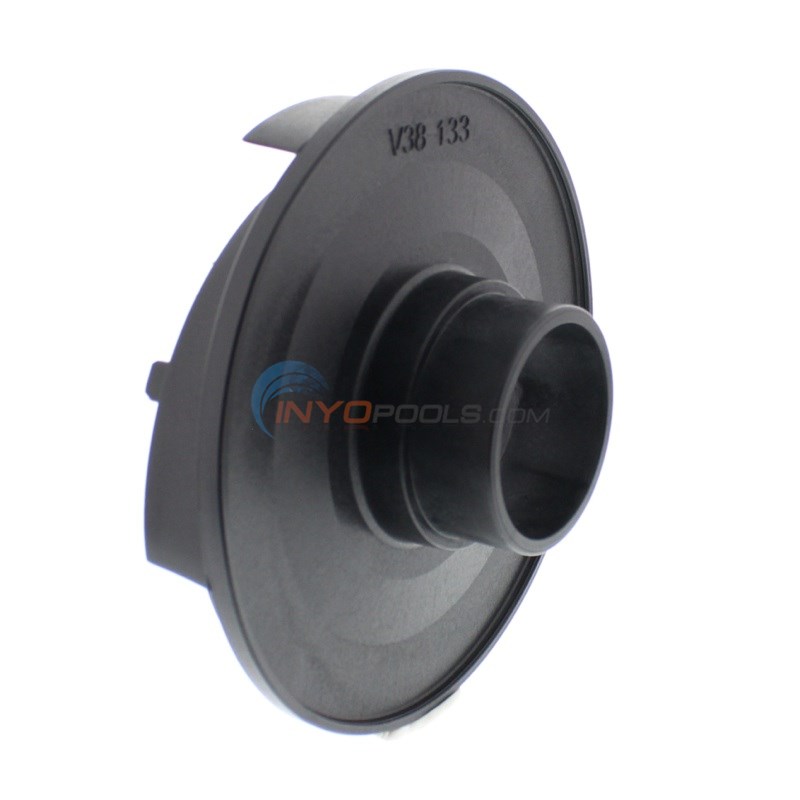

Diffuser, 2 & 3 HP

Part # 5106-25A Mfg # 39015500

Diffuser, 2 & 3 HP

$63.64 IN STOCK

Qty:

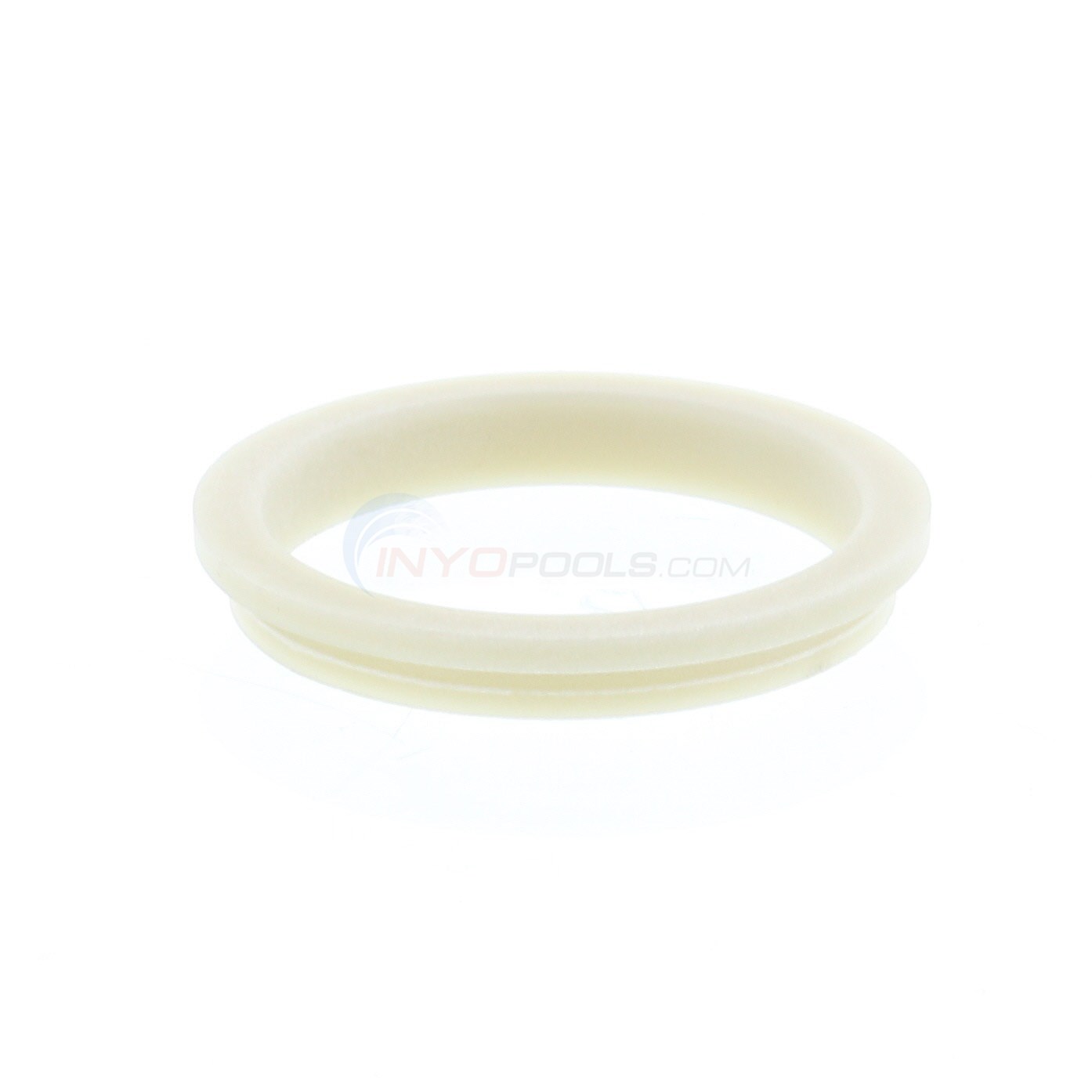

Ring, Wear

Part # 5106-24 Mfg # 39006900

Ring, Wear

$33.66 IN STOCK

Qty:

Gasket, Diffuser

Part # 5057-26 Mfg # 231

Gasket, Diffuser

$13.57 IN STOCK

Qty:

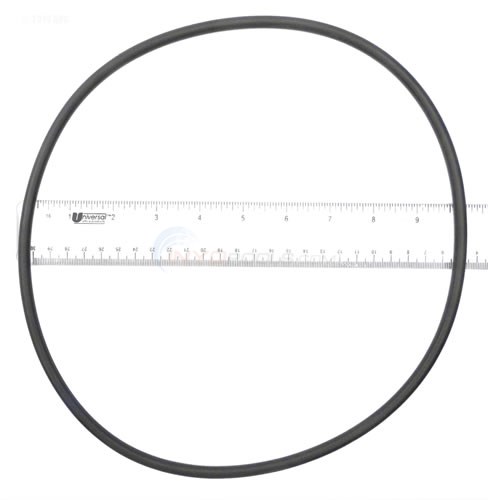

Volute O-ring

Part # 5056-06 Mfg # 449

Volute O-ring

$10.06 IN STOCK

Qty:

12

Volute, Black - 1-1/2”

Mfg # 39005700

Volute, Black - 1-1/2”

NOT AVAILABLE

Replaces

Replaces

Volute, Black - 2” V38-130

Part # 5106-270

Volute, Black - 2” V38-130

$243.86 IN STOCK

Replaces 39007000

Replaces 39007000

Qty:

12

Volute, Almond - 1-1/2”

Mfg # 357141

Volute, Almond - 1-1/2”

NOT AVAILABLE

Replaces

Replaces

12

Volute, Almond - 2”- Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352061894.htm">V38-130</a>

Mfg # 357140

Volute, Almond - 2”- Replace With V38-130

NOT AVAILABLE

Replaces

Replaces

Clamp, Assembly w/ Knob

Part # 5106-22 Mfg # 39006200

Clamp, Assembly w/ Knob

$170.05 IN STOCK

Qty:

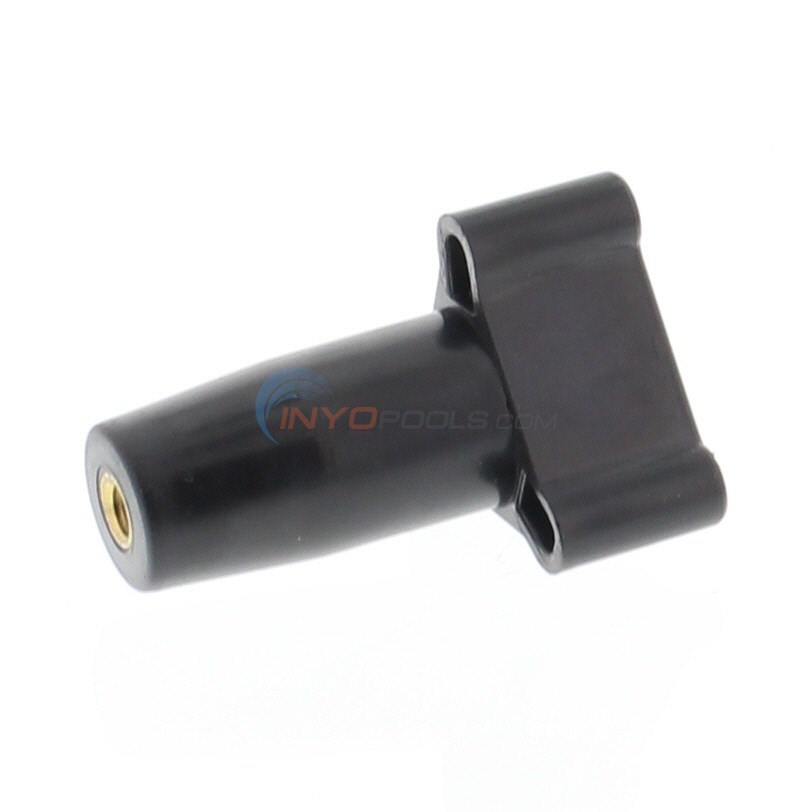

Knob, 1/4"-20

Part # 5105-22 Mfg # 39302700

Knob, 1/4"-20

$32.01 IN STOCK

Qty:

15

Base - Almond

Mfg # 357139

Base - Almond

NOT AVAILABLE

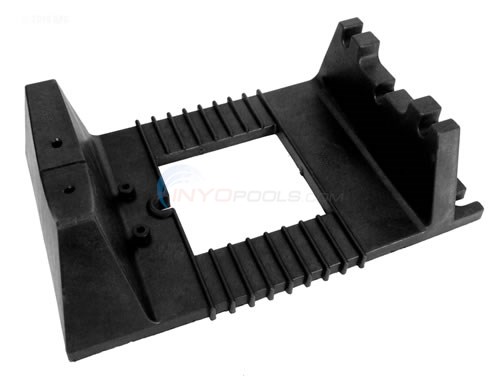

Base - Black

Part # 5106-15 Mfg # 39005800

Base - Black

$44.77

Washer, S.S. 7/16"ID x 7/8"OD

Part # 6982-0 Mfg # 072184

Washer, S.S. 7/16"ID x 7/8"OD

$3.32 IN STOCK

Qty:

Screw, Cap 5/16-18 x 1"

Part # 6915-0 Mfg # U30-62ZP

Screw, Cap 5/16-18 x 1"

$10.90 IN STOCK

Qty:

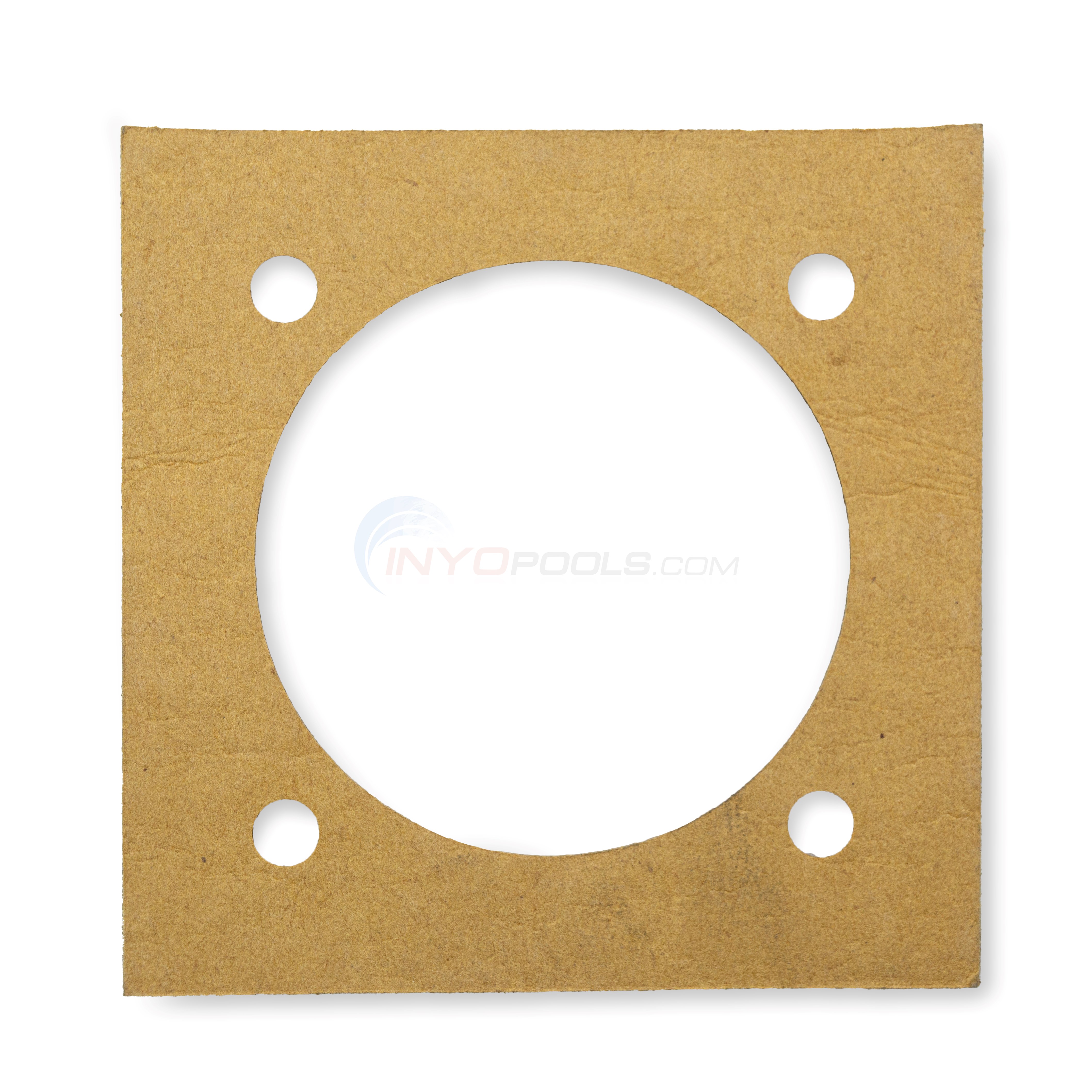

Gasket, Pot to Volute

Part # 5105-19 Mfg # G-97

Gasket, Pot to Volute

$15.55 IN STOCK

Qty:

19A

Pot, 1-1/2"

Mfg # 39307300

Pot, 1-1/2"

NOT AVAILABLE

19A

Pot, 2” (Pre-11-94)

Mfg # 39007100

Pot, 2” (Pre-11-94)

NOT AVAILABLE

19B

Pot Upgrade Kit

Mfg # 39201810

Pot Upgrade Kit

NOT AVAILABLE

19B

Pot Upgrade Kit, 2” - Almond

Mfg # 39202010

Pot Upgrade Kit, 2” - Almond

NOT AVAILABLE

19B

Pot w/ Drain, 2”

Mfg # 39208100

Pot w/ Drain, 2”

NOT AVAILABLE

19B

Pot Only, 1-1/2”

Mfg # 357138

Pot Only, 1-1/2”

NOT AVAILABLE

19B

Pot Only, 2” - Almond

Mfg # 357137

Pot Only, 2” - Almond

NOT AVAILABLE

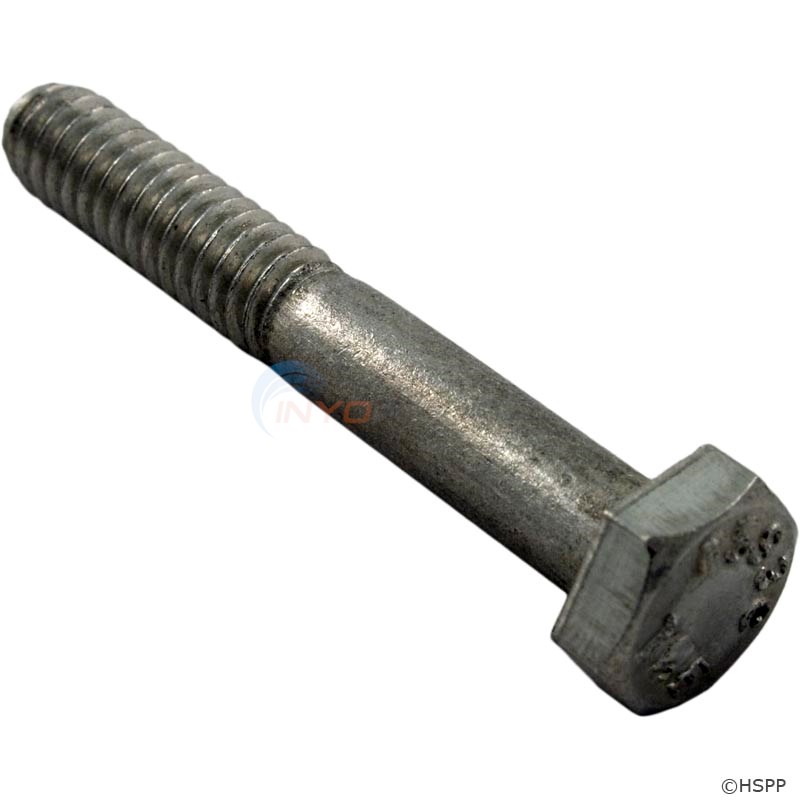

Bolt, S.S. 1/4-20 x 1-3/4"

Part # 4677-20B Mfg # 070979

Bolt, S.S. 1/4-20 x 1-3/4"

$11.71

Basket, Generic

Part # 5406-008 Mfg # V38-185

Basket, Generic

$49.37 IN STOCK

Replaces 39303500

Replaces 39303500

Qty:

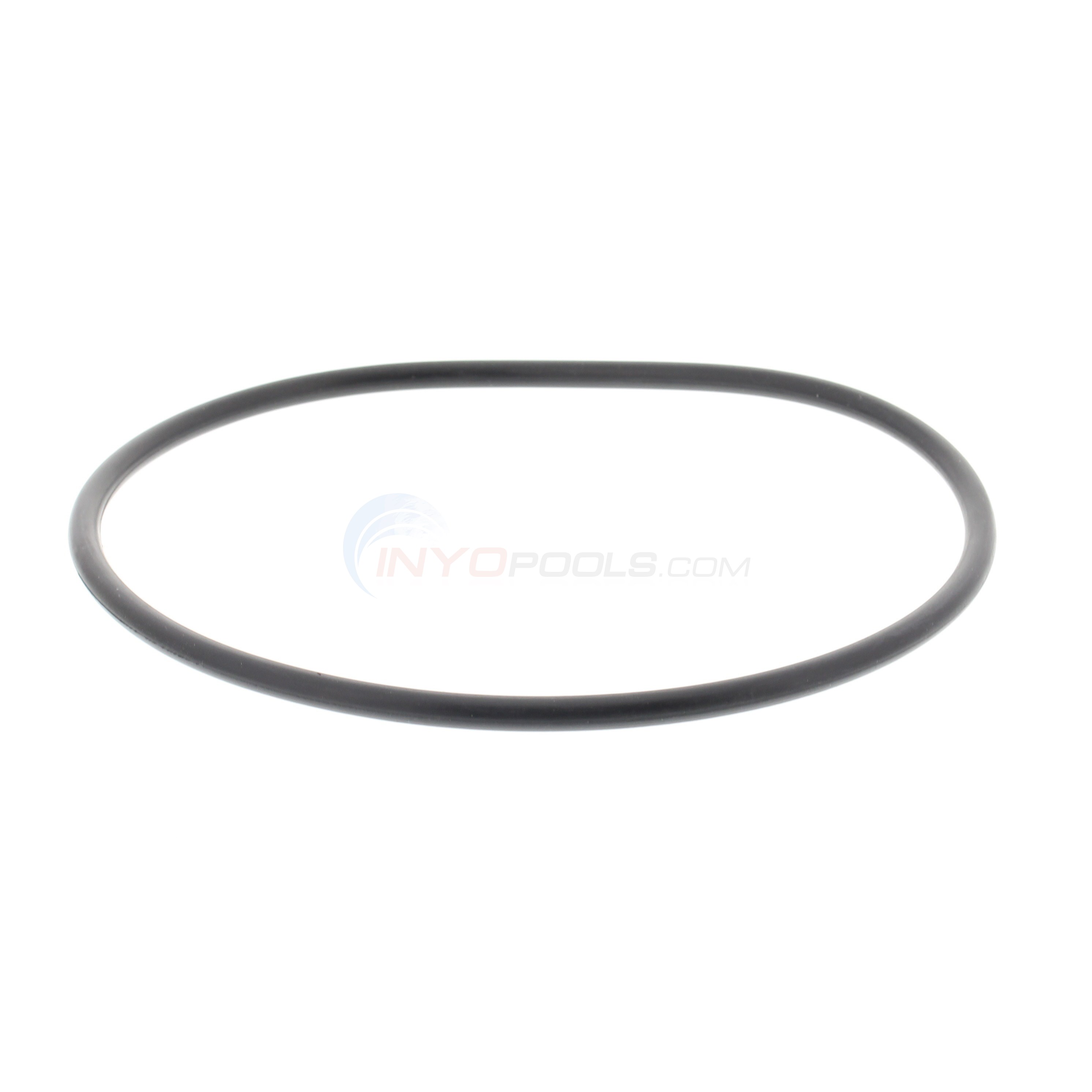

O-ring, Lid (Pre-11-94)

Part # 5105-13 Mfg # 39300300

O-ring, Lid (Pre-11-94)

$15.61 IN STOCK

Qty:

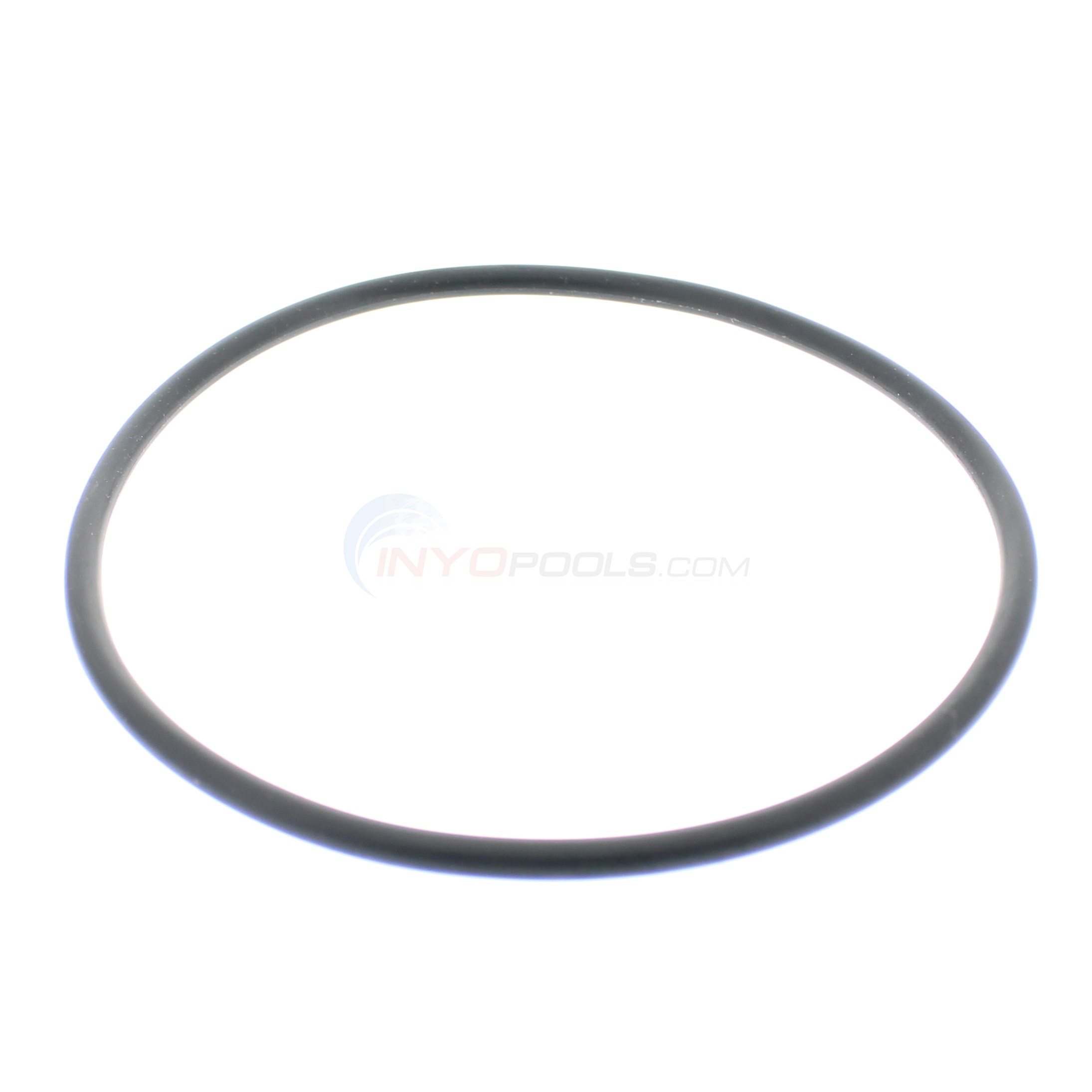

O-ring, Lid (After-11-94)

Part # 5106-06 Mfg # 39300600

O-ring, Lid (After-11-94)

$16.40 IN STOCK

Qty:

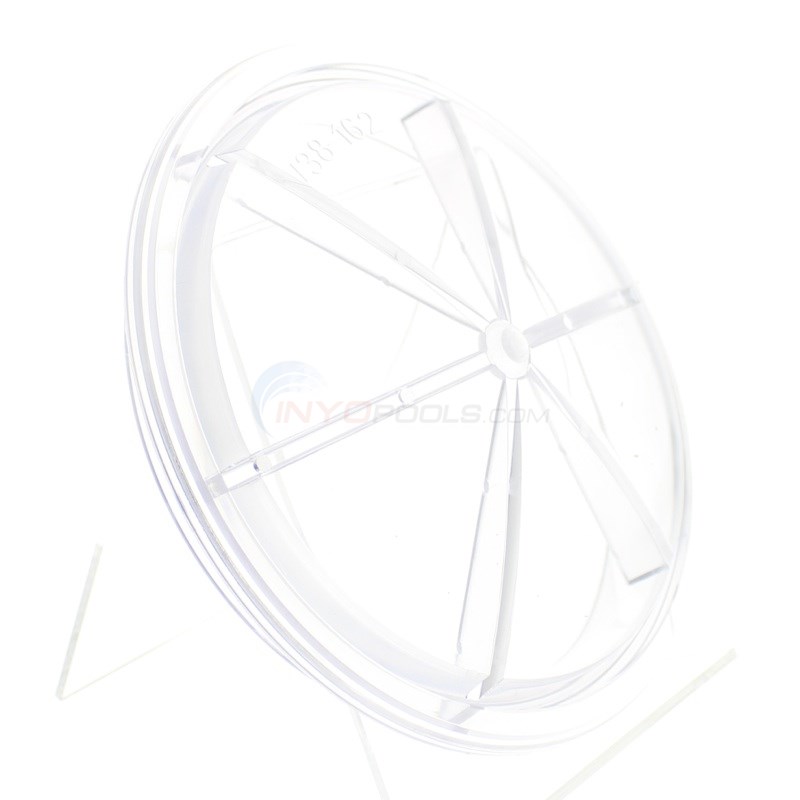

Lid

Part # 5106-05 Mfg # 39301700

Lid

$114.83 IN STOCK

Qty:

23

Lid, Chemical Resistant

Mfg # 39301799

Lid, Chemical Resistant

NOT AVAILABLE

Clamp Assembly (Pre-11-94)

Part # 5105-15 Mfg # 39303000

Clamp Assembly (Pre-11-94)

$148.19 IN STOCK

Qty:

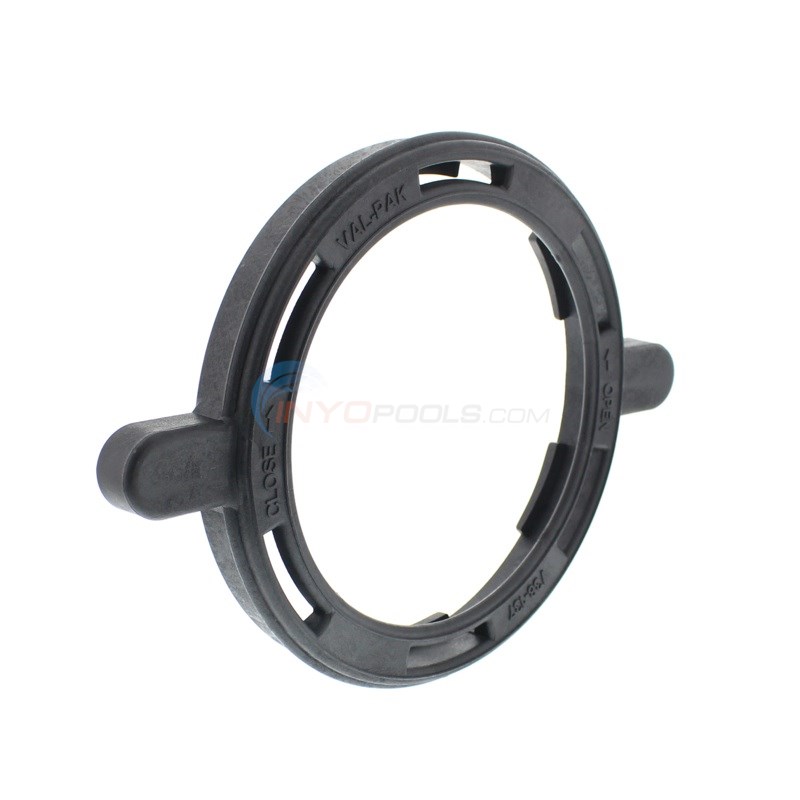

Locking Ring (After-11-94)

Part # 5106-01 Mfg # V38-137

Locking Ring (After-11-94)

$95.37 IN STOCK

Qty:

25

Plug, Drain w/ O-ring - Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352023876.htm">154699</a>

Mfg # 357136

Plug, Drain w/ O-ring - Replace With 154699

NOT AVAILABLE

26

Ring, Reinforcing 2” Pot

Mfg # 39007200

Ring, Reinforcing 2” Pot

NOT AVAILABLE

26

Ring, Reinforcing 1-1/2” Pot

Mfg # 39204600

Ring, Reinforcing 1-1/2” Pot

NOT AVAILABLE

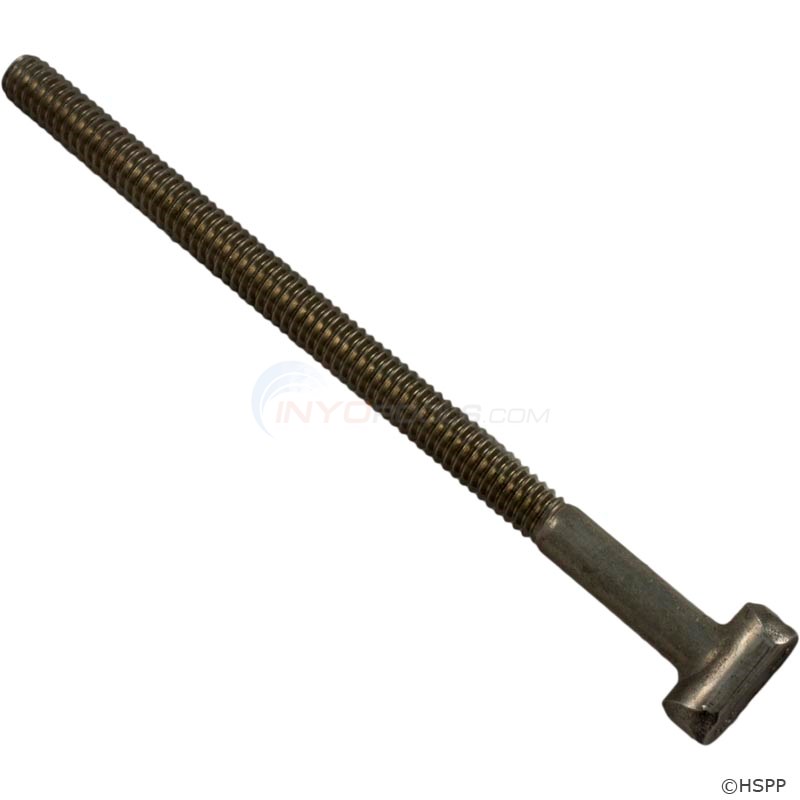

T-Bolt

Part # 5105-20 Mfg # 98206600

T-Bolt

$30.90 IN STOCK

Qty:

Washer, 1/4"-20

Part # 4670-26 Mfg # 072183

Washer, 1/4"-20

$11.43 IN STOCK

Qty:

Lid, Old Clamp Style

Part # 5105-14 Mfg # V38-160

Lid, Old Clamp Style

$105.43 IN STOCK

Qty:

Knob, 1/4"-20

Part # 5105-22 Mfg # 39302700

Knob, 1/4"-20

$32.01 IN STOCK

Qty:

O-ring, Plug

Part # 3262-08 Mfg # 112

O-ring, Plug

$3.66 IN STOCK

Qty:

Motor 1/2 HP Up Rate

Part # USQ1052 Mfg # USQ1052

Motor 1/2 HP Up Rate

$223.63 IN STOCK

Service Factor 1.3 Voltage 115/230 Max Amps 9.9/5.0 Frame 48Y

Service Factor 1.3 Voltage 115/230 Max Amps 9.9/5.0 Frame 48Y

Qty:

Pureline 3/4 HP Pool Motor Square Flange 48Y

Part # PL2073

Pureline 3/4 HP Pool Motor Square Flange 48Y

$179.99 IN STOCK

Service Factor 1.0 Voltage 115/230 Max Amps 13.4/6.7 Frame 48Y

Service Factor 1.0 Voltage 115/230 Max Amps 13.4/6.7 Frame 48Y

Qty:

Pureline 1 HP Pool Motor Square Flange 48Y - PL2103

Part # PL2103

Pureline 1 HP Pool Motor Square Flange 48Y - PL2103

$257.29 IN STOCK

Service Factor 1.0 Voltage 115/230 Max Amps 15.3/7.6 Frame 48Y

Service Factor 1.0 Voltage 115/230 Max Amps 15.3/7.6 Frame 48Y

Qty:

Century (A.O. Smith) 1.5 HP Up Rate Motor, Square Flange 48Y Frame, Single Speed - Model USQ1152

Part # USQ1152 Mfg # USQ1152

Century (A.O. Smith) 1.5 HP Up Rate Motor, Square Flange 48Y Frame, Single Speed - Model USQ1152

$274.99 IN STOCK

Service Factor 1.0 Voltage 115/230 Max Amps 19.2/9.6 Frame 48Y

Service Factor 1.0 Voltage 115/230 Max Amps 19.2/9.6 Frame 48Y

Qty:

Motor 2.0 HP Up Rate

Part # USQ1202 Mfg # USQ1202

Motor 2.0 HP Up Rate

$369.34 IN STOCK

Service Factor 1.1 Voltage 230 Max Amps 10.4 Frame 48Y

Service Factor 1.1 Voltage 230 Max Amps 10.4 Frame 48Y

Qty:

Motor 2.5 HP Up Rate

Part # USQ1252 Mfg # USQ1252

Motor 2.5 HP Up Rate

$458.92 IN STOCK

Service Factor 1.0 Voltage 230 Max Amps 11.2 Frame 48Y

Service Factor 1.0 Voltage 230 Max Amps 11.2 Frame 48Y

Qty:

Protective Pool Motor Cover

Part # 3050-38 Mfg # R221016

Protective Pool Motor Cover

$36.03 IN STOCK

Qty:

* Not Shown
** O-RING/GASKET REPAIR KIT
*** Not Shown
