Hayward DEP 500 Series Pleated Element D.E. Filter

Hayward DEP 500 Series Pleated Element D.E. Filter Diagram
Hayward DEP 500 Series Pleated Element D.E. Filter - DEP60, DEP80, DEP100
Key Part # Item Price
1 ECX2712B1 Pressure Gauge w/ Dial $30.89 Description

Key Part # Mfg Code Item Price
2 4811-23 DEX2420Z8A O-ring Kit (Set of 2) $30.89 Description

Key Part # Mfg Code Item Price

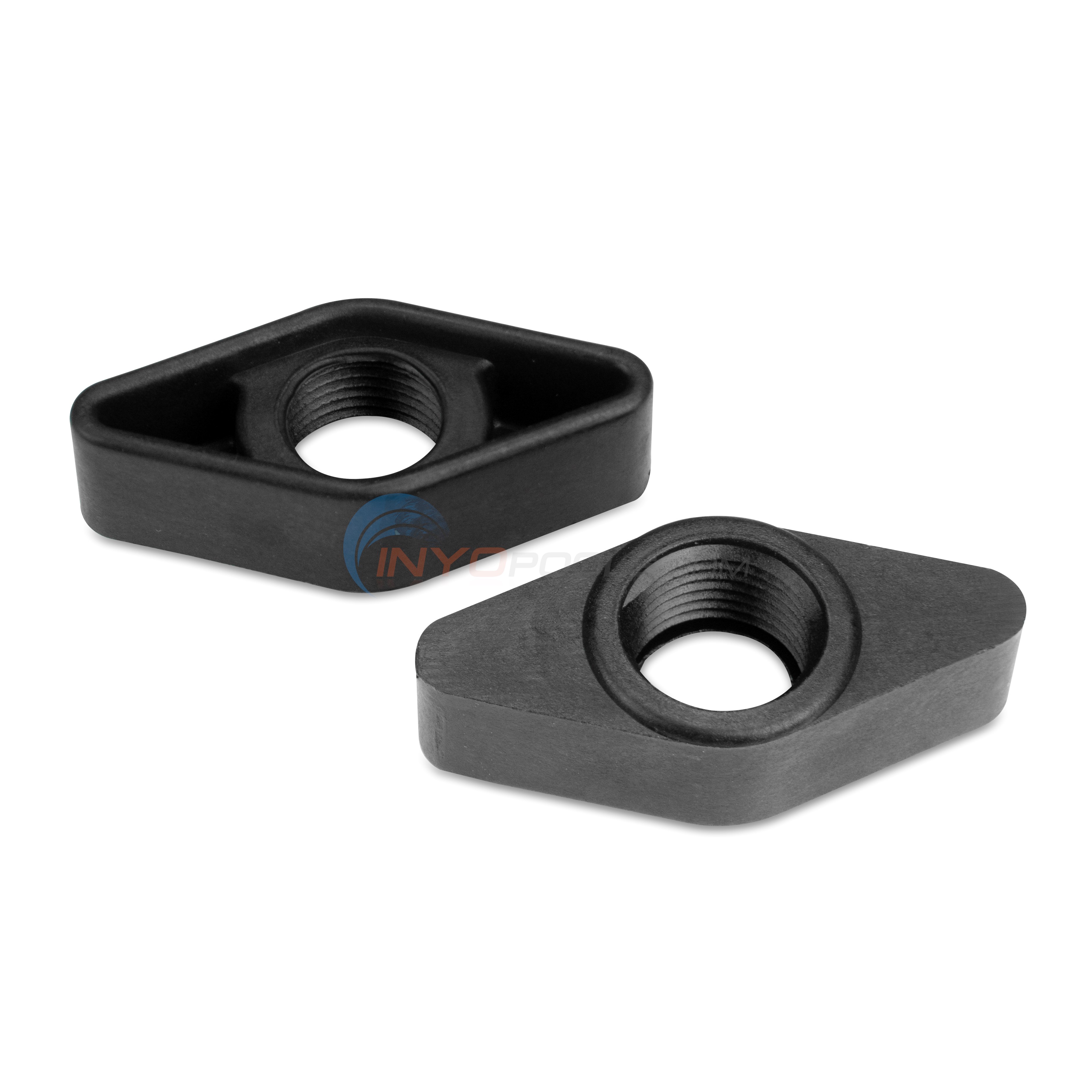

3 4663-38 CCX1000N Air Relief Valve Nut $10.99 Description

Key Part # Mfg Code Item Price

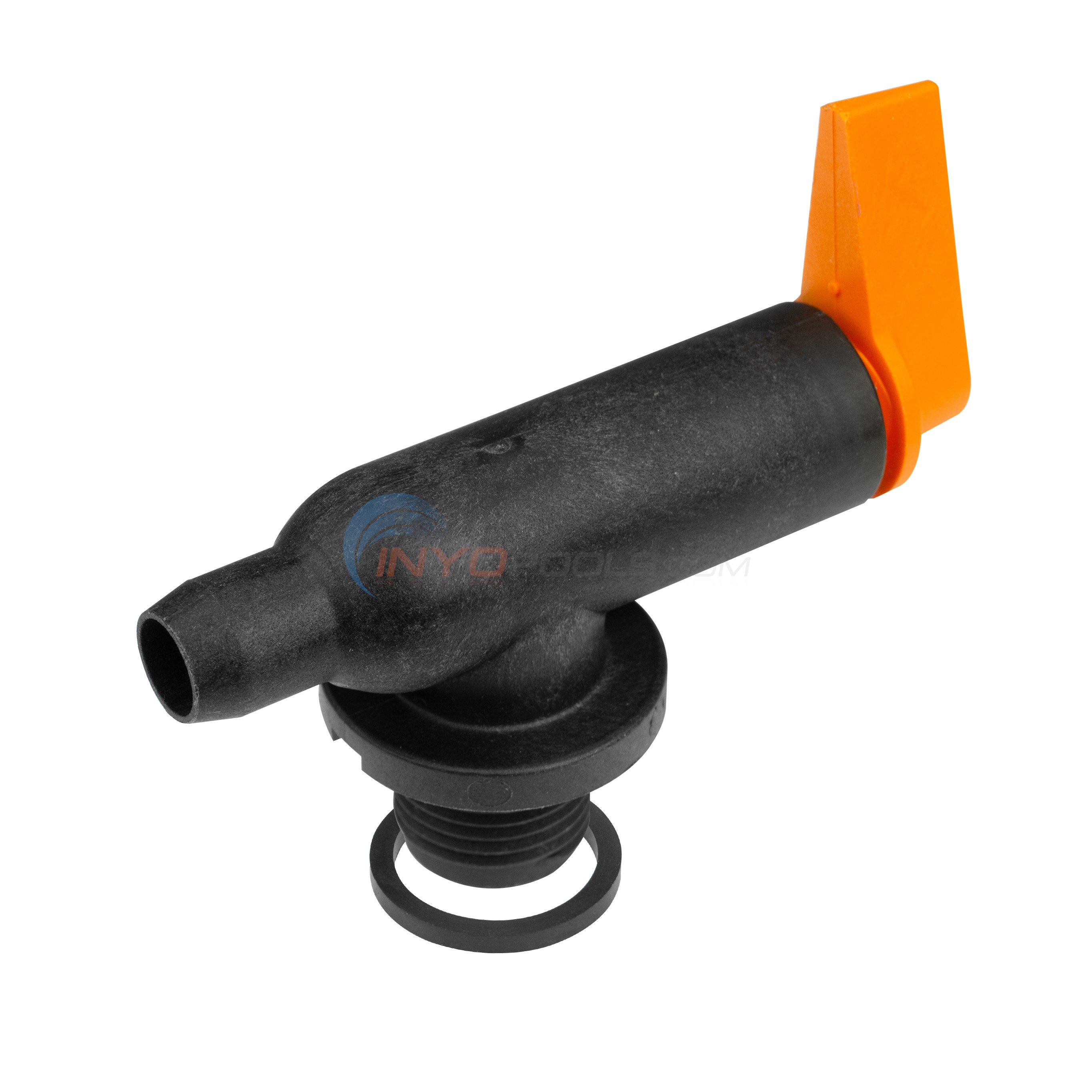

4 4663-32 CCX1000V Manual Air Relief w/ O-Ring $28.99 Description

Key Part # Mfg Code Item Price
5 4811-22 DEX2420MAR2 Manual Air Relief Assembly $154.49 Description

Key Part # Mfg Code Item Price
6a 4811-277 DEX3620BTC Upper Filter Body DEP60 $504.39 Description
6b 4811-288 DEX4820BTC Upper Filter Body DEP80 $522.20 Description
6c 4811-299 DEX6020BTC Upper Filter Body DEP100 $577.49 Description

Key Part # Mfg Code Item Price
7 4811-102 DEX2421J2 Clamp Bolt and Nut $44.28 Description

Key Part # Mfg Code Item Price
8 4811-100 DEX2421JKIT Clamp Assembly $360.49 Description

Key Part # Mfg Code Item Price
9 4811-101 DEX2422Z2 Metal Reinforced Seal $82.39 Description

Key Part # Item Price

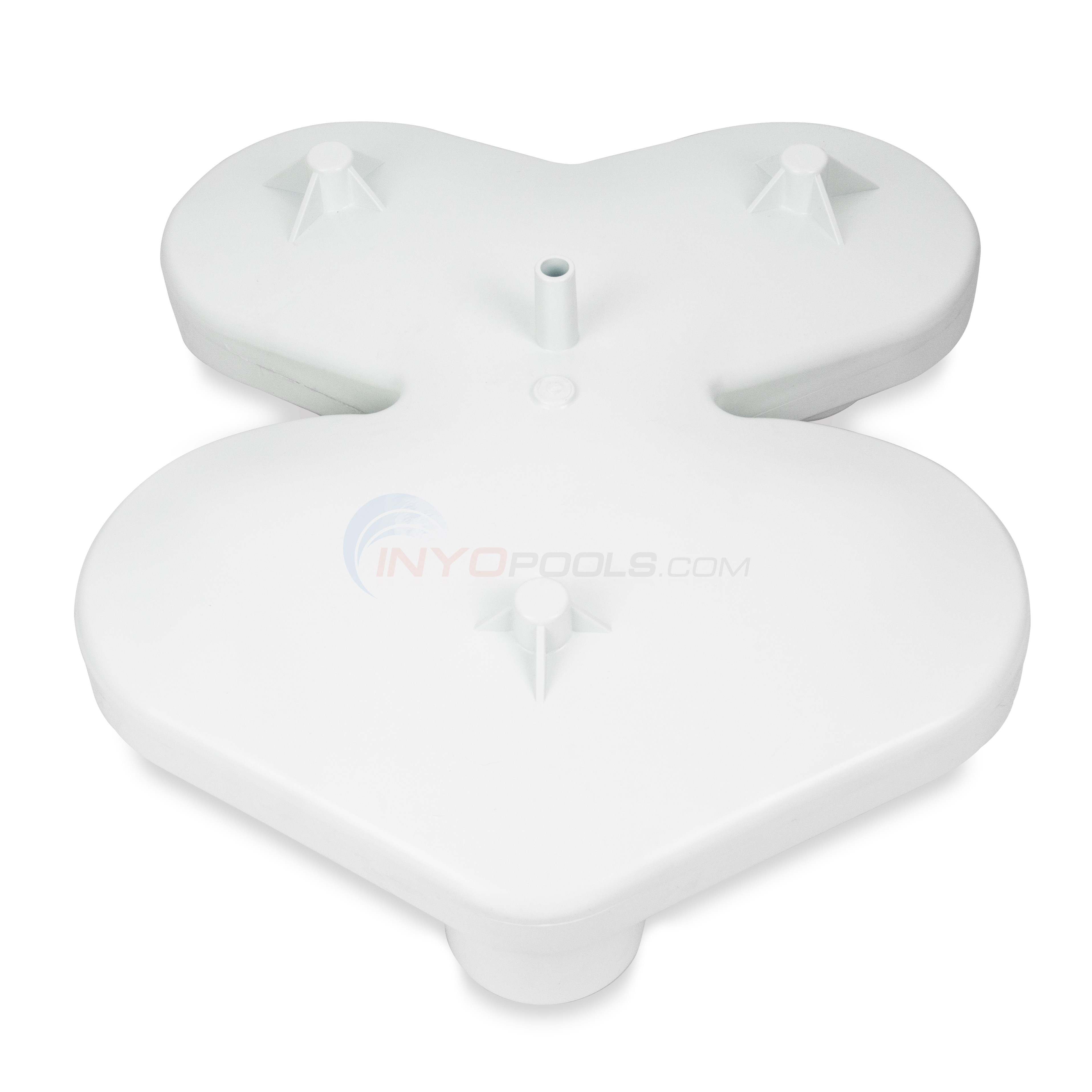

10 CX3030C Top Manifold
Normally $109.99!
$73.49 Description

Key Part # Item Price

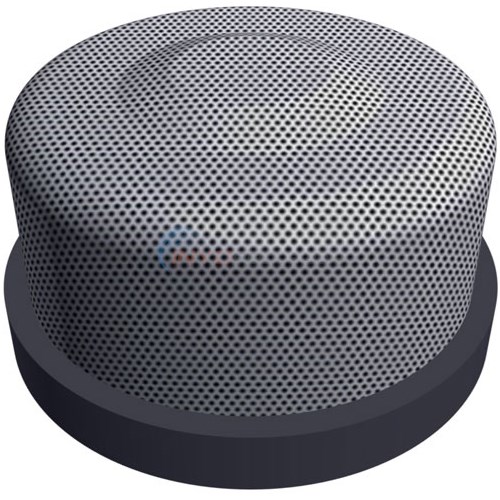

11 CX3000J1 Air Relief Filter $27.99 Description

Key Part # Item Price

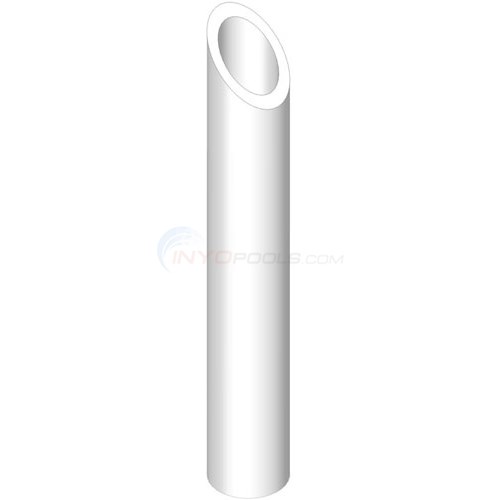

12 CX2030Z3 Air Relief Tube $29.99 Description

Key Part # Item Price
14 DEX2400Z5 O-ring $8.36 Description

Key Part # Mfg Code Item Price
16 4811-52 CX3020FB Inlet Elbow $72.09 Description

Key Part # Item Price
17 CX3030D Bottom Seal Plate $86.99 Description

Key Part # Mfg Code Item Price

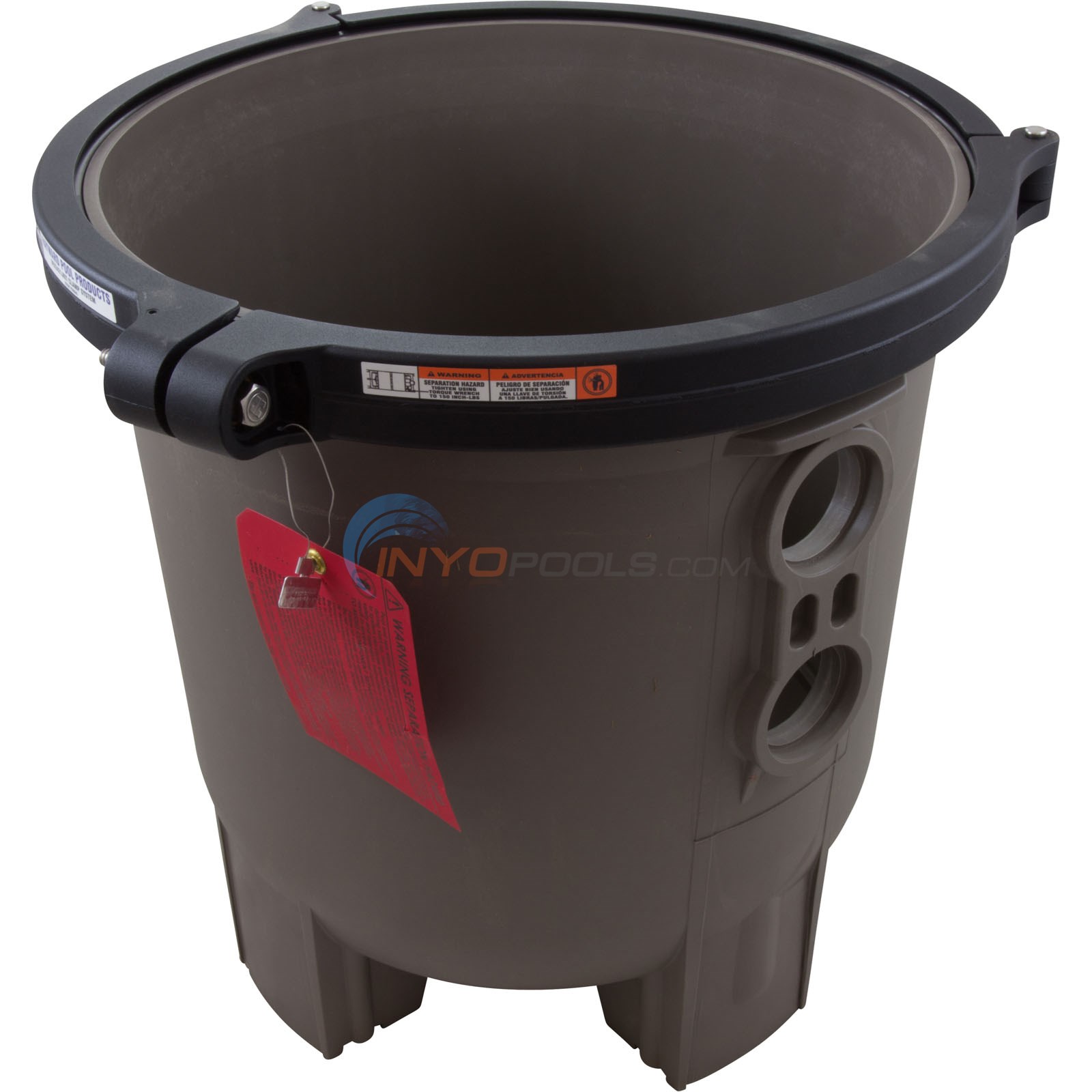

18 4811-431 DEX2420ATC Lower Filter Body $668.46 Description

Key Part # Item Price
19 DEX6040LA6PAK Label Pack - -

Key Part # Mfg Code Item Price
20 4663-44 SP1022CBLK 1-1/2" Drain Plug w/ O-Ring $8.99 Description

Key Part # Mfg Code Item Price
21 4811-46 SX220Z2 O-ring $12.35 Description

Key Part # Mfg Code Item Price

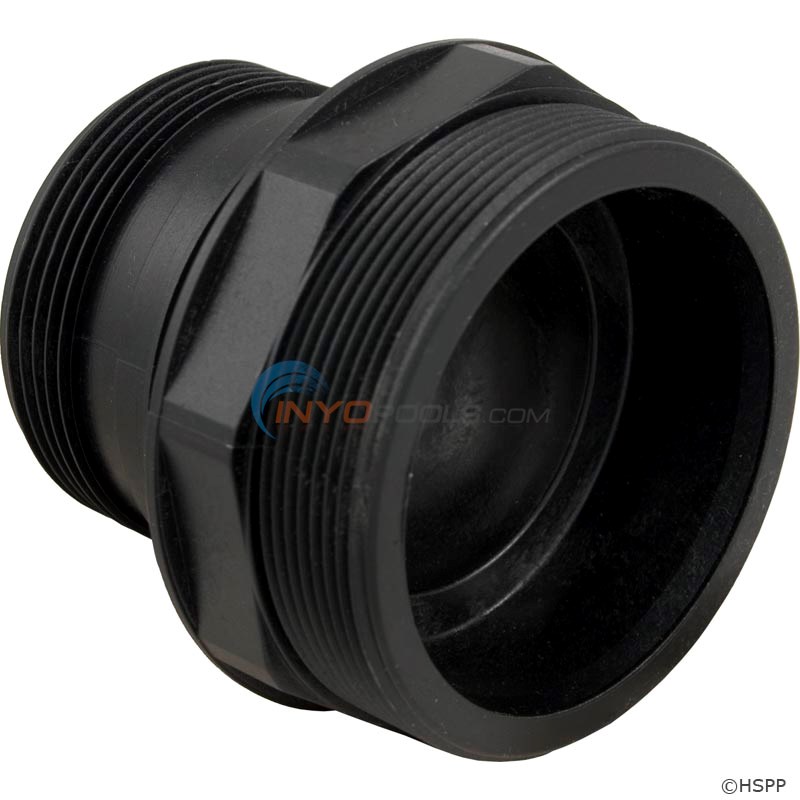

22 4811-47 DEX2420F Bulkhead Fitting $43.25 Description

Key Part # Mfg Code Item Price

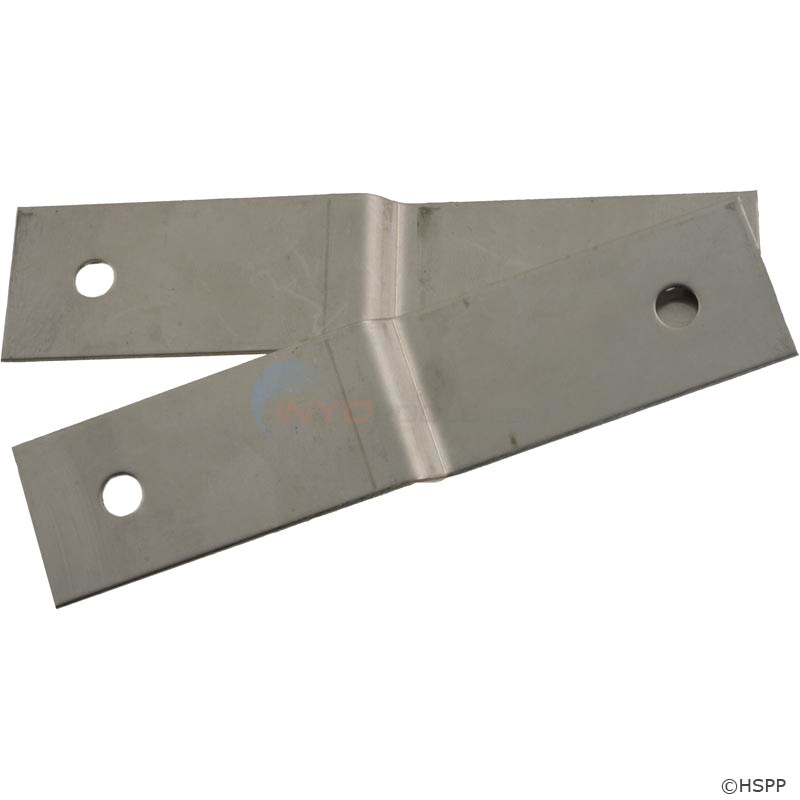

23 4811-45 DEX2420DCKIT Strap Kit (Optional) $77.51 Description

Key Part # Item Price
24 SP0425 SelectaFlo Valve - -
