Hayward MaxFlo XL SP2300X Series Parts

MODELS: SP2305X7(EE)(SP), sp2307X10(2), SP2310X15(2), SP2315X20(2)

Hayward MaxFlo XL SP2300X Series Diagram

Click to zoom in

Diagram #	Part Title
1	Union Connector Kit
2	Union Gasket
3	Pump Strainer Housing with Drain Plugs
4	Strainer Basket
5	Strainer Cover O-ring
6A	Strainer Cover Kit
7	Bulkhead O-ring
8	Diffuser Screw (3 Pack)
9	Diffuser
10A	Impeller 3/4 HP
11	SHAFT SEAL
12	Valve To Filter Oem O-ring (blue), Id 6-3/4", Od 7-1/8"
13	Seal Plate
14	Hardware Pack (4 Housing Bolts, Seal Plate, Spacers & Square Nuts)
15	Motor Bolt (spx3200z5)
16A	Hayward Max-Flo XL 3/4 HP Motor
17	Drain Plug With Gasket
18	Mounting Foot Cap Screw (set Of 2)
19	Pump Base
20	Optional Riser Base for Sta-Rite / Dyna-Pro

View Parts List

Diagram #	Part Title
1	Union Connector Kit
2	Union Gasket
3	Pump Strainer Housing with Drain Plugs
4	Strainer Basket
5	Strainer Cover O-ring
6A	Strainer Cover Kit
7	Bulkhead O-ring
8	Diffuser Screw (3 Pack)
9	Diffuser
10A	Impeller 3/4 HP
11	SHAFT SEAL
12	Valve To Filter Oem O-ring (blue), Id 6-3/4", Od 7-1/8"
13	Seal Plate
14	Hardware Pack (4 Housing Bolts, Seal Plate, Spacers & Square Nuts)
15	Motor Bolt (spx3200z5)
16A	Hayward Max-Flo XL 3/4 HP Motor
17	Drain Plug With Gasket
18	Mounting Foot Cap Screw (set Of 2)
19	Pump Base
20	Optional Riser Base for Sta-Rite / Dyna-Pro

Available Parts:

Union Connector Kit

Part # 5110-70 Mfg # SPX2700UNKIT

Union Connector Kit

$85.99 IN STOCK

Qty:

Union Gasket

Part # 5112-201 Mfg # SPX3200UG

Union Gasket

$23.99 IN STOCK

Qty:

Pump Strainer Housing with Drain Plugs

Part # SPX2300AA

Pump Strainer Housing with Drain Plugs

$444.99 IN STOCK

Qty:

Strainer Basket

Part # SPX2300M

Strainer Basket

$27.49 IN STOCK

Qty:

Strainer Cover O-ring

Part # SPX2300Z4

Strainer Cover O-ring

$27.49 IN STOCK

Qty:

Strainer Cover Kit

Part # SPX2300DLS

Strainer Cover Kit

$107.99 IN STOCK

Qty:

Strainer Cover Kit for Biguanide Sanitizers

Part # SPX2300DLSB

Strainer Cover Kit for Biguanide Sanitizers

$164.99

Bulkhead O-ring

Part # 4811-46 Mfg # SX220Z2

Bulkhead O-ring

$18.49 IN STOCK

Qty:

Diffuser Screw (3 Pack)

Part # SPX2300Z3PAK3 Mfg # SPX2300Z3PAK3

Diffuser Screw (3 Pack)

$22.49

Diffuser

Part # SPX2300B

Diffuser

$77.49 IN STOCK

Qty:

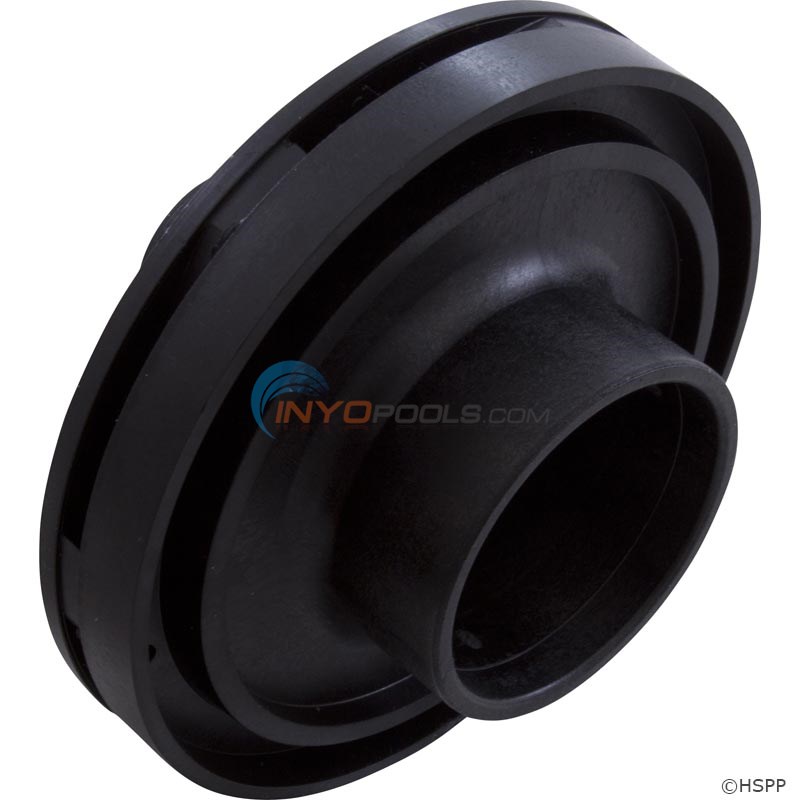

Impeller 3/4 HP

Part # 5110-86 Mfg # SPX2700C

Impeller 3/4 HP

$66.49 IN STOCK

HP 3/4 HP

HP 3/4 HP

Qty:

Impeller 1HP

Part # 5110-87 Mfg # SPX2707CM

Impeller 1HP

$46.49 IN STOCK

HP 1 HP

HP 1 HP

Qty:

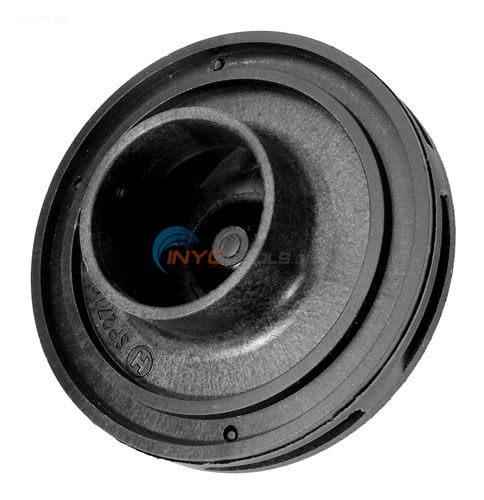

Impeller 1-1/2 HP

Part # 5110-88 Mfg # SPX2710CM

Impeller 1-1/2 HP

$71.99 IN STOCK

HP 1-1/2 HP

HP 1-1/2 HP

Qty:

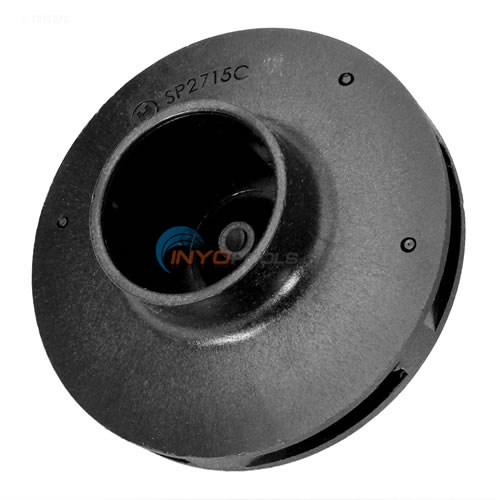

Impeller 2 HP

Part # 5110-89 Mfg # SPX2715CM

Impeller 2 HP

$82.99 IN STOCK

HP 2

HP 2

Qty:

SHAFT SEAL

Part # 3260-105 Mfg # PSR200

SHAFT SEAL

$12.99 IN STOCK

Qty:

Valve To Filter Oem O-ring (blue), Id 6-3/4", Od 7-1/8"

Part # 4822-07 Mfg # GMX600F

Valve To Filter Oem O-ring (blue), Id 6-3/4", Od 7-1/8"

$8.49 IN STOCK

Qty:

Seal Plate

Part # SPX2300E

Seal Plate

$100.99 IN STOCK

Qty:

Hardware Pack (4 Housing Bolts, Seal Plate, Spacers & Square Nuts)

Part # 5110-80 Mfg # SPX2700ZPAK

Hardware Pack (4 Housing Bolts, Seal Plate, Spacers & Square Nuts)

$75.99

Motor Bolt (spx3200z5)

Part # 5112-221 Mfg # SPX3200Z5PAK4

Motor Bolt (spx3200z5)

$29.49 IN STOCK

Qty:

Hayward Max-Flo XL 3/4 HP Motor

Part # SPX2705Z1M

Hayward Max-Flo XL 3/4 HP Motor

$379.99 IN STOCK

Qty:

Hayward Max-Flo XL 3/4 HP Motor EE

Part # SPX2705Z1ME Mfg # SPX2705Z1ME

Hayward Max-Flo XL 3/4 HP Motor EE

$461.99

Hayward Max-Flo XL 1 HP Motor

Part # 3260-108 Mfg # SPX2707Z1M

Hayward Max-Flo XL 1 HP Motor

$433.99 IN STOCK

Qty:

Hayward Max-Flo XL 1-1/2 HP Motor

Part # SPX2710Z1M Mfg # SPX2710Z1M

Hayward Max-Flo XL 1-1/2 HP Motor

$458.99 IN STOCK

Qty:

Hayward Max-Flo XL 2 HP Motor

Part # SPX2715Z1ME

Hayward Max-Flo XL 2 HP Motor

$707.99

Hayward Max-Flo XL 1 HP Dual Speed Motor

Part # SPX2707Z2M

Hayward Max-Flo XL 1 HP Dual Speed Motor

$517.99

Hayward Max-Flo XL 1-1/2 HP Dual Speed Motor

Part # SPX2710Z2M Mfg # SPX2710Z2M

Hayward Max-Flo XL 1-1/2 HP Dual Speed Motor

$514.99

Hayward Max-Flo XL 2 HP Dual Speed Motor

Part # SPX2715Z2M

Hayward Max-Flo XL 2 HP Dual Speed Motor

$721.99

Drain Plug With Gasket

Part # 5112-008 Mfg # SPX4000FG

Drain Plug With Gasket

$13.49 IN STOCK

Qty:

Mounting Foot Cap Screw (set Of 2)

Part # 5112-015 Mfg # SPX1600Z52

Mounting Foot Cap Screw (set Of 2)

$24.49 IN STOCK

Qty:

Pump Base

Part # SPX2300G

Pump Base

$109.99

Optional Riser Base for Sta-Rite / Dyna-Pro

Part # SPX2300GR

Optional Riser Base for Sta-Rite / Dyna-Pro

$109.99
