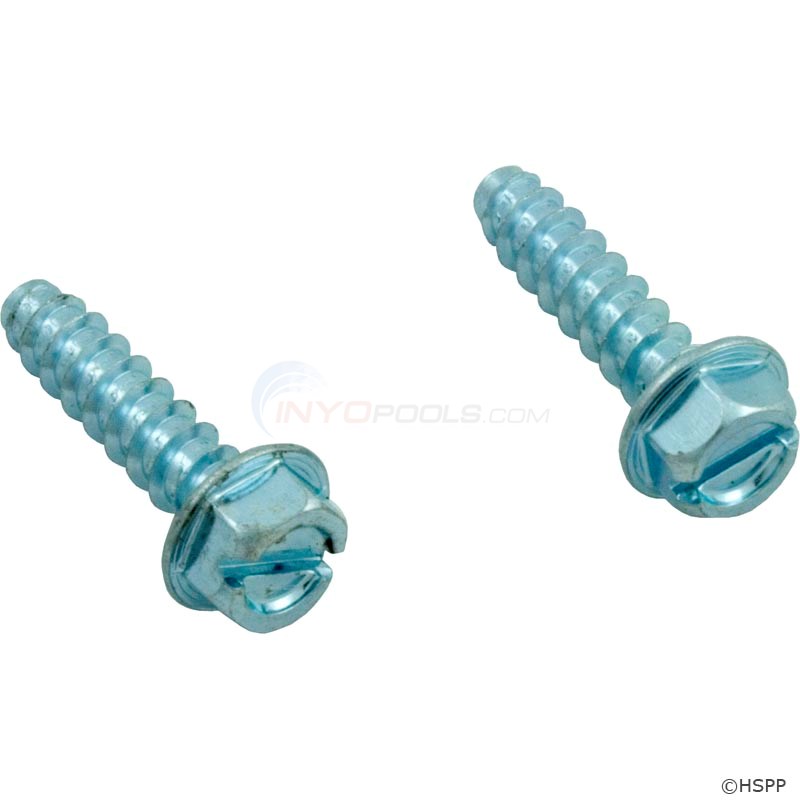

By Hayward Pool Products



Part # 5112-015

Manufacturer Code SPX1600Z52

Alternate Part #'s HAY1012022, SPX1600Z52, 35-150-2018, HAYSPX1600Z52, HPPSPX1600Z52

Product Description

Your Source for Pool & Spa Parts INYOpools.com


?     Asked on 3/31/2015by Diane Broadwell

Is this the tube sheet screw and does the nut come with it ? And will it fit a Hayward EC65 Thanks

A  Answered on 3/31/2015 by InyoPools Product Specialist Lennox H.

Hi Diane, this part will not work. The correct part for the tube sheet screw is 4810-13.


Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Pliers, Dremel tool

Heads rusted off

Written on 4/12/2022 by Guest

Needed to get my Hayward super pump apart. Four heads of the screws on the bottom mounting plate were rusted right off. The only way I can get them out is with a Dremel tool. Ground off the heads and then drilled out what was left and used an easy out to remove them.
Went very well and the replacement screws that you sent me were a perfect fit. Thanks
