Hayward Pro Top Mount Sand Filter 16" Parts

POLYMERIC SAND FILTER S-164T AND S-166T

Hayward Pro Top Mount Sand Filter 16" Diagram

Click to zoom in

Diagram #	Part Title
1A	Top Mount Valve for Sand 1.5", Replaces SP0714T
1A	Hayward Vari-Flo SP0714T Top Mount Valve for Pro Series Sand Filters, 1-1/2" FPT
2	Bottom Mount Pressure Gauge 0-60 1/4" NPT
3	O-RING, ID 6-3/4", OD 7-1/8"
4	CLAMP, FLANGE NORYL
5	OBSOLETE CAP
6	CENTER PIPE, HUB, & LATERALS
7	FILTER TANK & LATERAL ASSY S164T & S166T
8	LATERAL OLD THREADED STYLE
9	GASKET, DRAIN CAP
10	DRAIN CAP & GASKET (2005 & PRIOR)
11	STAND, FILTER SUPPORT
*	Hayward System Base (S180T Systems)

View Parts List

Diagram #	Part Title
1A	Top Mount Valve for Sand 1.5", Replaces SP0714T
1A	Hayward Vari-Flo SP0714T Top Mount Valve for Pro Series Sand Filters, 1-1/2" FPT
2	Bottom Mount Pressure Gauge 0-60 1/4" NPT
3	O-RING, ID 6-3/4", OD 7-1/8"
4	CLAMP, FLANGE NORYL
5	OBSOLETE CAP
6	CENTER PIPE, HUB, & LATERALS
7	FILTER TANK & LATERAL ASSY S164T & S166T
8	LATERAL OLD THREADED STYLE
9	GASKET, DRAIN CAP
10	DRAIN CAP & GASKET (2005 & PRIOR)
11	STAND, FILTER SUPPORT
*	Hayward System Base (S180T Systems)

Available Parts:

Top Mount Valve for Sand 1.5", Replaces SP0714T

Part # PL0714

Top Mount Valve for Sand 1.5", Replaces SP0714T

$94.00 IN STOCK

Qty:

Hayward Vari-Flo SP0714T Top Mount Valve for Pro Series Sand Filters, 1-1/2" FPT

Part # SP0714T

Hayward Vari-Flo SP0714T Top Mount Valve for Pro Series Sand Filters, 1-1/2" FPT

$166.17 IN STOCK

Qty:

Bottom Mount Pressure Gauge 0-60 1/4" NPT

Part # 4726-0 Mfg # 101D-204D

Bottom Mount Pressure Gauge 0-60 1/4" NPT

$16.38 IN STOCK

Qty:

O-RING, ID 6-3/4", OD 7-1/8"

Part # 4822-04 Mfg # 364

O-RING, ID 6-3/4", OD 7-1/8"

$11.88 IN STOCK

Qty:

CLAMP, FLANGE NORYL

Part # 4802-03D Mfg # GMX600NM

CLAMP, FLANGE NORYL

$56.20 IN STOCK

Qty:

Replacement Valve Clamp for Hayward Sand Filters - Generic

Part # 27515-154-070

Replacement Valve Clamp for Hayward Sand Filters - Generic

$35.12

5

OBSOLETE CAP

Mfg # SX200Z10

OBSOLETE CAP

NOT AVAILABLE

CENTER PIPE, HUB, & LATERALS

Part # 4802-04B Mfg # SX164DA/SX164DAS

CENTER PIPE, HUB, & LATERALS

$146.89 IN STOCK

Qty:

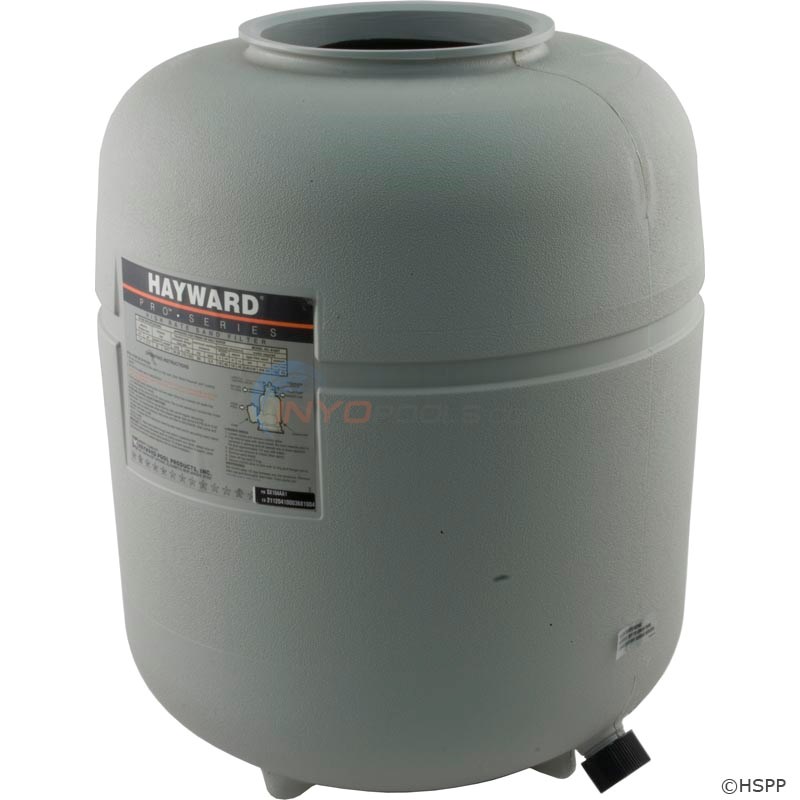

FILTER TANK & LATERAL ASSY S164T & S166T

Part # 4802-73 Mfg # SX164AA1

FILTER TANK & LATERAL ASSY S164T & S166T

$498.97

LATERAL OLD THREADED STYLE

Part # 4800-15 Mfg # SX200Q

LATERAL OLD THREADED STYLE

$8.57 IN STOCK

Qty:

LATERAL NEW PIVOT STYLE

Part # 4800-30 Mfg # SX200QN

LATERAL NEW PIVOT STYLE

$12.31 IN STOCK

Qty:

8

OBSOLETE LATERAL PIVOT

Mfg # SX202P

OBSOLETE LATERAL PIVOT

NOT AVAILABLE

GASKET, DRAIN CAP

Part # 4802-08 Mfg # G-382

GASKET, DRAIN CAP

$10.11 IN STOCK

Qty:

DRAIN CAP & GASKET (2005 & PRIOR)

Part # 4802-09B Mfg # SX180HG

DRAIN CAP & GASKET (2005 & PRIOR)

$13.11 IN STOCK

Qty:

DRAIN CAP, GASKET, & SCREEN (2006 & CURRENT)

Part # 4802-16 Mfg # SX180LA

DRAIN CAP, GASKET, & SCREEN (2006 & CURRENT)

$9.99 IN STOCK

Qty:

STAND, FILTER SUPPORT

Part # 4802-37 Mfg # SX164B

STAND, FILTER SUPPORT

$105.53 IN STOCK

Qty:

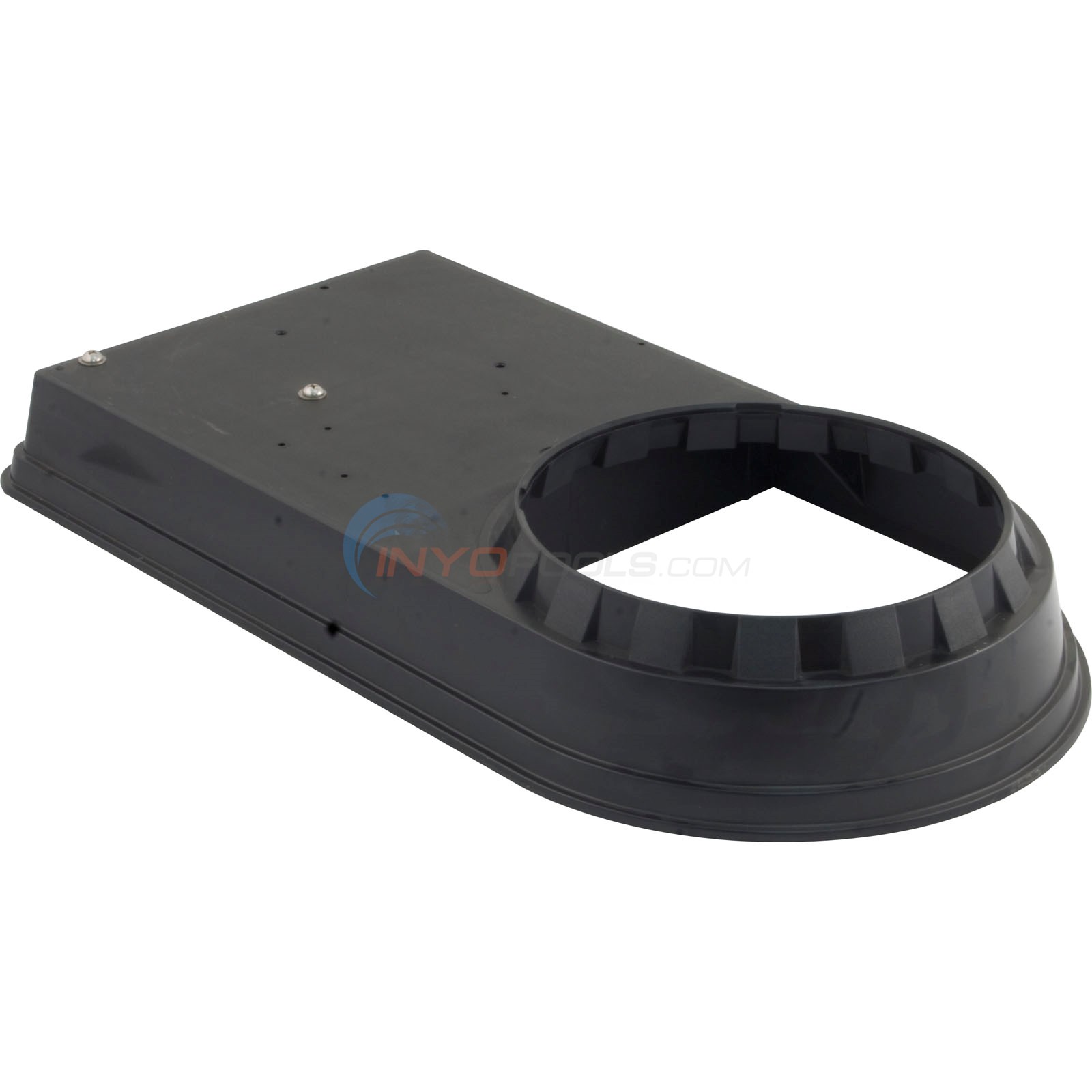

Hayward System Base (S180T Systems)

Part # SX180K

Hayward System Base (S180T Systems)

$125.49 IN STOCK

Qty:

* NOT SHOWN
