Jacuzzi SharkJet Series Above Ground Pool Pump Parts

MODELS: 94027620, 94027643, 94027622, 94027625, 94022456

Jacuzzi SharkJet Series Above Ground Pool Pump Diagram

Click to zoom in

Diagram #	Part Title
2	Replacement Strainer Cover O-Ring for Jacuzzi/Carvin Cygnet And LR
3	Drain/Vent Plug w/ O-ring (Set of 2) - 31160906R2
5	Eye Seal, 1/2-3 HP Uprated - 10146207R000
6	Jacuzzi SLR & LR Pump Impeller 1/2 H.P. (05376009r000)
7	O-ring, Union
8	Pump Cord 6 Ft (23485709r000)
9A	Century 3/4 HP Thru-Bolt 48Y Motor - BN24V1
9B	Century 3/4 HP Thru-Bolt 48Y Dual Speed Motor - BN36
10	Basket, Strainer - Jacuzzi, Oem (16105215r000)-NEW STYLE
11	O-ring, 6" Id X 3 /16 Thick
12	Jacuzzi Mechanical Seal Assembly B Assy 5/8 S/F, 10080208R
*	Inter connect Nut PVC White

View Parts List

Diagram #	Part Title
2	Replacement Strainer Cover O-Ring for Jacuzzi/Carvin Cygnet And LR
3	Drain/Vent Plug w/ O-ring (Set of 2) - 31160906R2
5	Eye Seal, 1/2-3 HP Uprated - 10146207R000
6	Jacuzzi SLR & LR Pump Impeller 1/2 H.P. (05376009r000)
7	O-ring, Union
8	Pump Cord 6 Ft (23485709r000)
9A	Century 3/4 HP Thru-Bolt 48Y Motor - BN24V1
9B	Century 3/4 HP Thru-Bolt 48Y Dual Speed Motor - BN36
10	Basket, Strainer - Jacuzzi, Oem (16105215r000)-NEW STYLE
11	O-ring, 6" Id X 3 /16 Thick
12	Jacuzzi Mechanical Seal Assembly B Assy 5/8 S/F, 10080208R
*	Inter connect Nut PVC White

Available Parts:

Replacement Strainer Cover O-Ring for Jacuzzi/Carvin Cygnet And LR

Part # 5063-03 Mfg # 47035241

Replacement Strainer Cover O-Ring for Jacuzzi/Carvin Cygnet And LR

$20.49 IN STOCK

Qty:

Drain/Vent Plug w/ O-ring (Set of 2) - 31160906R2

Part # 4665-07 Mfg # 31160906R2

Drain/Vent Plug w/ O-ring (Set of 2) - 31160906R2

$9.99 IN STOCK

Qty:

Eye Seal, 1/2-3 HP Uprated - 10146207R000

Part # 5062-17 Mfg # 10146207R

Eye Seal, 1/2-3 HP Uprated - 10146207R000

$16.49 IN STOCK

Qty:

Jacuzzi SLR & LR Pump Impeller 1/2 H.P. (05376009r000)

Part # 5063-08 Mfg # 05376009R

Jacuzzi SLR & LR Pump Impeller 1/2 H.P. (05376009r000)

$45.49 IN STOCK

Qty:

Impeller, Jacuzzi L 3/4 & 1 H.p. (05375902r000)

Part # 5063-08A Mfg # 05375902R

Impeller, Jacuzzi L 3/4 & 1 H.p. (05375902r000)

$70.99 IN STOCK

Qty:

Jacuzzi LR/LC/SharkJet Series Pump Impeller 1.5 H.p. (05385307r000)

Part # 5063-08C Mfg # 05385307R

Jacuzzi LR/LC/SharkJet Series Pump Impeller 1.5 H.p. (05385307r000)

$60.99 IN STOCK

Qty:

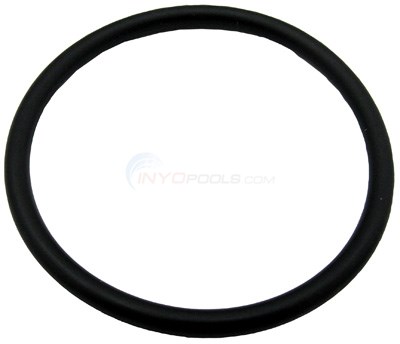

O-ring, Union

Part # 5094-04 Mfg # 4600-5064

O-ring, Union

$14.49 IN STOCK

Qty:

Pump Cord 6 Ft (23485709r000)

Part # 5069-27 Mfg # 23-4857-09-R

Pump Cord 6 Ft (23485709r000)

$71.99

3' Twist Lock Cord (23485600r000)

Part # 5069-31 Mfg # 23485600R

3' Twist Lock Cord (23485600r000)

$103.99

Century 3/4 HP Thru-Bolt 48Y Motor - BN24V1

Part # BN24V1 Mfg # BN24V1

Century 3/4 HP Thru-Bolt 48Y Motor - BN24V1

$215.99 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 9.8 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 9.8 Frame 48Y

Qty:

Century (A.O. Smith) 1.0 HP Up Rate Thru Bolt Motor, 48Y Frame, Single Speed - Model BN25V1

Part # BN25 Mfg # BN25V1

Century (A.O. Smith) 1.0 HP Up Rate Thru Bolt Motor, 48Y Frame, Single Speed - Model BN25V1

$233.99 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 12.0 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 12.0 Frame 48Y

Qty:

Century 1.5 HP Thru-Bolt 48Y Motor - BN35V1

Part # BN35V1 Mfg # BN35V1

Century 1.5 HP Thru-Bolt 48Y Motor - BN35V1

$277.99 IN STOCK

Service Factor 1.0 Voltage 115/230 Max Amps 16.0/8.0 Frame 48Y

Service Factor 1.0 Voltage 115/230 Max Amps 16.0/8.0 Frame 48Y

Qty:

Century 3/4 HP Thru-Bolt 48Y Dual Speed Motor - BN36

Part # BN36 Mfg # BN36

Century 3/4 HP Thru-Bolt 48Y Dual Speed Motor - BN36

$258.99 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 8.8/2.6 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 8.8/2.6 Frame 48Y

Qty:

Century 1.5 HP Thru-Bolt 48Y Dual Speed Motor - BN50V1

Part # BN50V1 Mfg # BN50V1

Century 1.5 HP Thru-Bolt 48Y Dual Speed Motor - BN50V1

$359.99 IN STOCK

Service Factor 1.0 Voltage 115 Max Amps 16.4/4.4 Frame 48Y

Service Factor 1.0 Voltage 115 Max Amps 16.4/4.4 Frame 48Y

Qty:

Century 1.5 HP Thru-Bolt 48Y Dual Speed 230V Motor - BN34V1

Part # BN34V1 Mfg # BN34V1

Century 1.5 HP Thru-Bolt 48Y Dual Speed 230V Motor - BN34V1

$338.99 IN STOCK

Service Factor 1.0 Voltage 230 Max Amps 6.5/2.5 Frame 48Y

Service Factor 1.0 Voltage 230 Max Amps 6.5/2.5 Frame 48Y

Qty:

Basket, Strainer - Jacuzzi, Oem (16105215r000)-NEW STYLE

Part # 5068-04 Mfg # 16105215R

Basket, Strainer - Jacuzzi, Oem (16105215r000)-NEW STYLE

$28.99 IN STOCK

Qty:

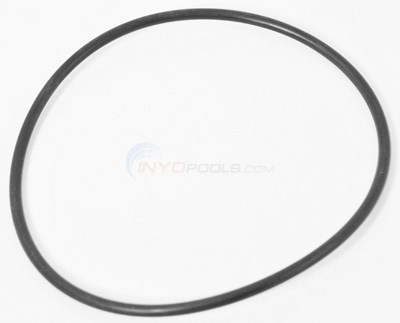

O-ring, 6" Id X 3 /16 Thick

Part # 5063-49 Mfg # 361

O-ring, 6" Id X 3 /16 Thick

$15.49 IN STOCK

Qty:

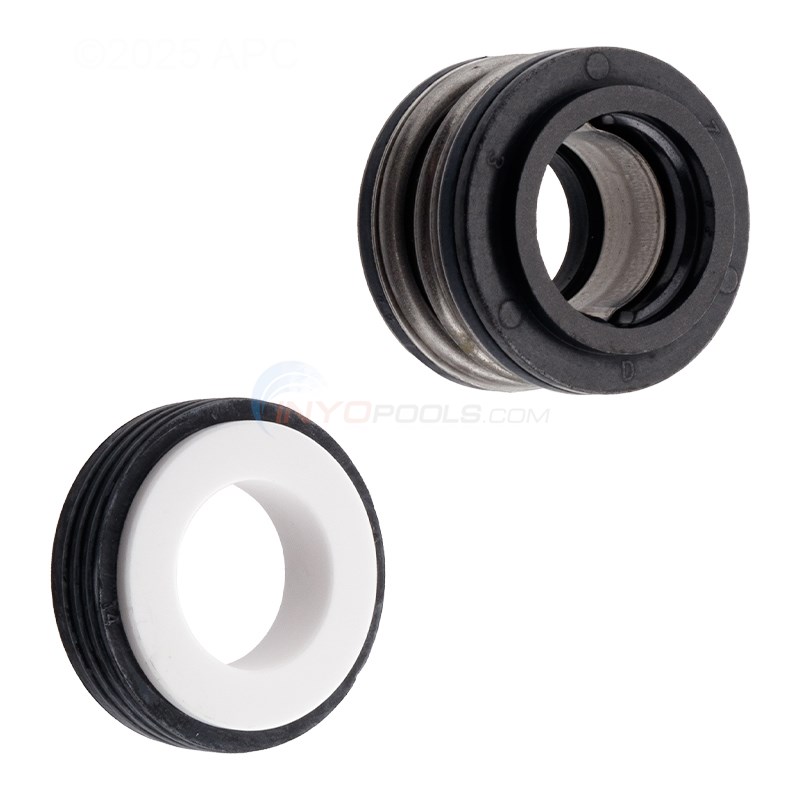

Jacuzzi Mechanical Seal Assembly B Assy 5/8 S/F, 10080208R

Part # 10080208R

Jacuzzi Mechanical Seal Assembly B Assy 5/8 S/F, 10080208R

$35.99 IN STOCK

Qty:

Pump Shaft Seal Assembly PSR200, 5/8" - PSR-200

Part # 5250-104 Mfg # PSR-200

Pump Shaft Seal Assembly PSR200, 5/8" - PSR-200

$10.99 IN STOCK

Qty:

Inter connect Nut PVC White

Part # 14427306R

Inter connect Nut PVC White

$22.99 IN STOCK

Qty:
