Eye Seal, 1/2-3 HP Uprated - 10146207R000



Part # 5062-17

By Jacuzzi Inc.

  4.92 Average



Part # 5062-17

Manufacturer Code 10146207R

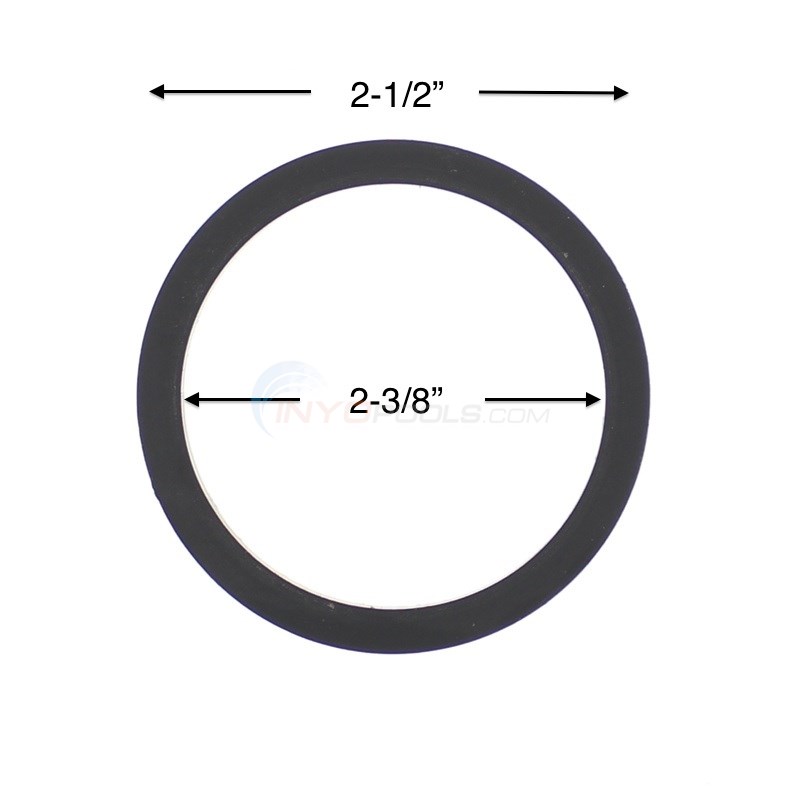

Dimensions 2-1/2" O.D. (Larger Side); 2-5/16" O.D. (Smaller Side)

Alternate Part #'s 10146207, 351051080, 605201, 755307, 35-105-1080

Product Description

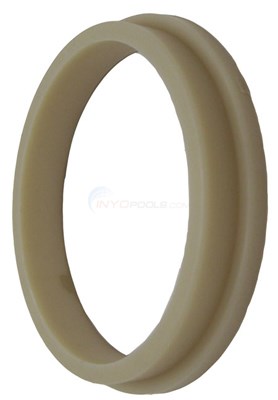

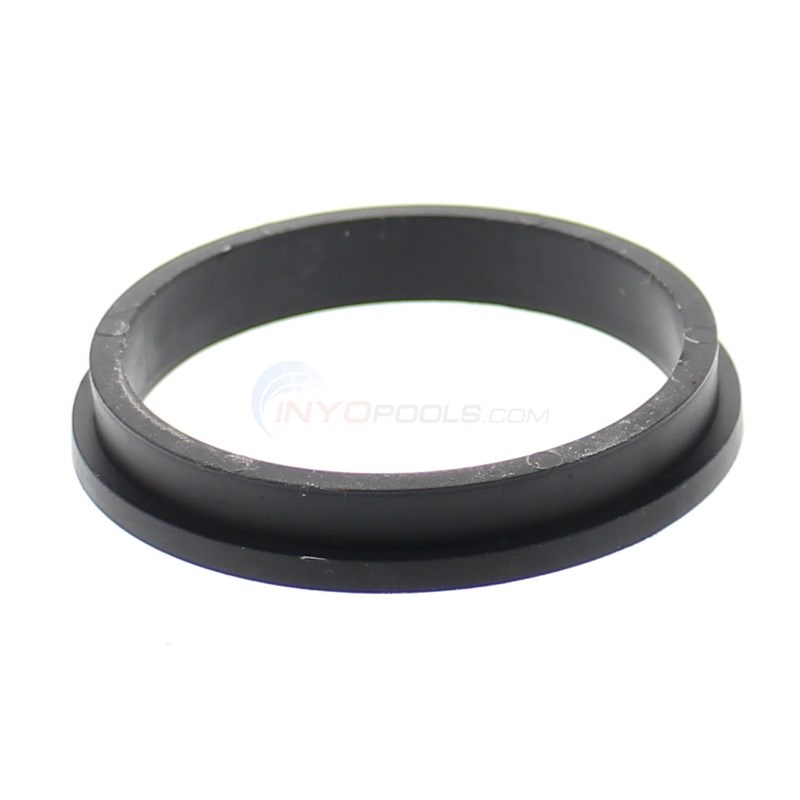

INYO # 5062-17 The Jacuzzi # 10-1462-07-R Eye Seal is used on many common Jacuzzi brand pumps including the Magnum, Cygnet, Splash Pak and many more.  This is a round, double stepped eye seal that fits over the inlet of the pump impeller. Inside diameter is the same all the way through; outside diameter is larger at the front of the seal and then steps down.  The larger end faces away from the impeller when installed.  Made of a flexible rubber-like plastic material in beige.

  • FRONT TO BACK: 3/8" (B)

?     Asked on 4/27/2020by jerry fox

what does the eye seal do?

A  Answered on 11/4/2020 by InyoPools Product Specialist Hector F.

Hi Jerry, these eye seals assist to direct and seal the water flow being pulled to the pump impeller.

?     Asked on 8/27/2019by Donald Meyer

I ordered this part Sunday 10146207R000, just wondering if it shipped yet.

A  Answered on 9/12/2019 by InyoPools Product Specialist Hector F.

There was no recent order associated with the email address you used for this question for an eye seal.

?     Asked on 6/22/2019by Daniel Smires

Will this Eye Seal work on a Jacuzzi Magnum 1.5 hp in ground pool pump impeller?

A  Answered on 6/24/2019 by InyoPools Product Specialist Matt S.

Yes, this impeller eye seal will fit Jacuzzi Magnum impellers from .5 to 3 HP.

?     Asked on 11/19/2018by Ray Erspamer

Is the eye seal required on a J pump? I just watched a video from THE SPA GUY and when he assembled a J pump he did not install one. IF one is required, what direction should it go in and how far should it go in toward the impeller. Thank you.

A  Answered on 11/29/2018 by InyoPools Product Specialist Jamie H.

Hi Ray, the larger side of the Eye Seal, 1/2-3hp Uprated (10146207r000) faces away from the impeller and towards the diffuser.

?     Asked on 5/26/2017by brian

Will this seal fit a inno-tech s7j and F569000? Is the eye seal suposto seat tightly against the impeler inlet shaft, becouse both of my pumps have at least 1/16 of an inch of space on all sides between the impeler inlet and eye seal, also culd this be the reson the jets barly put out any presure?

A  Answered on 5/28/2017 by InyoPools Product Specialist Lennox H.

Hi, Brian. This Eye Seal will fit the S7J and F569000 Pumps. The Eye Seal should fit snug onto the impeller, a loose fit eye seal will not cause low water flow. You may want to check your filter to make sure it's cleaned.

?     Asked on 7/19/2016by perry

can I run my magnum 1500 pool pump without a diffuser floating eye seal ? waiting for a replacement seal from pool company

A  Answered on 7/23/2016 by InyoPools Product Specialist Lennox H.

Hi Perry, No, you cannot run the pump without the eye seal. If you do you will damage the impeller and or the motor.

?     Asked on 5/19/2016by Dennis Henry

Which direction is the correct installed direction for this seal? Is the larger diameter "end" suppose to face the diffuser or the impeller?

A  Answered on 5/21/2016 by InyoPools Product Specialist Lennox H.

Hi Dennis, The larger end faces away from the impeller.

?     Asked on 9/24/2014by Guest

Is the eye seal the same for all the impellers?

A  Answered on 9/24/2014 by InyoPools Product Specialist Patrick P.

The eye seal can vary in size and is dependent on the pump model, horse power and service factor.

?     Asked on 5/10/2013by Guest

Will the 10146207R000 (5062-17) Eye Seal work on the Jacuzzi 05038302R impeller?

A  Answered on 5/10/2013 by InyoPools Product Specialist Patrick P.

Yes, part number 10146207R000 (5062-17) is the correct eye seal for the 05038302R impeller.


Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Socket Set

1     0

worn out Eye Seal

Written on 2/1/2017 by Guest

I noticeed Eye Seal worn out and little crack (OLD) and replaced it and it is not hard job.
