Malibu 12'x18' Oval (Steel Top Rail, Steel Upright) Parts

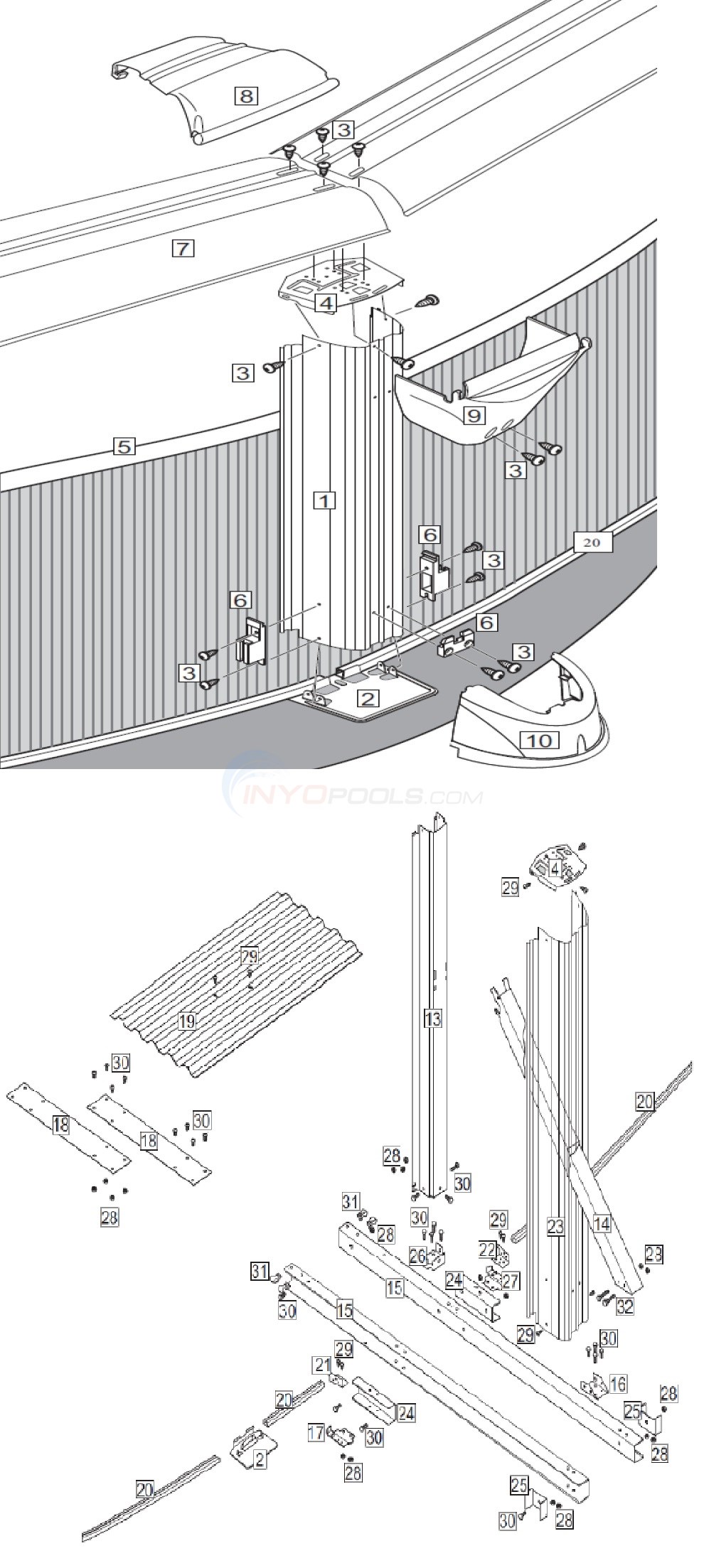

Malibu 12'x18' Oval (Steel Top Rail, Steel Upright) Diagram

Click to zoom in

Diagram #	Part Title
1	Upright 51-1/2" for Malibu (Single)
2	Base Plate (Single)
3	Hardware
4	Top Plate (Single)
5	12' Slotted Tube (Single) For Atlantic Pools J3000, SIERRA, J5000, J4000, ESPRIT, BELIZE, , URBANIA,
6	Clips Foot Cover for Malibu (Single)
7	Top Ledge Price Requestfor 12' Round Malibu (Single)
8	Atlantic Cap Upper (Single)
9	Atlantic Cap Lower (Single)
10	Foot Cover for Malibu (Single)
13	Buttress Upright (Single)
14	Diagonal Buttress for Malibu (Single)
15	Base Channel (SINGLE) For The Aegean
16	Diagonal Bracket (SINGLE) For The Aegean And Atlantis
17 & 27	Lt/rt Vertical Support Bracket (Single)
18	Strap 2-7/8x61-1/8 (SINGLE) 12' For The Aegean
19	Hold Down Plate For The Aegean
20	12' Bottom Rail 44-5/8" For Aegean & St Croix (Single), J3000, J5000, Sierra, , Estate,
21 & 22	Vertical Bracket 1320169 For Aegean, Aruba, And St Croix
23	Notched Upright 51-1/2" for Malibu (Single)
24	Reinforcing Bracket (SINGLE) For The Aegean
25	Support Bracket (Single)
26	Oval Base Plate (SINGLE) For Atlantis Oval Pool
*	6" slotted tube connector (Single)

View Parts List

Diagram #	Part Title
1	Upright 51-1/2" for Malibu (Single)
2	Base Plate (Single)
3	Hardware
4	Top Plate (Single)
5	12' Slotted Tube (Single) For Atlantic Pools J3000, SIERRA, J5000, J4000, ESPRIT, BELIZE, , URBANIA,
6	Clips Foot Cover for Malibu (Single)
7	Top Ledge Price Requestfor 12' Round Malibu (Single)
8	Atlantic Cap Upper (Single)
9	Atlantic Cap Lower (Single)
10	Foot Cover for Malibu (Single)
13	Buttress Upright (Single)
14	Diagonal Buttress for Malibu (Single)
15	Base Channel (SINGLE) For The Aegean
16	Diagonal Bracket (SINGLE) For The Aegean And Atlantis
17 & 27	Lt/rt Vertical Support Bracket (Single)
18	Strap 2-7/8x61-1/8 (SINGLE) 12' For The Aegean
19	Hold Down Plate For The Aegean
20	12' Bottom Rail 44-5/8" For Aegean & St Croix (Single), J3000, J5000, Sierra, , Estate,
21 & 22	Vertical Bracket 1320169 For Aegean, Aruba, And St Croix
23	Notched Upright 51-1/2" for Malibu (Single)
24	Reinforcing Bracket (SINGLE) For The Aegean
25	Support Bracket (Single)
26	Oval Base Plate (SINGLE) For Atlantis Oval Pool
*	6" slotted tube connector (Single)

Available Parts:

Upright 51-1/2" for Malibu (Single)

Part # 1440483

Upright 51-1/2" for Malibu (Single)

$76.12

Quantity Per Pool 10

Quantity Per Pool 10

Base Plate (Single)

Part # NBP2017 Mfg # 1320100

Base Plate (Single)

$4.00 IN STOCK

Quantity Per Pool 10 Material Steel

Quantity Per Pool 10 Material Steel

Qty:

1320100 6" Base Plate Resin Upgrade Kit for 33' Round Pool

Part # 1320100-1218-RESKIT

1320100 6" Base Plate Resin Upgrade Kit for 33' Round Pool

$5.04

Quantity Per Pool 1 Material Resin

Quantity Per Pool 1 Material Resin

Hardware

Part # 1184299

Hardware

$72.76

Quantity Per Pool 3

Quantity Per Pool 3

Hardware for ledge cover (J4000)

Part # 1184232

Hardware for ledge cover (J4000)

$3.35

Quantity Per Pool 3

Quantity Per Pool 3

Top Plate (Single)

Part # 1320143

Top Plate (Single)

$12.78 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

12' Slotted Tube (Single) For Atlantic Pools J3000, SIERRA, J5000, J4000, ESPRIT, BELIZE, , URBANIA,

Part # NBP2003 Mfg # 1470096

12' Slotted Tube (Single) For Atlantic Pools J3000, SIERRA, J5000, J4000, ESPRIT, BELIZE, , URBANIA,

$16.14

Quantity Per Pool 8

Quantity Per Pool 8

Slotted Tube (Single) For Atlantic Pools 1470098 J3000, SIERRA, J5000, J4000, ESPRIT, BELIZE, , URBA

Part # NBP2005 Mfg # 1470098

Slotted Tube (Single) For Atlantic Pools 1470098 J3000, SIERRA, J5000, J4000, ESPRIT, BELIZE, , URBA

$31.97 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

Slotted Tube 55-1/4" (4-PACK) 1470098 For Atlantic Pools 1470098 J3000, J2000, SIERRA, J5000, J4000,

Part # NBP2005-PACK4

Slotted Tube 55-1/4" (4-PACK) 1470098 For Atlantic Pools 1470098 J3000, J2000, SIERRA, J5000, J4000,

$102.00 IN STOCK

Quantity Per Pool 4-PACK

Quantity Per Pool 4-PACK

Qty:

Slotted Tube 55-1/4" (8-PACK) 1470098 For Atlantic Pools 1470098 J3000, J2000, SIERRA, J5000, J4000,

Part # NBP2005-PACK8

Slotted Tube 55-1/4" (8-PACK) 1470098 For Atlantic Pools 1470098 J3000, J2000, SIERRA, J5000, J4000,

$196.97

Quantity Per Pool 8-PACK

Quantity Per Pool 8-PACK

Clips Foot Cover for Malibu (Single)

Part # 1490473

Clips Foot Cover for Malibu (Single)

$26.86

Quantity Per Pool 12

Quantity Per Pool 12

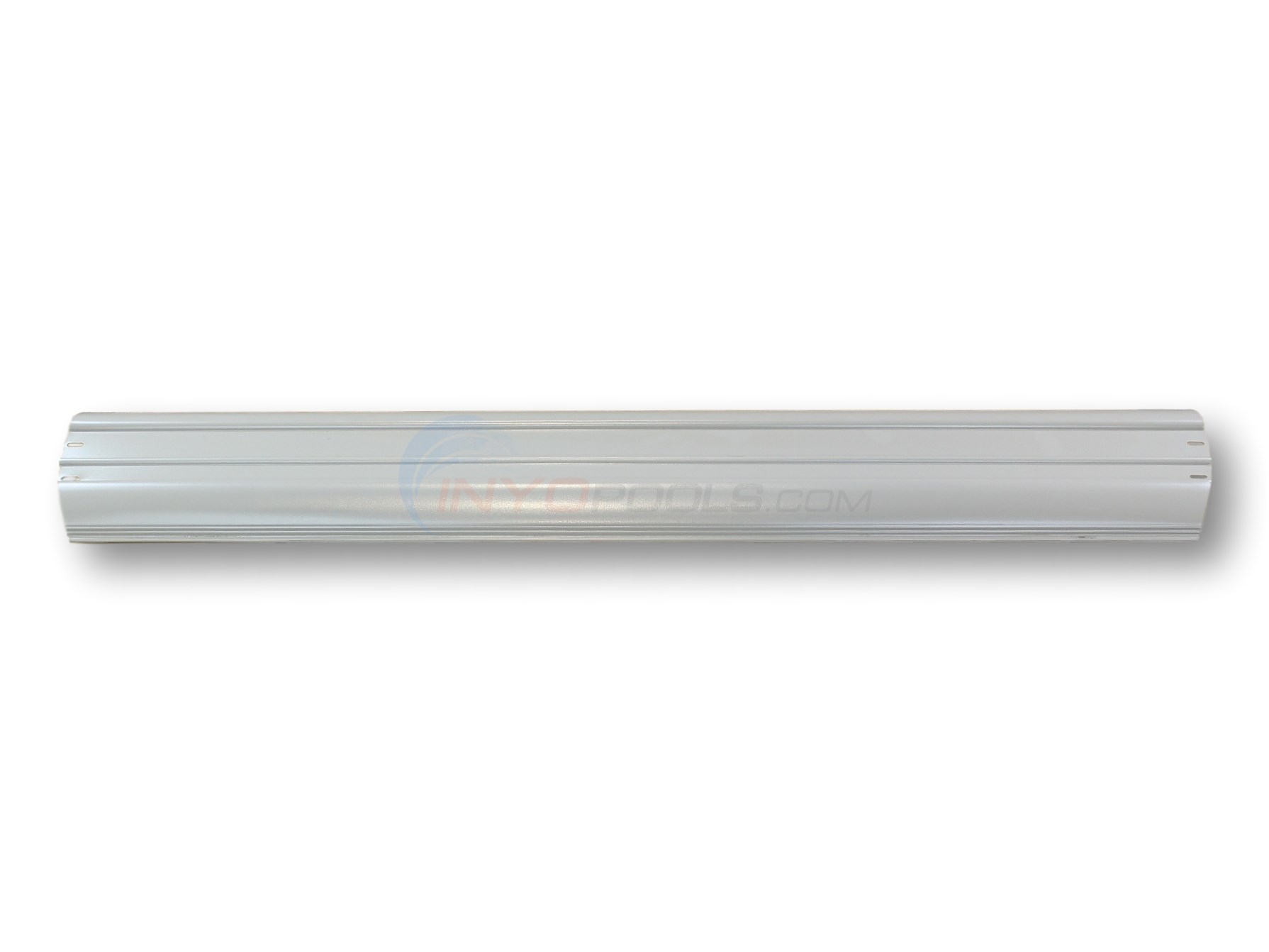

Top Ledge Price Requestfor 12' Round Malibu (Single)

Part # 1450359

Top Ledge Price Requestfor 12' Round Malibu (Single)

$80.60

Quantity Per Pool 8

Quantity Per Pool 8

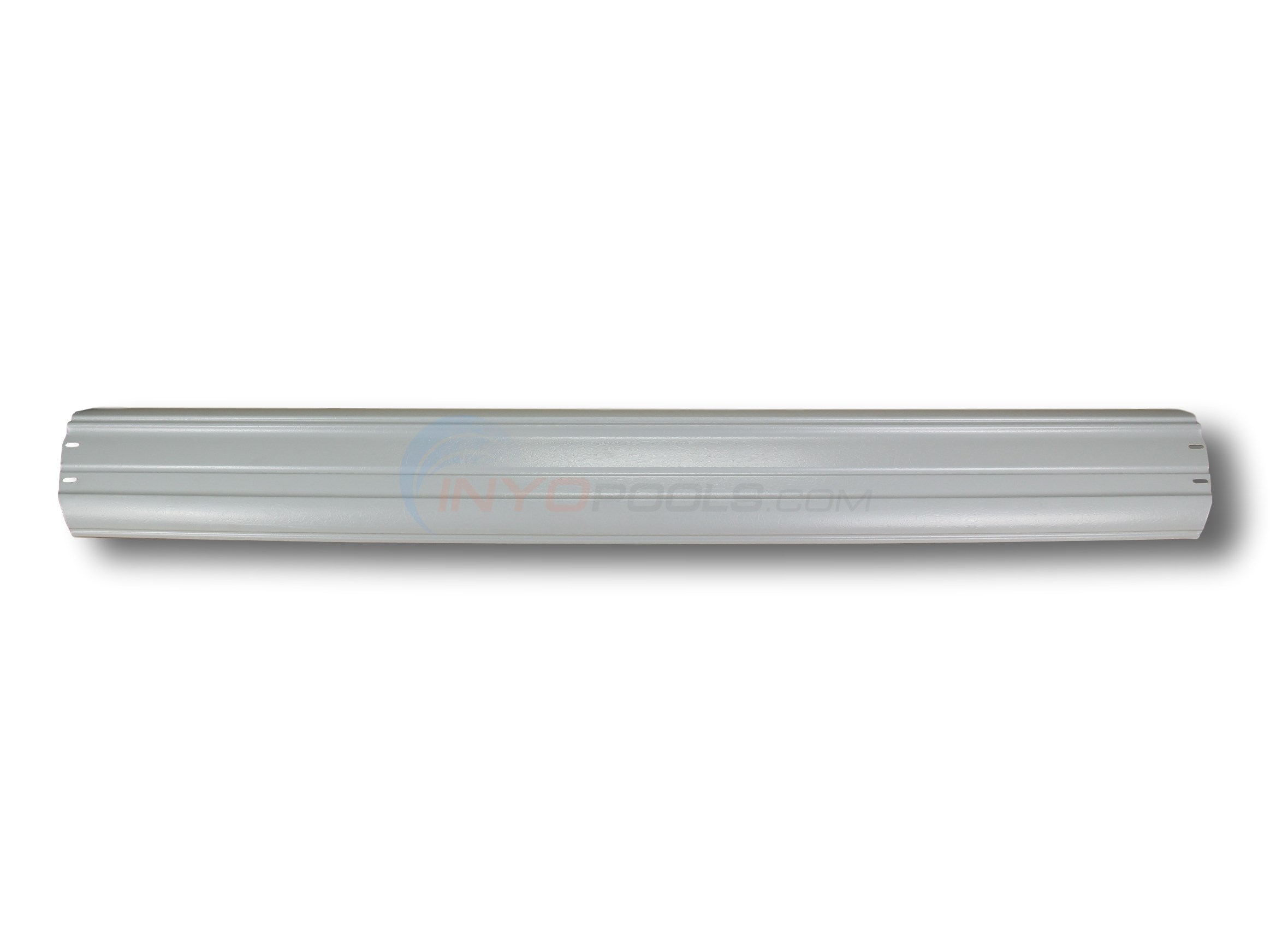

Top Rail 58-1/4" - Steel (SINGLE)

Part # 1450483

Top Rail 58-1/4" - Steel (SINGLE)

$68.28

Quantity Per Pool 4

Quantity Per Pool 4

Atlantic Cap Upper (Single)

Part # 1490211

Atlantic Cap Upper (Single)

$44.77

Quantity Per Pool 12

Quantity Per Pool 12

Atlantic Cap Lower (Single)

Part # 1490197

Atlantic Cap Lower (Single)

$15.98 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Foot Cover for Malibu (Single)

Part # 1490463

Foot Cover for Malibu (Single)

$7.81

Quantity Per Pool 12

Quantity Per Pool 12

Buttress Upright (Single)

Part # NBP2027 Mfg # 1440455

Buttress Upright (Single)

$116.42

Quantity Per Pool 2

Quantity Per Pool 2

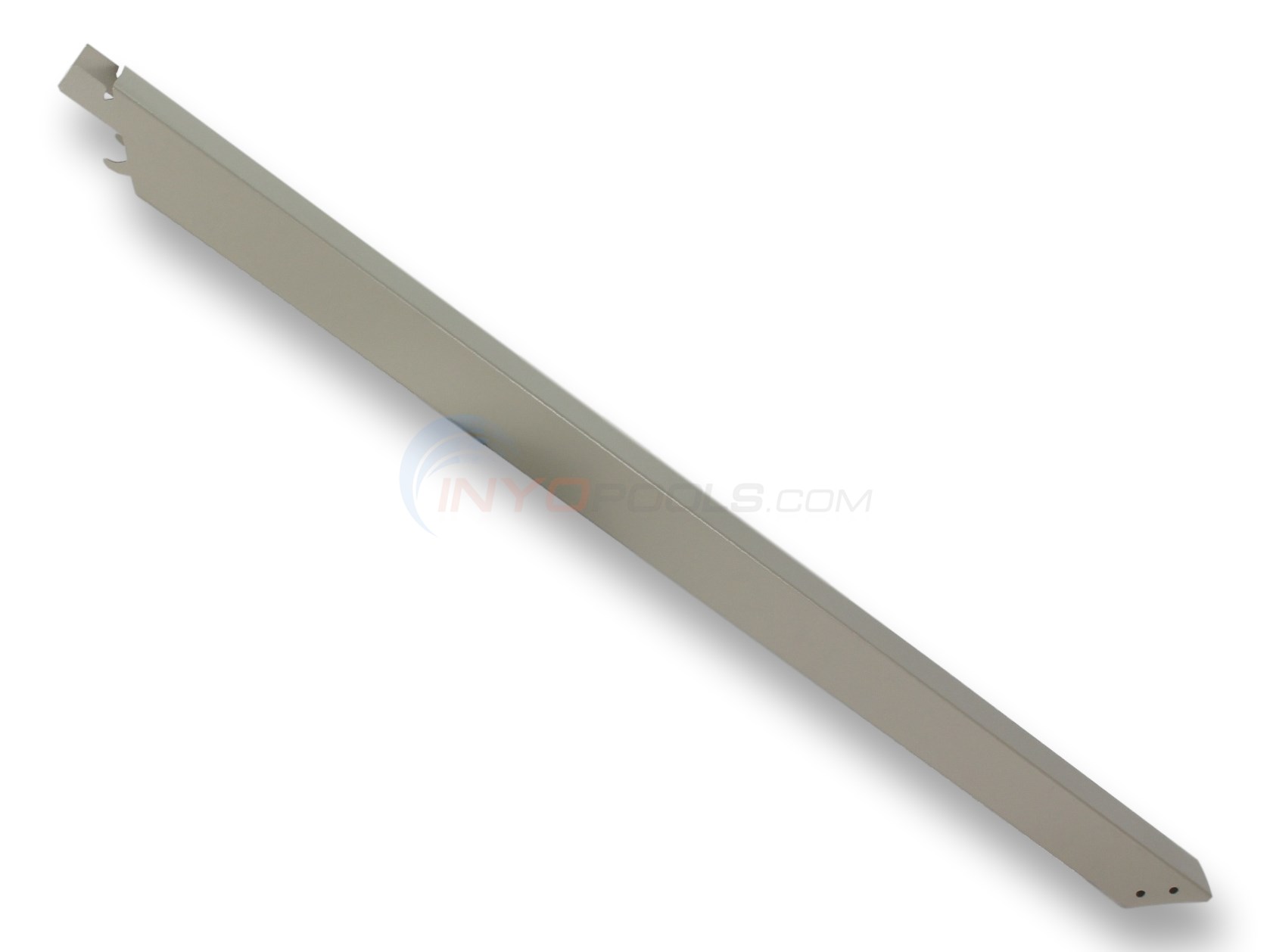

Diagonal Buttress for Malibu (Single)

Part # 1440314

Diagonal Buttress for Malibu (Single)

$76.12

Quantity Per Pool 2

Quantity Per Pool 2

Base Channel (SINGLE) For The Aegean

Part # NBP2024 Mfg # 1440336

Base Channel (SINGLE) For The Aegean

$58.21

Quantity Per Pool 4

Quantity Per Pool 4

Diagonal Bracket (SINGLE) For The Aegean And Atlantis

Part # NBP2062 Mfg # 1320152

Diagonal Bracket (SINGLE) For The Aegean And Atlantis

$47.01

Quantity Per Pool 2

Quantity Per Pool 2

Lt/rt Vertical Support Bracket (Single)

Part # NBP2022 Mfg # 1320177

Lt/rt Vertical Support Bracket (Single)

$54.85

Quantity Per Pool 2

Quantity Per Pool 2

Strap 2-7/8x61-1/8 (SINGLE) 12' For The Aegean

Part # NBP2045 Mfg # 1510135

Strap 2-7/8x61-1/8 (SINGLE) 12' For The Aegean

$49.24

Quantity Per Pool 2

Quantity Per Pool 2

Hold Down Plate For The Aegean

Part # NBP2021 Mfg # 1320165

Hold Down Plate For The Aegean

$23.49

Quantity Per Pool 2

Quantity Per Pool 2

12' Bottom Rail 44-5/8" For Aegean & St Croix (Single), J3000, J5000, Sierra, , Estate,

Part # NBP2034 Mfg # 1460029

12' Bottom Rail 44-5/8" For Aegean & St Croix (Single), J3000, J5000, Sierra, , Estate,

$34.69

Quantity Per Pool 10 Material Steel

Quantity Per Pool 10 Material Steel

Bottom rail 42-5/8" J4000 (Single)

Part # 1460181

Bottom rail 42-5/8" J4000 (Single)

$33.58 IN STOCK

Quantity Per Pool 8 Material Resin

Quantity Per Pool 8 Material Resin

Qty:

Bottom rail - yellow 56" J4000 (Single)

Part # 1460189

Bottom rail - yellow 56" J4000 (Single)

$53.72

Quantity Per Pool 4 Material Resin

Quantity Per Pool 4 Material Resin

Vertical Bracket 1320169 For Aegean, Aruba, And St Croix

Part # NBP2054 Mfg # 1320169

Vertical Bracket 1320169 For Aegean, Aruba, And St Croix

$11.19 IN STOCK

Quantity Per Pool 2

Quantity Per Pool 2

Qty:

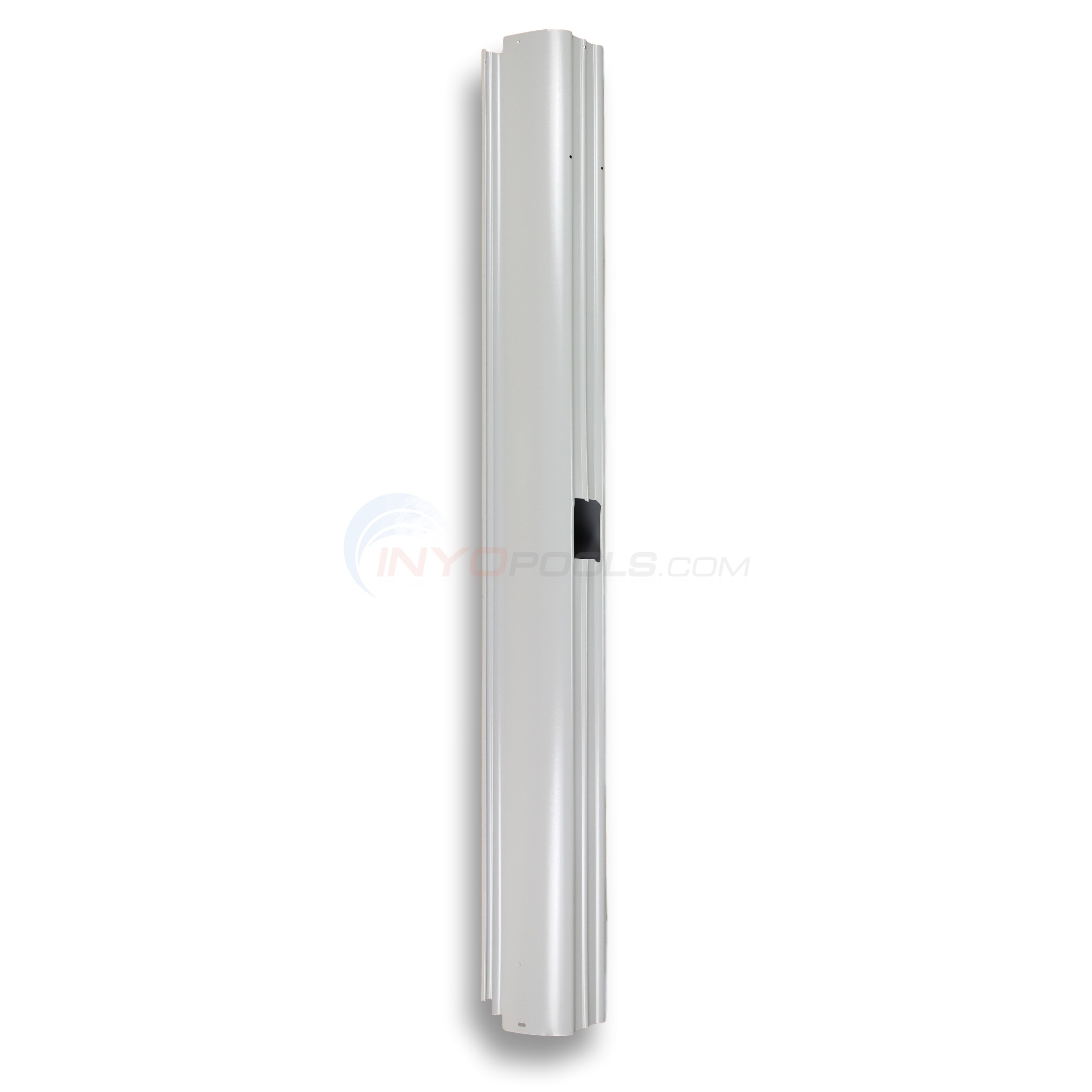

Notched Upright 51-1/2" for Malibu (Single)

Part # 1440485

Notched Upright 51-1/2" for Malibu (Single)

$126.49

Quantity Per Pool 2

Quantity Per Pool 2

Reinforcing Bracket (SINGLE) For The Aegean

Part # NBP2018 Mfg # 1320150

Reinforcing Bracket (SINGLE) For The Aegean

$54.85

Quantity Per Pool 4

Quantity Per Pool 4

Support Bracket (Single)

Part # NBP2019 Mfg # 1320151

Support Bracket (Single)

$53.72

Quantity Per Pool 4

Quantity Per Pool 4

Oval Base Plate (SINGLE) For Atlantis Oval Pool

Part # NBP2020 Mfg # 1320154

Oval Base Plate (SINGLE) For Atlantis Oval Pool

$5.59 IN STOCK

Quantity Per Pool 2

Quantity Per Pool 2

Qty:

6" slotted tube connector (Single)

Part # 1470108

6" slotted tube connector (Single)

$15.98 IN STOCK

Quantity Per Pool 10 Material Steel

Quantity Per Pool 10 Material Steel

Qty:

Resin Slotted Tube (SINGLE) Conn For Atlantic Pools, J3000, SIERRA, J5000, J4000, ESPRIT, BELIZE, ,

Part # NBP2002 Mfg # 1470087

Resin Slotted Tube (SINGLE) Conn For Atlantic Pools, J3000, SIERRA, J5000, J4000, ESPRIT, BELIZE, ,

$5.00 IN STOCK

Quantity Per Pool 2 Material Resin

Quantity Per Pool 2 Material Resin
