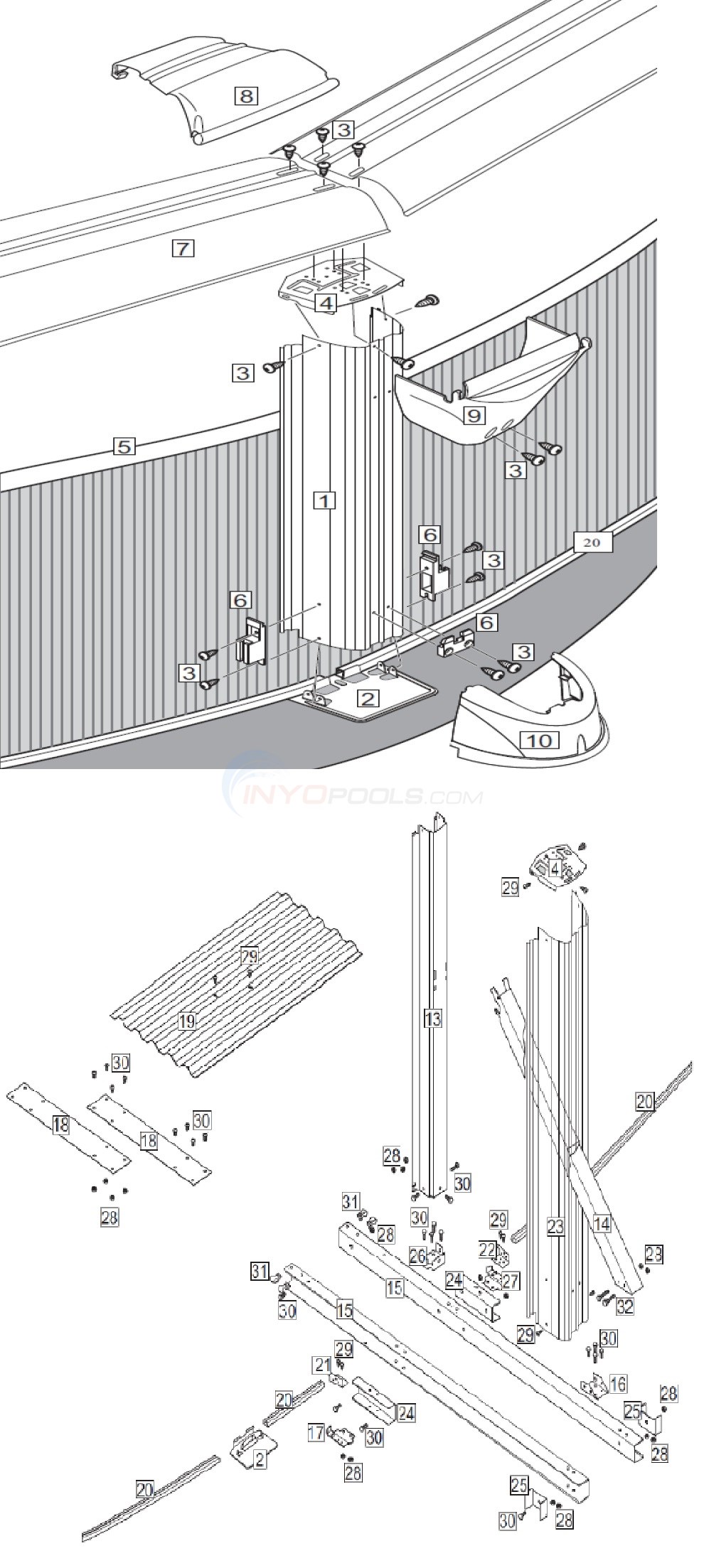

Malibu 12'x24' Oval (Steel Top Rail, Steel Upright) Parts

Diagram #	Part Title
*Liner	12' x 24' 48"-54" Depth All Swirl Overlap Standard Gauge
1	Upright 51-1/2" for Malibu (Single)
2	Base Plate Steel (Single)
3	Hardware
4	Top Plate (Single)
5	12' Slotted Tube (Single) For Atlantic Pools J3000, SIERRA, J5000, J4000, ESPRIT, BELIZE, , URBANIA,
6	Clips Foot Cover for Malibu (Single)
7	Top Ledge (Single)
8	Atlantic Cap Upper (Single)
9	Atlantic Cap Lower (Single)
10	Foot Cover for Malibu (Single)
13	Buttress Upright (Single)
14	Diagonal Buttress for Malibu (Single)
15	Base Channel (Single) For The Aegean
16	Diagonal Bracket (SINGLE) For The Aegean And Atlantis
17 & 27	Lt/rt Vertical Support Bracket (Single)
18	Strap 2-7/8x61-1/8 (SINGLE) 12' For The Aegean
19	Hold Down Plate For The Aegean
20	12' Bottom Rail 44-5/8" For Aegean & St Croix (Single), J3000, J5000, Sierra, , Estate,
21 & 22	Vertical Bracket 1320169 For Aegean, Aruba, And St Croix
23	Notched Upright 51-1/2" for Malibu (Single)
24	Reinforcing Bracket (SINGLE) For The Aegean
25	Support Bracket (SINGLE) For The Aegen
26	Oval Base Plate (SINGLE) For Atlantis Oval Pool
*	6" slotted tube connector (Single)

Diagram #

Part Title

*Liner

12' x 24' 48"-54" Depth All Swirl Overlap Standard Gauge

Upright 51-1/2" for Malibu (Single)

Base Plate Steel (Single)

Hardware

Top Plate (Single)

12' Slotted Tube (Single) For Atlantic Pools J3000, SIERRA, J5000, J4000, ESPRIT, BELIZE, , URBANIA,

Clips Foot Cover for Malibu (Single)

Top Ledge (Single)

Atlantic Cap Upper (Single)

Atlantic Cap Lower (Single)

Foot Cover for Malibu (Single)

Buttress Upright (Single)

Diagonal Buttress for Malibu (Single)

Base Channel (Single) For The Aegean

Diagonal Bracket (SINGLE) For The Aegean And Atlantis

17 & 27

Lt/rt Vertical Support Bracket (Single)

Strap 2-7/8x61-1/8 (SINGLE) 12' For The Aegean

Hold Down Plate For The Aegean

12' Bottom Rail 44-5/8" For Aegean & St Croix (Single), J3000, J5000, Sierra, , Estate,

21 & 22

Vertical Bracket 1320169 For Aegean, Aruba, And St Croix

Notched Upright 51-1/2" for Malibu (Single)

Reinforcing Bracket (SINGLE) For The Aegean

Support Bracket (SINGLE) For The Aegen

Oval Base Plate (SINGLE) For Atlantis Oval Pool

6" slotted tube connector (Single)

Diagram #	Part Title
*Liner	12' x 24' 48"-54" Depth All Swirl Overlap Standard Gauge
1	Upright 51-1/2" for Malibu (Single)
2	Base Plate Steel (Single)
3	Hardware
4	Top Plate (Single)
5	12' Slotted Tube (Single) For Atlantic Pools J3000, SIERRA, J5000, J4000, ESPRIT, BELIZE, , URBANIA,
6	Clips Foot Cover for Malibu (Single)
7	Top Ledge (Single)
8	Atlantic Cap Upper (Single)
9	Atlantic Cap Lower (Single)
10	Foot Cover for Malibu (Single)
13	Buttress Upright (Single)
14	Diagonal Buttress for Malibu (Single)
15	Base Channel (Single) For The Aegean
16	Diagonal Bracket (SINGLE) For The Aegean And Atlantis
17 & 27	Lt/rt Vertical Support Bracket (Single)
18	Strap 2-7/8x61-1/8 (SINGLE) 12' For The Aegean
19	Hold Down Plate For The Aegean
20	12' Bottom Rail 44-5/8" For Aegean & St Croix (Single), J3000, J5000, Sierra, , Estate,
21 & 22	Vertical Bracket 1320169 For Aegean, Aruba, And St Croix
23	Notched Upright 51-1/2" for Malibu (Single)
24	Reinforcing Bracket (SINGLE) For The Aegean
25	Support Bracket (SINGLE) For The Aegen
26	Oval Base Plate (SINGLE) For Atlantis Oval Pool
*	6" slotted tube connector (Single)

Diagram #

Part Title

*Liner

12' x 24' 48"-54" Depth All Swirl Overlap Standard Gauge

Upright 51-1/2" for Malibu (Single)

Base Plate Steel (Single)

Hardware

Top Plate (Single)

12' Slotted Tube (Single) For Atlantic Pools J3000, SIERRA, J5000, J4000, ESPRIT, BELIZE, , URBANIA,

Clips Foot Cover for Malibu (Single)

Top Ledge (Single)

Atlantic Cap Upper (Single)

Atlantic Cap Lower (Single)

Foot Cover for Malibu (Single)

Buttress Upright (Single)

Diagonal Buttress for Malibu (Single)

Base Channel (Single) For The Aegean

Diagonal Bracket (SINGLE) For The Aegean And Atlantis

17 & 27

Lt/rt Vertical Support Bracket (Single)

Strap 2-7/8x61-1/8 (SINGLE) 12' For The Aegean

Hold Down Plate For The Aegean

12' Bottom Rail 44-5/8" For Aegean & St Croix (Single), J3000, J5000, Sierra, , Estate,

21 & 22

Vertical Bracket 1320169 For Aegean, Aruba, And St Croix

Notched Upright 51-1/2" for Malibu (Single)

Reinforcing Bracket (SINGLE) For The Aegean

Support Bracket (SINGLE) For The Aegen

Oval Base Plate (SINGLE) For Atlantis Oval Pool

6" slotted tube connector (Single)

Available Parts:

*Liner

Part # LI1224ASO

12' x 24' 48"-54" Depth All Swirl Overlap Standard Gauge

$324.99 IN STOCK

Qty:

ADD TO CART

*Liner

Part # FC1224OVOL

12' x 24' 48"-54" Depth Country Stone Overlap

$347.99

VIEW DETAILS

Part # 1440483

Upright 51-1/2" for Malibu (Single)

$71.39

Quantity Per Pool 10

VIEW DETAILS

Part # NBP2017 Mfg # 1320100

Base Plate Steel (Single)

$6.29 IN STOCK

Quantity Per Pool 10

Qty:

ADD TO CART

Part # 1320100-1224-RESKIT

1320100 6" Base Plate Resin Upgrade Kit for 12' x 24' Oval Pool

$84.95

Quantity Per Pool 1

VIEW DETAILS

Part # 1184299

Hardware

$68.24

Quantity Per Pool 2

VIEW DETAILS

Part # 1320143

Top Plate (Single)

$14.99 IN STOCK

Quantity Per Pool 16

Qty:

ADD TO CART

Part # NBP2003 Mfg # 1470096

12' Slotted Tube (Single) For Atlantic Pools J3000, SIERRA, J5000, J4000, ESPRIT, BELIZE, , URBANIA,

$15.13 IN STOCK

Quantity Per Pool 8

Qty:

ADD TO CART

Part # 1470104

Slotted Tube 44-1/8" For Atlantic Pools

$35.69

Quantity Per Pool 4

VIEW DETAILS

Part # 1470105

Slotted tube - white 44-1/8" J4000 (single)

$23.09 IN STOCK

Quantity Per Pool 4

Qty:

ADD TO CART

Part # 1490473

Clips Foot Cover for Malibu (Single)

$25.19

Quantity Per Pool 16

VIEW DETAILS

Part # 1450359

Top Ledge (Single)

$75.59

Quantity Per Pool 8

VIEW DETAILS

Part # 1490211

Atlantic Cap Upper (Single)

$41.99

Quantity Per Pool 16

VIEW DETAILS

Part # 1490197

Atlantic Cap Lower (Single)

$14.99 IN STOCK

Quantity Per Pool 16

Qty:

ADD TO CART

Part # 1490463

Foot Cover for Malibu (Single)

$7.32 IN STOCK

Quantity Per Pool 16

Qty:

ADD TO CART

Part # NBP2027 Mfg # 1440455

Buttress Upright (Single)

$109.19

Quantity Per Pool 6

VIEW DETAILS

Part # 1440314

Diagonal Buttress for Malibu (Single)

$71.39

Quantity Per Pool 6

VIEW DETAILS

Part # NBP2024 Mfg # 1440336

Base Channel (Single) For The Aegean

$54.59

Quantity Per Pool 12

VIEW DETAILS

Part # NBP2062 Mfg # 1320152

Diagonal Bracket (SINGLE) For The Aegean And Atlantis

$44.09

Quantity Per Pool 6

VIEW DETAILS

17 & 27

Part # NBP2022 Mfg # 1320177

Lt/rt Vertical Support Bracket (Single)

$51.44

Quantity Per Pool 6

VIEW DETAILS

Part # NBP2045 Mfg # 1510135

Strap 2-7/8x61-1/8 (SINGLE) 12' For The Aegean

$46.19

Quantity Per Pool 6

VIEW DETAILS

Part # NBP2021 Mfg # 1320165

Hold Down Plate For The Aegean

$22.04 IN STOCK

Quantity Per Pool 6

Qty:

ADD TO CART

Part # NBP2034 Mfg # 1460029

12' Bottom Rail 44-5/8" For Aegean & St Croix (Single), J3000, J5000, Sierra, , Estate,

$32.54

Quantity Per Pool 8 Material Steel

VIEW DETAILS

Part # 1460105

Belize Bottom Rail - white (Single)

$41.99

Quantity Per Pool 4 Material Steel

VIEW DETAILS

Part # 1460108

Belize Bottom Rail - blue (Single)

$41.99 IN STOCK

Quantity Per Pool 4 Material Steel

Qty:

ADD TO CART

Part # 1460181

Bottom rail 42-5/8" J4000 (Single)

$31.49 IN STOCK

Quantity Per Pool 8 Material Resin

Qty:

ADD TO CART

Part # 1460192

Bottom rail - white 44-5/8" J4000 (Single)

$51.44

Quantity Per Pool 4 Material Resin

VIEW DETAILS

Part # 1460190

Bottom rail - blue 43-5/8" J4000 (Single)

$50.39

Quantity Per Pool 4 Material Resin

VIEW DETAILS

21 & 22

Part # NBP2054 Mfg # 1320169

Vertical Bracket 1320169 For Aegean, Aruba, And St Croix

$10.49 IN STOCK

Quantity Per Pool 6

Qty:

ADD TO CART

Part # 1440485

Notched Upright 51-1/2" for Malibu (Single)

$118.64

Quantity Per Pool 6

VIEW DETAILS

Part # NBP2018 Mfg # 1320150

Reinforcing Bracket (SINGLE) For The Aegean

$51.44 IN STOCK

Quantity Per Pool 12

Qty:

ADD TO CART

Part # NBP2019 Mfg # 1320151

Support Bracket (SINGLE) For The Aegen

$50.39 IN STOCK

Quantity Per Pool 12

Qty:

ADD TO CART

Part # NBP2020 Mfg # 1320154

Oval Base Plate (SINGLE) For Atlantis Oval Pool

$5.24 IN STOCK

Quantity Per Pool 6

Qty:

ADD TO CART

Part # 1470108

6" slotted tube connector (Single)

$14.99 IN STOCK

Quantity Per Pool 10 Material Steel

Qty:

ADD TO CART

Part # NBP2002 Mfg # 1470087

Slotted Tube (SINGLE)

$4.69 IN STOCK

Quantity Per Pool 6 Material Resin

Qty:

ADD TO CART
