Maytronics Dolphin DX3

Maytronics Dolphin DX3 Diagram
DOLPHIN DX3
Key Part # Mfg Code Item Price
1 3295-258 9980221 DX3 IMPELLER COVER BUMPER $14.99 Description

Key Part # Mfg Code Item Price
2 3295-029 9982350 DX3 IMPELLER COVER $60.99 Description

Key Part # Mfg Code Item Price
3 3295-404 99957030-ASSY DX3 HANDLE ASSEMBLY GREY $139.99 Description

Key Part # Mfg Code Item Price
4 3295-376 99952025-ASSY DX3 MAIN COVER ASSEMBLY $159.99 Description

Key Part # Mfg Code Item Price
5 3295-218 5000009 AMPHENOL PLUG
Normally $34.99!
$33.65 Description

Key Part # Mfg Code Item Price
7 3295-136 99960081 CABLE FLOAT, LIGHT BLUE $75.99 Description

Key Part # Mfg Code Item Price

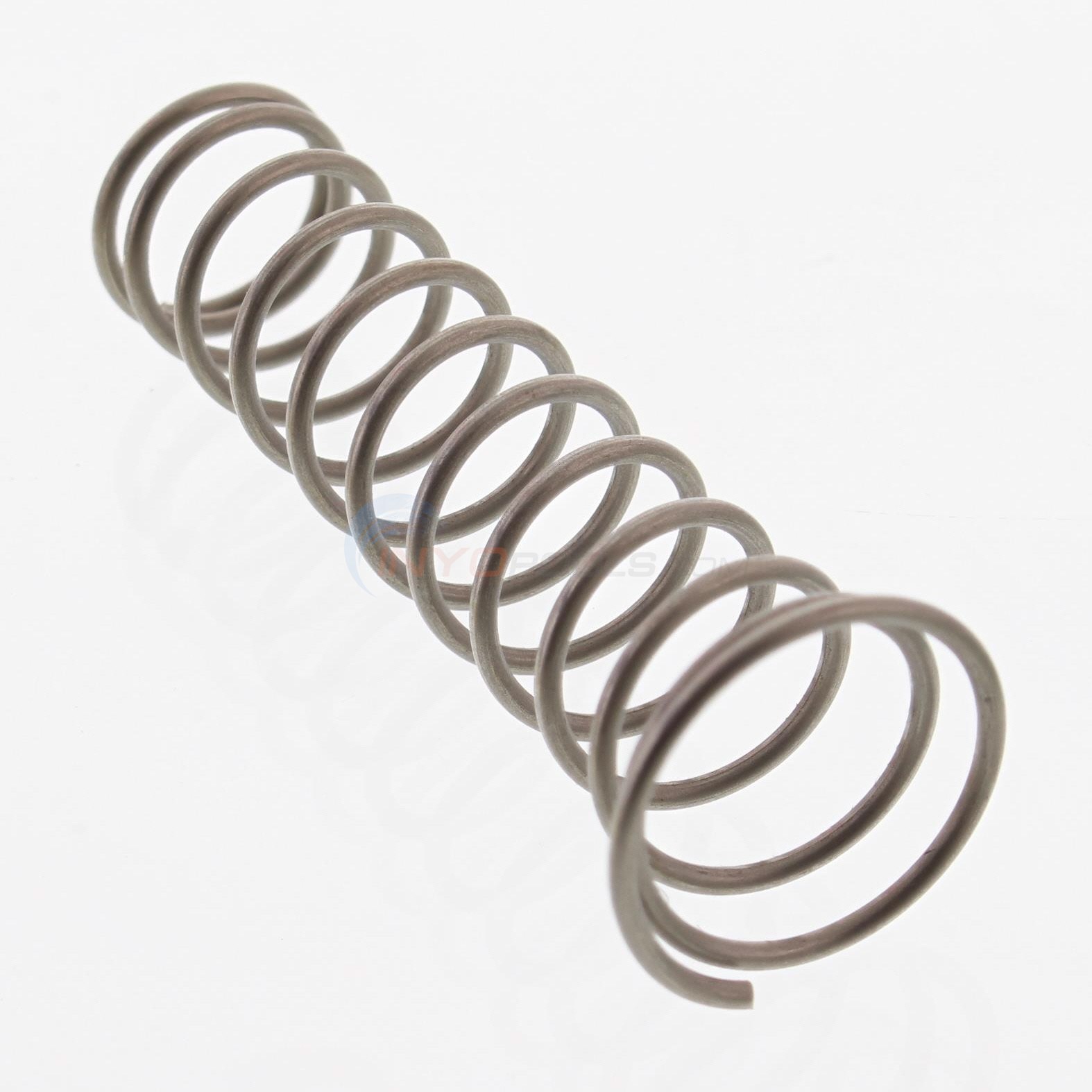

8 3295-485 3917015 DIAGNOSTIC BASIC, CABLE SPRING $14.99 Description

Key Part # Mfg Code Item Price
9 3295-252 9980012 DX3/DX4 CHASSIS FRONT ADAPTOR $149.99 Description

Key Part # Mfg Code Item Price
10 3295-194 3865005 HEXAGON ADAPTOR $19.99 Description

Key Part # Mfg Code Item Price
11 3295-456 3883645 SINGLE DRIVE PULLEY $27.53 Description

Key Part # Mfg Code Item Price
12 3295-431 9997113-ASSY DX3 SIDE PLATE With WHEEL GREY $65.99 Description

Key Part # Mfg Code Item Price
13 3295-257 9980220 DIAG.BASIC - NON RETURN DIAFRAGM $20.99 Description

Key Part # Mfg Code Item Price
14 3295-046 6101602 PVC BRUSH, GRAY $24.99 Description

Key Part # Mfg Code Item Price
15 3295-131 99955951-ASSY DIAG BASIC WHEEL TUBE ASSY $49.97 Description

Key Part # Mfg Code Item Price
16 3295-050 9981430 FILTER BAG CLIP DOLPHIN (DL-9981430) $21.99 Description

Key Part # Mfg Code Item Price
* 3295-156 9991412-ASSY Dx3 Cartridge Assy & 4 Filters $121.53 Description

Key Part # Item Price
17 PL4301 DOLPHIN DX3 FILTER BAG
Normally $49.99!
$32.99 Description

Key Part # Mfg Code Item Price
18* 3295-071 99919116 BOTTOM LID ASSY D.BASIC & SUPPORT
Normally $57.99!
$40.79 Description

Key Part # Mfg Code Item Price

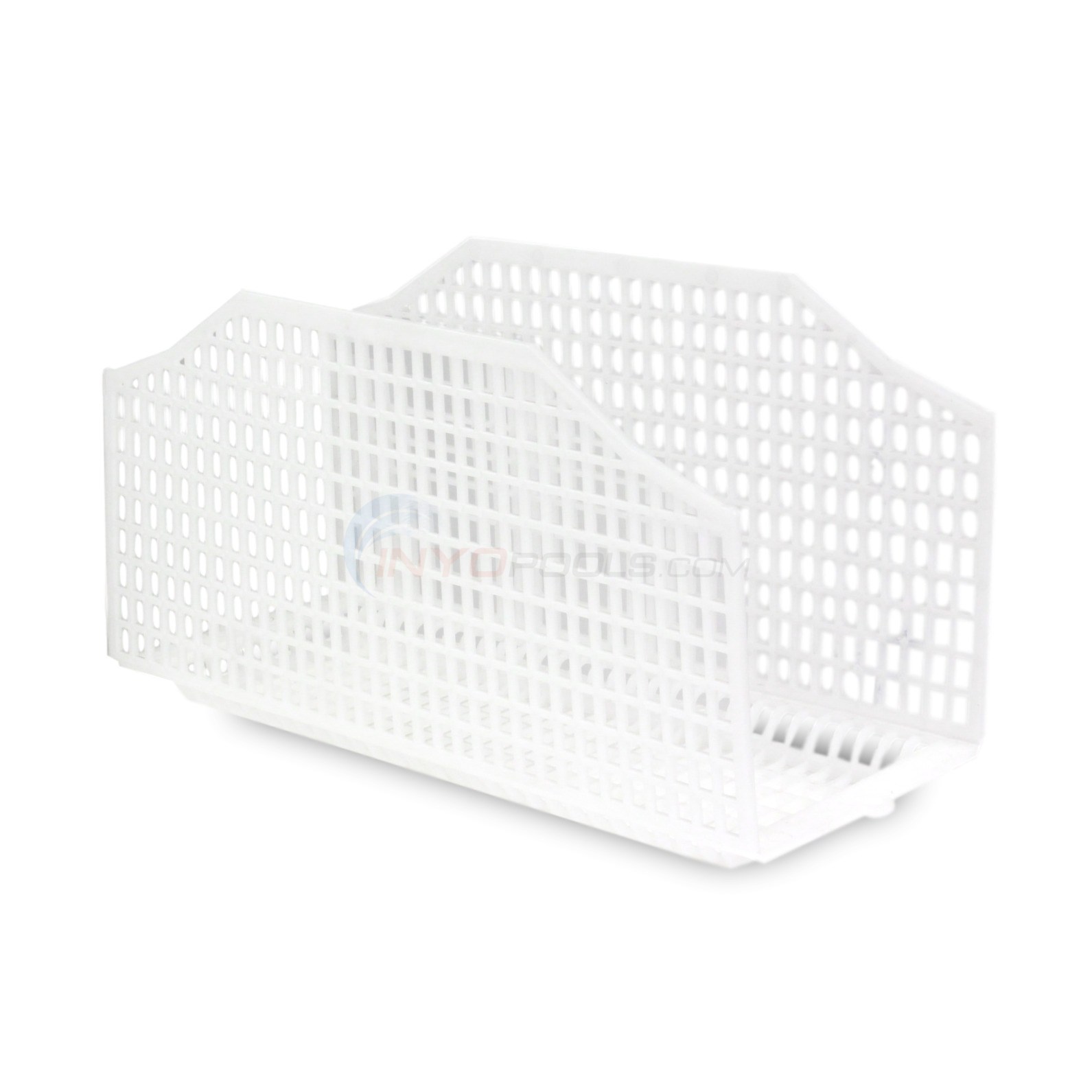

19 3295-084 9982300 DIAG. BASIC FILTER SCREEN $17.99 Description

Key Part # Mfg Code Item Price
* 3295-474 9991414-ASSY DX6 BOTTOM LID CARTRIDGE ASSEMBLY & 4 FILTERS, 5-7/8" TALL $116.44 Description

Key Part # Mfg Code Item Price
20 3295-256 9980200 DIAG.BASIC - CHASSIS $60.99 Description

Key Part # Mfg Code Item Price
21 3295-133 9985006-R2 Timing Track, Gray (9985006)
Normally $69.99!
$55.61 Description

Key Part # Mfg Code Item Price
22 3295-288 9982322 MAY DX3 SIDE PLATE With FINS GREY $69.99 Description

Key Part # Mfg Code Item Price
23 3295-454 3884997 Single Guide Wheel (3884997) Single Wheel Only! $28.99 Description

Key Part # Mfg Code Item Price
25 3295-253 9980013 DX3 CHASSIS REAR ADAPTOR $149.99 Description
25 3295-381 99953003-ASSY MOTOR UNIT D.BASIC 3 HOUR AC NEW $687.99 Description
25 3295-381 99953003-ASSY MOTOR UNIT D.BASIC 3 HOUR AC NEW $687.99 Description

Key Part # Mfg Code Item Price

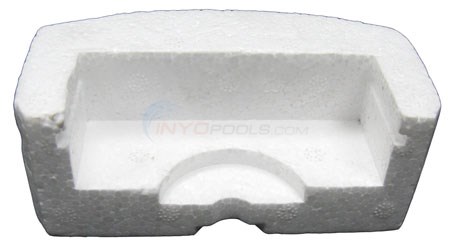

26 3295-026 6250931 INTERNAL FLOAT $11.99 Description

Key Part # Mfg Code Item Price
27 3295-325 9991279 RETROFIT FOR CABLE CONN.-3 PIN $21.99 Description

Key Part # Mfg Code Item Price
28 3295-152 9995269 IMPELLER & SCREW DOLPHIN (DL-9995269) $13.90 Description

Key Part # Mfg Code Item Price
29 3295-289 9982332 CABLE HOLDER FOR DIAG. BASIC $41.99 Description

Key Part # Mfg Code Item Price
30 3295-076 99956002RD-ASSY Diag Basic Power Supply 115v
Normally $279.99!
$205.99 Description
30 3295-003 1869596 Switch Rocker For 115v P.s. $48.99 Description
30 3295-005 1930208 Plastic Nut For Fuse Housing $13.99 Description

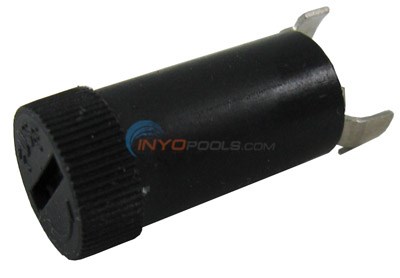

30 3295-195 1930209 Fuse Cover $18.99 Description
30 3295-023 1930251 Fuse, 2.5a 5x20 $7.99 Description
30 3295-486 3860221 O-RING FOR CABLE $14.99 Description
30 3295-219 5020011 Amphenol Socket For Power Supply $26.99 Description
30 3295-044 5020012 Amph Socket Cover For P.s. $21.99 Description

Key Part # Mfg Code Item Price

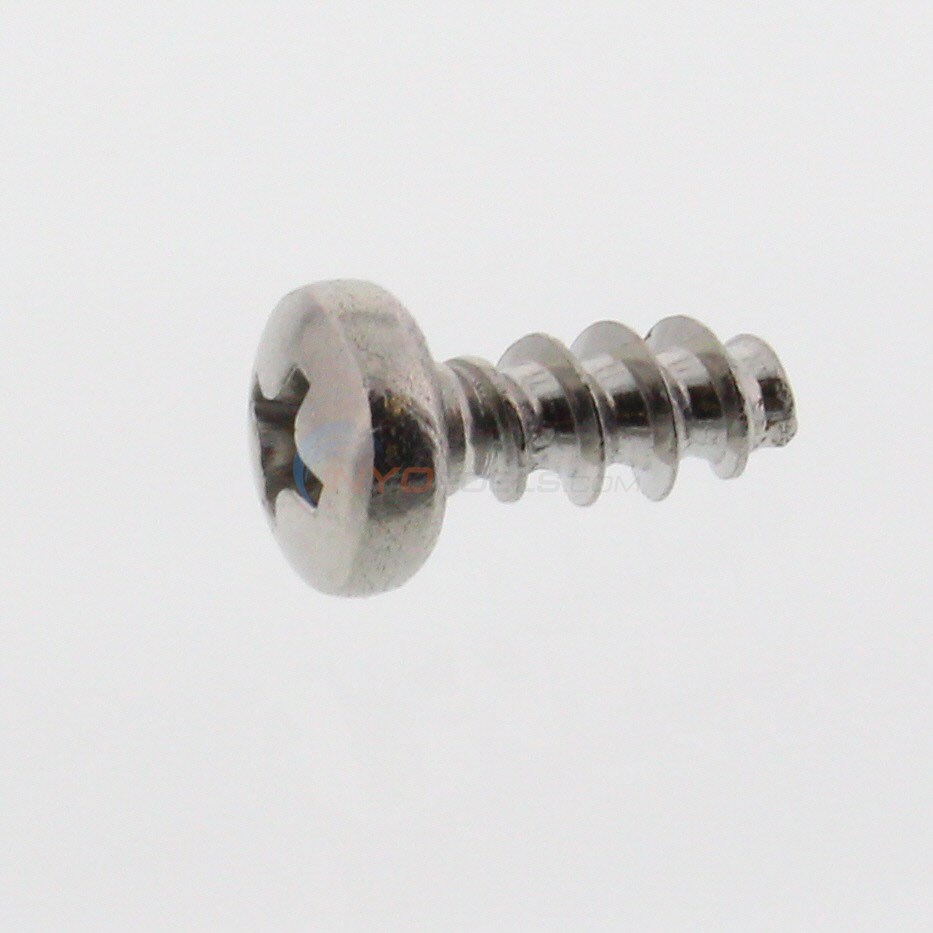

A 3295-184 3379440 SCREW KA50X12 A2 WN1412 $10.99 Description

Key Part # Mfg Code Item Price
B 3295-168 3305025 SCREW WN1412 A2 KA50X25 $18.99 Description

Key Part # Mfg Code Item Price
C 3295-171 3305040 SCREW KA 50X40 $27.99 Description

Key Part # Mfg Code Item Price

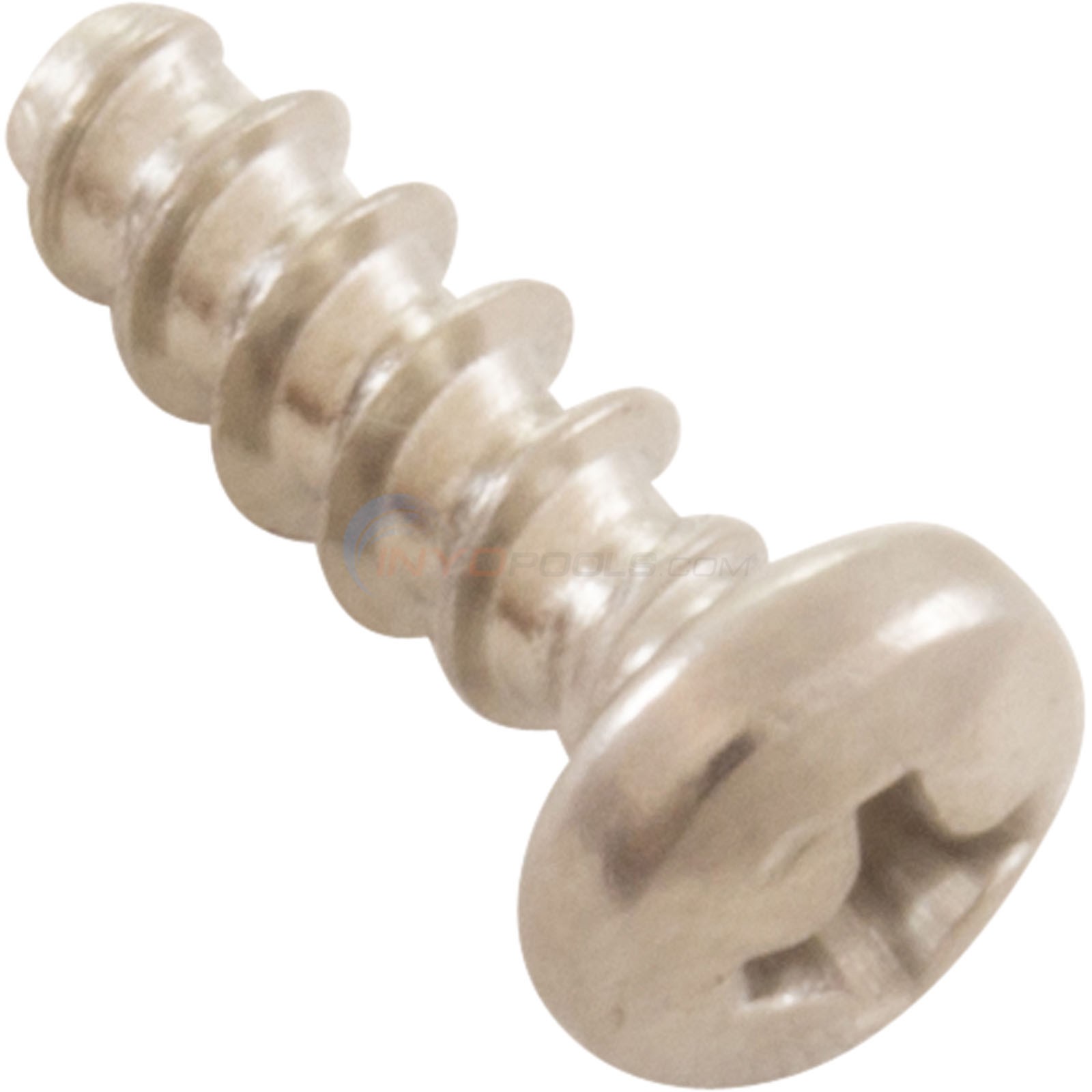

D 3295-186 3379450 SCREW KA40X12 $11.99 Description

Key Part # Mfg Code Item Price

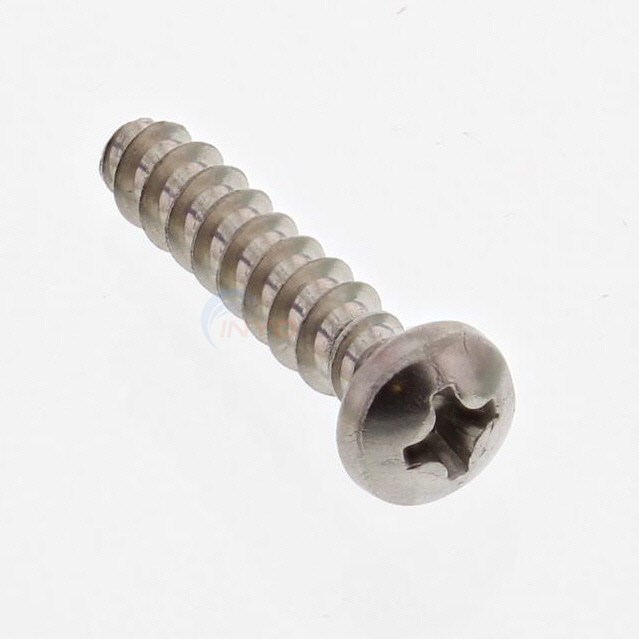

E 3295-174 3354020 SCREW KA40X20 $11.99 Description

Key Part # Mfg Code Item Price

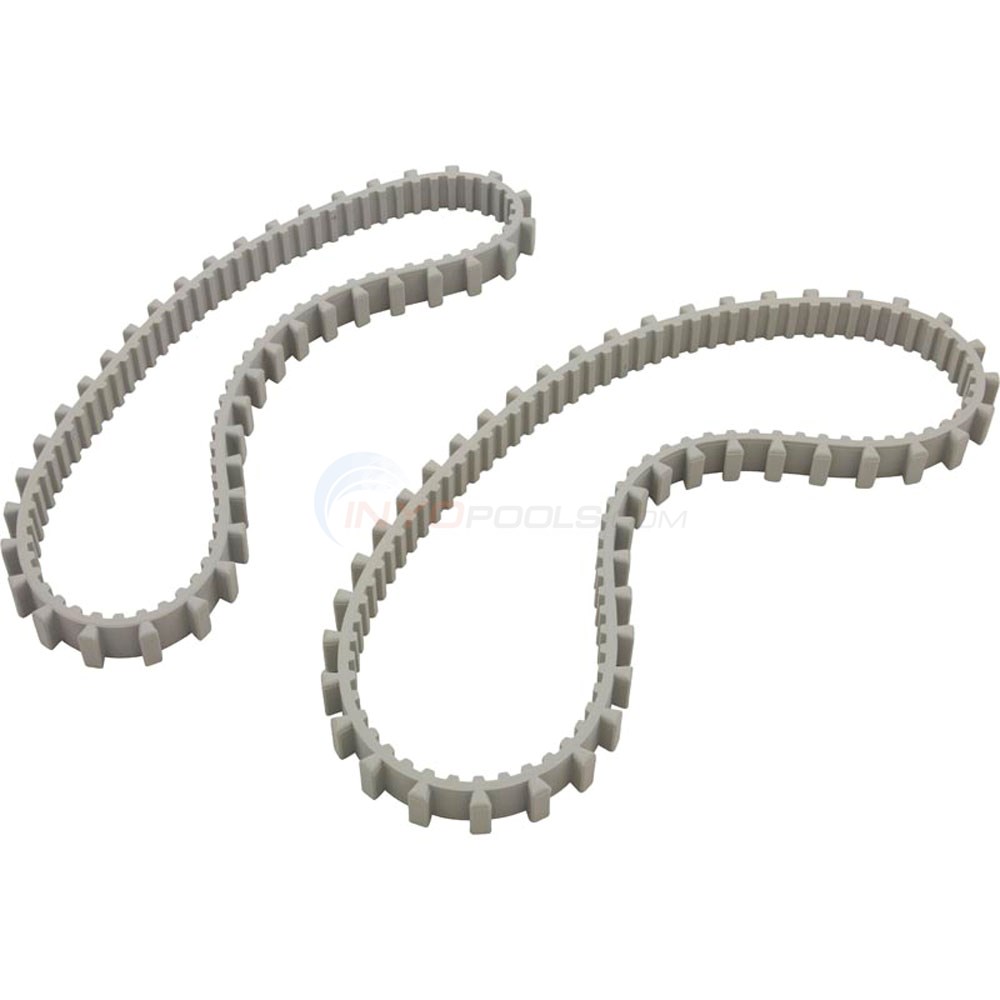

* 9985015 9985015-R2 Dolphin Track Long and Short, Gray - 9985015-R2 $75.47 Description

Key Part # Mfg Code Item Price
* 3295-457 6101611-R4 Climbing Ring for Dolphin Pool Cleaners - 4 Pack - 6101611-R4 $59.99 Description

* KEY 18 CLICK HERE FOR BOTTOM LID PARTS
