Maytronics Dolphin DX5s Parts

Maytronics Dolphin DX5s Diagram

Click to zoom in

Diagram #	Part Title
1	Outer Casing
2	Handle Assembly
3	Impeller Cover
4	Chasis Adaptor
5	Frame
6	Cable Holder
7	Spring for Cable
8	Retrofit For Cable
9	Amphenol Plug
10	Impeller w/ Screw - Black
11	Timing Track, Gray (Set of 2)
12	Hexagon Adapter
13	Dolphin (Maytronics) Two Guide Wheels and One Pulley Gear - 3884997-R3
14	Side Panel
15	Drive Pulley - Single
16	Filter Screen
17	Filter Cartridge Conversion Kit
18	Wheel Tube Assembly
19	Full Brush (no foam rings required)
20	Float
21	Brush Support
22	60' Cable,Swivel,DIY Plug,Metal Spring,3W
23	Non Return Diaphragm
24	Motor Assy 3HR.
25	Bottom Lid Assembly
26	Filter Bag - 70 Micron
27	Power Supply
28	Remote Control

View Parts List

Diagram #	Part Title
1	Outer Casing
2	Handle Assembly
3	Impeller Cover
4	Chasis Adaptor
5	Frame
6	Cable Holder
7	Spring for Cable
8	Retrofit For Cable
9	Amphenol Plug
10	Impeller w/ Screw - Black
11	Timing Track, Gray (Set of 2)
12	Hexagon Adapter
13	Dolphin (Maytronics) Two Guide Wheels and One Pulley Gear - 3884997-R3
14	Side Panel
15	Drive Pulley - Single
16	Filter Screen
17	Filter Cartridge Conversion Kit
18	Wheel Tube Assembly
19	Full Brush (no foam rings required)
20	Float
21	Brush Support
22	60' Cable,Swivel,DIY Plug,Metal Spring,3W
23	Non Return Diaphragm
24	Motor Assy 3HR.
25	Bottom Lid Assembly
26	Filter Bag - 70 Micron
27	Power Supply
28	Remote Control

Available Parts:

1

Outer Casing

Part # 99952092-ASSY Mfg # 99952092-ASSY

Outer Casing

NOT AVAILABLE

2

Handle Assembly

Part # 99957040-ASSY Mfg # 99957040-ASSY

Handle Assembly

NOT AVAILABLE

3

Impeller Cover

Part # 99806067 Mfg # 99806067

Impeller Cover

NOT AVAILABLE

Chasis Adaptor

Part # 3295-267 Mfg # 9980612

Chasis Adaptor

$15.98 IN STOCK

Qty:

Frame

Part # 9980630

Frame

$42.48 IN STOCK

Qty:

Cable Holder

Part # 3295-289 Mfg # 9982332

Cable Holder

$44.77 IN STOCK

Qty:

Spring for Cable

Part # 3295-207 Mfg # 3917033

Spring for Cable

$12.78

Retrofit For Cable

Part # 3295-325 Mfg # 9991279

Retrofit For Cable

$9.16 IN STOCK

Qty:

Amphenol Plug

Part # 3295-218 Mfg # 5000009

Amphenol Plug

$31.82 IN STOCK

Qty:

Impeller w/ Screw - Black

Part # 9995266

Impeller w/ Screw - Black

$14.60 IN STOCK

Qty:

Timing Track, Gray (Set of 2)

Part # 3295-133 Mfg # 9985006-R2

Timing Track, Gray (Set of 2)

$39.99 IN STOCK

Qty:

Hexagon Adapter

Part # 3295-194 Mfg # 3865005

Hexagon Adapter

$24.50 IN STOCK

Qty:

Dolphin (Maytronics) Two Guide Wheels and One Pulley Gear - 3884997-R3

Part # 3884997R3

Dolphin (Maytronics) Two Guide Wheels and One Pulley Gear - 3884997-R3

$29.99 IN STOCK

Qty:

14

Side Panel

Part # 99806034 Mfg # 99806034

Side Panel

NOT AVAILABLE

Drive Pulley - Single

Part # 3295-456 Mfg # 3883645

Drive Pulley - Single

$22.22 IN STOCK

Qty:

Filter Screen

Part # 3295-272 Mfg # 9980627

Filter Screen

$18.91 IN STOCK

Qty:

Filter Cartridge Conversion Kit

Part # 3295-474 Mfg # 9991414-ASSY

Filter Cartridge Conversion Kit

$127.94 IN STOCK

Qty:

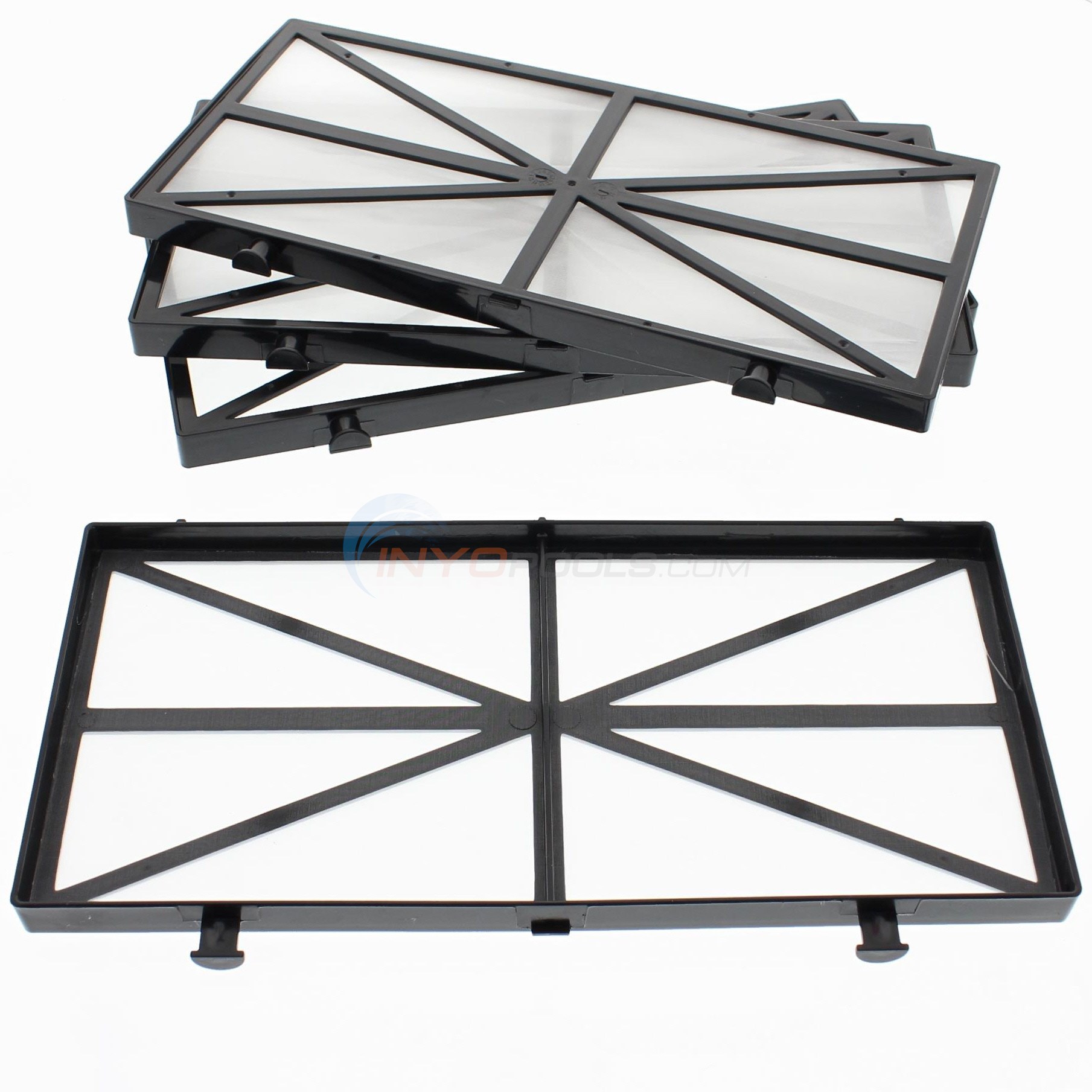

Spring Filters 4PK

Part # 3295-495 Mfg # 9991408-R2

Spring Filters 4PK

$59.99 IN STOCK

Qty:

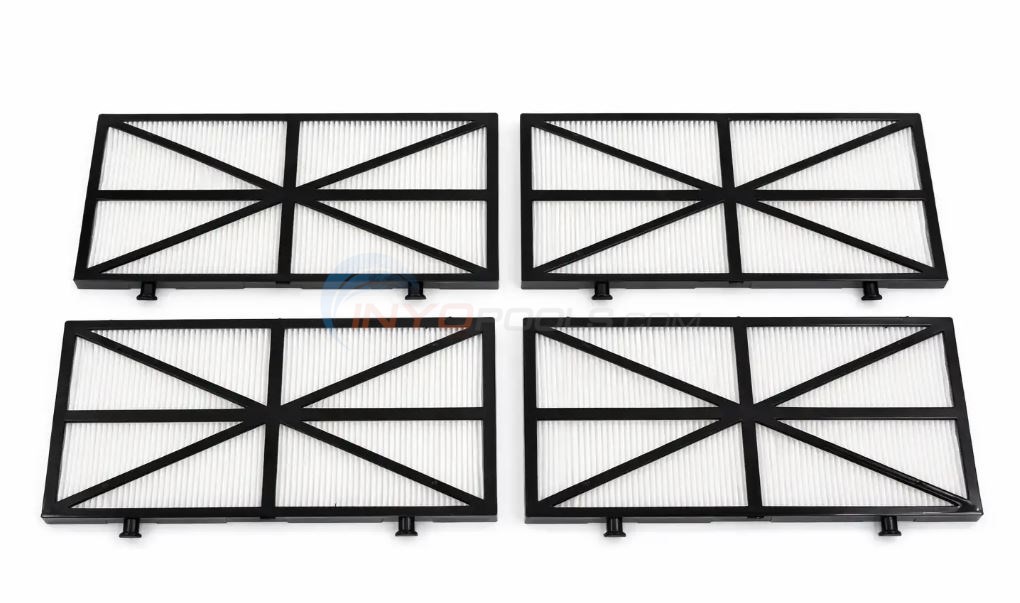

Ultra Fine Filters 4PK

Part # 3295-327 Mfg # 9991425-ASSY

Ultra Fine Filters 4PK

$69.99 IN STOCK

Qty:

Wheel Tube Assembly

Part # 99955956-ASSY

Wheel Tube Assembly

$79.95 IN STOCK

Qty:

Full Brush (no foam rings required)

Part # 3295-025 Mfg # 6101635

Full Brush (no foam rings required)

$13.07 IN STOCK

Qty:

Combined Brush (foam rings required)

Part # 3295-461 Mfg # 6101656

Combined Brush (foam rings required)

$33.58 IN STOCK

Qty:

Climbing Ring 4PK

Part # 3295-457 Mfg # 6101611-R4

Climbing Ring 4PK

$44.75 IN STOCK

Qty:

Wonder Brush Pair

Part # 3295-489 Mfg # 9995560-ASSY

Wonder Brush Pair

$137.53 IN STOCK

Qty:

Float

Part # 6250946

Float

$15.98

Brush Support

Part # 9980640

Brush Support

$75.68

60' Cable,Swivel,DIY Plug,Metal Spring,3W

Part # 9995872-DIY

60' Cable,Swivel,DIY Plug,Metal Spring,3W

$299.99 IN STOCK

Qty:

Non Return Diaphragm

Part # 3295-257 Mfg # 9980220

Non Return Diaphragm

$24.50 IN STOCK

Qty:

Motor Assy 3HR.

Part # 9995369RD-EX

Motor Assy 3HR.

$399.99

Bottom Lid Assembly

Part # 3295-328 Mfg # 99919117

Bottom Lid Assembly

$37.82 IN STOCK

Qty:

Filter Bag - 70 Micron

Part # PL4305

Filter Bag - 70 Micron

$44.77

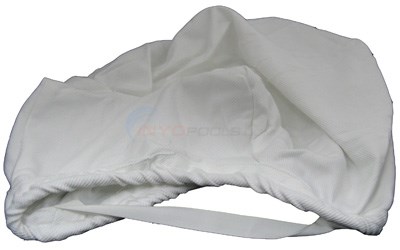

Filter Bag - 50 Micron

Part # PL4303 Mfg # 9995430-R1

Filter Bag - 50 Micron

$33.58

Filter Bag Clip

Part # 3295-050 Mfg # 9981430-R2

Filter Bag Clip

$10.03 IN STOCK

Qty:

Filter Bag - Disposable 2PK

Part # 99954306-ASSY

Filter Bag - Disposable 2PK

$71.42 IN STOCK

Qty:

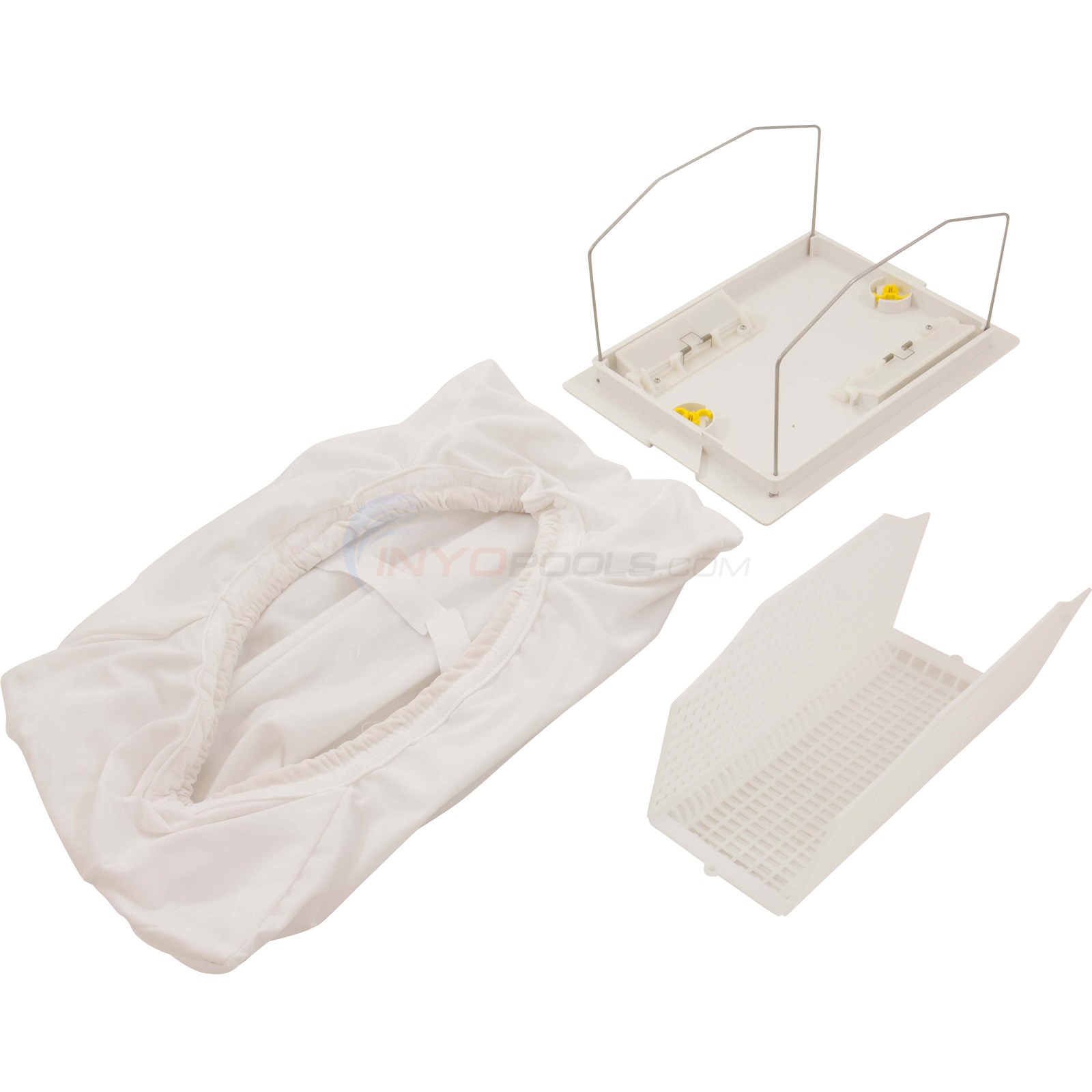

Filter Bag Conversion Kit

Part # 99954305-RK1

Filter Bag Conversion Kit

$79.99 IN STOCK

Qty:

Power Supply

Part # 9995678-US-ASSY Mfg # 9995678-US-ASSY

Power Supply

$299.99 IN STOCK

Qty:

Amphenol Socket For Power Supply

Part # 3295-219 Mfg # 5020011

Amphenol Socket For Power Supply

$10.65 IN STOCK

Qty:

Amphenol Socket Cover For Power Supply

Part # 3295-044 Mfg # 5020012

Amphenol Socket Cover For Power Supply

$8.52 IN STOCK

Qty:

7' Power Cord

Part # 5898412LF

7' Power Cord

$20.22 IN STOCK

Qty:

Remote Control

Part # 3295-471 Mfg # 99954226-R1

Remote Control

$99.99 IN STOCK

Qty:
